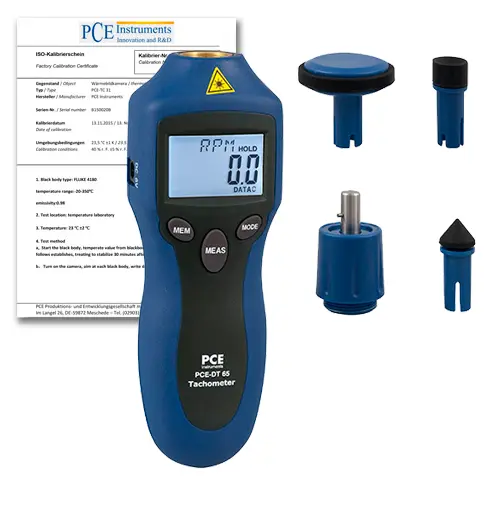

PCE-DT 65 Tachometer-ICA incl. ISO calibration certificate
For both contact and non-contact measurements of rotation speed and linear speed

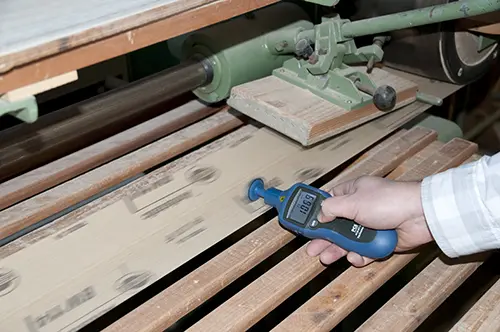

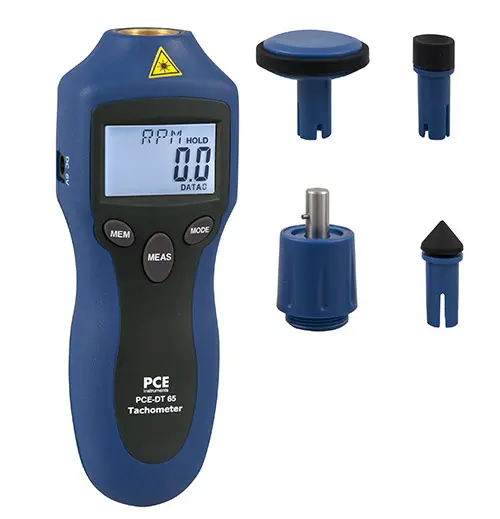

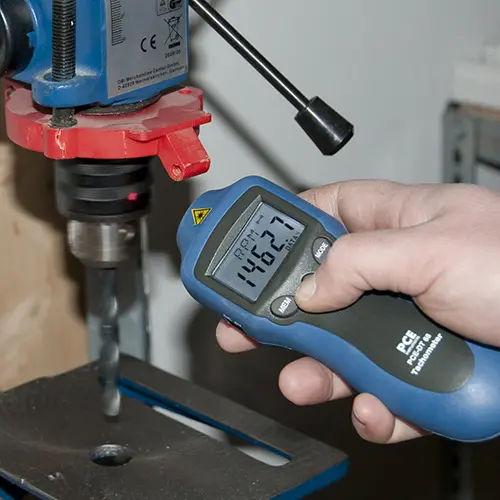

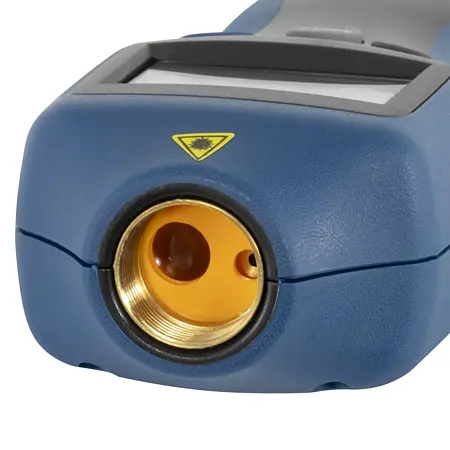

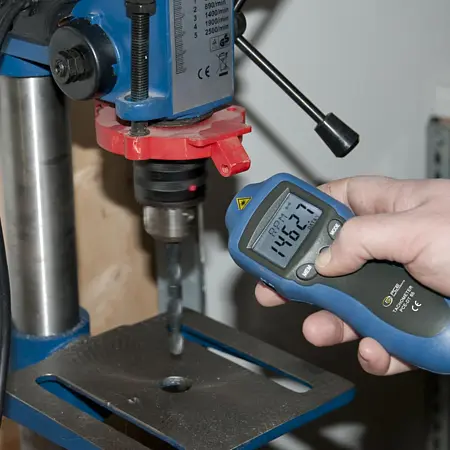

PCE-DT 65 is a digital handheld tachometer, or rotation meter, that can take both contact and non-contact measurements of rotation speed and linear speed. This handheld tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts.

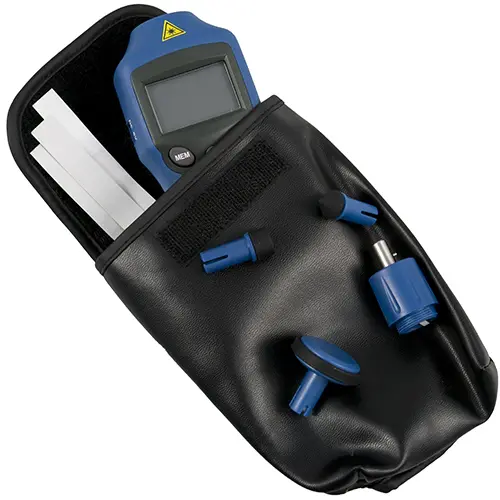

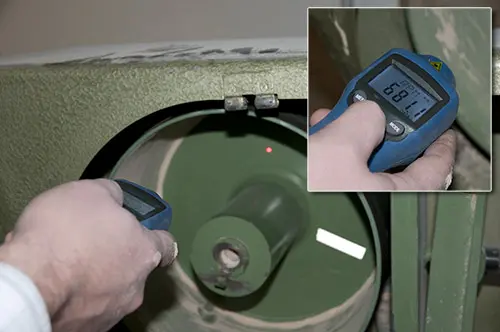

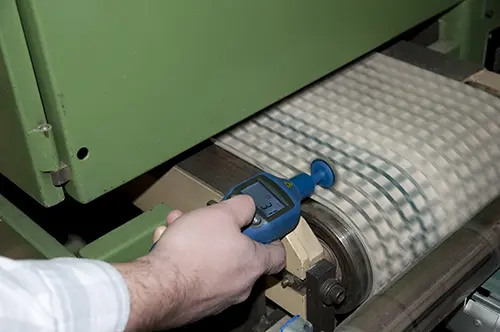

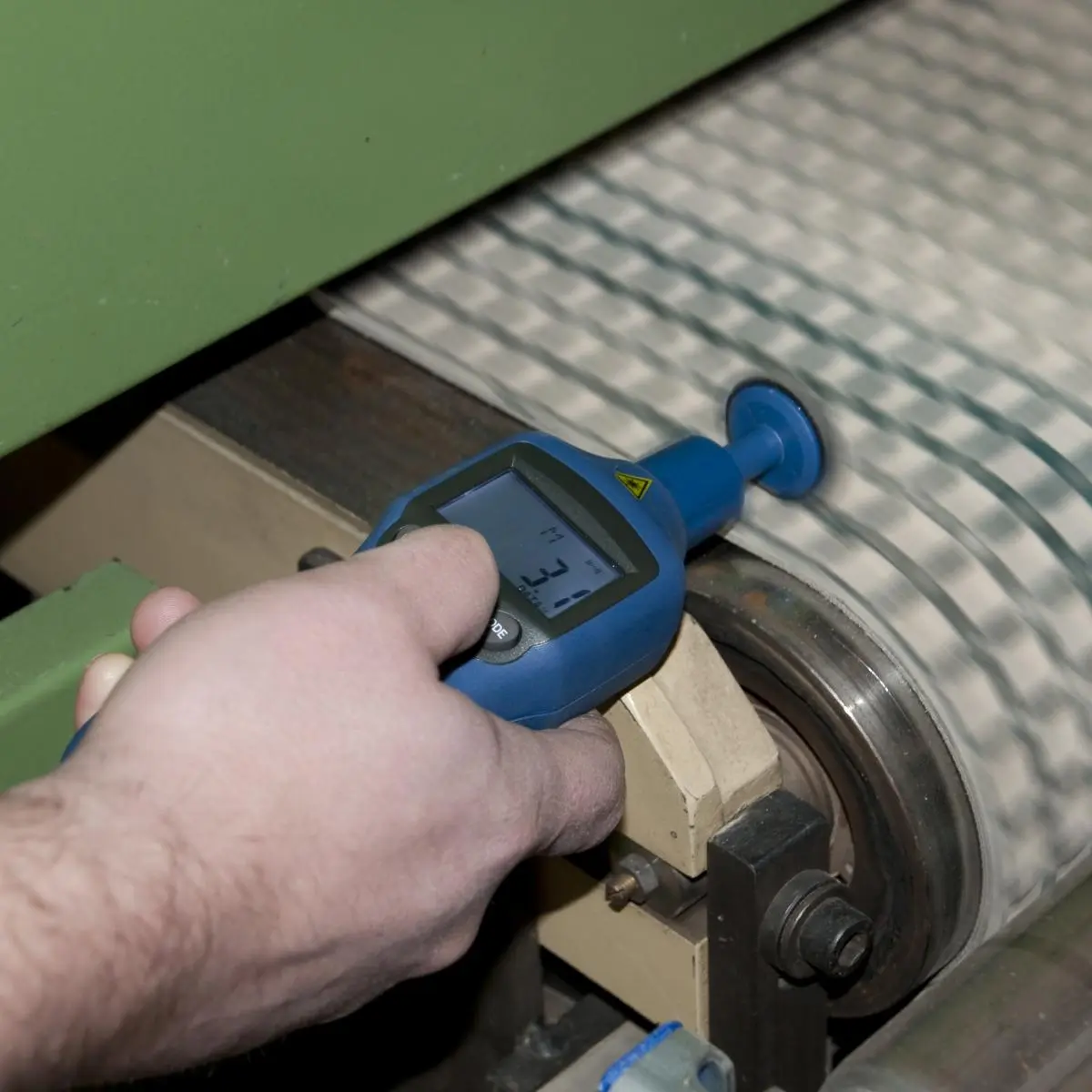

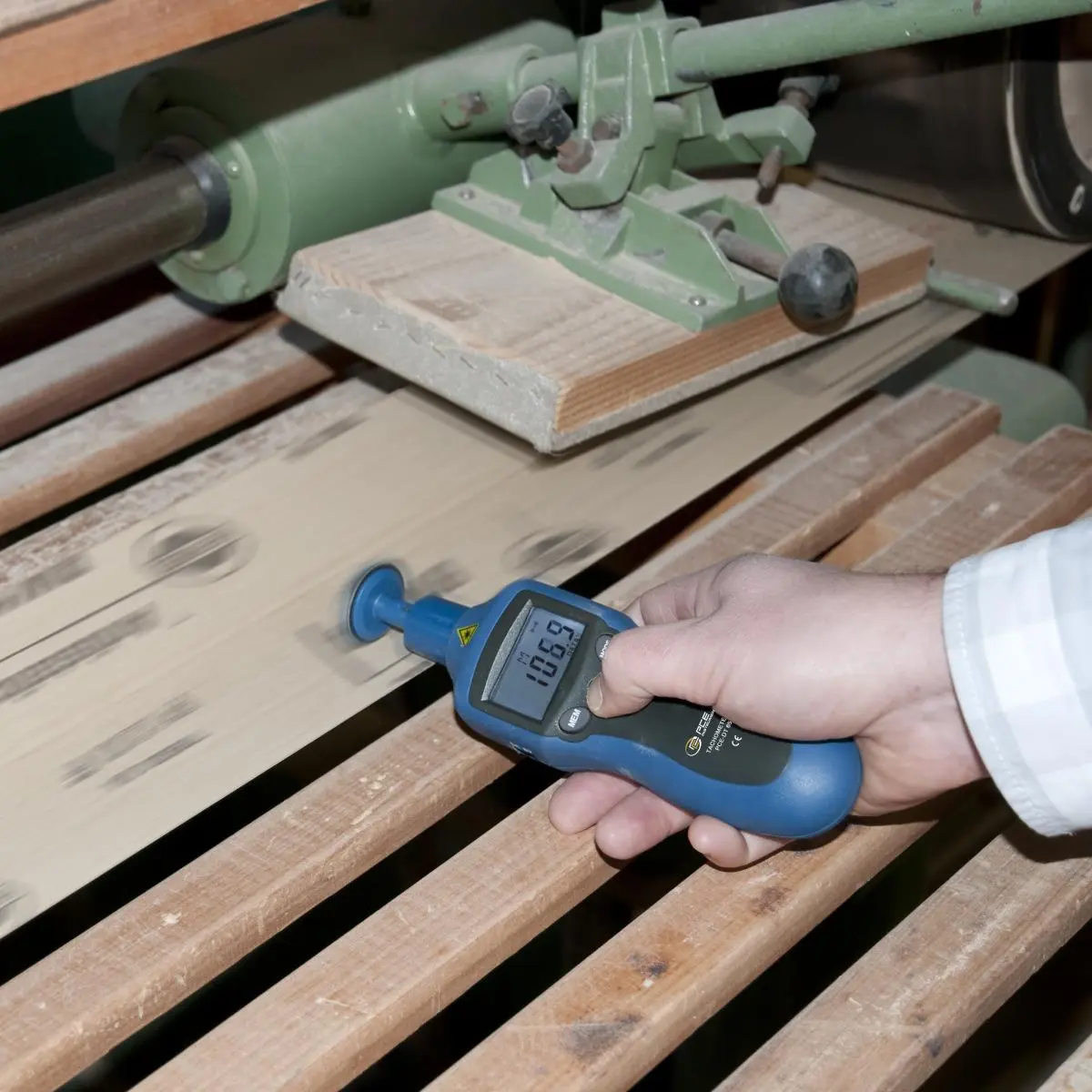

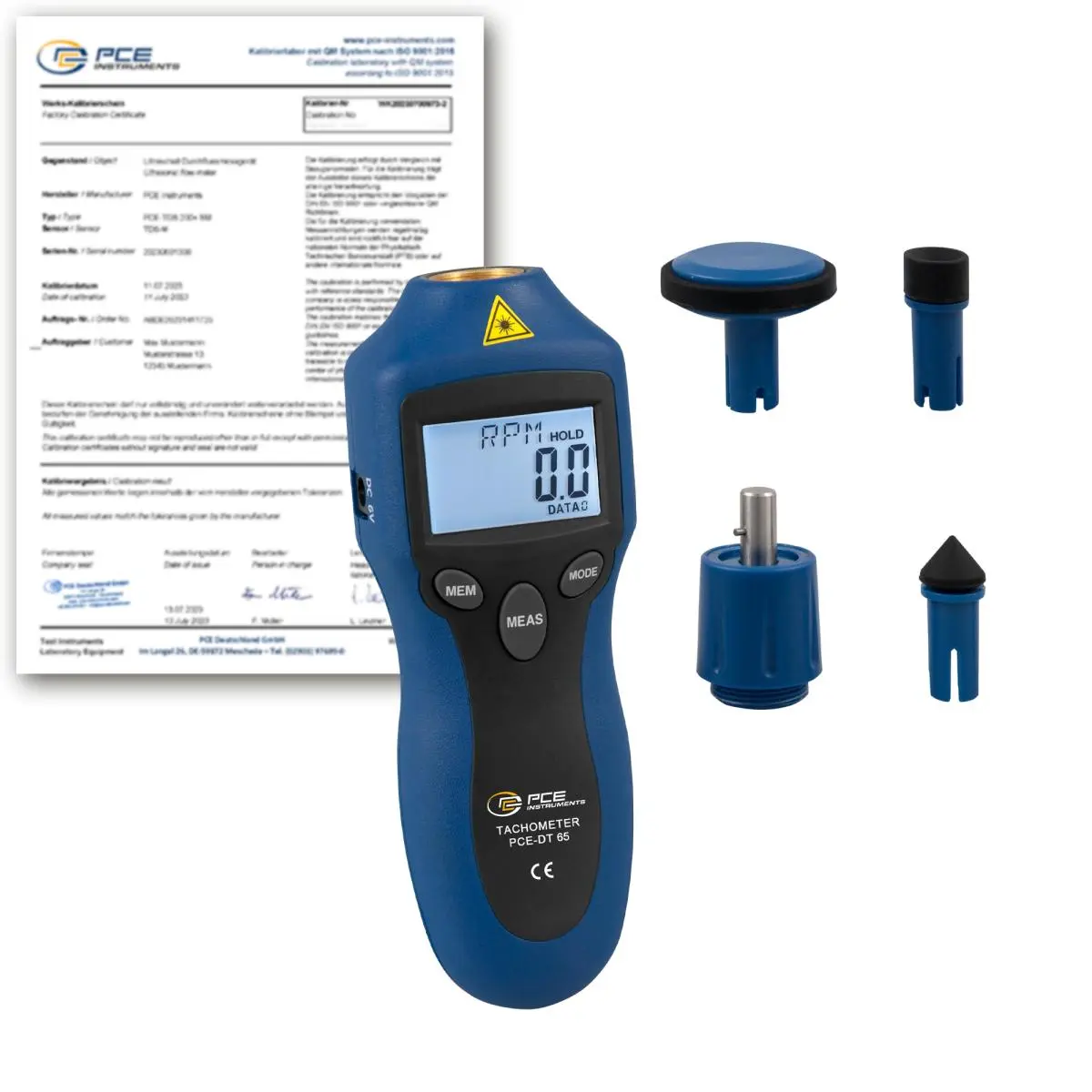

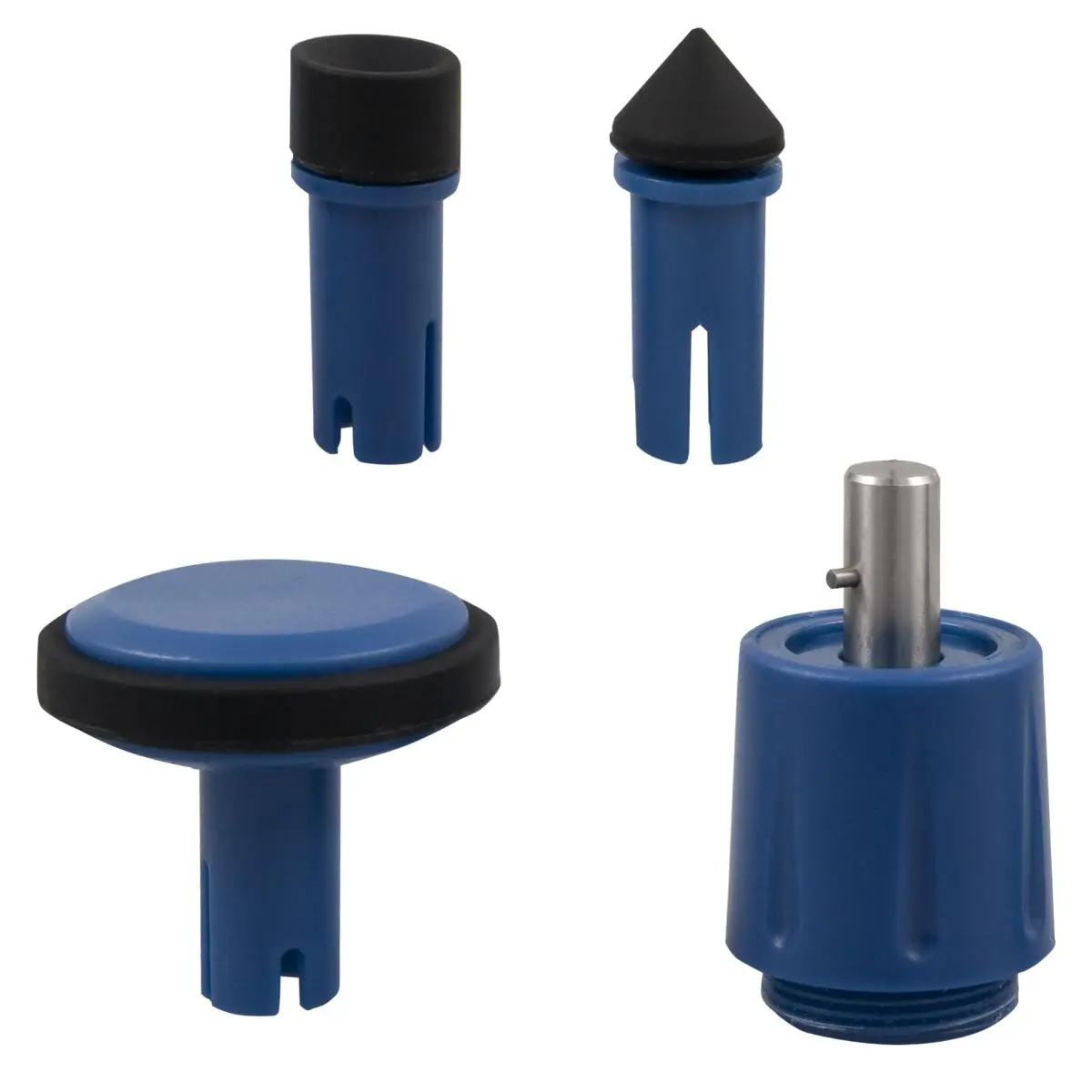

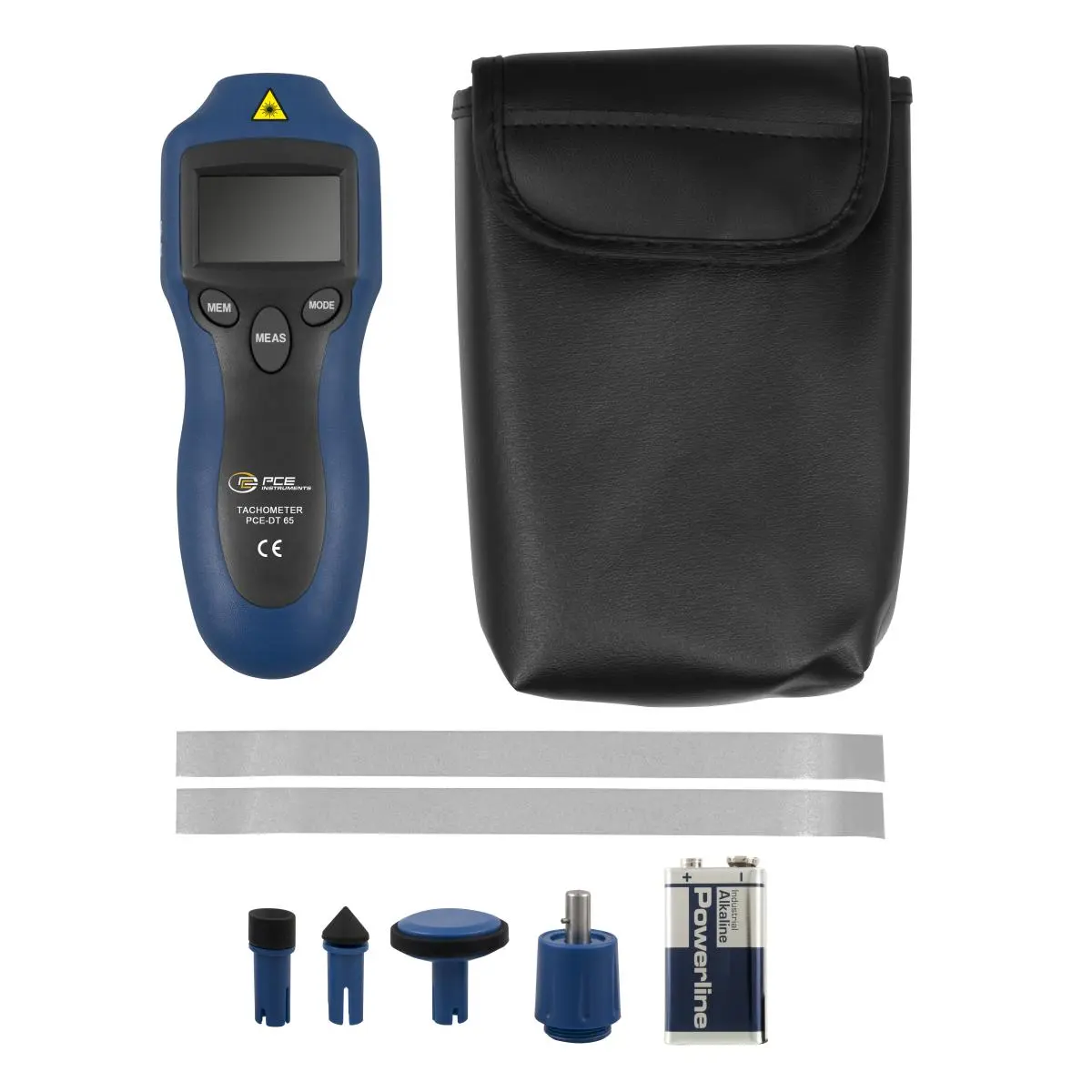

Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. 3 x strips of reflective tape (each 20 mm or 0.8 in) are included in the delivery contents. (For additional reflective tape, please see the accessories tab.) Contact measurements are taken using the included mechanical attachment and contact probes. The tachometer comes factory calibrated. Optional ISO calibration is available for an additional fee - see accessories for details.
| Mechanical speed | |
| Measuring range | 2 ... 9999,9 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Mechanical speed | |
| Measuring range | 10000 ... 20000 RPM |
| Resolution | 1 RPM |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Optical speed | |
| Measuring range | 2 ... 9999,9 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Optical speed | |
| Measuring range | 10000 ... 99999 rpm |
| Resolution | 1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| General technical data | |
| Measuring functions | AVG, MIN, MAX, HOLD |
| Display type | LCD with backlight |
| Measuring rate | 0,5 s |
| Sampling rate (additional information) | over 120 rpm |
| Storage medium | Internal memory |
| Storage capacity | 10 Data records |
| Automatic power-off | 15 s |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Measuring distance | 50 ... 500 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 6 V DC |

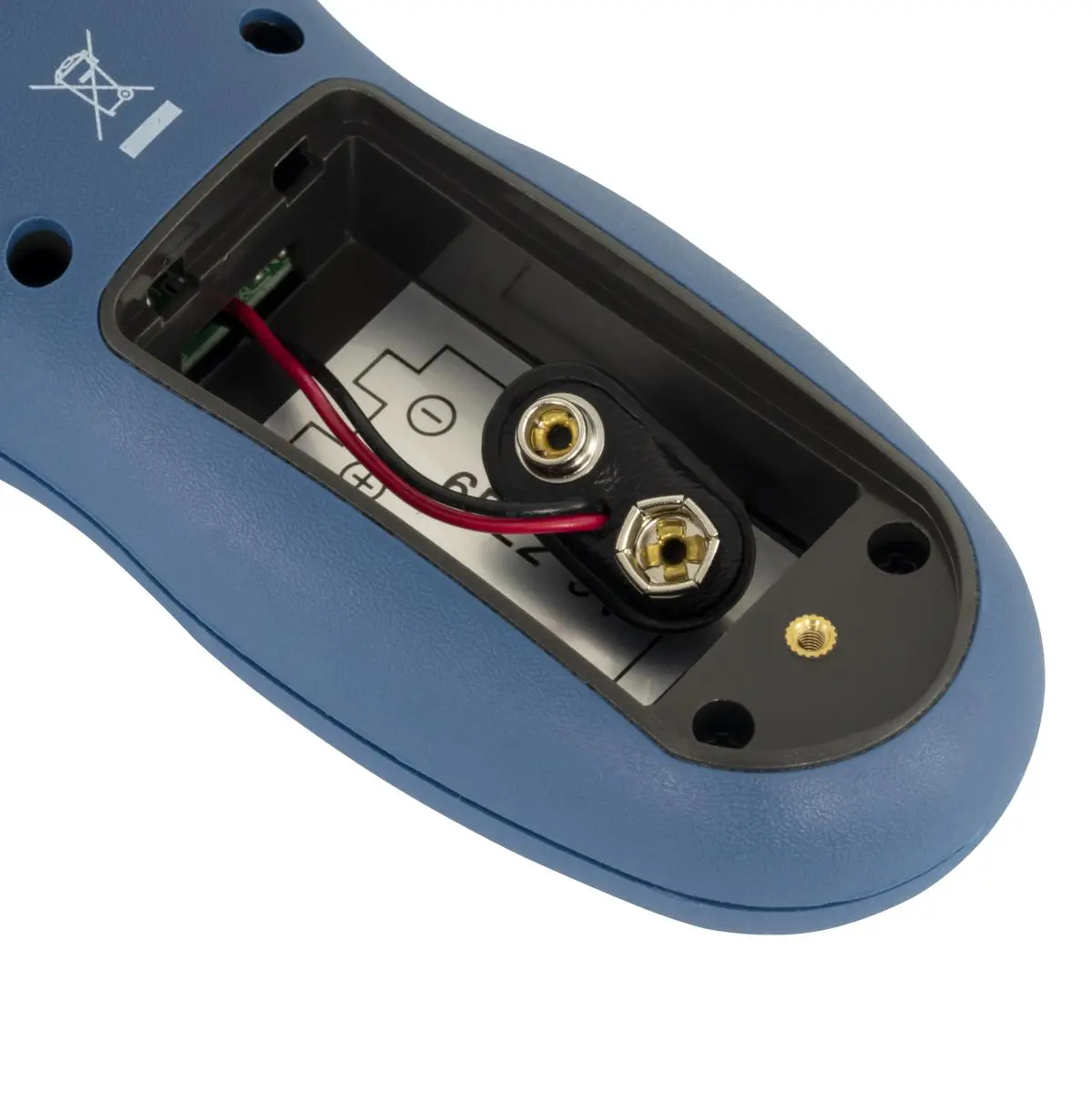

| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 160 x 60 x 42 mm |
| Weight | 124 g |
