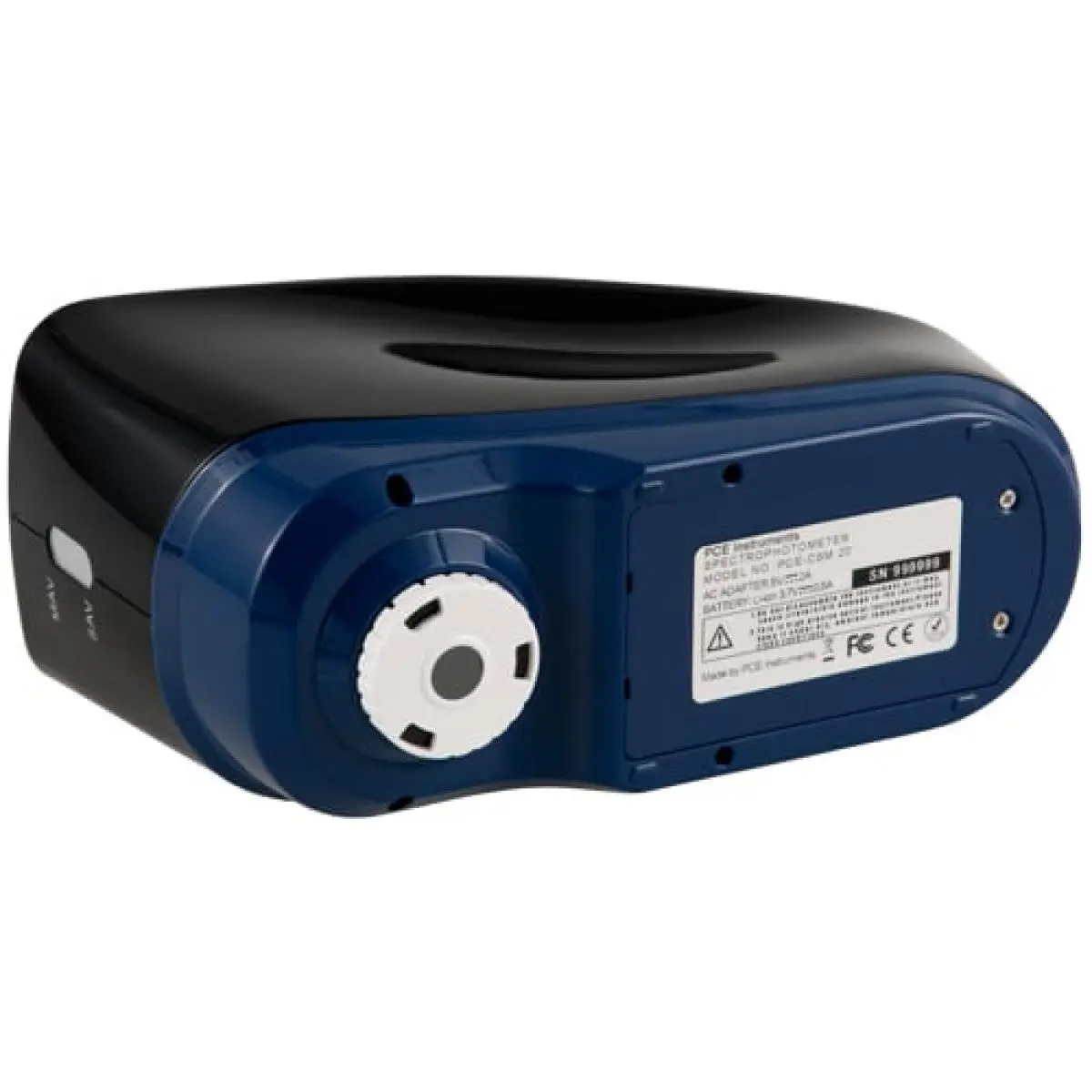

Spectrophotometer PCE-CSM 20

Order no.: PCE-CSM 20

GTIN (EAN): 4250348717719

Accessory

Calibration certificate CAL-CSM

AED 2,047.00

Powder Test Box PTB-PCE

AED 2,116.00

Description

Spectrophotometer

High-quality spectrophotometer /

Powerful lithium-ion battery / Single or average value measurement /

Evaluation via software / 4 color LED as light source

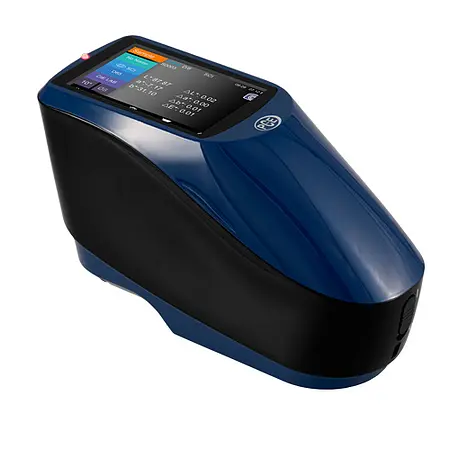

PCE-CSM 20 is a handheld spectrophotometer used for high-quality color measurement. Featuring a single 8 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the PCE-CSM 20 offers a long battery life, a long life 4-color lamp and an easy-to-use portable design. Camera/illumination locating for small samples.

The high-quality processing of the spectrophotometer is very fast. Whilst working with the spectrometer the high measuring accuracy of the device is important. In production grade and quality assurance, a spectrophotometer is often used. Here it is important that a constant quality is always produced and that individual parts not only look similar, but look identical. For this, a high measurement quality is of great importance. Depending on the model, the measured data can be transmitted to a computer via included USB. Appropriate software is also included in the delivery contents.

Highlights

- Long battery life

- USB cable for data transfer to included software

- Portable for ease of use

- Reference memory of 2000 colors, storage for 20,000 samples

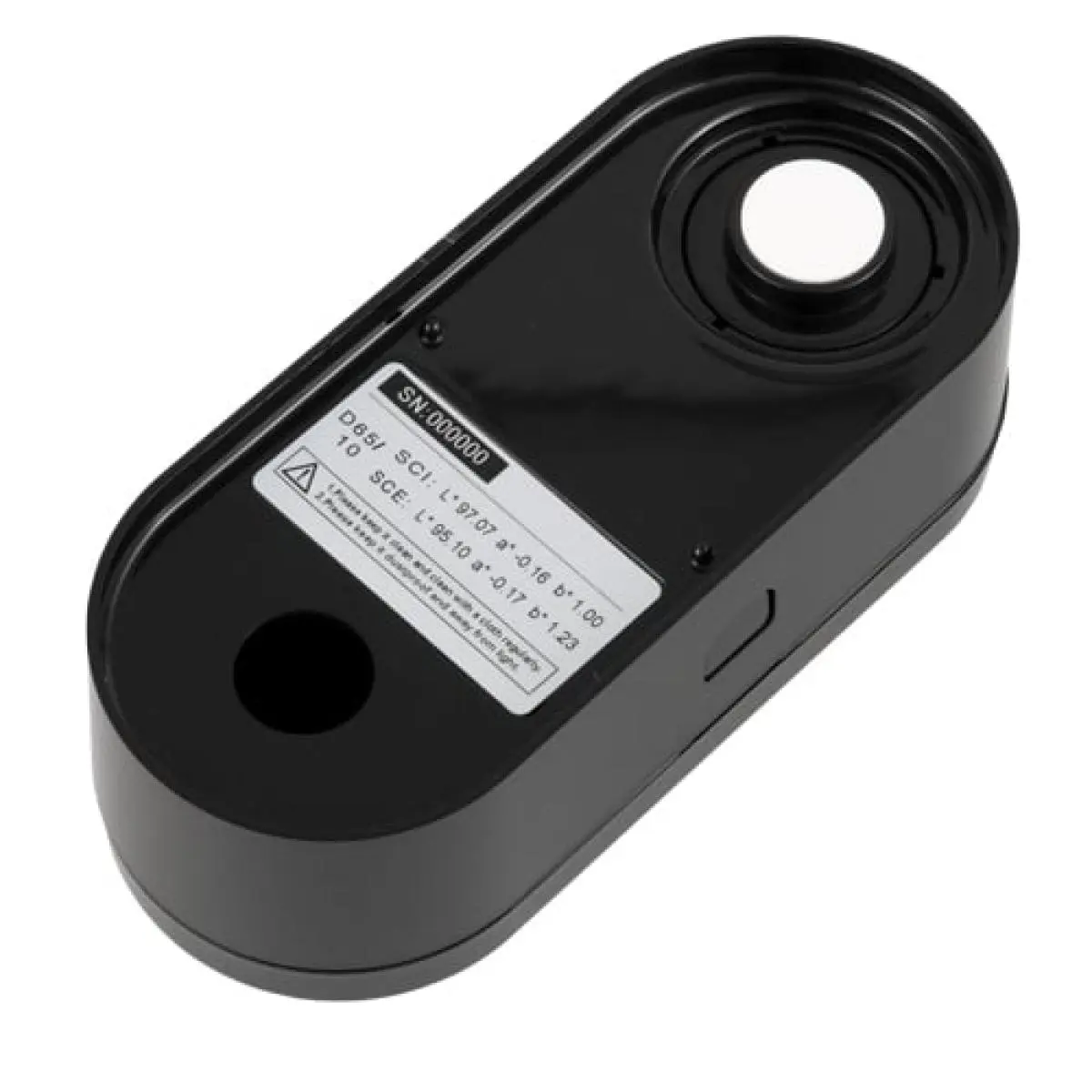

- Includes white and black calibration standards

- High measuring accuracy and stability with 4 illumination choices

- Single and average measurements with delta pass/fail display

- Spectrophotometer measures from 400 to 700 nm in 10 nm increments

- Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM

E1164, DIN5033 Teil

Specification

General technical data
Display type	TFT colour display
Display size	3,5 Inch
Storage medium	Internal memory
Storage capacity	20000 Values
Memory capacity (additional information)	2000 standard values, 25000 samples

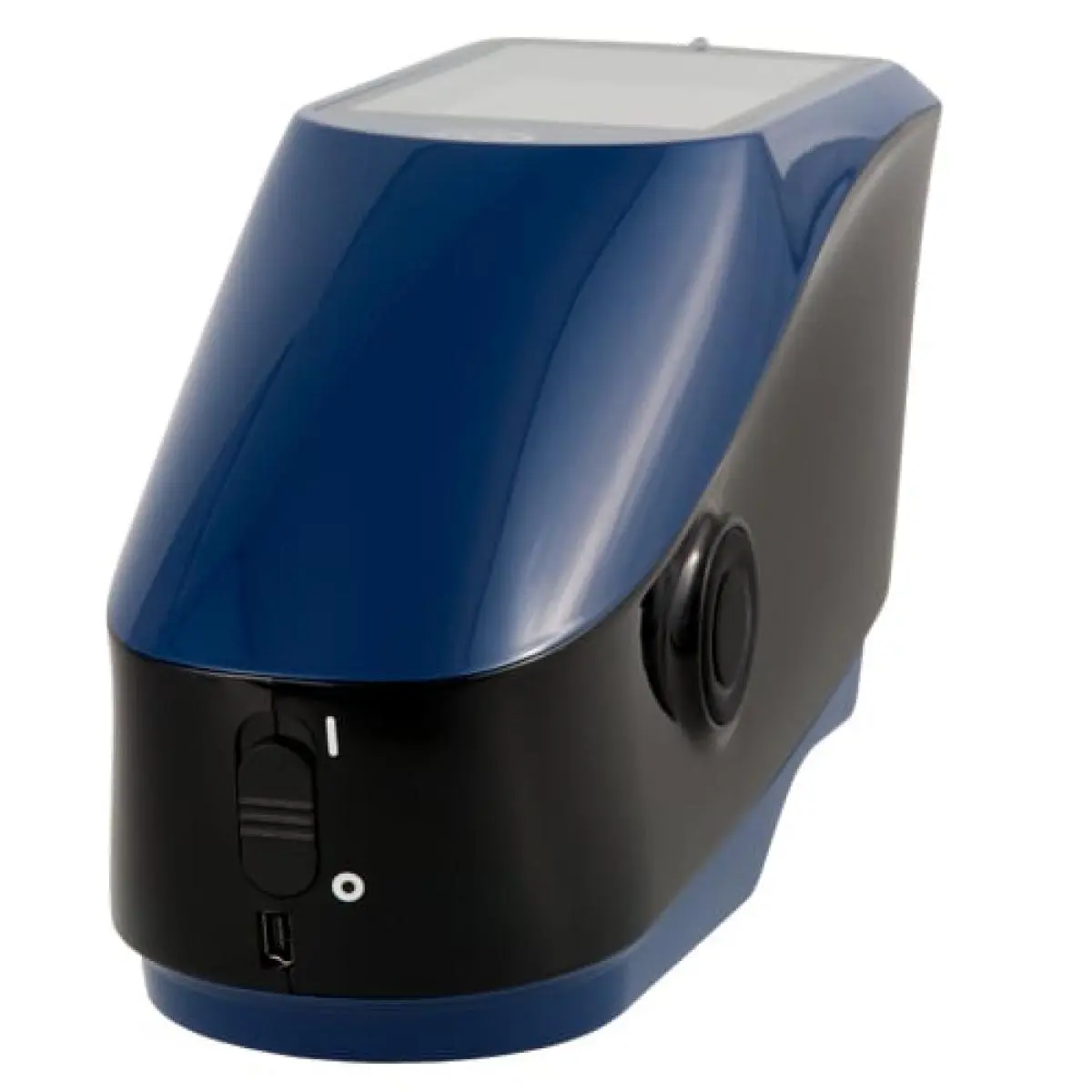

Interface	Mini-USB
Sensor	CMOS
Light source	LED lighting system, UV light Illuminant: D65, A, C, D50
Measurement time	2,6 s

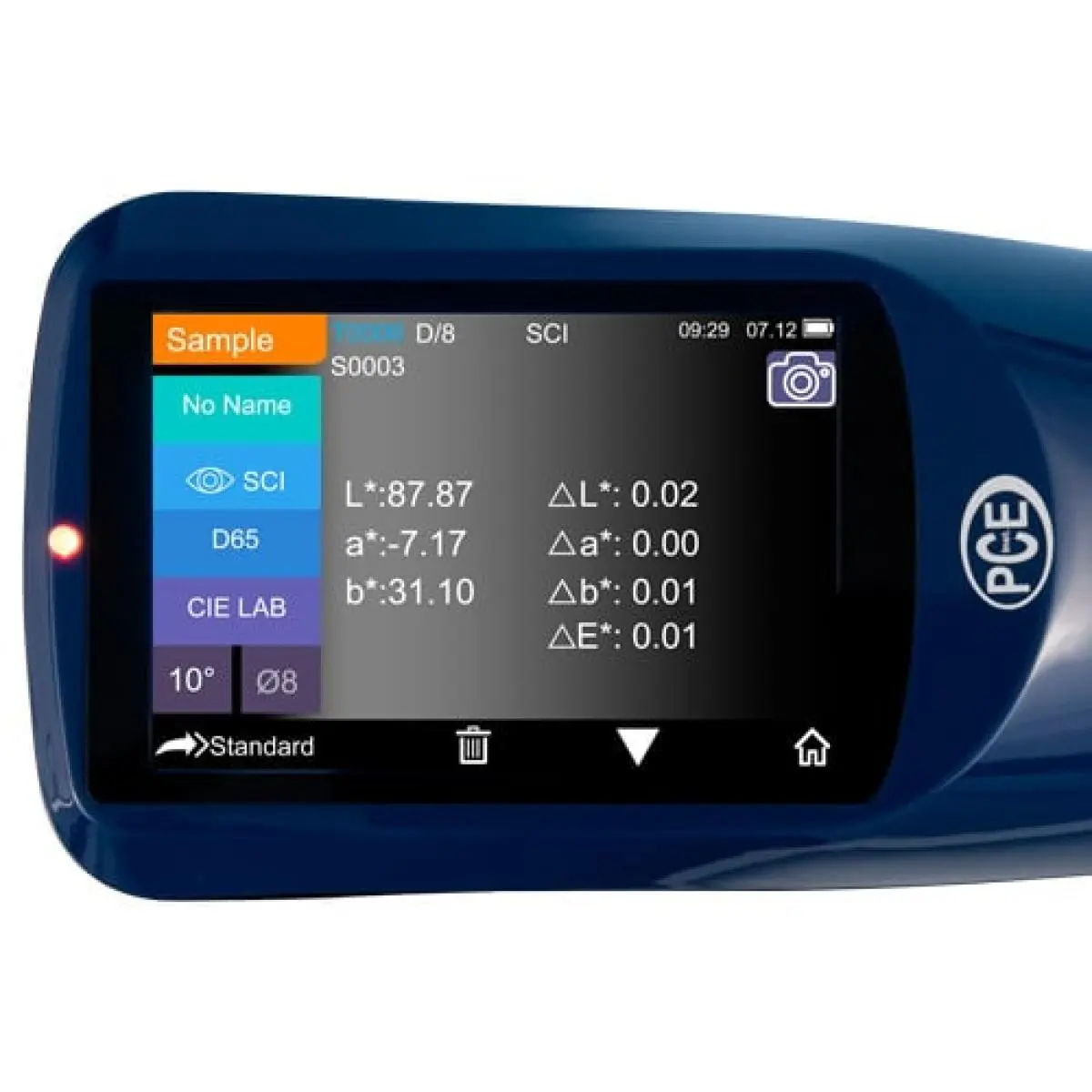

Colour spaces	XYZ, Yxy, LCh, CIEL u* v*
Colour difference	ΔEab ΔEuv ΔE94 ΔEcmc(2:1) ΔEcmc(1:1) ΔE00v ΔE(Hunter)
Measuring aperature	Ø 8 mm
Measuring geometry	8°/d
Gloss component	SCI (Specular Component Included), SCE (Specular Component Excluded)
Wavelength range	400 ... 700 Nm
Observer	2°, 10°

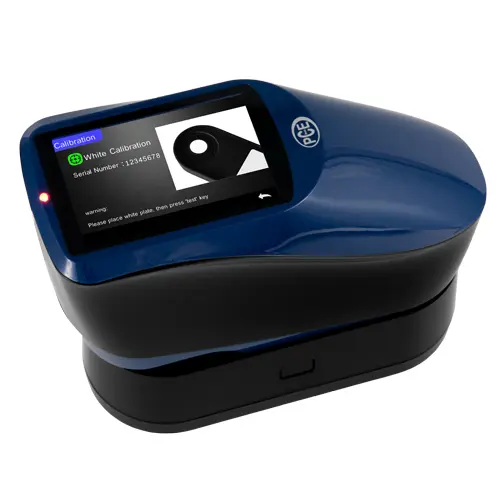

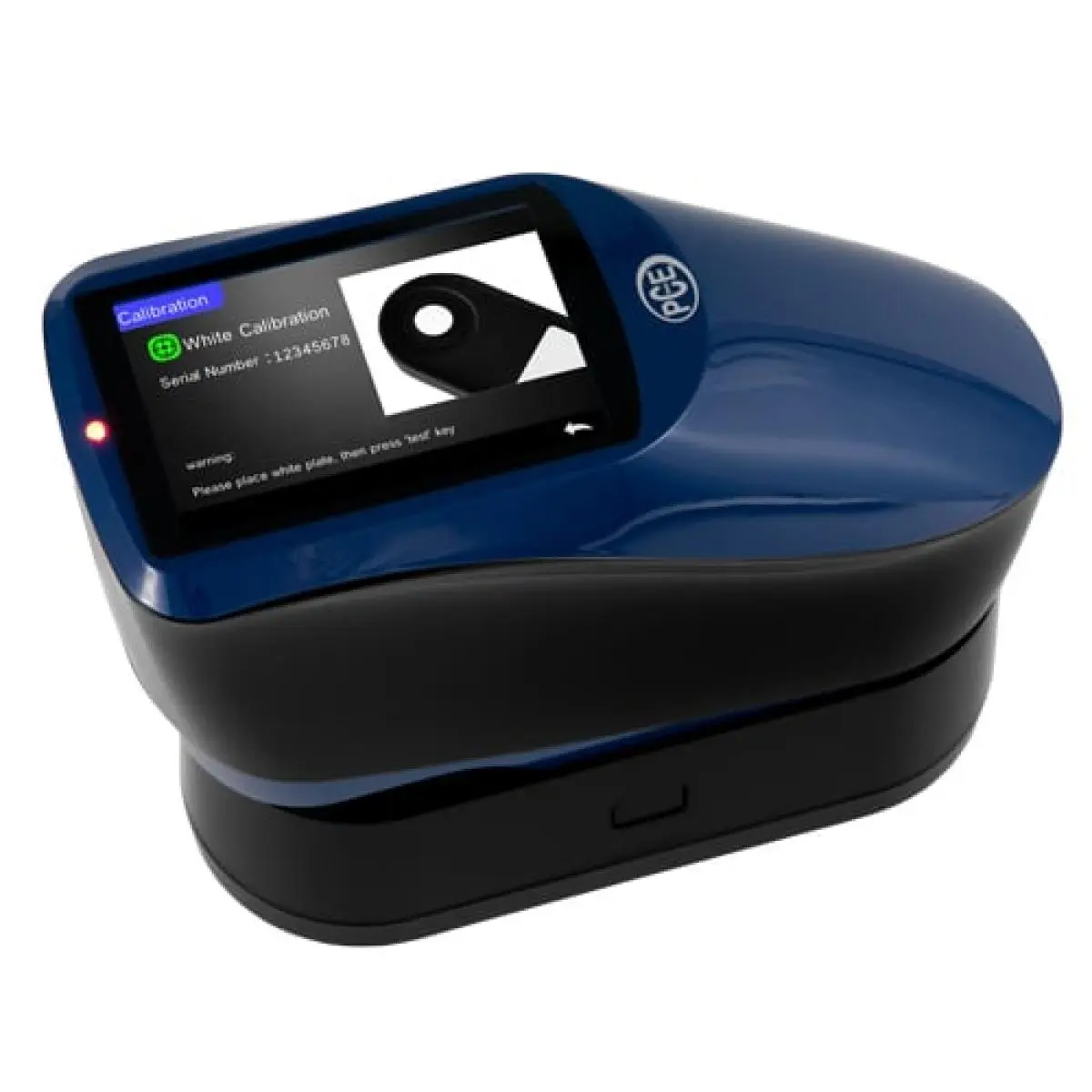

Calibration	White or black calibration selectable
Menu language	English, Chinese, English (GB)
Protection class (device)	IP20
Power supply	5 V DC, 2 A
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion battery
Capacity	3200 mAh
Operating conditions	0 ... 40 °C , 0 ... 85 % RH
Storage conditions	-20 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	184 x 77 x 105 mm
Weight	600 g
