Snake Camera PCE-VE 200-S3

[zoom]

Snake Camera PCE-VE 200-S3

Order no.: PCE-VE 200-S3

GTIN (EAN): 4250348718136

Accessory

Camera cable with front and side camera 9 mm PCE-VE 200-SCSV1 Length: 1 m

AED 1,150.00

Camera cable with front and side camera 9 mm PCE-VE 200-SCSV3 Length: 3 m

AED 1,495.00

Camera cable 3.7 mm PCE-VE 200-SCS3 Length: 3 m

AED 2,203.00

Camera cable 3.7 mm PCE-VE 200-SCS1 Length: 1 m

AED 1,725.00

Spare Battery for PCE-VE 200 Series

AED 161.00

Semi-Flexible Camera Cable for PCE-VE 200 Series

AED 920.00

Description

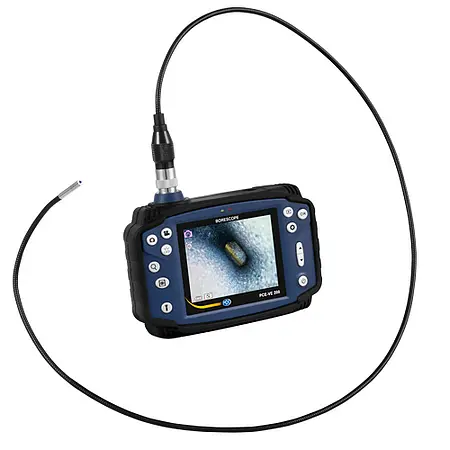

PCE-VE 200-S3 Snake Camera
Extra small diameter (ø 3.7 mm) industrial endoscopic video inspection camera with 3 m / 9.8 ft longer length cable provides excellent image quality at an affordable price

PCE-VE 200-S is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The borescope stores the recorded images and videos directly to a micro SD card memory. The 3 m / 9.8 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

Highlights

- Waterproof camera head (IP67 protection class)

- 3.7 mm / 0.14 in diameter

- 3 m / 9.8 ft cable length

- 180° screen rotation

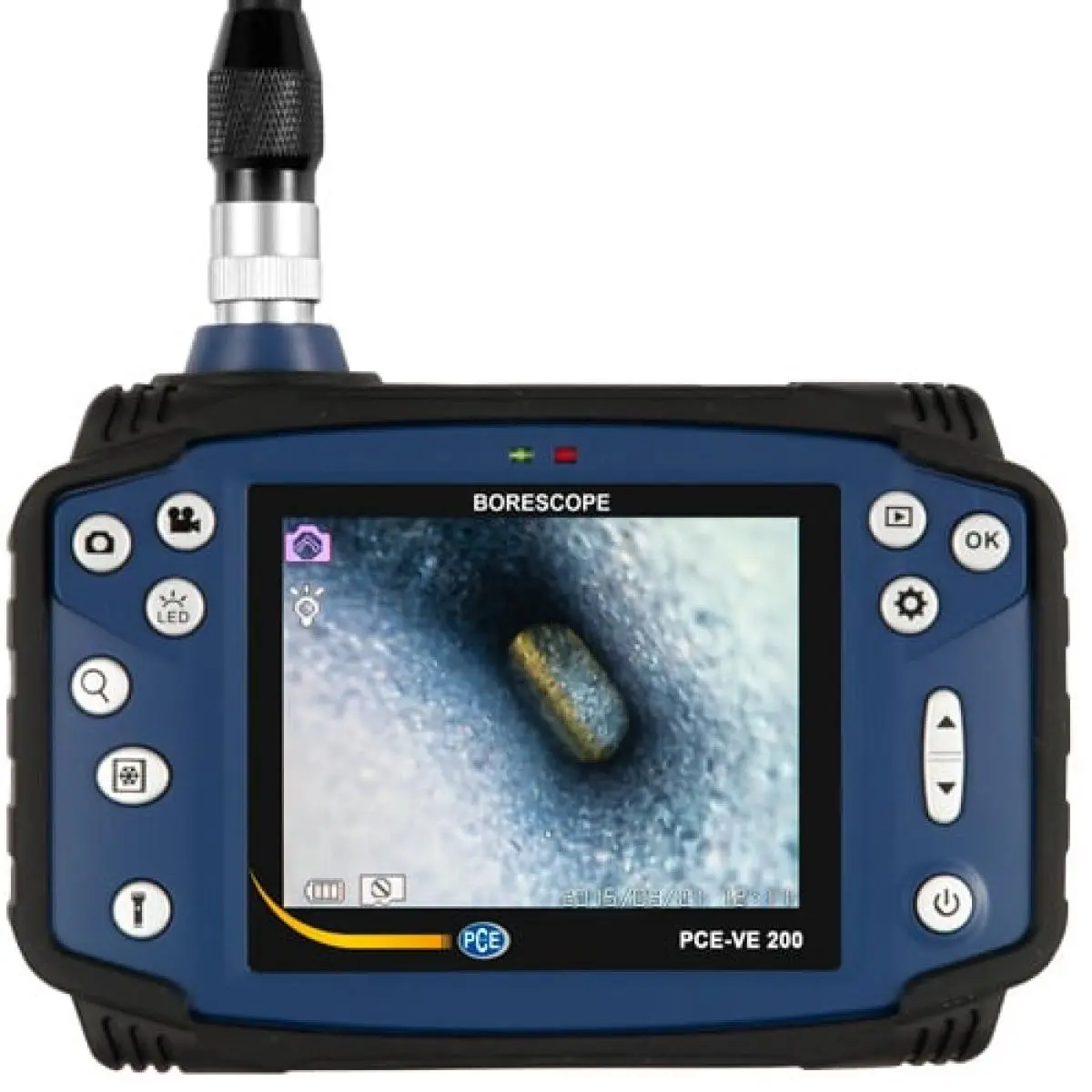

- 3.5" LCD display

- CMOS chip image sensor

- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution

- Micro SD card memory

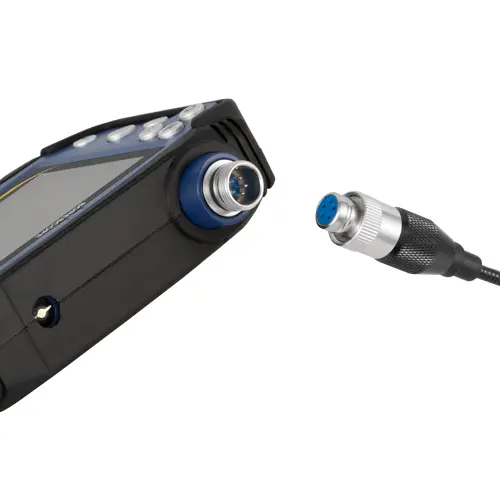

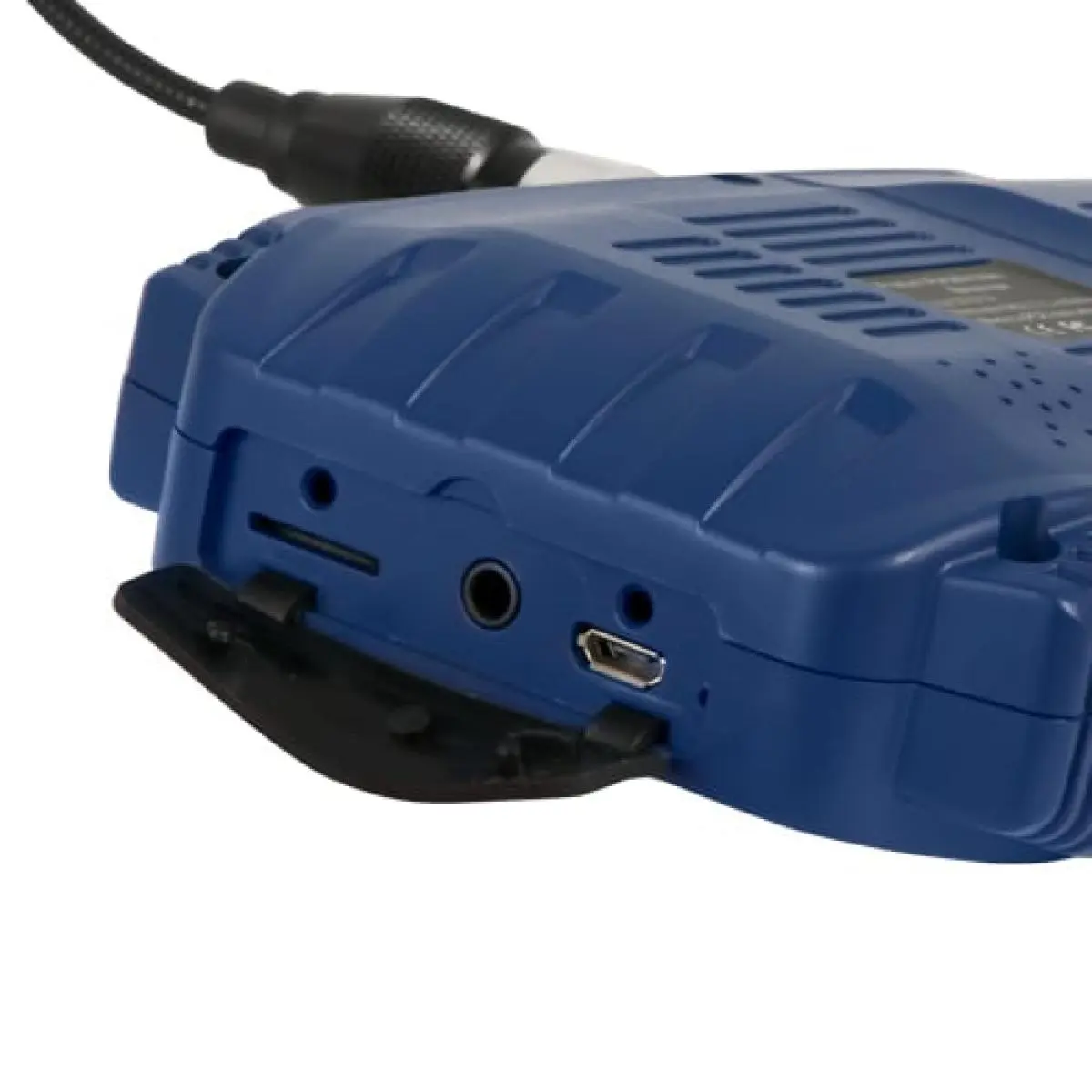

- Micro USB 2.0 and TV outputs

Customer review

"I received my PCE-VE 200-S3 borescope this past Thursday. To say I was quite

pleased with it would be an understatement. I was unsure how good the

resolution would be, but I needn’t have worried: it was great! It was easy to

use without even reading the instructions. It is one of the best values I have

seen. I have already used it to find a small part that had fallen (twice) into

the nether regions of my car while I was working on it. ... I will look to PCE

in the future to fulfill similar needs."

- Tom Treue, McAlester, Oklahoma, USA

Specification

General technical data
Resolution	Video: AVI 640 x 480 Image: JPEG 1600 x 1200
Measuring functions (additional information)	HOLD
Display type	LCD
Display size	3,5 Inch
Storage medium	Micro SD card
Interface	Micro-USB, TV output (PAL), Micro SD card
Sensor	CMOS
Camera resolution	640 x 480 Pixel
Camera orientation	frontal 0°
Operating time	5 h
Camera head diameter	3,7 mm
Camera probe length	3 m
Camera probe material	Metal
Camera probe movement	semi-rigid
Protection class camera probe	IP67
Field of vision	90 °
Depth of field of vision	15 ... 100 mm
Luminous intensity	6 white LEDs (intensity adjustable)
Menu language	German, English, Chinese, French, Spanish, Japanese, Russian
Protection class (device)	IP54
Power supply	AC 100 ... 240 V \| Hz 50/60
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V 18650 , Lithium-ion battery
Capacity	2600 mAh
Operating conditions	-10 ... 50 °C , 15 ... 90 % RH
Storage conditions	-10 ... 50 °C , 15 ... 90 % RH
Dimensions ( L x W x H )	110 x 145 x 38 mm
Weight	354 g
