Psychrometer PCE-HVAC 3S

Psychrometer PCE-HVAC 3S

Order no.: PCE-HVAC 3S
GTIN (EAN): 4250348723550

AED 1,205.00
AED 1,265.25
price ex. (customs / clearance)
:
4250348723550
PCE-HVAC 3S
Delivery time:1-2 working days

Description

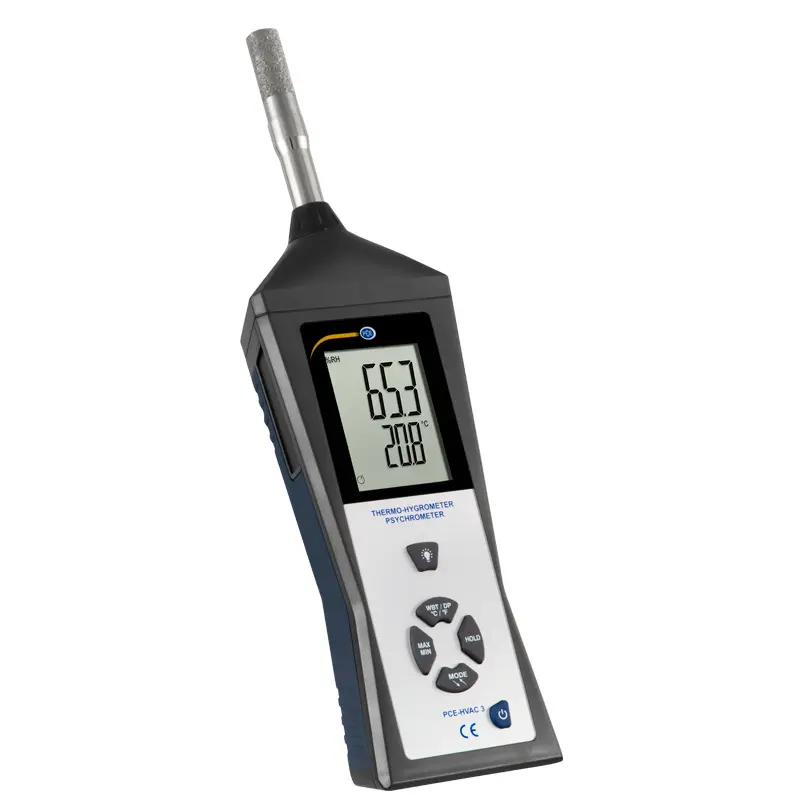

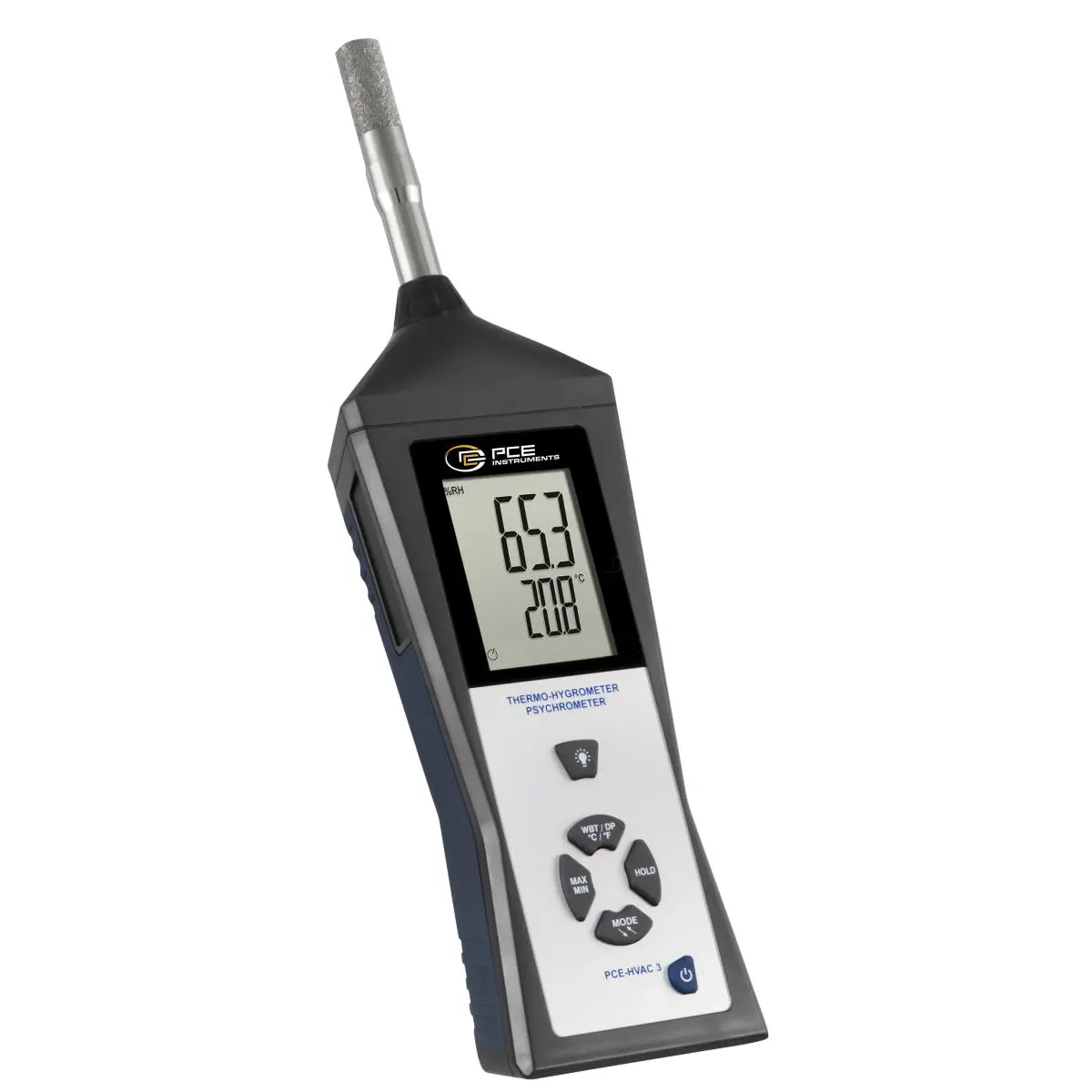

Psychrometer
Environmental measuring device in an ergonomically shaped housing / Backlighting / For recording ambient humidity (% rH) and room temperature (°C / °F) / Calculation of dew point and wet bulb temperature in °C and °F / Extreme value measurement

The psychrometer is a multifunctional diagnostic device for climate testing. In addition to the ambient humidity and room temperature, the environmental measuring device also determines the dew point and wet bulb temperature in °C and °F. The heat and climate measurement and installation is therefore one of the core areas of application of the psychrometer. The measurement of ambient humidity and temperature is determined directly via the built-in sensors. In addition, there is the option of showing the dew point temperature and wet bulb temperature on the display. The basis for the calculation are the values ​​transmitted via the sensors.

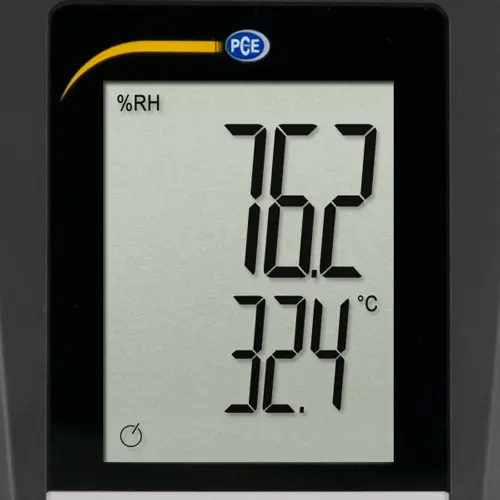

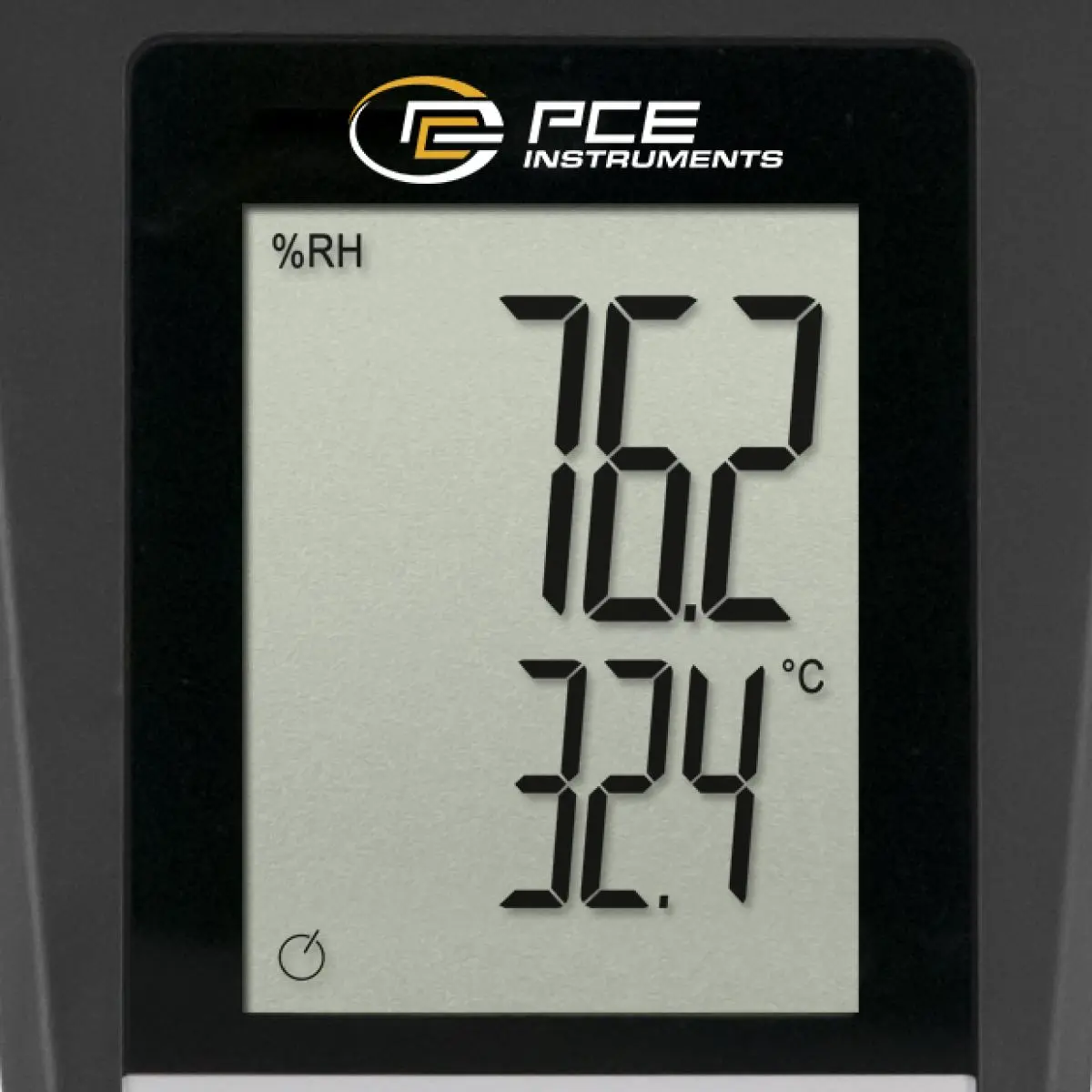

In addition to the large, easy-to-read dual display, which also offers the option of lighting, the psychrometer needs six buttons, which is the reason why it is an intuitively operated measuring instrument that performs extensive climate tests in private and professional Area in a simple way. In addition to the one-off measurement with the climate measuring device, condition monitoring can also be carried out over a long period of time. The psychrometer is equipped accordingly.

Highlights

- Ergonomically shaped housing
- One-hand operation
- Background lighting
- HOLD and extreme value display
- Automatic switch-off can be deactivated
- Measurement of dew point and wet bulb temperature

Specification

Absolute moisture
Measuring range  0 ... 500 g/m³

Absolute moisture
Measuring range  0 ... 212,5 g/ft³

Wet bulb temperature
Measuring range  0 ... 80 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Wet bulb temperature
Measuring range  32 ... 176 °F
Resolution  0,18 °F
Accuracy  ±1.8 °F

Dew point
Measuring range  -30 ... +100 °C
Resolution  0,1 °C
Accuracy  ±1°C

Dew point
Measuring range  -22 ... +212 °F
Resolution  0,18 °F
Accuracy  ±1.8°F

Relative humidity
Measuring range  0 ... 20 %
Resolution  0,1 %
Accuracy  ±4 % RH

Relative humidity
Measuring range  20 ... 40 %
Resolution  0,1 %
Accuracy  ±3%

Relative humidity
Measuring range  40 ... 60 %
Resolution  0,1 %
Accuracy  ±2 %

Relative humidity
Measuring range  60 ... 80 %
Resolution  0,1 %
Accuracy  ±3%

Relative humidity
Measuring range  80 ... 100 %
Resolution  0,1 %
Accuracy  ±4 % RH

Temperature
Measuring range  -30 ... -19,9 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  -20 ... +60 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

Temperature
Measuring range  60 ... 100 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  -22 ... +212 °F
Resolution  0,18 °F
Accuracy  ±1.8 °F

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD
Display size  2,8 in
Response time  15 s
Operating time  48 h
Automatic power-off  10 min
Sensors  Capacitive, Thermistor
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  -40 ... 85 °C , 0 ... 99 % RH
Dimensions ( L x W x H )  300 x 75 x 50 mm
Weight  400 g

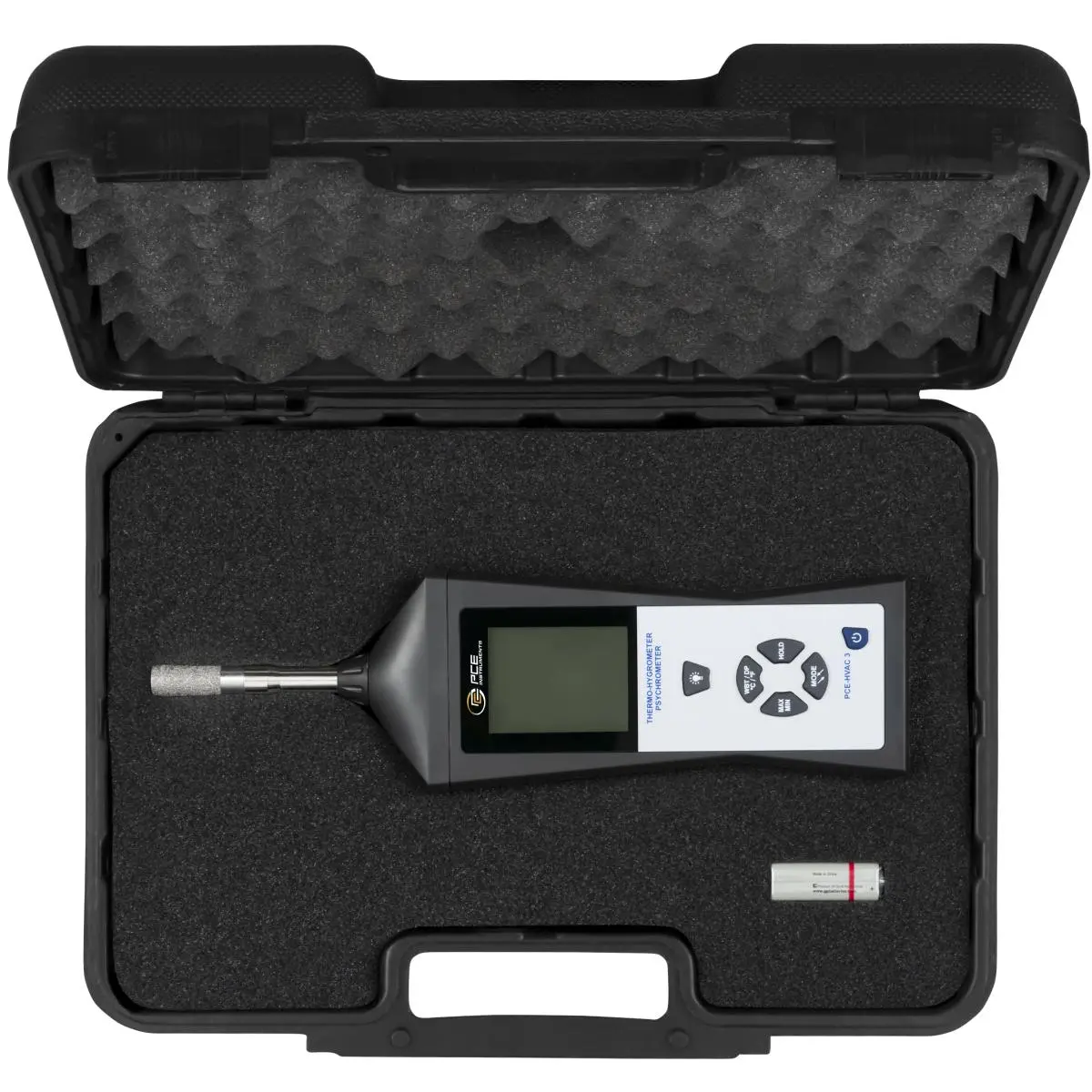

Delivery Scope

1 x Psychrometer PCE-HVAC 3S
1 x Carrying case
1 x Battery
1 x Operating instructions

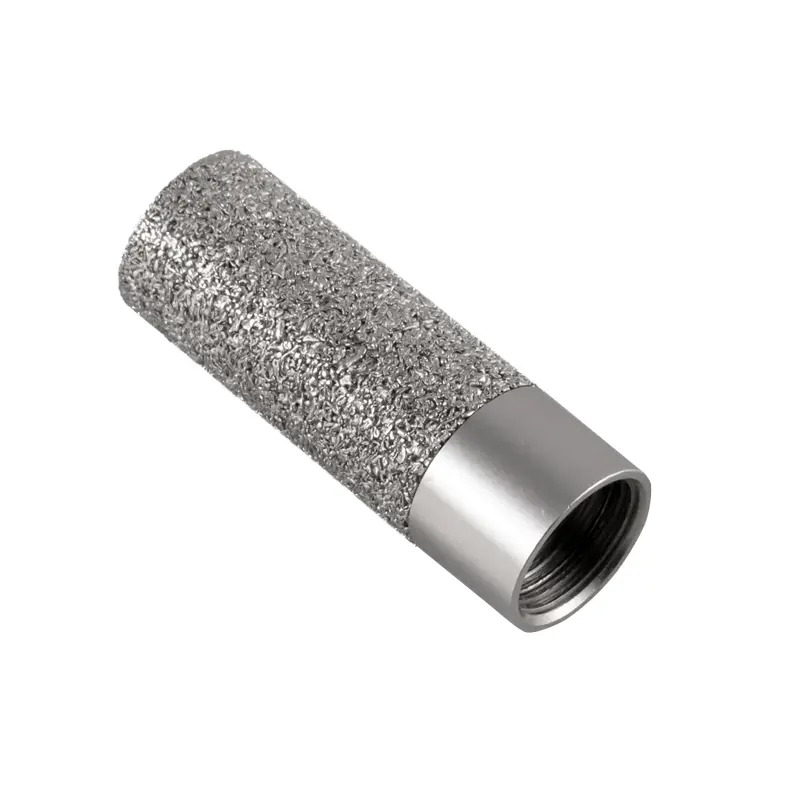

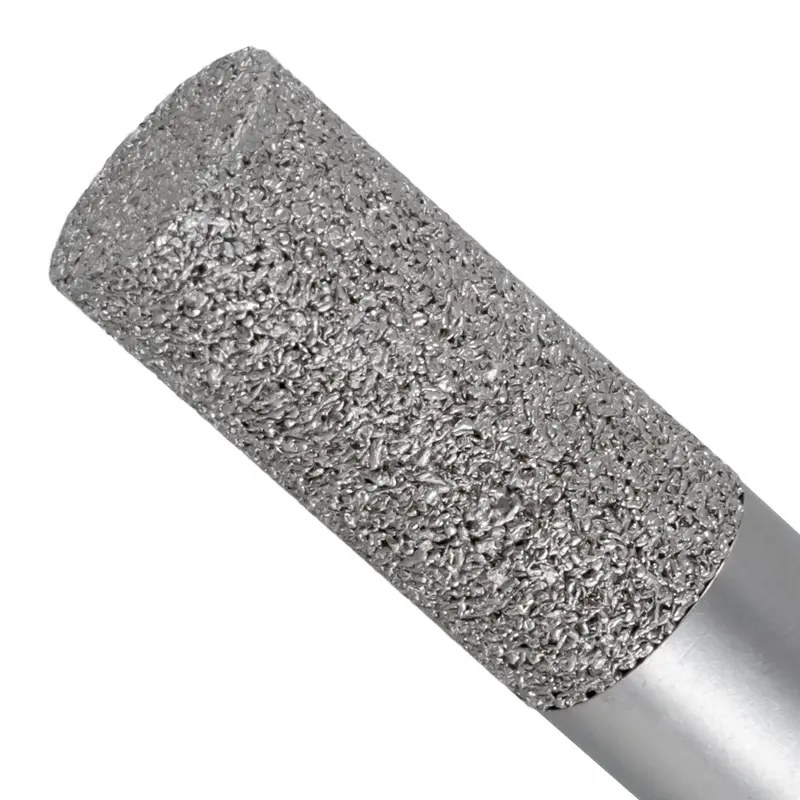

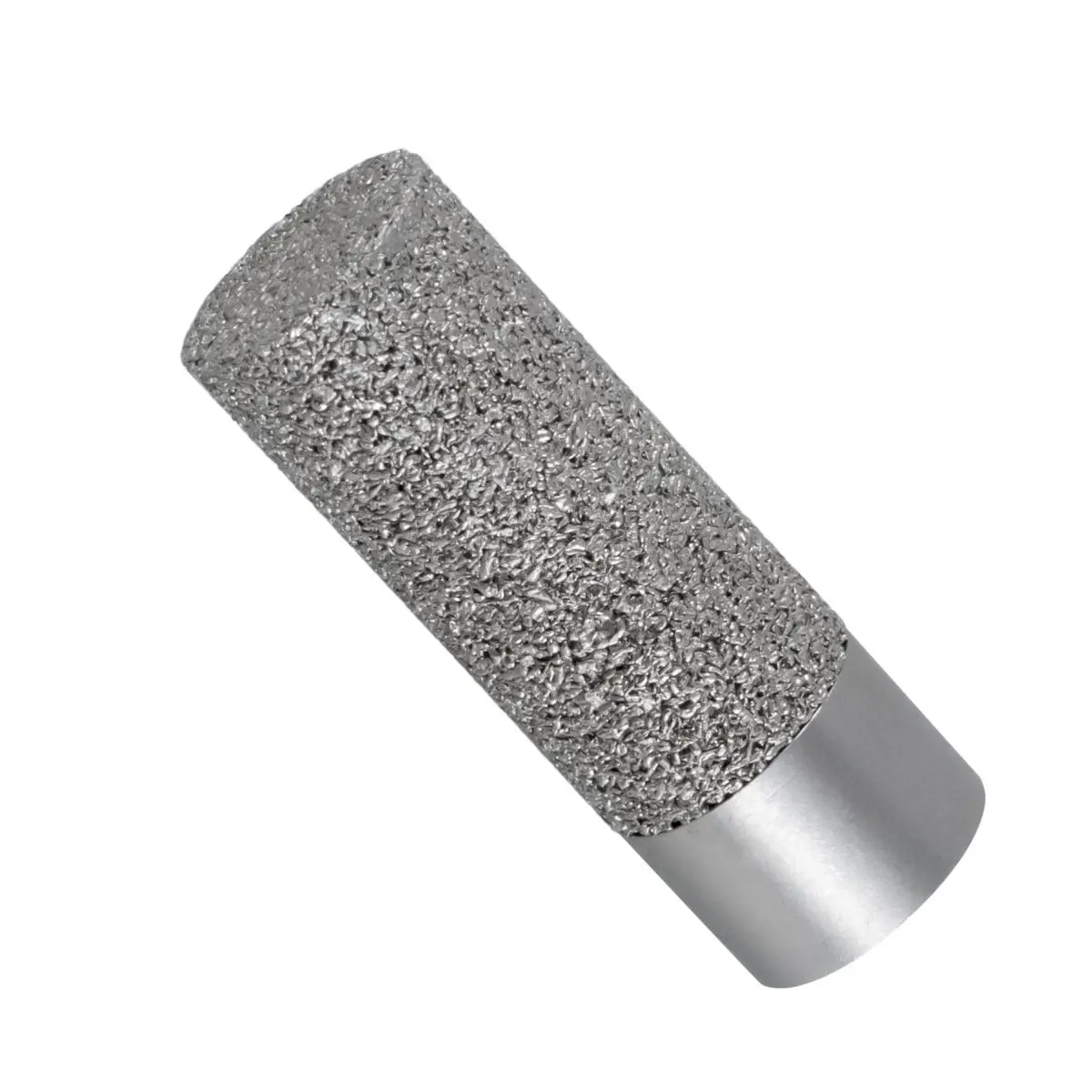

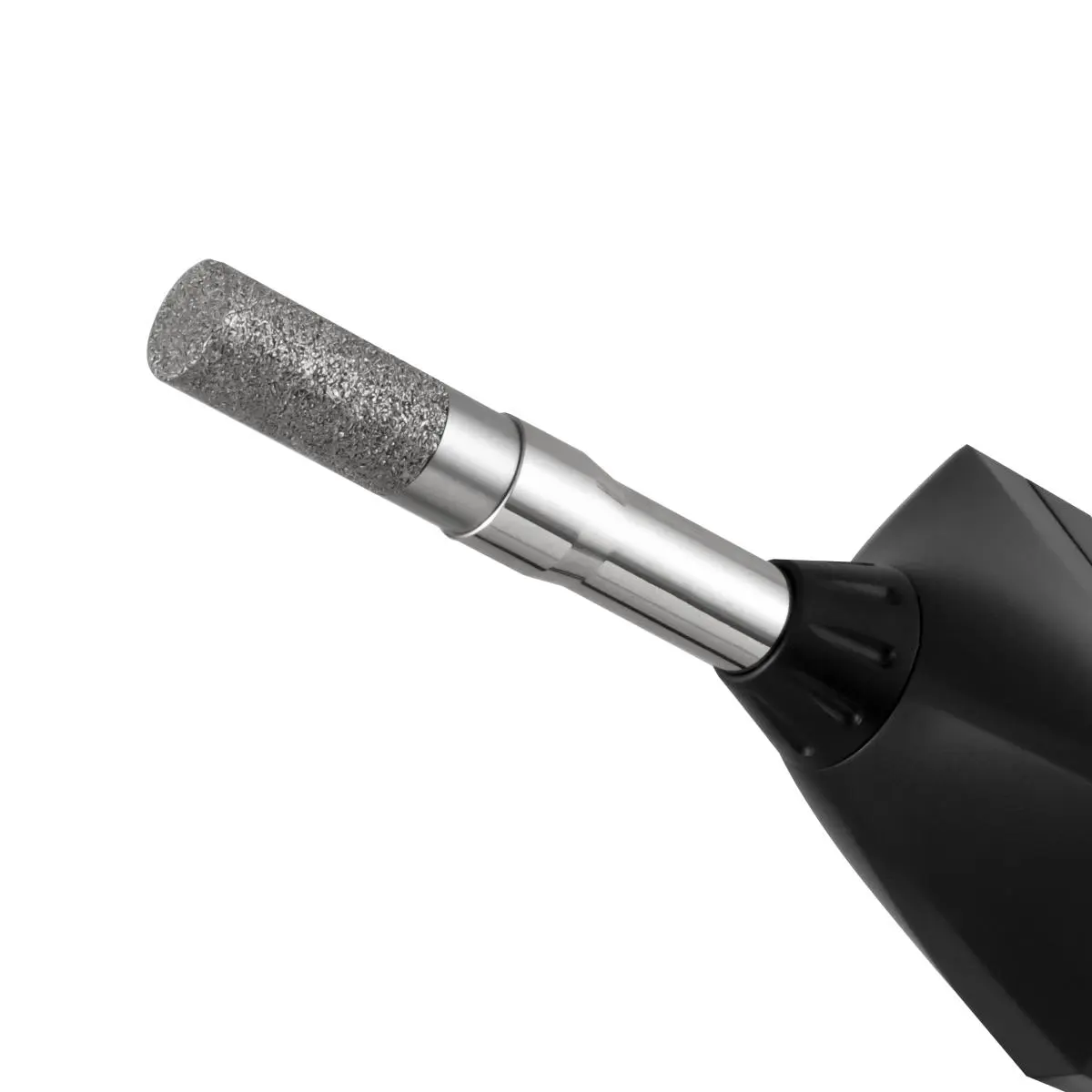

1 x Sintered filter
