Profilometer PCE-RT 2200

Profilometer PCE-RT 2200 [zoom]
Profilometer PCE-RT 2200
Profilometer Frontal

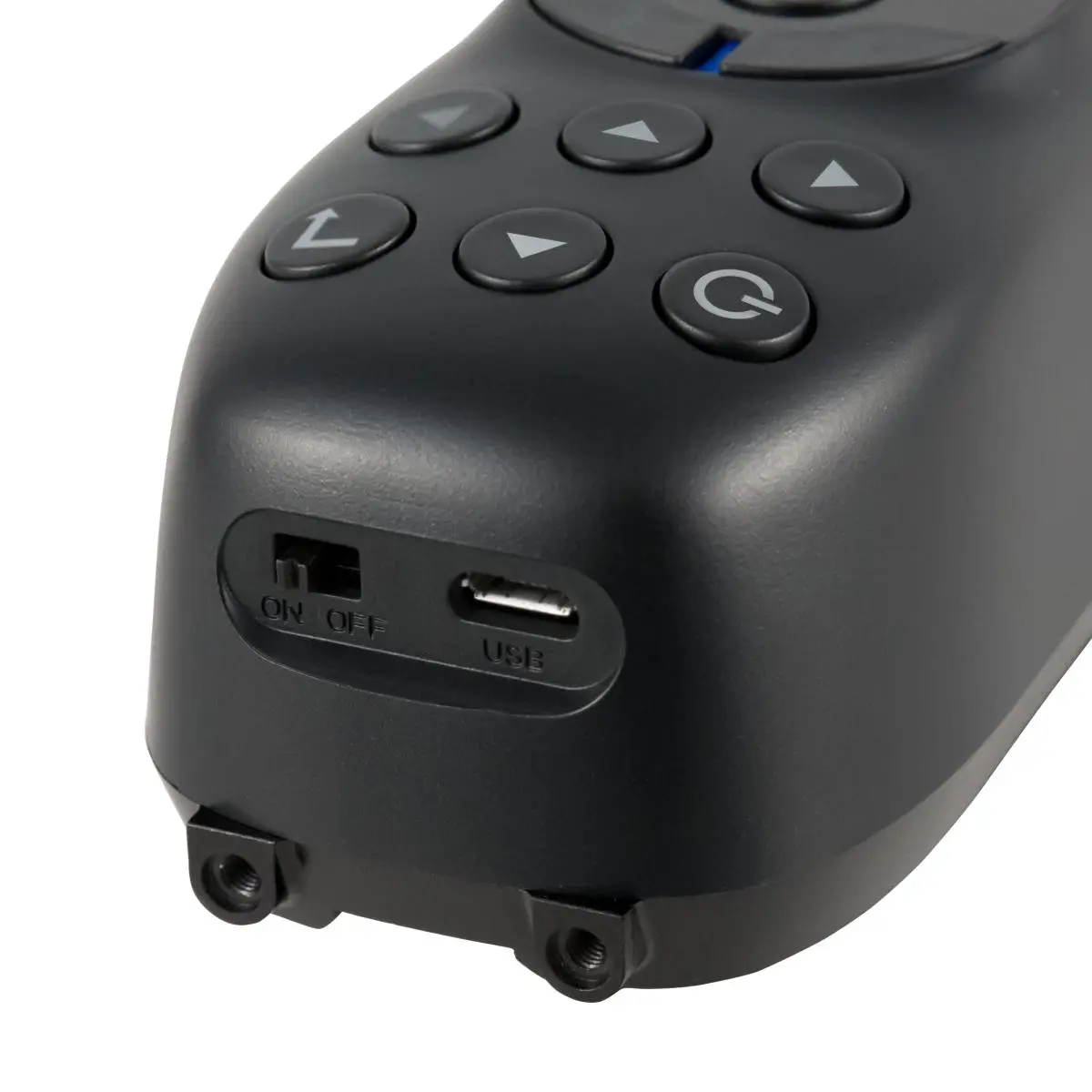

Profilometer Connections

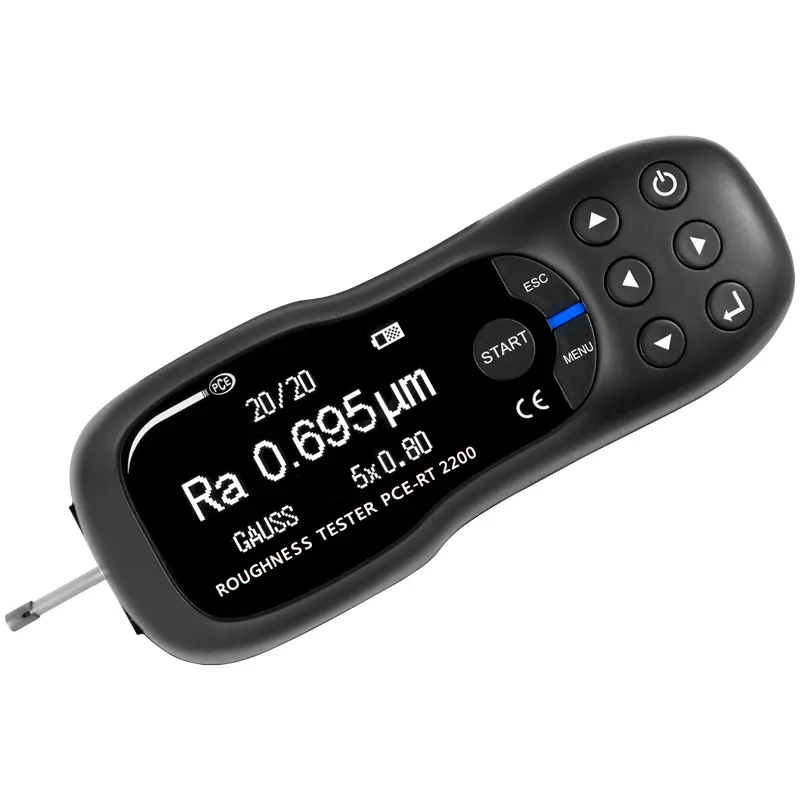

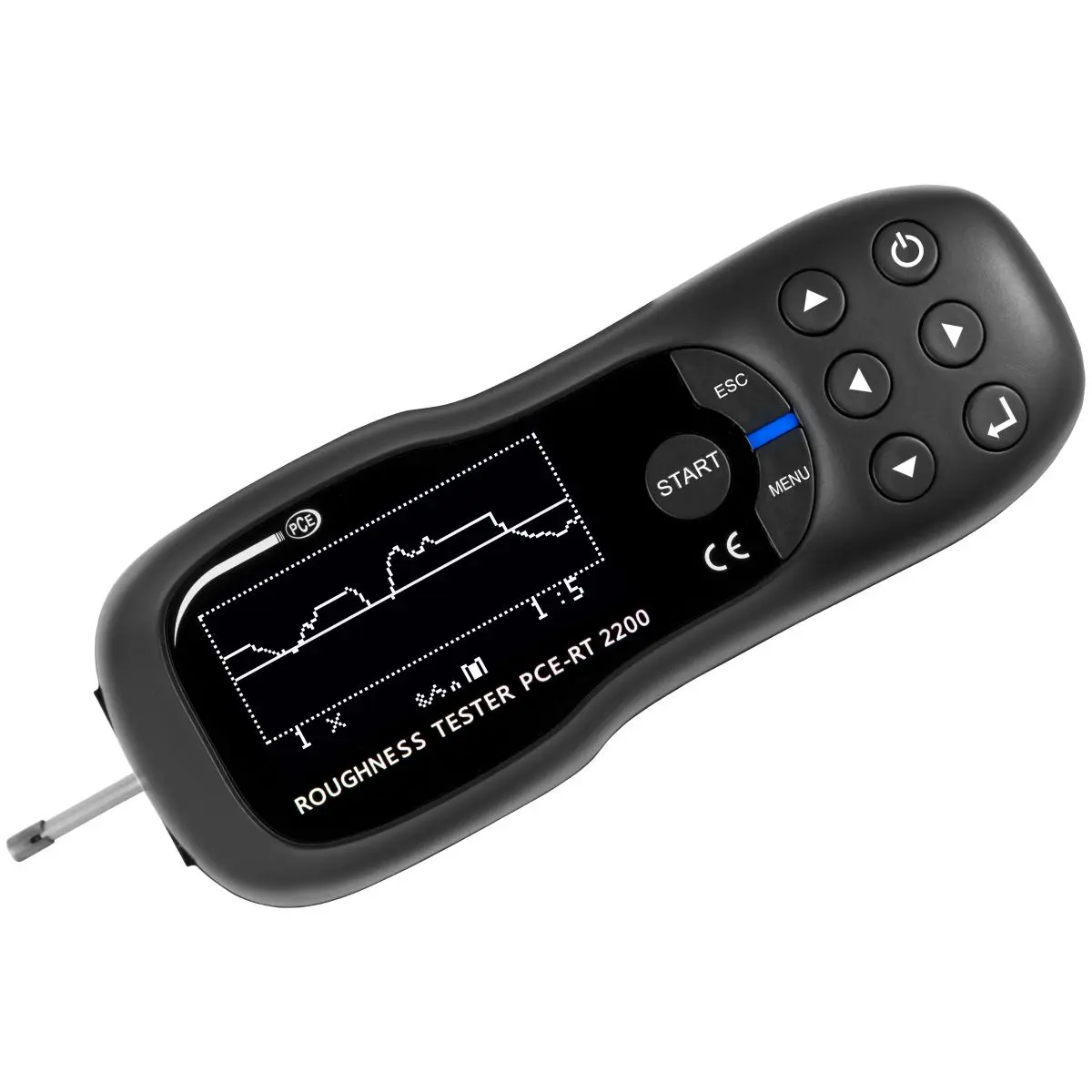

Profilometer Display

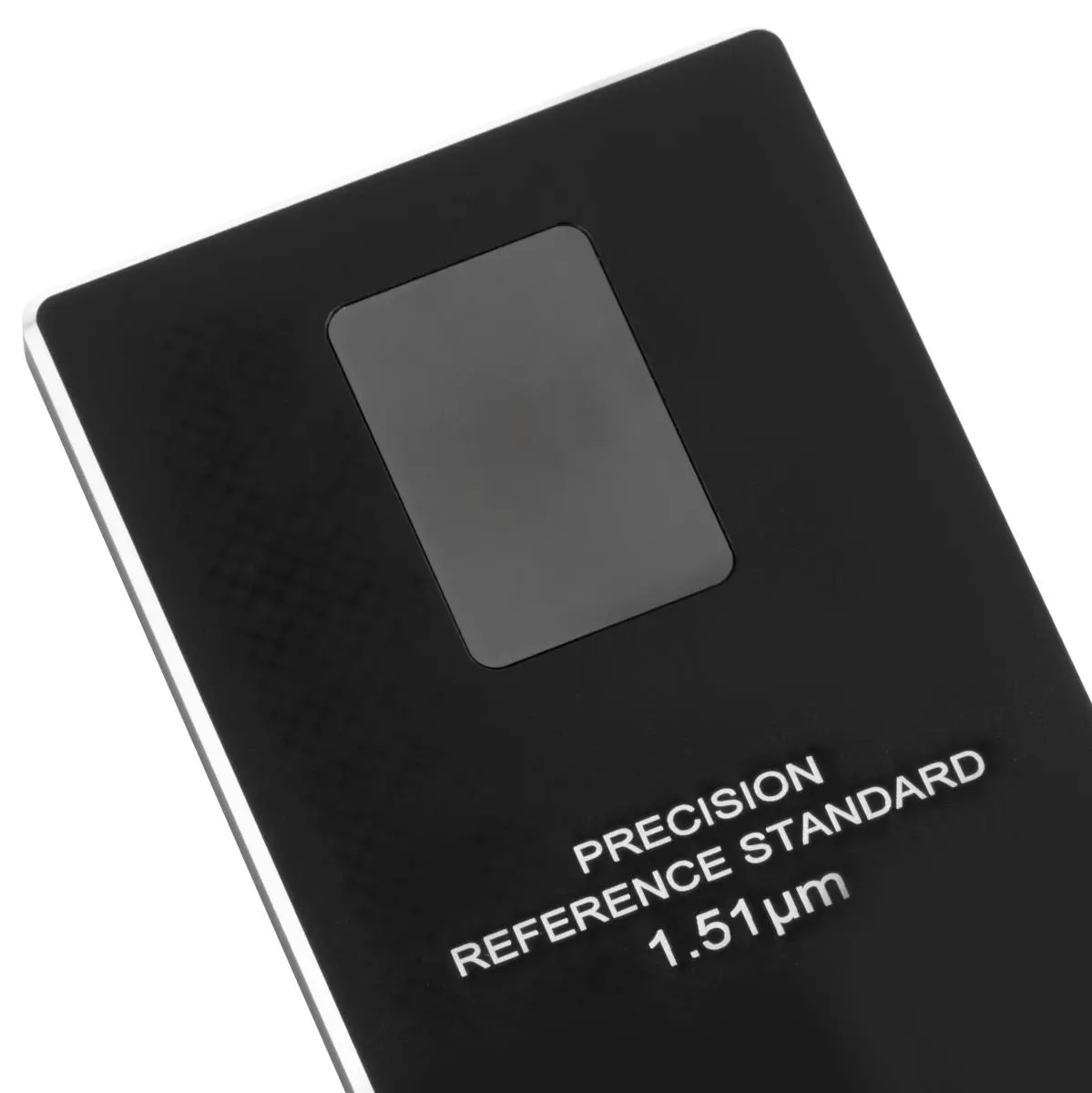

Profilometer Calibration standard

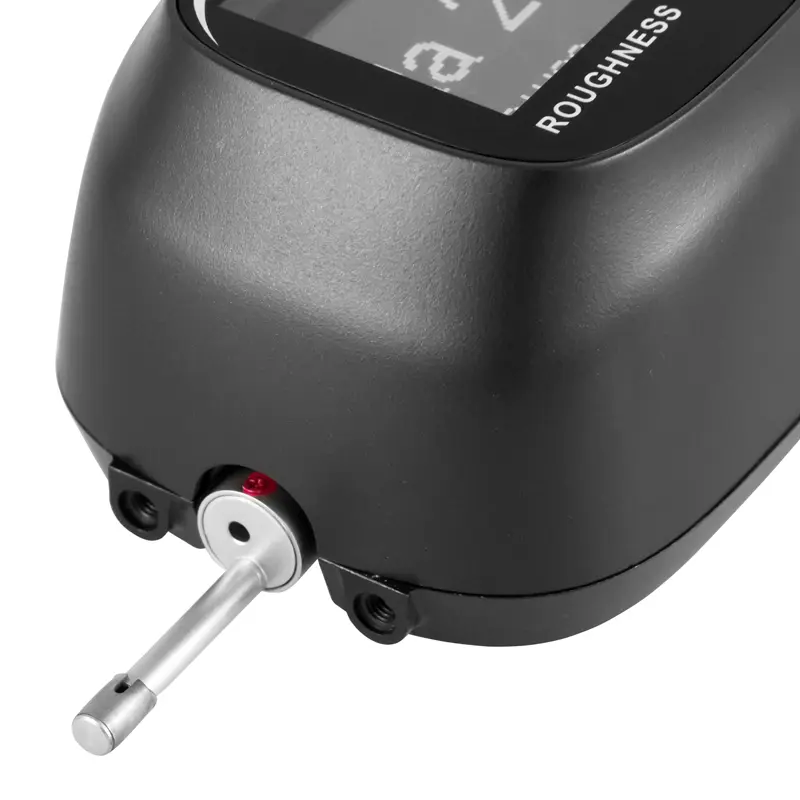

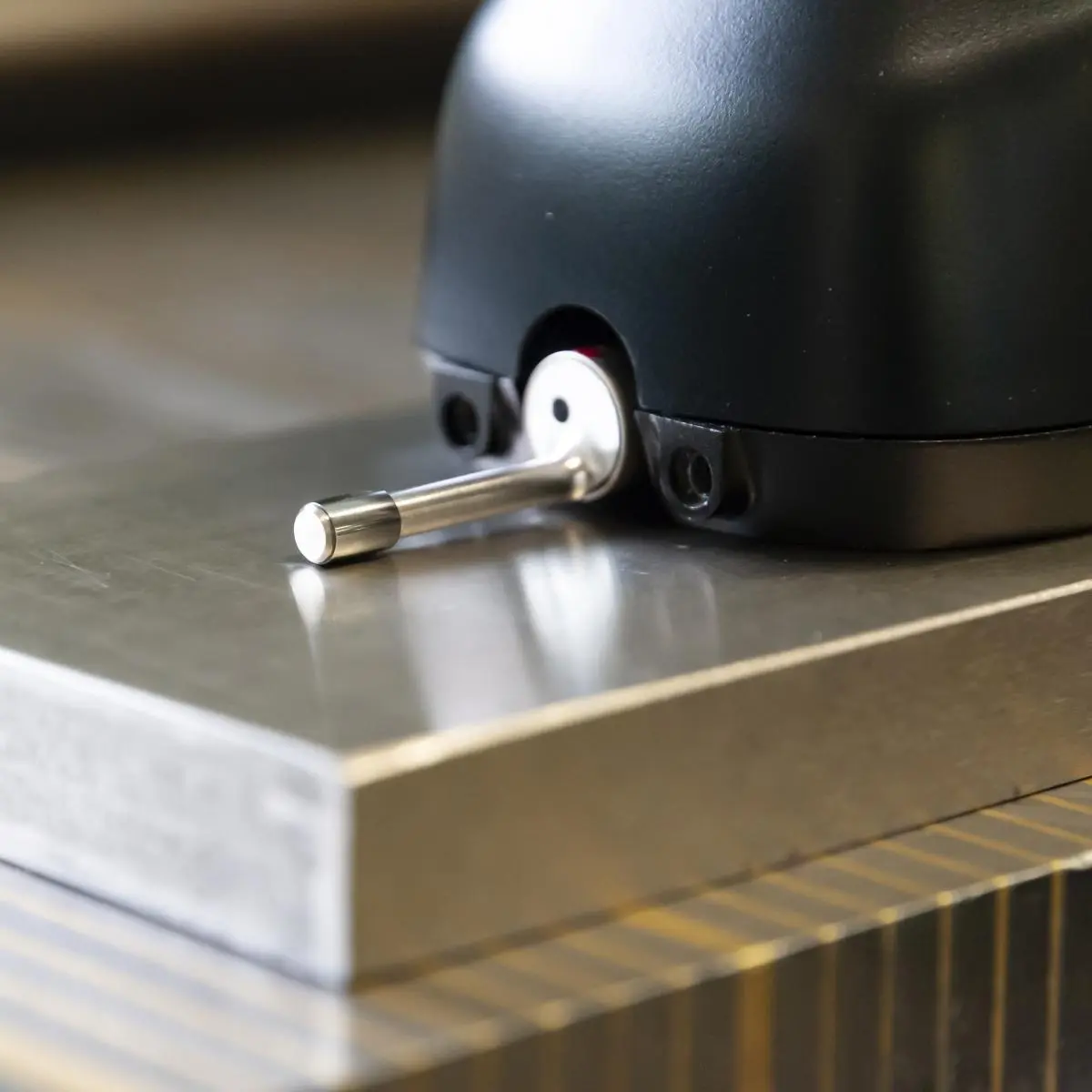

Profilometer Sensor
Profilometer Sensor

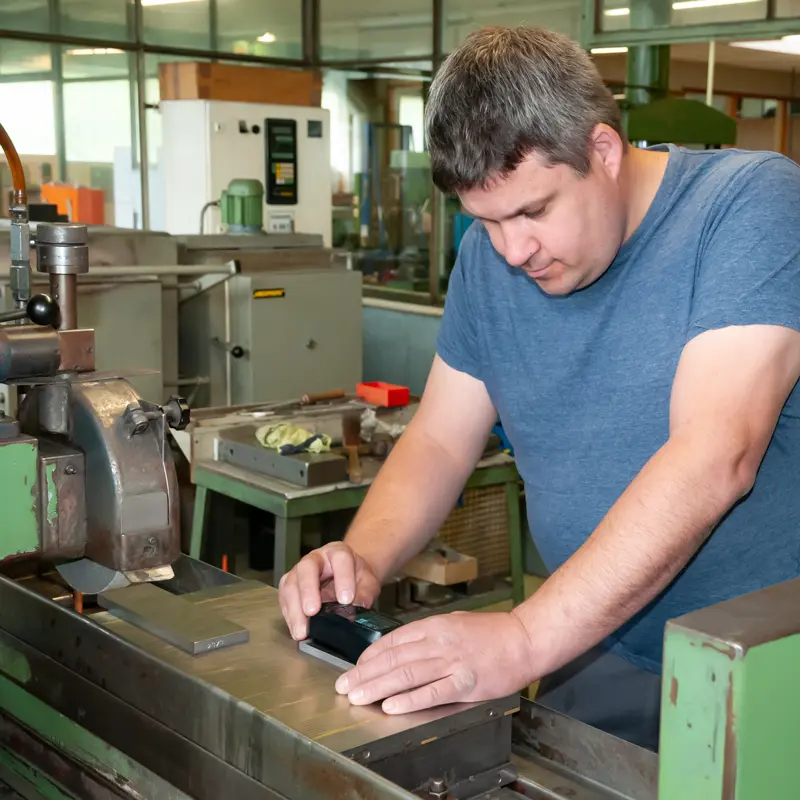

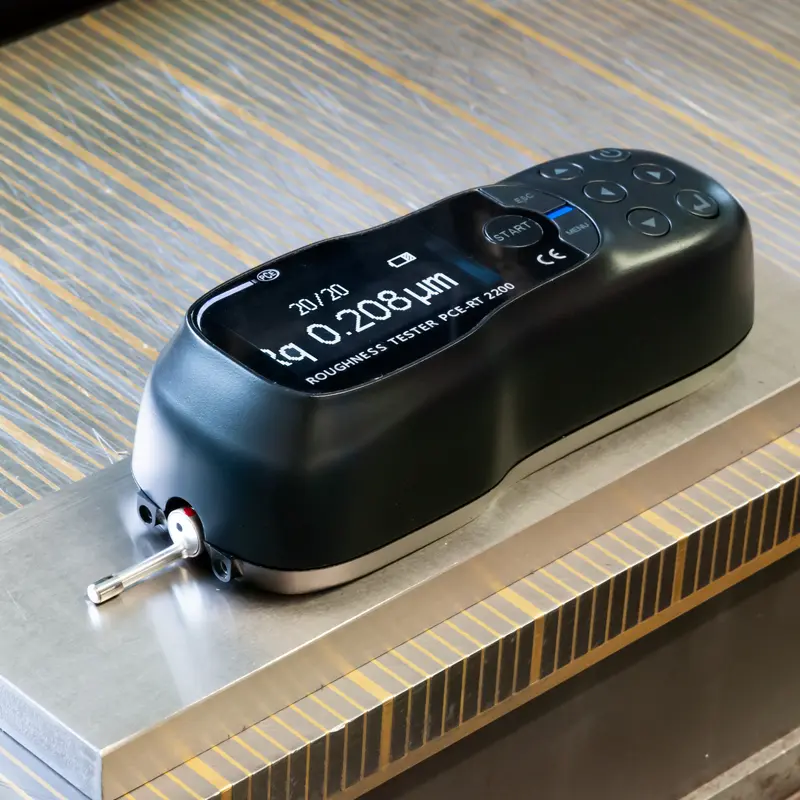

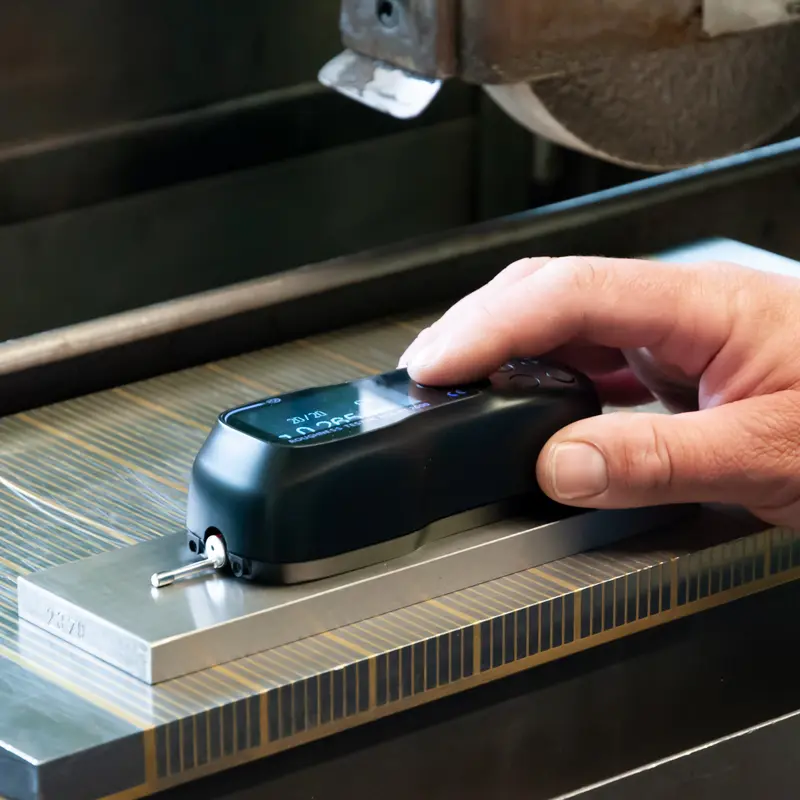

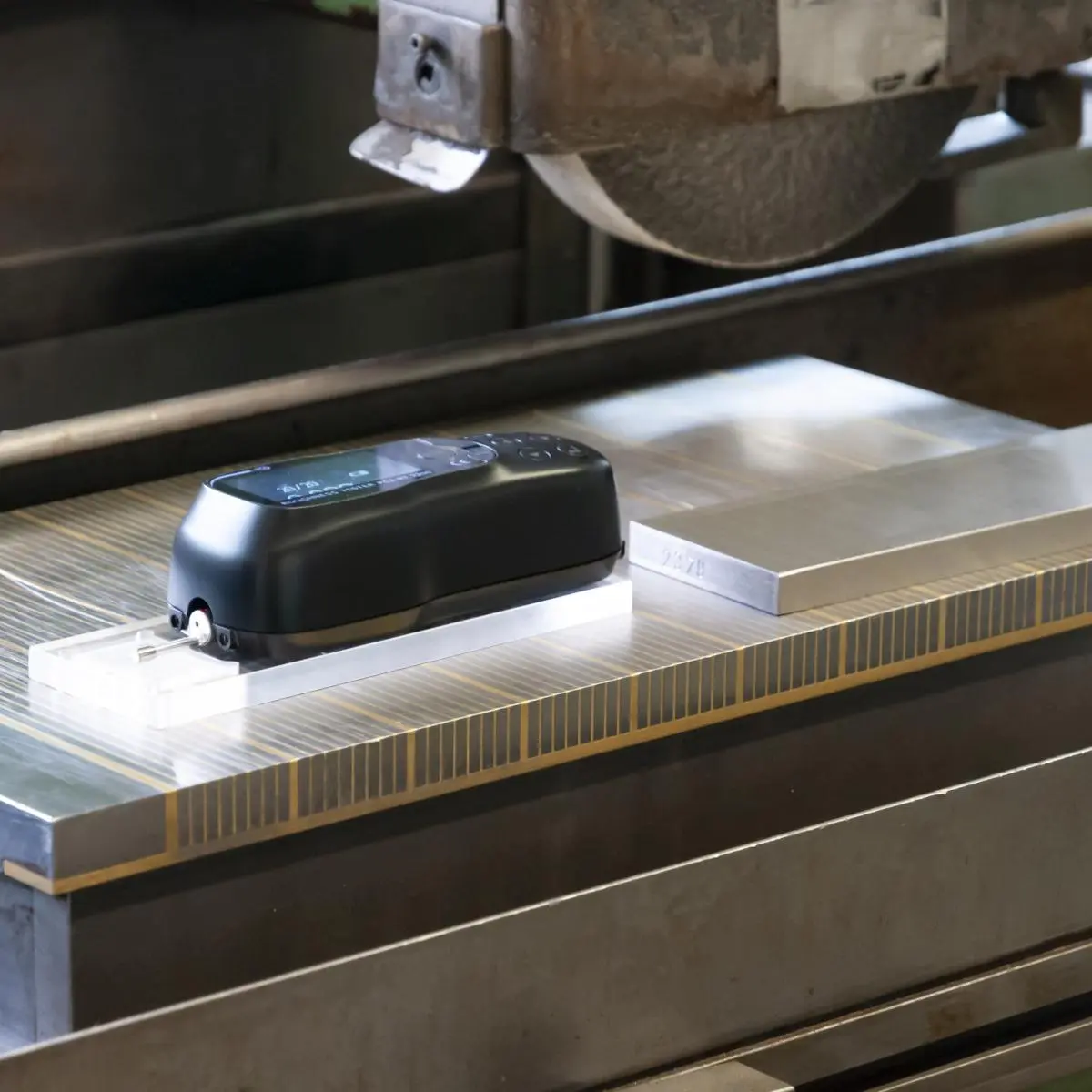

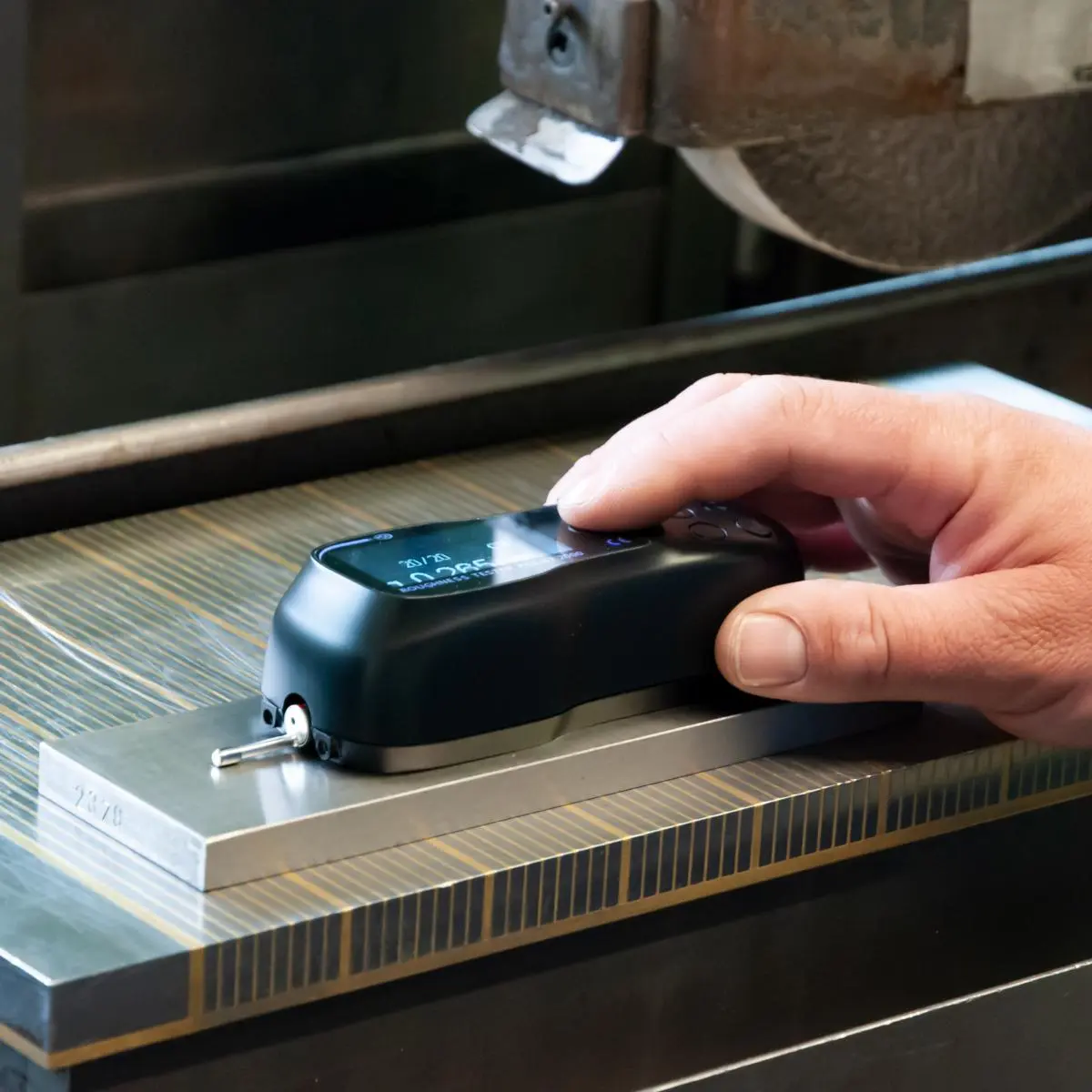

Profilometer Application picture
Profilometer Application picture
Profilometer Application picture
Profilometer Application picture
Profilometer Application picture
Profilometer Application picture
Profilometer Delivery scope

Profilometer PCE-RT 2200

Order no.: PCE-RT 2200
GTIN (EAN): 4250348715425
AED 9,993.00
AED 10,492.65
price ex. (customs / clearance)
:
4250348715425
PCE-RT 2200
Delivery time:1-2 working days

Accessory

Description

Profilometer with large graphic OLED display / rechargeable battery
Storage of up to 20 measurement processes / extensive number of parameters / micro-USB interface for charging the battery and reading out the memory

The portable and easy-to-use profilometer with its large OLED display is particularly suitable for quick and precise measurements in the workshop or laboratory. This roughness meter uses a DSP chip for control and data processing at high speed and with low energy consumption. In addition, you have a large selection of measurement parameters for the roughness measuring device: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry (JIS), Rz (JIS), RP (ASME), Rpm (ASME ), Rv (ASME), R3z, R3zmax, Rz1max, Rmr (c), Rdc, Rmr.

The measurements are automatically stored in the internal memory of the roughness meter. The stored data can then be transferred to a PC via the micro-USB interface on the roughness measuring device and analyzed using the software. It is also possible to have the data displayed on the OLED display of the roughness measuring device after a measurement. Even the wave course can be shown on the display of the roughness meter.

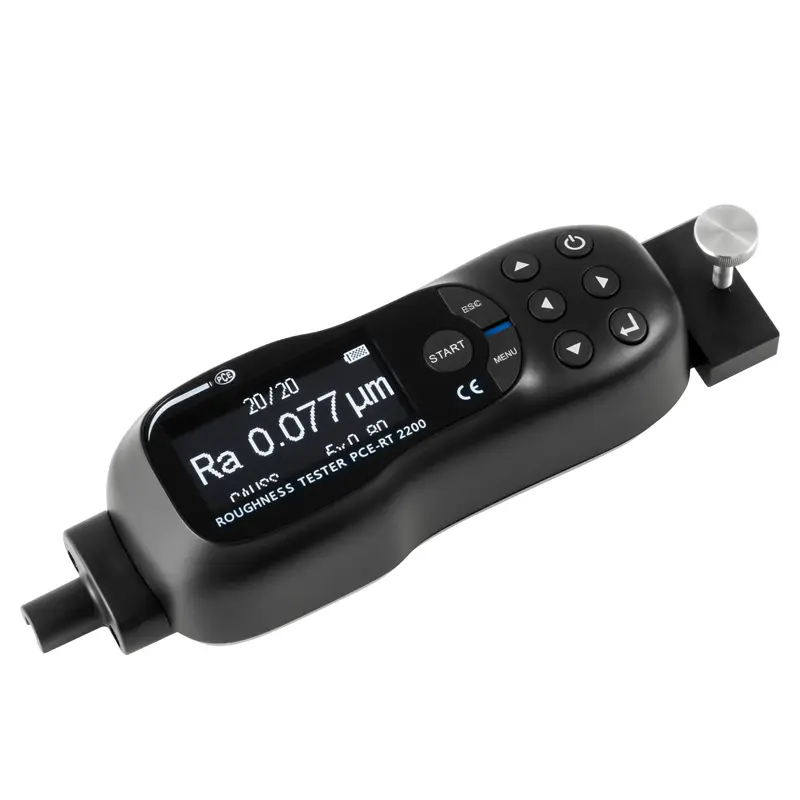

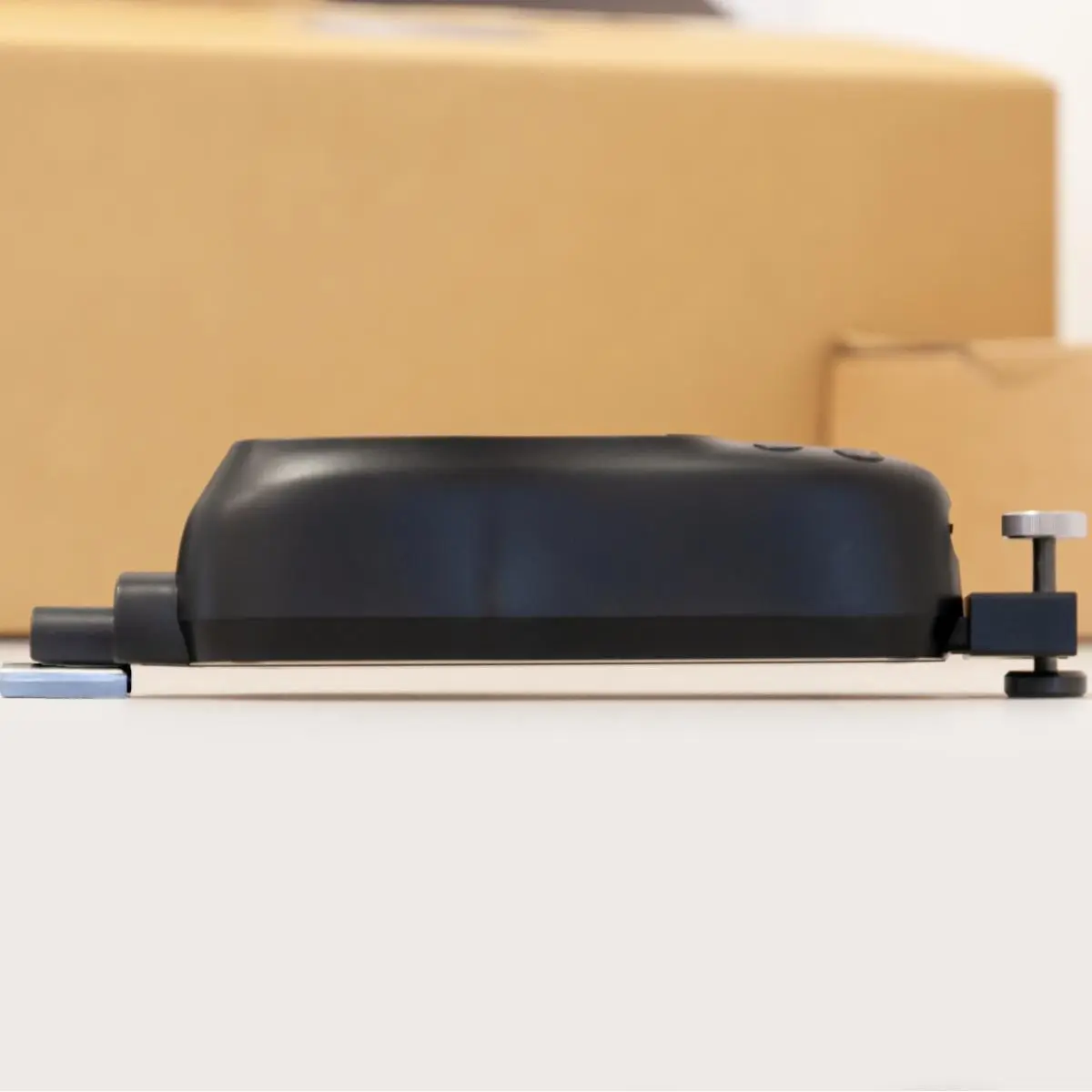

It often happens that the contact surface of the test piece is too small for a roughness measuring device to position the roughness measuring device appropriately for a measurement. For such cases, a positioning adapter is included with this roughness measuring device. Thus, the roughness measuring device also enables measurements on small samples.

Highlights

- Selection of 21 parameters
- Large graphic OLED display
- Fast and accurate measurement
- 3 different cut-off wavelengths
- Micro-USB interface for PC connection
- Storage of 20 measurement curves

Specification

Roughness
Roughness value  Ra, Rq, Rc
Measuring range  0,005 ... 16 µm
Resolution  0,001 µm
Accuracy  <±10 %

Roughness
Roughness value  Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS), Rp(ASME), Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max, Rdc
Measuring range  0,02 ... 200 µm
Resolution  0,01 µm
Accuracy  <±10 %

Roughness
Roughness value  Rsm
Measuring range  5 ... 1000 µm
Accuracy  <±10 %

Roughness
Roughness value  Rsk
Measuring range  -1 ... +1

Roughness
Roughness value  Rmr(c), Rmr
Measuring range  0 ... 100 %
Accuracy  <±10 %

General technical data
Repeat accuracy  <6 %
Measuring functions  Ra, Rz, Rq, Rt, Rsm, Rsk, Rp, Rv, Rc
Measuring functions (additional information)  Rmax, Ry(JIS), Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr
Units  µm, μinch
Display type  OLED
Storage medium  Internal memory
Storage capacity  20 Values
Interface  Micro-USB
Standard(s)  ANSIB46.1/ASMEB46.1, DIN EN ISO 4287, ASMEB46.1
Sensor  inductive
Automatic power-off from...to  1 ... 30 min.
Cut-off wavelength  0.25 mm / 0.8 mm / 2.5 mm
Key  - Probe tip radius - 5 µm - Probe tip material - diamond, angled at 90° - Probing speed: 0.135 mm/s at: 0.25 mm 0.5 mm/s at: 0.8 mm 1 mm/s at: 2.5 mm
Maximum traverse distance  15 mm
Menu language  English, English (GB)
Protection class (device)  IP31
Power supply  3.7 V
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  1500 mAh
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  0 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  150 x 60 x 43 mm
Weight  370 g

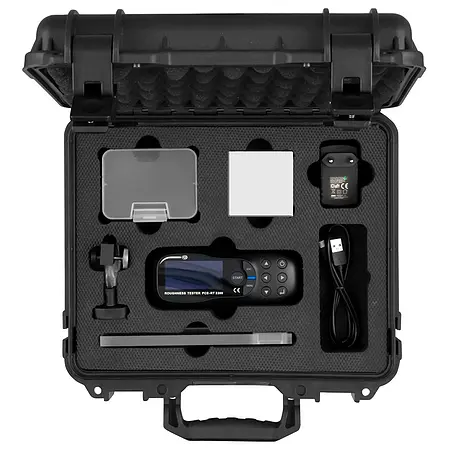

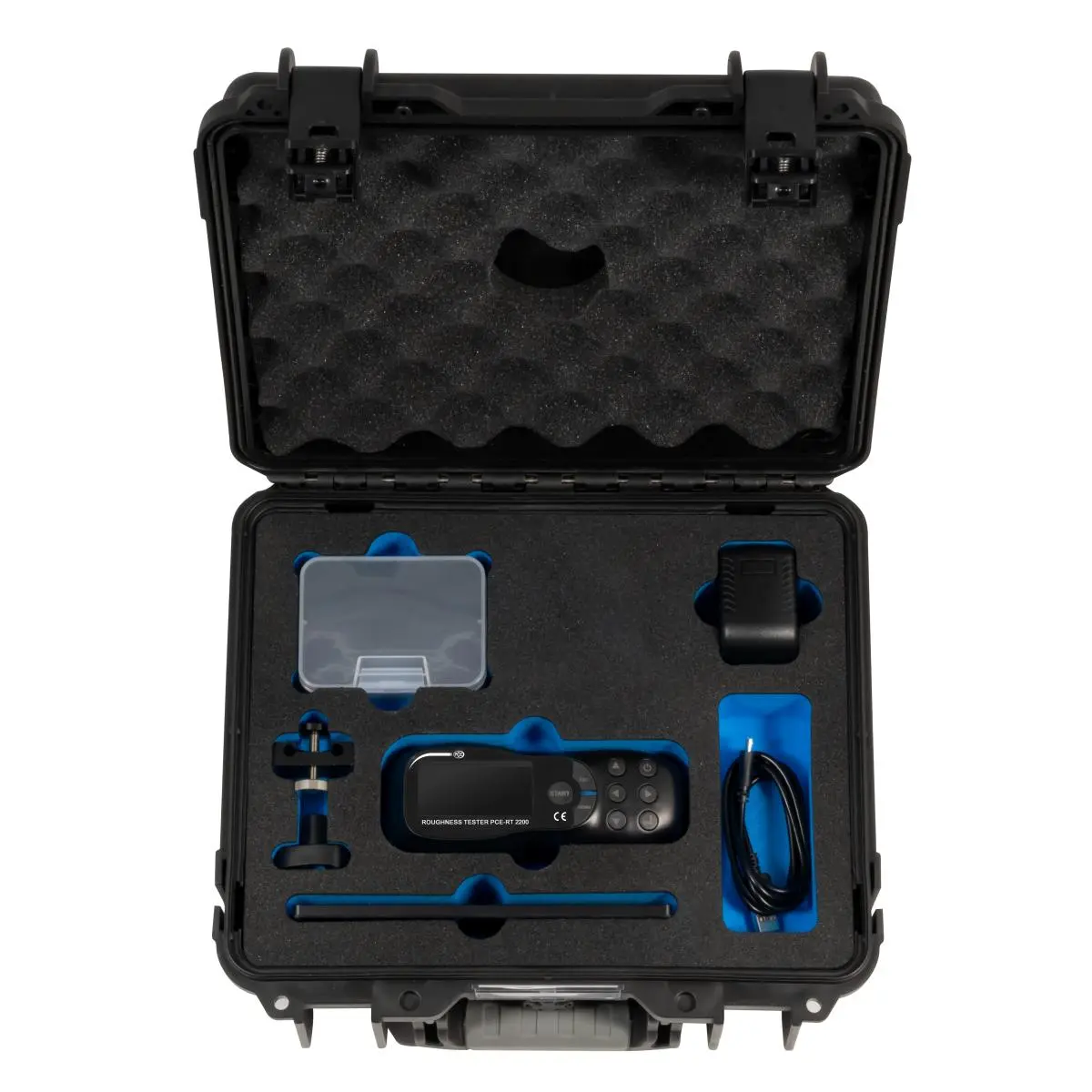

Delivery Scope

1 x Profilometer PCE-RT 2200
1 x Micro probe
1 x Protective cap for probe
1 x Positioning device
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Carrying case
1 x Instruction manual
