The Probe Thermometer enables fast and precise non-contact measurement of the surface temperature of objects that are difficult or impossible to measure with conventional contact thermometers. The Probe Thermometer features a wide IR measuring range from -50 … 650°C and an optical ratio of 12:1.

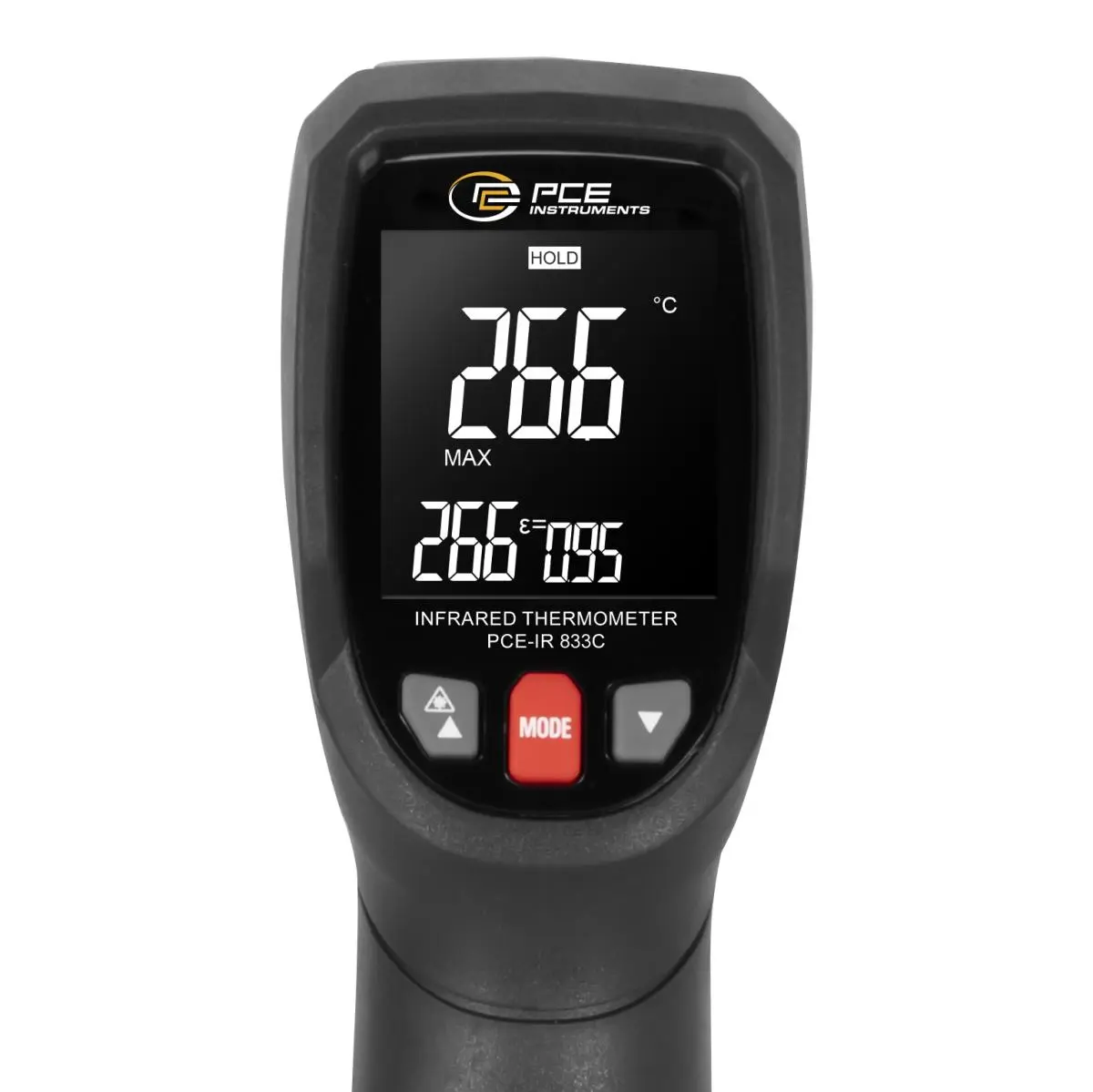

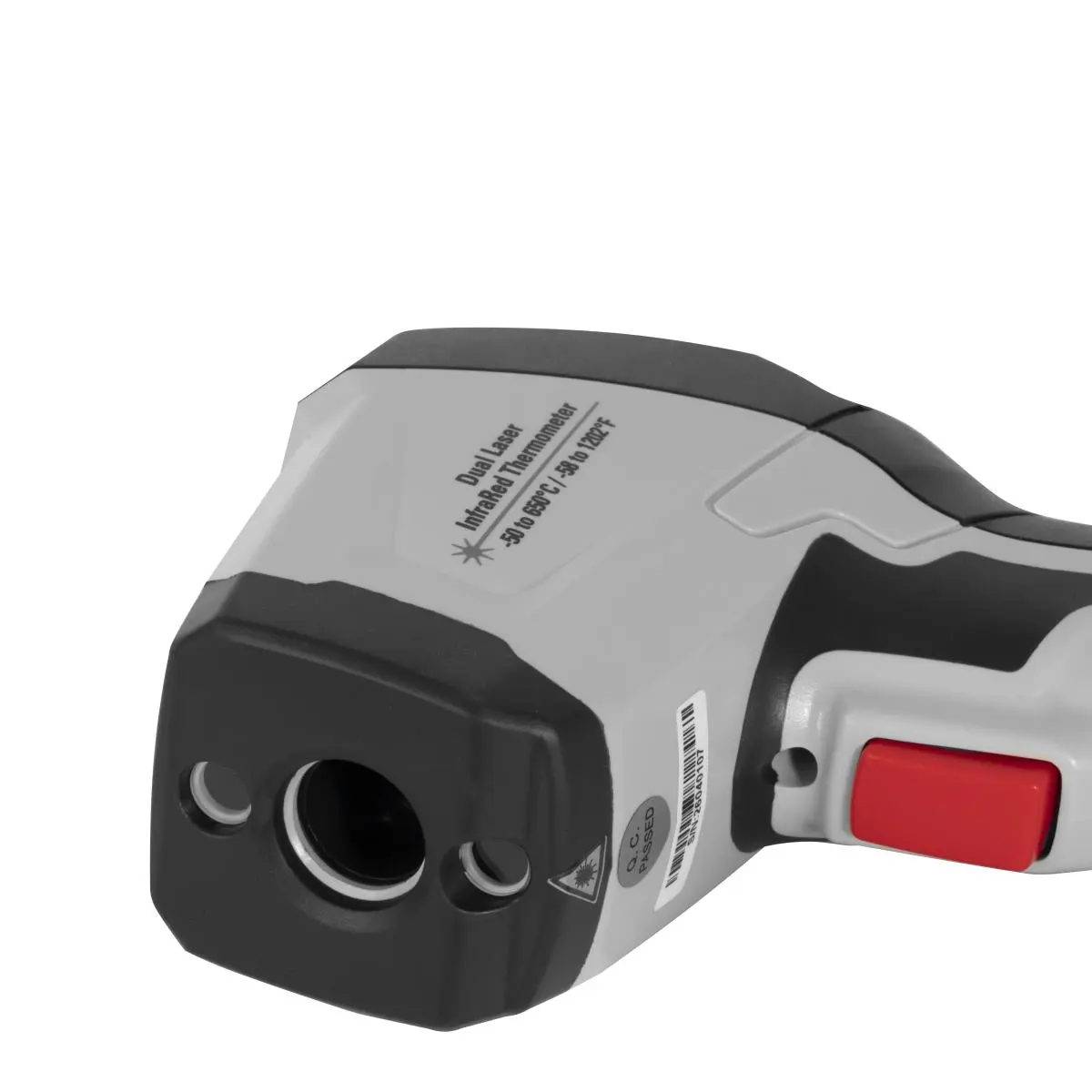

The temperature unit can be selected from °C and °F. With a response time of just 150 ms, the Probe Thermometer enables rapid recording of temperature values. The integrated dual laser makes it easier to target the measuring point precisely. The 1.6-inch colour LCD clearly displays the measured values. HOLD, MAX, MIN, DIF and AVG functions are available for monitoring measured values. The emissivity can be adjusted between 0.10 and 1. Upper and lower limit alarms can also be set.
The Probe Thermometer features a robust housing protected against dust and water in accordance with IP54. Power is supplied by two 1.5V AAA batteries. Thanks to its non-contact measuring method, fast response time and versatile evaluation functions, the Probe Thermometer is suitable for reliable surface temperature measurement.
| Infrared temperature | |
| Measuring range | -50 ... +20 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3.5°C |
| Infrared temperature | |
| Measuring range | 20 ... 300 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.0% of reading or ±1.0°C (larger value applies) |
| Infrared temperature | |
| Measuring range | 300 ... 650 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5% f.s. |
| Infrared temperature | |
| Measuring range | -58 ... +68 °F |
| Resolution | 0,1 °F |
| Accuracy | ±6.3°F |
| Infrared temperature | |
| Measuring range | 68 ... 572 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.0% of reading or ±1.8°F (larger value applies) |
| Infrared temperature | |
| Measuring range | 572 ... 1202 °F |
| Resolution | 1 °F |
| Accuracy | ±1.5% of full scale |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, AVG, DIF |
| Display type | LC colour display |
| Display size | 1,6 Inch |
| Response time | 150 mS |
| Measurement spot | 12:1 |
| Laser | Class 2 <1mW |
| Alarm modes | Upper value Lower value |
| Repeatability | ±1.8°C (±3.2°F) @ -50 ... 20°C (-31 ... 68°F) ±0.5% or ±0.5°C (±0.9°F) @ 20 ... 650°C (68 ... 1202°F) |
| Emissivity from/to | 0.1 ... 1 |
| Spectral range | 8 ... 14 µm |
| Wavelength range | 630 ... 670 Nm |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1270 mAh |
| Performance | 1,91 Wh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 172 x 50 x 86 mm |
| Weight | 210 g |
