pH Meter / pH Tester PCE-PHD 1-ICA

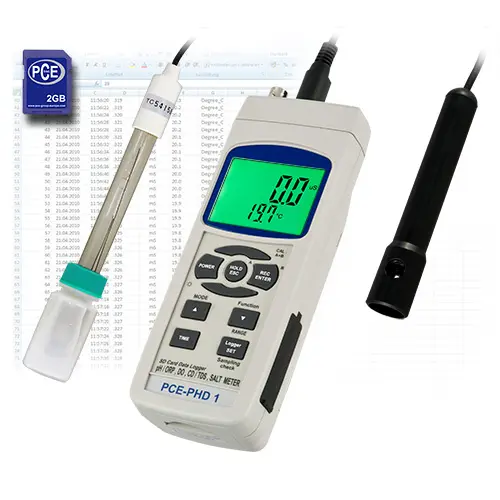

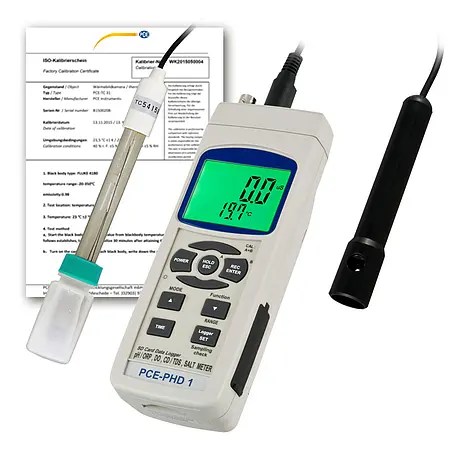

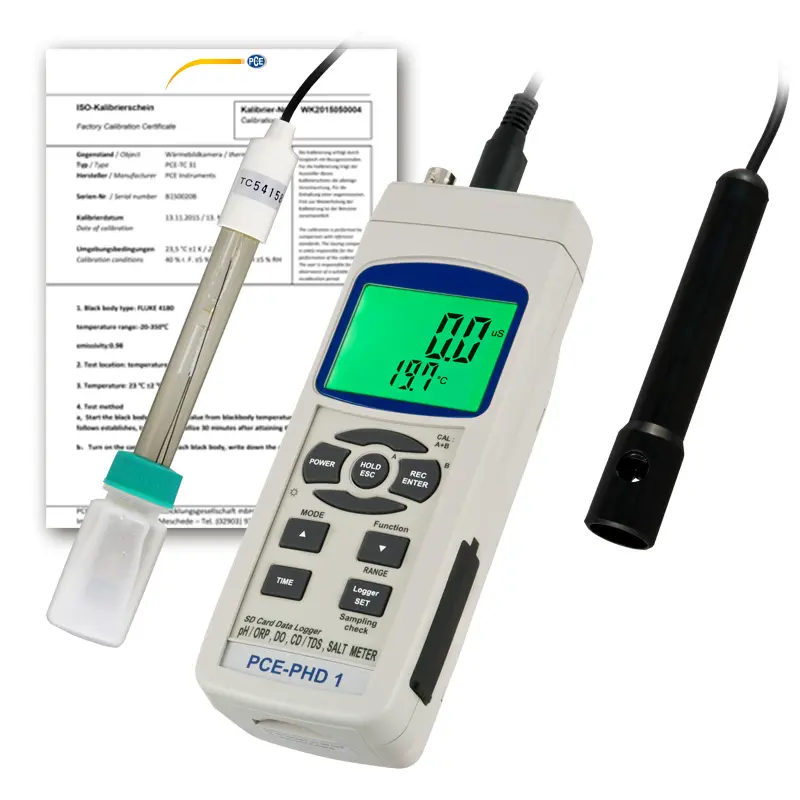

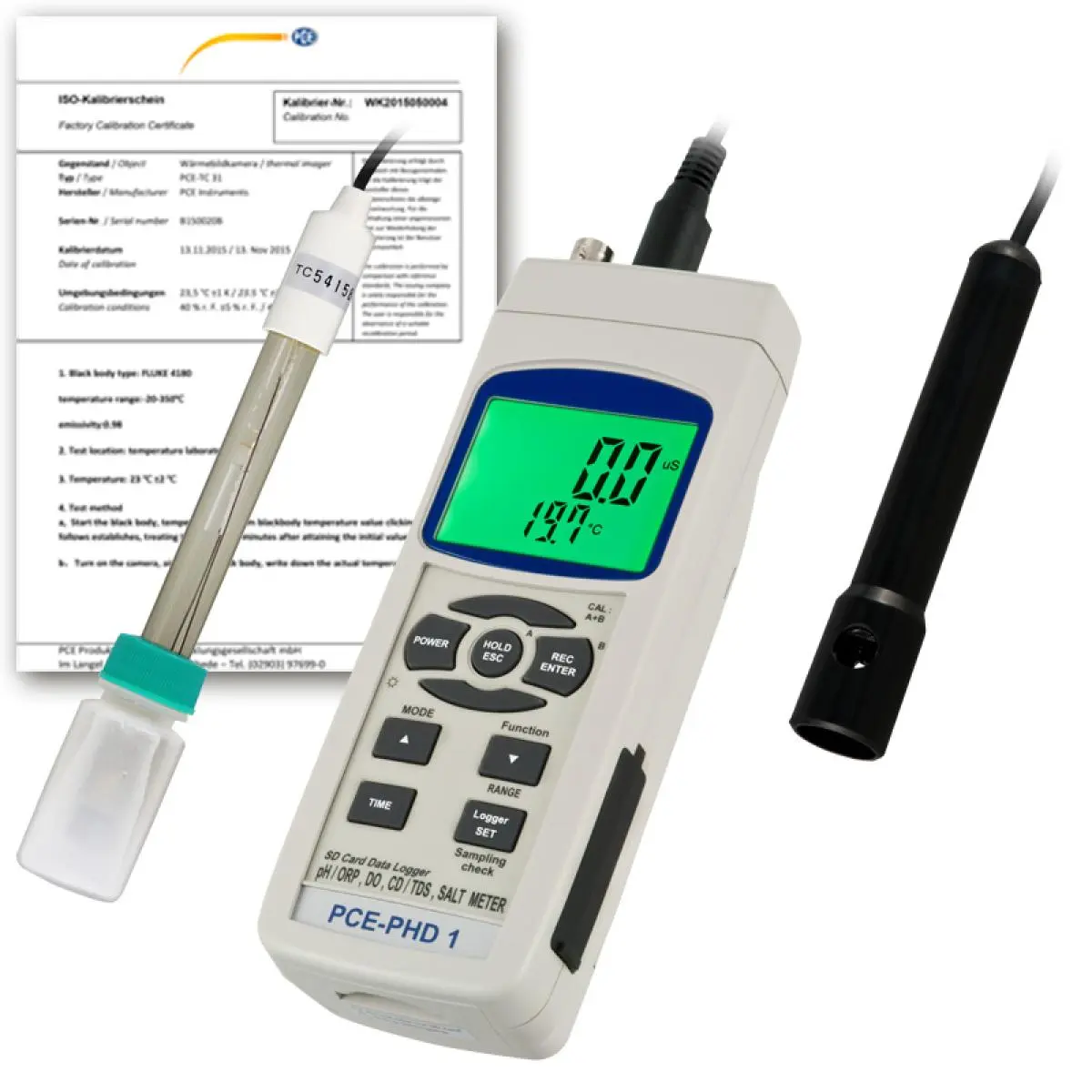

Multifunction pH Meter PCE-PHD 1-ICA incl. ISO Calibration Certificate

Order no.: PCE-PHD 1-ICA
GTIN (EAN): 4250348726537
AED 2,254.00
AED 2,366.70
price ex. (customs / clearance)
:
4250348726537
PCE-PHD 1-ICA
Delivery time:5-7 working days
Handheld
0 ... +50 °C / 32 ... +122 °F
0 ... 14 pH

Description

Multifunction pH Meter PCE-PHD 1-ICA incl. ISO Calibration Certificate
pH value, redox, conductivity, salt, oxygen and temperature measuring device /
SD card memory (1 ... 16 GB), data is saved as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC

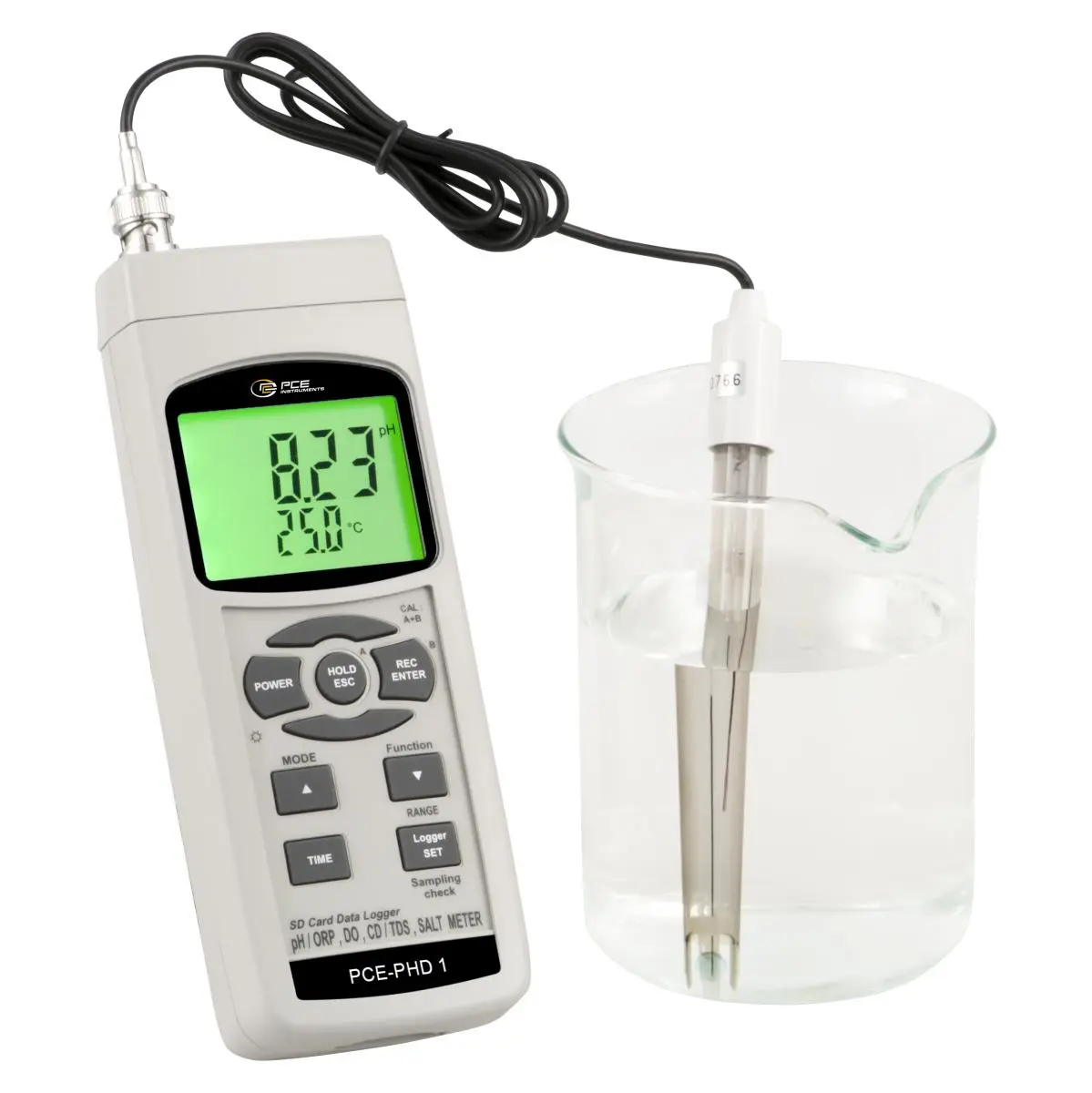

The Multifunction pH Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction pH Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water. Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements.

This meter is supplied with both a pH electrode and a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. This meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

Highlights

- Optimal price / performance ratio
- Real-time data logger
- SD card memory (1 ... 16 GB)
- The saved data is saved directly as an Excel file on the SD card (for
evaluation, no software is required)
- RS-232 interface for online data transfer
- Measures pH value, redox, conductivity, salt content, oxygen, and temperature
- High precision
- Low battery display
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Includes pH and conductivity electrode
- Automatic calibration
- Manual or automatic temperature compensation

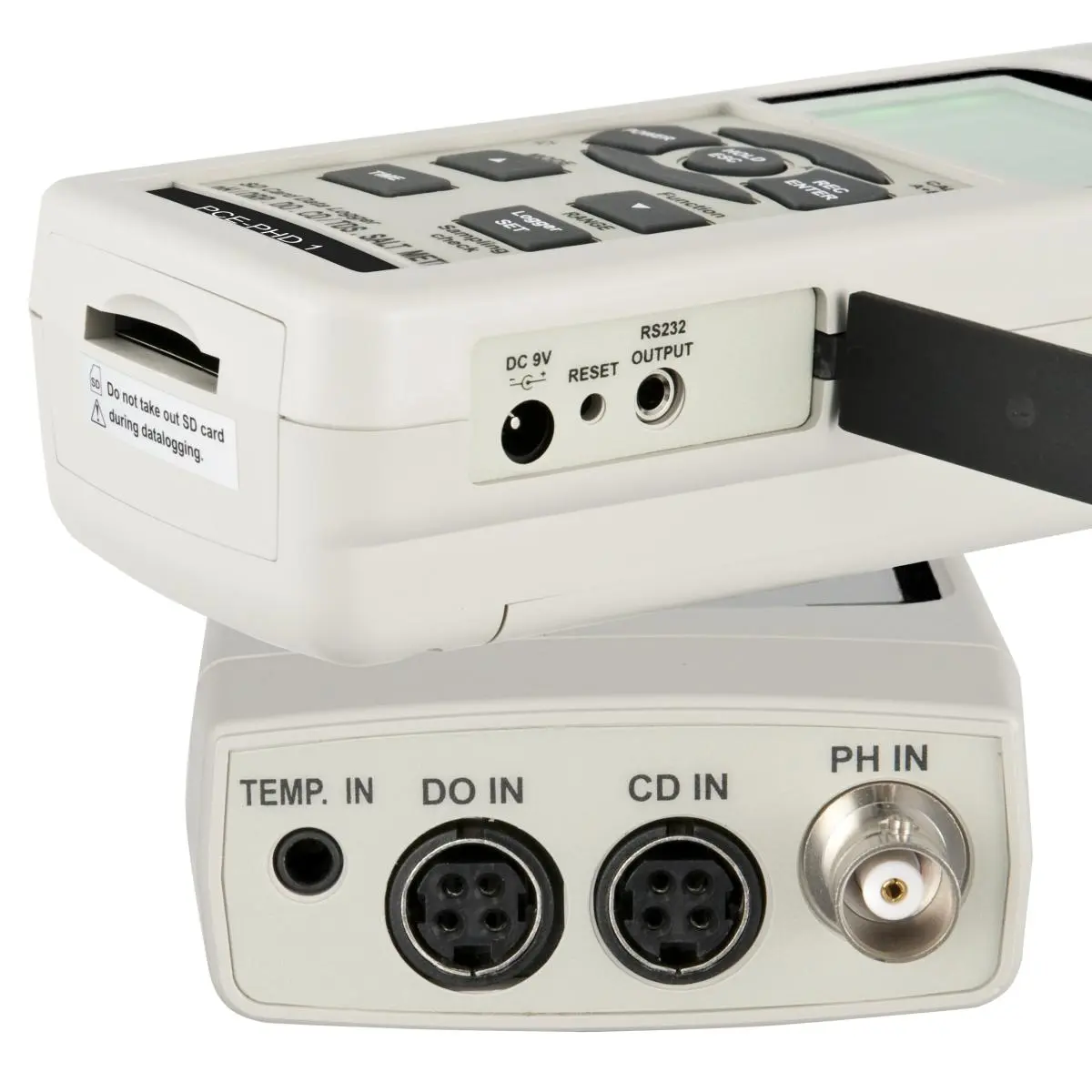

- BNC connector
- Suitable for laboratory and on-site measurements
- REDOX and oxygen electrode optionally available
- incl. ISO-Calibration Certificate

Specification

Conductivity
Measuring range  0 ... 200 µS/cm
Resolution  0,1 µS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  0,2 ... 2 mS/cm
Resolution  0,001 mS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  2 ... 20 mS/cm
Resolution  0,01 mS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  20 ... 200 mS/cm
Resolution  0,1 mS/cm
Accuracy  ±(2% FS +1 digit)

pH
Measuring range  0 ... 14 pH
Resolution  0,01 pH
Accuracy  ±0.02 pH +2 digits

Redox
Measuring range  -1999 ... +1999 mV
Resolution  1 mV
Accuracy  ±0.5% +2 Digits

Salinity
Measuring range  0 ... 12 %
Resolution  0,01 %
Accuracy  ±0.5 % FS

Oxygen
Measuring range  0 ... 20 mg/l
Resolution  0,1 mg/l
Accuracy  ±0.4% mg/l

Oxygen
Measuring range  0 ... 100 %
Resolution  0,1 %
Accuracy  ±0.7%

TDS
Measuring range  0 ... 132 ppm
Resolution  0,1 ppm
Accuracy  ±2% FS +1 digit

TDS
Measuring range  132 ... 1320 ppm
Resolution  1 ppm
Accuracy  ±2% FS +1 digit

TDS
Measuring range  1320 ... 13200 ppm
Resolution  10 ppm
Accuracy  ±2% FS +1 digit

TDS
Measuring range  12200 ... 132000 ppm
Resolution  100 ppm
Accuracy  ±2% FS +1 digit

Temperature
Measuring range  0 ... 60 °C
Resolution  0,1 °C
Accuracy  ±0.8 °C

Electrode
Designation  CPC-EPS-1
Measuring range  0 ... 14 pH
Temperature range  0 ... 60 °C
Shank material  Glass
Cable length  1 m

Electrode
Designation  CDPB-03
Measuring range  0 µS/cm ... 200 mS/cm
Temperature range  0 ... 60 °C
Shank length  120 mm
Shank diameter  22 mm
Cable length  1 m
Connection  BNC

General technical data
Temperature compensation  automatic, 0 to 60°C / 32 to 140°F
Display type  LCD
Display size  2,54 in
Storage medium  SD card
Storage capacity  16 GB
Memory capacity (additional information)  SD card from 1 GB to 16 GB possible
Storage interval from  1 s
Storage interval to  9 h
Interface  RS232
Number of calibration points  3
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  177 x 68 x 45 mm
Weight  490 g

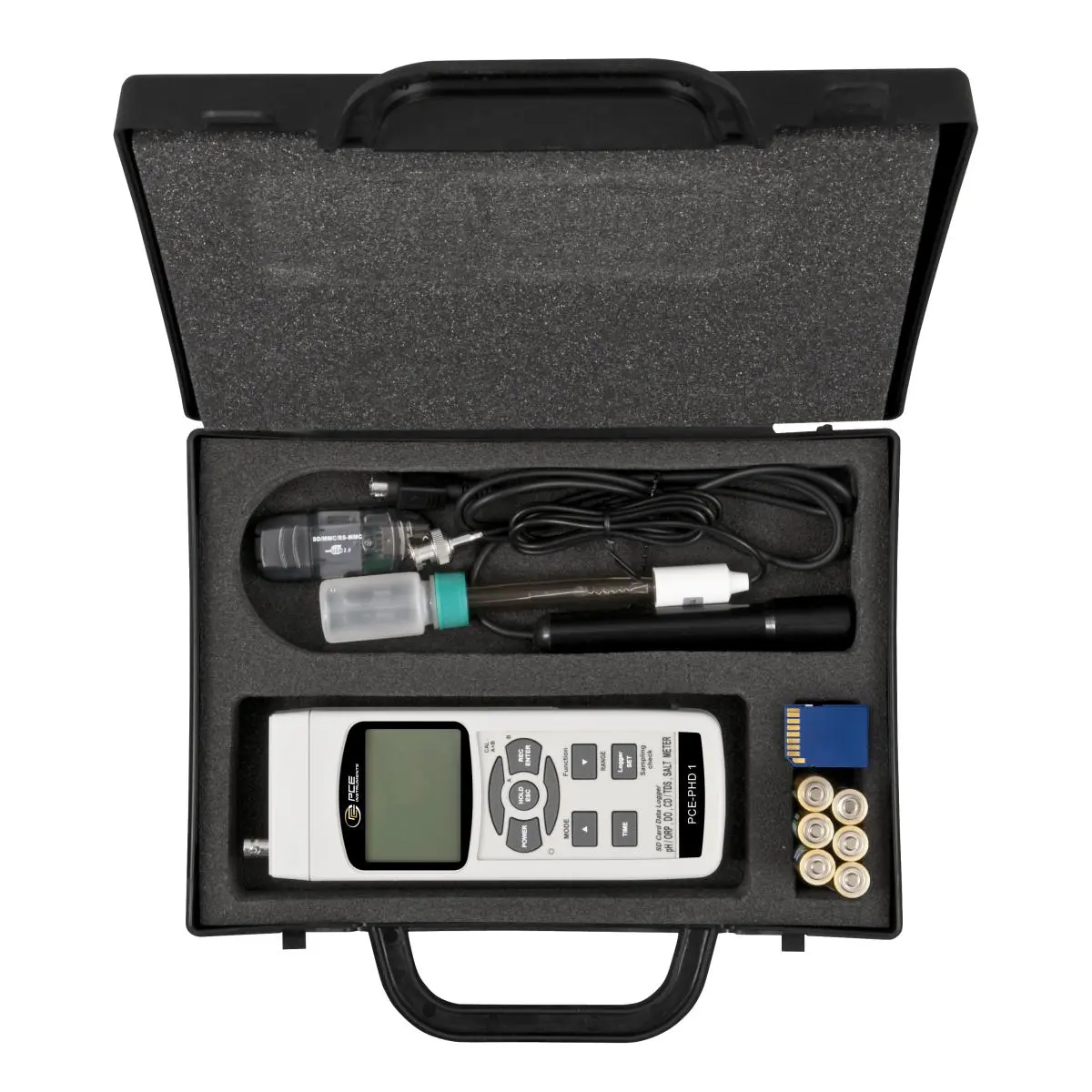

Delivery Scope

1 x PCE-PHD 1-ICA pH Meter / pH Tester

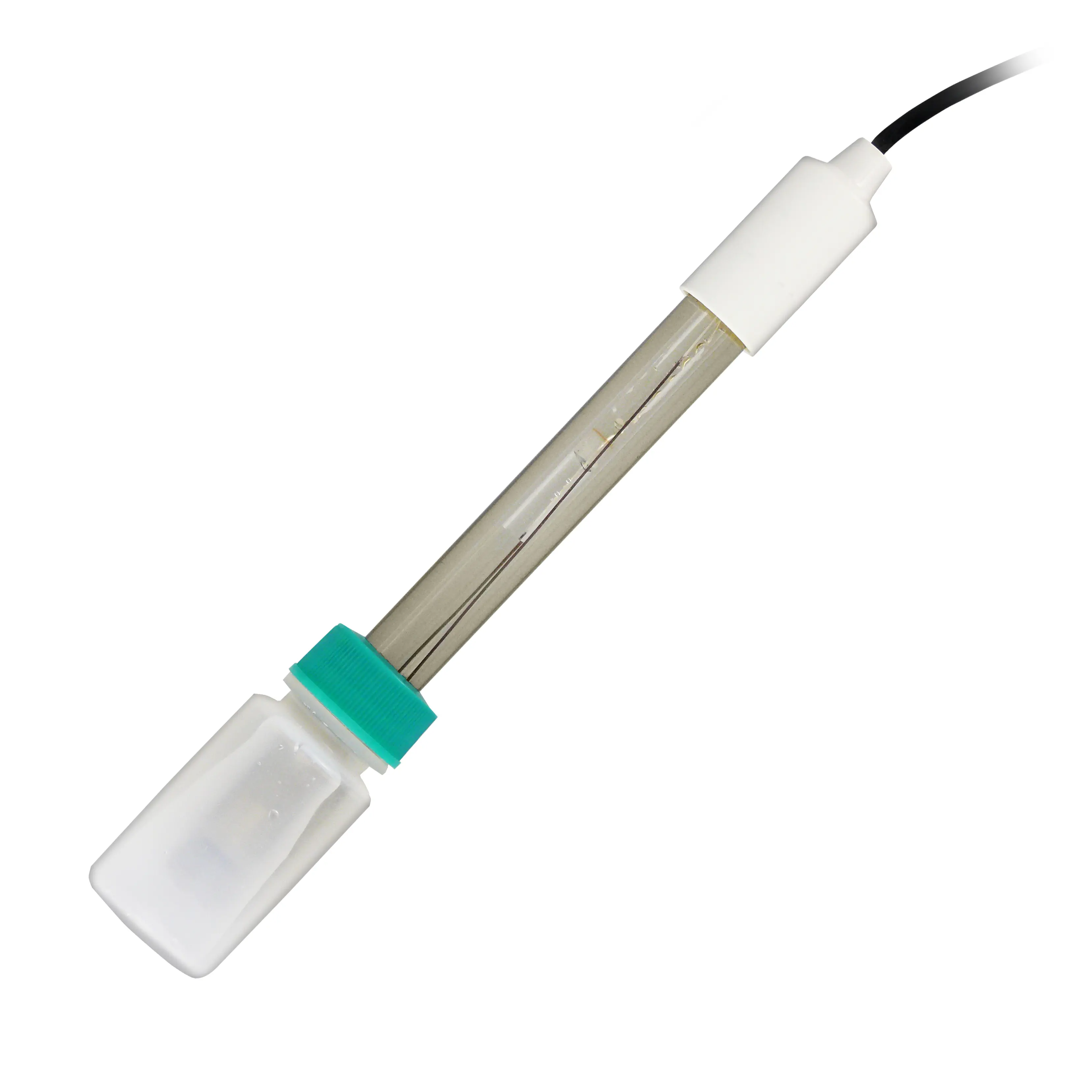

1 x pH electrode
1 x conductivity electrode
1 x SD memory card
6 x 1.5 V AA batteries
1 x user manual
1 x ISO-Calibration Certificate
