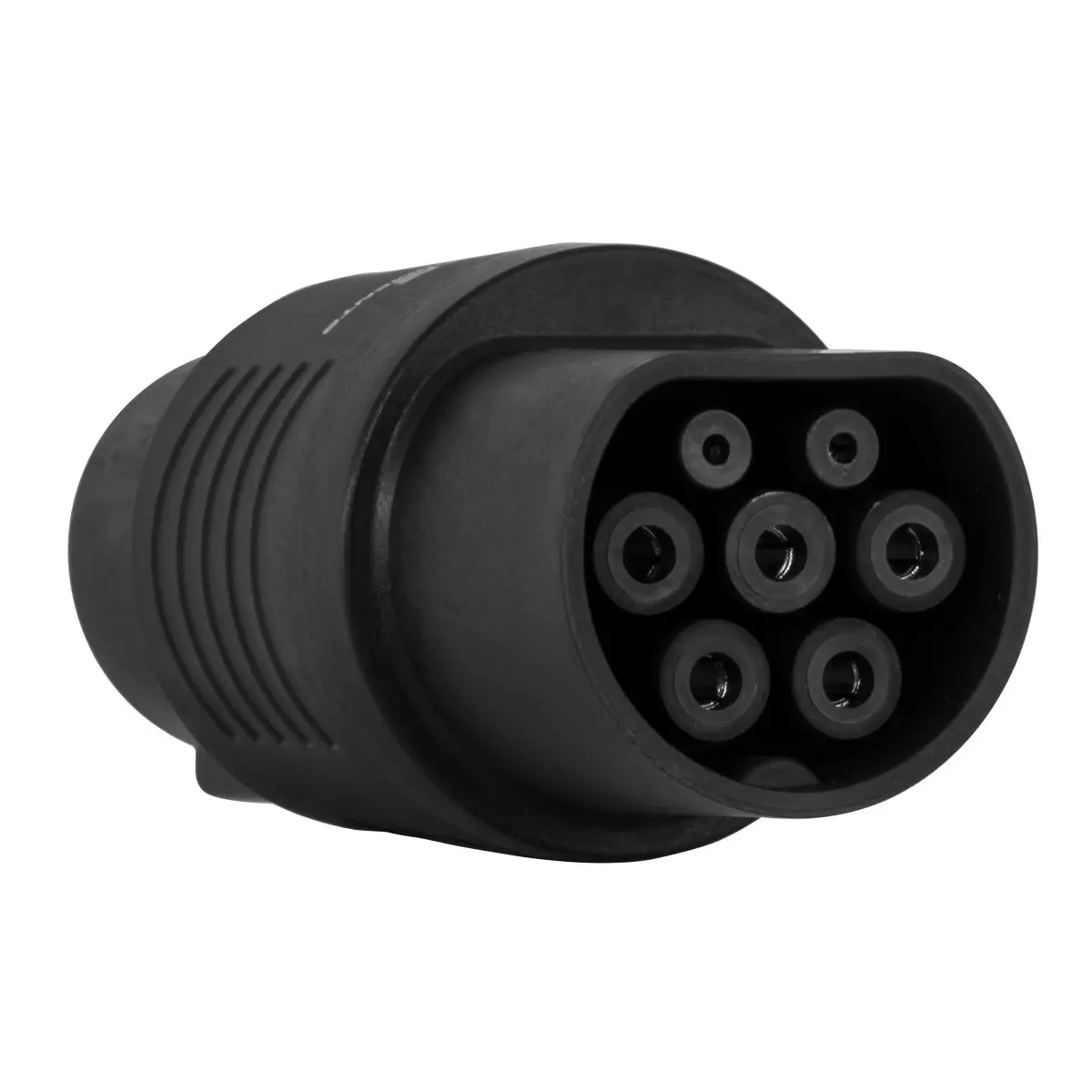

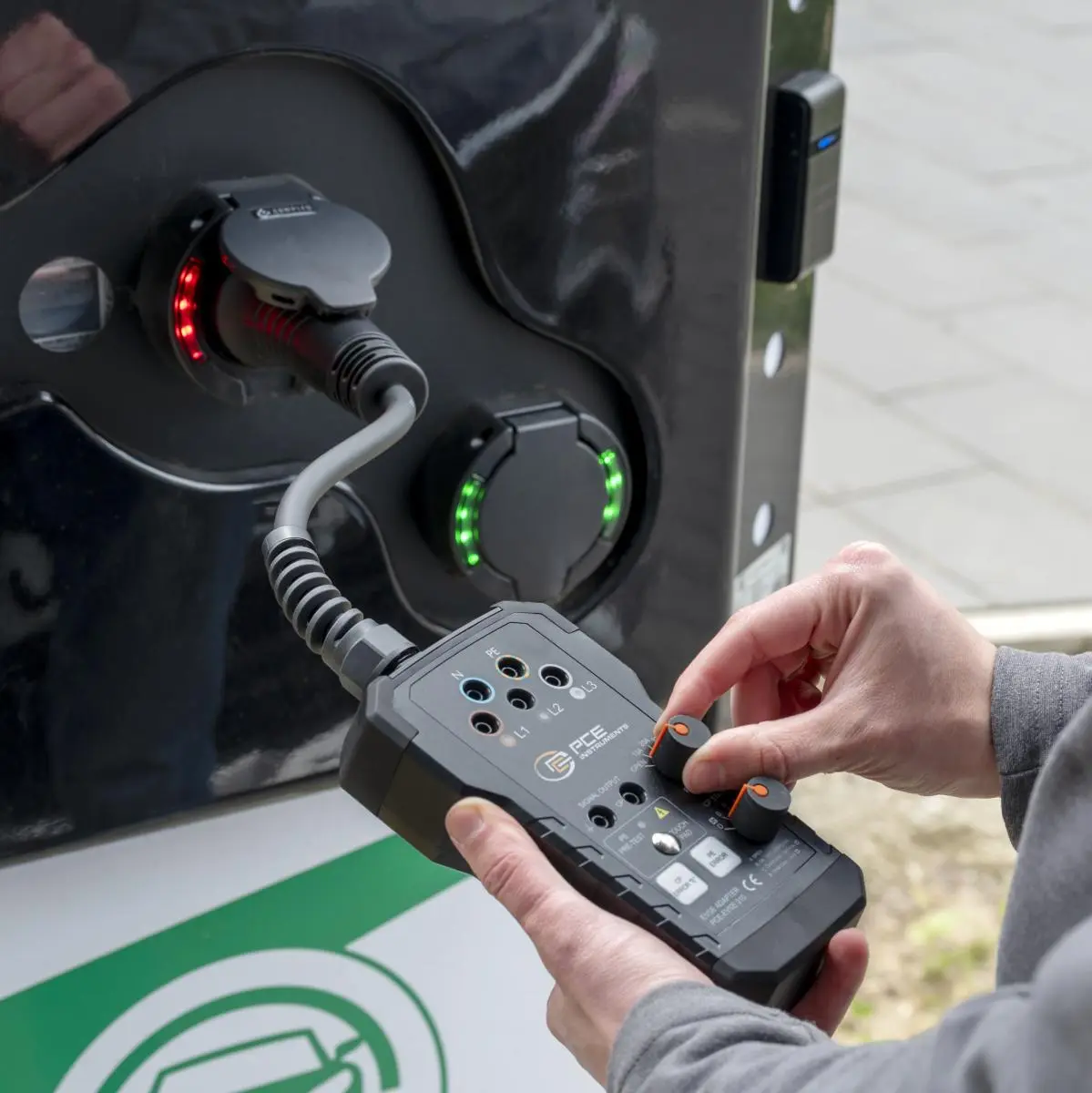

The PAT tester / portable appliance testing equipment is  for VDE 0100 testers to test charging stations (charging mode 3) for electric cars. This adapter can be used with the PCE-ITE 55B installation tester or with most other standard VDE 0100 testers. Thanks to the LEDs for voltage detection on the 3 phases, it can be quickly determined if there is an installation error.

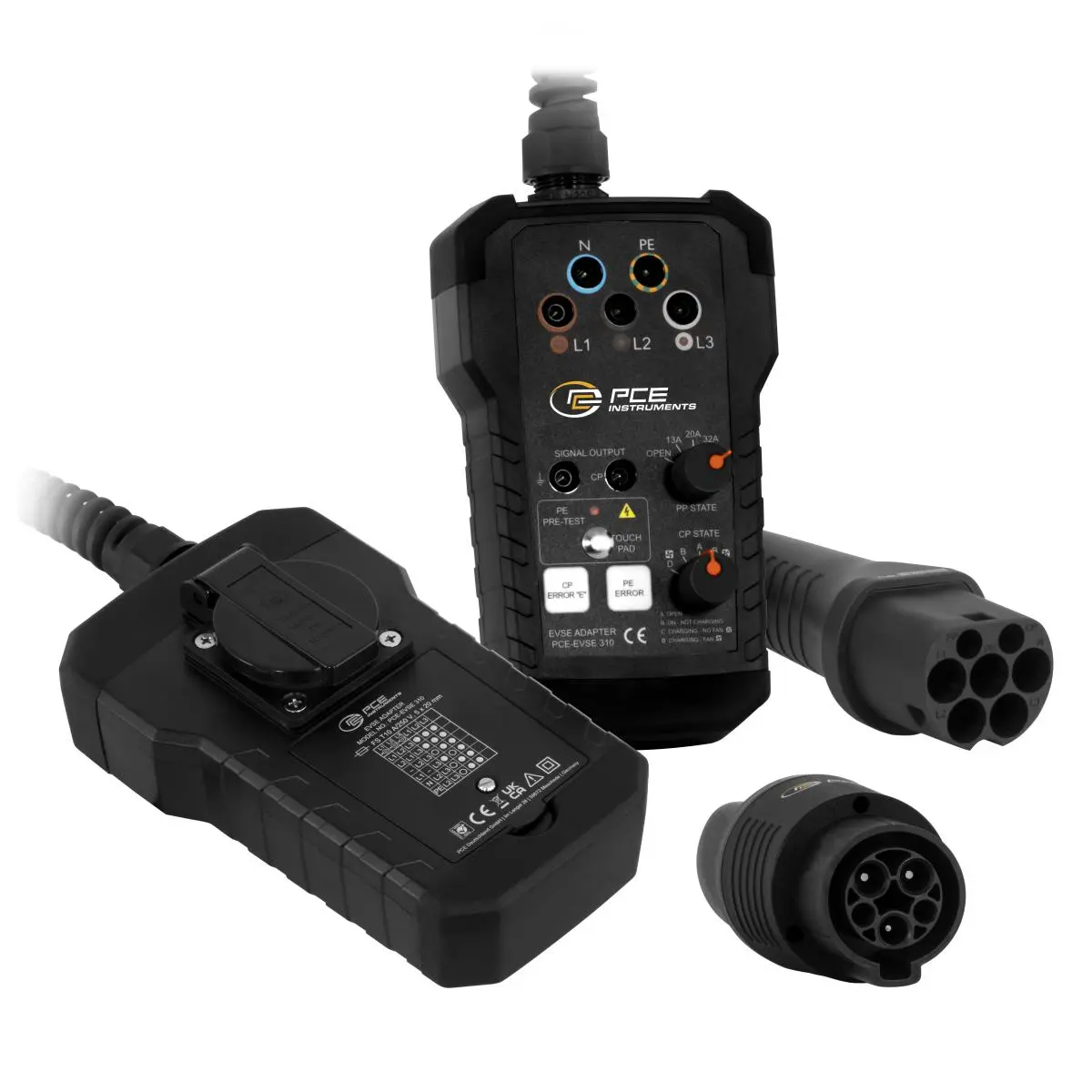

The PP State rotary switch can be used to simulate the current carrying capacity of the charging cable. The current carrying capacity is simulated with various resistors in the PAT tester / portable appliance testing equipment, which are connected between PP and PE conductors. Various vehicle states can be simulated using the CP State rotary switch. The vehicle states are simulated with different resistors connected between the CP and PE conductors.

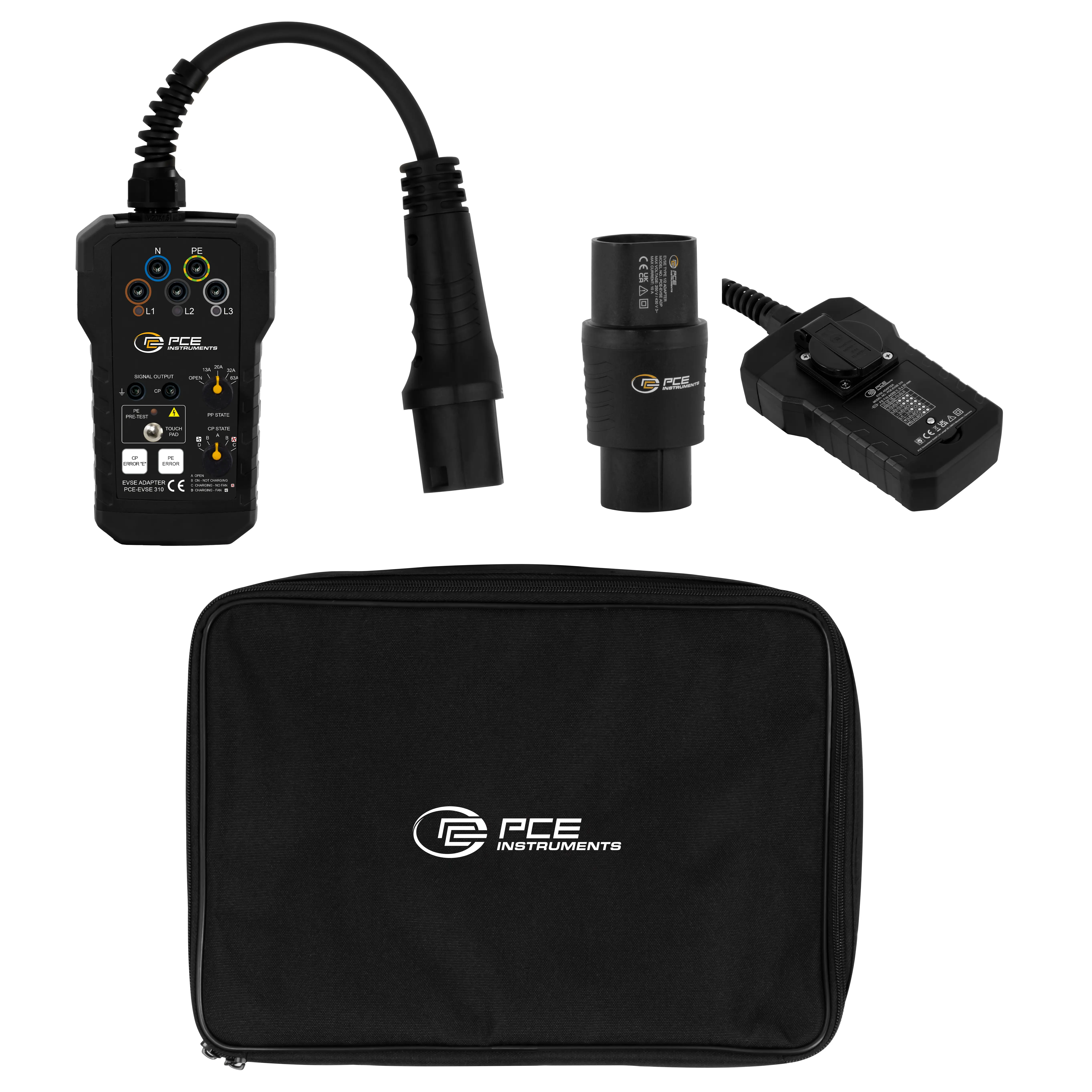

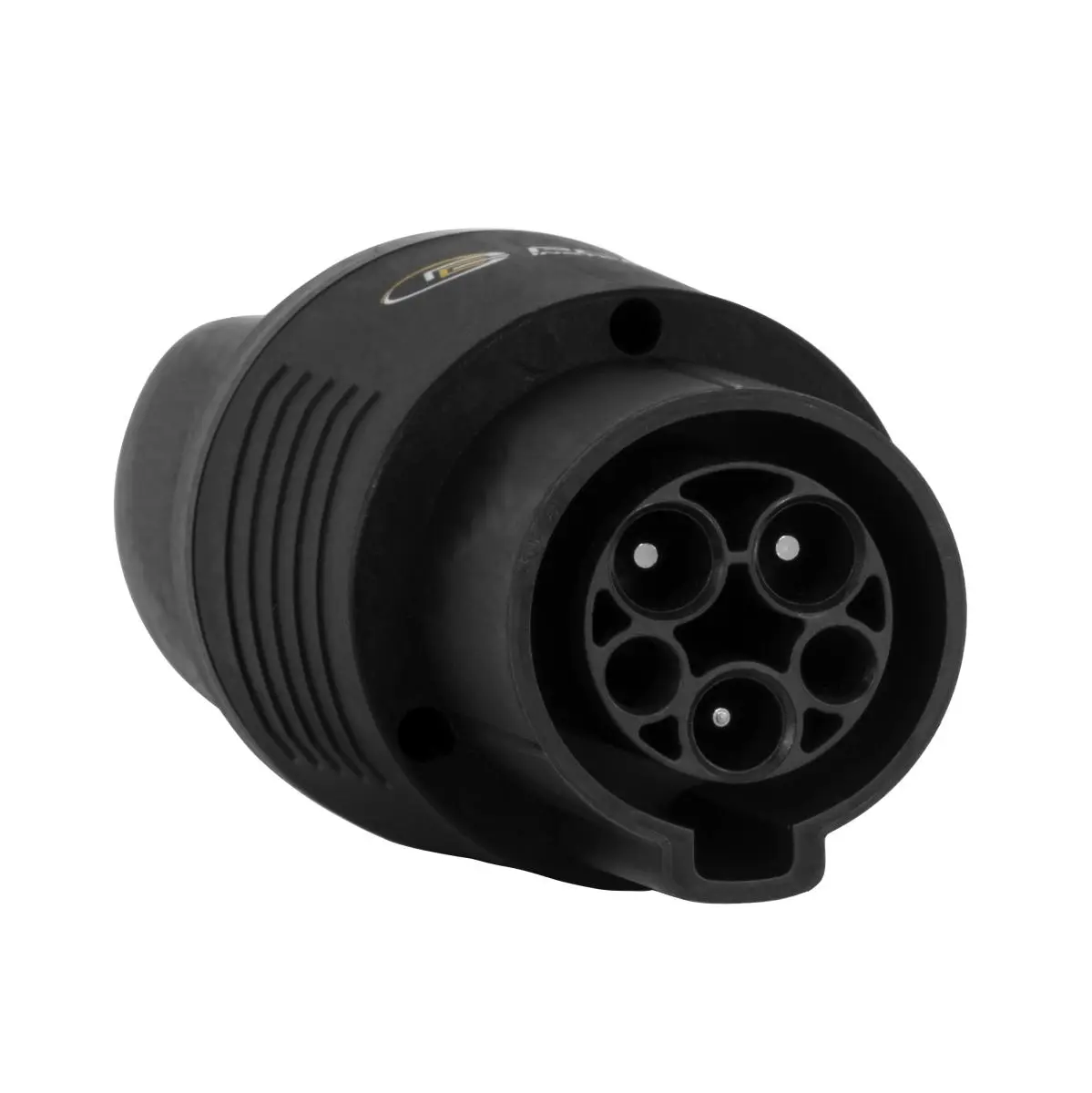

An external load can be connected to the socket. This output is only intended for measuring purposes and offers the option of checking the function of the electricity meter. The PAT tester / portable appliance testing equipment can also be used to simulate a PE fault (earth fault). The PAT tester / portable appliance testing equipment is supplied in a device bag. There is also an optional adapter for wallboxes with a type 1 connection.
