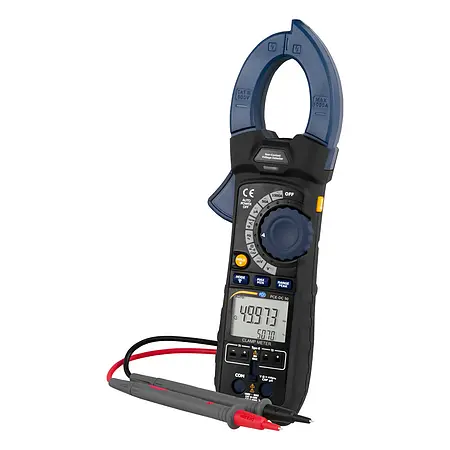

Multimeter / TRMS Multimeter PCE-DC 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC 50-ICA

GTIN (EAN): 4250348725424

Description

Multimeter / TRMS Multimeter PCE-DC 50-ICA incl. ISO Calibration Certificate
Multimeter / TRMS Multimeter with true rms measurement / AC current measurement / Voltage measurement / Temperature measurement / Bluetooth interface / Rubberized housing / Display hold / Automatic switch-off / Test lead max. 48 mm / Many measuring functions

The Multimeter / TRMS Multimeter is a measuring device for measuring currents of up to 1000 A AC / DC. In addition to current measurement, the clamp can also measure and test voltage, frequency, duty cycle, resistance, continuity test, capacitors and diodes. The enclosure diameter of the Multimeter / TRMS Multimeter is 48 mm. Thus, you can also perform measurements on cables with a large cross-section. Thanks to the NCVD function, it is possible to use the Multimeter / TRMS Multimeter to check contactlessly whether a voltage is applied to a cable.

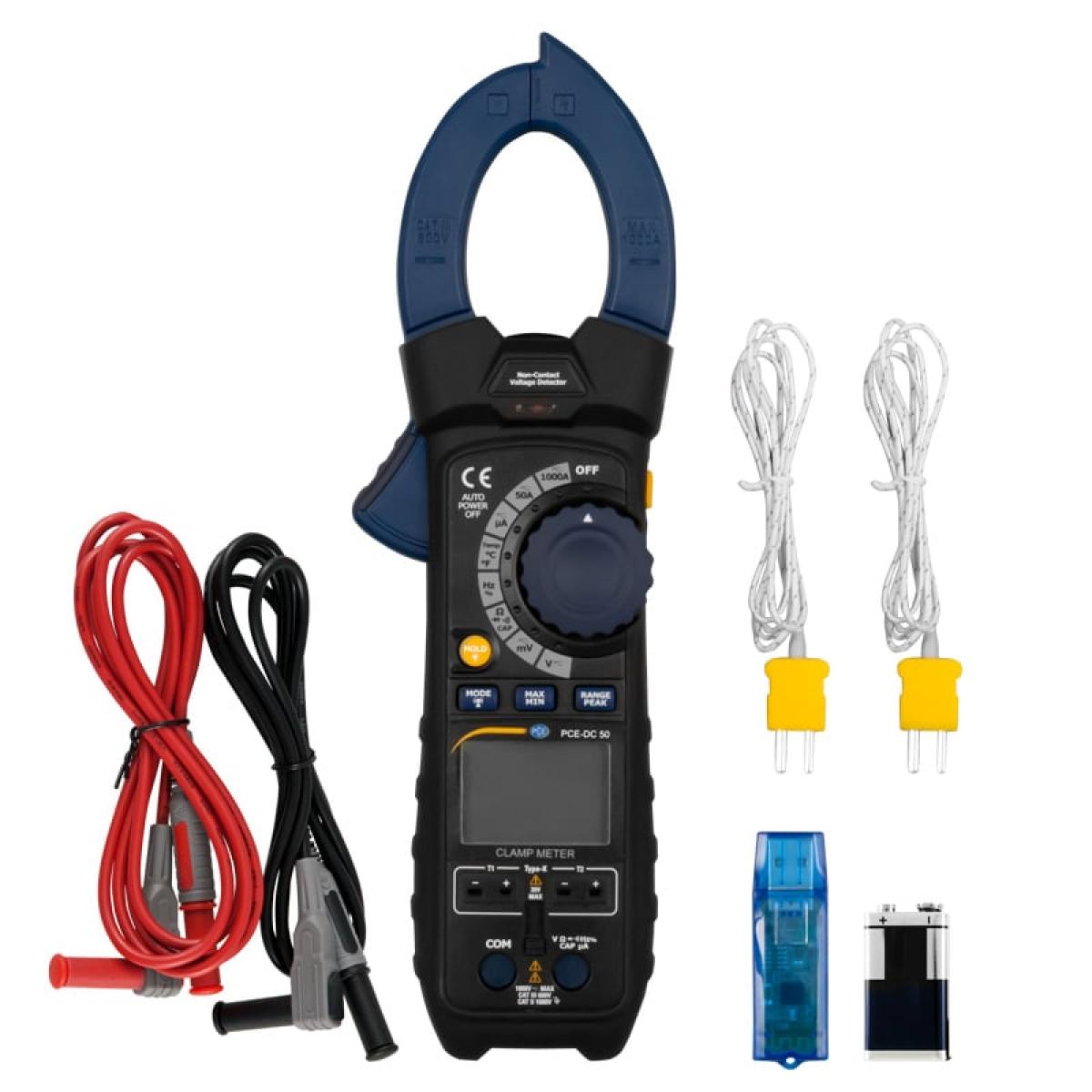

This Multimeter / TRMS Multimeter has an integrated Bluetooth interface. Via this Bluetooth interface a connection to the PC or the smartphone can be established with the measuring pliers. This allows the measured data of the Multimeter / TRMS Multimeter to be stored and analyzed. If the PC does not have a Bluetooth interface to connect the measuring pliers, a suitable Bluetooth adapter is included in the delivery.

Another special feature of the Multimeter / TRMS Multimeter is the measurement of temperatures. Two type-K thermocouples can be connected to the Multimeter / TRMS Multimeter and read out at the same time. Here, temperatures of up to 1000°C / 1832°F can be measured. The housing of the measuring pliers consists of a robust plastic, which is additionally coated with a rubber coating. Thanks to the additional rubber coating, the measuring pliers can easily withstand impacts.

Highlights

- Sample rate 2 Hz

- Cover on the test sockets

- AC A and AC V measurement

- Bluetooth interface

- Cable diameter max. 48 mm

- Temperature measurement via 2 thermocouples

- Automatic shutdown

- Non-contact voltage detection

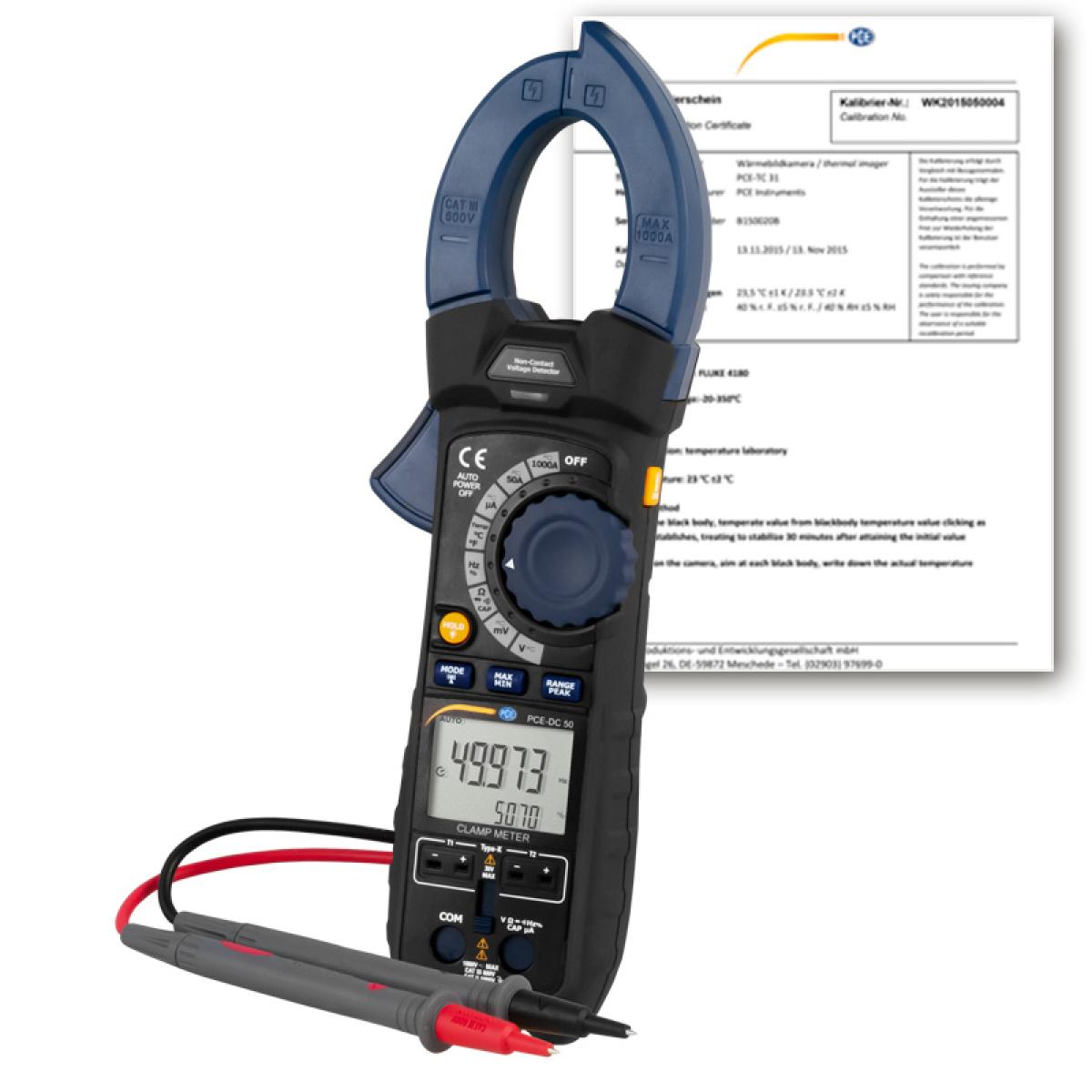

- incl. ISO-Calibration Certificate

Specification

Direct voltage DC
Measuring range	0 ... 500 mV
Resolution	0,01 mV
Accuracy	±(0.1% v.Mw. +8 digits)

Direct voltage DC
Measuring range	0 ... 5 V
Resolution	0,0001 V
Accuracy	±( 0.1% v.Mw. +4 digits)

Direct voltage DC
Measuring range	0 ... 50 V
Resolution	0,001 V
Accuracy	±( 0.1% v.Mw. +4 digits)

Direct voltage DC
Measuring range	0 ... 500 V
Resolution	0,01 V
Accuracy	±( 0.1% v.Mw. +4 digits)

Direct voltage DC
Measuring range	0 ... 600 V
Resolution	0,1 V
Accuracy	±( 0.5% v.Mw. +4 digits)

Direct current DC
Measuring range	0 ... 500 µA
Resolution	0,01 µA
Accuracy	±(1 % of Rd +6 digits)

Direct current DC
Measuring range	0 ... 5000 µA
Resolution	0,1 µA
Accuracy	±(1 % of Rd +6 digits)

Direct current DC
Measuring range	0 ... 50 A
Resolution	0,01 A
Accuracy	±(2.5 % of Rd +5 digits)

Direct current DC
Measuring range	0 ... 1000 A
Resolution	0,1 A
Accuracy	±(2.5% +30 Digits)

Capacity
Measuring range	0 ... 500 nF
Resolution	0,01 nF
Accuracy	±(3.5% v.Mw. +40 digits)

Capacity
Measuring range	0 ... 5000 nF
Resolution	0,1 nF
Accuracy	±(3.5% v.Mw. +10 Digits)

Capacity
Measuring range	0 ... 50 µF
Resolution	0,001 µF
Accuracy	±(3.5% v.Mw. +10 Digits)

Capacity
Measuring range	0 ... 500 µF
Resolution	0,01 µF
Accuracy	±(3.5% v.Mw. +10 Digits)

Capacity
Measuring range	0 ... 5 mF
Resolution	0,0001 mF
Accuracy	±(5% v.Mw. +10 Digits)

AC voltage
Measuring range	0 ... 500 mV
Resolution	0,01 mV
Accuracy	±( 0.8% +9 digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 5 V
Resolution	0,0001 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 50 V
Resolution	0,001 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 500 V
Resolution	0,01 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 600 V
Resolution	0,1 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 500 µA
Resolution	0,01 µA
Accuracy	±(1.5% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 5000 µA
Resolution	0,1 µA
Accuracy	±(1.5% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 50 A
Resolution	0,01 A
Accuracy	±(2.5% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 1000 A
Resolution	0,1 A
Accuracy	±(2.8% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Resistance
Measuring range	0 ... 500 Ω
Resolution	0,01 Ω
Accuracy	±(1% v.Mw. +9 Digits)

Resistance
Measuring range	0 ... 5 kΩ
Resolution	0,0001 kΩ
Accuracy	±(1 % of Rd +5 digits)

Resistance
Measuring range	0 ... 50 kΩ
Resolution	0,001 kΩ
Accuracy	±(1 % of Rd +5 digits)

Resistance
Measuring range	0 ... 500 kΩ
Resolution	0,01 kΩ
Accuracy	±(1 % of Rd +5 digits)

Resistance
Measuring range	0 ... 5 M Ω
Resolution	0,0001 M Ω
Accuracy	±(2% v.Mw. +10 Digits)

Resistance
Measuring range	0 ... 50 M Ω
Resolution	0,001 M Ω
Accuracy	±(3% v.Mw. +10 Digits)

Frequency
Measuring range	0 ... 50 Hz
Resolution	0,001 Hz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 500 Hz
Resolution	0,01 Hz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 5 kHz
Resolution	0,0001 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 50 kHz
Resolution	0,001 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 500 kHz
Resolution	0,01 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 5 MHz
Resolution	0,0001 MHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 10 MHz
Resolution	0,001 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Temperature
Measuring range	-100 ... +1000 °C
Resolution	0,1 °C
Accuracy	±(1% v.Mw. +2.5°C)

Temperature
Measuring range	-148 ... +1832 °F
Resolution	0,18 °F
Accuracy	±(1% of measured value + 4.5°F)

General technical data
Measuring functions	MIN, MAX, HOLD
Frequency	10 ... 10000 Hz
Display type	LCD with backlight
Display size	1,8 Inch
Measuring rate	2 Hz
Interface	Wireless
Standard(s)	IEC 1010-1, EN 61010-1
Maximum cable diameter	48 mm
Automatic power-off	30 min
Bandwidth	50 ... 400 kHz
Safety standard	CAT III 600V
Fuse(s)	500 mA Ceramic Flink
Diode test	0.3 mA / 2.8V DC
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	5 ... 40 °C , 0 ... 80 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	230 x 76 x 40 mm
Weight	315 g
