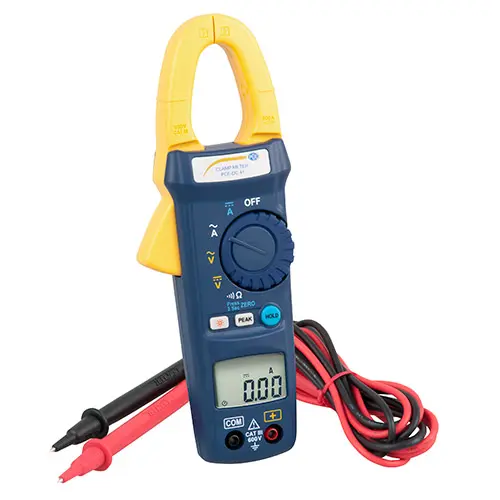

Multimeter / TRMS Multimeter PCE-DC 41

Multimeter / TRMS Multimeter PCE-DC 41 [zoom]
Multimeter / TRMS Multimeter PCE-DC 41

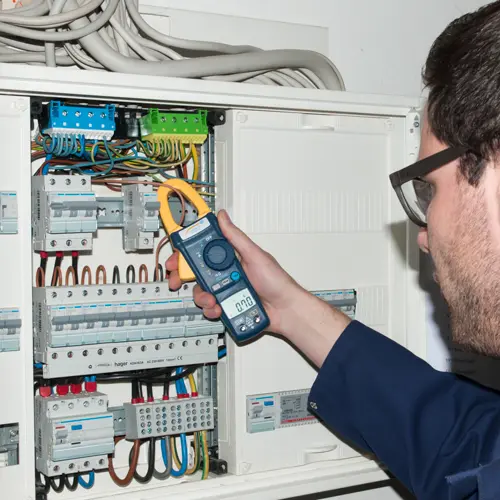

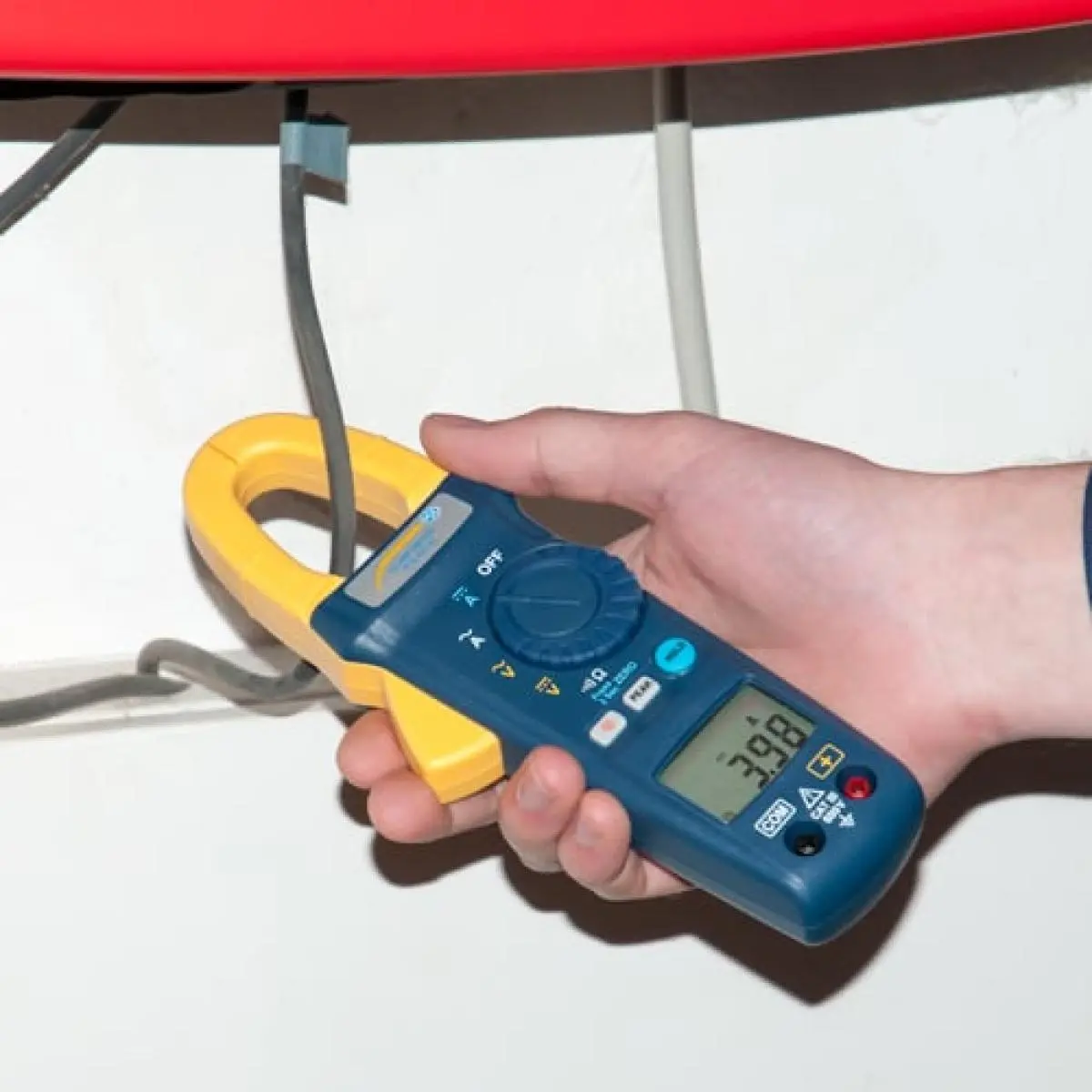

Multimeter / TRMS Multimeter Application picture
Multimeter / TRMS Multimeter Application picture
Multimeter / TRMS Multimeter Delivery scope

Multimeter / TRMS Multimeter PCE-DC 41

Order no.: PCE-DC 41
GTIN (EAN): 4250348714831
AED 975.00
AED 1,023.75
price ex. (customs / clearance)
:
4250348714831
PCE-DC 41
Delivery time:1-2 working days

Accessory

Description

Multimeter / TRMS Multimeter PCE-DC 41
Voltage metering up to 600 V / current metering up to 600 A / CAT III 600 V
Electrical resistance metering up to 1000 Ω / contact-free measuring of electrical conductors

The Multimeter / TRMS Multimeter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the Multimeter / TRMS Multimeter, or you can use the integrated clamp mechanism. By using the clamp of the Multimeter / TRMS Multimeter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it. You can also check the continuity with the Multimeter / TRMS Multimeter.



Due to its compact design and light weight, the device is well-suited for mobile use. When using the clamp mechanism, it is also possible to run the Multimeter / TRMS Multimeter with one hand only. The measured data is shown on the large backlit 4-digit display. By using the peak-hold or data-hold function, you can also freeze the readings on the display. The auto power-off function saves battery power, when the device is not in use.

Highlights

- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism
- Continuity check
- Peak- and data-hold function
- Measuring leads included in the package
- 4-digit display
- Display backlight
- Auto power-off

Specification

Direct voltage DC
Measuring range  0 ... 600 V
Resolution  0,1 V
Accuracy  ±1 % +2 digits

Direct current DC
Measuring range  0 ... 60 A
Resolution  0,01 A
Accuracy  ±2 % +5 digits

Direct current DC
Measuring range  0 ... 600 A
Resolution  0,1 A
Accuracy  ±2 % +5 digits

AC voltage
Measuring range  0 ... 600 V
Resolution  0,1 V
Accuracy  ± 1.2% ± 5 Digits
Frequency range  50 ... 500 Hz

Alternating current AC
Measuring range  0 ... 60 A
Resolution  0,01 A
Accuracy  ±2.0% +5 digits
Frequency range  50 ... 60 Hz

Alternating current AC
Measuring range  0 ... 600 A
Resolution  0,1 A
Accuracy  ±3.0% +5 digits
Frequency range  60 ... 500 Hz

Resistance
Measuring range  0 ... 1000 Ω
Resolution  0,1 Ω
Accuracy  ±1 % +2 digits

General technical data
Measuring functions  HOLD
Display type  LCD
Display size  1,6 in
Measuring rate  3 x per second
Maximum cable diameter  25 mm
Operating time  50 h
Automatic power-off  30 min
Dimensions  Max. plier opening Ø 25 mm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 40 °C , 0 ... 70 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  210 x 62 x 36 mm
Weight  273 g

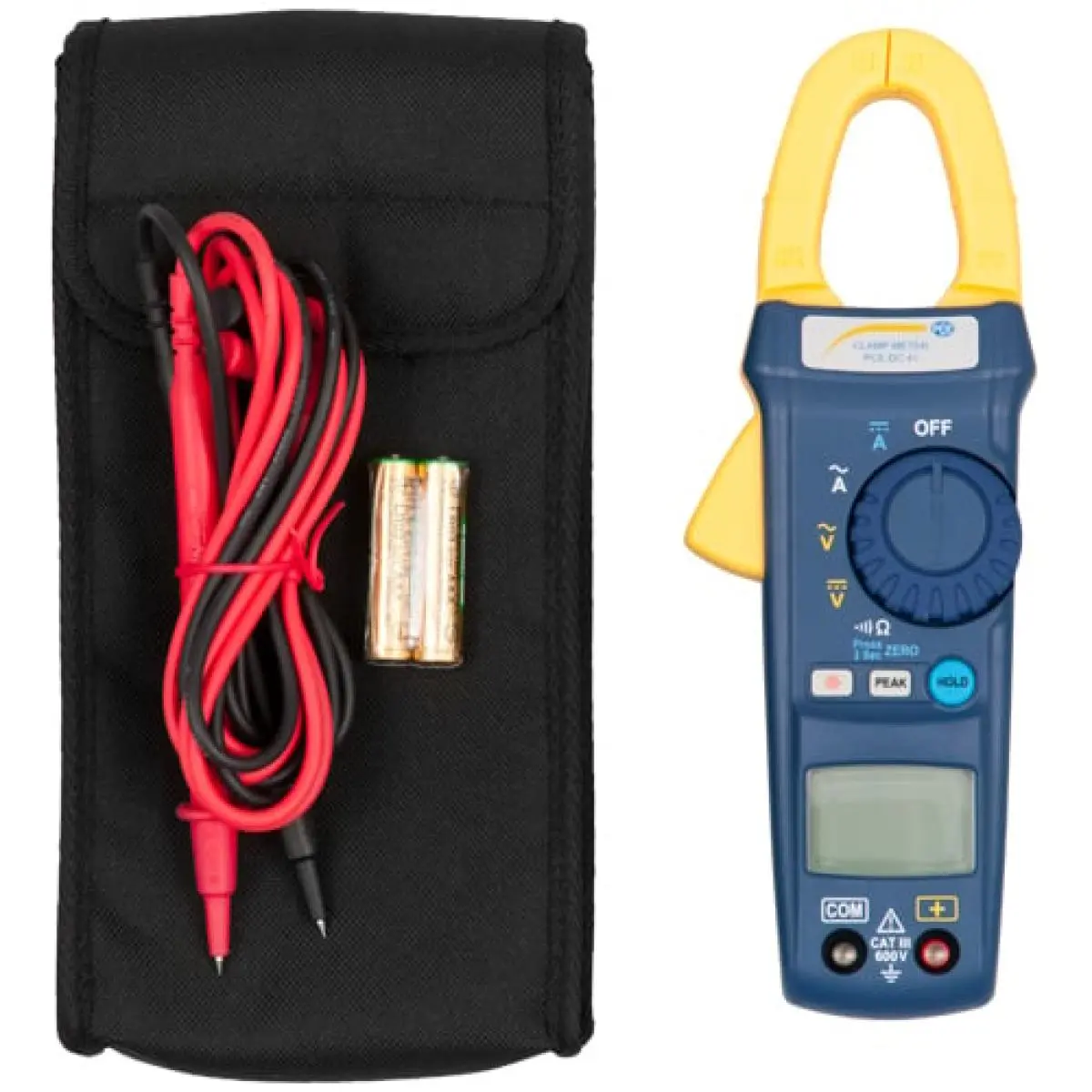

Delivery Scope

Delivery Scope
1 x PCE-DC 41
1 x Measuring leads
1 x Batteries
1 x Carrying case
1 x Instruction Manual
