Milliohmmeter PCE-MO 2001

Milliohmmeter PCE-MO 2001 [zoom]

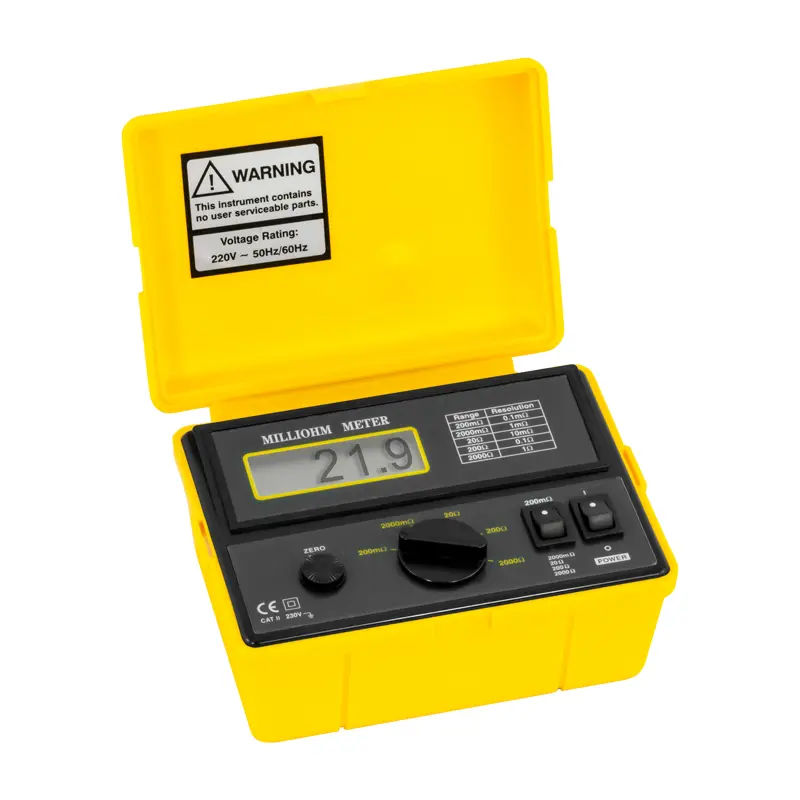

Milliohmmeter PCE-MO 2001

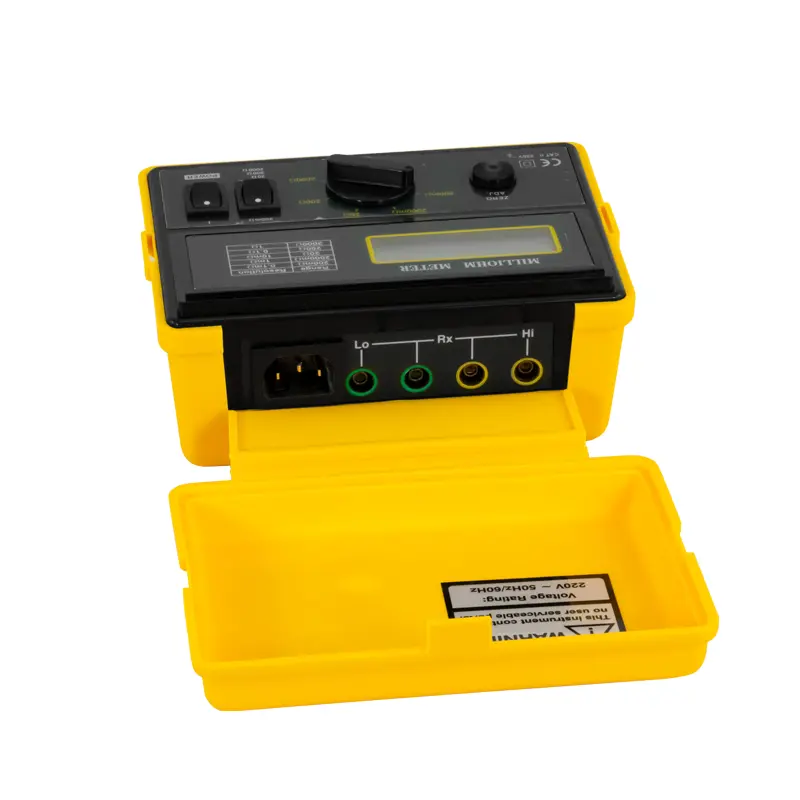

Milliohmmeter Connections

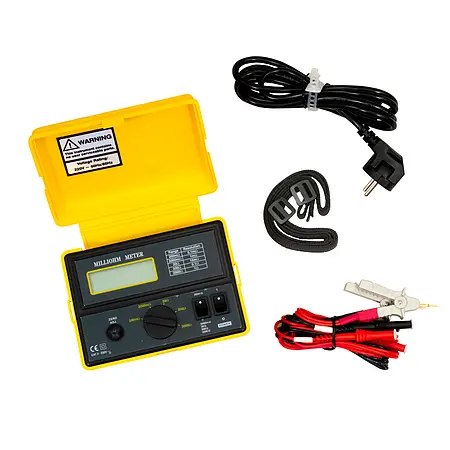

Milliohmmeter Delivery scope

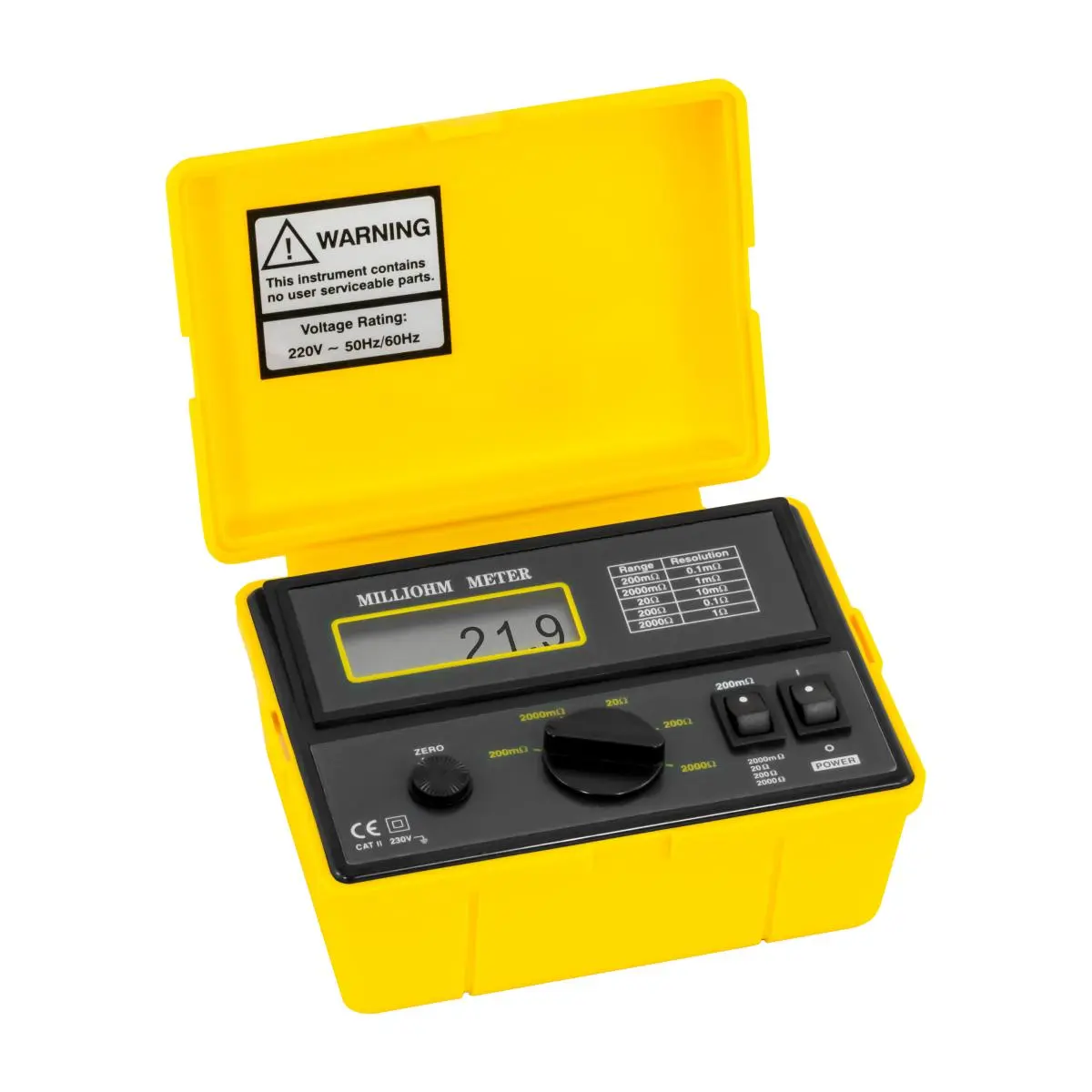

Milliohmmeter PCE-MO 2001

Order no.: PCE-MO 2001
GTIN (EAN): 4250348701077
AED 1,840.00
AED 1,932.00
price ex. (customs / clearance)
:
4250348701077
PCE-MO 2001
Delivery time:1-2 working days

Accessory

Description

Milliohmmeter PCE-MO 2001
(supplied with a water resistant brief-case, for measuring ranges from 100 μΩ to 2000 Ω)

This Milliohmmeter is supplied with a large 3½ positions LCD display that shows the measurement values, which is very easy to read. With the Milliohmmeter you will be able to measure electric resistance from 100 μΩ to 2000 Ω.To obtain measurement values, a constant electric current is introduced inside an object to test the voltage drop in it. Milliohmmeter has a housing protected against water splash and also it is delivered calibrated. If you wish, an ISO calibration certificate can be requested.

Highlights

- It can be used to measure electric resistance in engine coils, generators,
transformers, commutation circuits, for instance in parallel or adjoining
commutation circuits, compressed commutation circuits or commutators and
relays.
- To measure binding energy in mines, planes, boats and also for both
industrial and home installations.
- Pitch control in cyclic systems (Ringbus) to be used in industry and home.
- To test and measure Read contacts.
- Compression elements control in over line current cables, for the control and
maintenance of components such as connectors, contacts.
- Security: IEC-1010-1; CAT II 20 V

Specification

Resistance
Measuring range  0 ... 200 mΩ
Resolution  0,1 µΩ
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 2000 mΩ
Resolution  1 mΩ
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 20 Ω
Resolution  10 mΩ
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 200 Ω
Resolution  0,1 Ω
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 2000 Ω
Resolution  1 Ω
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

General technical data
Cable length  50 cm
Display type  LCD
Display size  0,7 Inch
Measuring rate  0,4 s
Standard(s)  IEC 1010-1
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Safety standard  CAT II 20 V
Measuring method  4-wire method for mΩ measurement
Test current  1 mA: 2000 Ω / 200 Ω
10 mA: 20 Ω / 2 Ω
100 mA: 200 mΩ
Accuracy: ±0.1 %
Fuse(s)  100 mA / 250 V
Performance  2,5 W
Protection class (device)  IP20
Power supply  230 V AC, 50/60 Hz
Connector type  Schuko plug
Operating conditions  0 ... 40 °C , 0 ... 80 % RH
Storage conditions  0 ... 40 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  170 x 120 x 90 mm
Weight  680 g

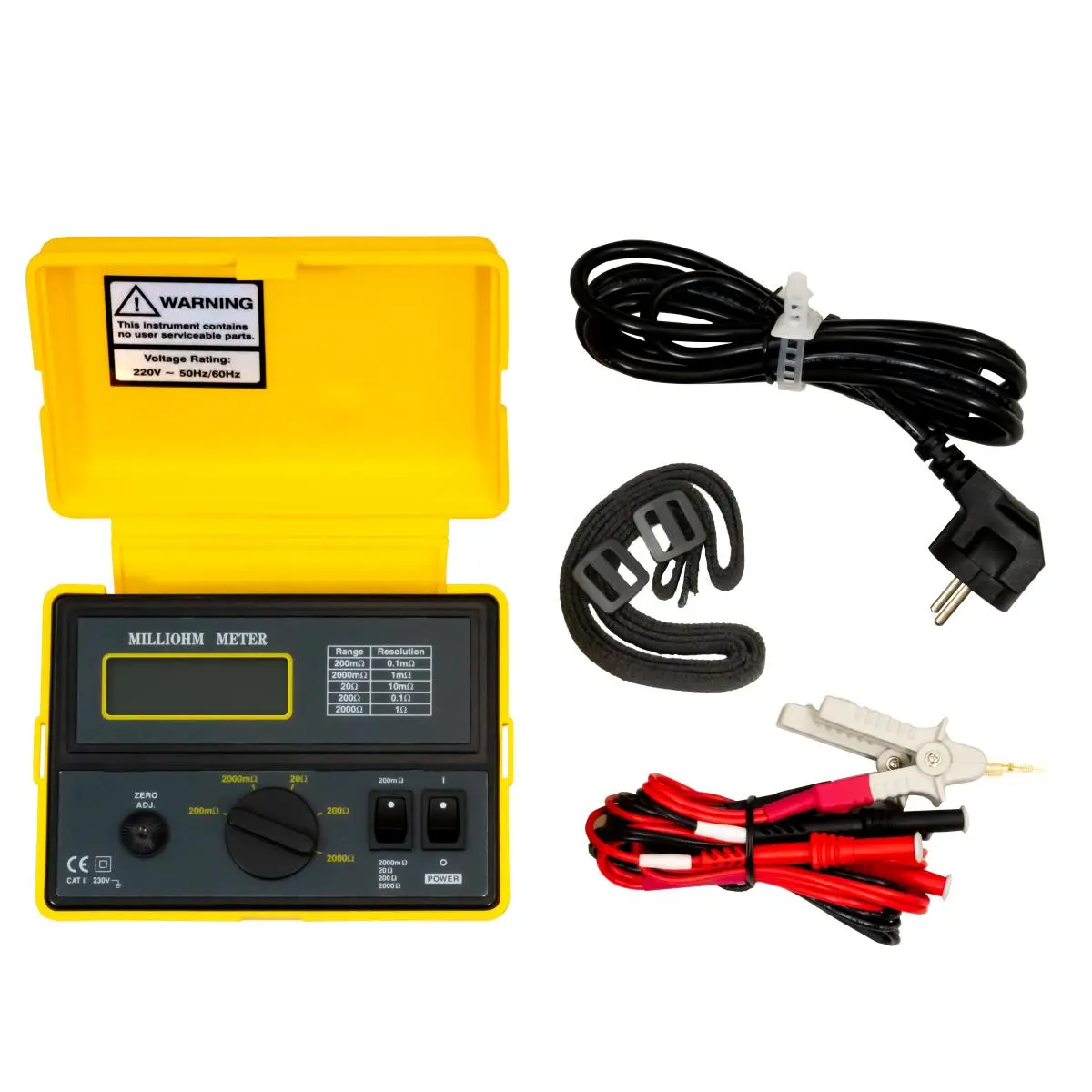

Delivery Scope

1x Milliohmmeter PCE-MO 2001
1x testing cables,
1x AC cable
1x user's manual
