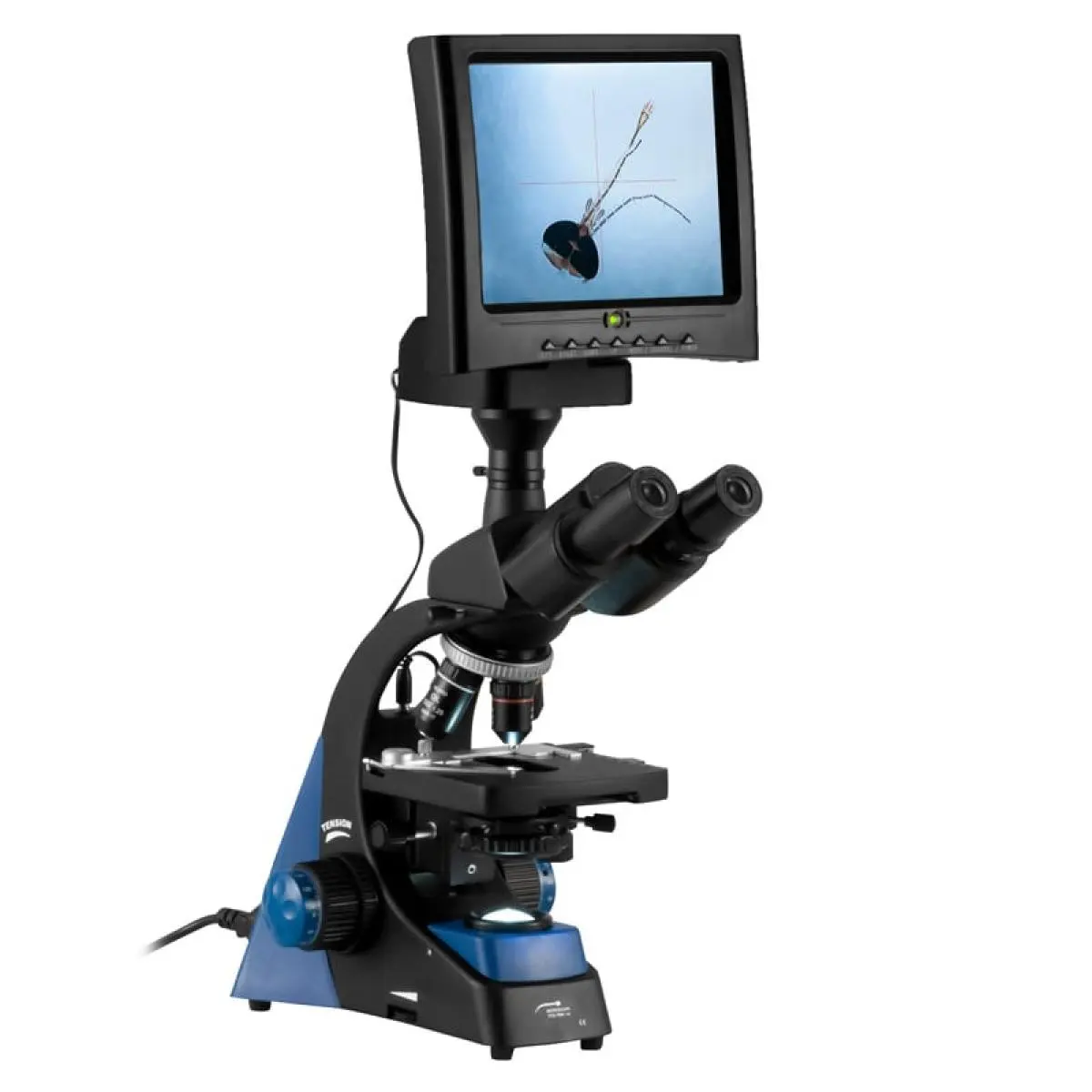

| General technical data | |
| Outputs | Video output highest resolution: 1024 x 768 at 75 Hz |

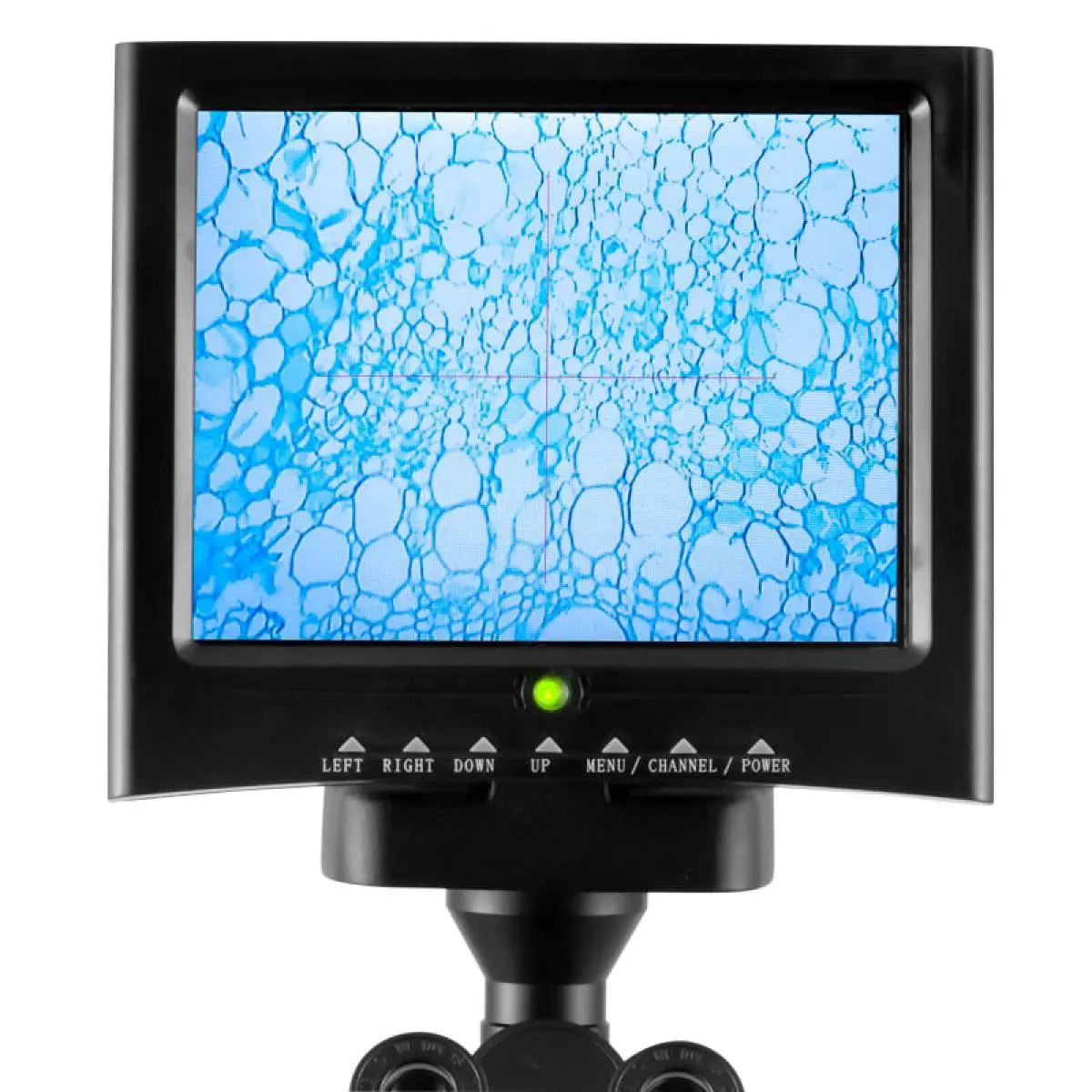

| Display type | LCD |
| Display size | 13 Inch |
| Display resolution | 800 x 600 pixels |
| Camera resolution | 976 x 582 pixels |
| Light source | 3.5 V 1 W LED |
| Working distance | 37.50 mm, 7.316 mm, 0.632 mm, 0.198 mm |
| Magnification | 4 ... 100 x |

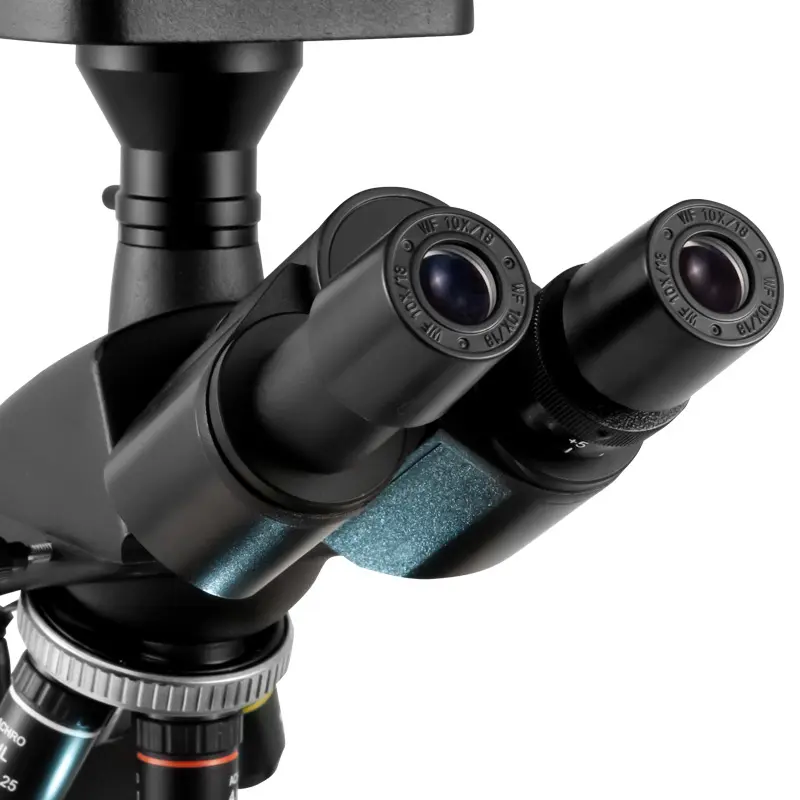

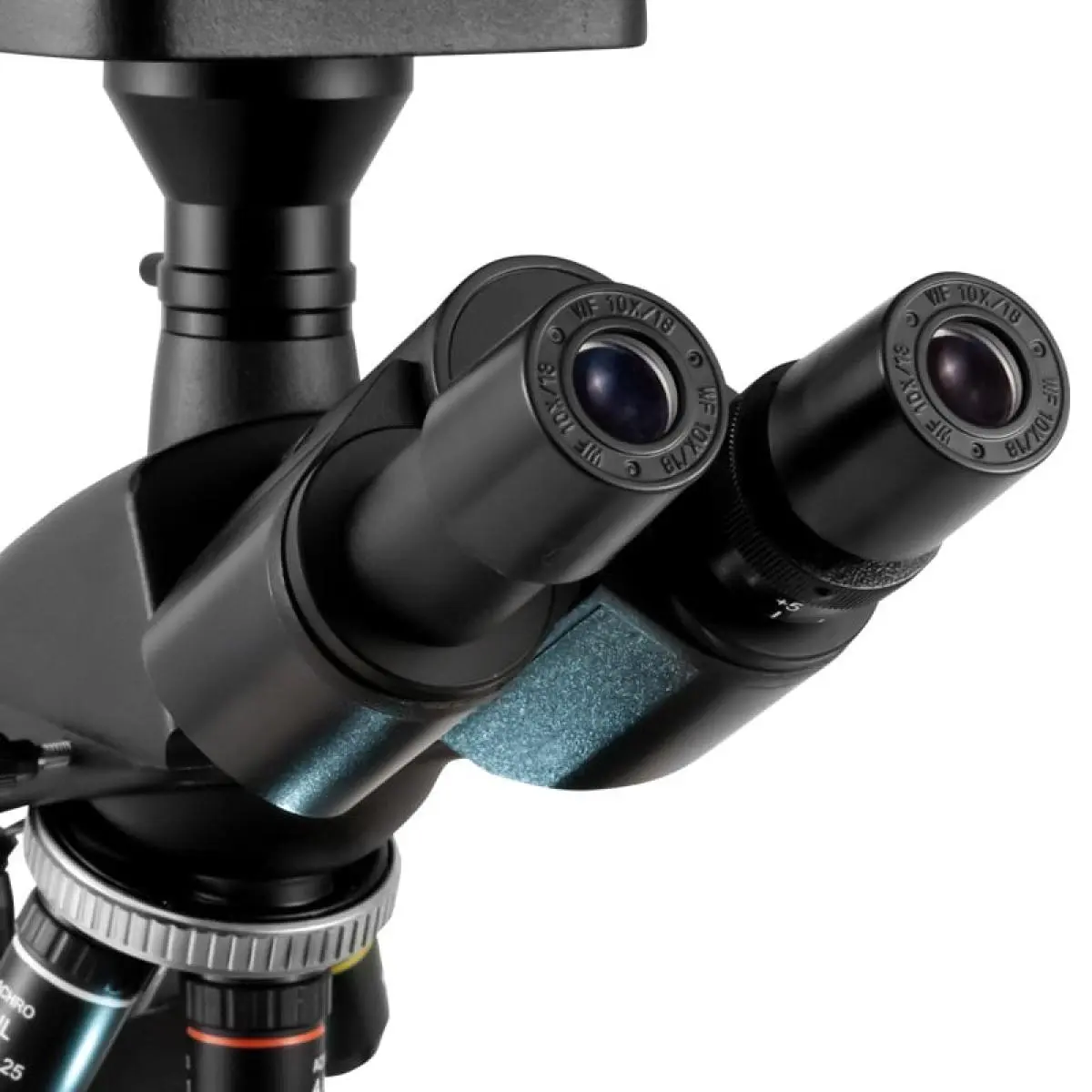

| Head | Trinocular 360 ° rotatable 30 ° angled view Dioptre adjustment on the right Interpupillary distance adjustable 55 ... 75 mm |
| Lens | Eyepieces: WF 10x wide field eyepieces Lenses: 4 |
| Image / video format | PAL |

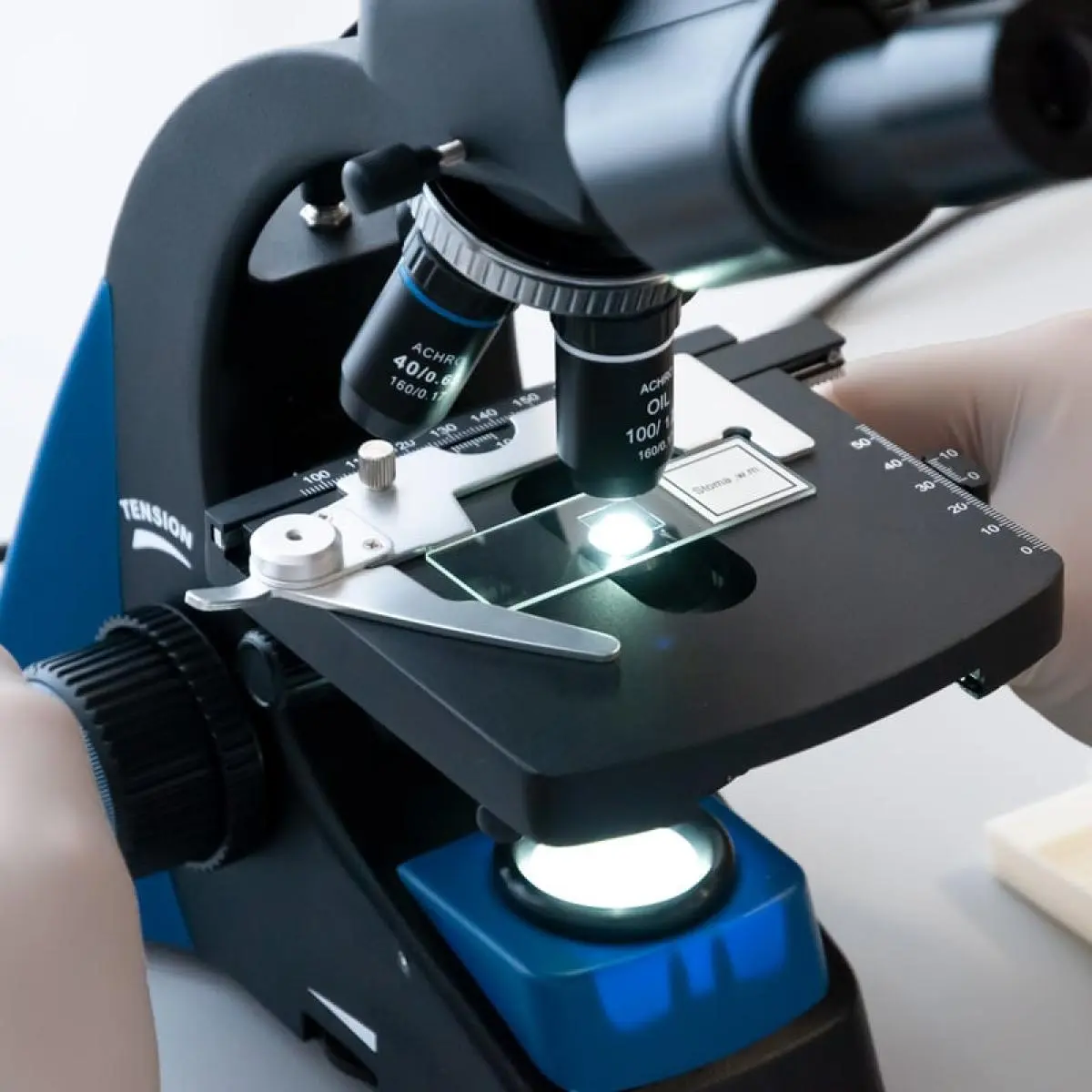

| Dimensions | Cover glass: 0.17 mm Tube length: 160 mm Conjugate distance: 195 mm Cross table: 125 x 125 mm Displacement: 40 x 60 mm Lift: 14 mm |
| Numerical aperture | 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm |
| Focus | 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm |
| Menu language | English, English (GB), Chinese |
| Protection class (device) | IP20 |
| Power supply | 230V AC | 50 Hz |

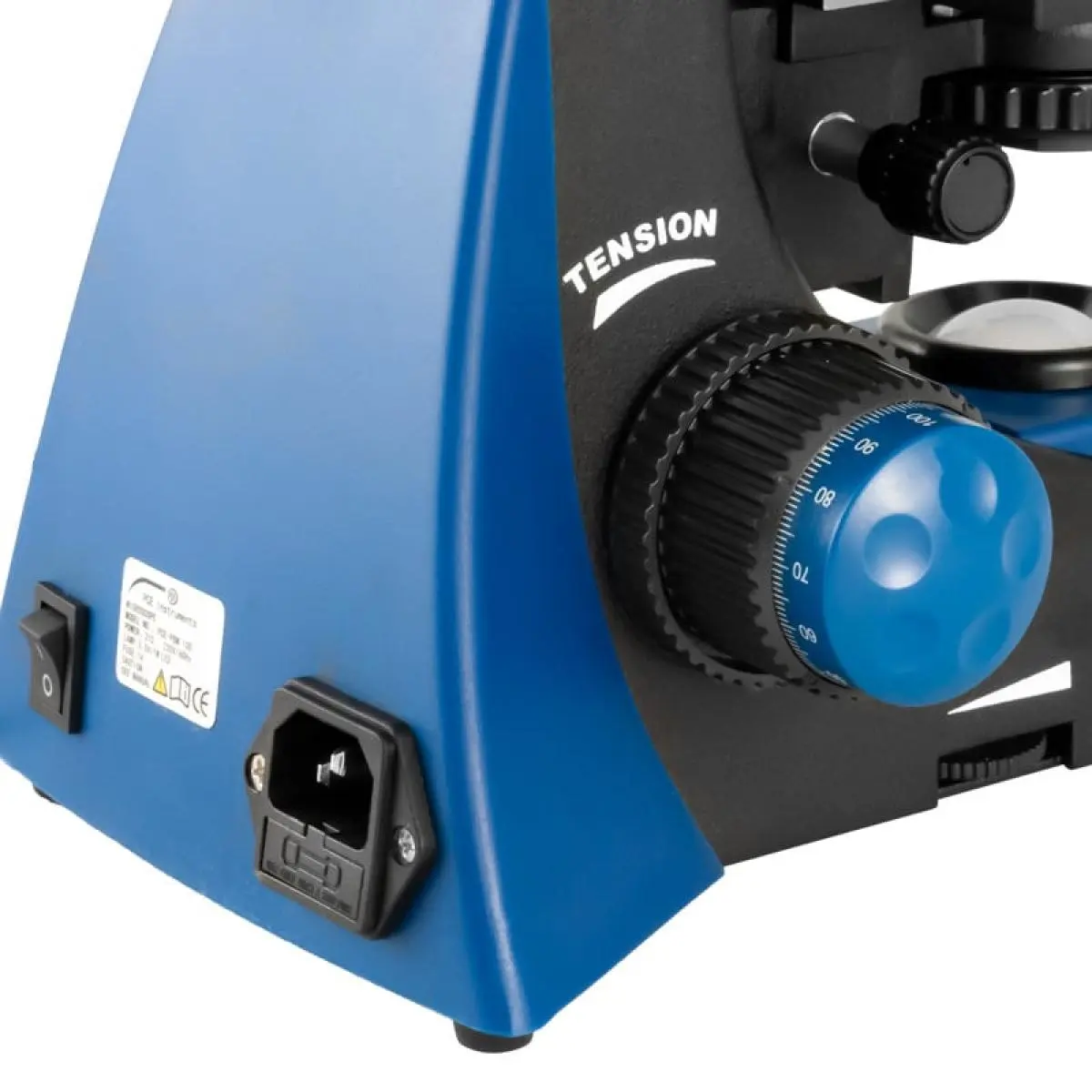

| Connector type | Cold-device plug |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 550 x 320 x 210 mm |
| Weight | 5100 g |
