Material Tester PCE-XXM 40

Material Tester PCE-XXM 40

Order no.: PCE-XXM 40
GTIN (EAN): 4250348738448
AED 2,061.00
AED 2,164.05
price ex. (customs / clearance)
:
4250348738448
PCE-XXM 40
Delivery time:1-2 working days

Description

Material Tester with color difference tolerance (PASS/WARN/FAIL) / Measurement directly on the sample / Measured value memory / Brightness range L* 5 ... 100

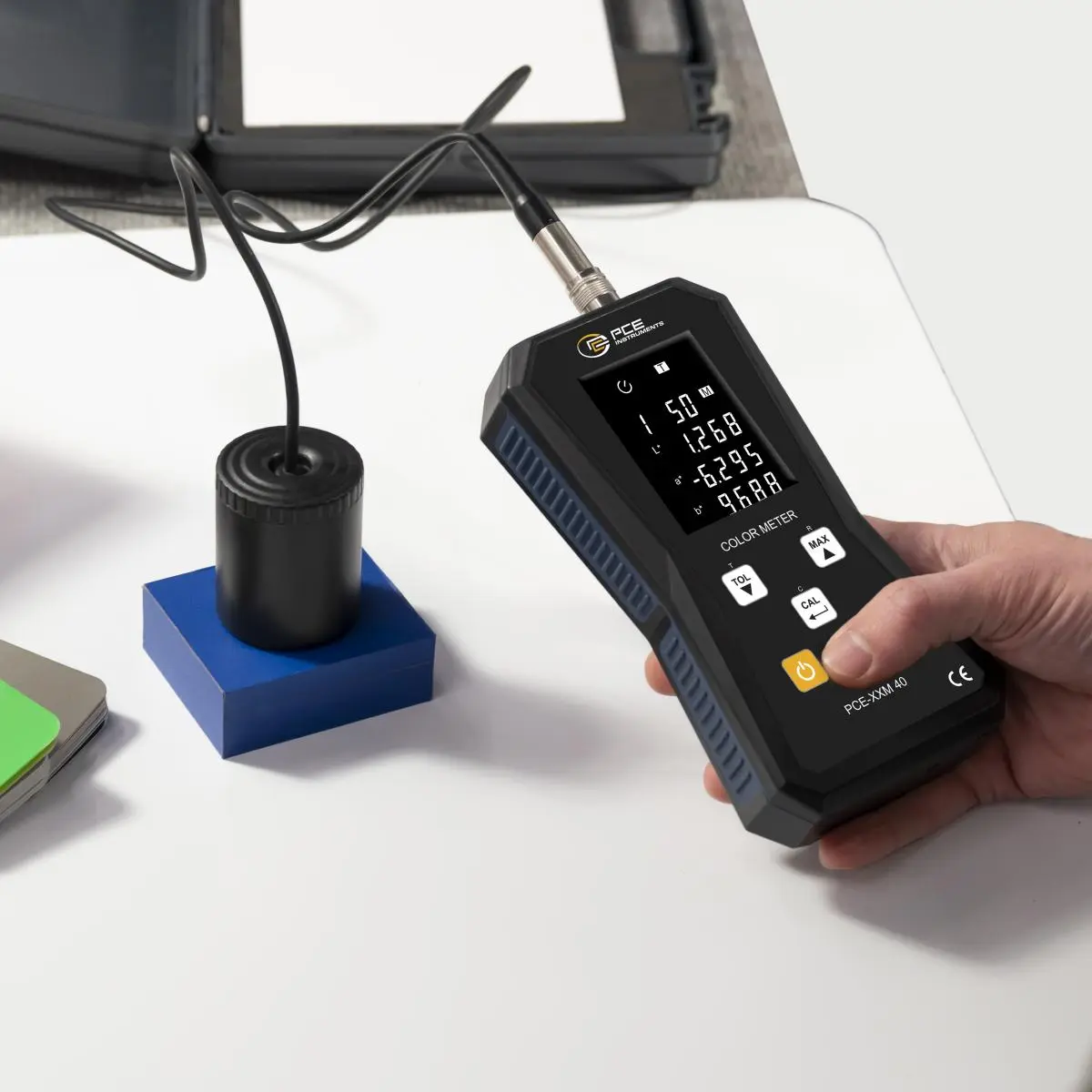

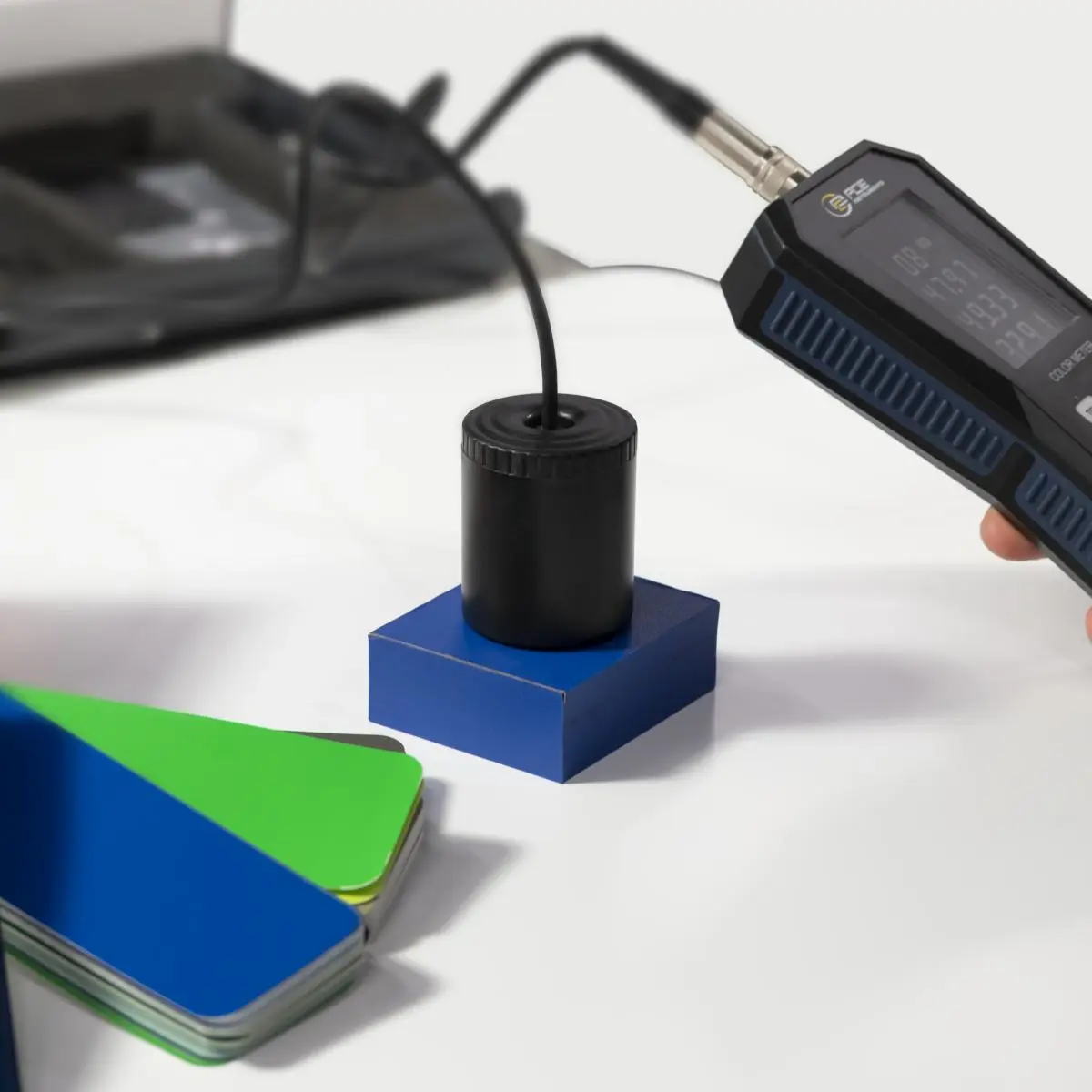

The Material Tester enables precise and objective color measurement and reliable determination of color deviations. Our Material Tester measures color values in the Lab, XYZ, xyY and R s/G s/B s color spaces and also displays important color indices such as whiteness (WI), yellowing index (YI) and color temperature (Tw). The integrated ΔEab calculation allows the color difference to be determined directly. An adjustable tolerance function (PASS/WARN/FAIL) immediately indicates whether the measured color is within the specified limits. The device measures directly on the sample, can store multiple measurements and target values, and covers a brightness range of 5 to 100. Power is supplied by three AA batteries, making the Material Tester particularly mobile and flexible – ideal for measurements directly on site. Thanks to its versatile applications, the device is ideal for quality control in the production of textiles, paints, plastics, leather or paper, as well as for laboratories and color testing. By displaying different color spaces and automatically calculating color differences, it helps users to evaluate colors objectively and comprehensibly. The Material Tester delivers precise and reproducible results without the need for visual assessments, making it an indispensable tool for standardized color analysis and professional color control.


Highlights

- MIN, MAX, AVG measurement functions
- 45°/0° measurement geometry
- 6 color spaces
- 6 color difference formulas
- Color tolerance test (PASS/WARN/FAIL)
- Measurement aperture approx. Ø 10 mm - Internal memory 99 data sets

Specification

General technical data
Measuring functions  AVG, MIN, MAX

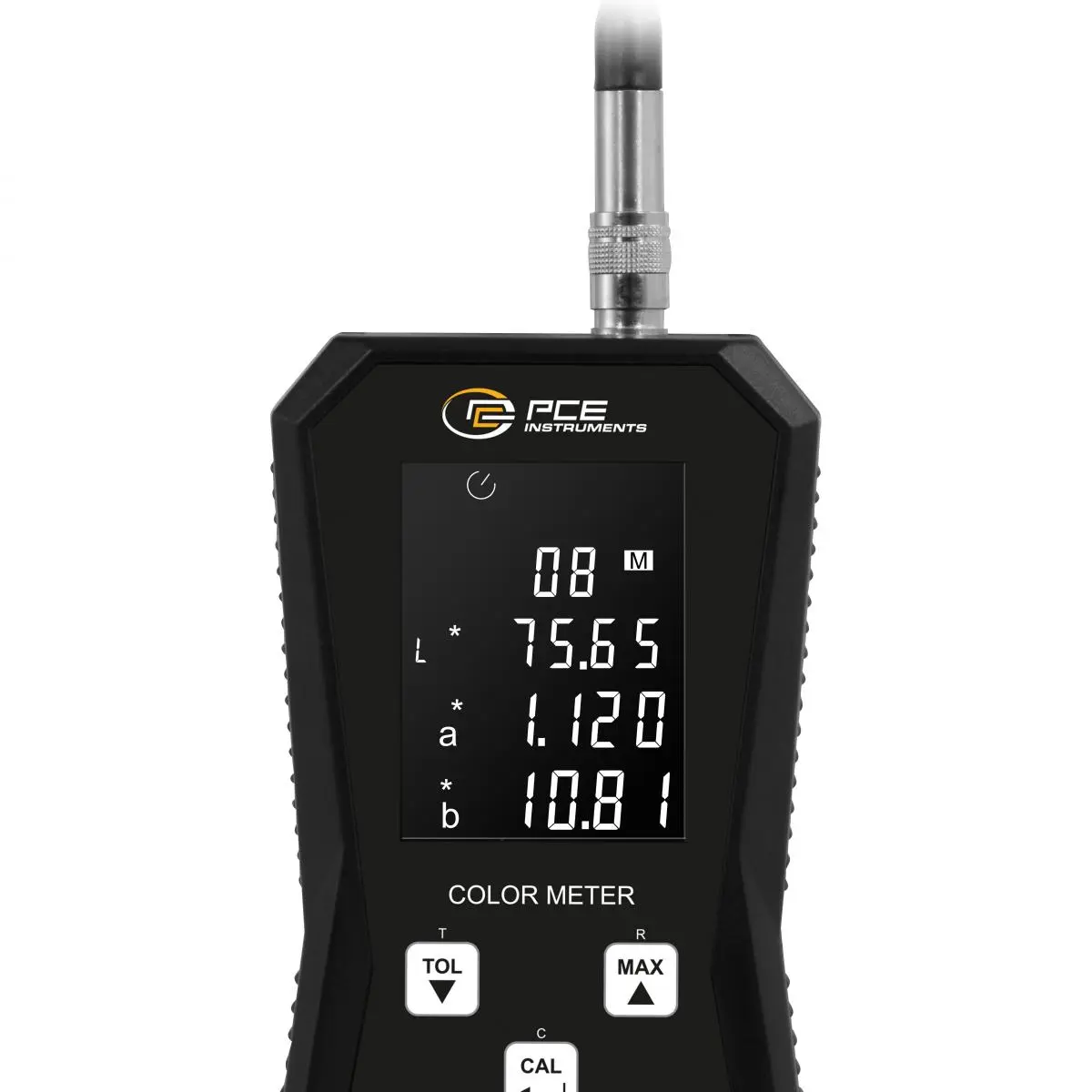

Display type  LCD
Display size  2,8 Inch
Storage medium  Internal memory
Storage capacity  99 Data records
Memory information  only viewable on the device
Measuring surface minimum  10 mm
Automatic power-off  3 min
Repeatability  0,5 ΔE*ab
Light source  LED
Colour spaces  CIEL a* b*, CIEXYZ, WI (whiteness), YI (yellowness), Yxy, sRGB
Colour difference  ∆(L*, a*, b*) ∆(E*ab, C*ab, H*ab) ∆(Y, x, y) ∆(X, Y, Z) ∆(Rs, Gs, Bs) ∆(WI, YI, Tw)
Measuring aperature  ca. Φ10 mm
Measuring geometry  45/0
Observer
Dimensions  Sensor: 43 x 53 mm
Cable: 120 cm
Measuring interval  2 s
Menu language  English, English (GB)
Protection class (device)  IP20

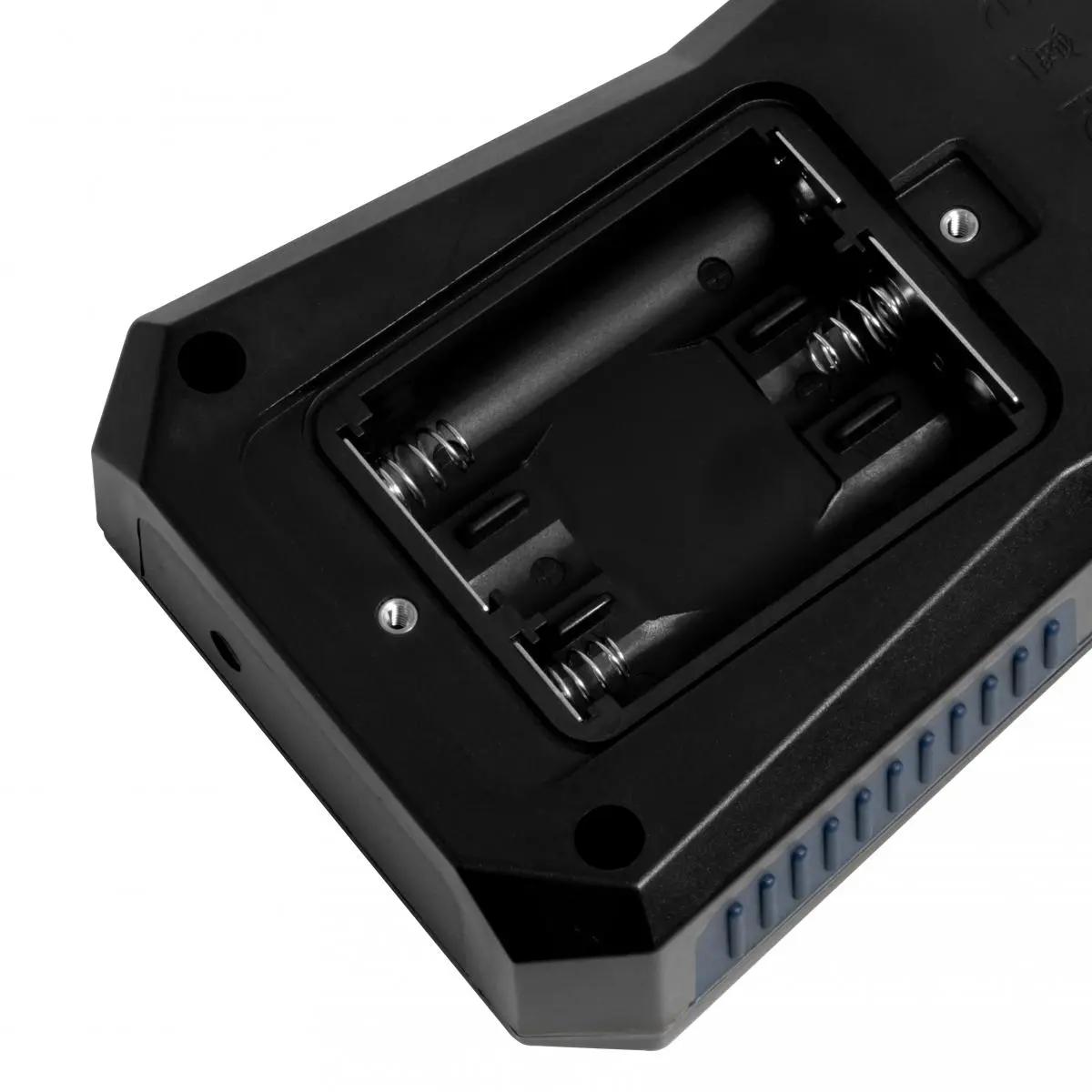

(Rechargeable) battery  3 x 1,5 V AA battery , Alkali-manganese
Capacity  2970 mAh
Operating conditions  0 ... 40 °C , 0 ... 85 % RH
Storage conditions  -10 ... 40 °C , 0 ... 70 % RH
Dimensions ( L x W x H )  175 x 90 x 31 mm
Weight  228 g

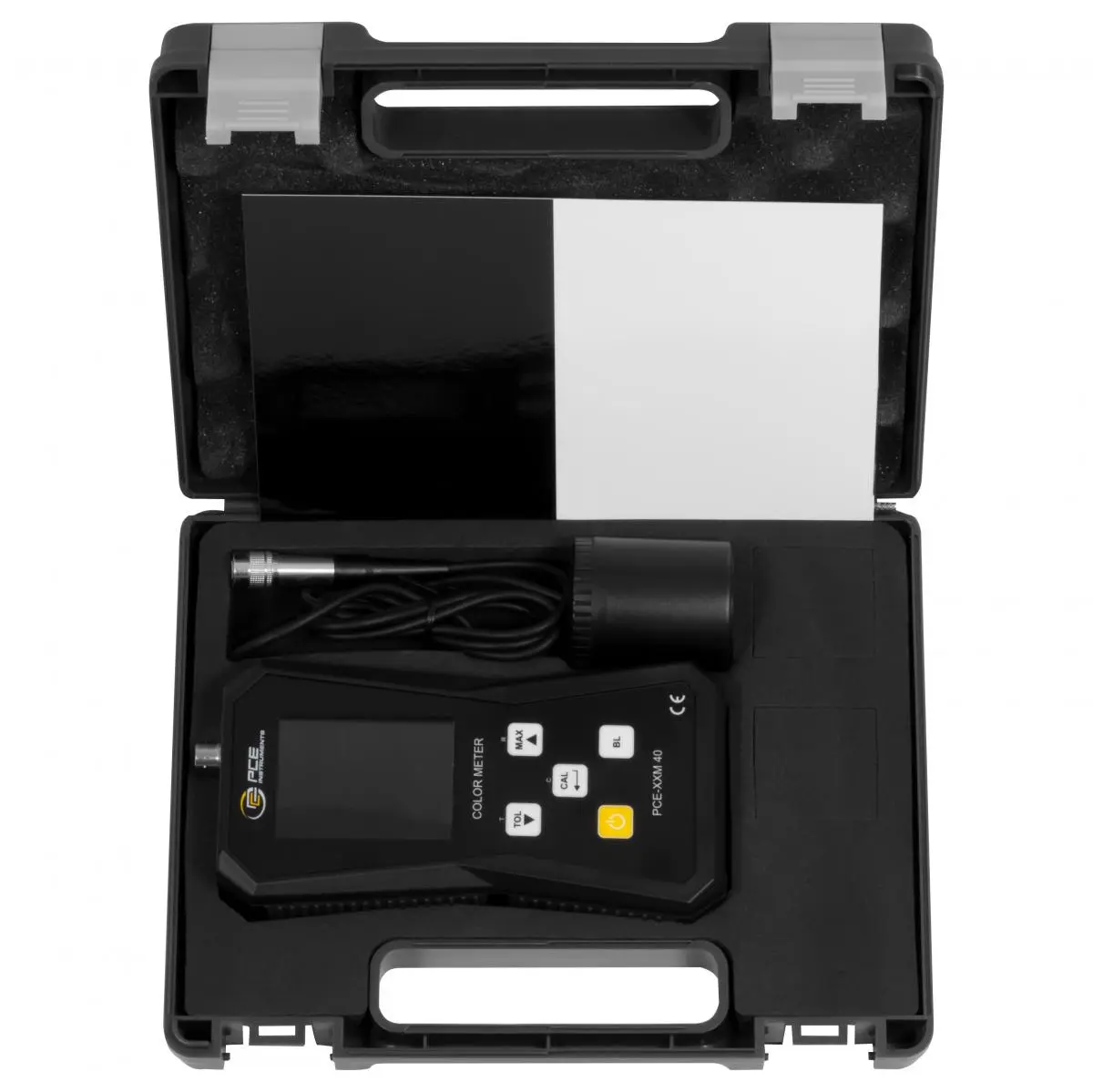

Delivery Scope

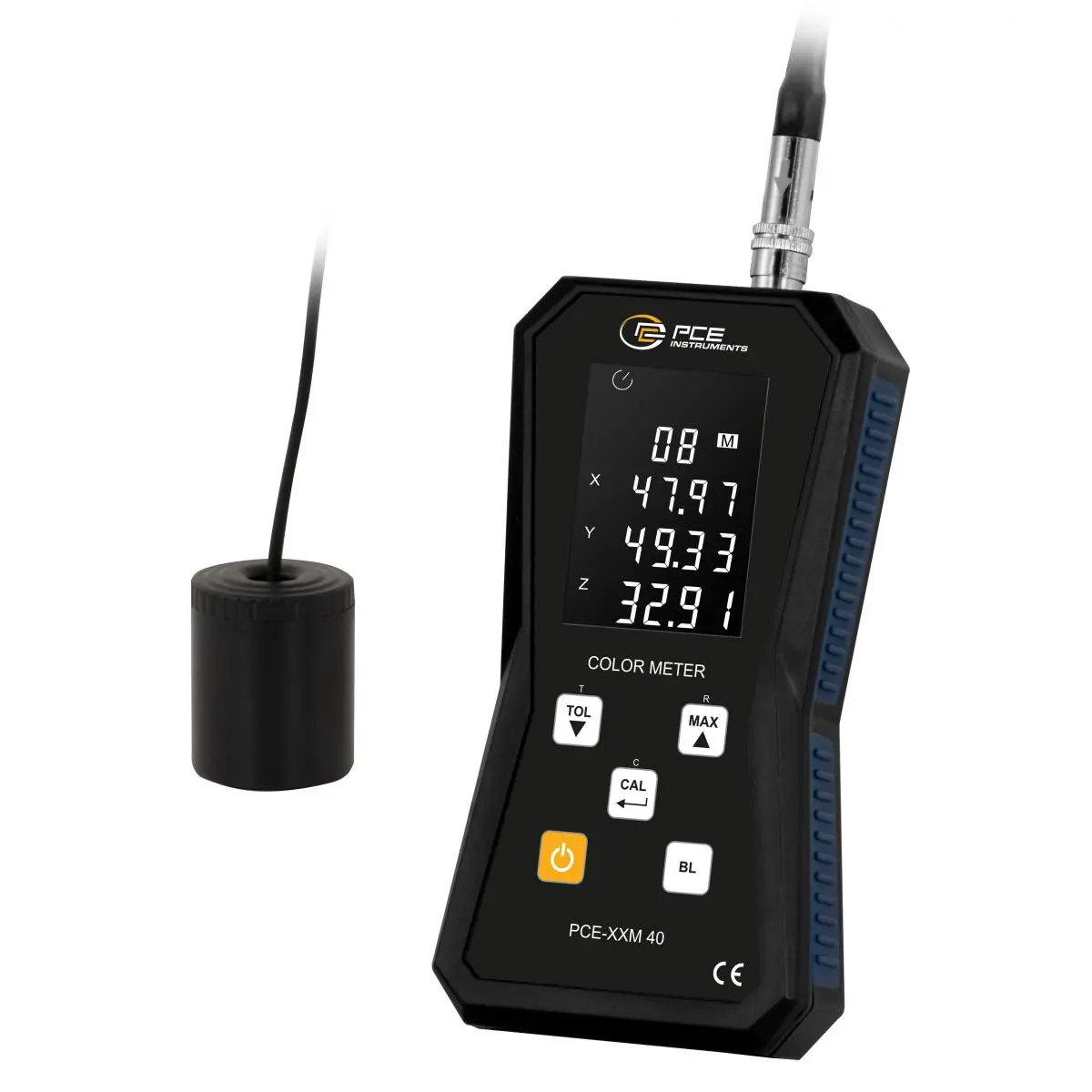

1 x PCE-XXM 40 Material Tester

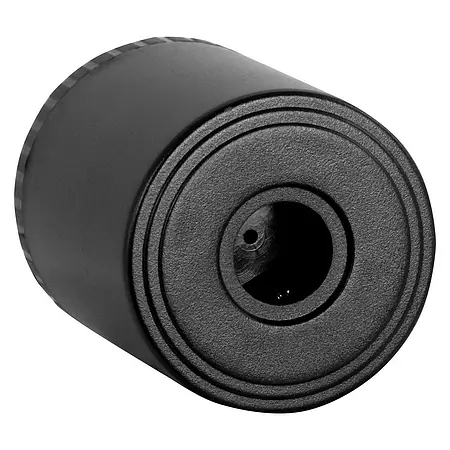

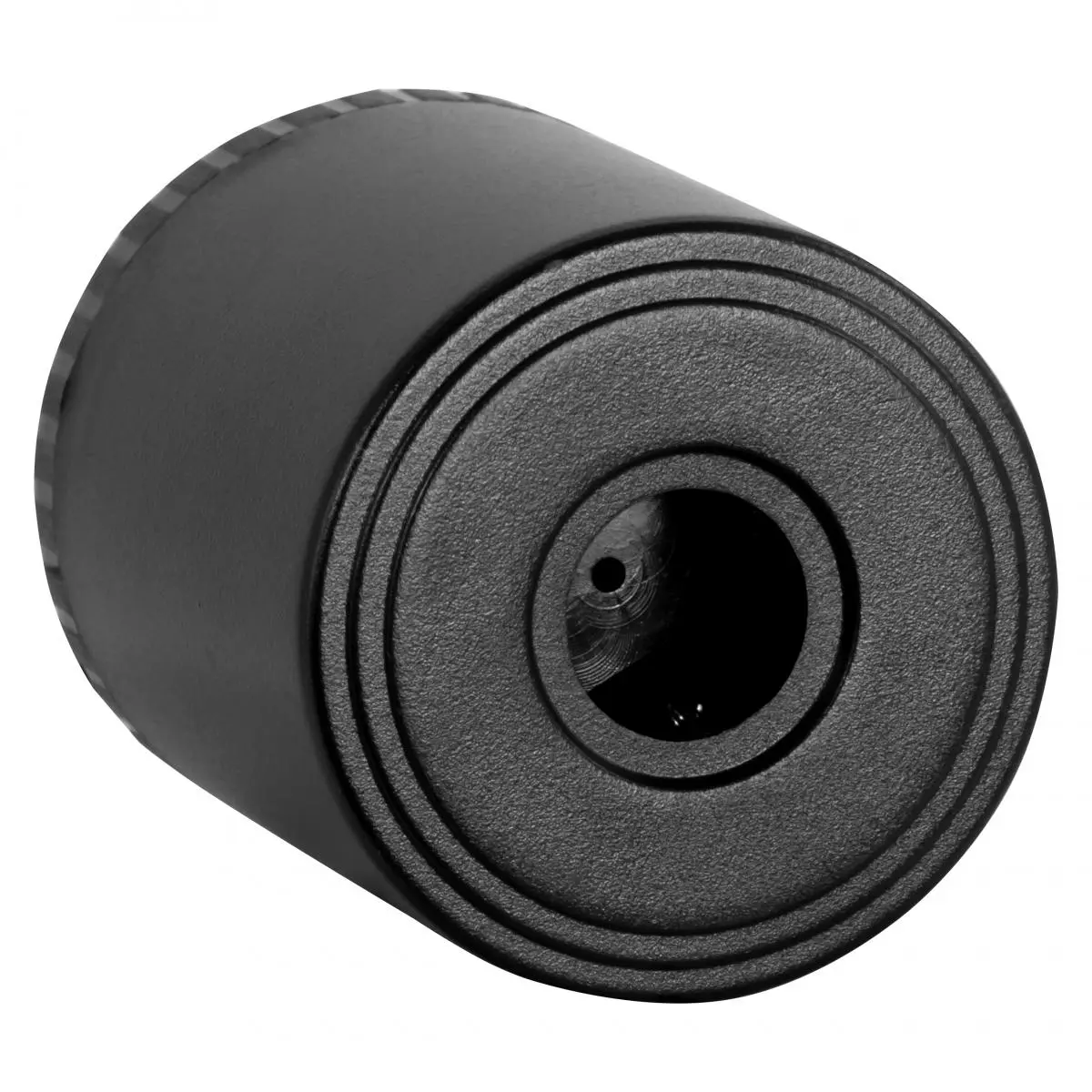

1 x Sensor with 1.2 m / 3.9 ft cable
1 x Calibration card
1 x Carrying case
1 x Operating instructions
