AED 276.00

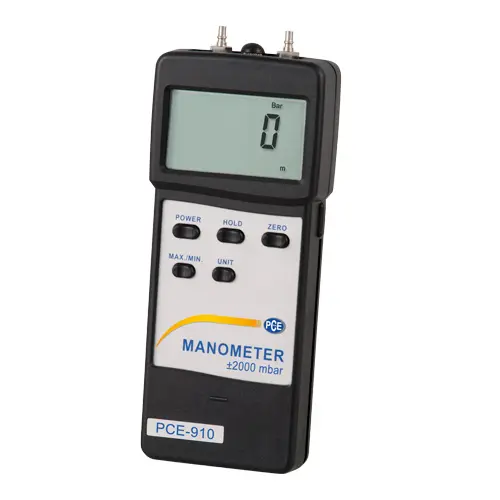

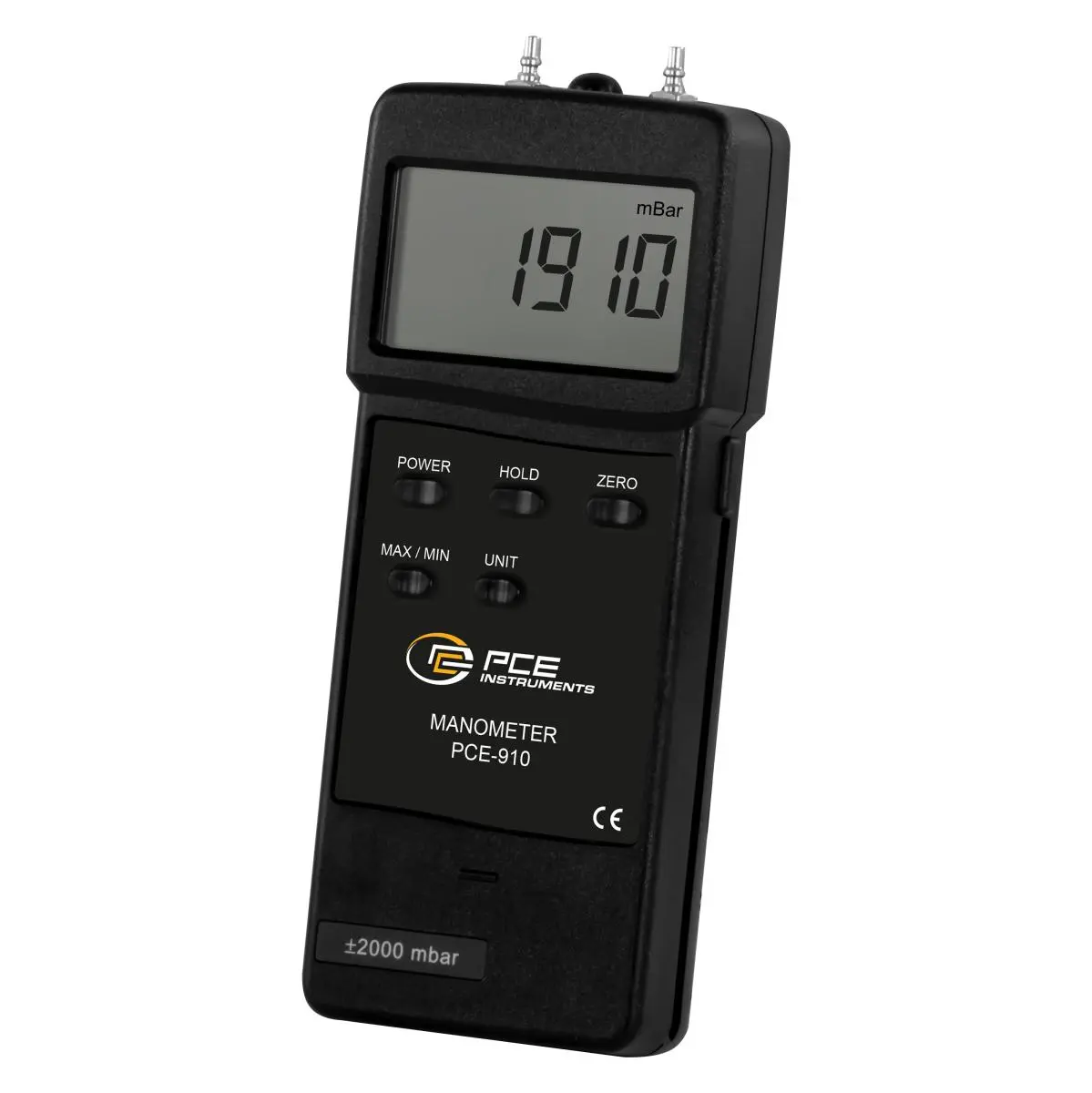

PCE-910 Differential Pressure Manometer
Portable handheld meter measures differential pressure from ± 1 to 2000 mbar (± 0.01 to 29.00 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory
PCE-910 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-910 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

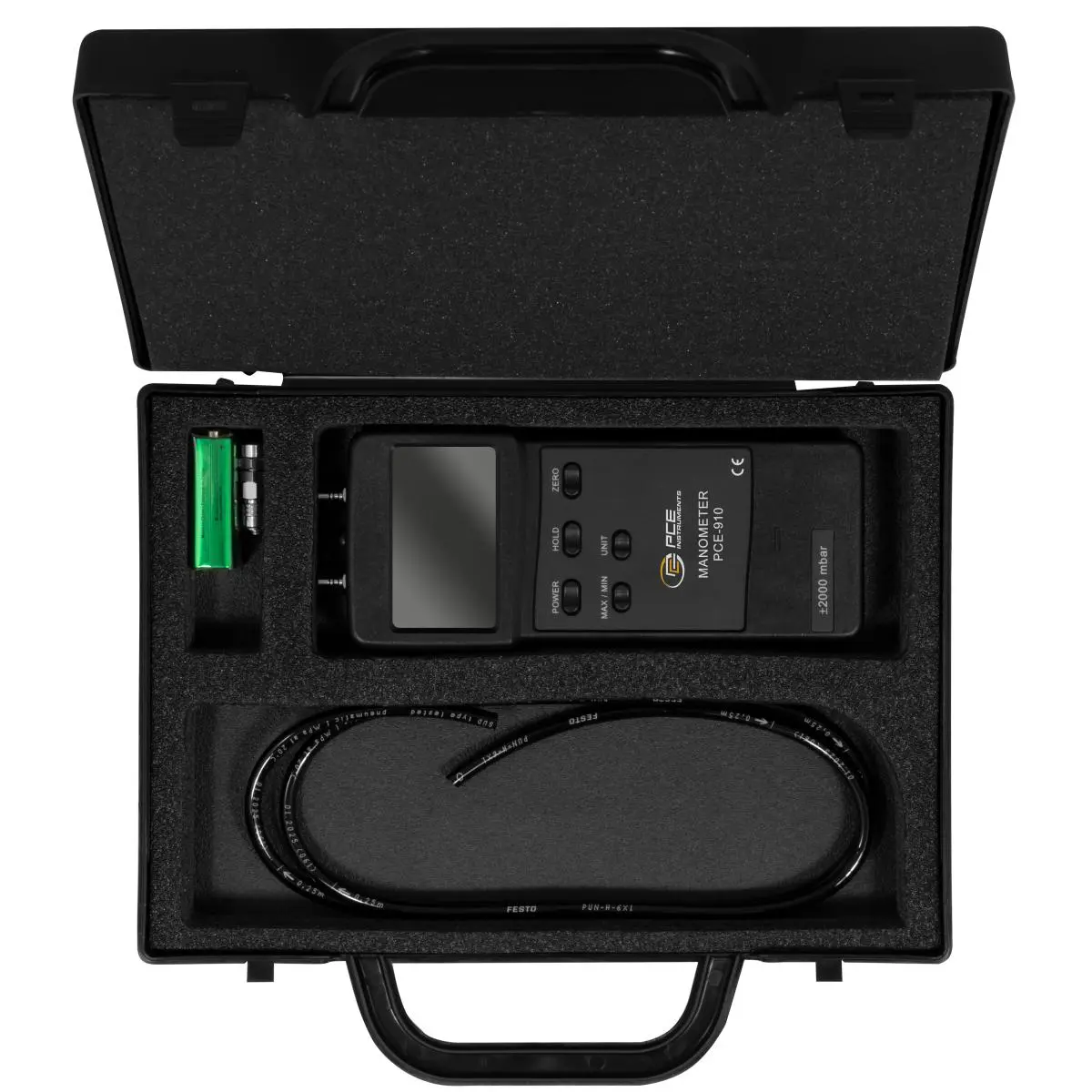

The PCE-910 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
| Pressure | |
| Measuring range | -2000 ... +2000 mbar |
| Resolution | 1 mbar |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -29 ... +29 psi |
| Resolution | 0,01 psi |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -802 ... +802 inH₂O |
| Resolution | 0,5 inH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -20,4 ... +20,4 mH₂O |
| Resolution | 0,01 mH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -59 ... +59 inHg |
| Resolution | 0,02 inHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -1500 ... +1500 mmHg |
| Resolution | 1 mmHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -1,974 ... +1,974 atm |
| Resolution | 0,001 atm |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -2,04 ... +2,04 kg/cm² |
| Resolution | 0,001 kg/cm² |
| Accuracy | ±2% FS |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, peak |
| Display type | LCD |
| Display size | 2,8 Inch |

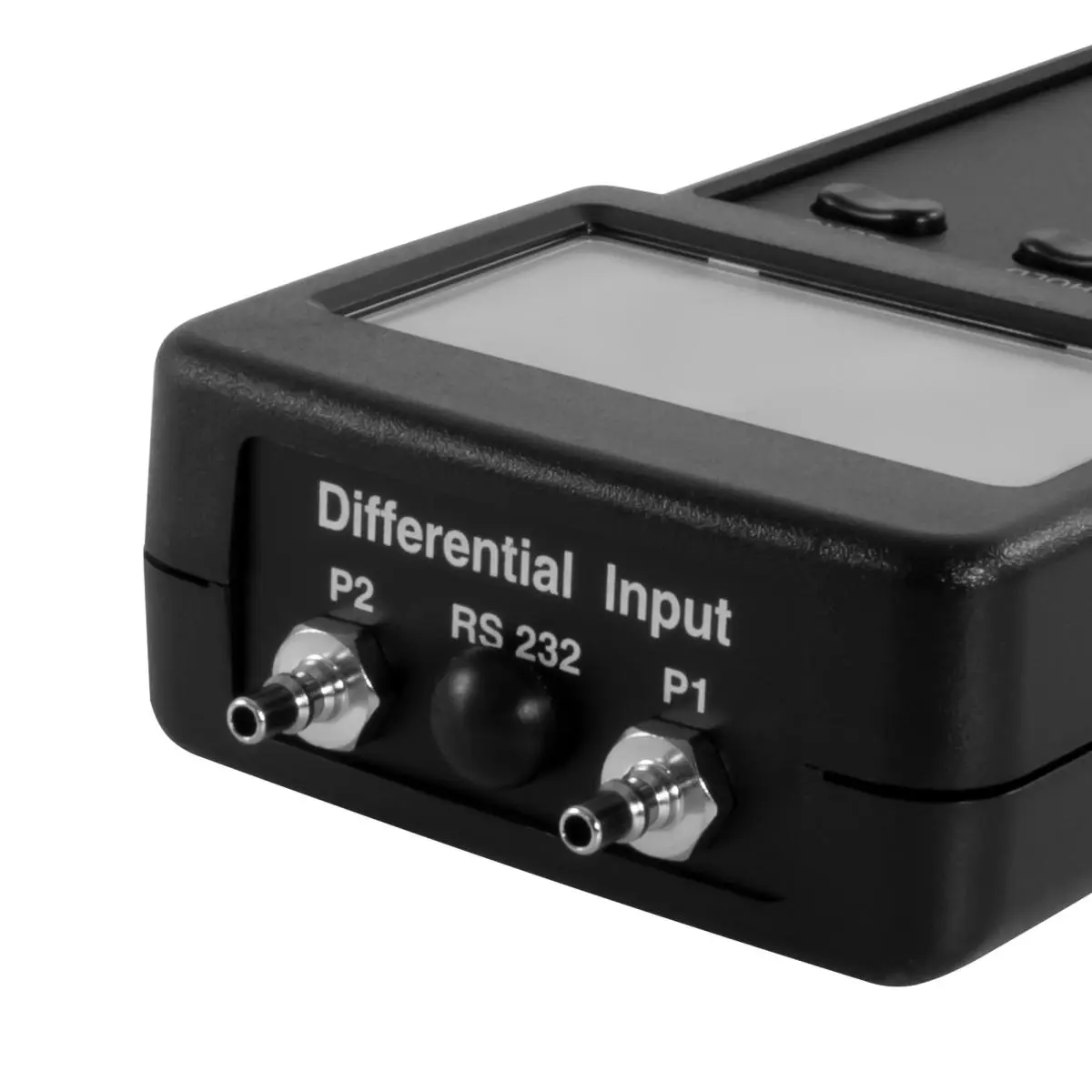

| Interface | RS232 |
| Automatic power-off | 10 min |
| Repeatability | 1 % |
| Housing | Plastic |
| Measuring interval | 0,8 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery |

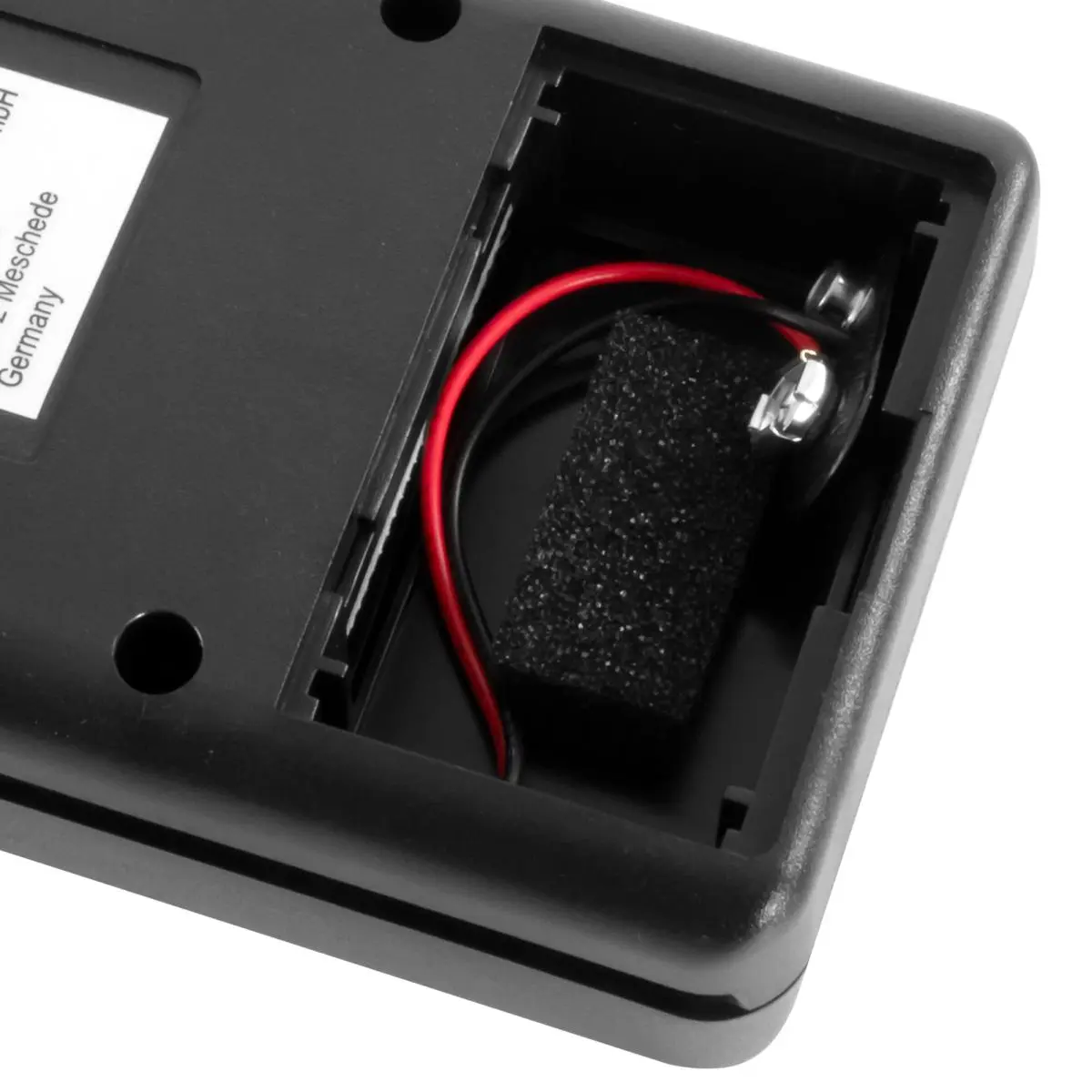

| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 550 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 190 x 76 x 32 mm |
| Weight | 205 g |
