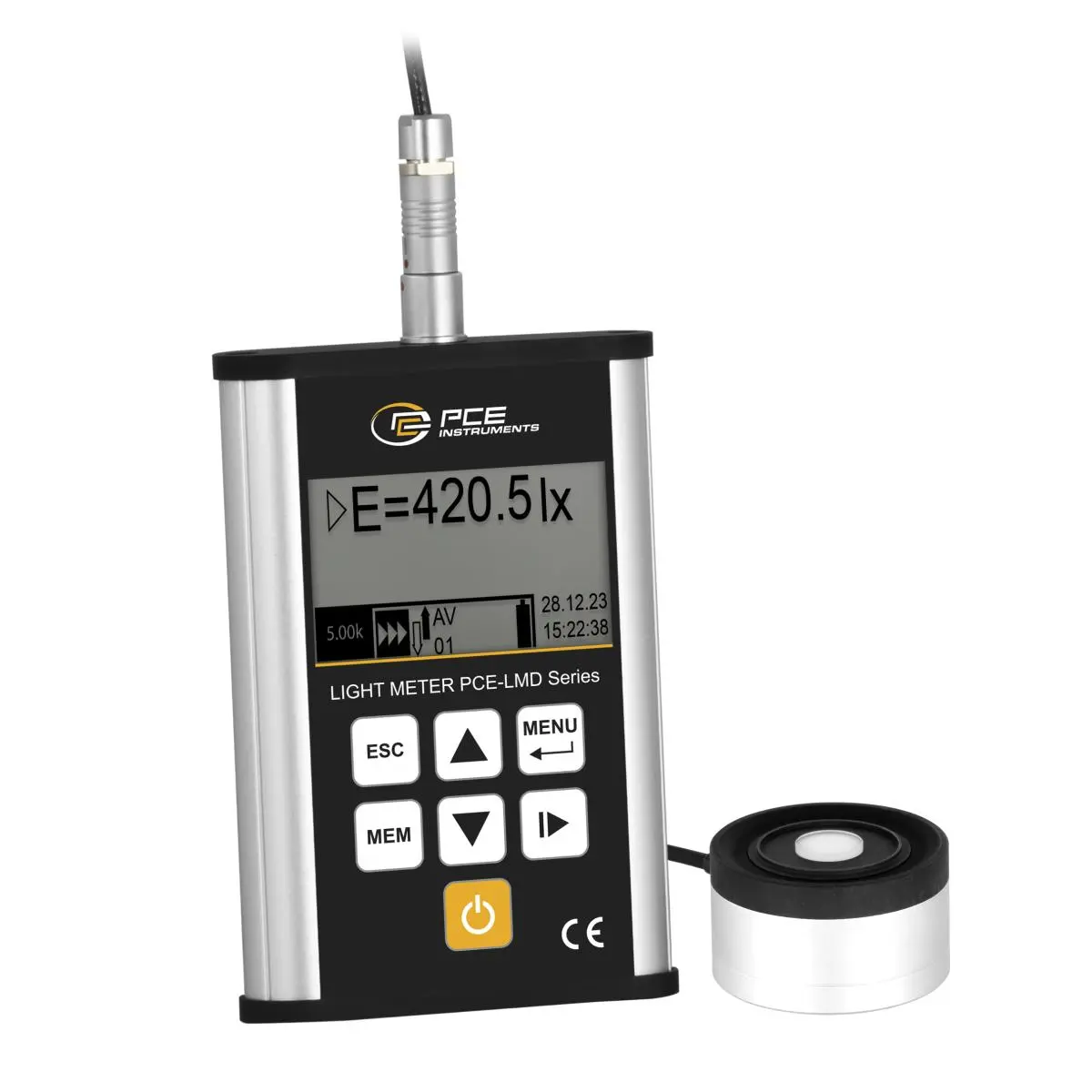

The lux meter is a precise measuring instrument that meets the highest demands for light measurements. In accordance with DIN 5032-7, it fulfils the requirements of precision class A, which enables accurate and reliable detection of light intensities. With an impressive measuring range of 0.000 lux to 500,000 lux, the lux meter is extremely versatile.
Whether for lighting control at the workplace, in exhibitions or outdoors - the lux meter covers a wide range of applications. Accuracy class A not only ensures precise measurements, but also high reproducibility of the results. This is particularly important in applications where accurate light measurements are crucial.

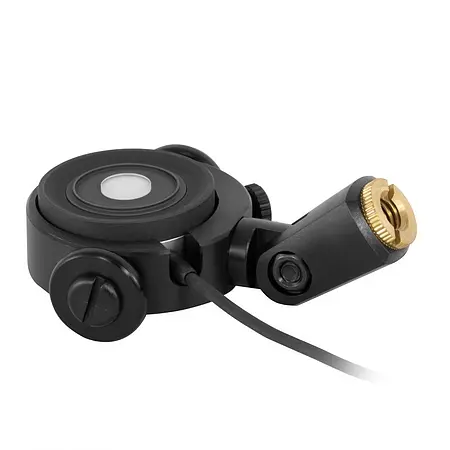

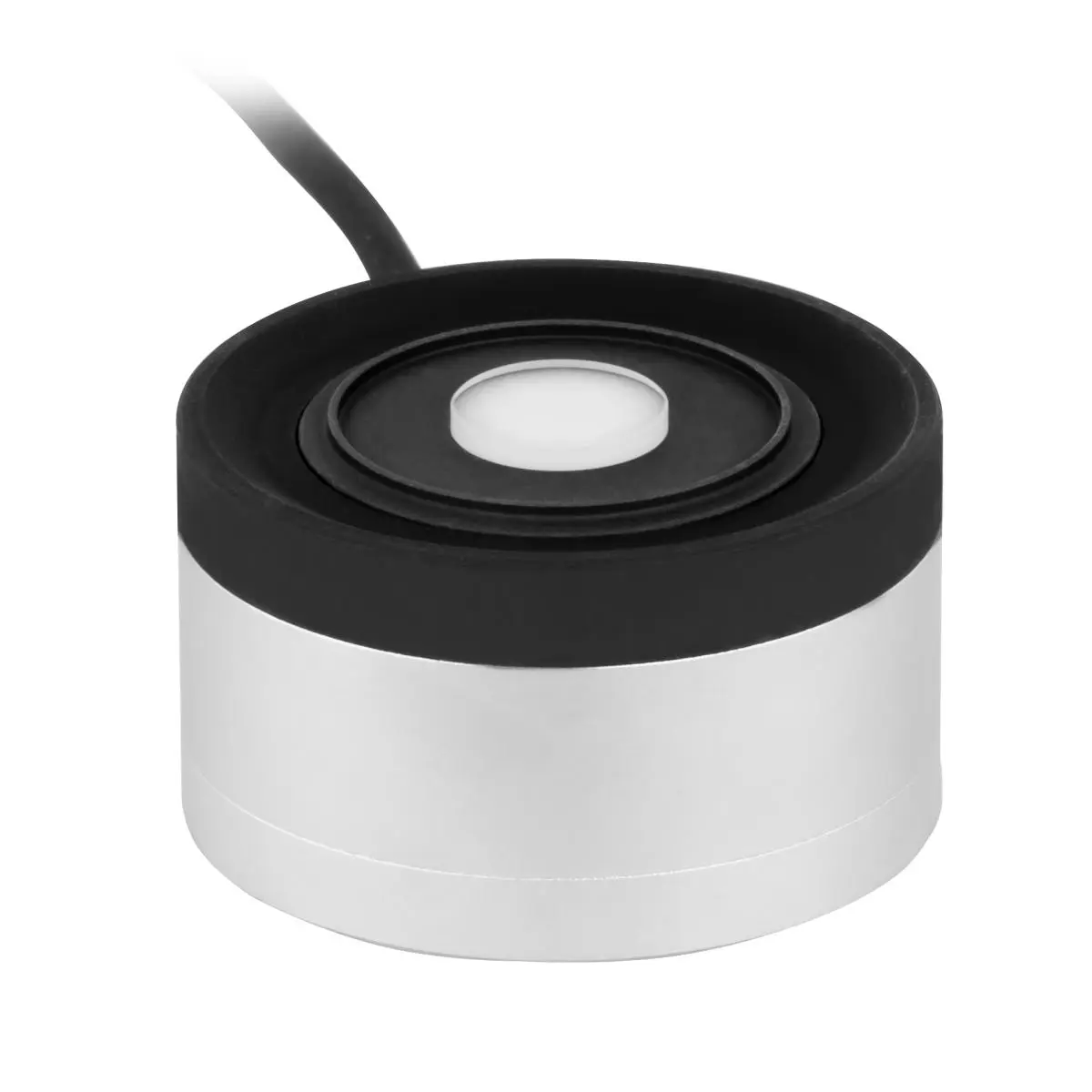

The lux meter has an external sensor and a probe holder that allows measurements to be taken in hard-to-reach places and ensures maximum practicality in various application scenarios. Another feature of the luxmeter is the integrated measured value memory. With this function, measurement results can be easily saved and also automatically recorded. This is particularly useful in situations where the measured values are to be used for later analyses. The lux meter creates a text document in which the data is stored.
With the help of the luminance adapter from our accessories, the lux meter can be upgraded for surface-mounted measurements or distance measurements with a 1° measuring angle. Overall, the lux meter offers an unbeatable combination of precision, versatility and user-friendliness. Whether you need to measure light conditions indoors, outdoors or in industrial environments, this lux meter is the ideal choice for precise and reliable light measurements.
| Light | |
| Measuring range | 0 ... 50 lx |
| Resolution | 0,001 lx |
| Accuracy | Total error ≤2.0% (CIE, DIN 5032-7) class A @ 10 ... 40°C / |
| Light | |
| Measuring range | 50 lx ... 5 klx |
| Resolution | 0,1 lx |
| Accuracy | Total error ≤2.0% (CIE, DIN 5032-7) class A @ 10 ... 40°C / |
| Light | |
| Measuring range | 5 ... 500 klx |
| Resolution | 0,01 klx |
| Accuracy | Total error ≤2.0% (CIE, DIN 5032-7) class A @ 10 ... 40°C / |
| Sensor | |
| Cable length | 150 cm |
| General technical data | |
| Units | lx, klx |
| Display type | LCD |
| Display refresh rate | 1 x per second |
| Measuring rate | 1 Hz |
| Storage medium | Micro SD card |
| Storage capacity | 8 GB |
| Storage interval from | 1 s |
| Storage interval to | 60 s |
| Classification | A (CIE, DIN 5032-7) |
| Interface | Micro-USB |
| Standard(s) | DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665 |
| Operating time | 23 h |
| V(λ) - adjustment (f1') | ≤ 2% |
| Cosine adjustment (f2) | ≤ 1% |
| Menu language | English, Polish |
| Protection class (device) | IP20 |
| Power supply | 5V DC / max. 2.1A |
| Connector type | Device-europlug |
| Capacity | 1500 mAh |
| Operating conditions | -20 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -20 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 118 x 74 x 21 mm |
| Other dimensions | Probe dimensions: Ø 44 x 25 mm Extension rod: approx. 1 m |
| Weight | 172 g |
