AED 1,210.00

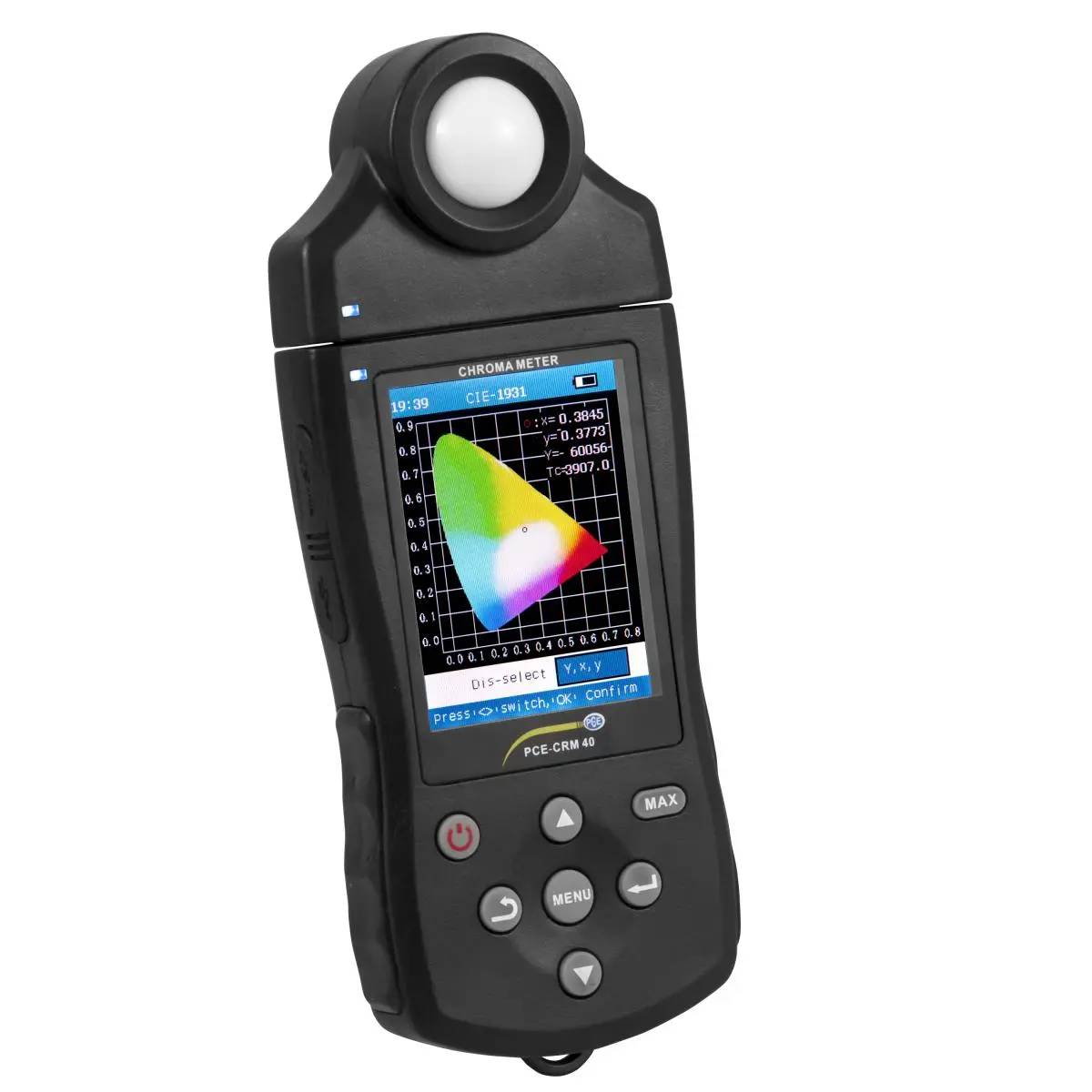

PCE-CRM 40 LED spectrometer
Measurement range up to 150,000 lx / Measures correlated color temperature (CCT) / Standard chromaticity diagrams according to CIE 1931 and CIE 1976 / Indicates wavelength / Presents tristimulus and RGB values / Includes USB interface, cable and PC software
With the LED spectrometer or spectrophotometer PCE-CRM 40, important photometric factors in the field of light measurement can be determined. These include the tristimulus values of XYZ, the u´ and v´ color location coordinates according to CIE 1976, and the xy color location coordinates according to CIE 1931. Moreover, further color statistics are measured as absolute values and differences. The user can determine the dominant wavelength within the sensitivity range of the spectrophotometer, which is 360 … 780 nm, as well as the color density (Pe) and the correlated color temperature (CCT) in Kelvin.
Also, the spectrophotometer can measure the illuminance in lux (lx) or foot-candle (fcd) as well as the light flux in lumens (lm) and show the color location in the RGB color space. Due to the ergonomic single-handed operation, the large display, memory, data interface and software, measurements with the spectrophotometer can be carried out quickly and the results are reproducible. The test results can be recorded by means of the software. Its specifications make the spectrophotometer perfectly suitable to classify and optimize lighting installations and conditions in various fields of application.
| Light | |
| Measuring range | 0,1 ... 150000 lx |
| Resolution | 5 lx |
| Accuracy | ±(5% of reading ±1 digit) |
| Light | |
| Measuring range | 0,01 ... 15000 fc |
| Resolution | 0,5 fc |
| Accuracy | ±(5% of reading ±1 digit) |
| General technical data | |
| Accuracy | xy: ±0.003 (measured at 500 lx, Standard-A) |
| Measuring functions (additional information) | Tristimulus values: XYZ Chromaticity: Ev xy, Ev u'v' Correlated colour temperature: Tc Colour difference: Δ (XYZ), Δ (Evxy), Δ (Evuv), ΔEv ΔTc Δuv Chromaticity coordinates: ICE1931 (x, y), ICE1976 (u, v) Dominant wavelength: λd Colour fastness: Pe Luminous flux: Φ RGB parameters, colour table, maximum recording and display |
| Units | lx, FC |
| Display type | LC colour display |
| Display size | 3,2 Inch |
| Storage medium | Micro SD card, Internal memory |
| Storage capacity | 8 GB |
| Memory capacity (additional information) | The device can save up to nine data records internally. |
| Interface | USB-C |
| Sensor | Silicon photocell |
| Response time | 0,5 s |
| Response time Additional information | during continuous measurement |
| Operating time | 12 h |
| Repeatability | Ev: ±0.5% + 1 digit (2σ) xy: ±0.0005 (measured at 500 lx, Standard-A) |
| Colour difference | Δ (XYZ), Δ (Evxy), Δ (Evuv), ΔEv ΔTc Δuv |
| Wavelength range | 360 ... 780 Nm |
| Sensitivity | Relative spectral sensitivity: Based on CIE standard X(λ), Y(λ) and Z(λ), deviation below 6% (f1') of the CIE spectral luminous efficiency V(λ) |
| Drift | Temperature drift: Ev: ±3% ±1 digit of the displayed value xy: ±0.003 |
| Cosine adjustment (f2) | Ev: <3% |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5 V DC |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 2200 mAh |
| Operating conditions | -10 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 210 x 80 x 35 mm |
| Weight | 300 g |
