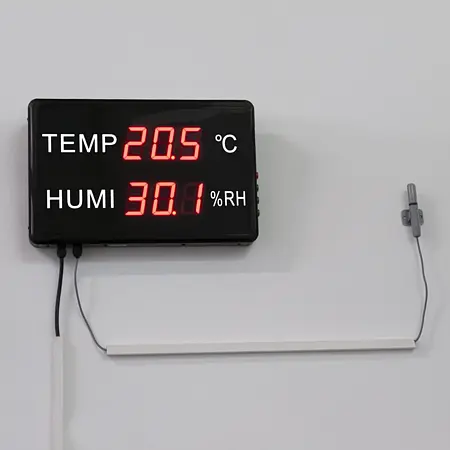

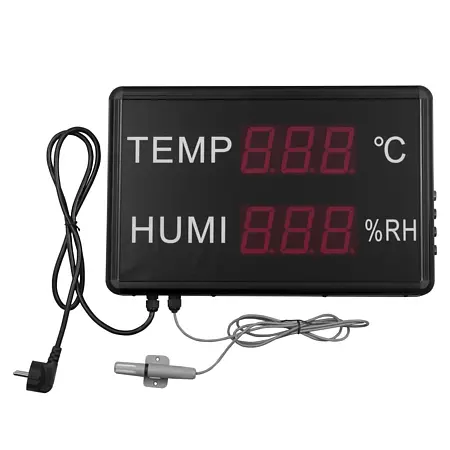

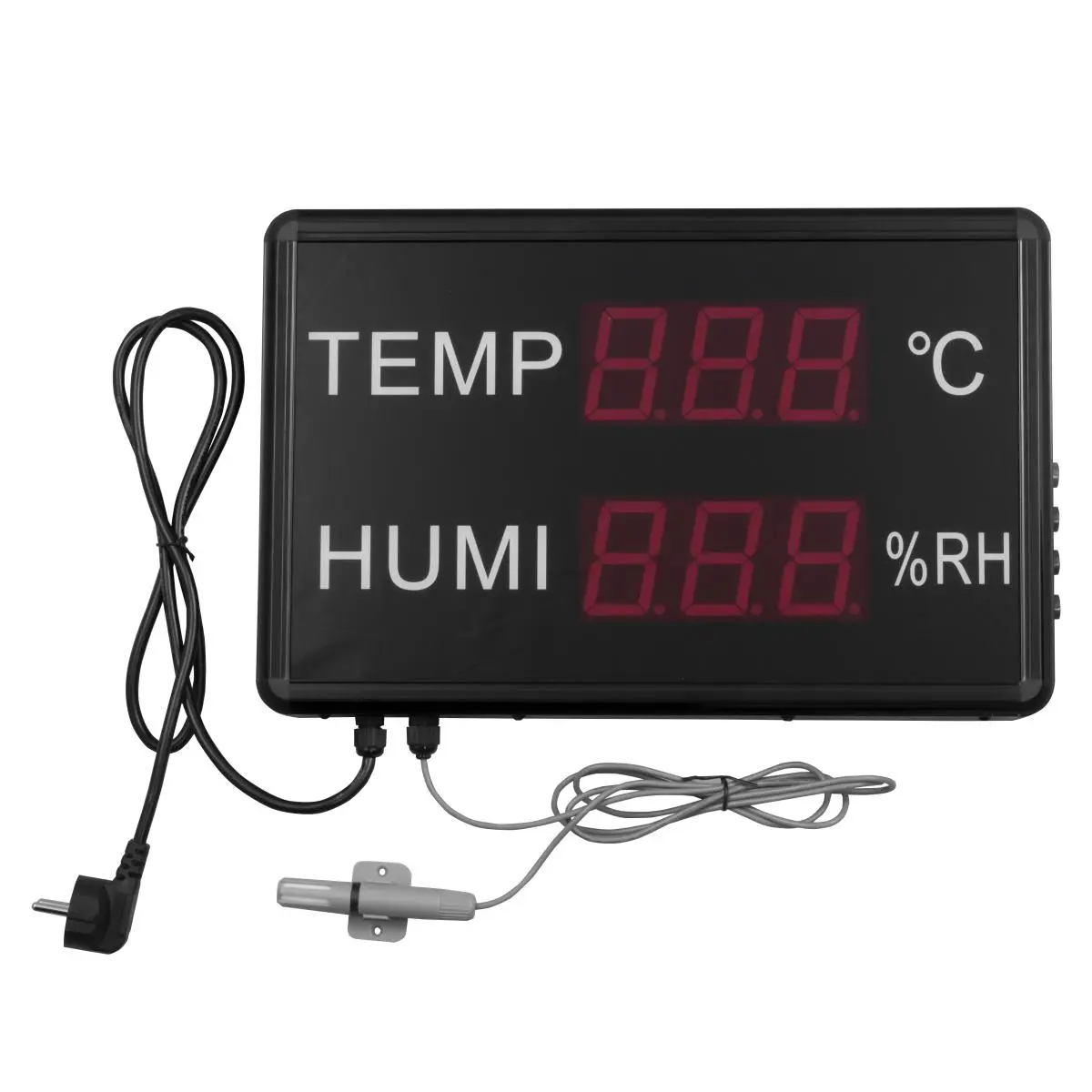

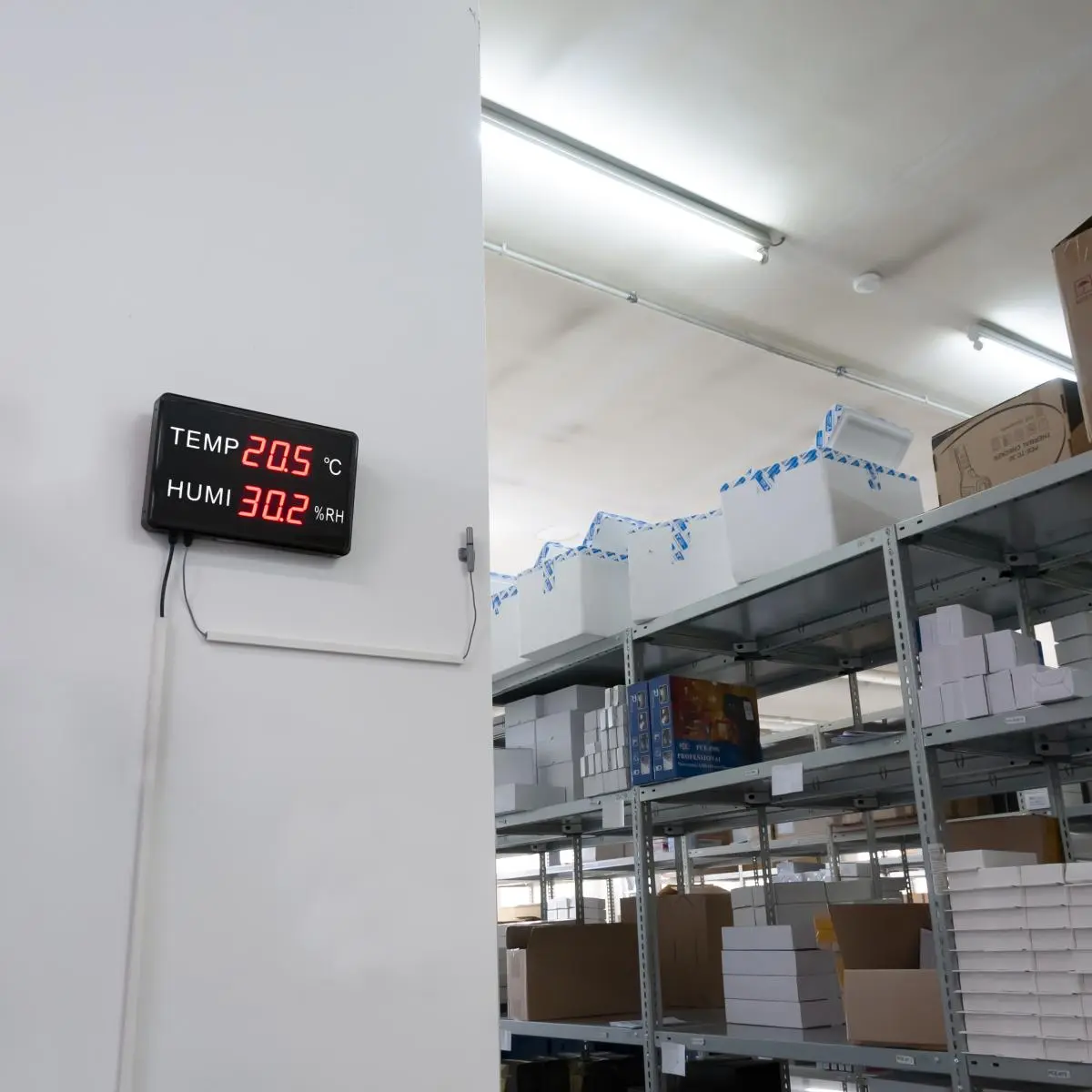

The Large Display is used to measure the environmental parameters of temperature and humidity. The Large Display finds its application in warehouses, open-plan offices, schools, etc. The Large Display has 55 mm high digits that indicate the temperature and humidity.

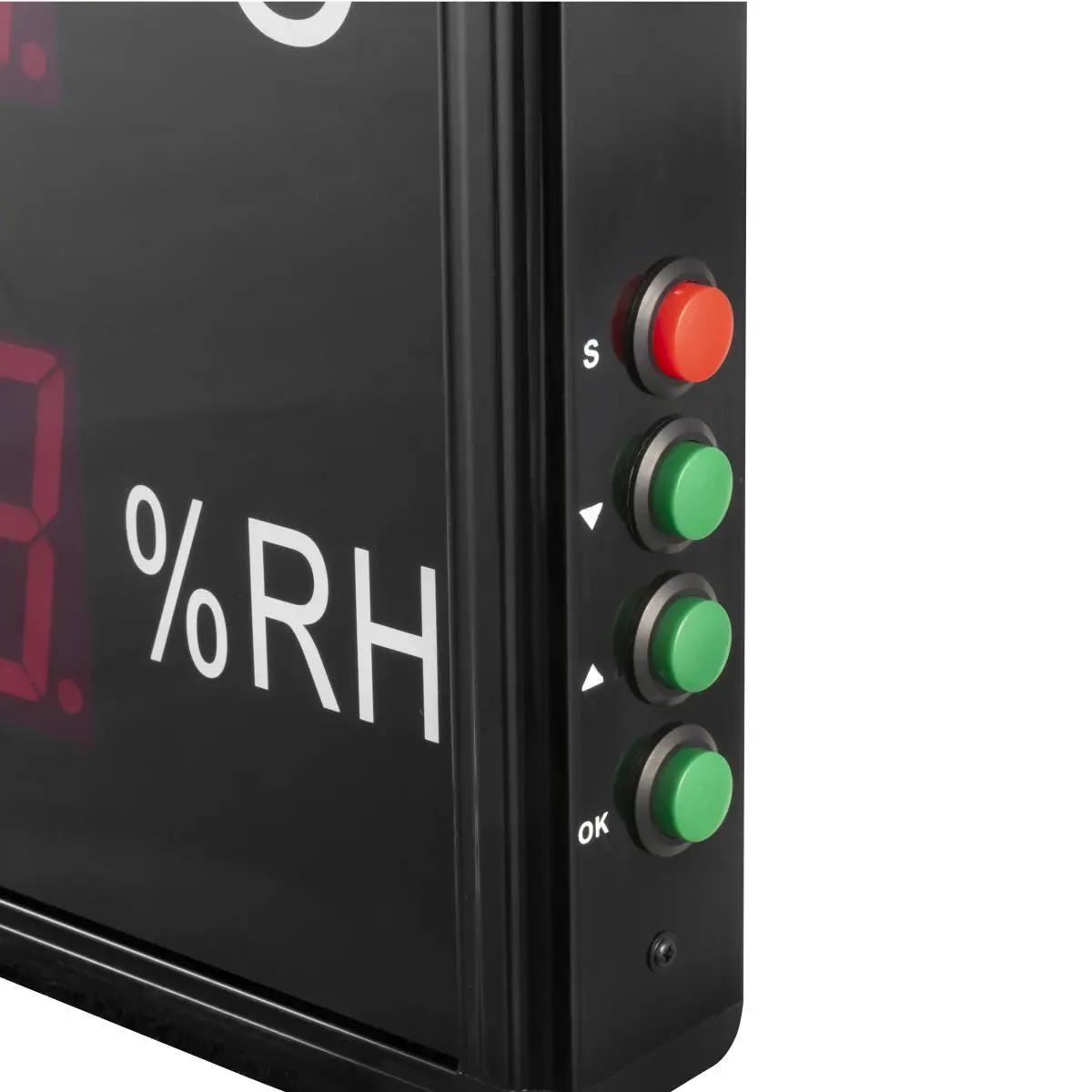

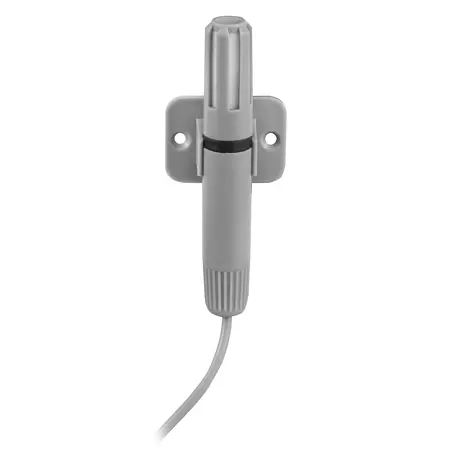

Due to the large size of the digits, the Large Display can be read from distances up to 30 m. The temperature and humidity sensor of the Large Display is connected by a 2 m long cable. The Large Display is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the Large Display.
| Relative humidity | |
| Measuring range | 0 ... 99 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3 % RH |
| Temperature | |
| Measuring range | -40 ... -10 °C |
| Resolution | 1 °C |
| Accuracy | ±0.3 °C |
| General technical data | |
| Display type | LCD |
| Alarm | Acoustic |
| Dimensions | Sensor cable: approx. 2 m Power supply cable: approx. 1 metre |
| Visibility | 30 m |
| Protection class (device) | IP54 |
| Power supply | Primary: 100 ... 240 V AC 50/60 Hz Secondary: 12 V DC, 0.5 A |
| Connector type | Schuko plug |
| Operating conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 395 x 255 x 50 mm |
| Weight | 2500 g |
