AED 2,737.00

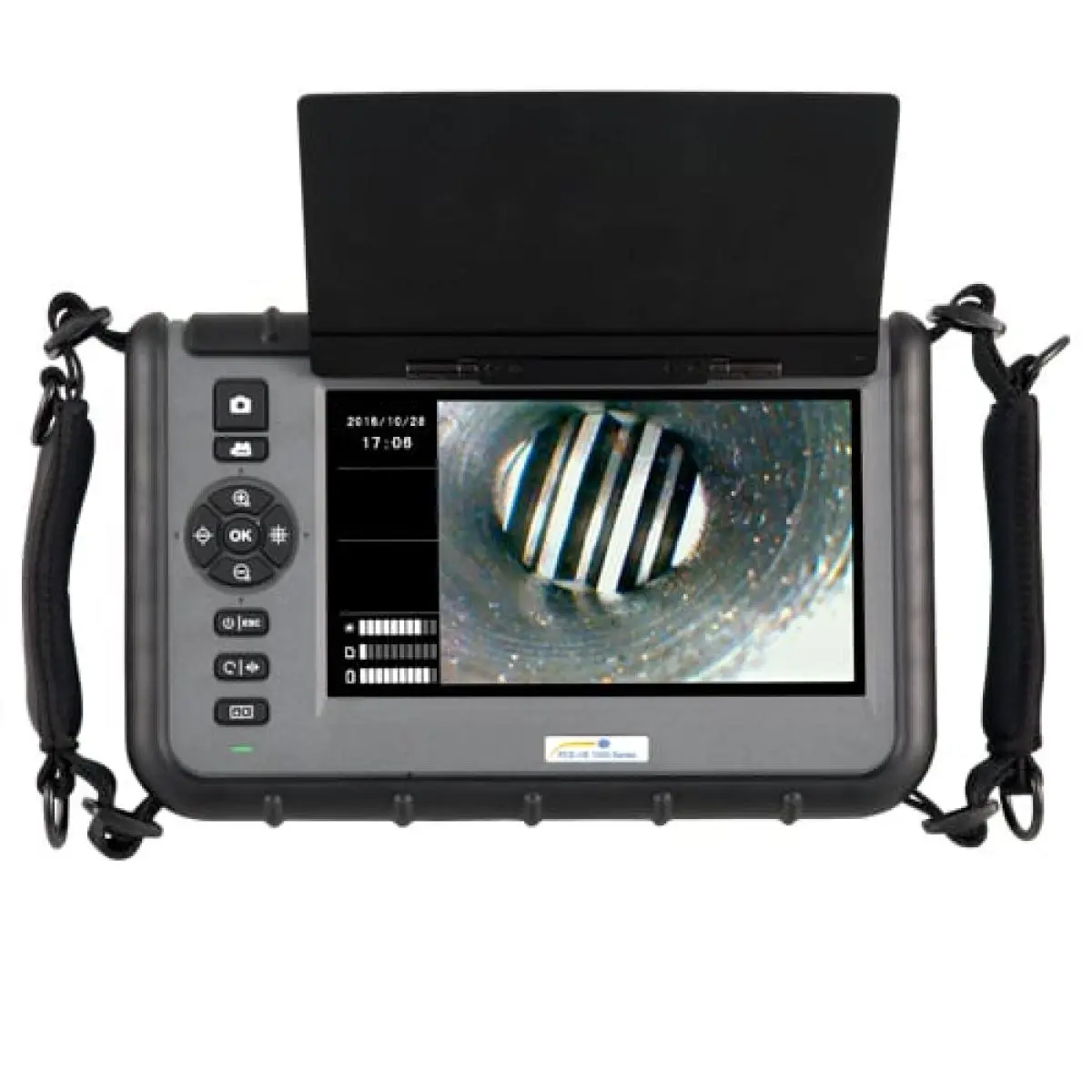

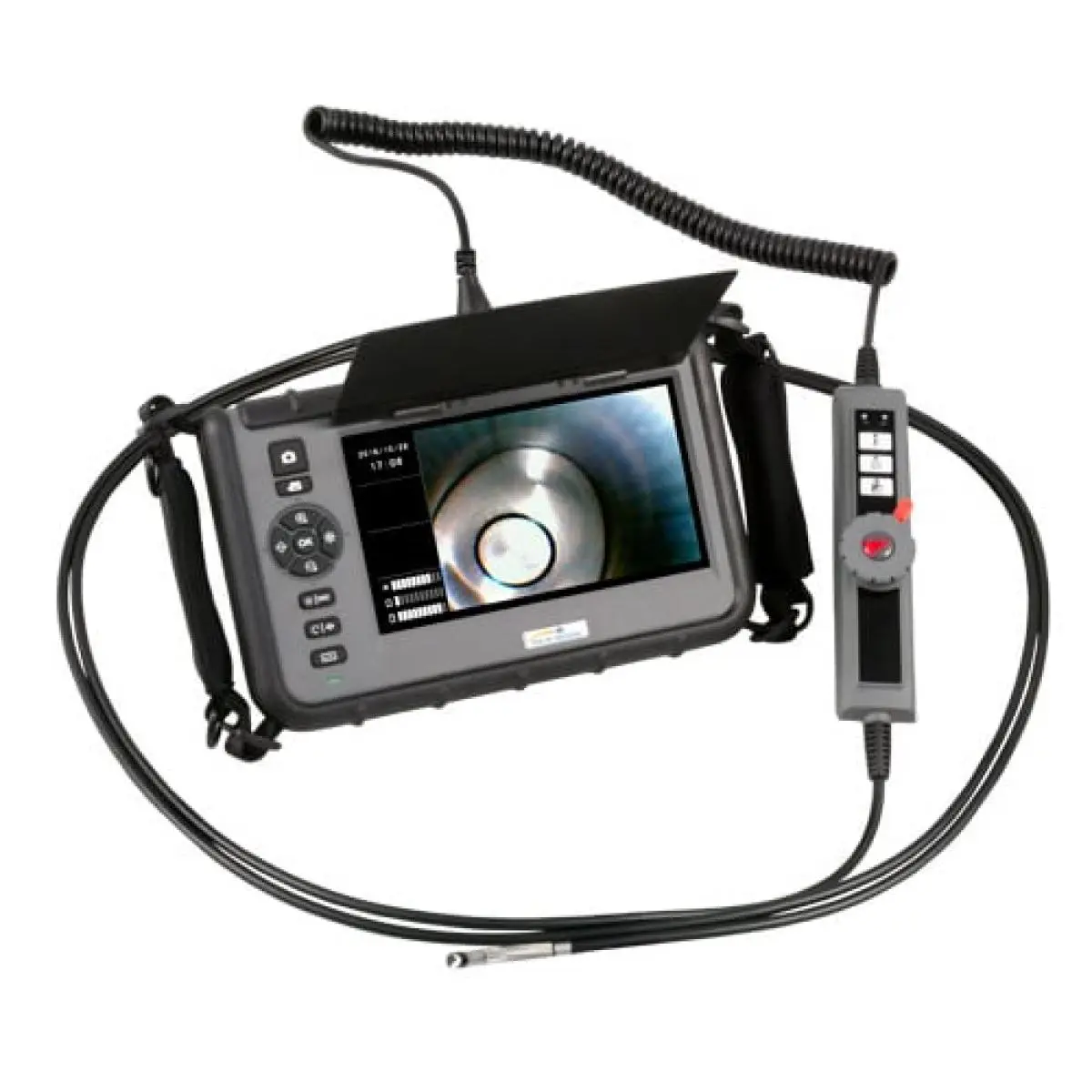

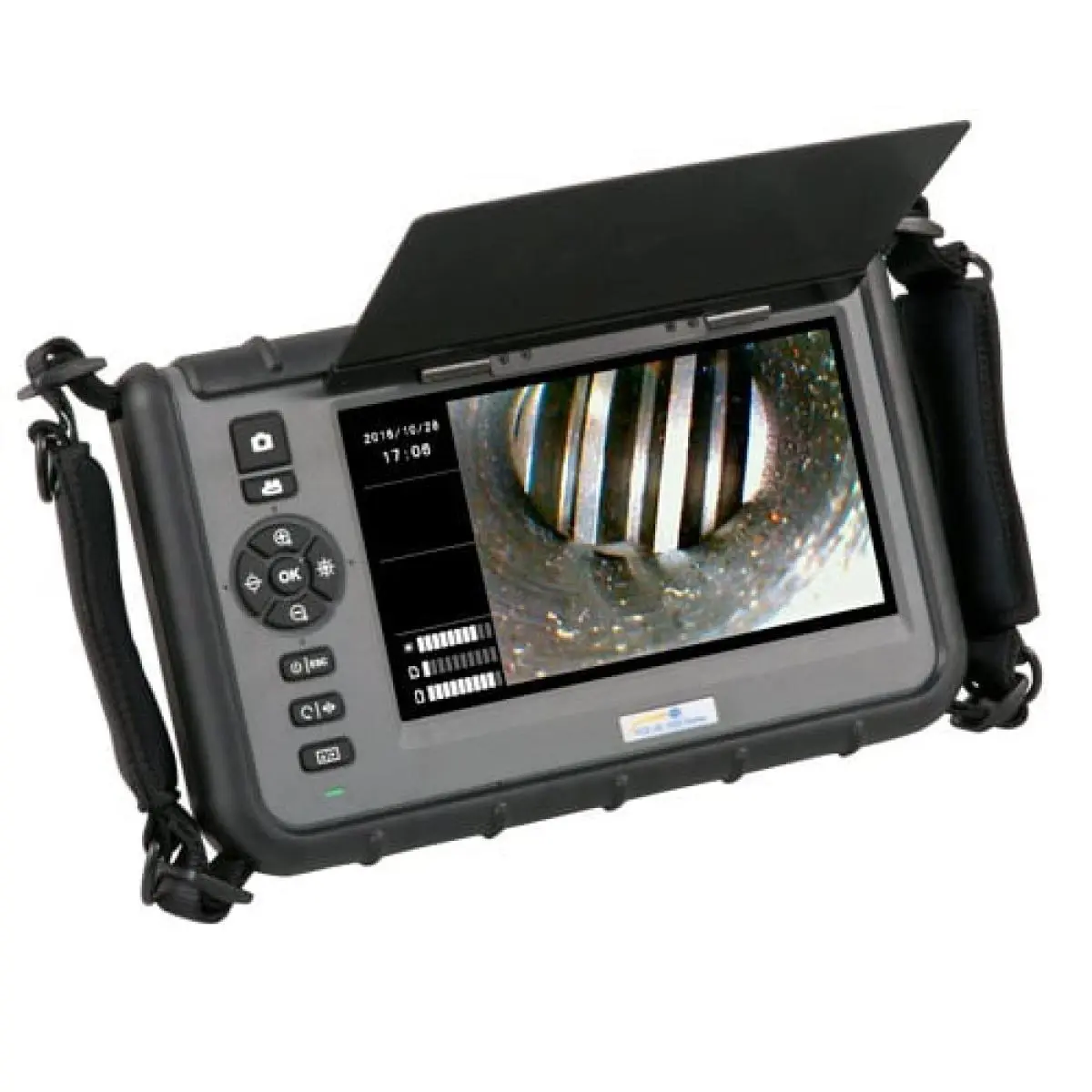

The PCE-VE 1036HR-F is a versatile inspection instrument. Various inspection camera or endoscope cables with different characteristics can be connected to the endoscope. A special advantage of the endoscope is the large display, which offers the user the best possible overview of the area to be viewed due to its dimensions and resolution. The endoscope allows the recording of pictures and videos, whereby the videos are additionally stored with an audio recording. The clear resolution is also clear when the images are stored in the endoscope by touching the stylus on the inserted SD card. When the SD card is read from the computer, the recorded images and videos are clearly displayed. Due to the fact that the recordings are stored on an external mass storage device, it is possible to select which SD card is inserted into the endoscope. However, it should have a maximum capacity of 32 GB. An 8 GB memory card allows you to store more than 60,000 images or more than 530 minutes of video material.
| General technical data | |
| Resolution | Image resolution: 640 x 480 JPEG Video recording: 640 x 480 MPEG (with sound recording) Resolution: VGA (640 x 480) |
| Cable length | 3 m |
| Display type | LC touch display |
| Display size | 7 Inch |
| Display resolution | 800 x 480 pixels |
| Storage medium | SD card |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | SD card up to a maximum of 32 GB |

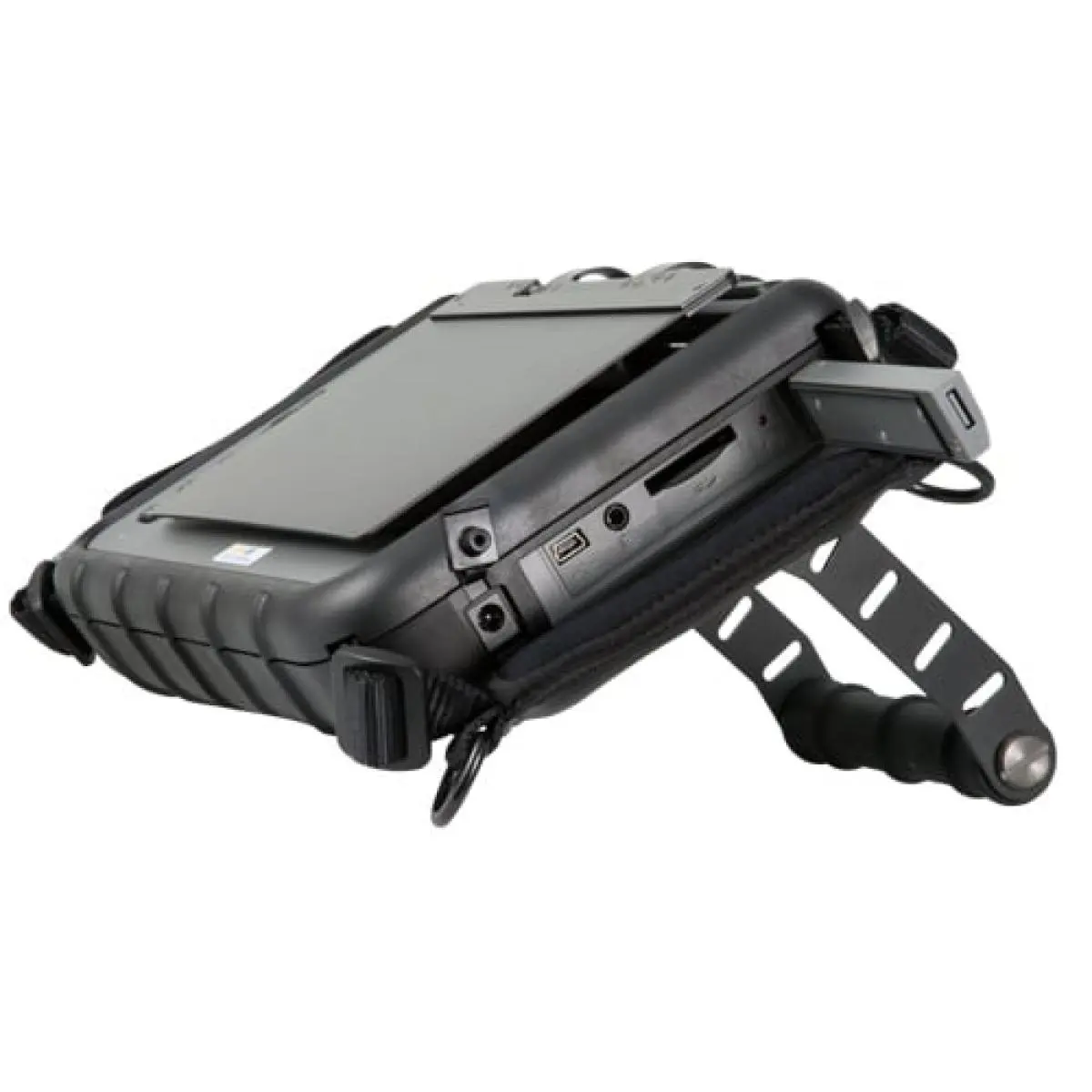

| Interface | Mini-USB, SD card, Audio interface, TV output (PAL), NTSC |
| Camera orientation | pivoted |
| Operating time | 4 h |
| Automatic power-off from...to | 5 ... 30 min. |
| Camera head length | 23.5 mm |
| Camera head diameter | 6 mm |
| Camera probe material | Stainless steel |
| Camera probe movement | 2-way, 155° |
| Protection class camera probe | IP67 |
| Field of vision | 87,1 ° |
| Depth of field of vision | 10 ... 60 mm |
| Luminous intensity | 3 LEDs at the front, 2 LEDs at the side |
| Menu language | English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian, Slovenian, Estonian, Finnish |
| Power supply | AC 100 ... 240 V | Hz 50/60 |
| Connector type | Device-europlug |
| Capacity | 2400 mAh |
| Operating conditions | 0 ... 60 °C , 10 ... 90 % RH |
| Storage conditions | 0 ... 60 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 240 x 154 x 47 mm |
| Other dimensions | Control unit 228 x 35 x 53 mm |
| Weight | 1310 g |
| Other weights | Control unit 400 g |
