Multifunction HVAC Meter with Flow Hoods PCE-VA 20-SET

Order no.: PCE-VA 20-SET

GTIN (EAN): 4250348714664

Accessory

Telescoping Pole for PCE-VA 20

AED 579.00

Set of 2 x Capture Flow Hoods for PCE-VA 20

AED 823.00

ISO Calibration Certificate CAL-AM

AED 846.00

Description

PCE-VA 20-SET Multifunction HVAC Meter with Flow Hoods
Combination anemometer-hygrometer-thermometer for HVAC system testing, adjusting and balancing (TAB)

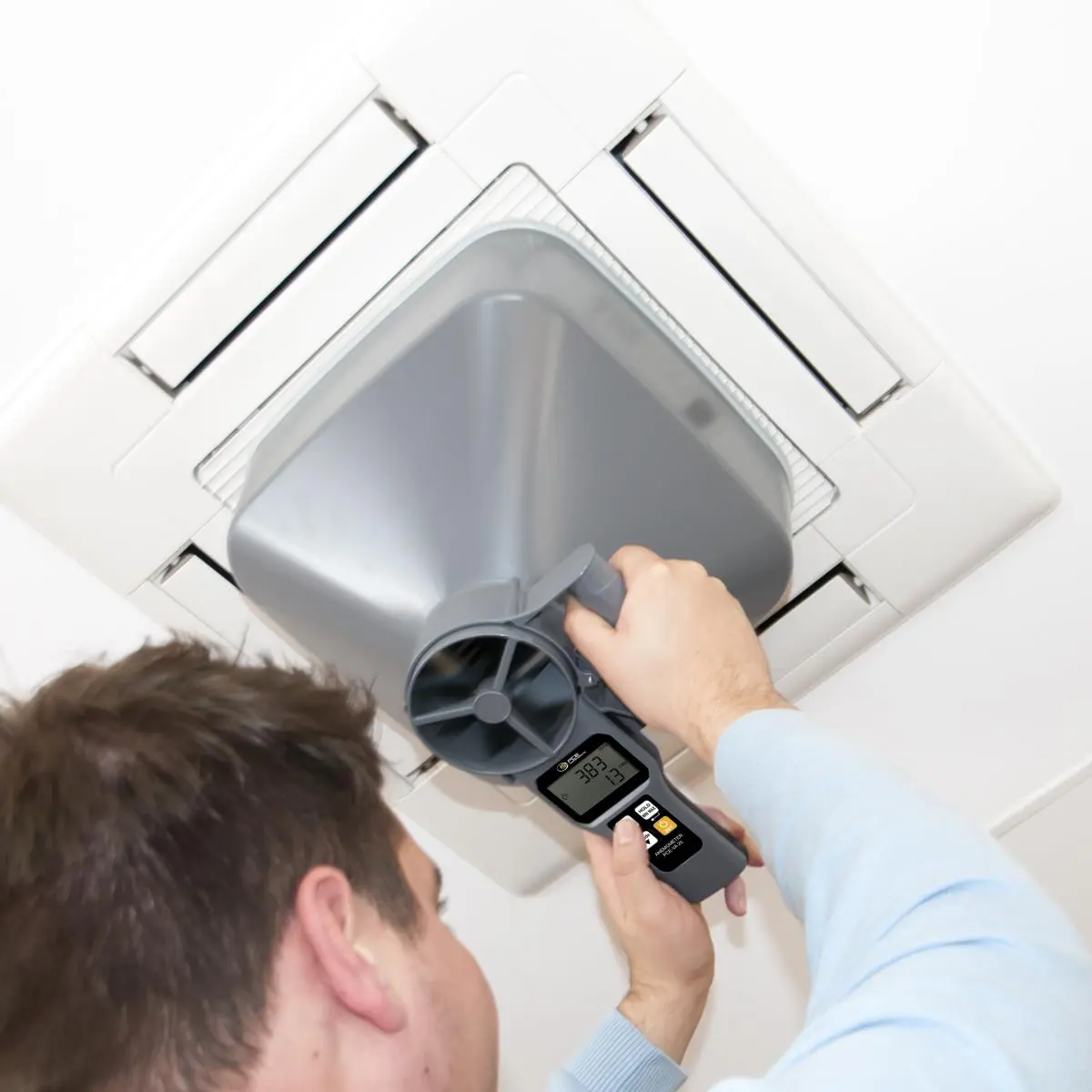

PCE-VA 20-SET is a multifunction HVAC meter with flow hoods for testing, assessing and balancing (TAB) heating, ventilation and air conditioning or cooling (HVAC) systems. This combination anemometer-hygrometer-thermometer features a 10 cm / 3.9" diameter fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.

Highlights

- Measures air flow velocity, volume flow, relative humidity, air temperature,

dew point temperature and wet-bulb temperature

- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)

- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of

measured value + 0.3 m/s) when more than 20 m/s

- Resolution: 0.1

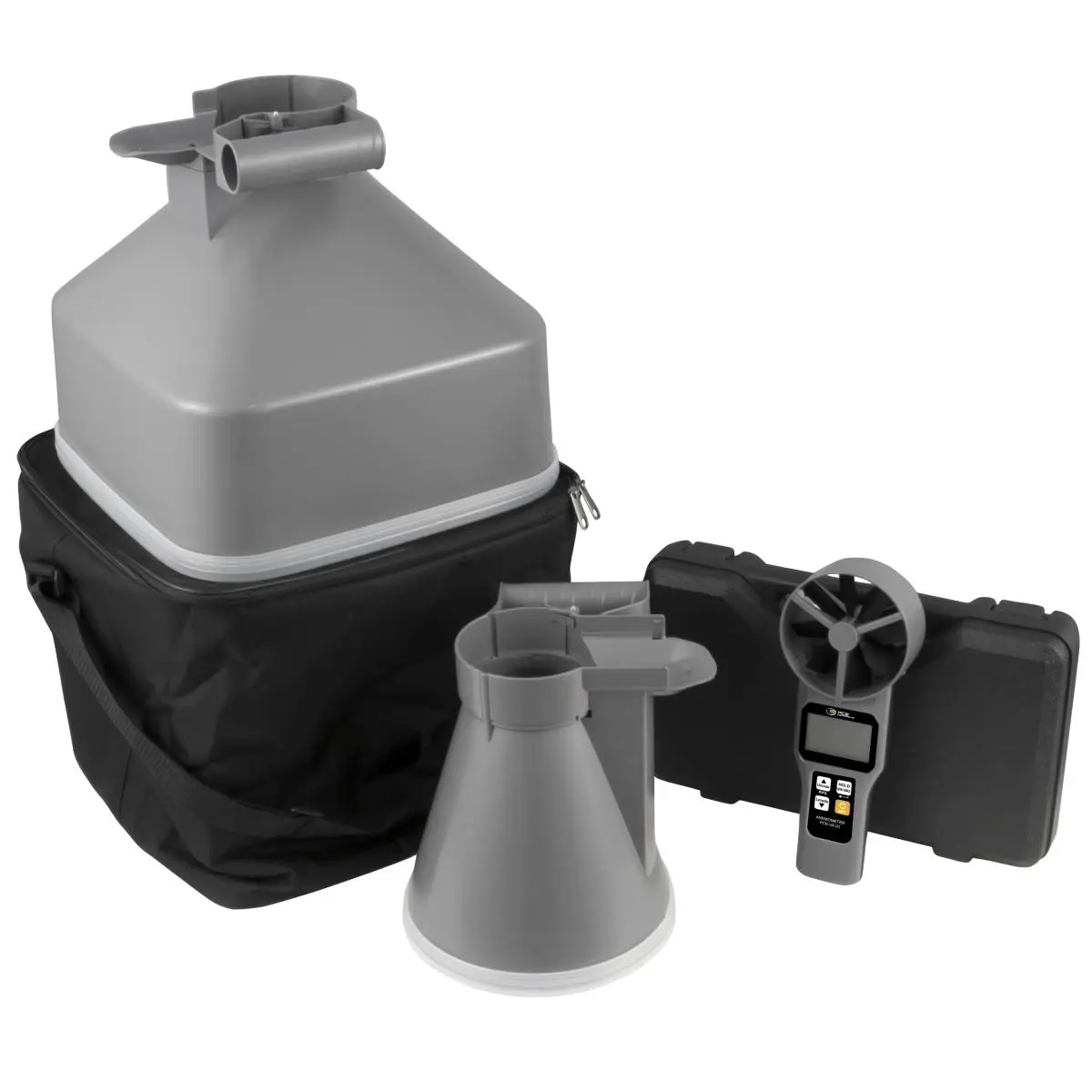

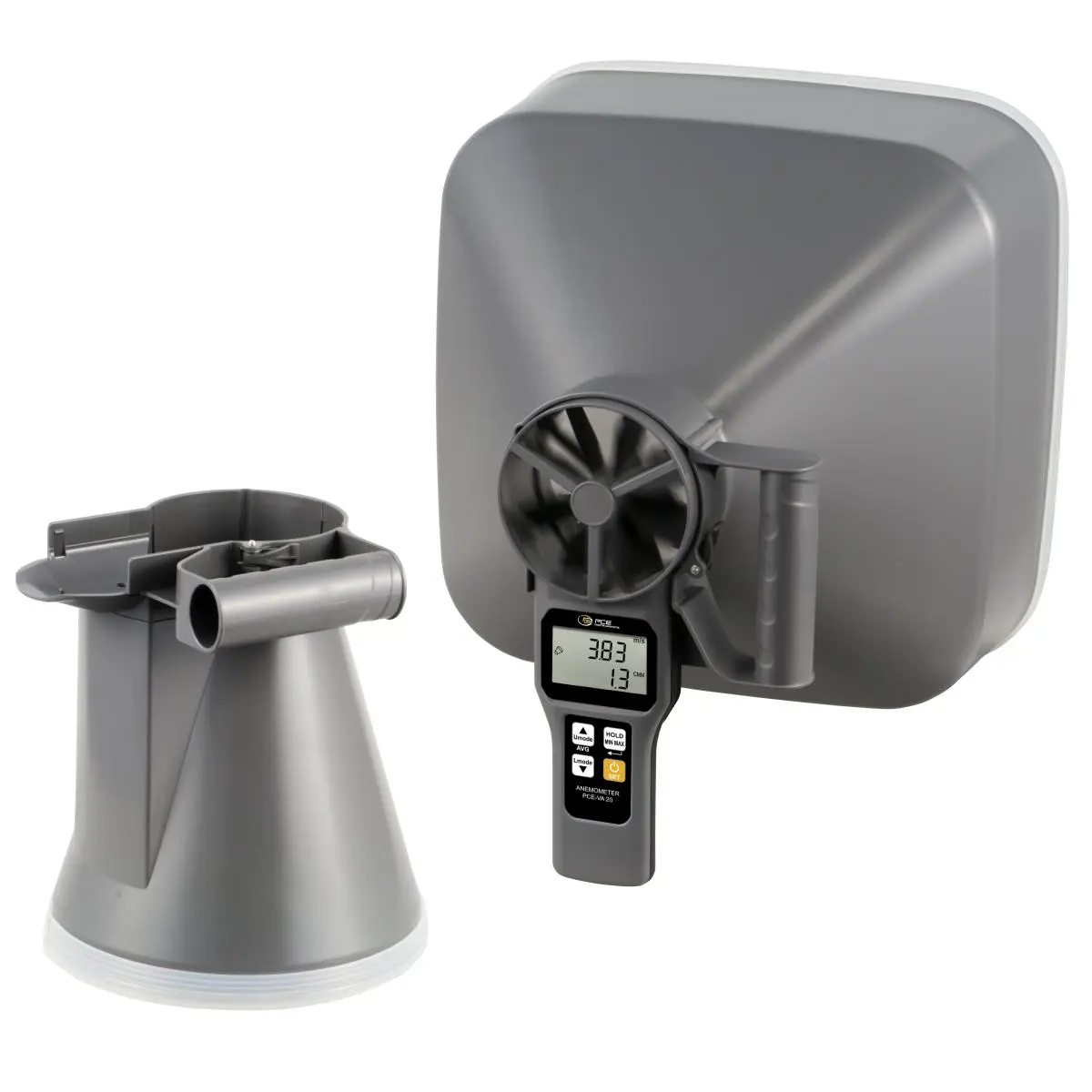

- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346

mm / 13.6 x 13.6 in)

- 10 cm / 3.9 in Ø fan impeller

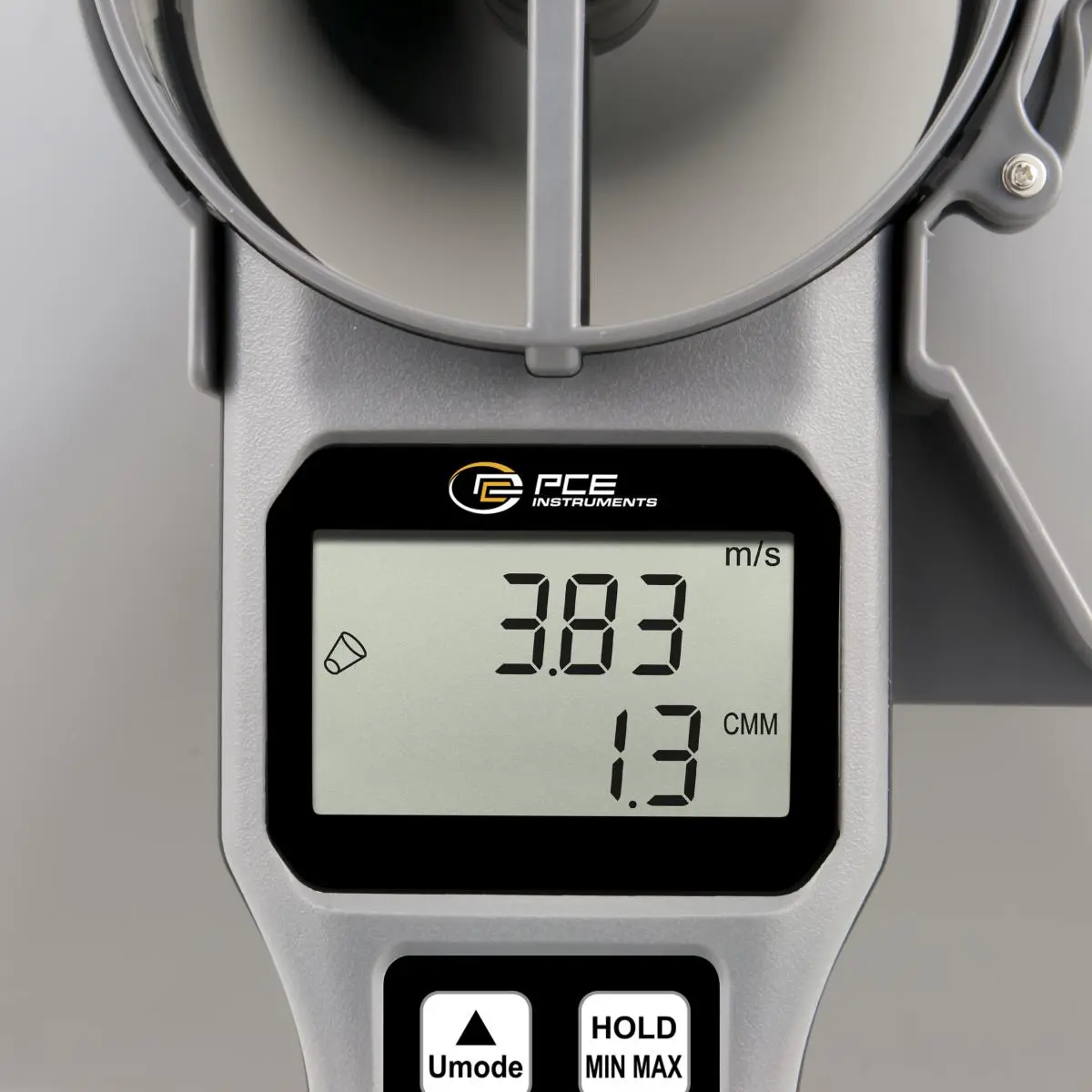

- Easy-to-read backlit LCD

- Display hold, average value, maximum value, minimum value, battery-saving

automatic power off, low-battery indicator, and metric or imperial unit

selection functions

Specification

Wet bulb temperature
Measuring range	-20 ... +59,9 °C

Speed
Measuring range	0,2 ... 20 m/s
Resolution	0.1 m/s
Accuracy	±(1.5 % of Rd +0.3 m/s)

Speed
Measuring range	20 ... 30 m/s
Resolution	0.1 m/s
Accuracy	±(3 % of Rd +0.3 m/s)

Volume flow
Measuring range	0 ... 9999,9 m³/min
Resolution	0,1 m³/min

Volume flow
Measuring range	10000 ... 99999 m³/min
Resolution	1 m³/min

Dew point
Measuring range	-5 ... +59,9 °C

Relative humidity
Measuring range	0,1 ... 99,9 %
Resolution	0,1 %
Accuracy	±3% (at 25°C) otherwise ±5%

Temperature
Measuring range	-20 ... +60 °C
Resolution	0,1 °C
Accuracy	0.6°C

General technical data
Measuring functions	MIN, MAX, HOLD, AVG
Display type	LCD
Display size	2,5 in
Display refresh rate	1 x per second
Response time Additional information	Temperature: 60 s Humidity: 60 s
Automatic power-off	20 min
Dimensions	Impeller diameter: Ø 105 Flow hood, round: Ø 210 mm Flow hood, square: 346 x 346 mm
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	4 x 1,5 V AAA battery , Zinc carbon
Capacity	600 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	-10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	269 x 106 x 51 mm
Weight	200 g
