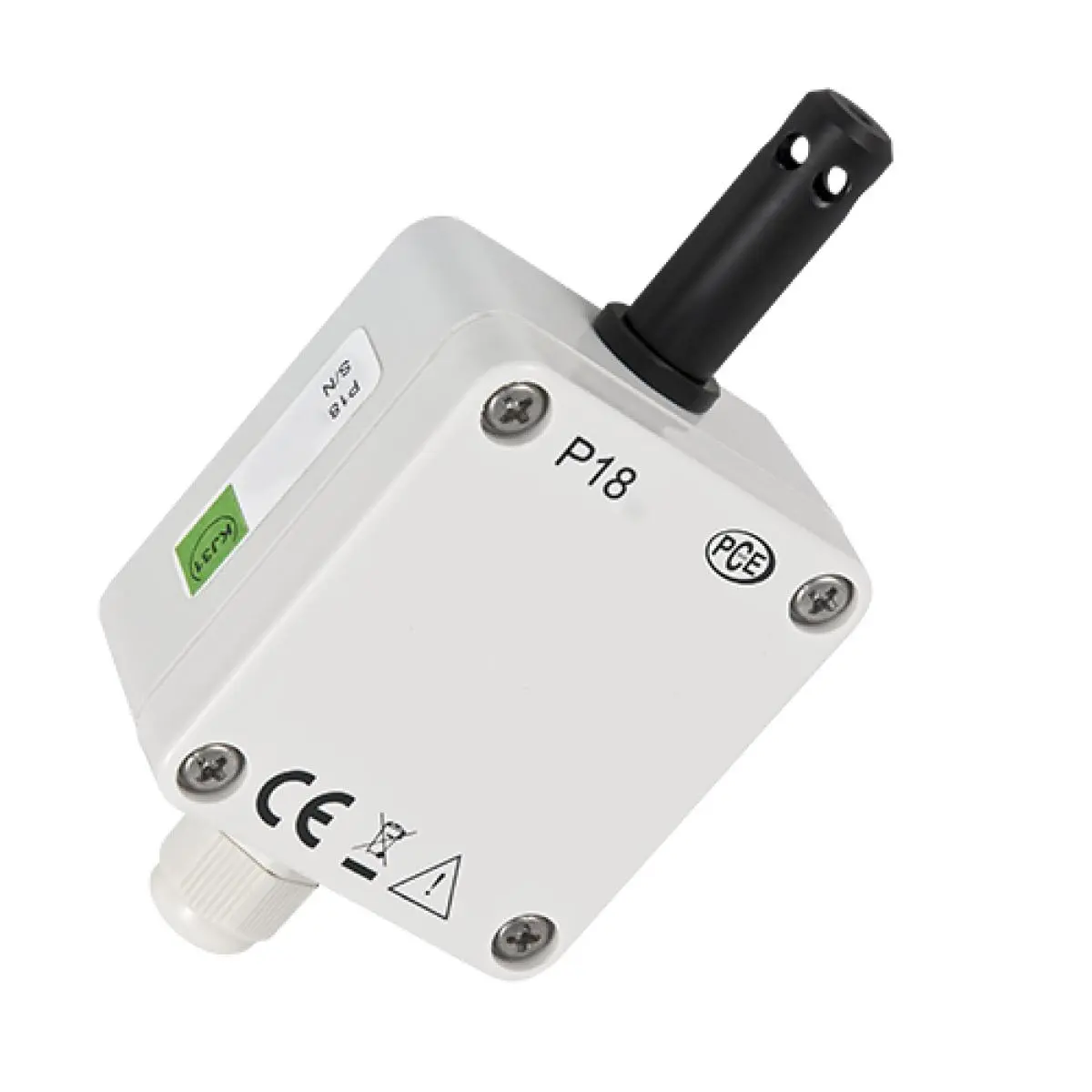

HVAC Meter PCE-P18 0...10V

Order no.: PCE-P18-2A0E0
GTIN (EAN): 4250348730466
AED 736.00
AED 772.80
price ex. (customs / clearance)
:
4250348730466
PCE-P18-2A0E0
Delivery time:1-2 working days

Accessory

Description

Measures temperature and humidity / output as 0 .. 10 V signal / compact
Modbus RTU interface / wall mounting

The HVAC meter is used in HVAC technology to monitor humidity and temperature. The measured values ​​are output by the HVAC meter as a 0 ... 10 V standard signal. In this compact HVAC meter, air humidity and temperature are precisely determined using a semiconductor component. For commissioning, the HVAC meter is supplied via a DC voltage. The measured variables are output via a two-wire line. All connections are made via screw contacts in the waterproof IP 65 housing. In addition to the output of the measurement signal as a 0 ... 10 V signal, the measurement values ​​can be output via the RS485 interface. This function is particularly useful if several measuring points are to be linked to one another during your home surveillance.

Highlights

- Humidity- and temperature-sensor
- 0…10 V output
- Simple wall fastening
- RS-485 interface
- For constant monitoring
- Different filters deliverable
- Small measuring
- Modbus RTU

Specification

Relative humidity
Measuring range  0 ... 10
Resolution  0,1 %
Accuracy  ±3 % RH

Relative humidity
Measuring range  10 ... 90
Resolution  0,1 %
Accuracy  ±2 % RH

Relative humidity
Measuring range  90 ... 100
Resolution  0,1
Accuracy  ±3 % RH

Temperature
Measuring range  -20 ... +60 °C
Accuracy  ±0.5% FS, temperature effect: ±25% / 10°C

General technical data
Outputs  0 ... 10V DC
Display type  without display
Interface  RS485
Warm-up time  15 min
Mounting  Wall mounting
Performance  1,5 W
Protection class (device)  IP65
Power supply  19 ... 30 V DC
Operating conditions  -30 ... 85 °C , 0 ... 95 % RH
Storage conditions  -30 ... 85 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  118 x 35 x 58 mm
Weight  125 g

Delivery Scope

1 x humidity sensor PCE-P18-3
1 x instruction manual
Available variations of humidity sensor PCE-P18
Humidity sensor PCE-P18-1RS-485 Modbus Interface
Humidity sensor PCE-P18-2
Humidity sensor PCE-P18-3
RS-482 Modbus interface with 4…20 mA output
RS-485 Modbus Interface with 0...10 V output
