HVAC Meter PCE-893-ICA incl. ISO Calibration Certificate
Laser temperature meter for easy measurement of surface temperatures /
Fast response time / Adjustable emissivity / Max-Min function / Alarm function / Measuring range up to 1200 °C / 2192 °F / Thermocouples type K connectable / Software for PC connection

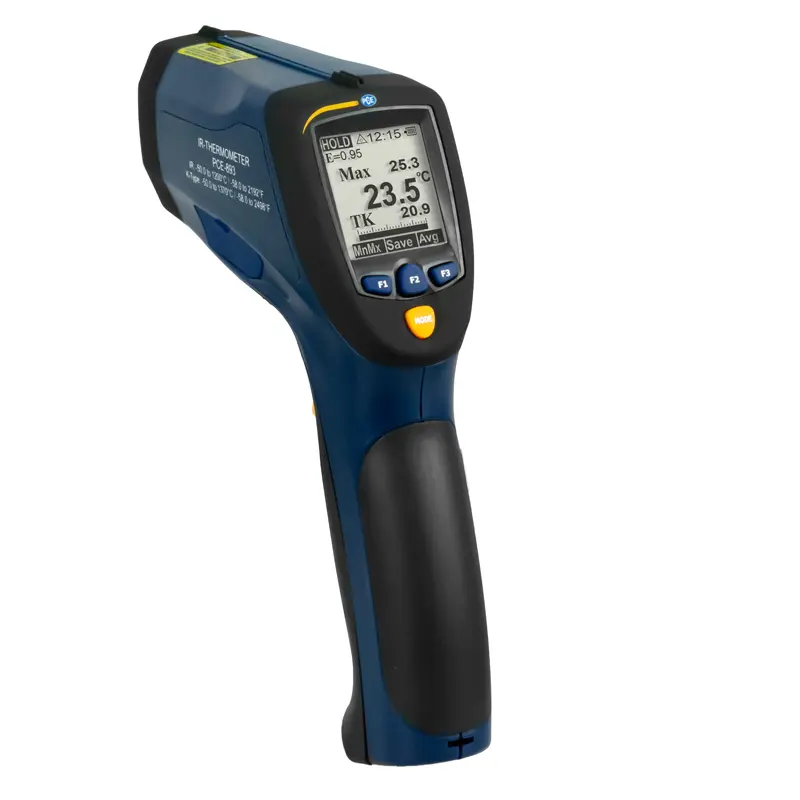

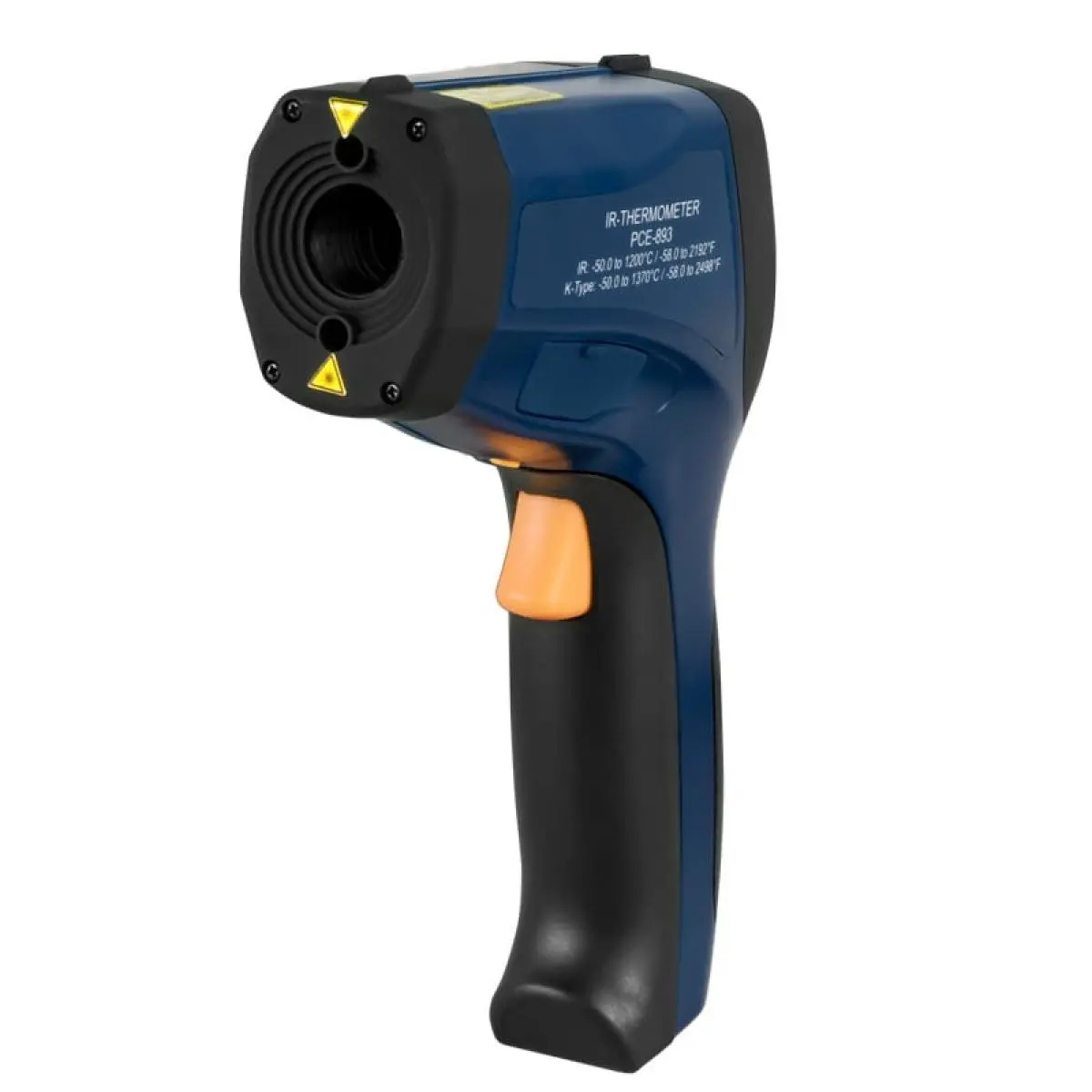

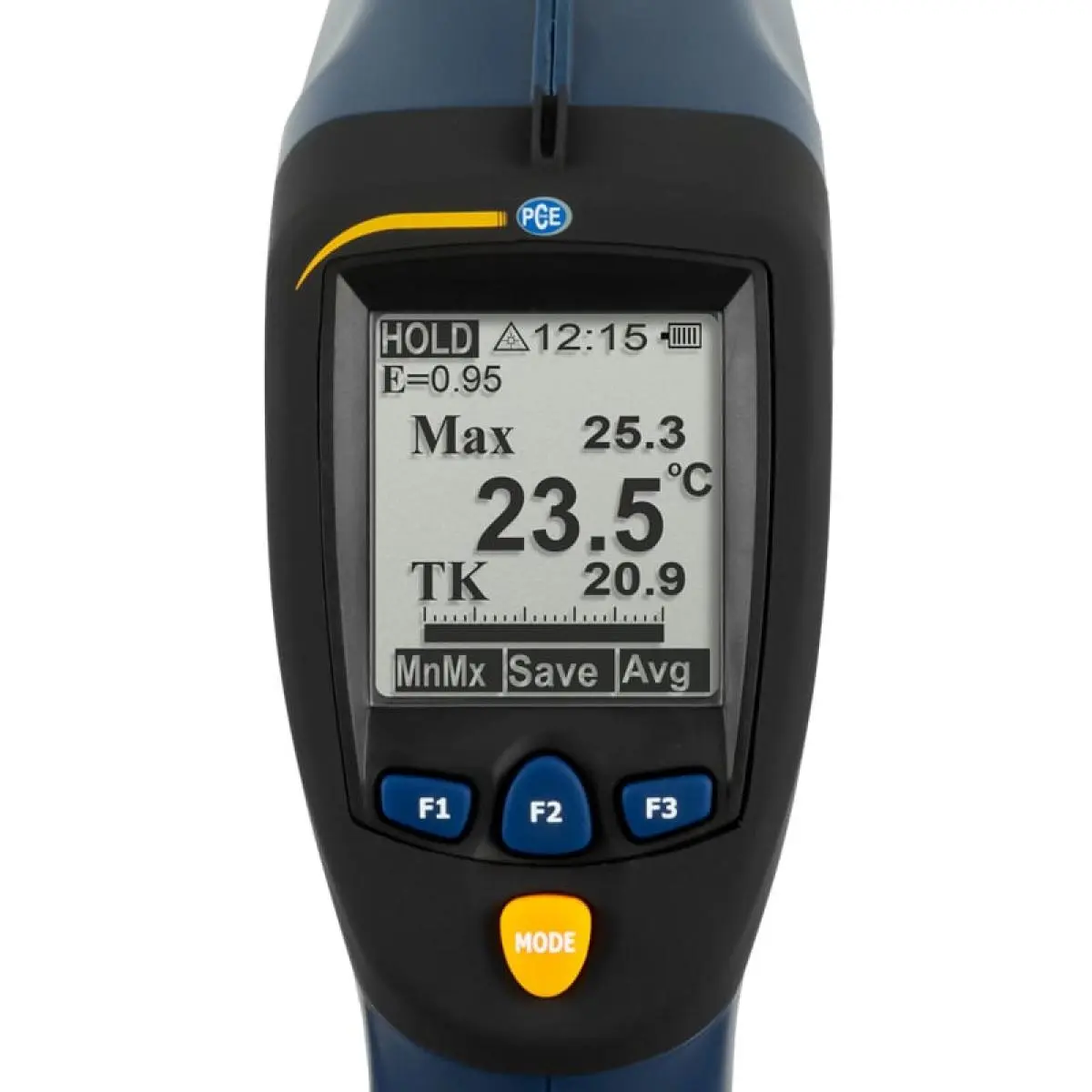

The HVAC Meter PCE-893-ICA is suitable for simple temperature measurements. The emissivity of the surface can be adjusted on the PCE-893-ICA thermometer. Thus, the thermometer PCE-893-ICA is suitable for almost all surfaces. The dual laser of the thermometer PCE-893-ICA marks the exact center of the measurement spot. This helps the user considerably with non-contact temperature measurement. The thermometer PCE-893-ICA has a backlit display. In addition to the emissivity setting, the user can set limit value alarms over the entire measuring range of the PCE-893-ICA thermometer. The measuring range is from -50 °C to + 1200 °C / -58 ... 2192 °F. The measuring spot ratio of the thermometer PCE-893-ICA is 50:1.

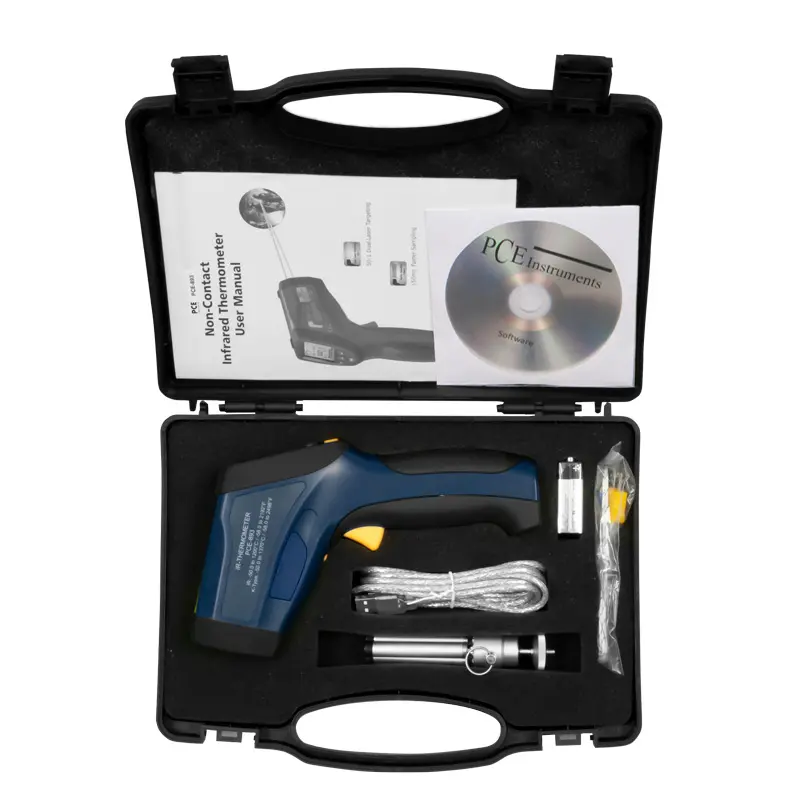

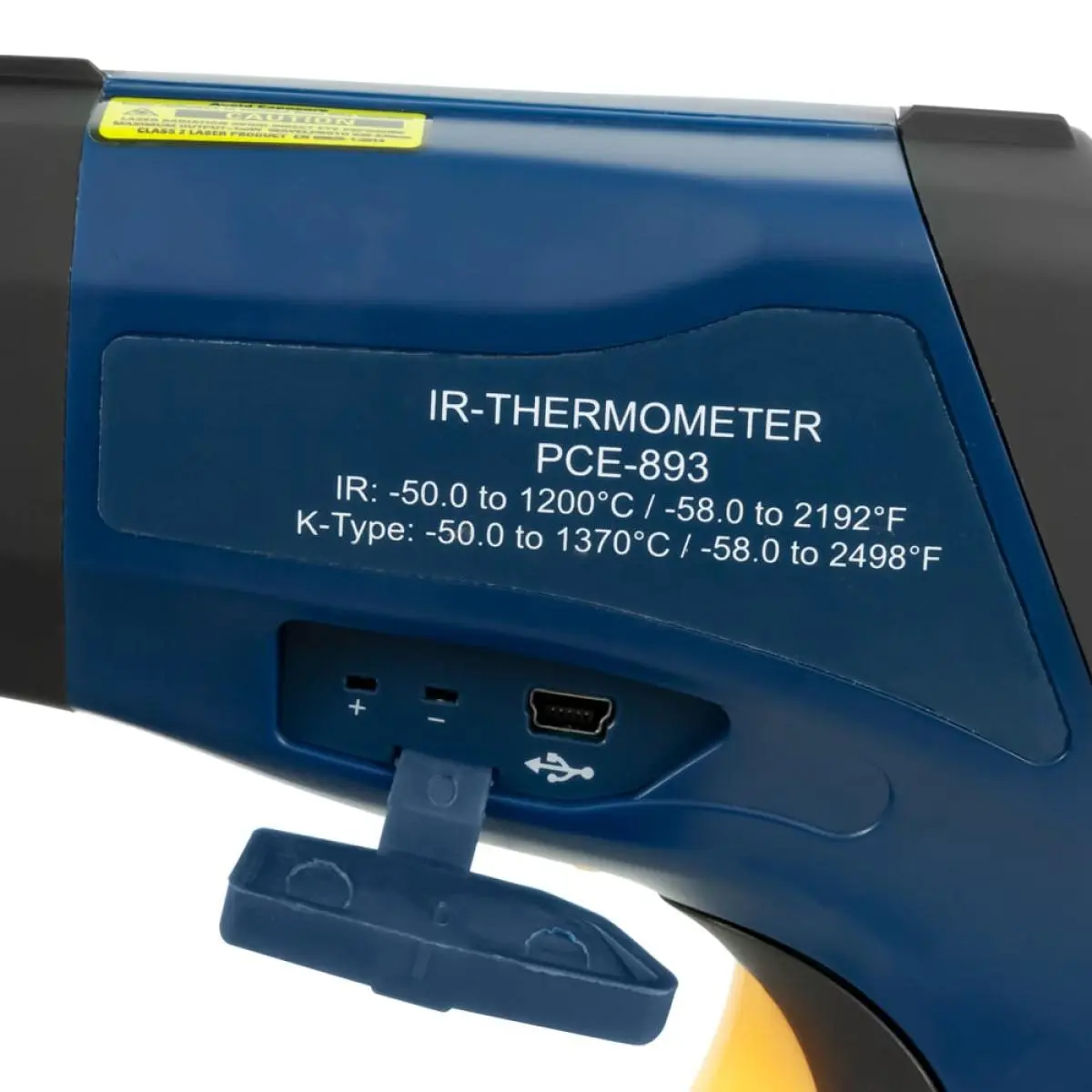

In addition to the infrared measurement, a variety of thermocouples Type-K can be connected to the thermometer. Here measurements up to 1370 °C / 2498 °F are possible. The included software and the USB port on the thermometer allow the operator to analyze and store all measurement data on the PC both graphically and in a table.

Highlights

- Dual laser shows the spot center

- Adjustable emissivity

- Illuminated LCD

- Measured value transmission to a PC

- Non-contact temperature measurement

- Measurement spot ratio 50: 1 infrared optics

- Temperature measurement up to 1200 °C / 2192 °F

- Thermocouple type-K can be connected

Typical applications of the thermometer PCE-893

- Food monitoring

- Hygiene tests

- Road construction

- Control cabinet monitoring

- Heating and air conditioning technology

- Production monitoring

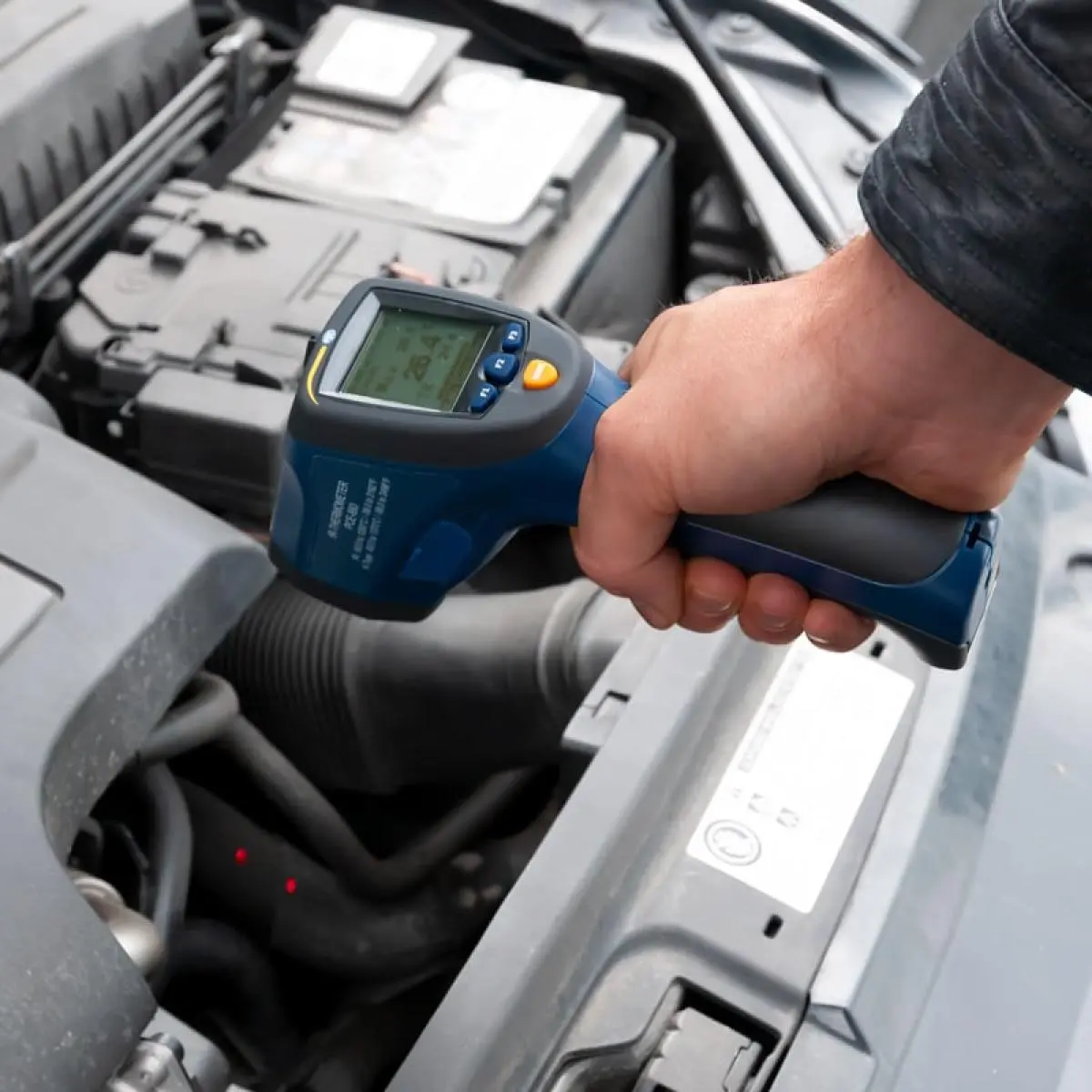

- Temperature measurement on motors

- Electronic components

- Fuse box

*ATTENTION* Our temperature sensors are designed for industrial and

laboratory surface temperature measurement ONLY. They are not designed or

certified for body temperature measurement or for medical use.

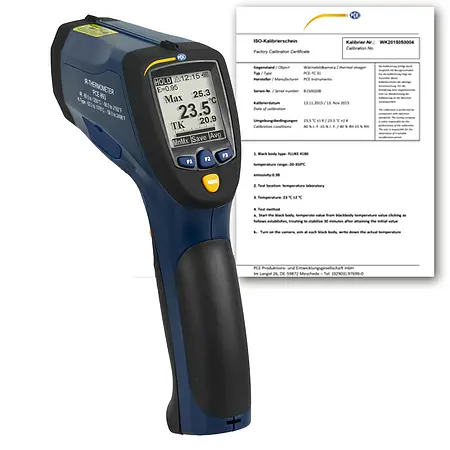

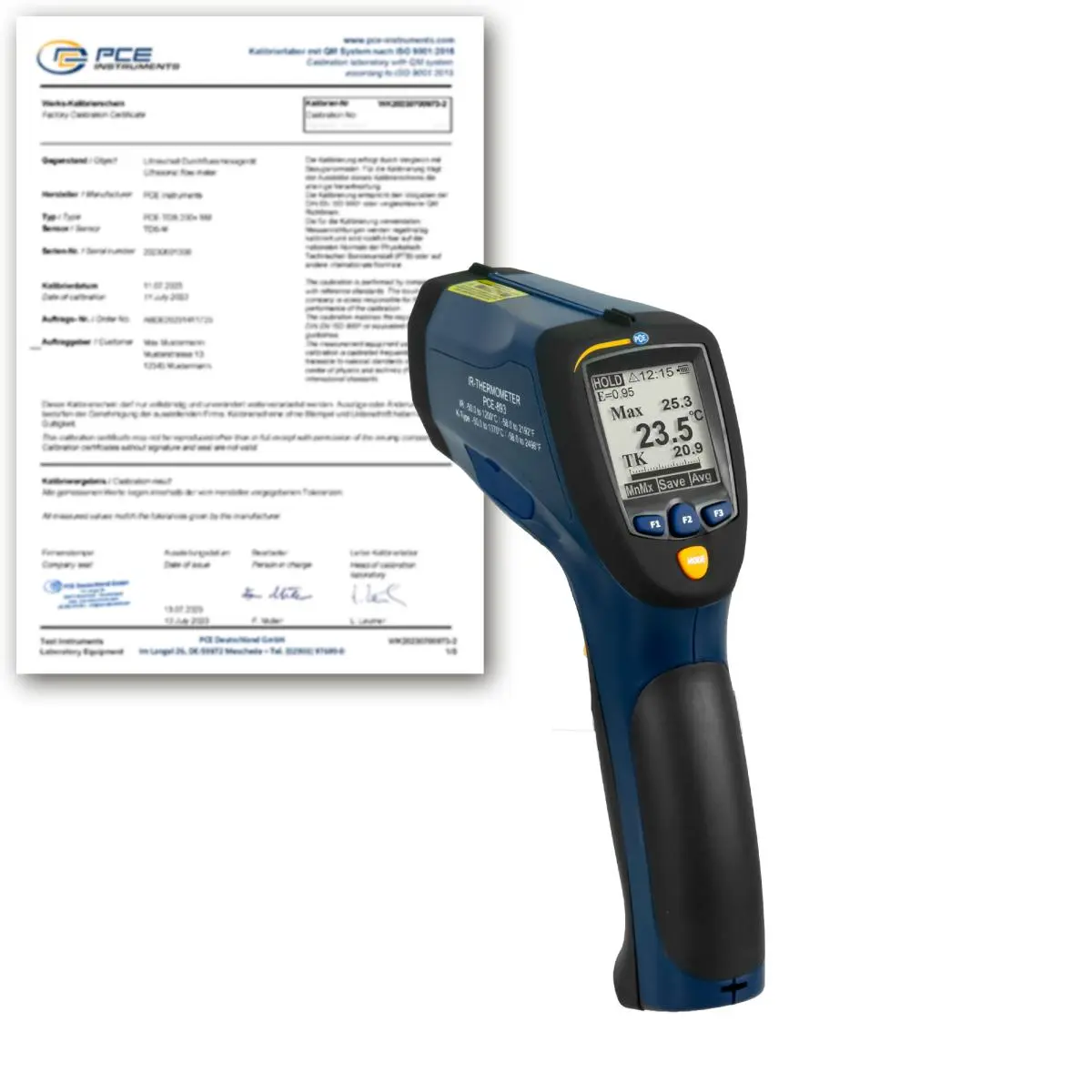

- incl. ISO-Calibration Certificate

Specification

Temperature K-type
Measuring range	-50 ... +1370 °C
Resolution	1 °C
Accuracy	±2.5 °C (-50 ... 0 °C) / ±0.5 % ±1.5 °C (0 ... 1370 °C)

Infrared temperature
Measuring range	-50 ... +1200 °C
Accuracy	±3 °C (-50 ... 20 °C) / ±1 % ±1 °C (20 ... 500 °C) / ±1.5 % (500 ... 1000 °C) / ±2 % (1000 ... 1200 °C)

General technical data
Outputs	Interface for K-type sensor
Measuring functions	HOLD, MAX
Units	°C, °F
Display type	LCD with backlight
Display size	2 Inch
Storage medium	Internal memory
Interface	Mini-USB
Response time	150 mS
Automatic power-off	7 s
Automatic power-off from...to	7 ... 60 min.
Measurement spot	50:1
Laser	Class 2 <1mW
Emissivity from/to	0.1 ... 1
Emissivity	0,95
Spectral range	8 ... 14 µm
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 50 °C , 10 ... 90 % RH
Storage conditions	-10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	200 x 150 x 50 mm
Weight	282 g
