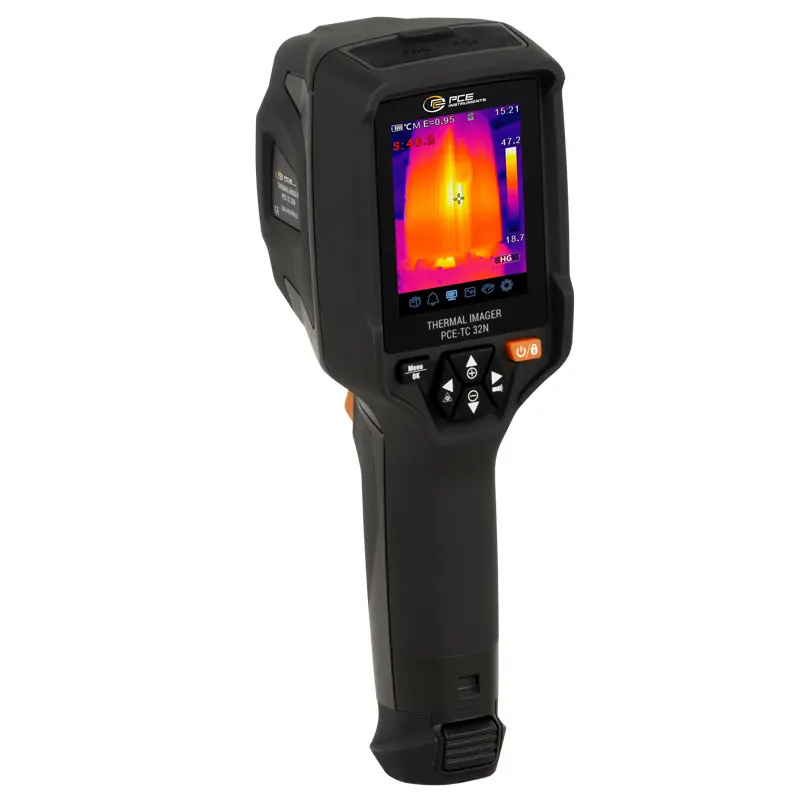

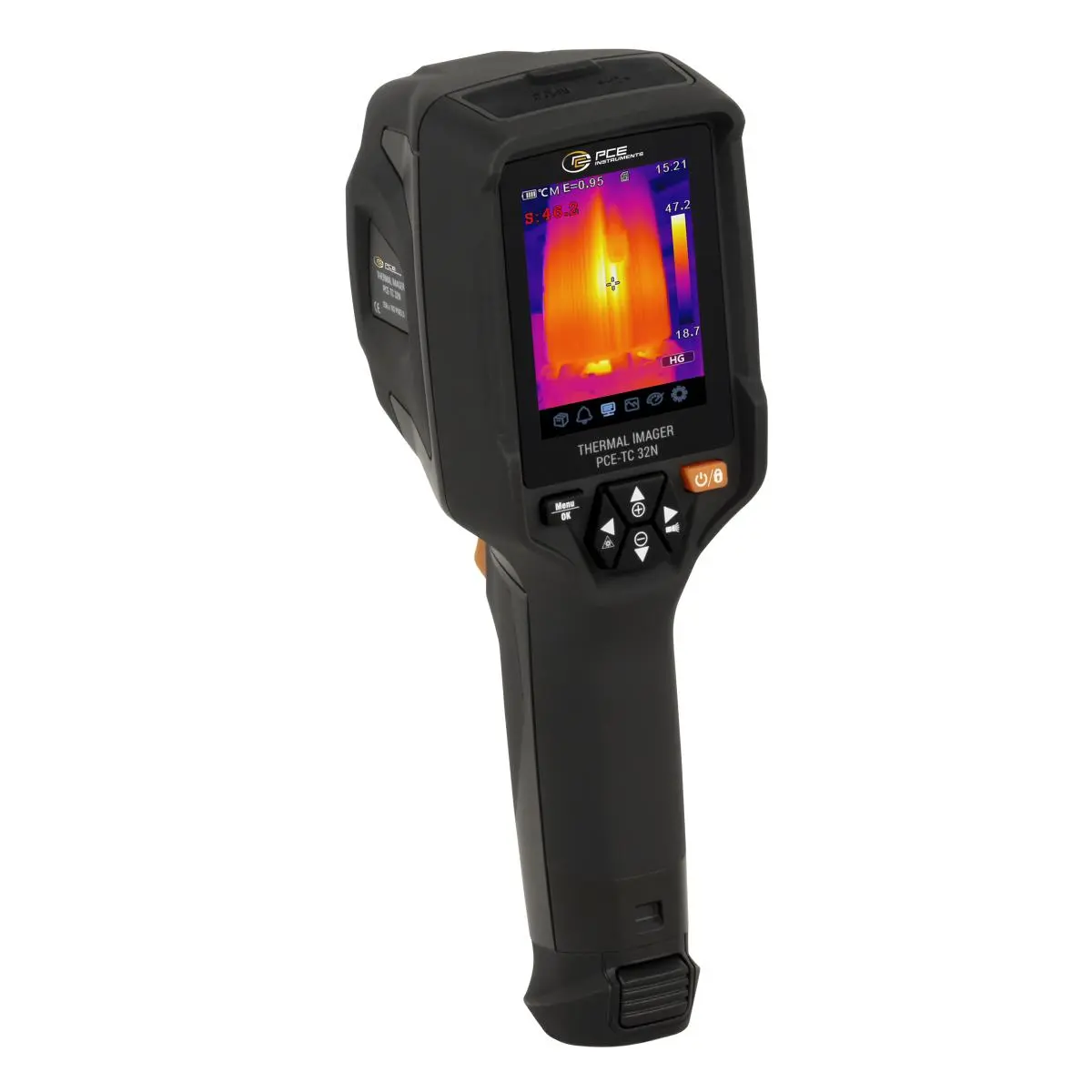

Heat Pump Test Equipment PCE-TC 32N

[zoom]

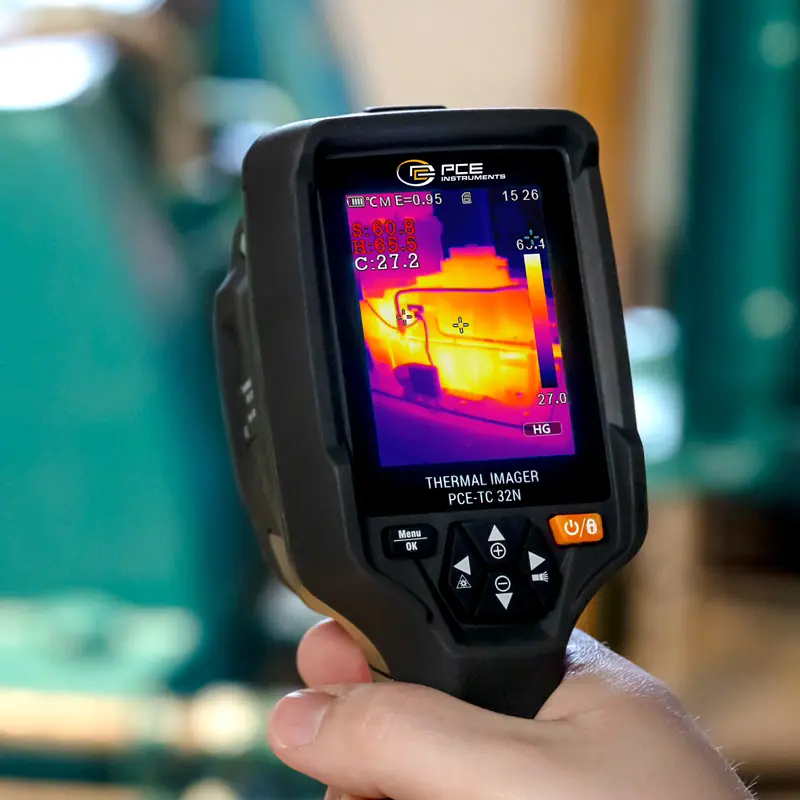

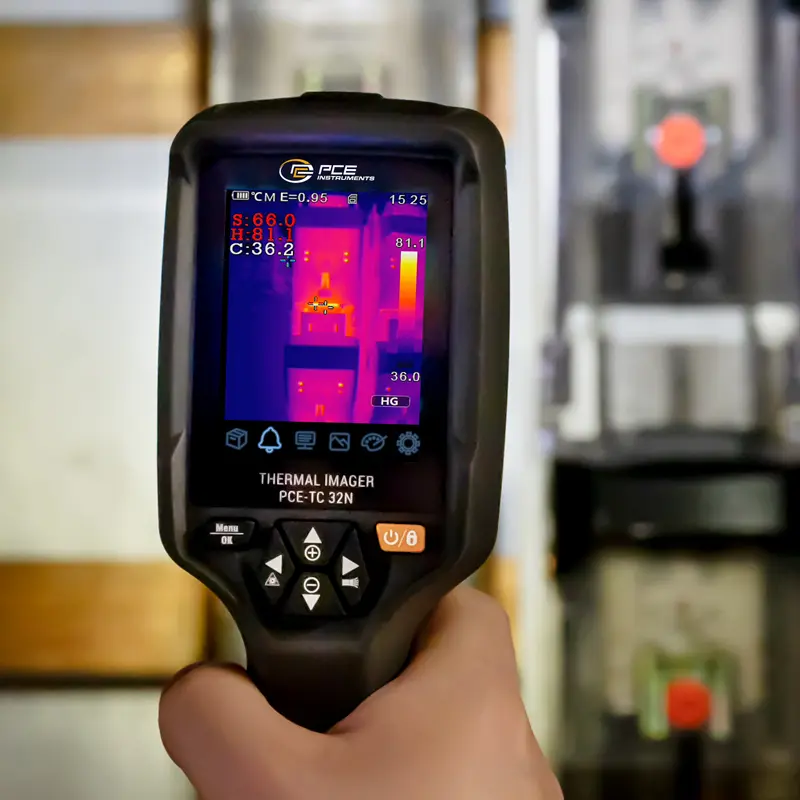

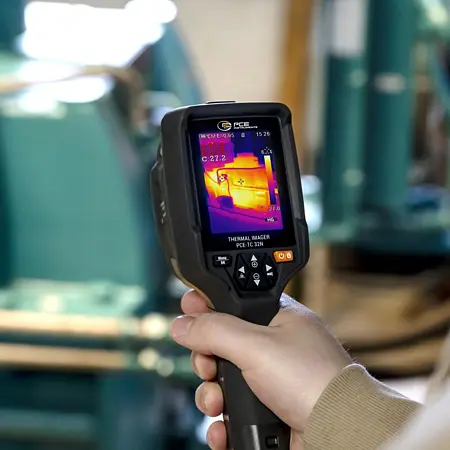

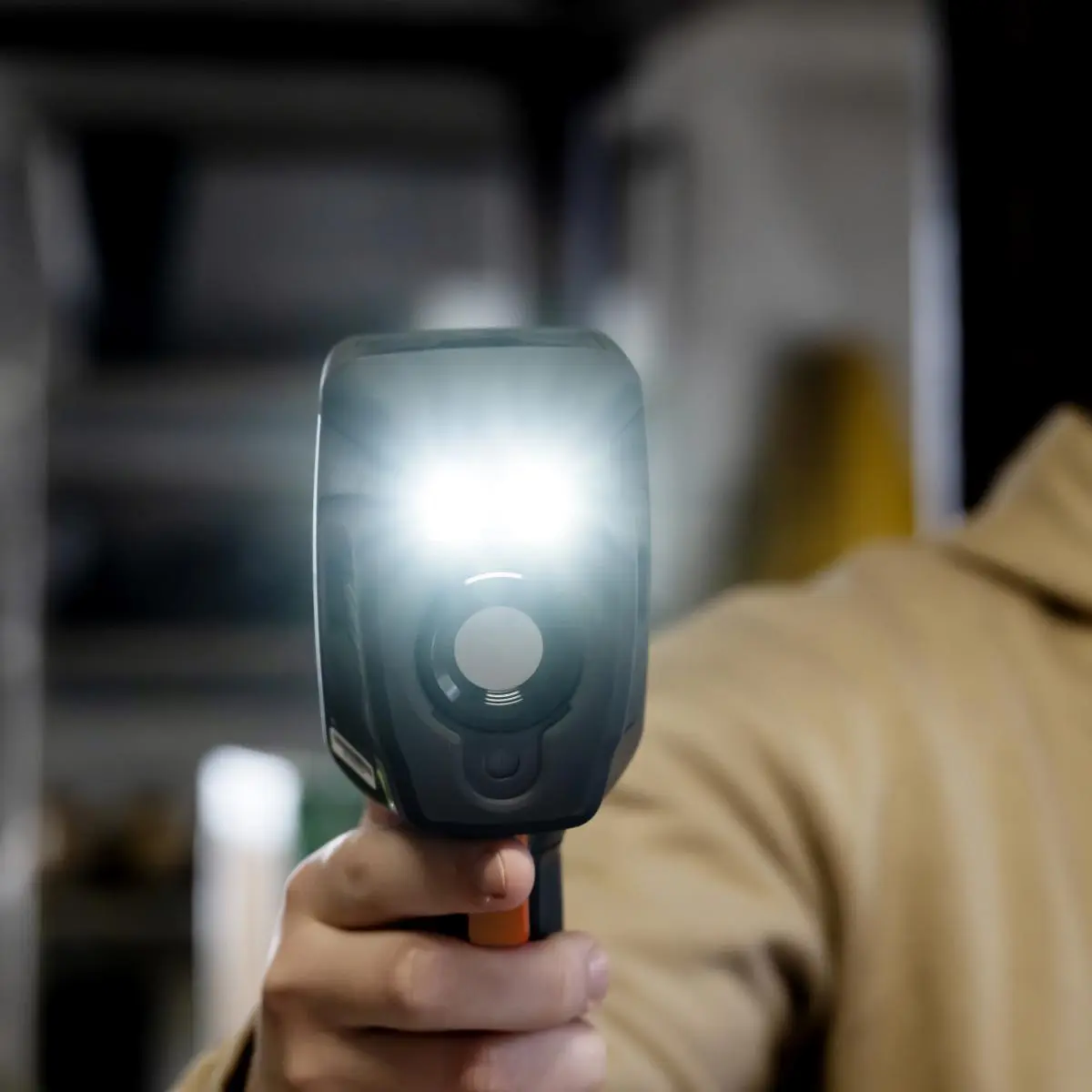

Heat Pump Test Equipment Application picture

Temperature Meter PCE-TC 32N

Order no.: PCE-TC 32N

GTIN (EAN): 4250348730503

Accessory

Mini Tripod for Various Measuring Devices

AED 73.00

Tripod STAT

AED 289.00

ISO Calibration Certificate for Thermal Camera

AED 1,265.00

Description

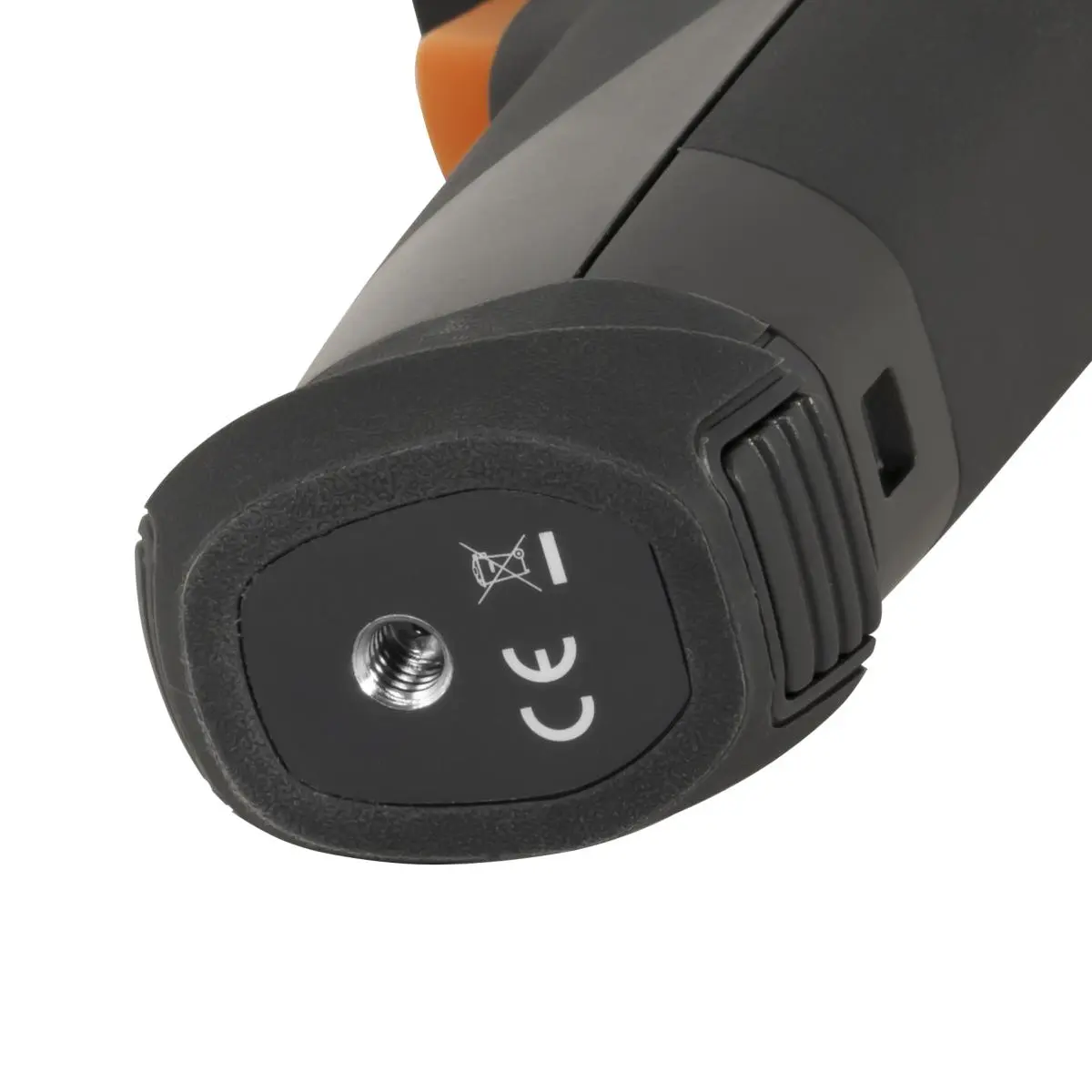

Temperature meter with photo and video function / software for evaluating the recordings / measuring range -20 ... +550 °C / 1/4" inch photo tripod connection / 4 hours operating time.

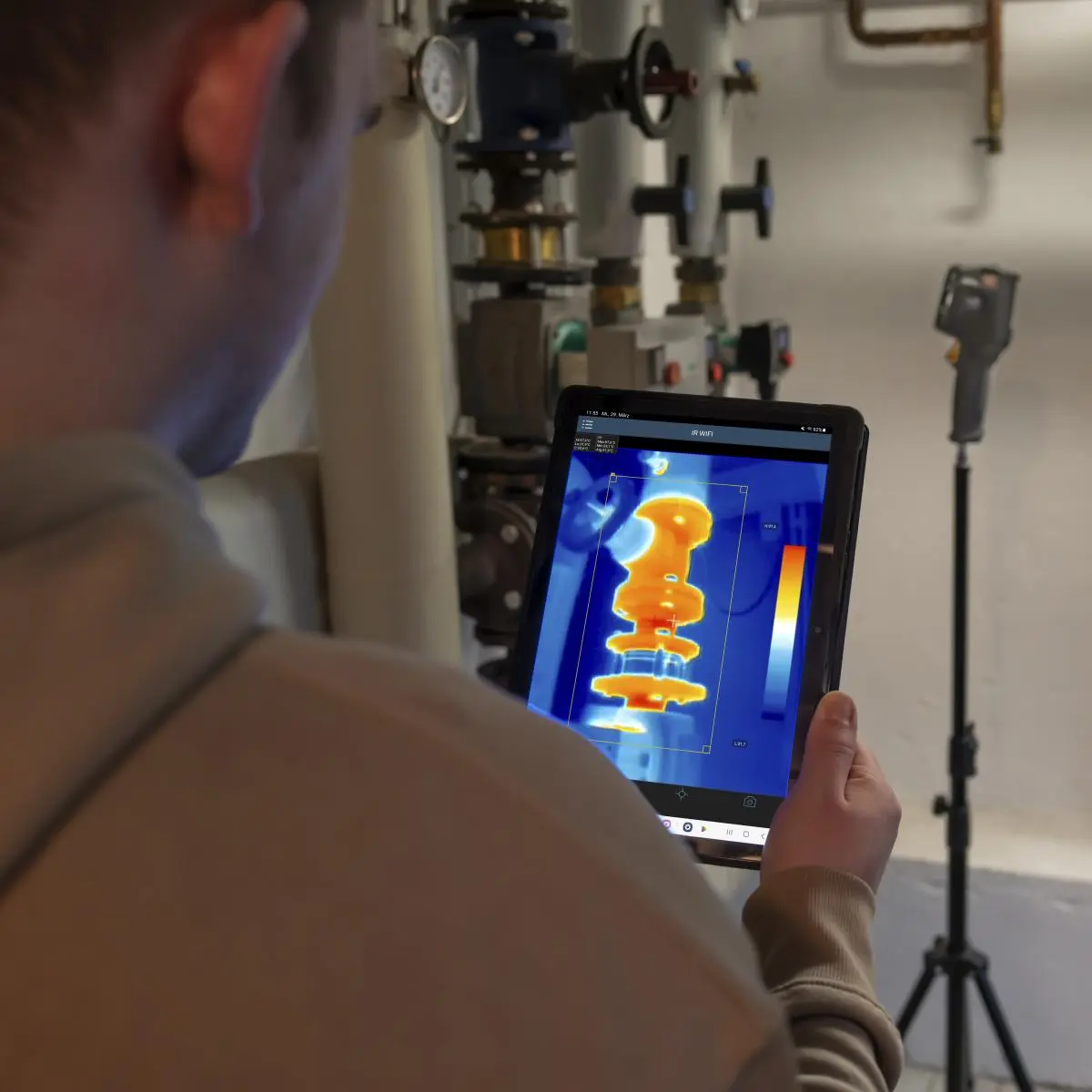

Wi-Fi interface and free Android and iOS app / optionally with ISO calibration certificate

The temperature meter has a measuring range of -20 ... +550 °C. This means that the temperature meter already covers a wide temperature range of measuring tasks. With a frame rate of 25 Hz, problems can be quickly localised with the temperature meter. The picture-in-picture function allows the real image to be displayed simultaneously with the thermal image. The app enables a clear display and operation of the temperature meter.

When connecting the temperature meter to a PC, there are two different functions that can be selected in advance in the settings. With the "PC Connection" setting, the temperature meter is recognised as a mass data storage device. This allows all image, video and measurement data to be copied directly from the temperature meter. With the "PC Camera" function, the temperature meter is recognised as a webcam by the PC. This has the advantage that the current image from the temperature meter can be displayed on a PC, for example, during online meetings or training sessions. In both cases, the temperature meter is independent of the operating system.

Highlights

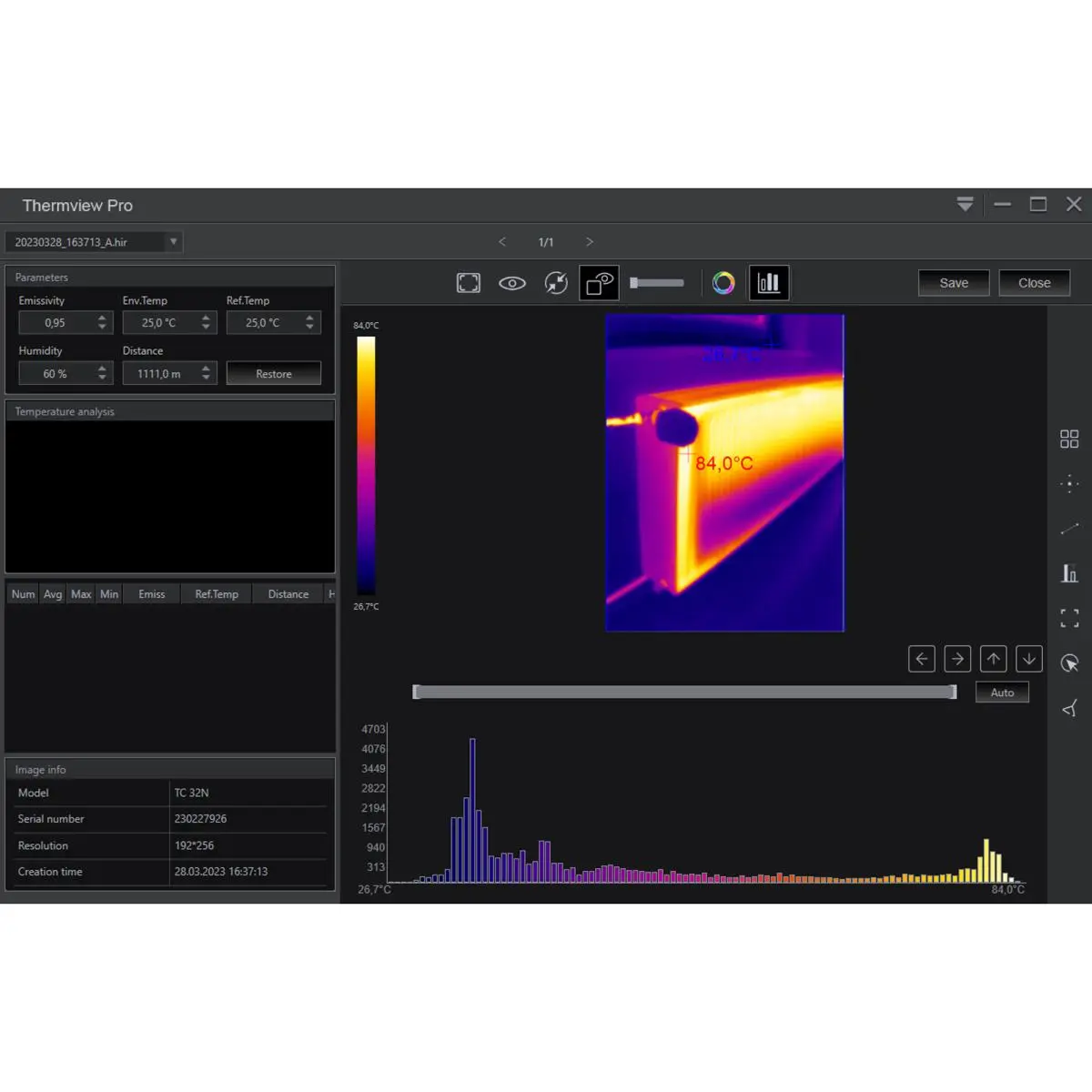

- Software for evaluating the recordings

- Measuring range -20 ... +550 °C

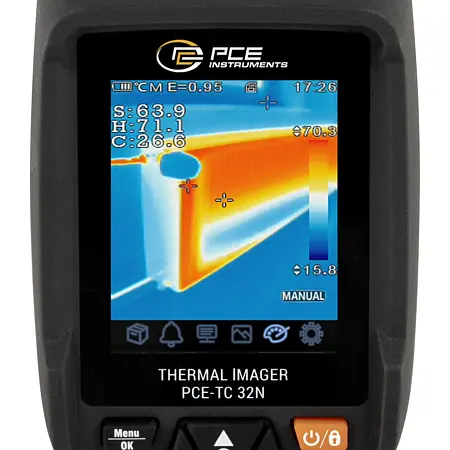

- Picture-in-picture function

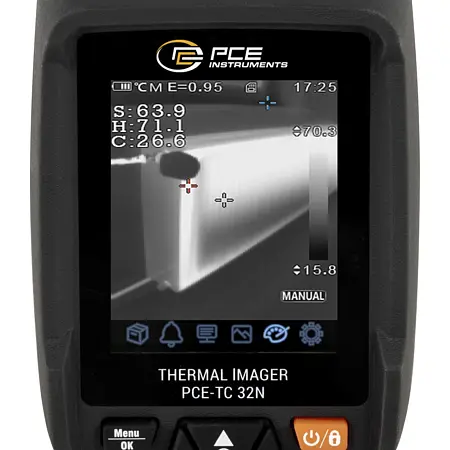

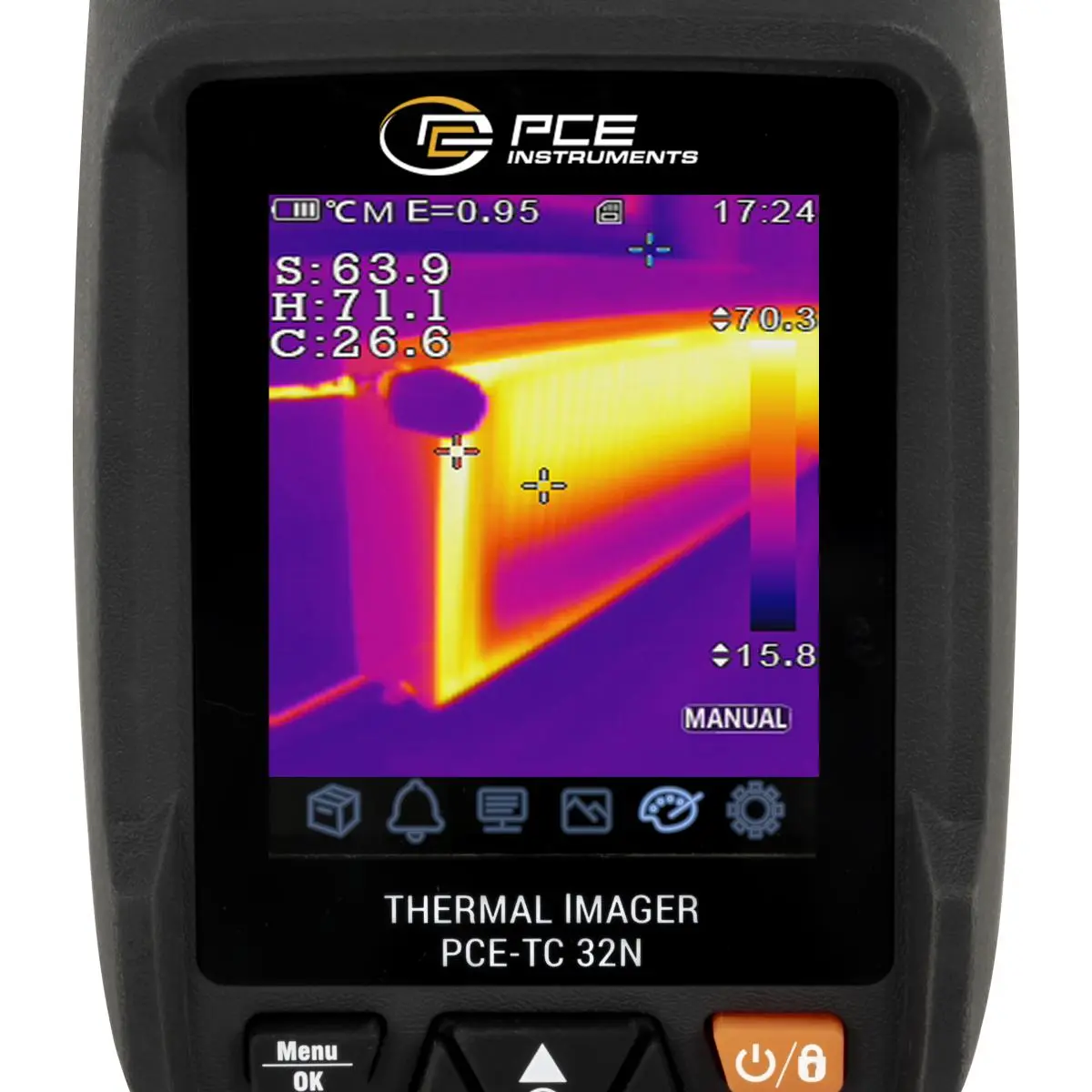

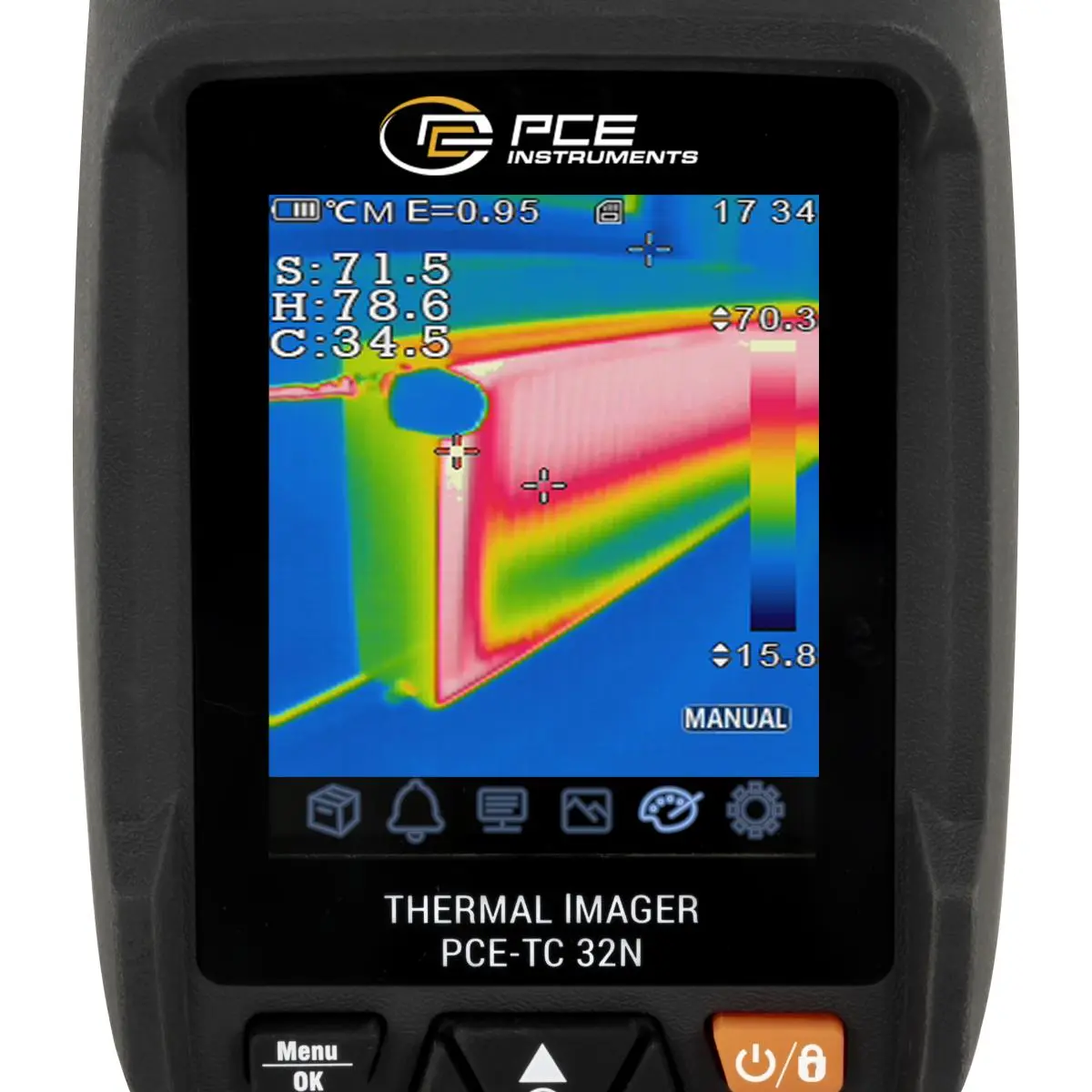

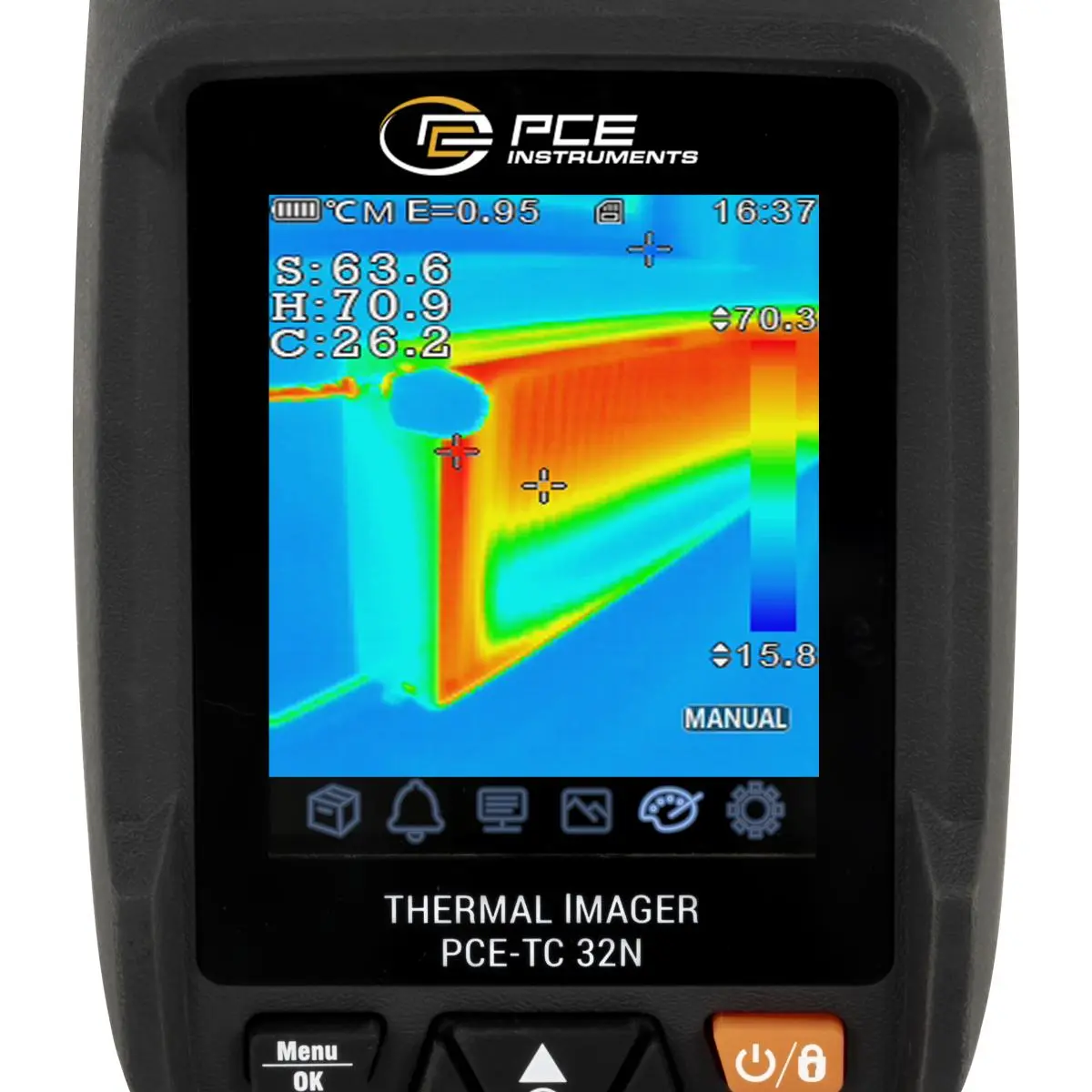

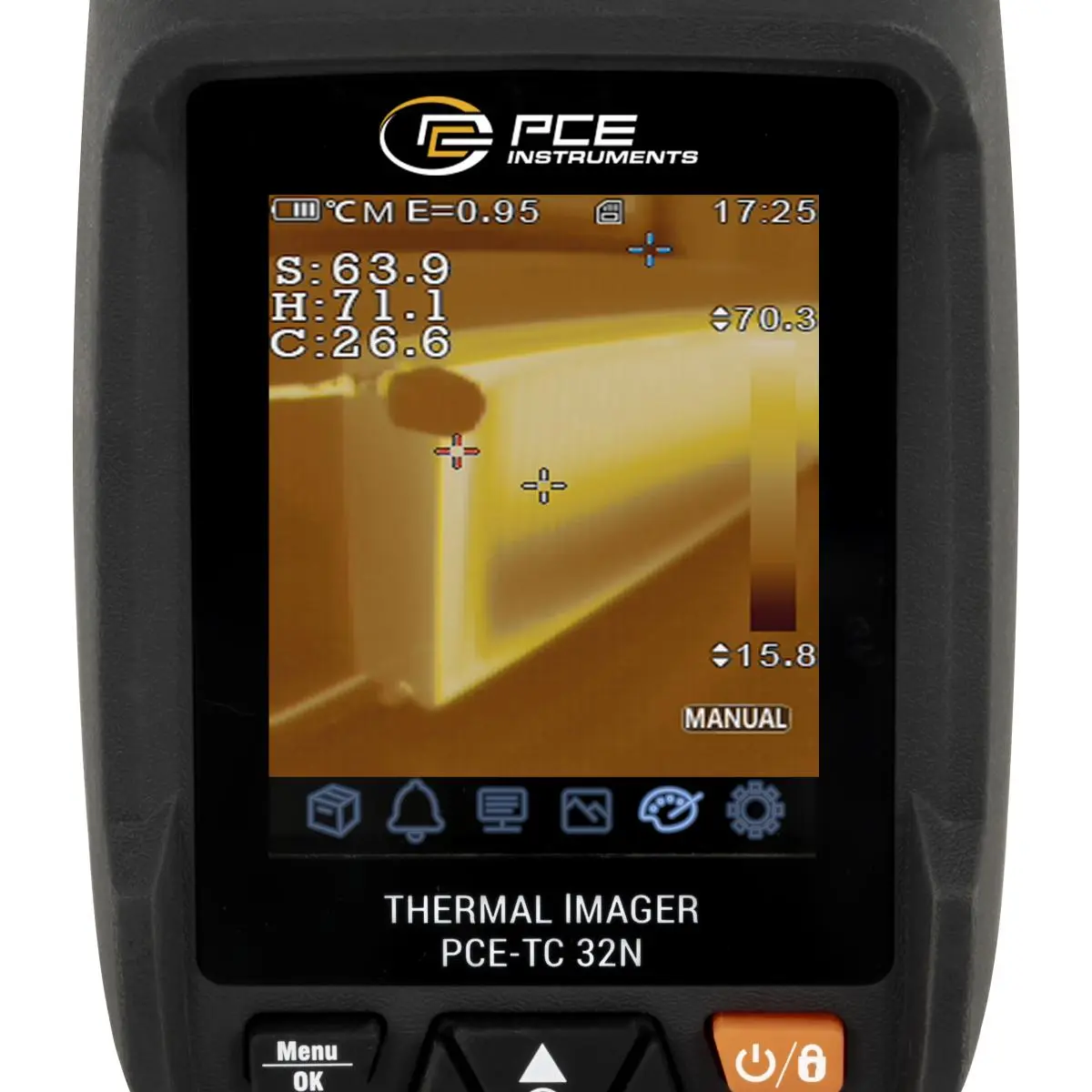

- eight different thermal image representations

- video and photo recording

- optionally with ISO calibration certificate

Specification

Temperature
Measuring range	-20 ... +550 °C
Resolution	0,1 °C
Accuracy	±2 °C at an ambient temperature between 10 ... 35 °C and an object temperature >0 °C

General technical data
Display type	LCD
Display size	2,8 in
Display resolution	240 x 320 pixels
Storage medium	Micro SD card, Internal memory
Storage capacity	32 GB
Memory capacity (additional information)	Image recording: memory capacity >6000 images / video recording: memory capacity 8 GB on micro SD card, 3.4 GB internal memory

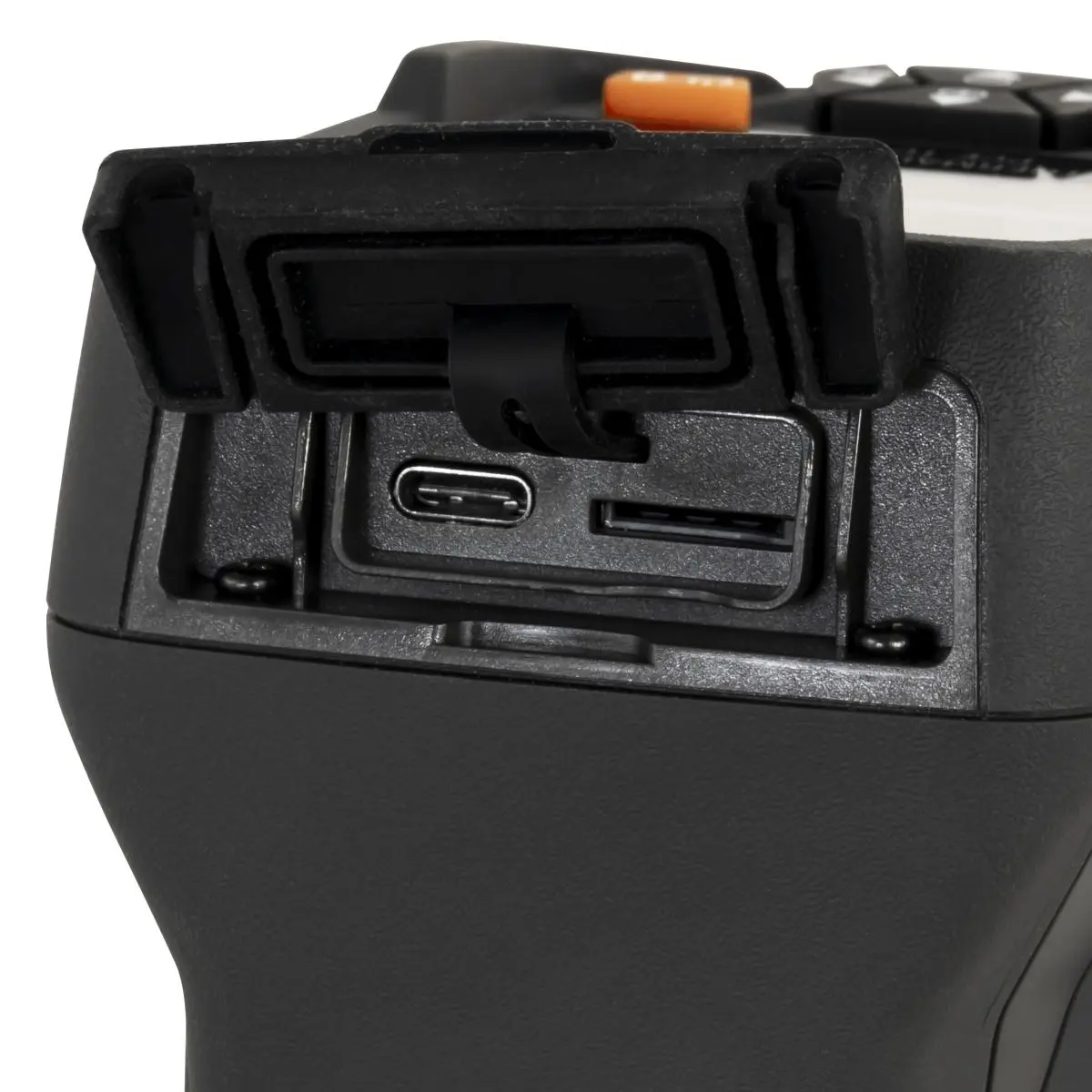

Interface	USB-C, Micro SD card, WiFi
Camera resolution	256 x 192 pixels
Automatic power-off from...to	5 ... 30 min.
Wavelength range	7.5 ... 14 µm
Field of vision (FOV)	50 ° x 37 °

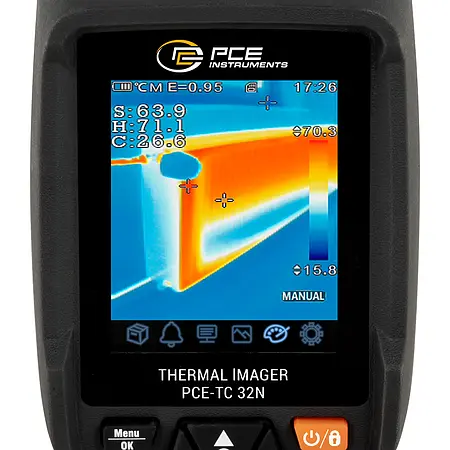

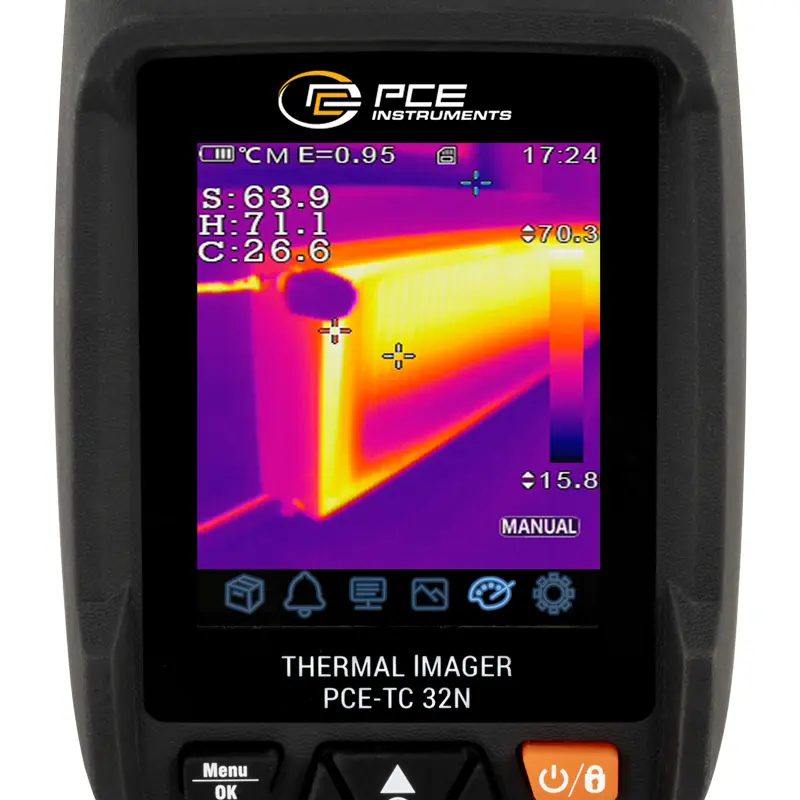

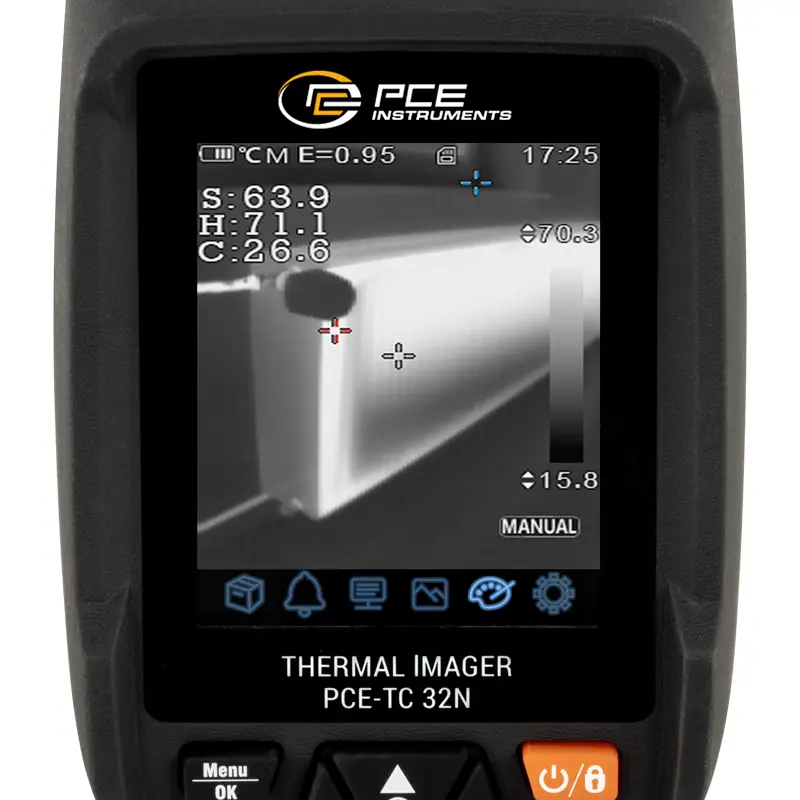

Colour palette	Iron, Rainbow, white-black (+inverted), Hot-cold, Feather, Brown, Blue red
Image / video format	JPEG, mp4
Additional information on depth of field of vision	from 0.5 m
Thermal sensitivity	0,06 °C
Frame rate	25 Hz
Pixel density (IFOD)	7,6 mrad
Menu language	English, English (GB)
Protection class (device)	IP54
Power supply	5V DC, 1 A
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion battery
Capacity	2600 mAh
Operating conditions	-15 ... 50 °C , 10 ... 90 % RH
Storage conditions	-40 ... 70 °C , 10 ... 90 % RH
Dimensions ( L x W x H )	224 x 77 x 96 mm
Weight	423 g
