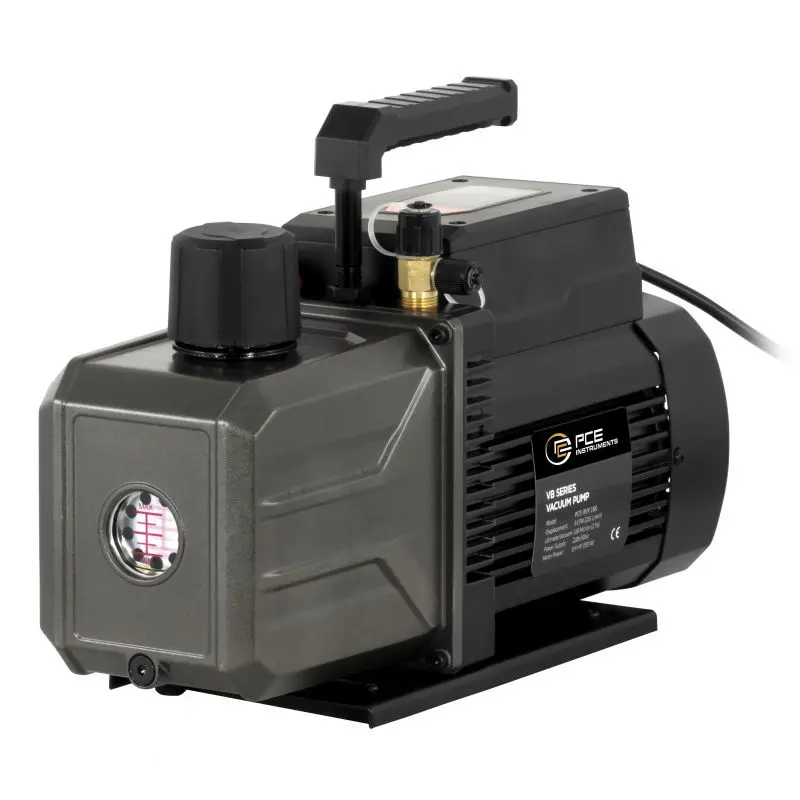

Digital Manifold Gauge PCE-RVP 180 Vacuum Pump for Refrigerant Evacuation

Heat Pump Tester PCE-RVP 180 Vacuum Pump for Refrigerant Evacuation

Order no.: PCE-RVP 180
GTIN (EAN): 4250348733221
AED 1,380.00
AED 1,449.00
price ex. (customs / clearance)
:
4250348733221
PCE-RVP 180
Delivery time:1-2 working days

Description

Heat Pump Tester in Robust Housing / Flow Rate of 226 l/min / Filter for Reducing Oil Mist / Connections: 1/4" and 3/8"

The heat pump tester is equipped with a powerful motor that provides high torque. The motor power is 0.75 HP (550 W), ensuring reliable and efficient performance. With a high flow rate of 226 l/min., our heat pump tester is capable of efficiently extracting large volumes of refrigerants. The heat pump tester is equipped with connections of 1/4" and 3/8", allowing for versatility and adaptability to various refrigerant hoses and applications.

Our heat pump tester is equipped with a state-of-the-art filter element that effectively helps reduce oil mist. This filter element not only enhances the pump's lifespan but also ensures a cleaner working environment and contributes to environmental preservation. The ergonomically designed rubber handle enables secure transport and easy handling. An heat pump tester pump is used to evacuate air conditioning, refrigeration systems, or heat pumps before they are filled with refrigerant. This is crucial for removing moisture and air from the system, enhancing the efficiency of the air conditioning or heat pump.

Highlights

- For refrigerants (e.g., R12, R22, R134a)
- High torque and efficient motor
- Motor power: 0.75 HP (550 W)
- Flow rate: 226 l/min

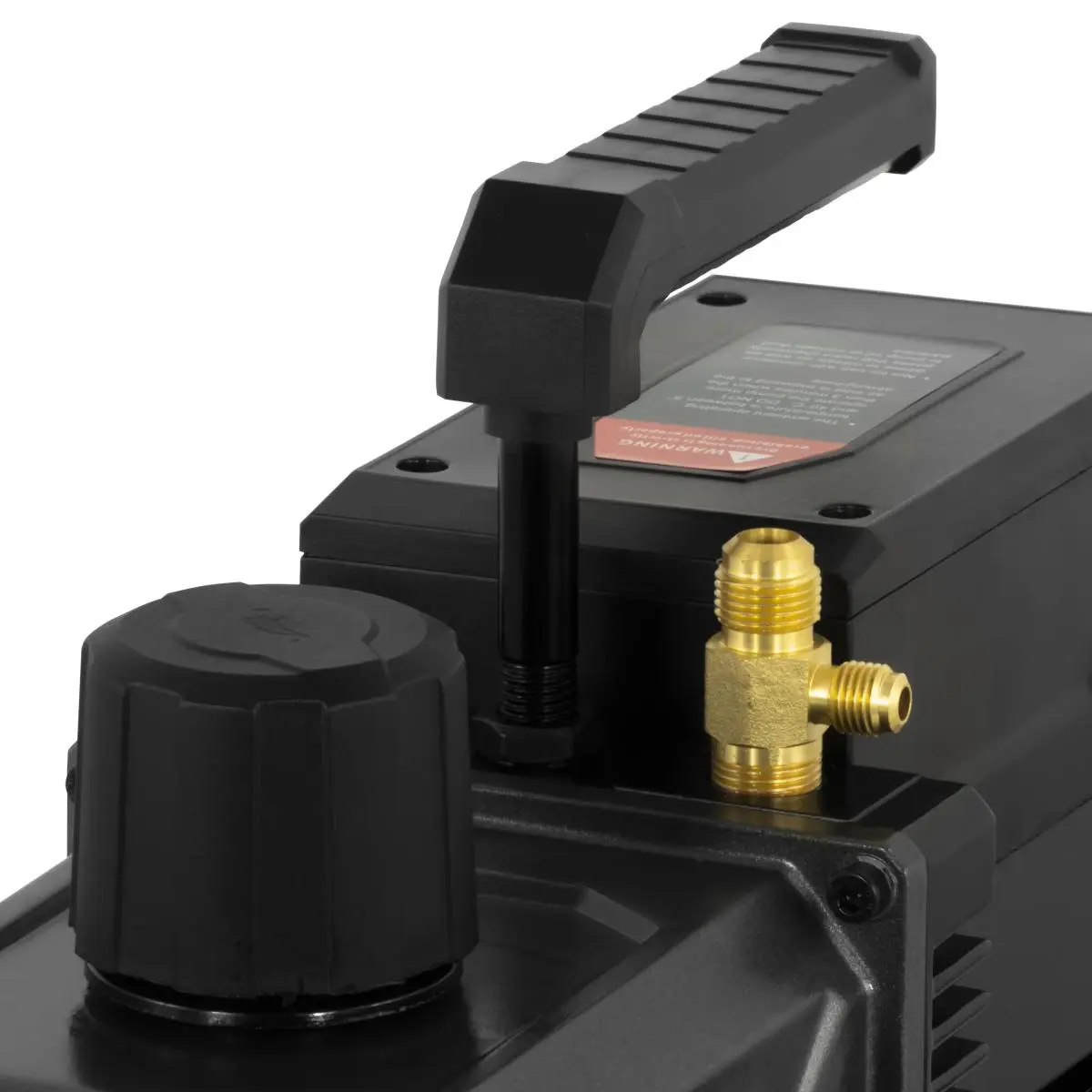

- Connections: 1/4" and 3/8"
- Filter element to reduce oil mist
- Comfortable and sturdy rubber handle

Specification

General technical data
Connections  1/4 inch SAE, 3/8 inch SAE
Motor power  0,75 PS
Flow rate  226 l/min
Oil capacity  660 ml
Ultimate vacuum  0,02 mbar
Protection class (device)  IP20
Power supply  230 V AC
Connector type  Schuko plug
Operating conditions  5 ... 40 °C , 20 ... 80 % RH
Storage conditions  5 ... 40 °C , 20 ... 80 % RH
Dimensions ( L x W x H )  390 x 140 x 260 mm
Weight  13540 g

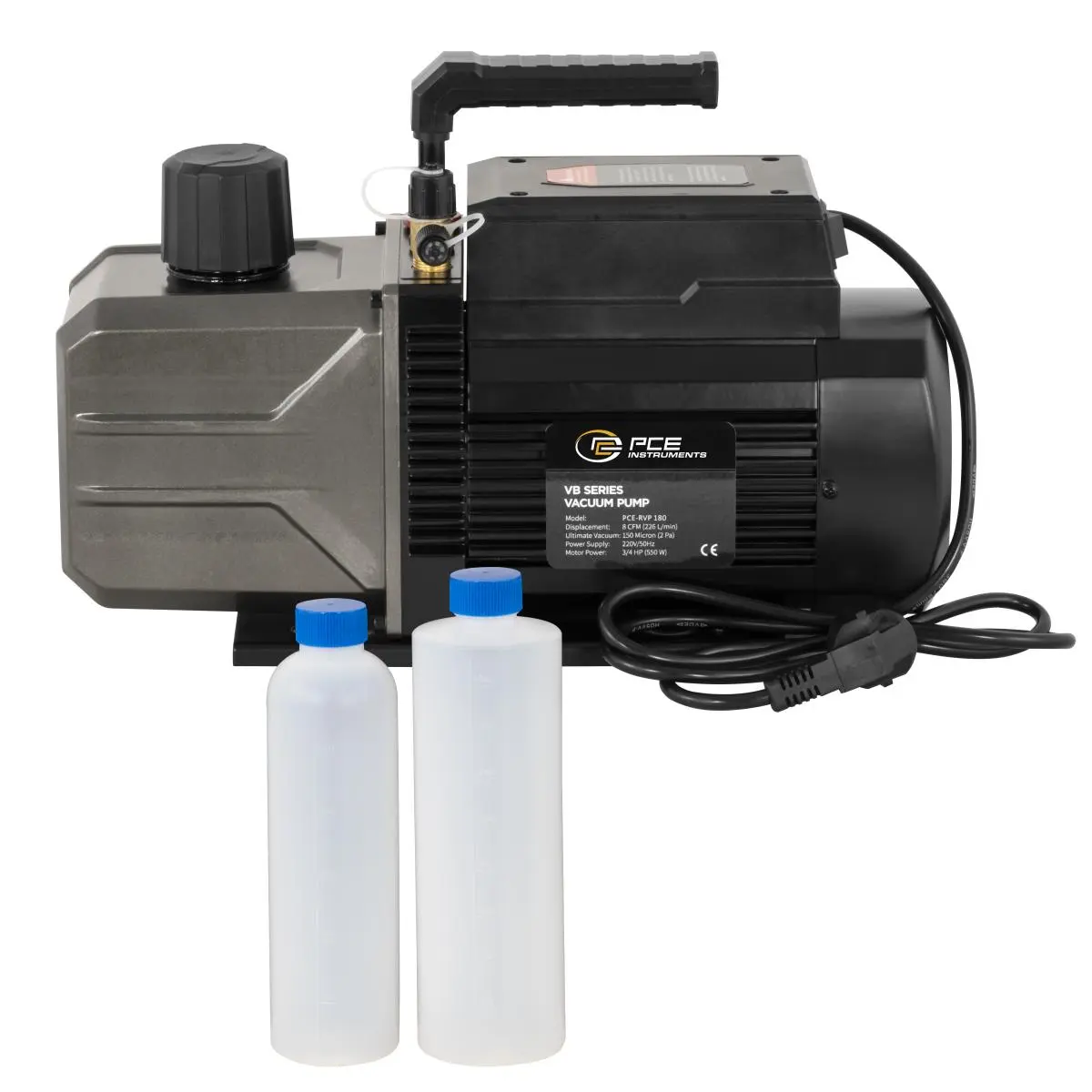

Delivery Scope

1 x Digital Manifold Gauge PCE-RVP 180
1 x 300 ml bottle
1 x 450 ml bottle
1 x User Manual
