AED 73.00

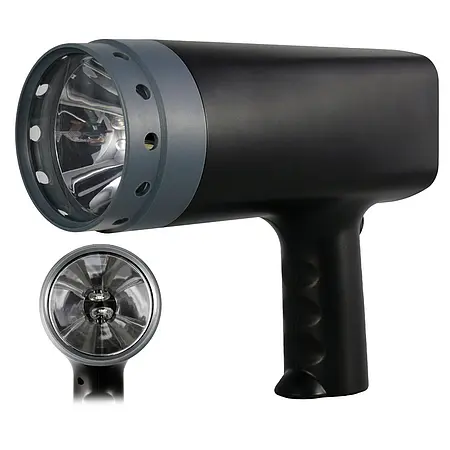

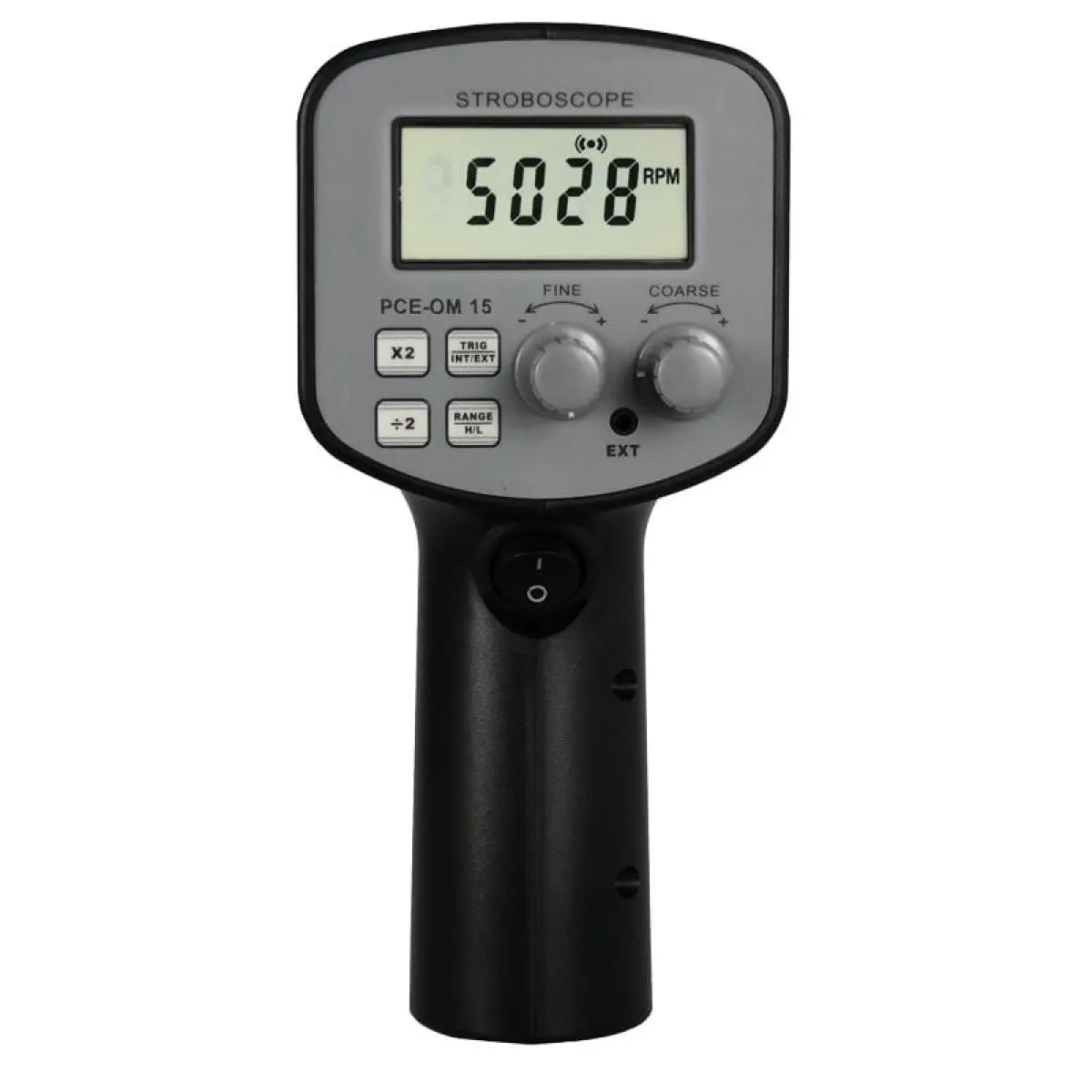

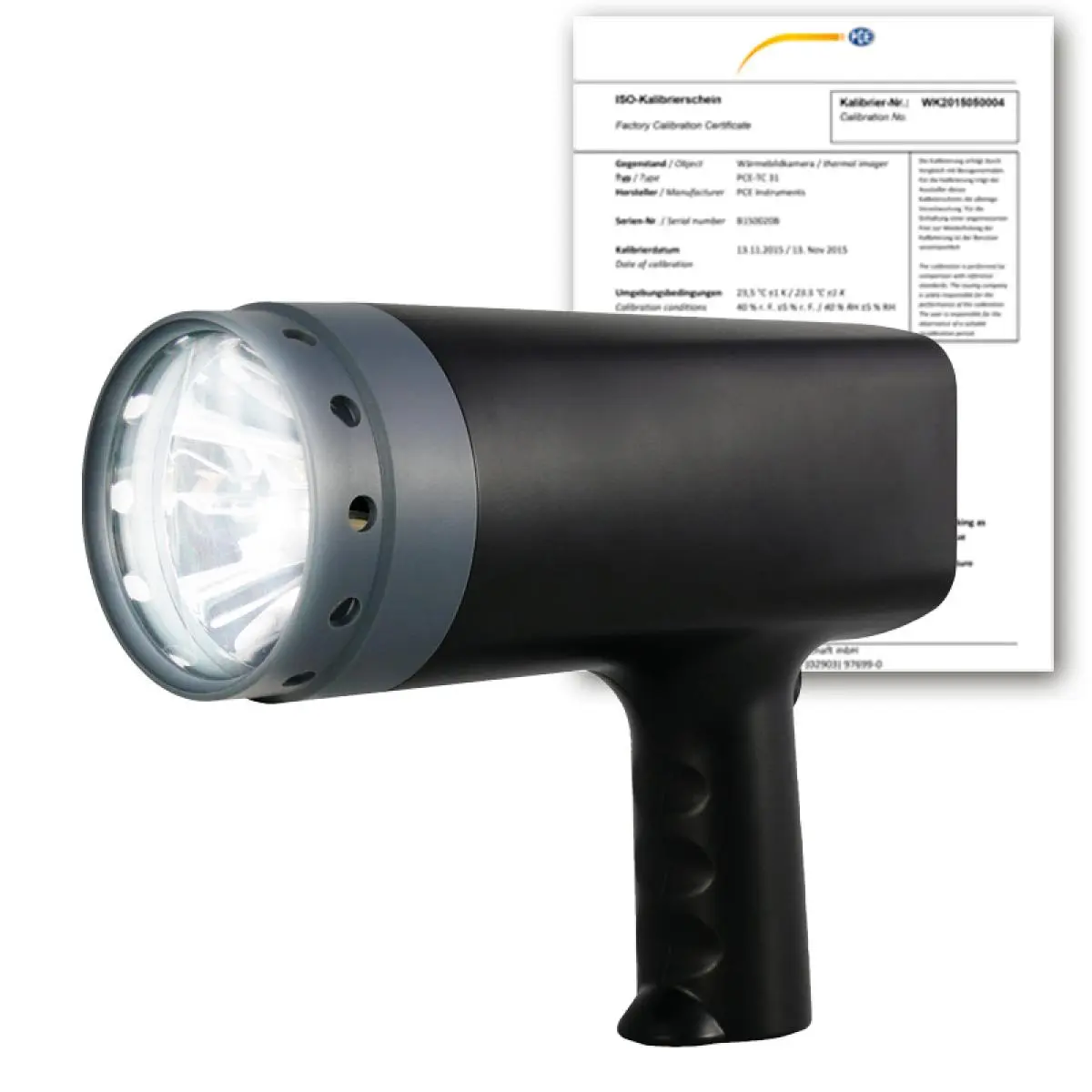

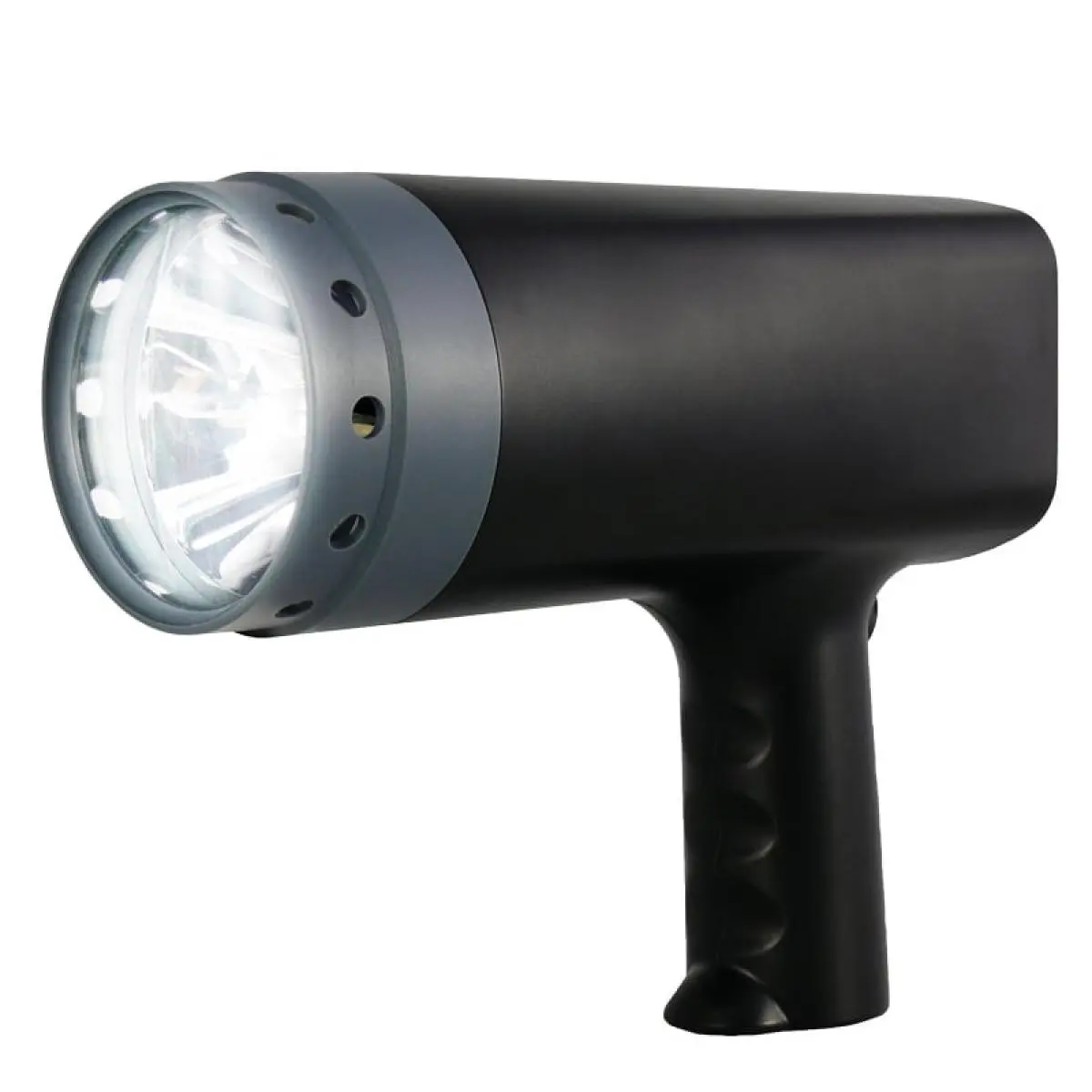

Handheld Strobe Tachometer PCE-OM 15-ICA incl. ISO calibration certificate
Portable digital stroboscope gun with high / Low range selection, adjustable coarse / Fine flash rates and push-button rate control for slower (x½) / Faster (x2) flashing
PCE-OM 15 is a handheld strobe tachometer with trigger functionality. This easy-to-use portable digital stroboscope gun features high / low range selection and push-button rate control to scale the flash rate slower (x½) and faster (x2). In addition, two knobs allow coarse and fine adjustment of the flash rate.
When the speed of a moving object matches the flash rate of the strobe, the moving object appears to be standing still. With a slight adjustment, movement can be viewed in apparent slow motion. Slow motion makes it easier to visually inspect the process in action. However, these visual illusions can be disorienting. Take necessary safety precautions to avoid accidental contact with moving objects.
| Optical speed | |
| Measuring range | 50 ... 999 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±0.05 % +1 digit |
| Optical speed | |
| Measuring range | 999 ... 30000 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±0.05 % +1 digit |
| General technical data | |
| Measuring functions | Fine adjustment, Flash frequency doubling, Flash frequency halving, Quick setting |
| Display type | LCD |
| Display size | 2,1 Inch |
| Automatic power-off | 5 min |
| Light source | Xenon lamp |
| Trigger input | External, input signal 3 ... 24V, via 2.5 mm jack plug |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 230 V AC / 50 Hz |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 1000 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 215 x 85 x 180 mm |
| Weight | 1000 g |
