AED 3,851.00

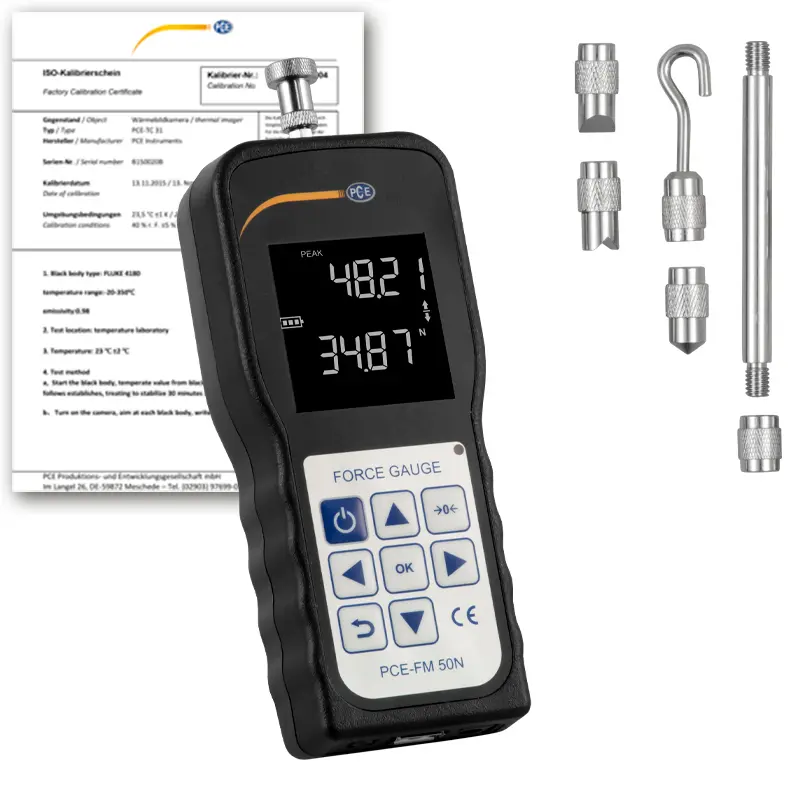

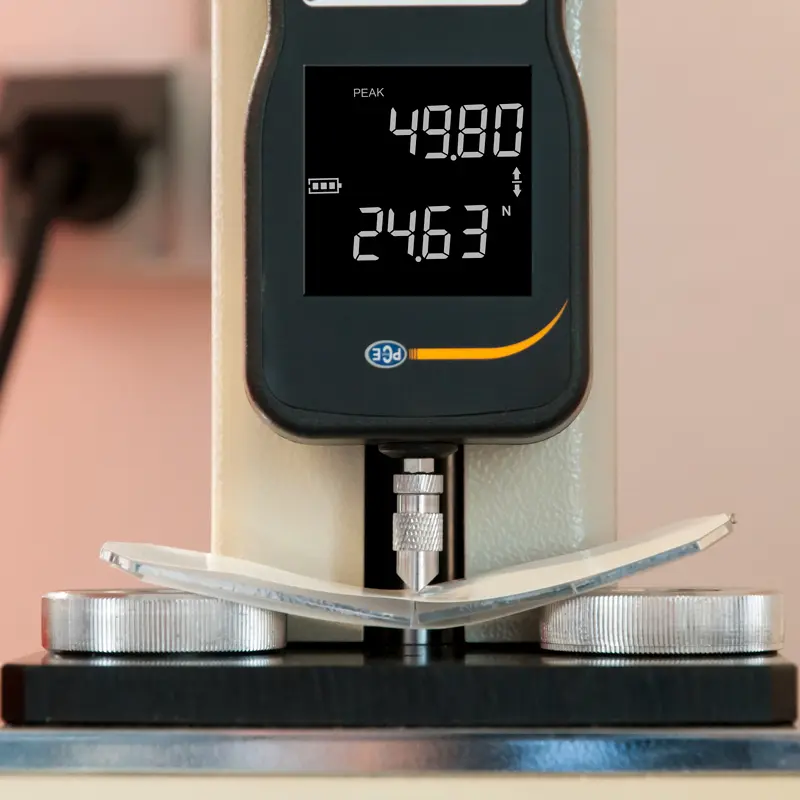

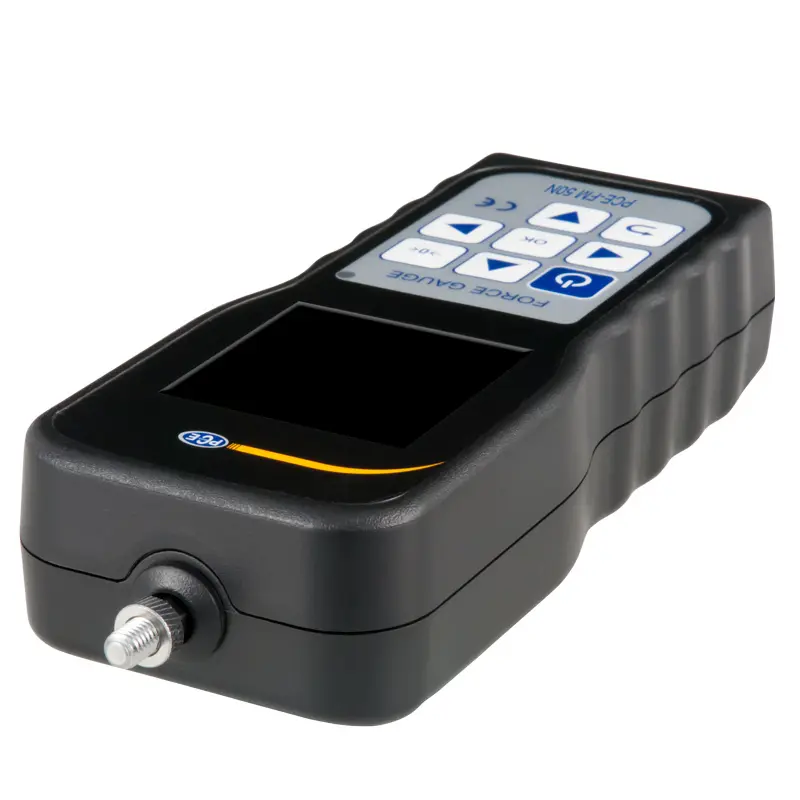

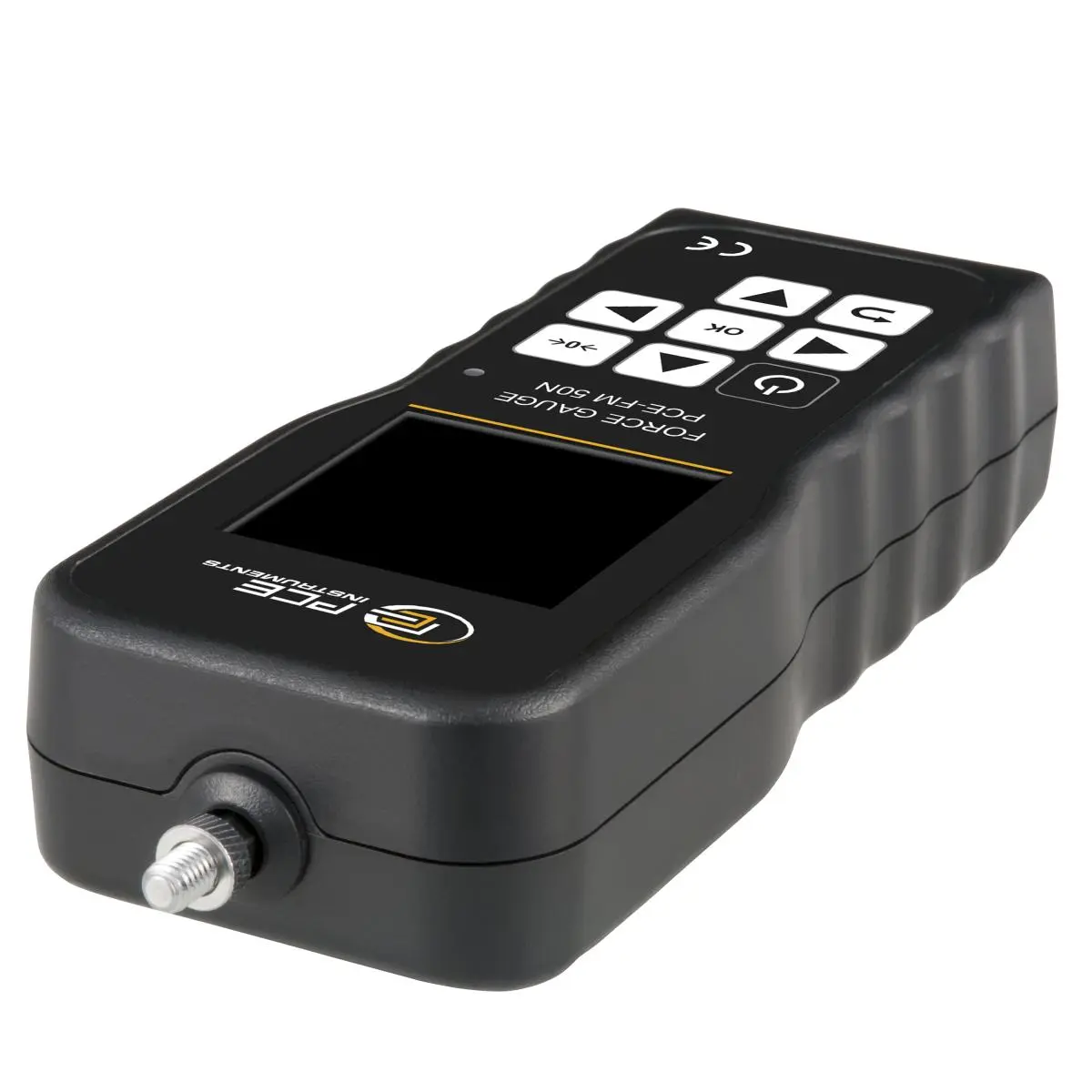

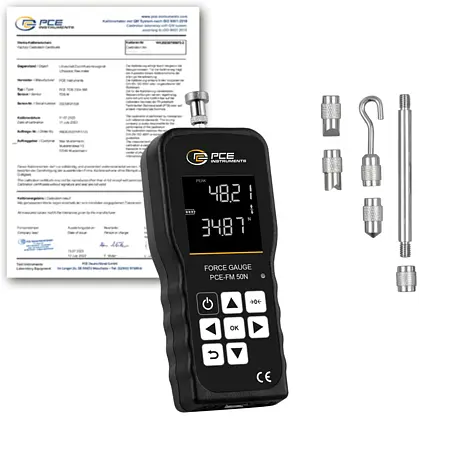

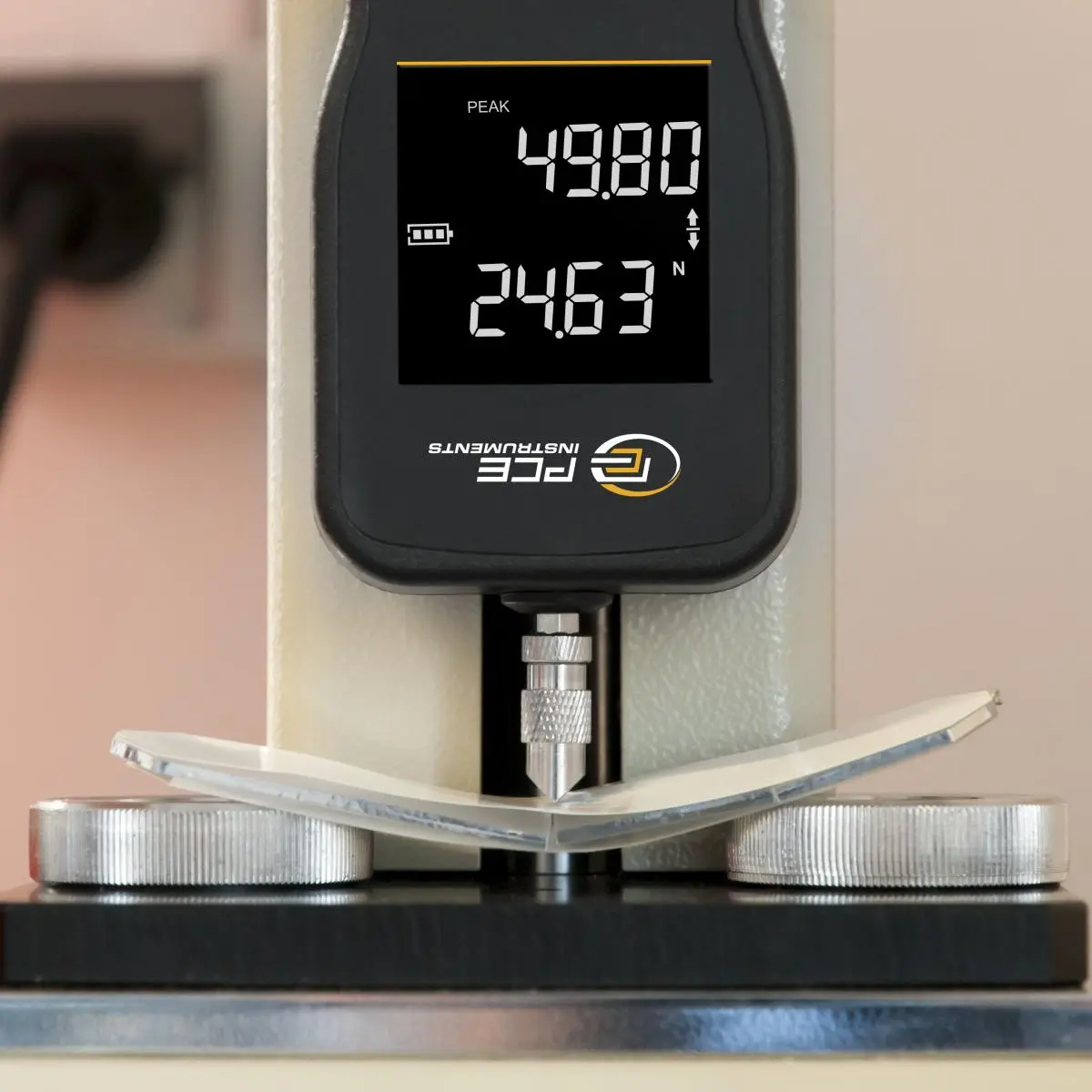

This force gauge is a tensile / compressive force gauge. This tensile / compressive force gauge has an internal load cell. It is a portable traction / compression force gauge that can be installed in a force measurement stand. The measuring range of this tensile and compressive force gauge is up to 50 N / 11 lbs. So the meter is suitable for more precise tensile and compression tests.

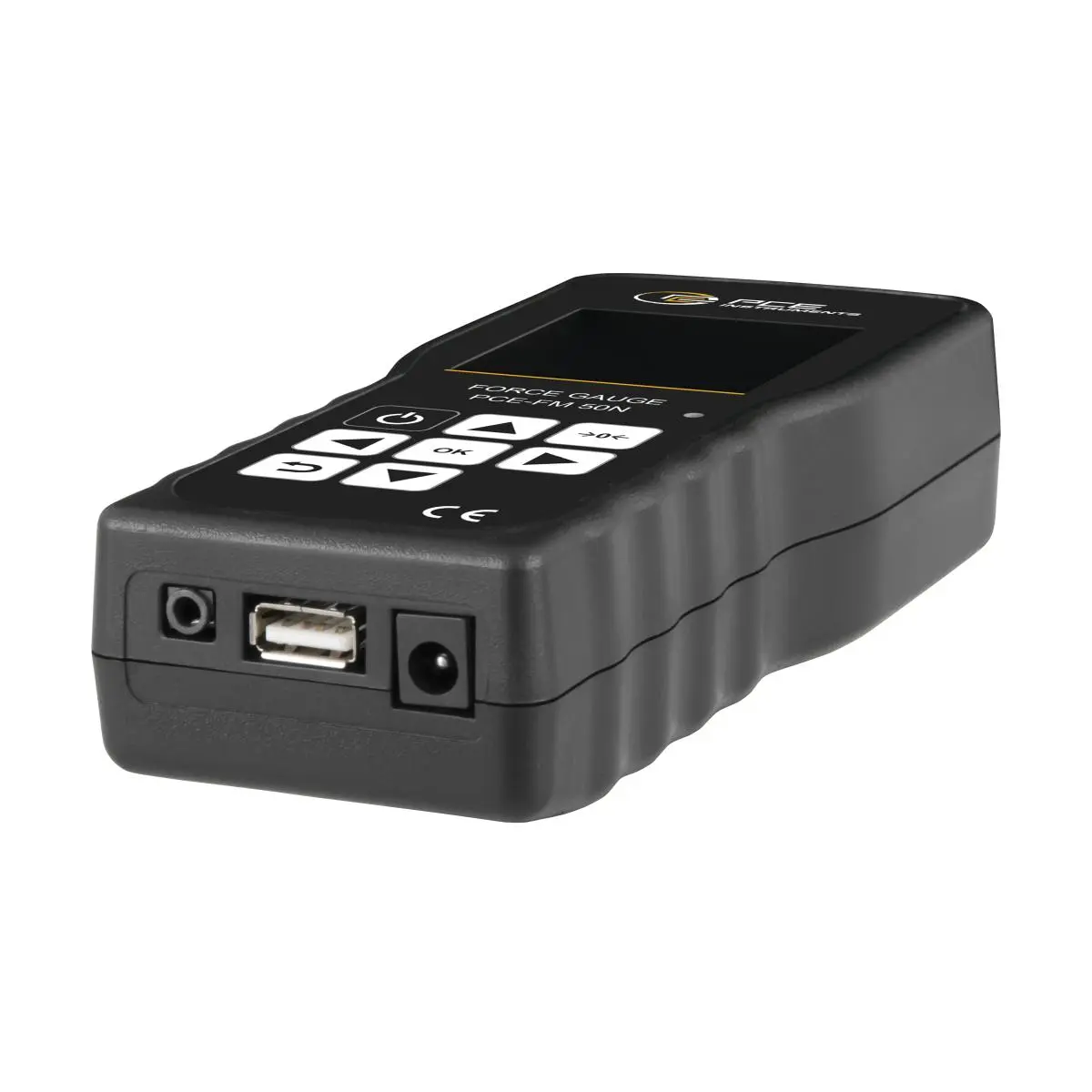

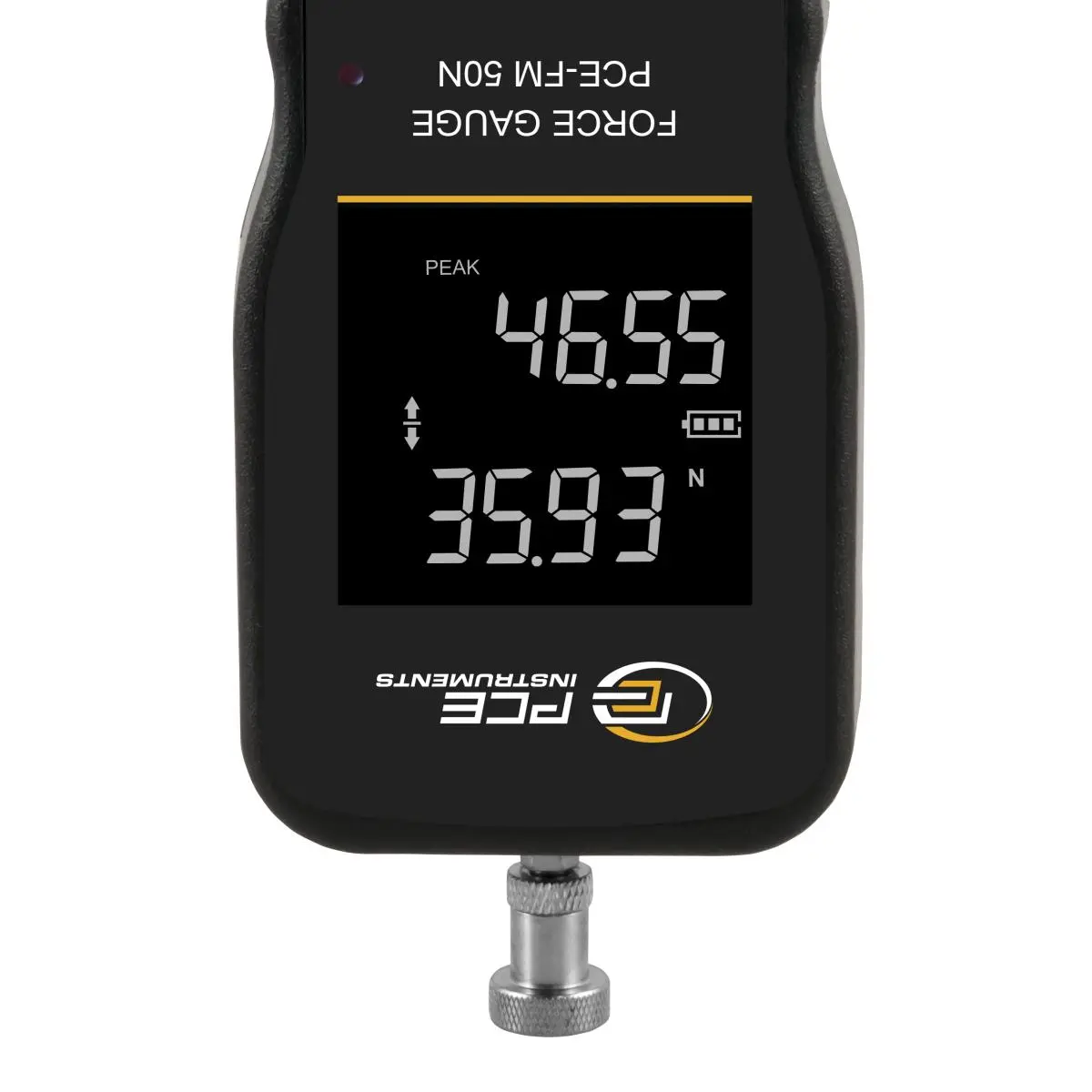

The measurement results can be transferred directly to the PC via USB interface. There they can be archived and evaluated. An integrated statistical evaluation is used to evaluate the measurement results. The force measuring device is thus able to automatically store maximum and minimum measured values in the display.
| Force | |
| Measuring range | 0 ... 50 N |
| Resolution | 0,01 N |
| Accuracy | ±0.5% |
| General technical data | |
| Outputs | Switching output |
| Units | N, kg, lb |

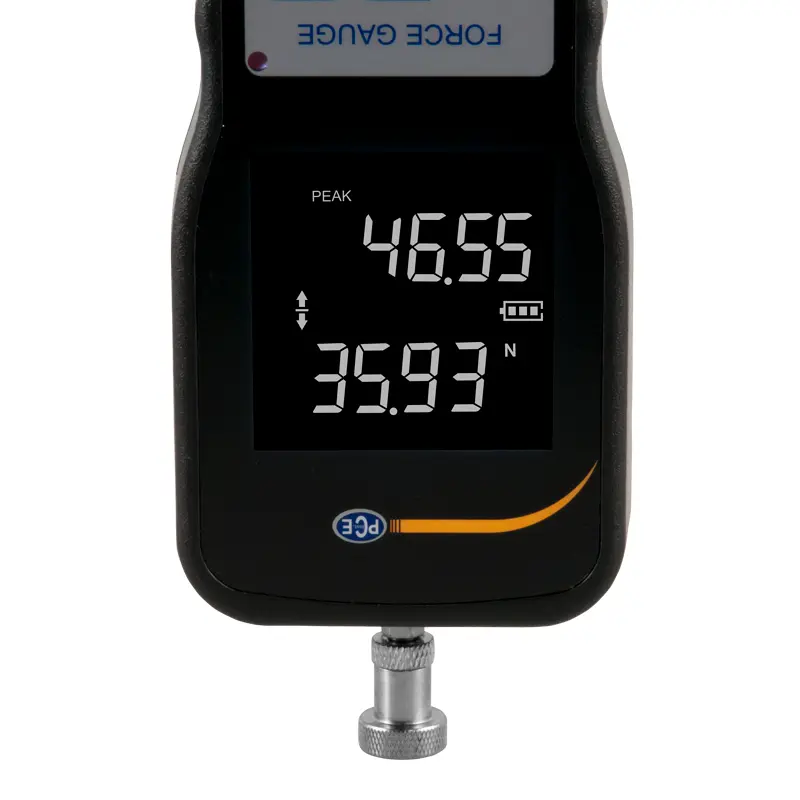

| Display type | LCD |
| Display size | 2,4 Inch |
| Adjustable measuring rate | 6 ... 200 Hz |
| Storage medium | Internal memory |
| Storage capacity | 10 Measurements |
| Storage interval from | 6 s |
| Storage interval to | 200 min. |

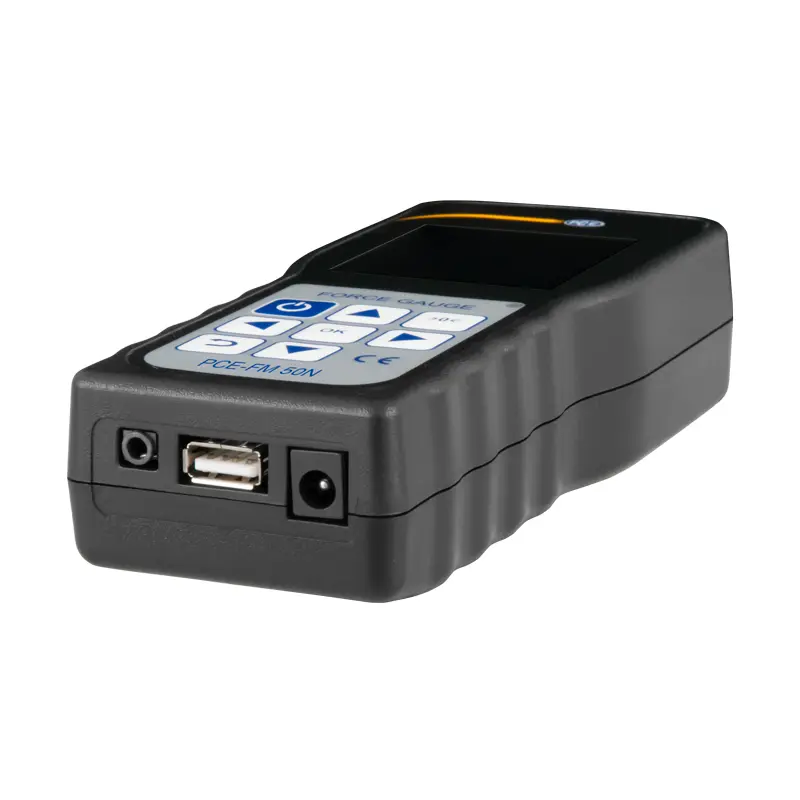

| Interface | USB |
| Operating time | 10 h |
| Automatic power-off from...to | 3 ... 60 min. |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Power supply unit: 12V DC/1000 mA |
| Connector type | Device-europlug |
| (Rechargeable) battery | 5 x 1,2 V AA - rechargeable battery , Nickel-metal hydride battery |
| Capacity | 1600 mAh |
| Operating conditions | 10 ... 30 °C , 15 ... 80 % RH |
| Storage conditions | 10 ... 30 °C , 15 ... 80 % RH |
| Dimensions ( L x W x H ) | 175 x 70 x 36 mm |
| Weight | 360 g |
