Force Gage PCE-CSI 30-ICA

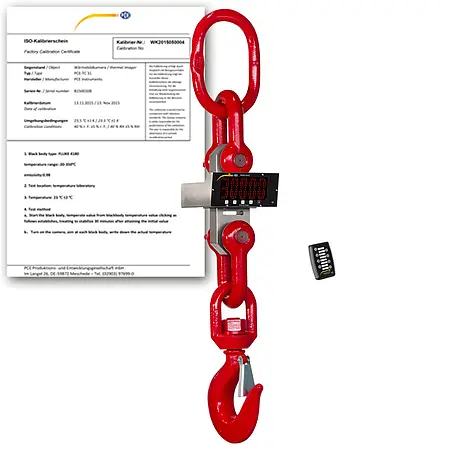

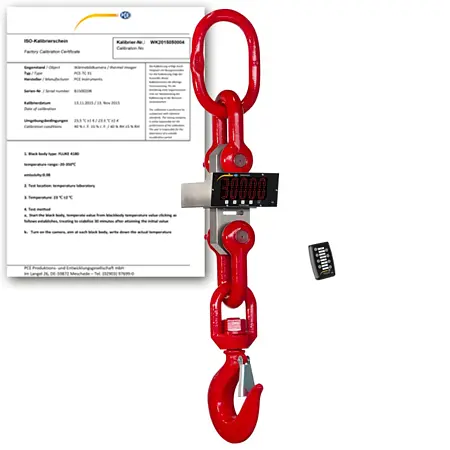

Force Gage PCE-CSI 30-ICA incl. ISO Calibration Certificate

Order no.: PCE-CSI 30-ICA
GTIN (EAN): 4250348729675
AED 22,347.00
price ex. (customs / clearance)
:
4250348729675
PCE-CSI 30-ICA
Delivery time:5-7 working days

Description

Force Gage PCE-CSI 30-ICA incl. ISO Calibration Certificate
Weighing range 30 t / Control via remote control / Display with 75 mm digit height
Hold, tare and totalizing function / Integrated 7 Ah battery / Operating time ≥ 40 h

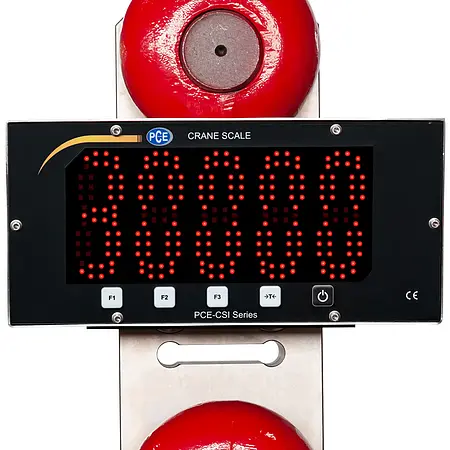

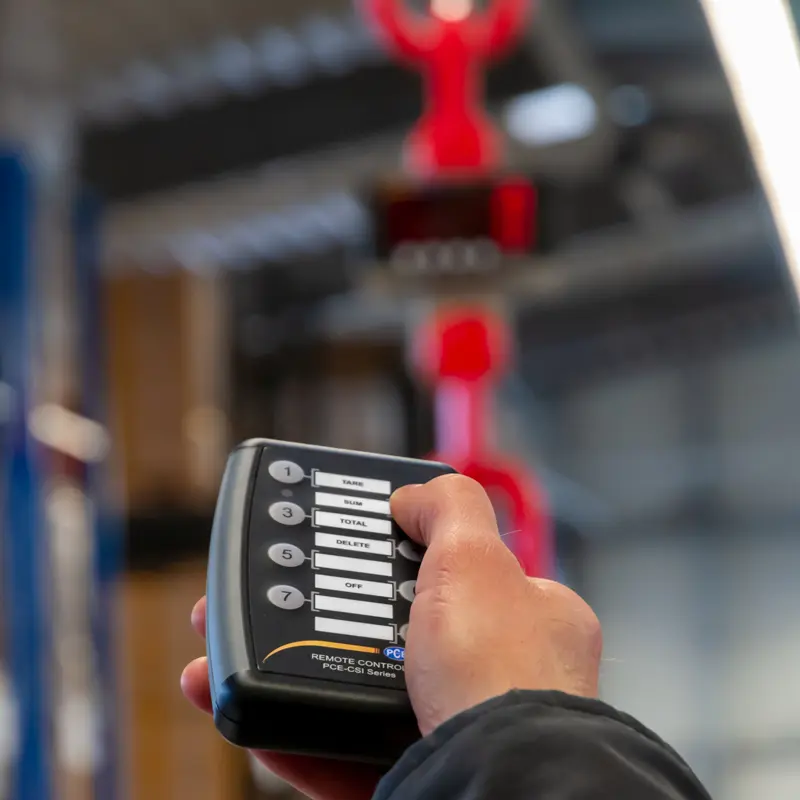

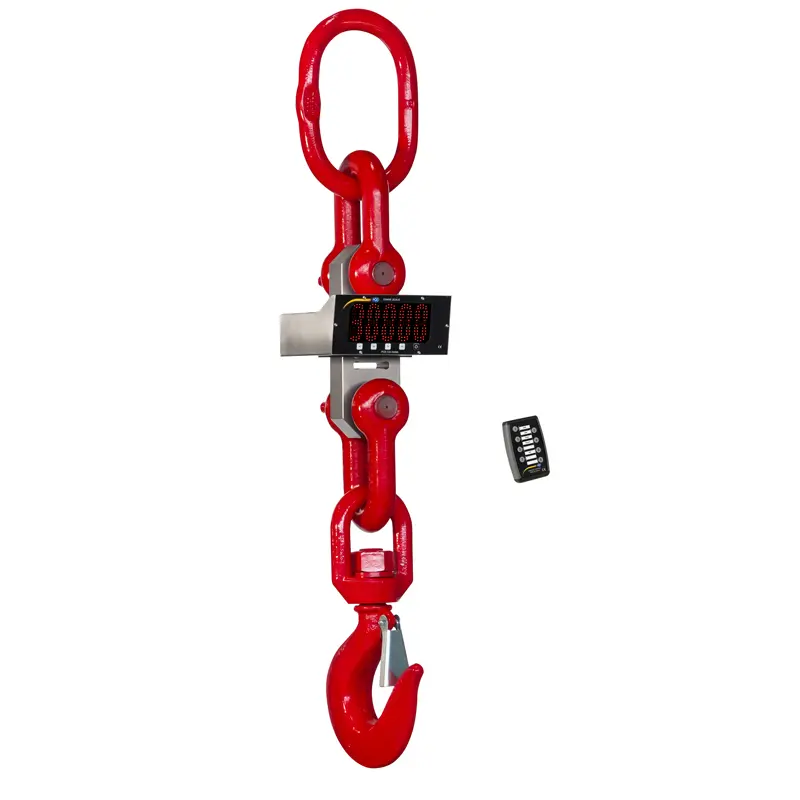

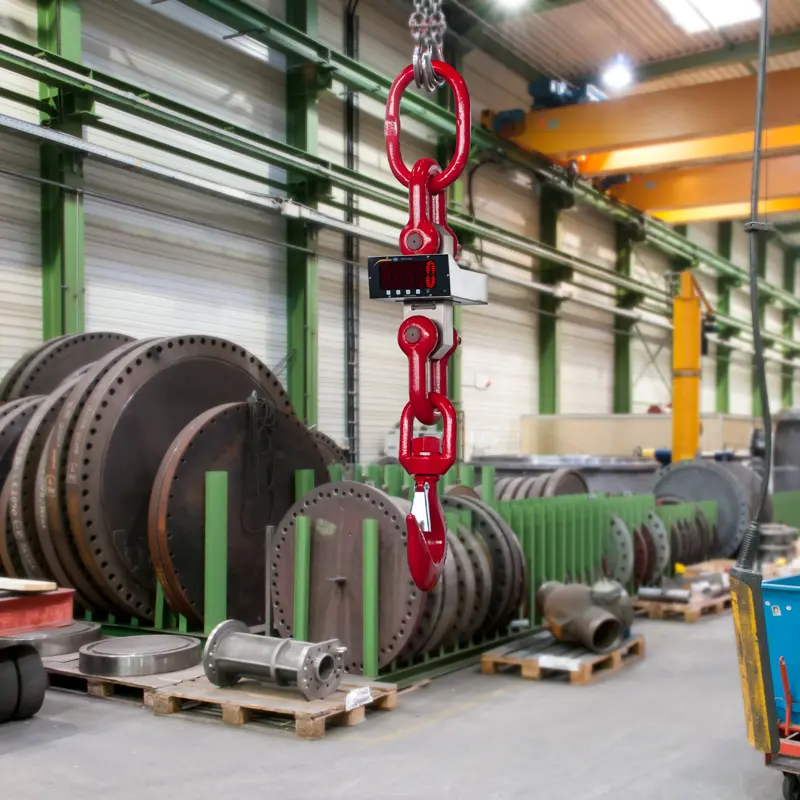

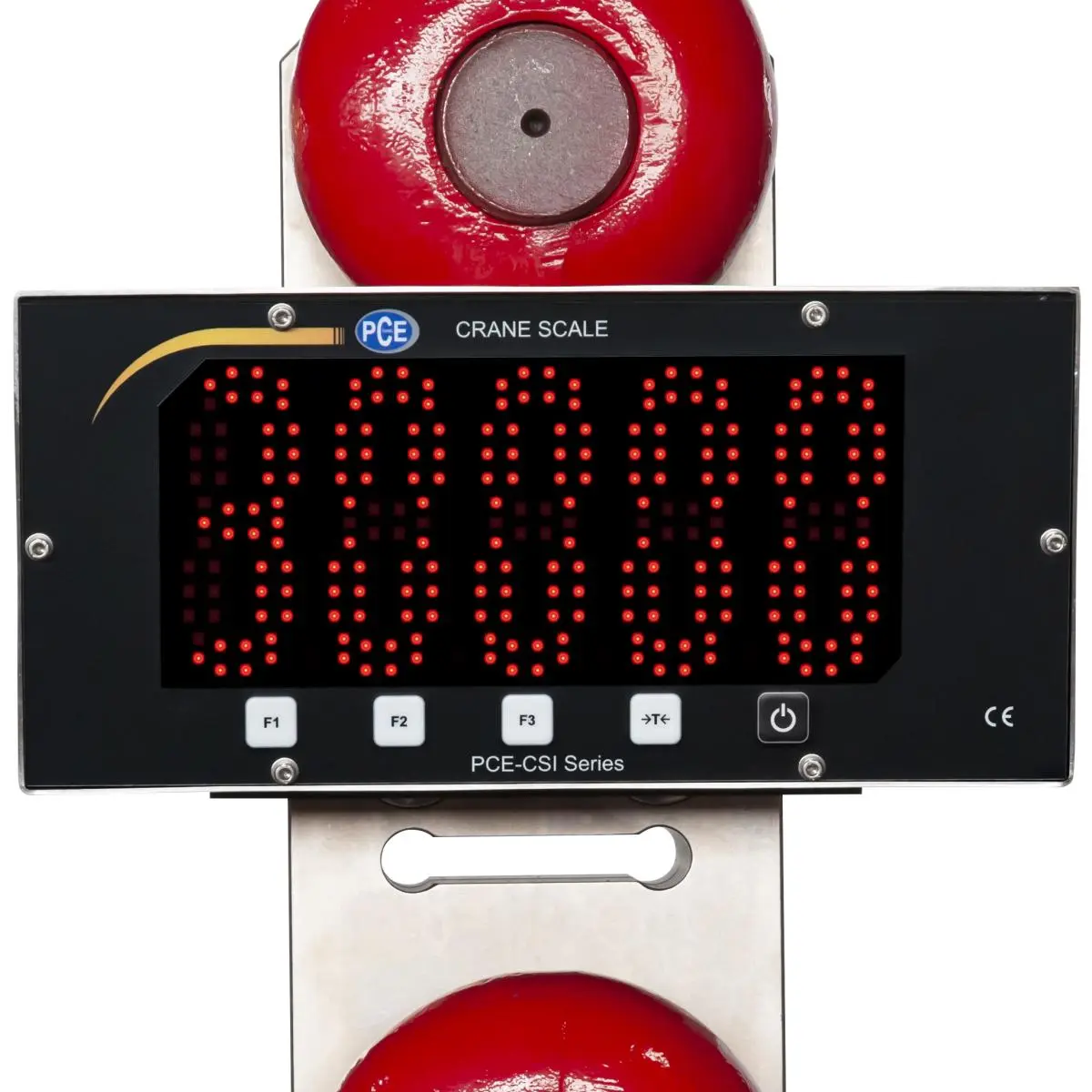

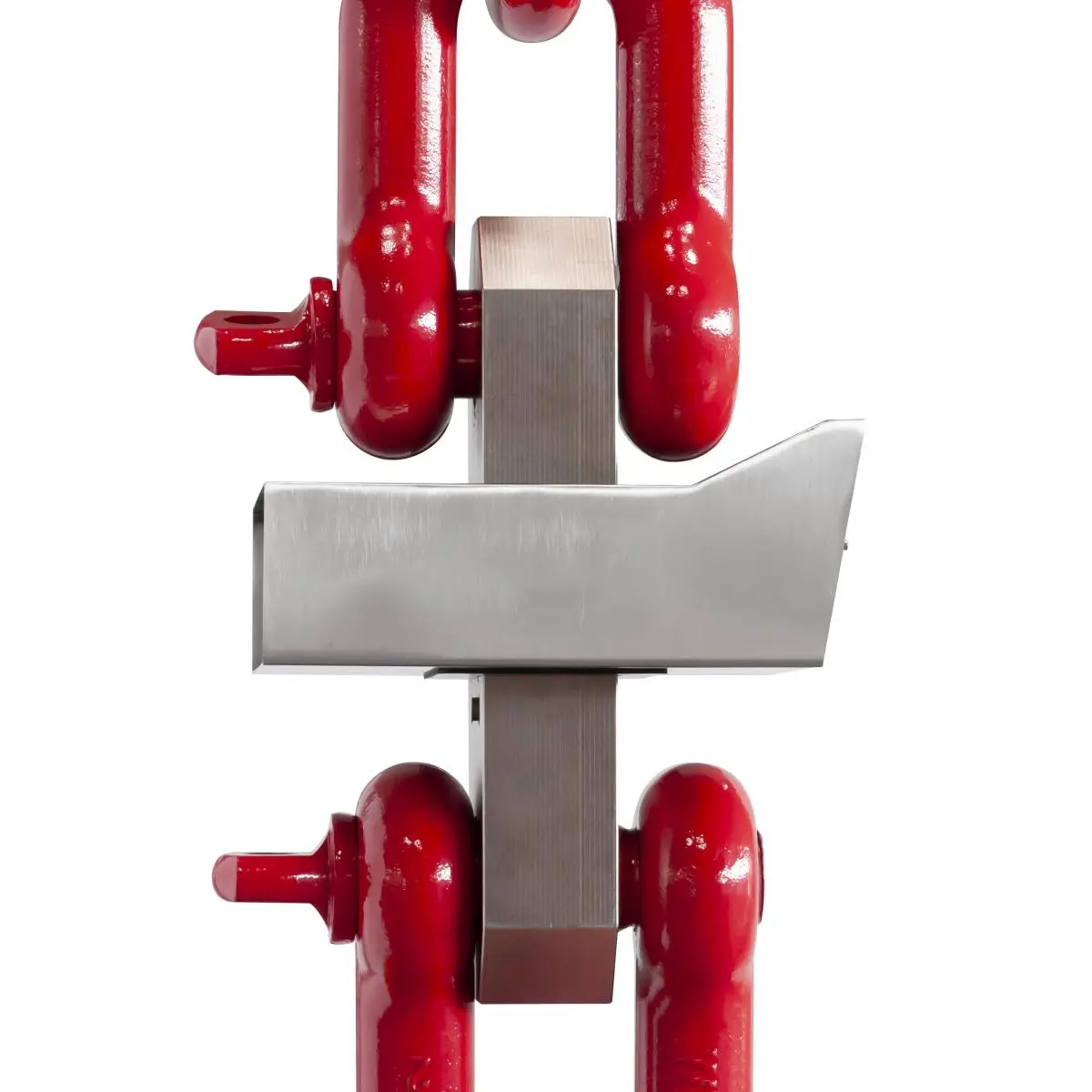

The force gage was developed for in-house weighing of up to 30 t. The force gage has a massive shackle on the top and a rotatable hook with a safety catch on the underside. The force gage is operated using the infrared remote control supplied. The 5-digit LED display has a digit height of approx. 75 mm, so that the readings can be read from a distance without any problems. The integrated battery of the force gage ensures an operating time of over 40 hours. The battery level can be checked at any time. If it is low, the display of the force gage also starts to flash, so that it is easy for the operator to see when the battery needs to be charged.

The force gage also offers other useful functions. The tare function enables weights to be tared (e.g. slings such as ropes, chains, etc.). If the weight of the objects to be tared is known, this can also be entered manually in advance. Another useful function of the force gage is the totalizing function. Several weights can be added and the sum read out. The display hold function can also be used to freeze measured values ​​on the display.

Highlights

- Weighing range: 30,000 kg
- Resolution: 20 kg
- Minimum load: 100 kg
- Remote control operation
- Operating time of up to 40 hours
- Tare, hold and totalising functions
- Five-digit display with 75 mm digit height
- Easy operation
- incl. ISO-Calibration Certificate

Specification

Weighing range
Measuring range from  100 kg
Measurement range up to [Max]  30000 kg
Resolution [d]  20 kg
Accuracy  ±20 kg

General technical data
Measuring functions  HOLD
Measuring functions (additional information)  Summing function
Display type  LED
Digit size [WxH]  Height: 75 mm
Operating time  40 h
Housing  Steel
Overload protection  100 % of the weighing range + 9e
Minimum load [min]  100 kg
Tare range  100 % of the weighing range
Menu language  English, English (GB)
Protection class (device)  IP50
Power supply  Rechargeable battery 6 V / 7 Ah
Mains adaptor 9 V DC / 1000 mA
Connector type  Device-europlug
(Rechargeable) battery  1 x 6 V Battery pack , Lead gel battery
Capacity  7000 mAh
Operating conditions  -20 ... 70 °C , 0 ... 85 % RH
Storage conditions  -20 ... 70 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  1450 x 660 x 500 mm
Weight  106000 g

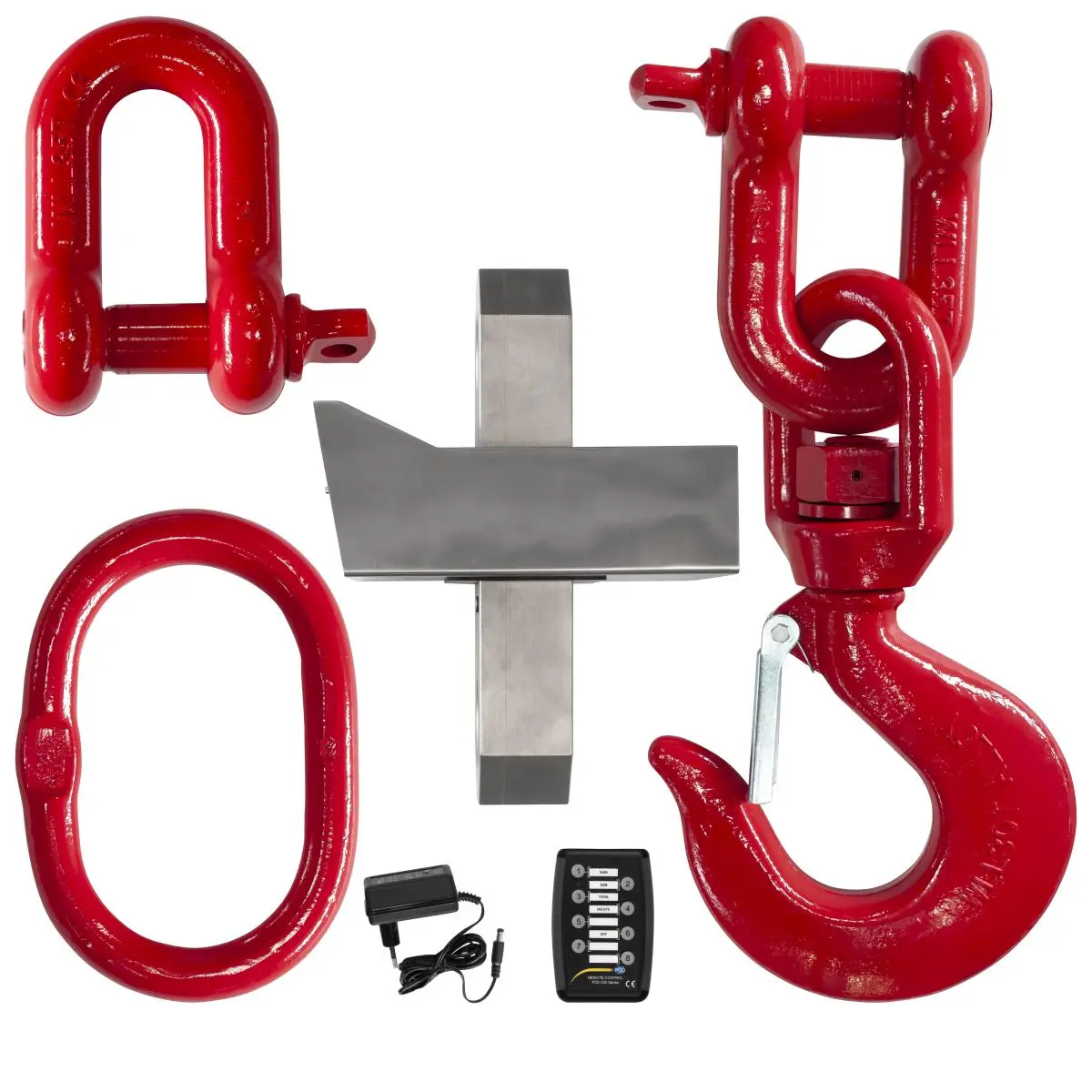

Delivery Scope

1 x Force Gage PCE-CSI 30-ICA (including battery, hook and shackle)
1 x Charger
1 x Remote control
1 x 2 x 1.5 V AAA batteries
1 x Operating instructions
1 x ISO-Calibration Certificate
