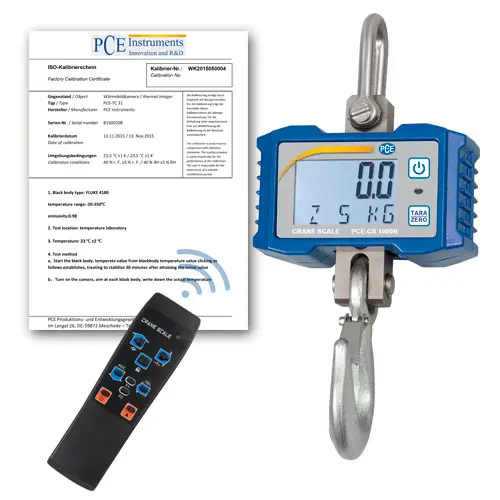

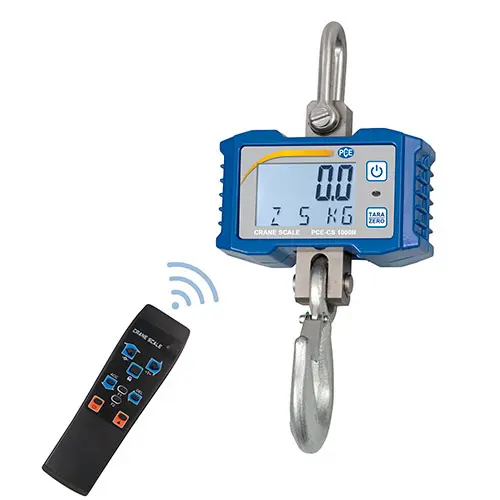

PCE-CS 1000N-ICA is a digital, electronic, battery-powered force gage that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale includes a hook / shackle, remote control and ISO calibration certificate.
The robust aluminum housing of this force gage allows weighing in even the harshest indoor industrial environments. The force gage is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the force gage is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the force gage's display can be adjusted to extend the operating time.
Other functions of the force gage are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the force gage, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the force gage features a linear calibration to ensure high accuracy.
| Weighing range | |
| Measurement range up to [Max] | 1000 kg |
| Resolution [d] | 0,2 kg |
| Accuracy | ±1% of range |
| General technical data | |
| Measuring functions (additional information) | Totalising function, gross, net, weighing |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 20 mm |
| Response time | 1 s |
| Operating time | 65 h |
| Minimum load [min] | 10 kg |
| Tare range | Multiple tare over the entire range |
| Calibration | linear calibration possible |

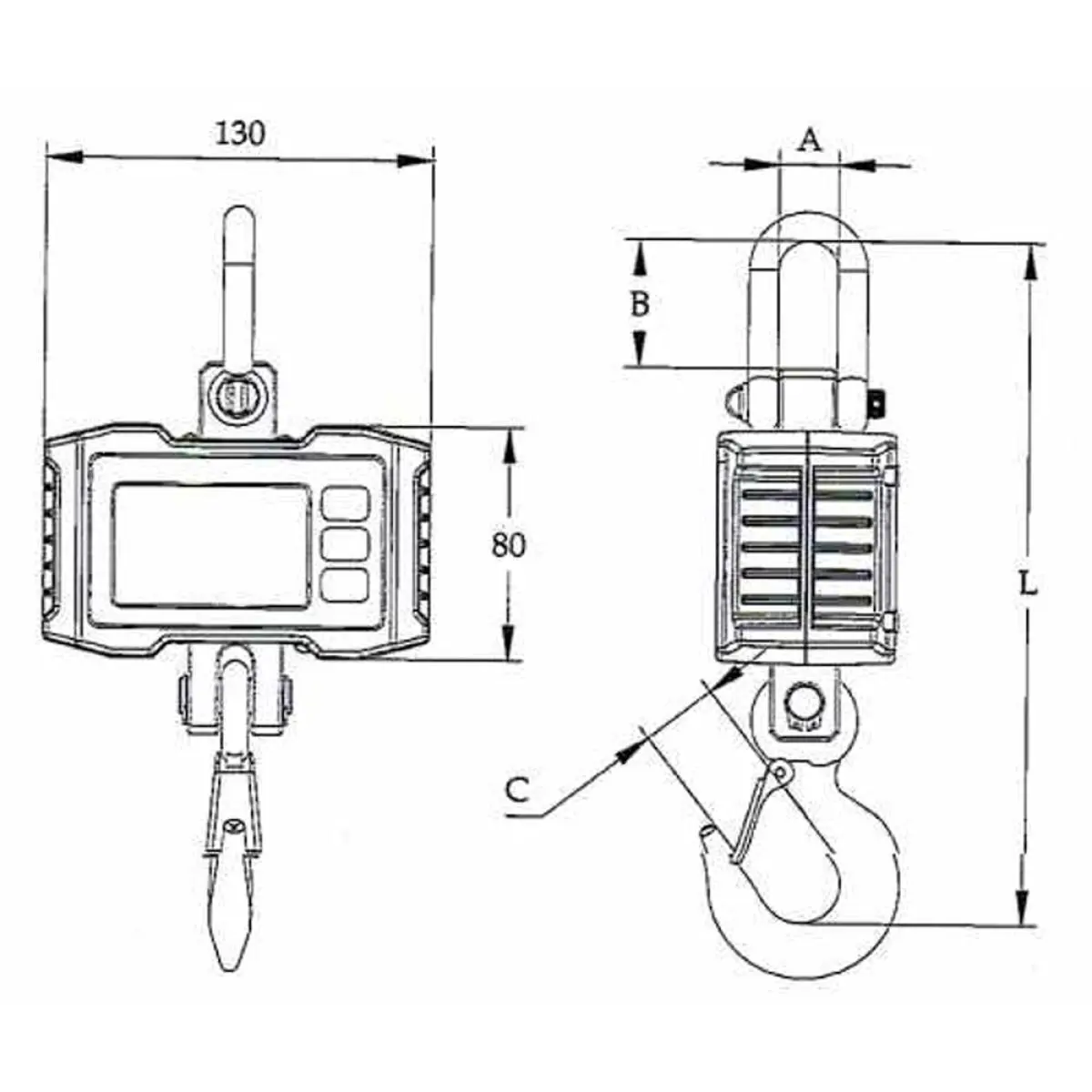

| Dimensions | Shackle opening: 20 mm Hook: H 43 mm x W 21 mm |
| (Rechargeable) battery | 5 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 % RH |
| Storage conditions | -10 ... 40 °C , 20 ... 90 % RH |
| Dimensions ( L x W x H ) | 270 x 130 x 80 mm |
| Weight | 1366 g |
