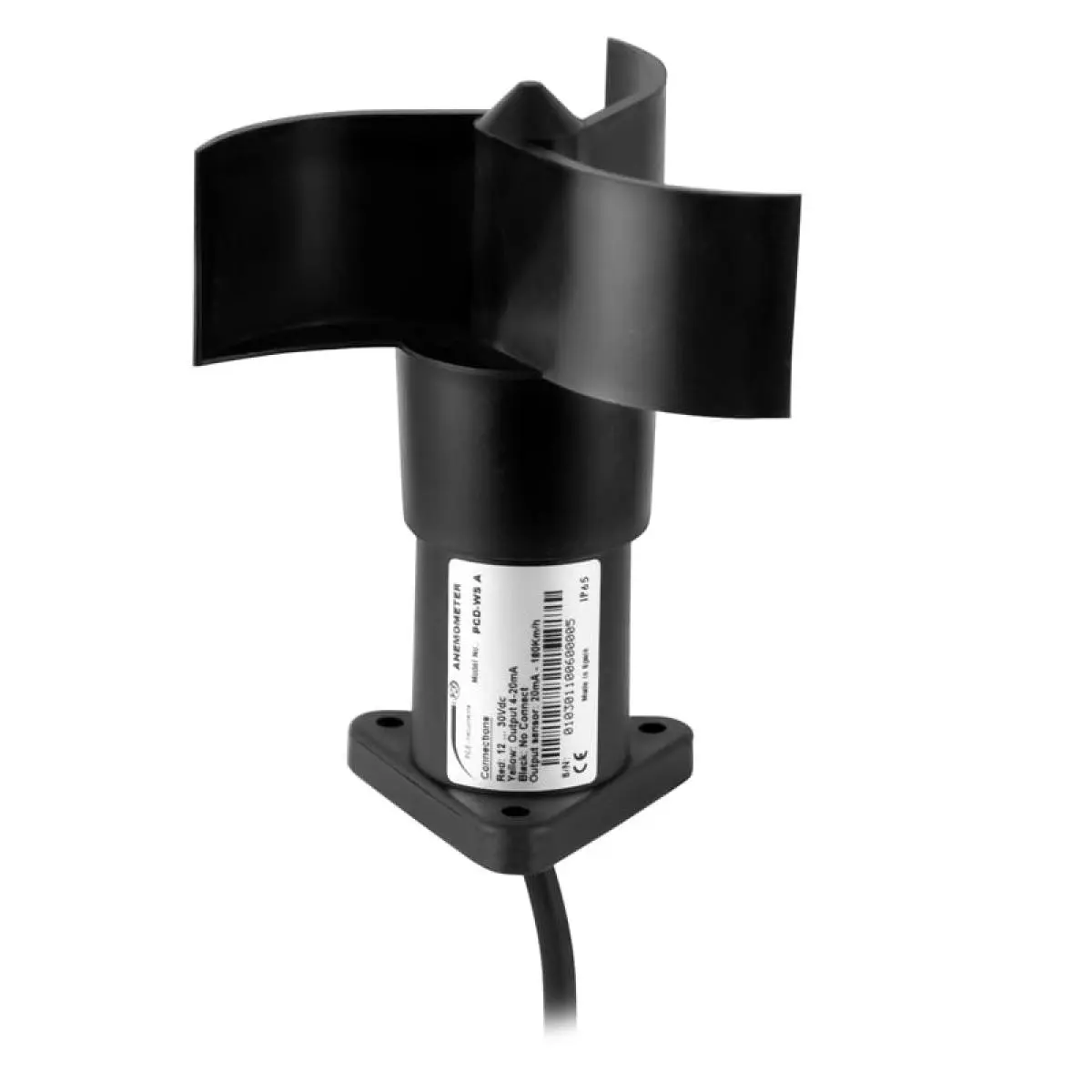

Environmental Meter PCE-WS A

Order no.: PCE-WS A

GTIN (EAN): 4250348722423

Accessory

Optional Mounting Kit PCE-WS/MOUNT

AED 322.00

Panel Indicator PCE-DPD-U

AED 828.00

Digital Universal Indicator PCE-N24S

AED 417.85

Digital Universal Indicator PCE-N25S

AED 402.74

Description

Robust Environmental Meter for fixed installation / various output signals /

for wind warning systems, building services and building automation

The Environmental Meter impresses with its compact design and various output signals. The Environmental Meter can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Meter, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Environmental Meter is designed as a star, so that operation independent of the wind direction is guaranteed.

The Environmental Meter is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Meter is also protected to IP65. The design of the Environmental Meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Environmental Meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Meter is optionally available.

Highlights

- Robust PA plastic housing

- IP 65 protection

- mA, V, pulse or Modbus output

- Long lifetime

- Direct measurement of wind speed

- Measurement from 2.62 ft/s, 0.8 m/s

Specification

Speed
Measuring range	0,8 ... 4 m/s
Resolution	0.1 m/s
Accuracy	±0.27 m/s

Speed
Measuring range	4 ... 50 m/s
Resolution	0.1 m/s
Accuracy	±3%

General technical data
Outputs	4 ... 20 mA (passive)
Cable length	20 m
maximum wind speed	55 m/s
Protection class (device)	IP65
Power supply	12 ... 30 V DC
Operating conditions	-20 ... 80 °C , 0 ... 95 % RH
Storage conditions	-20 ... 80 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	139 x 123 x 123 mm
Weight	160 g
