AED 3,782.00
PCE-EM 29 Environmental Electromagnetic Radiation Meter
Detects electromagnetic fields (EMFs) and radio frequencies (RFs)

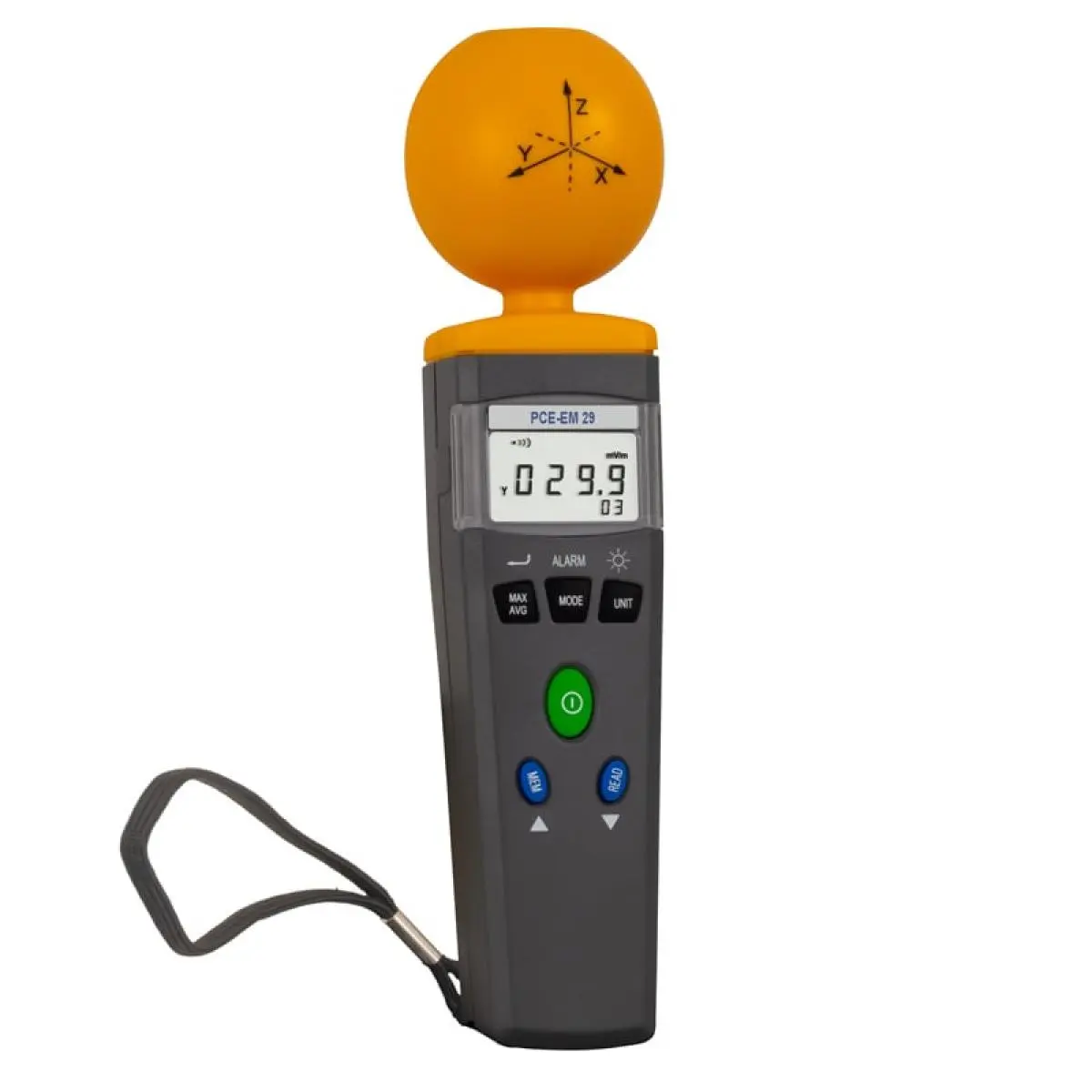

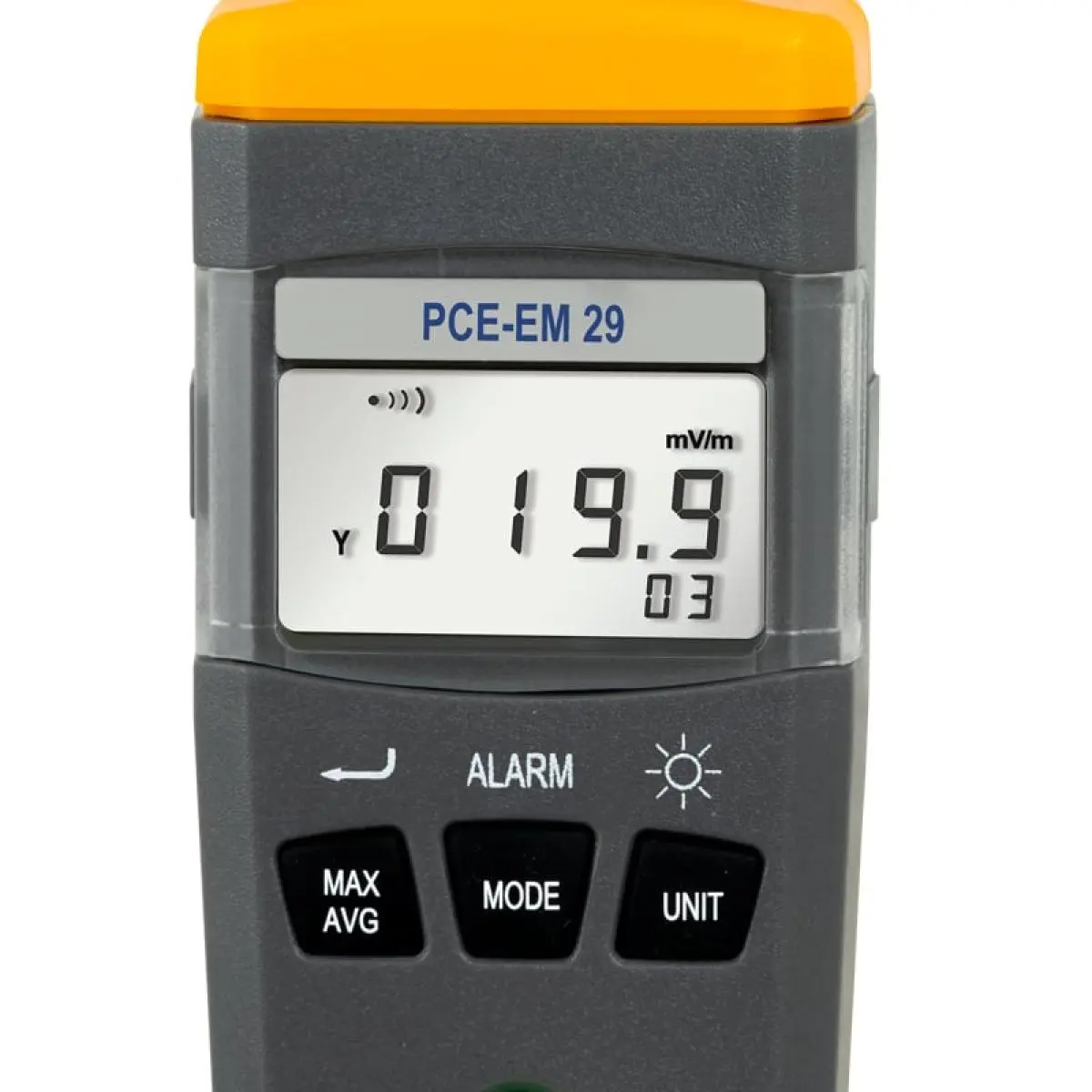

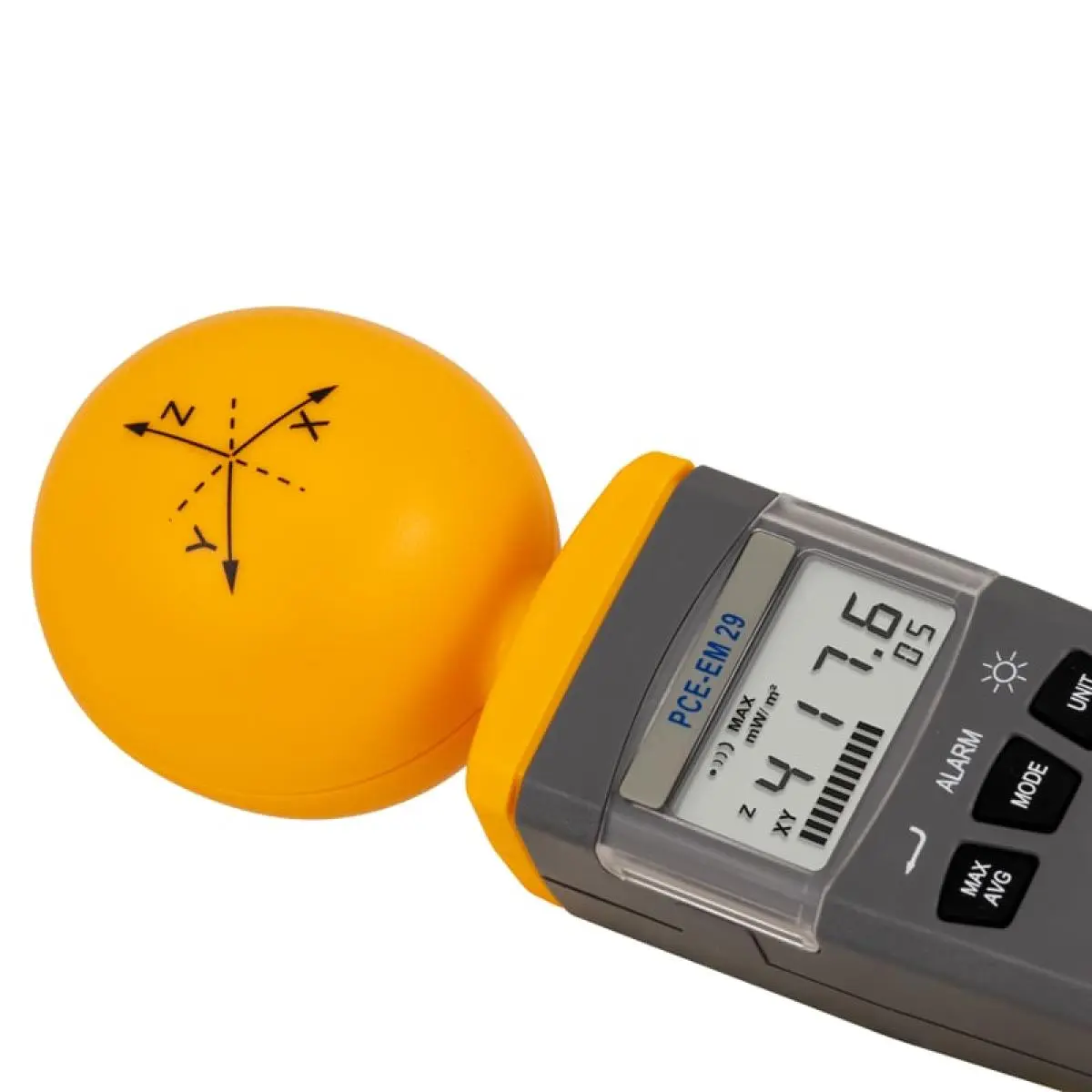

PCE-EM 29 is a portable handheld environmental meter or electromagnetic radiation detector with a spherical triaxial (3-axis) three-dimensional (3D) isotropic sensor used to measure electromagnetic fields (EMFs) as well as radio frequencies (RFs). This easy-to-use battery-powered RF meter features a large 4-digit LCD screen and an adjustable value limit with acoustic alarm functionality.

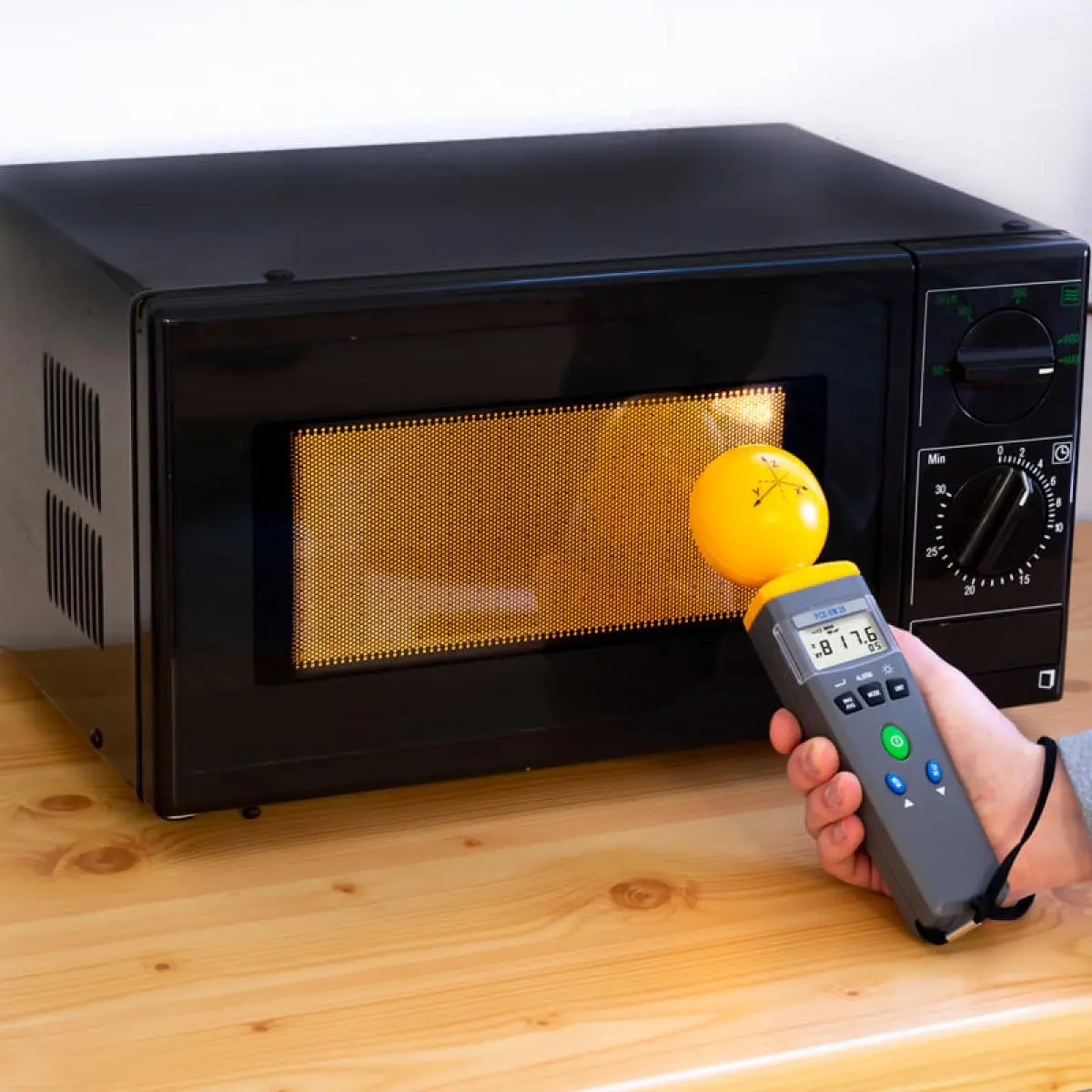

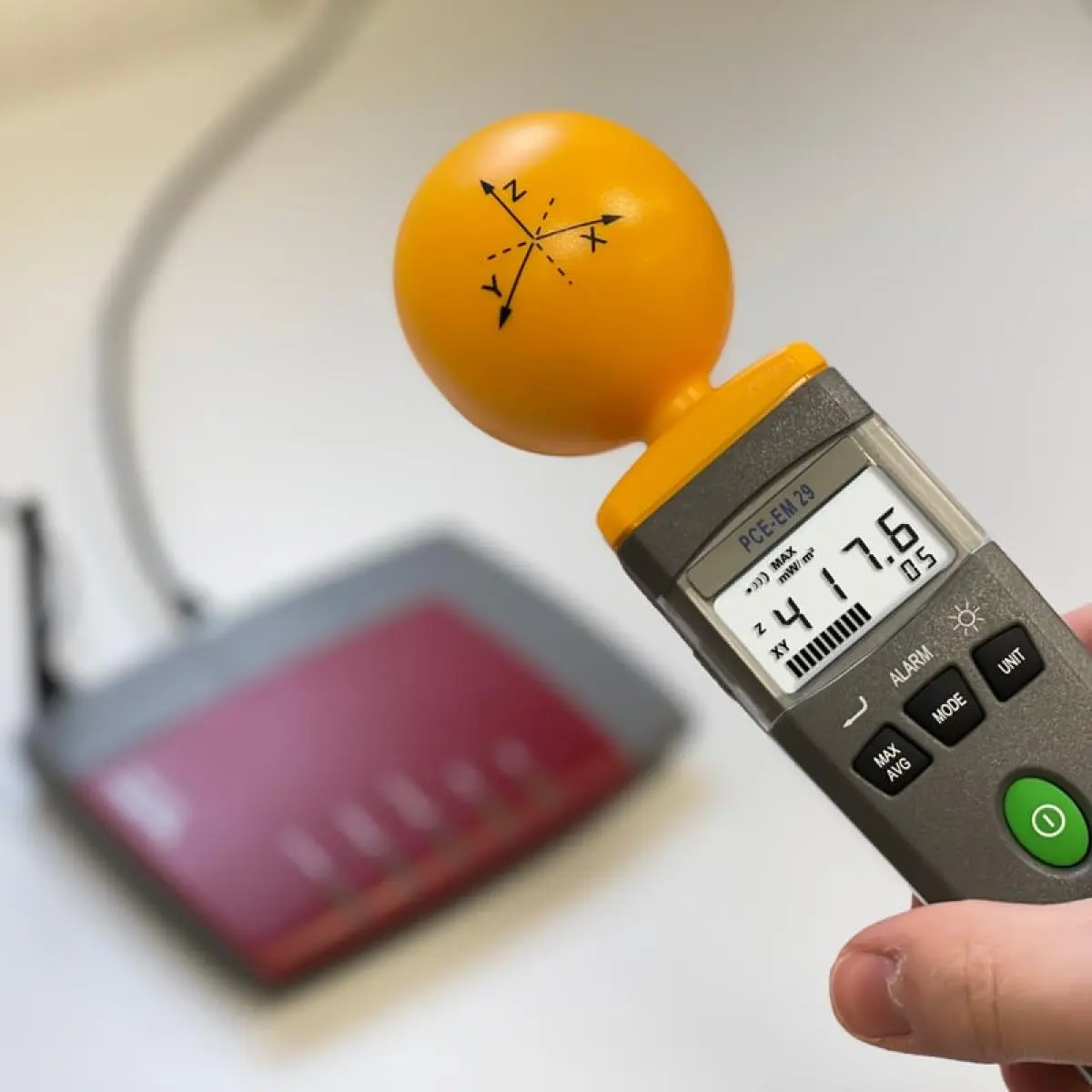

PCE-EM 29 is ideal for monitoring electrical transformers and wireless systems such as wifi, wireless LAN, GSM and GPS. The EMF detector also aids in evaluating radiation produced by computer screens, televisions, microwaves and electrical installations.
| Electric field strength | |
| Measuring range | 20 ... 108 mV/m |
| Resolution | 0,1 mV/m |
| Accuracy | ±1.0 dB (50 MHz ... 1.9 GHz) ±2.4 dB (1.9 GHz ... 3.5 GHz) ±1.0 dB (for frequency >50 MHz) |
| Magnetic field strength | |
| Measuring range | 53 ... 286,4 µA/m |
| Resolution | 0,1 µA/m |
| Accuracy | ±1.0 dB (50 MHz ... 1.9 GHz) ±2.4 dB (1.9 GHz ... 3.5 GHz) ±1.0 dB (for frequency >50 MHz) |
| Power flux density | |
| Measuring range | 1 µw/m² ... 30,93 W/m² |
| Resolution | 0,01 µw/m² |
| Accuracy | ±1.0 dB (50 MHz ... 1.9 GHz) ±2.4 dB (1.9 GHz ... 3.5 GHz) ±1.0 dB (for frequency >50 MHz) |
| Power flux density | |
| Measuring range | 0 µW/cm² ... 3,093 mW/cm² |
| Resolution | 0,01 µw/m² |
| Accuracy | ±1.0 dB (50 MHz ... 1.9 GHz) ±2.4 dB (1.9 GHz ... 3.5 GHz) ±1.0 dB (for frequency >50 MHz) |
| General technical data | |
| Measuring functions | AVG, MIN, MAX |
| Units | mV/m, V/m, µA/m, mA/m, µW/m², mW/m². |
| Frequency | 50 ... 3500 MHz |
| Display type | LCD |
| Storage medium | Internal memory |
| Storage capacity | 99 Data records |
| Sensor | Electric field |
| Response time | 1 s |
| Response time Additional information | until 90% of the final value is reached |
| Automatic power-off | 15 min |
| Alarm | optical, Acoustic |
| Measuring range selection | Automatic |
| Measurement error | absolute, at 1 V/m and 50 MHz: ±1.0 dB |
| Isotropic deviation | ±1.0 dB (at frequency >50 MHz) |
| Maximum overrange | 4.2 W/m² (40 V/m) |
| Temperature-related deviation | ±1.5 dB |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 640 mAh |
| Operating conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 237 x 60 x 60 mm |
| Weight | 350 g |
