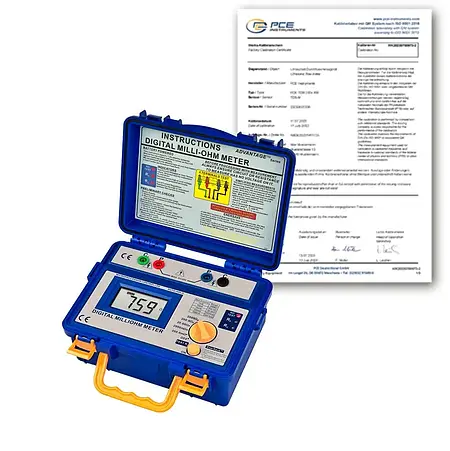

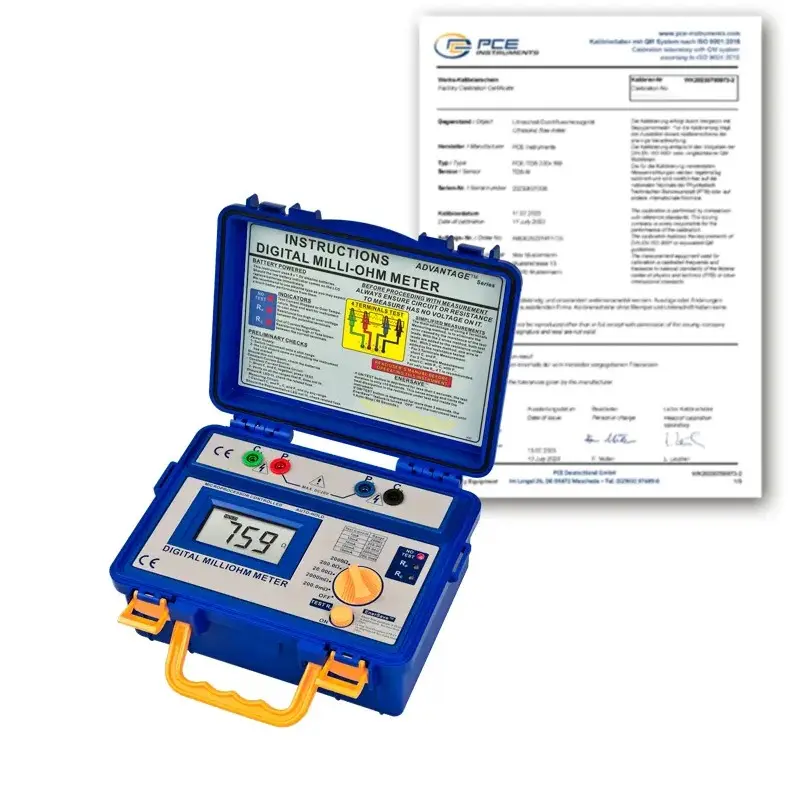

Electrical Tester PCE-MO 2002-ICA

Electrical Tester PCE-MO 2002-ICA [zoom]
Electrical Tester PCE-MO 2002-ICA

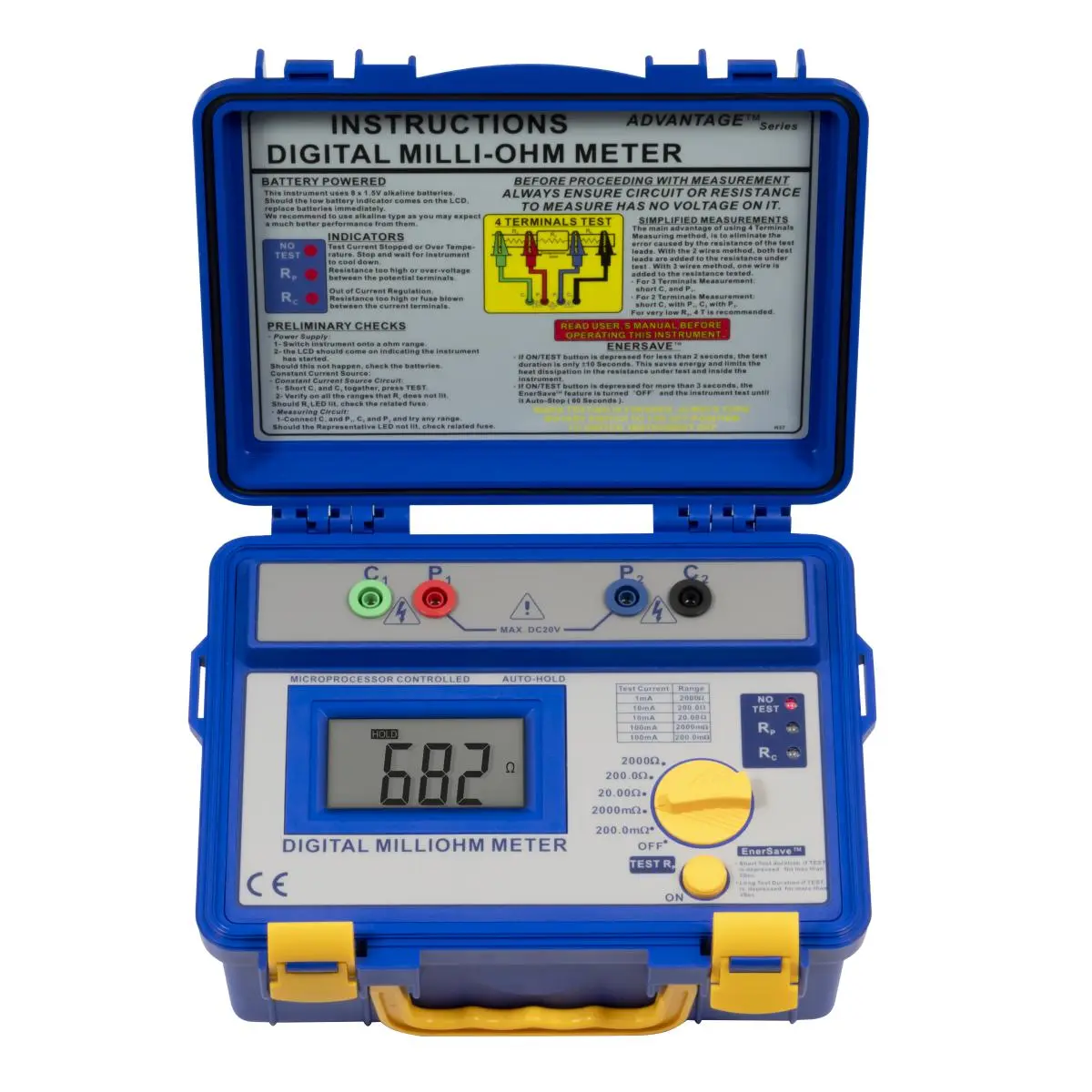

Electrical Tester Frontal
Electrical Tester Measuring tip
Electrical Tester Sensor

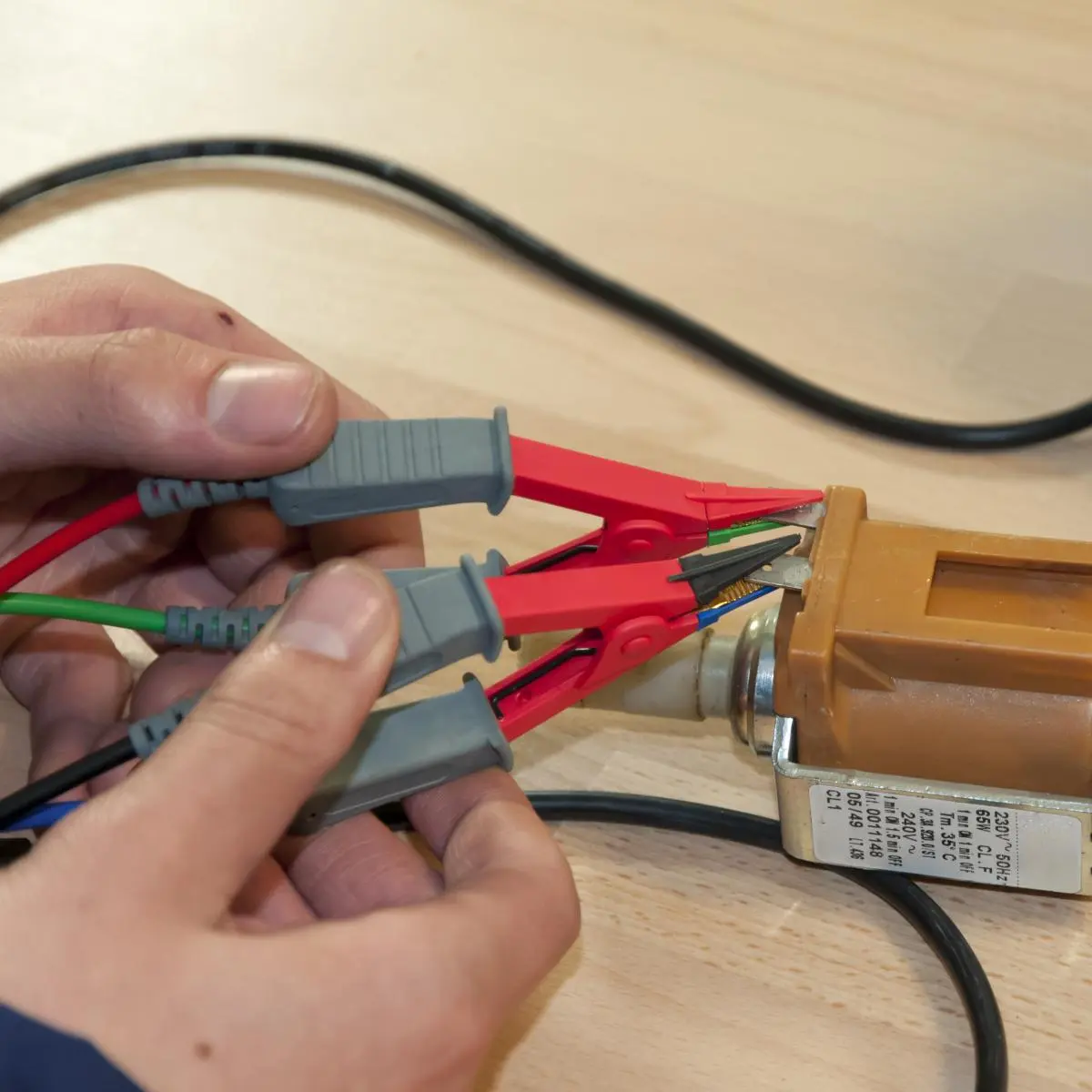

Electrical Tester Application picture
Electrical Tester Application picture
Electrical Tester Application picture
Electrical Tester Delivery scope

Electrical Tester PCE-MO 2002-ICA incl. ISO-Calibration certificate

Order no.: PCE-MO 2002-ICA
GTIN (EAN): 4250348733924
AED 4,136.00
AED 4,921.84
price ex. (customs / clearance)
:
4250348733924
PCE-MO 2002-ICA
Delivery time:5-7 working days

Description

Electrical Tester
(Electrical Tester with ruggedized and waterproof carrying case.
With highly accurate measurement range)
This Electrical Tester comes with a housing protected against water splash. With the Electrical Tester PCE-MO 2002 Series you can measure from 100 μΩ up to 2000 Ω. With this Electrical Tester measurement values are displayed by means of a LCD display with 3,5 digits and a good readability. Electrical Tester detect the measurement value, a constant current is mated on the object is going to be measured and then the voltage drop is tested.

Highlights

- Measurement system with four conductors with alligator clips
- Selection of 5 measurement ranges
- 3 test currents with overheat fuse
- Surge fuse in measurement inputs.
- Big LCD display
- Elimination of the measurement resistance in conducts.
- Auto-Hold and Auto-Off function
- LED indication when the Rp, Rc and temperature permitted values are exceeded.
- Light weight, solid and compact
- Waterproof housing with ring seal
- Security: IEC-1010-1; CAT IV 20 V
- incl. ISO-Calibration Certificate

Specification

Resistance
Measuring range  100 ... 200 mΩ
Resolution  100 mΩ
Accuracy  ±0.5% of Rd, ±2 digits throughout the entire operating temperature range from -15 ... 55°C /

Resistance
Measuring range  100 ... 2000 mΩ
Resolution  1 mΩ
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

Resistance
Measuring range  100 ... 20 Ω
Resolution  10 mΩ
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

Resistance
Measuring range  100 ... 200 Ω
Resolution  100 mΩ
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

Resistance
Measuring range  100 ... 2000 Ω
Resolution  1 Ω
Accuracy  ±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 ... +55 °C

General technical data
Measuring functions  HOLD
Display type  LCD
Standard(s)  IEC 1010-1
Safety standard  CAT IV 20V
Measuring method  4-wire method for mΩ measurement
Test current  1 mA: 2000 Ω
10 mA: 200 Ω / 20 Ω
100 mA: 2000 mΩ / 200 mΩ
Accuracy: ±0.1 %
Menu language  English, English (GB)
Protection class (device)  IP65
Protection class (additional information)  Only with the lid closed
Power supply  batteries
(Rechargeable) battery  8 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  -15 ... 55 °C , 20 ... 93 % RH
Storage conditions  -20 ... 65 °C , 20 ... 93 % RH
Dimensions ( L x W x H )  245 x 190 x 115 mm
Weight  1578 g

Delivery Scope

Delivery contents
1x Electrical Tester PCE-MO 2002-ICA,
1x testing cable set,
1x supporting strap,
8x batteries
1x user's manual.
1 x ISO-Calibration Certificate
