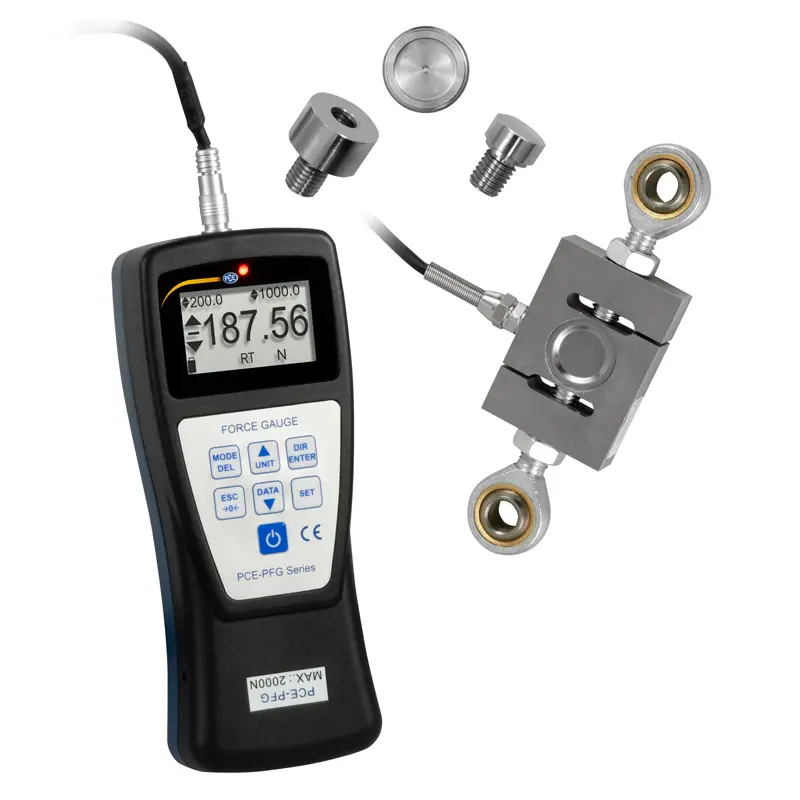

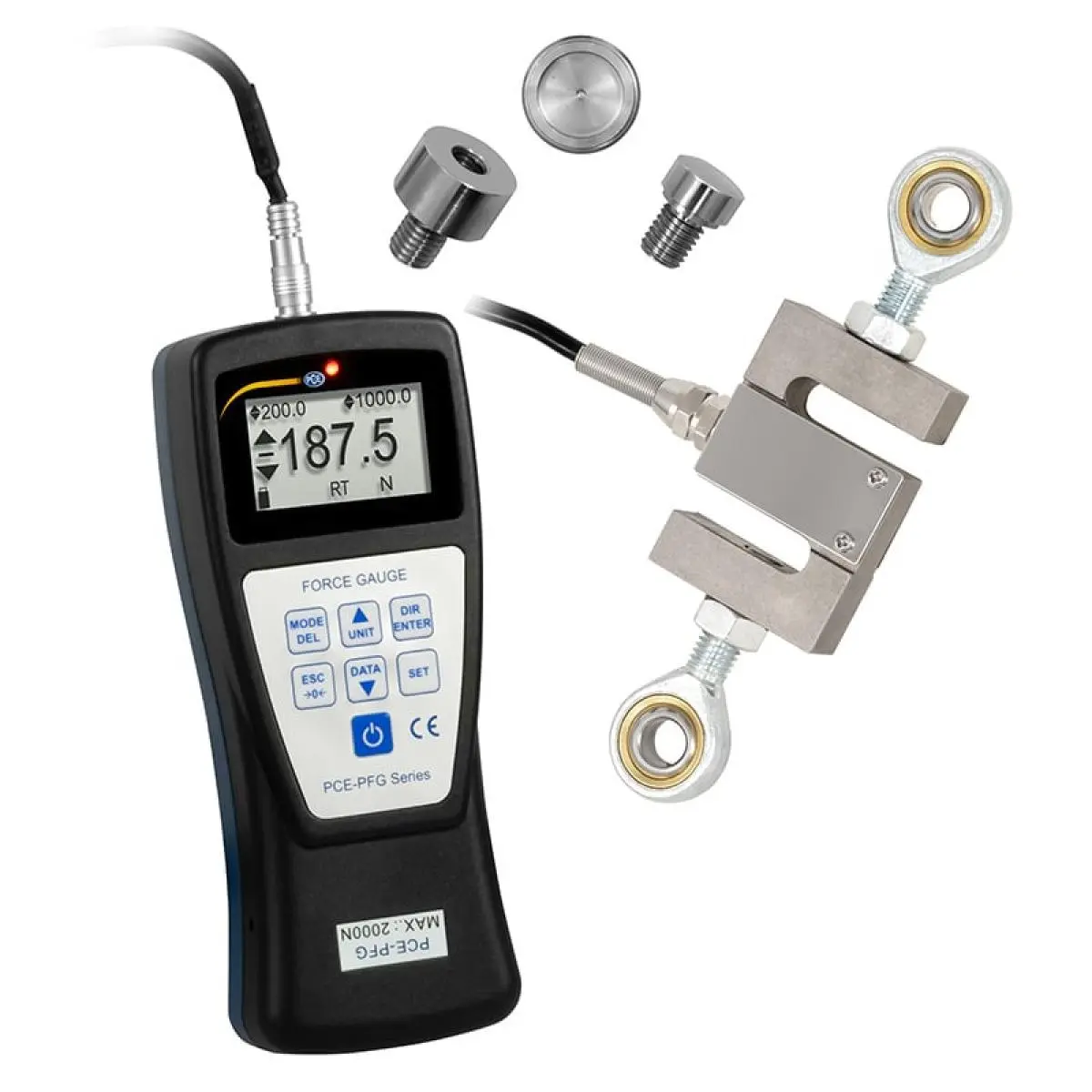

The PCE-PFG Durometer is a handy, digital measuring device for measuring tensile and compressive forces. The Durometer offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (Average) and automatic measurement storage of up to 100 measurements.

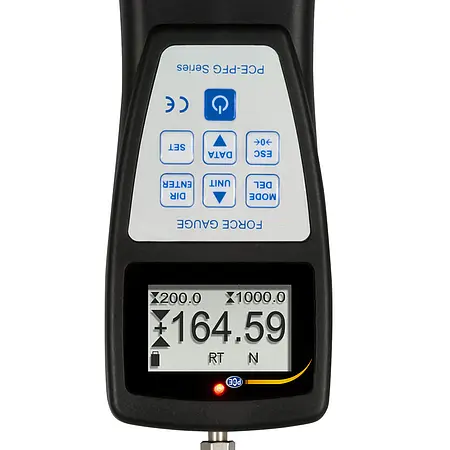

The measurement data and a statistical evaluation of the data stored in the Durometer (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC via the USB interface. In addition, the force measuring device offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow / green / red) and switching contacts.The Durometer can be operated continuously for up to 36 hours on a single charge (without background lighting) and is a reliable partner as a mobile force measuring device.
| Force | |
| Measuring range | 0 ... 2000 N |
| Resolution | 0,5 N |
| Accuracy | ±0.3% of range |
| General technical data | |
| Outputs | Switching output |
| Units | N, kgf, lbf |
| Display size | 1,8 Inch |
| Measuring rate | 500 Hz |
| Storage medium | Internal memory |
| Storage capacity | 100 Measurements |

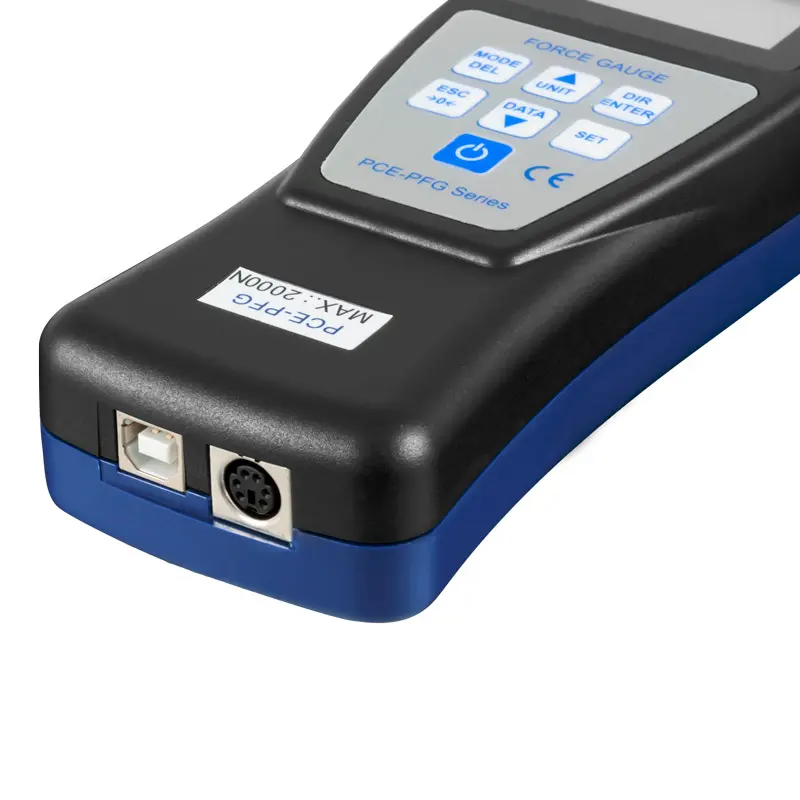

| Interface | USB-B |
| Operating time | 36 h |
| Alarm modes | Below, within, beyond |

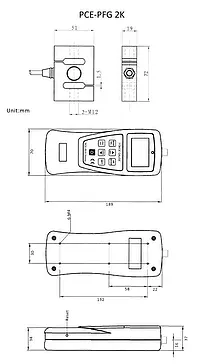

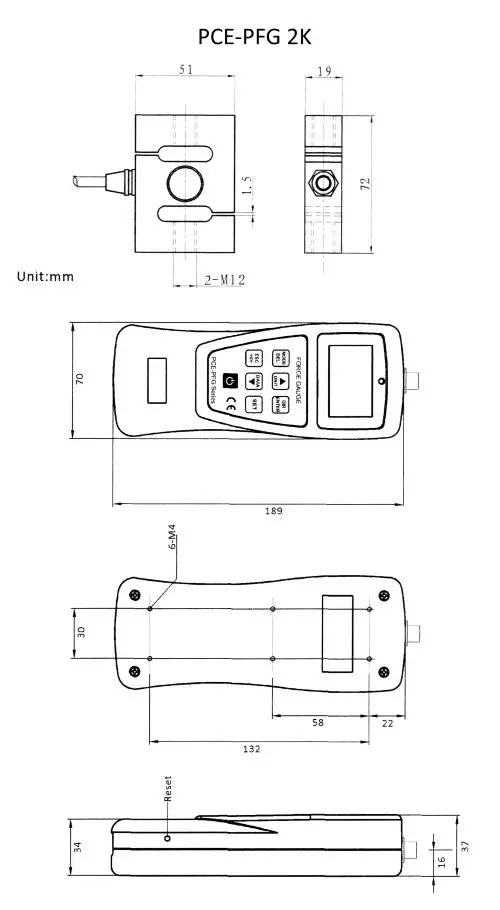

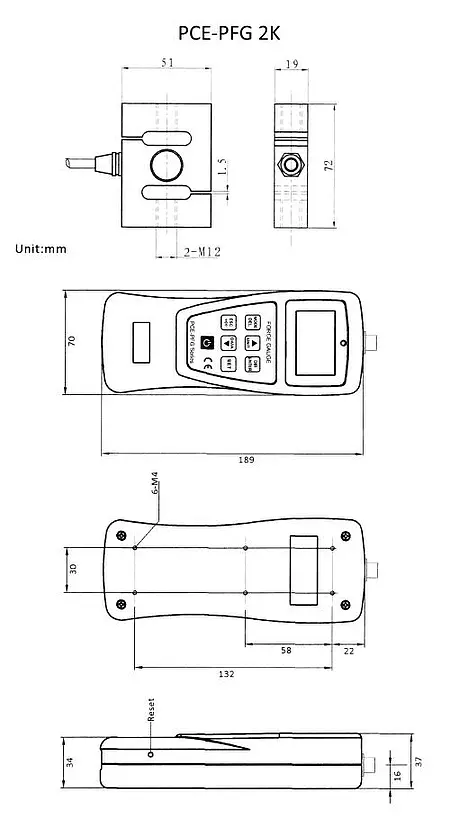

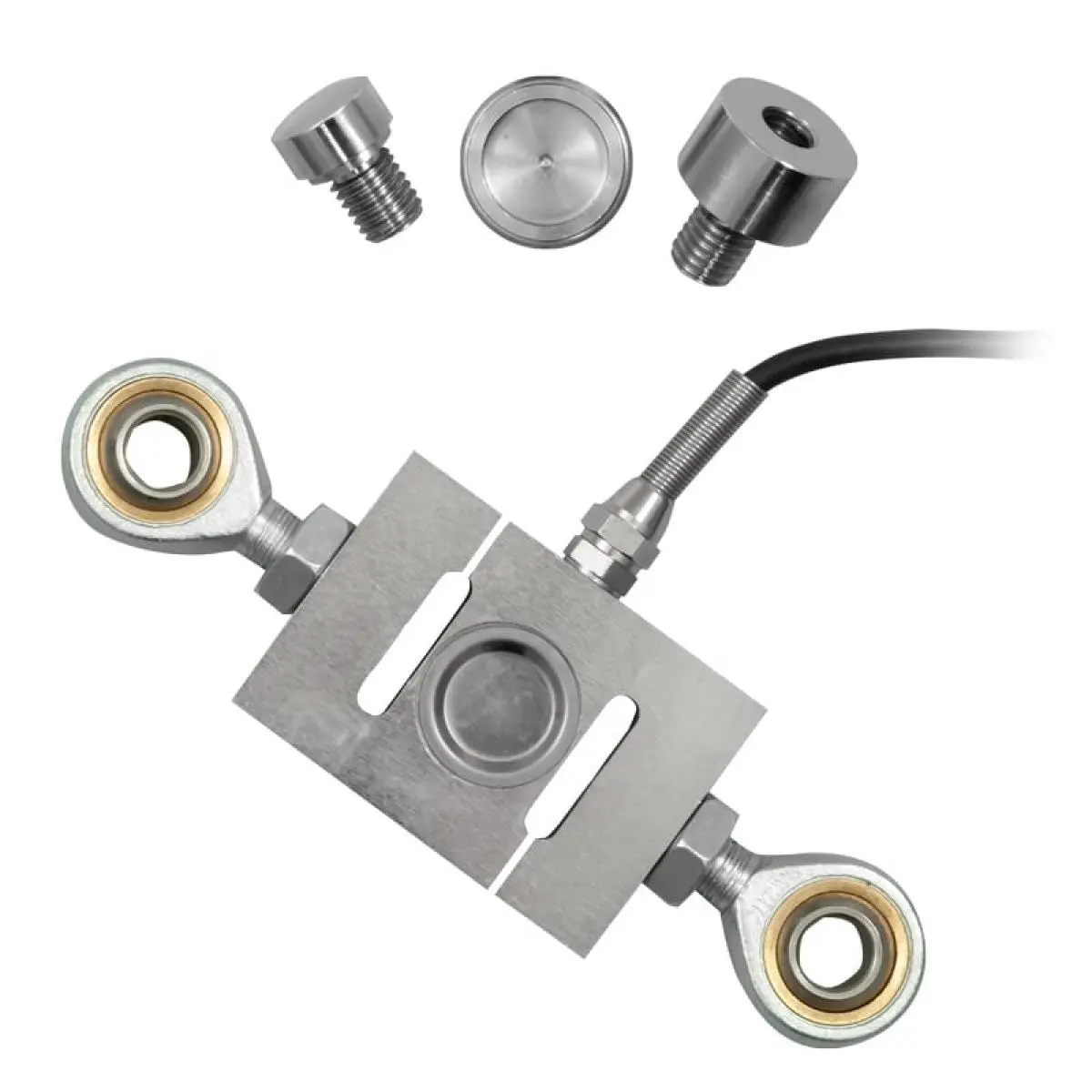

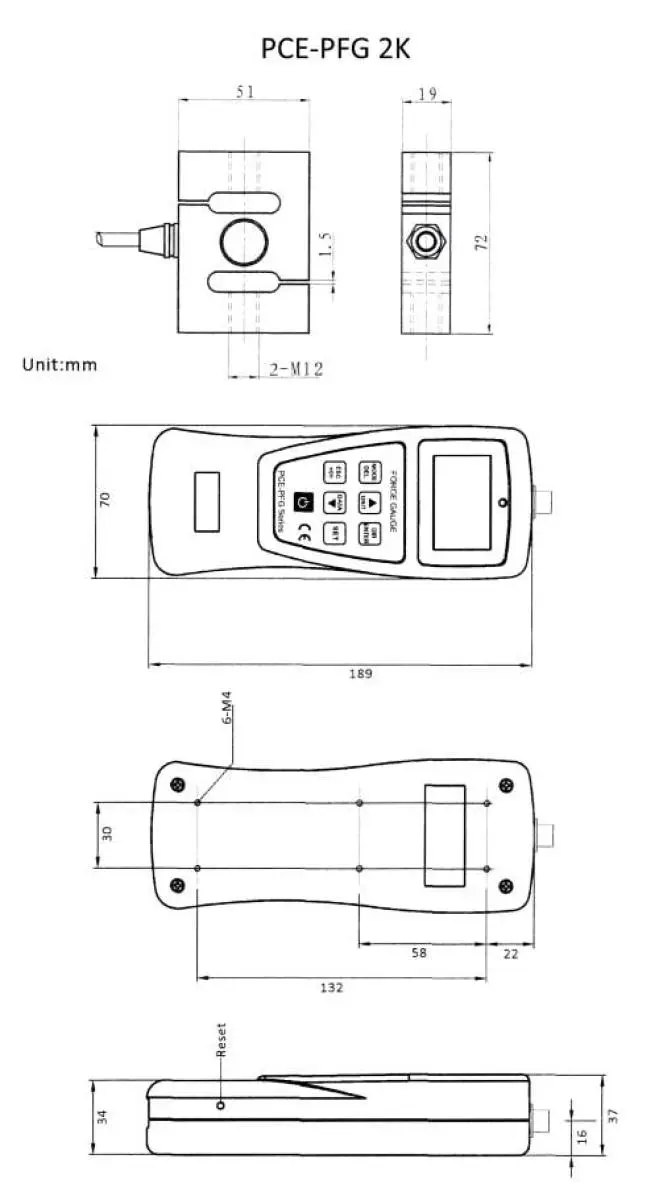

| Dimensions | Force measuring cell: L 52 mm / H 72 mm / W 19 mm / M12 thread (L 2.0 in / H 2.8 in / W 0.7 in / M12 thread) Cable length of external force measuring cell: approx. 1.8 m / 5.9 ft |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| Power supply | 5 V / 1 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 1500 mAh |
| Operating conditions | 5 ... 45 °C , 35 ... 65 % RH |
| Storage conditions | 5 ... 45 °C , 35 ... 65 % RH |
| Dimensions ( L x W x H ) | 77 x 189 x 34 mm |
| Weight | 240 g |
