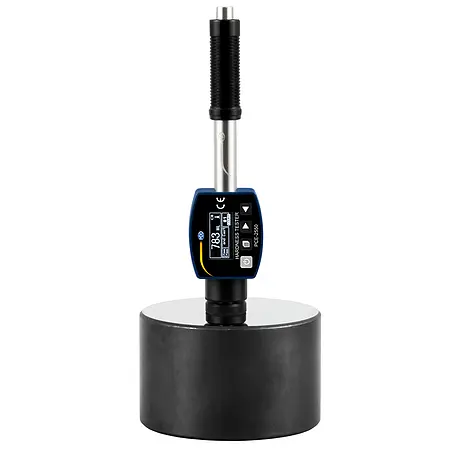

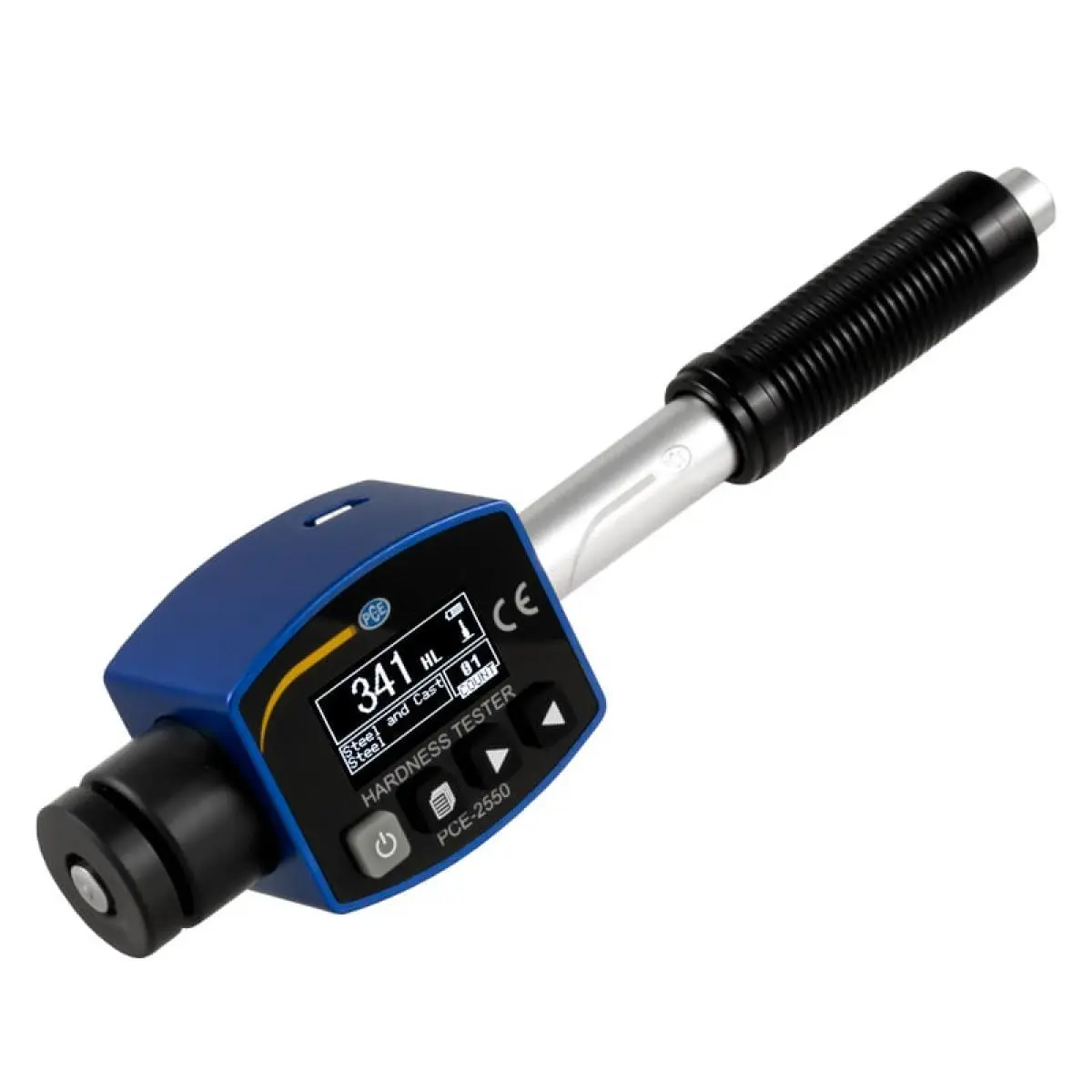

Durometer / Shore Durometer PCE-2550-ICA

[zoom]

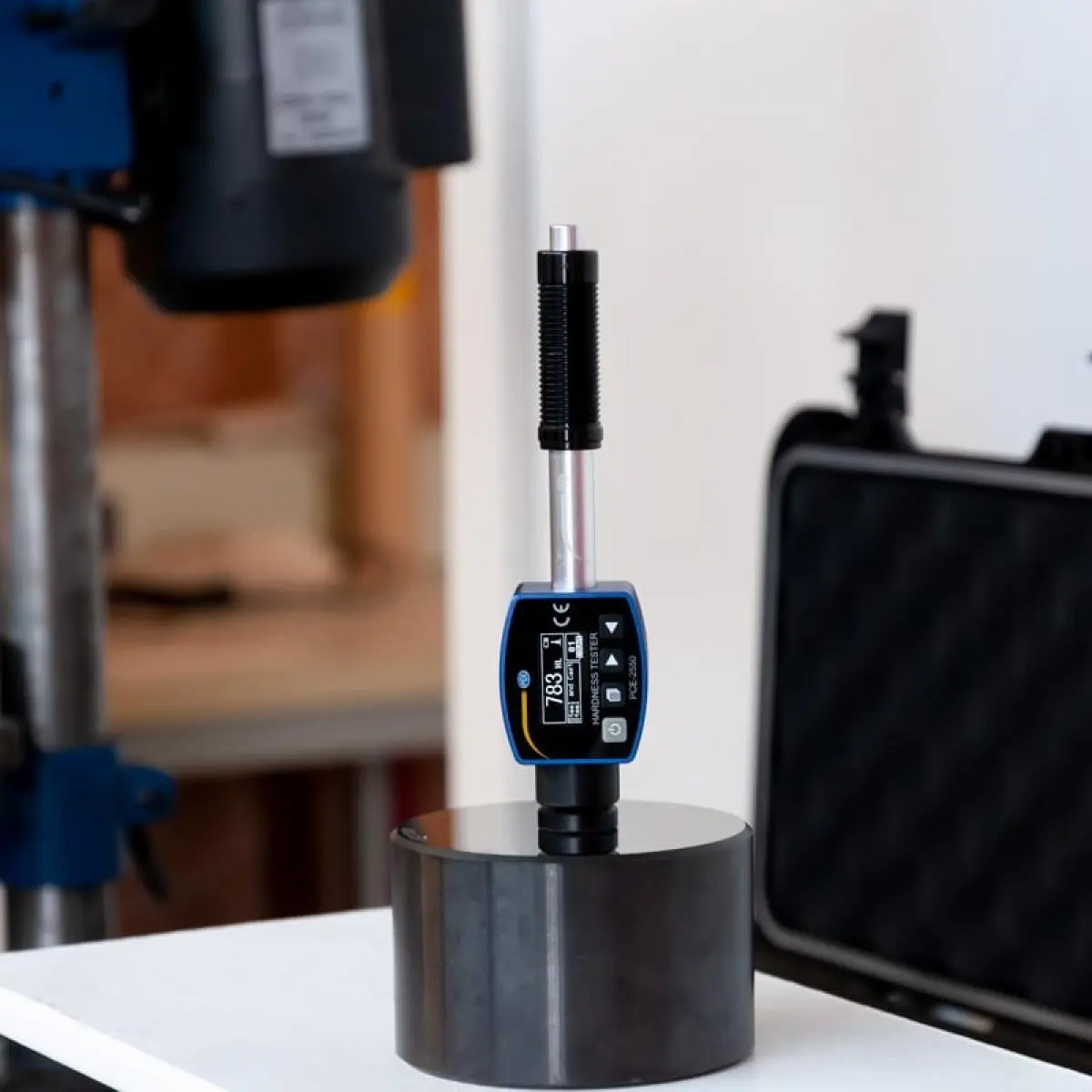

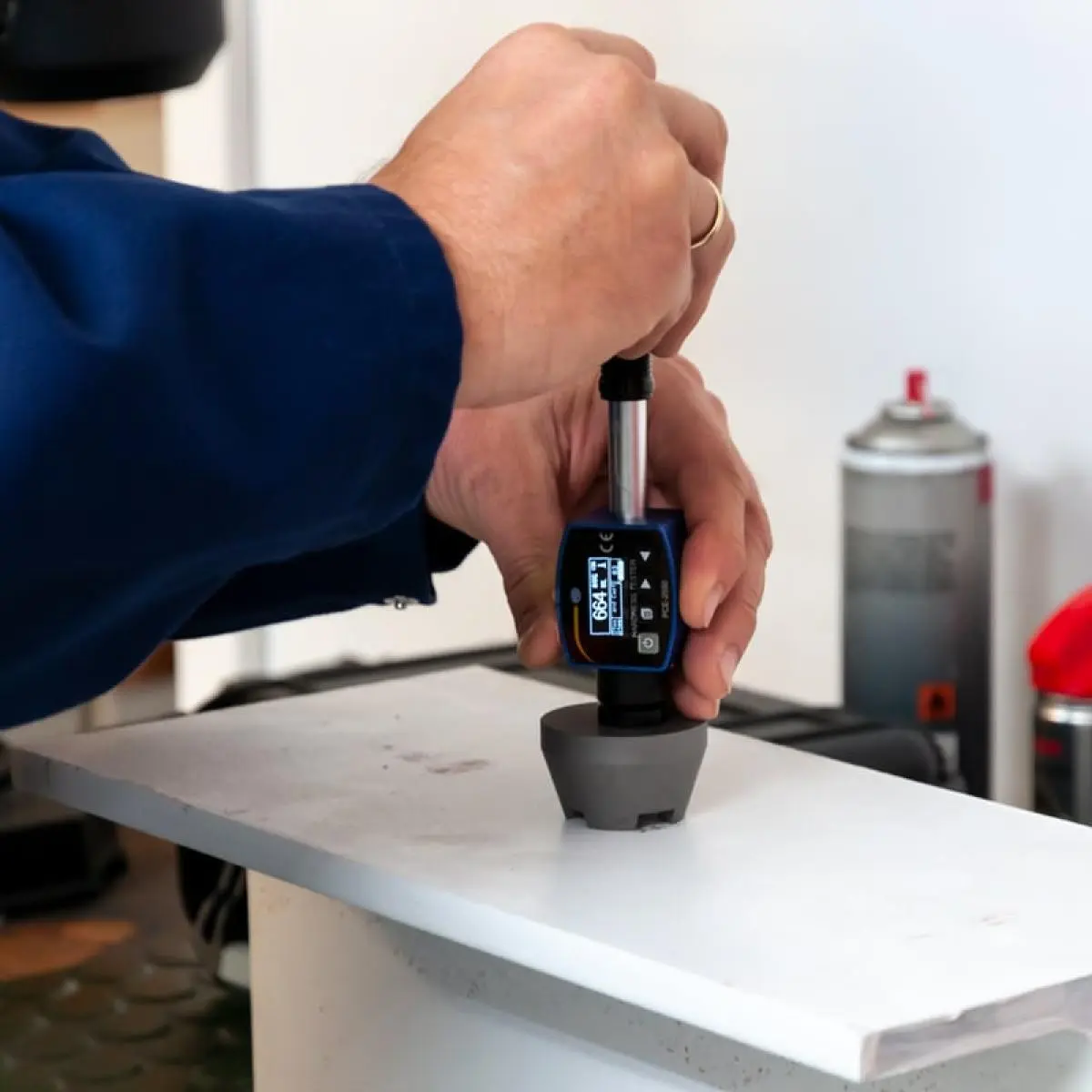

Durometer / Shore Durometer Application picture

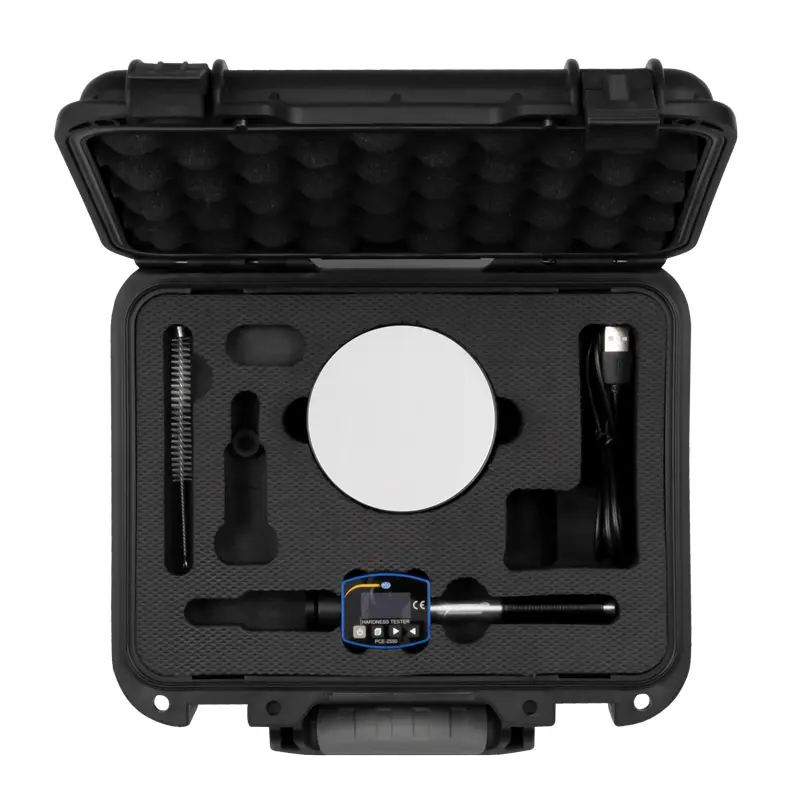

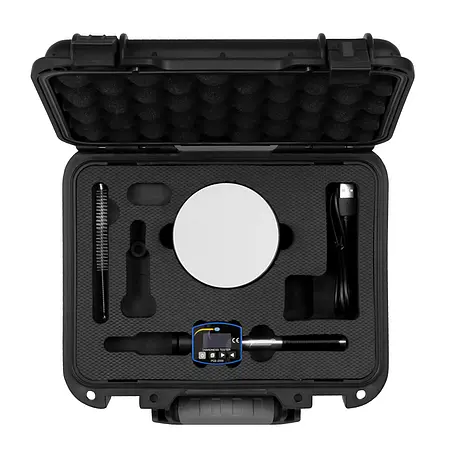

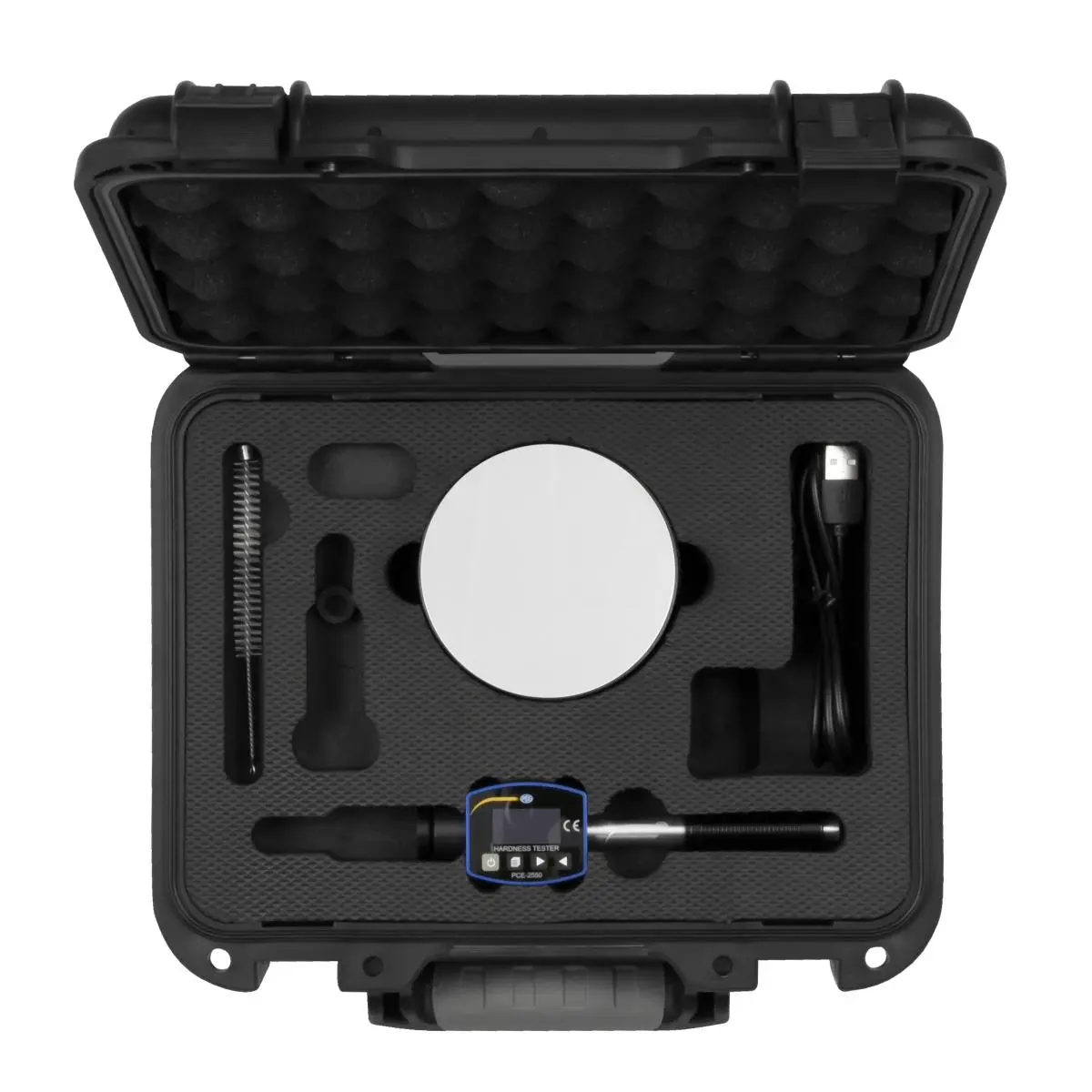

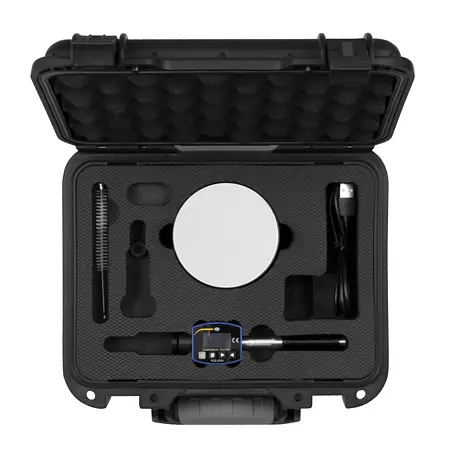

Durometer / Shore Durometer Delivery scope

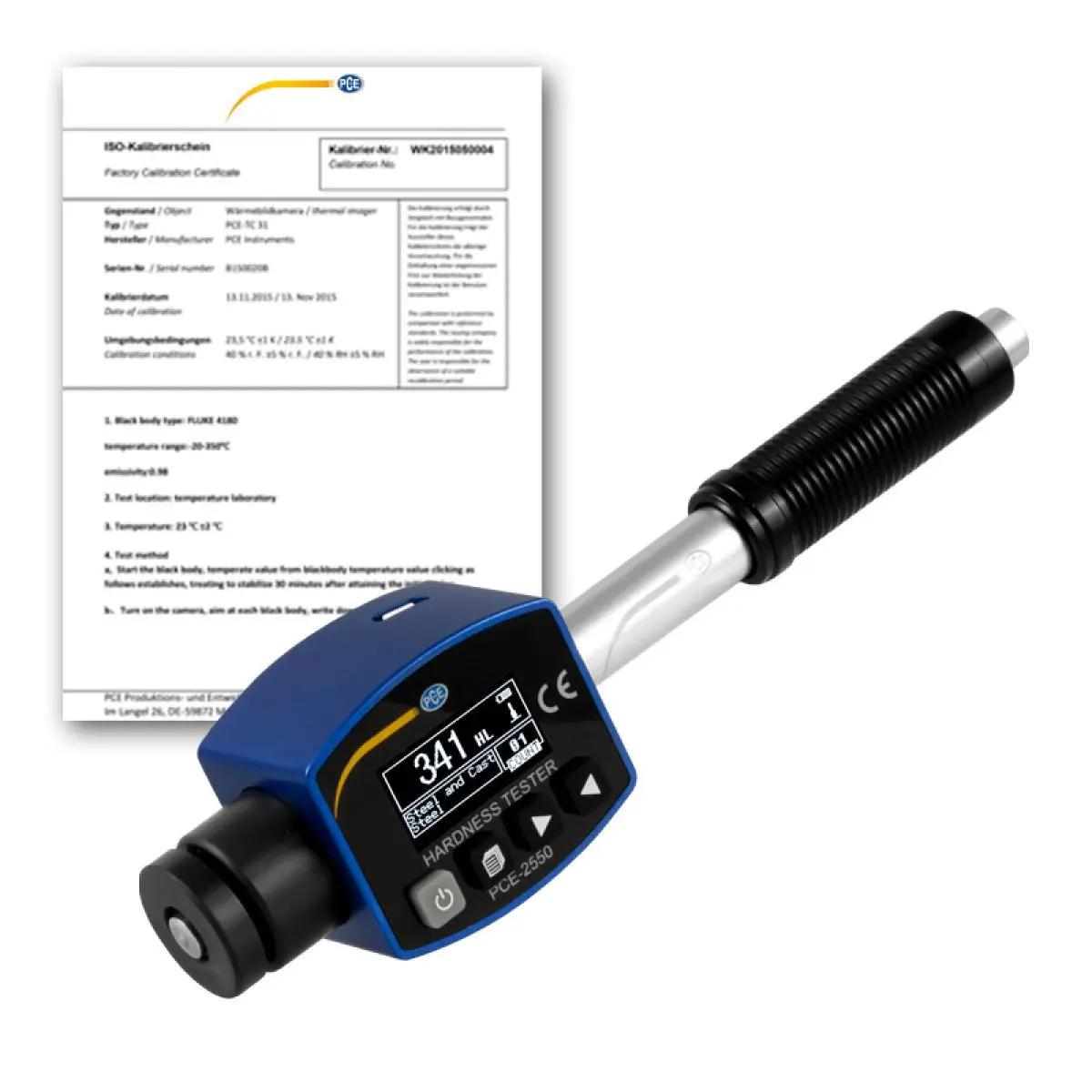

Durometer PCE-2550-ICA incl. ISO Calibration Certificate

Order no.: PCE-2550-ICA

GTIN (EAN): 4250348724847

Accessory

Adapter set for hardness measuring instruments with Impact D impactor

AED 1,532.00

Calibration certificate CAL-HT-2

AED 1,233.00

Adaptor spherical inside HK16.5-30

AED 165.00

Adaptor spherical inside HK12.5-17

AED 165.00

Adaptor spherical inside HK11-13

AED 165.00

Adaptor concave inside HZ16.5-30

AED 165.00

Adaptor concave inside HZ12.5-17

AED 184.00

Adaptor concave inside HZ11-13

AED 165.00

Adaptor convex outside vZ25-50

AED 184.00

Adaptor convex outside Z10-15

AED 184.00

Description

Durometer PCE-2550-ICA incl. ISO Calibration Certificate
Portable metal hardness tester with integrated impact mechanism / For metallic materials / Data download via USB / Measurement memory of up to 360000 points

Due to its compact design, the PCE-2550 durometer is very easy to use for incoming and outgoing inspection. Due to the adjustable hardness scales, the metal hardness tester PCE-2550 is versatile. The measuring range of the metal hardness tester PCE-2550 is sufficiently large for very soft, as well as for extremely hard surfaces.

The measured values can be stored in the PCE-2550 and later read out and processed via the available software. Up to 350 data groups can be stored in the metal hardness tester. The OLED display can also be read well in dark environments.

Highlights

- Determines all common hardness parameters

- High precision

- Measurement possible in any position

- Refined charge-trigger mechanism

- Internal measured value memory

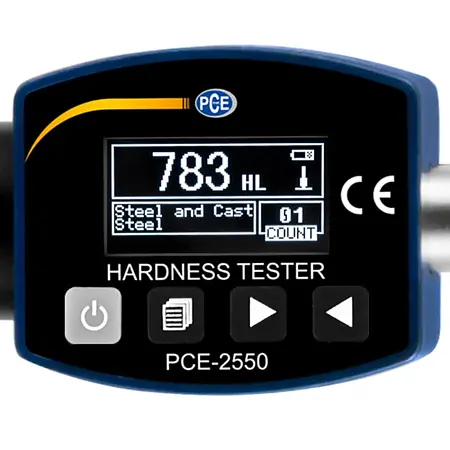

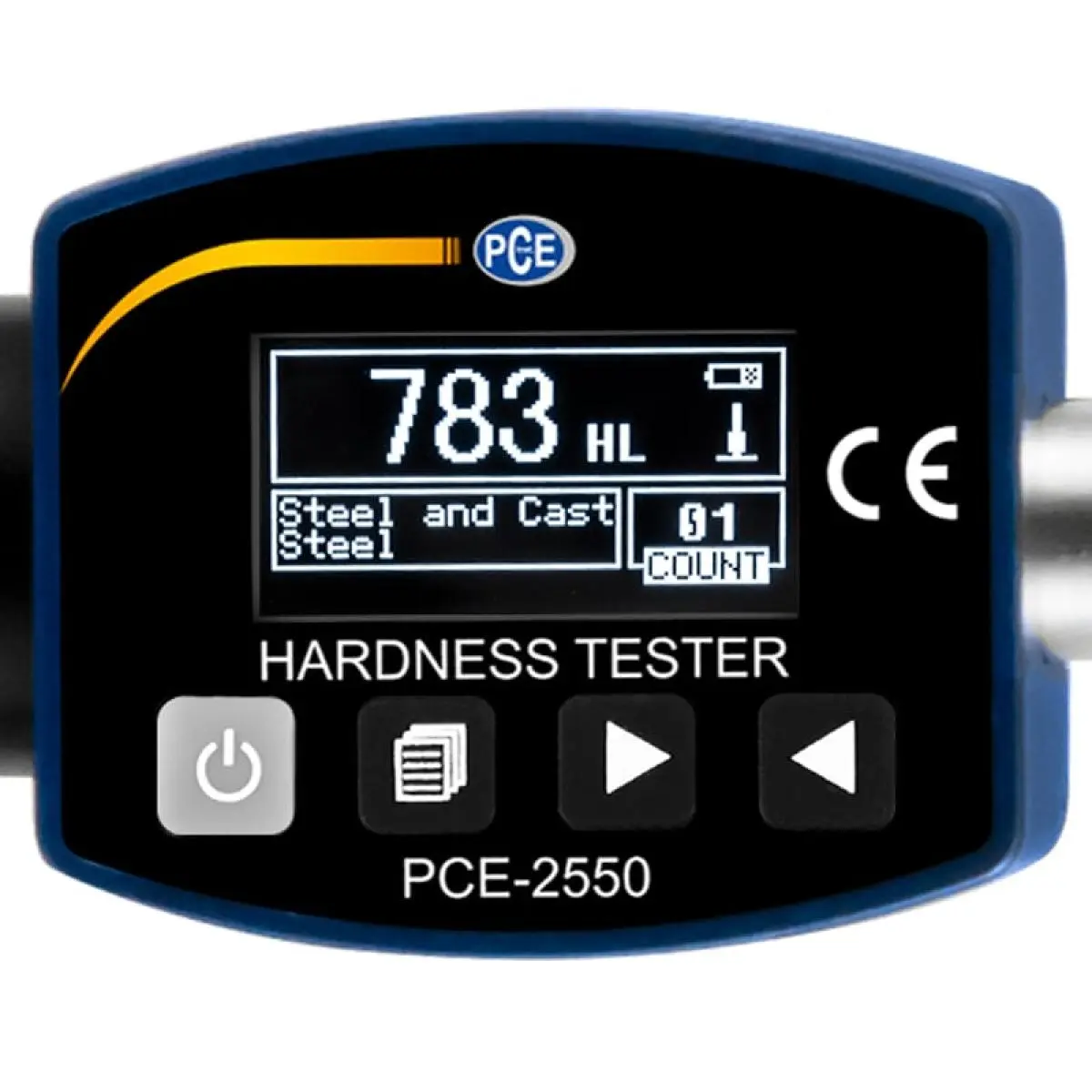

- Immediate display on a large OLED display

- incl. ISO-Calibration Certificate

Specification

Hardness
Measuring range	170 ... 960 HLD
Resolution	1 HB
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

Hardness
Measuring range	17,9 ... 68,5 HRC
Resolution	0,1 HRC
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

Hardness
Measuring range	13,5 ... 101,7 HRB
Resolution	0,1 HRB
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

Hardness
Measuring range	59,1 ... 85,8 HRA
Resolution	0,1 HRA
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

Hardness
Measuring range	19 ... 655 HB
Resolution	1 HB
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

Hardness
Measuring range	80 ... 976 HV
Resolution	1 HV
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

Hardness
Measuring range	32,2 ... 99,5 HS
Resolution	0,1 HS
Accuracy	Test block 760 ±30 HLD: ±6 HLD / test block 530 ±40 HLD: ±10 HLD

General technical data
Measuring functions	AVG
Measuring principle	Rebound method
Display type	OLED
Display size	1 Inch
Display resolution	128 x 64 pixels
Storage medium	Internal memory
Storage capacity	350 Data records
Interface	Micro-USB
Materials	Steel, Cast steel, Tool steel, Stainless steel, Grey cast iron, Spheroidal graphite cast iron, Cast aluminium alloy, Brass, Bronze, Machined copper alloy, Machined steel alloy
Operating time	8 h
Measuring angle	360 °
Impact device	D-type
Hardness scales	HL, HB, HRB, HRC, HRA, HV, HS
Test specimen	Tungsten carbide, ø 3 mm
Minimum mass of the sample	2 kg ( on stable base / 50 g with coupling gel)
Minimum thickness of the sample	5 mm with coupling paste
Menu language	English, English (GB)
Protection class (device)	IP52
(Rechargeable) battery	2 x 3 V internal , Lithium-manganese
Capacity	900 mAh
Operating conditions	0 ... 40 °C , 0 ... 90 % RH
Storage conditions	0 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	146 x 32 x 26 mm
Weight	160 g
