The Digital Thermometer enables fast and precise non-contact measurement of the surface temperature of objects that are difficult or impossible to measure with conventional contact thermometers. The Digital Thermometer features a wide IR measuring range from -50 … 650°C and an optical ratio of 12:1.

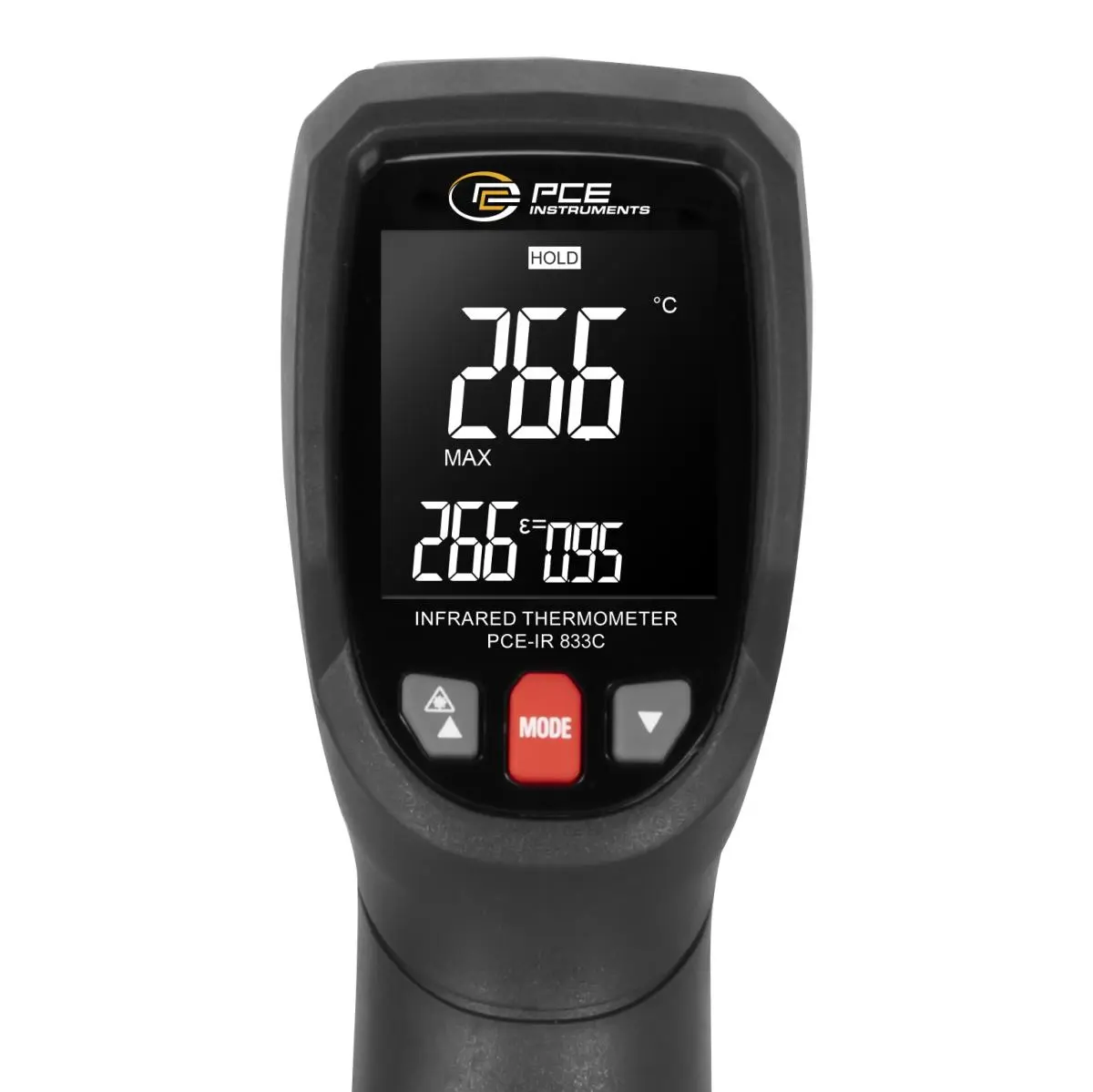

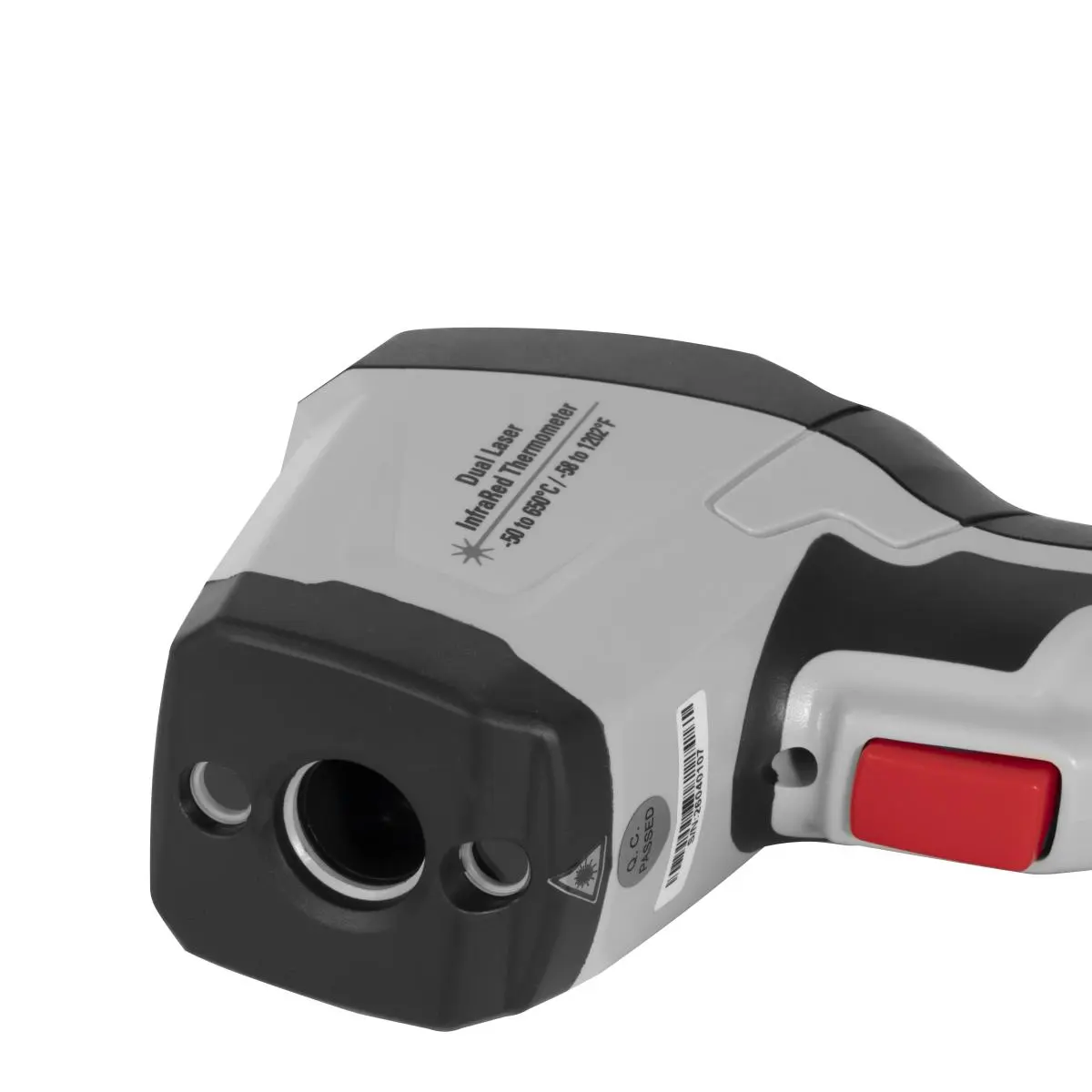

The temperature unit can be selected between °C and °F. With a response time of just 150 ms, the Digital Thermometer enables rapid recording of temperature values. The integrated dual laser makes it easier to target the measuring point precisely. The 1.6-inch colour LCD clearly displays the measured values. HOLD, MAX, MIN, DIF, and AVG functions are available for monitoring measured values. The emissivity can be adjusted from 0.10 … 1. Upper and lower limit alarms can also be set.
The Digital Thermometer features a robust housing protected against dust and water in accordance with IP54. Power is supplied by two 1.5V AAA batteries. Thanks to its non-contact measuring method, fast response time, and versatile evaluation functions, the Digital Thermometer is suitable for reliable surface temperature measurement.
| Infrared temperature | |
| Measuring range | -50 ... +20 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3.5°C |
| Infrared temperature | |
| Measuring range | 20 ... 300 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.0% of reading or ±1.0°C (larger value applies) |
| Infrared temperature | |
| Measuring range | 300 ... 650 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5% f.s. |
| Infrared temperature | |
| Measuring range | -58 ... +68 °F |
| Resolution | 0,1 °F |
| Accuracy | ±6.3°F |
| Infrared temperature | |
| Measuring range | 68 ... 572 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.0% of reading or ±1.8°F (larger value applies) |
| Infrared temperature | |
| Measuring range | 572 ... 1202 °F |
| Resolution | 1 °F |
| Accuracy | ±1.5% of full scale |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, AVG, DIF |
| Display type | LC colour display |
| Display size | 1,6 Inch |
| Response time | 150 mS |
| Measurement spot | 12:1 |
| Laser | Class 2 <1mW |
| Alarm modes | Upper value Lower value |
| Repeatability | ±1.8°C (±3.2°F) @ -50 ... 20°C (-31 ... 68°F) ±0.5% or ±0.5°C (±0.9°F) @ 20 ... 650°C (68 ... 1202°F) |
| Emissivity from/to | 0.1 ... 1 |
| Spectral range | 8 ... 14 µm |
| Wavelength range | 630 ... 670 Nm |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1270 mAh |
| Performance | 1,91 Wh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 172 x 50 x 86 mm |
| Weight | 210 g |
