Digital Multimeter PCE-DM 7

Order no.: PCE-DM 7

GTIN (EAN): 4250348736130

Description

Digital Multimeter / true RMS measurement / temperature measurement / automatic and manual measurement range selection / simple operation / bar graph display

The Digital Multimeter provides precise measurements for a variety of parameters, including AC and DC voltage, direct and alternating current, frequency, resistance, capacitance and temperature. Our Digital Multimeter has a hold function for saving measurement results as well as non-contact voltage detection (NCV).

The device enables both automatic and manual measurement range selection and is equipped with an easy-to-read 2.8-inch LCD with backlight. With a sampling rate of three measurements per second, it delivers quick results and switches off automatically after five minutes of inactivity to extend the battery life. In addition, the Digital Multimeter offers a dual display: a bar graph for quick visual assessments and a numerical display for precise readings.

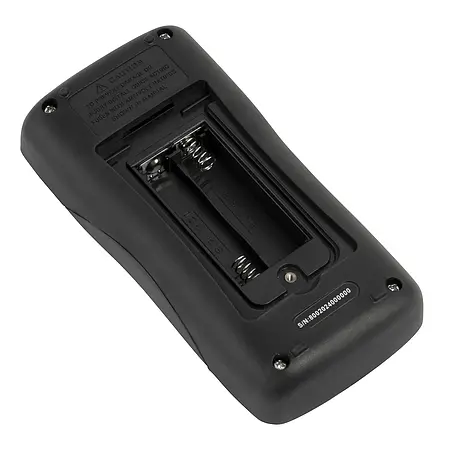

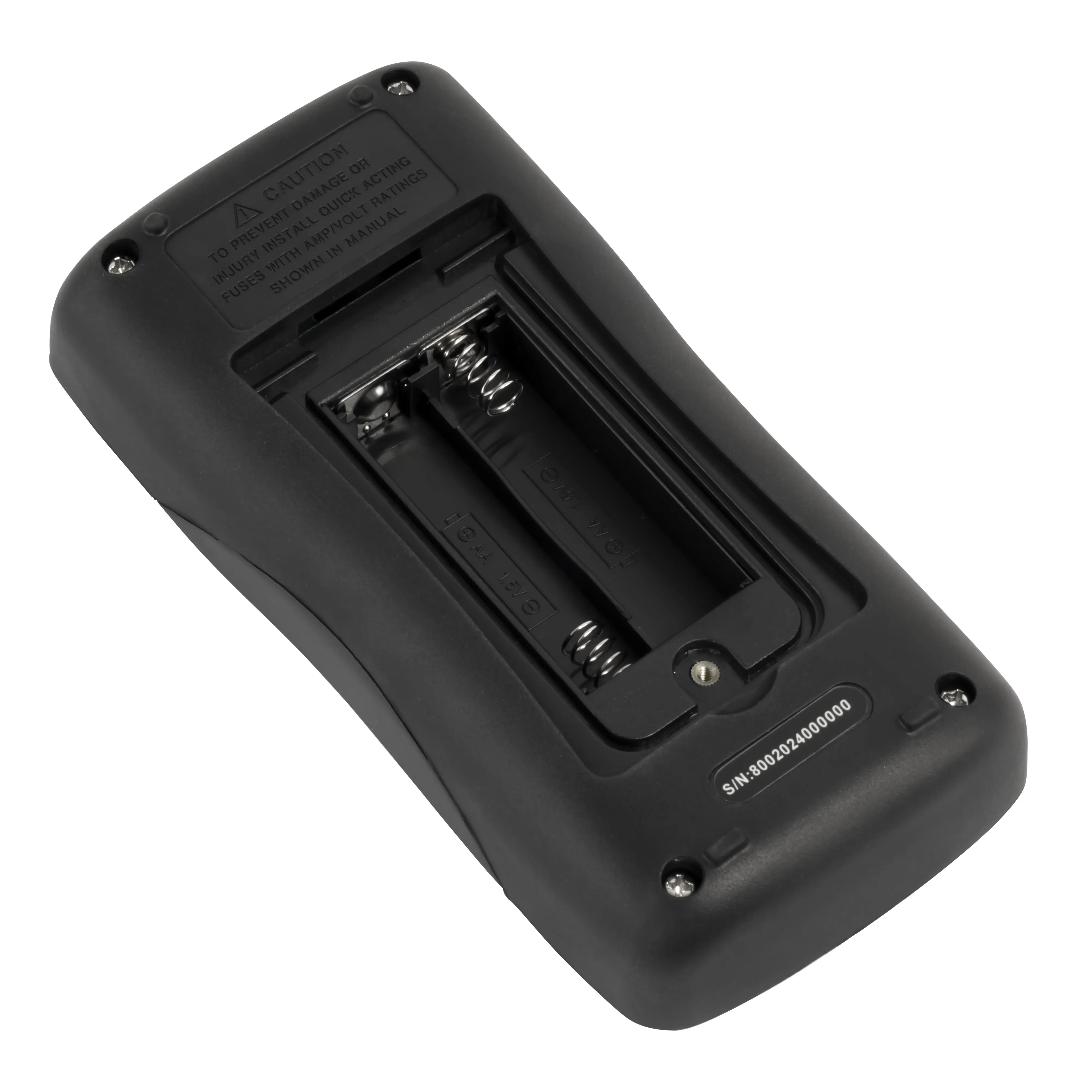

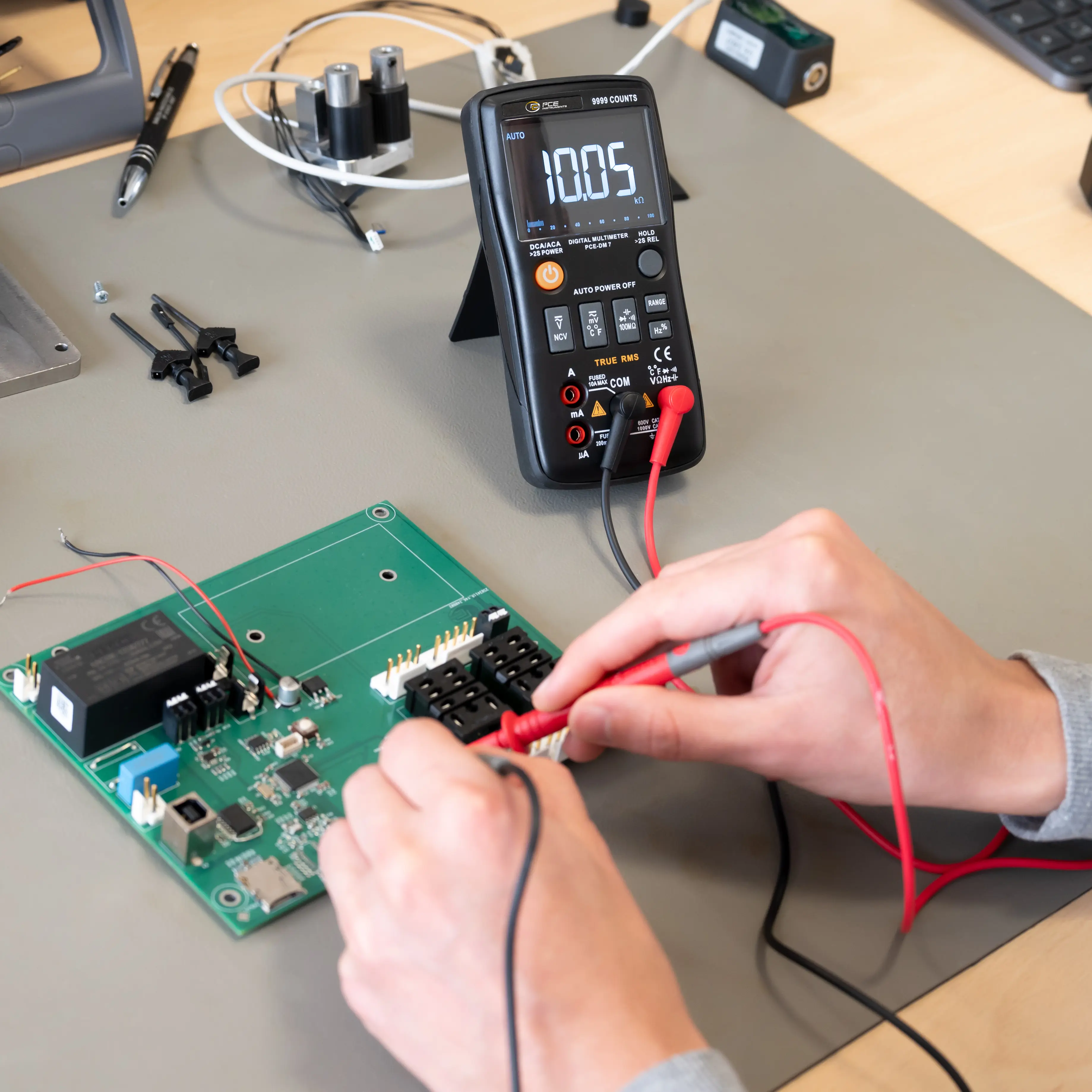

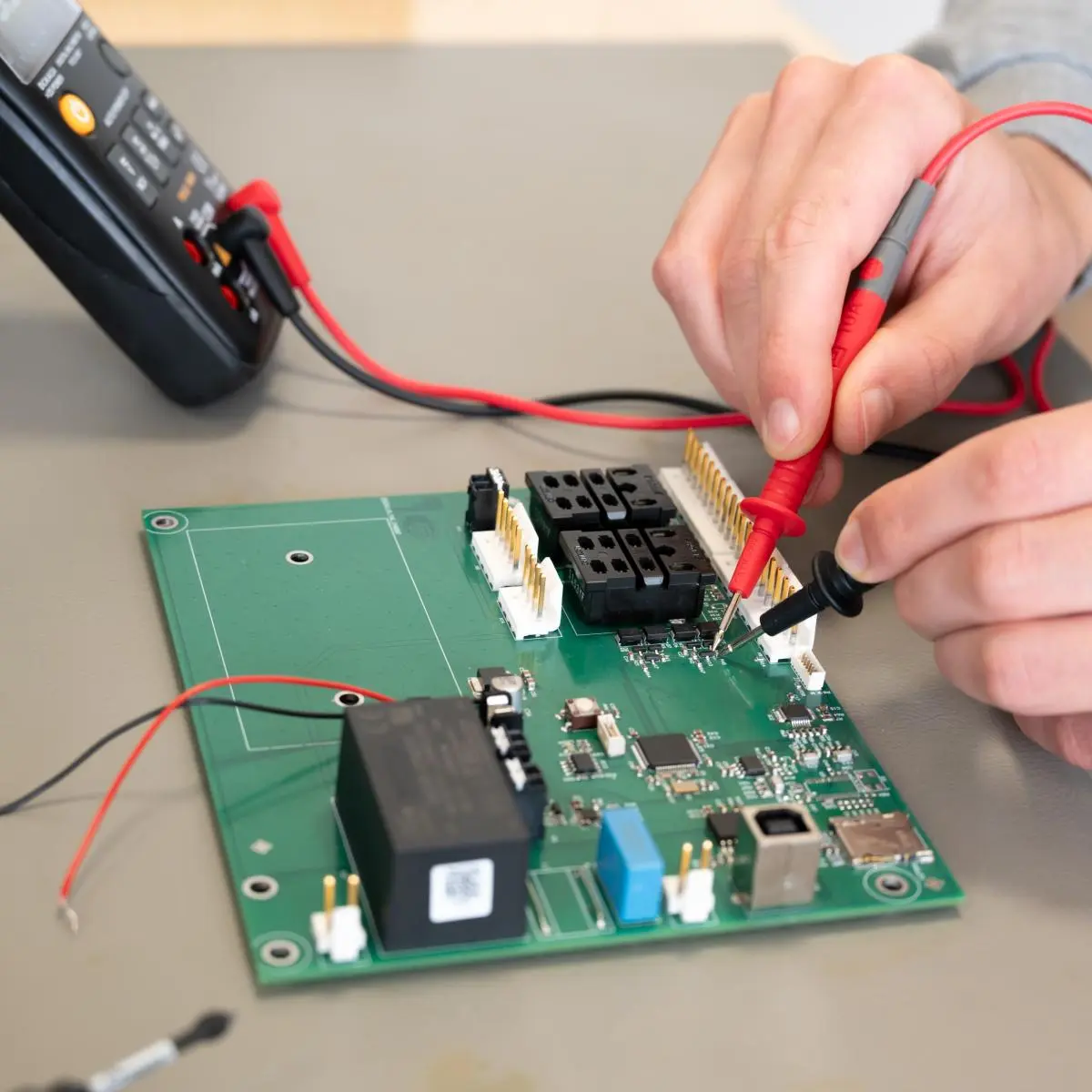

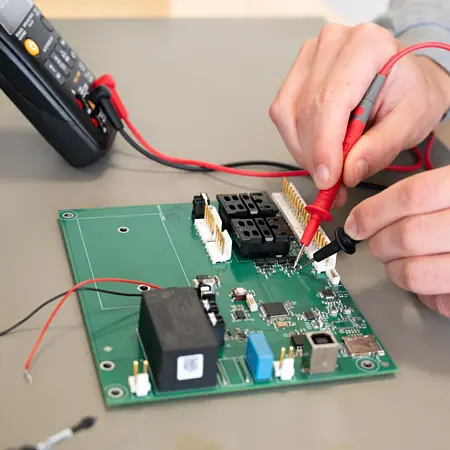

The Digital Multimeter is powered by two 1.5 V batteries and is designed for easy one-handed operation. The compact dimensions of 140 x 70 x 35 mm make the Digital Multimeter a practical tool for everyday use by electricians and hardware developers as well as in other technical applications.

Highlights

- non-contact voltage detection

- temperature measurement

- automatic power off

- automatic and manual measurement range selection

- hold function

- 2.8-inch LC display with backlight

- small and compact design

Specification

Direct voltage DC
Measuring range	0 ... 9,999 mV
Resolution	0,001 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range	10 ... 99,99 mV
Resolution	0,01 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range	100 ... 999,9 mV
Resolution	0,1 mV
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range	1 ... 9,999 V
Resolution	0,001 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range	10 ... 99,99 V
Resolution	0,01 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct voltage DC
Measuring range	100 ... 999,9 V
Resolution	0,1 V
Accuracy	±(0.5 % of Rd +3 digits)

Direct current DC
Measuring range	0 ... 9999 µA
Resolution	1 µA
Accuracy	±(0.8 % of Rd +3 digits)

Direct current DC
Measuring range	10 ... 99,99 mA
Resolution	0,01 mA
Accuracy	±(0.8 % of Rd +3 digits)

Direct current DC
Measuring range	100 ... 999,9 mA
Resolution	0,1 mA
Accuracy	±(1% of Rd +3 digits)

Direct current DC
Measuring range	1 ... 9,999 A
Resolution	0,001 A
Accuracy	±(1% of Rd +3 digits)

Capacity
Measuring range	0 ... 9,999 nF
Resolution	0,001 nF
Accuracy	±(5.0 % of Rd +20 digits)

Capacity
Measuring range	10 ... 99,99 nF
Resolution	0,01 nF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measuring range	100 ... 999,9 nF
Resolution	0,1 nF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measuring range	1 ... 9,999 µF
Resolution	0,001 µF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measuring range	10 ... 99,99 µF
Resolution	0,01 µF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measuring range	100 ... 999,9 µF
Resolution	0,1 µF
Accuracy	±(2.0 % of Rd +5 digits)

Capacity
Measuring range	1 ... 9,999 mF
Resolution	0,001 mF
Accuracy	±(5.0 % of Rd +5 digits)

AC voltage
Measuring range	0 ... 9,999 mV
Resolution	0,001 mV
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measuring range	10 ... 99,99 mV
Resolution	0,01 mV
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measuring range	100 ... 999,9 mV
Resolution	0,1 mV
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measuring range	1 ... 9,999 V
Resolution	0,001 V
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measuring range	10 ... 99,99 V
Resolution	0,01 V
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

AC voltage
Measuring range	100 ... 750 V
Resolution	0,1 V
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 9999 µA
Resolution	1 µA
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	10 ... 99,99 mA
Resolution	0,01 mA
Accuracy	±(1% of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	100 ... 999,9 mA
Resolution	0,1 mA
Accuracy	±(1.2 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	1 ... 9,999 A
Resolution	0,001 A
Accuracy	±(1.2 % of Rd +3 digits)
Frequency range	40 ... 1000 Hz

Resistance
Measuring range	0 ... 99,99 Ω
Resolution	0,01 Ω
Accuracy	±(1% of Rd +3 digits)

Resistance
Measuring range	100 ... 999,9 Ω
Resolution	0,1 Ω
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measuring range	1 ... 9,999 kΩ
Resolution	0,001 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measuring range	10 ... 99,99 kΩ
Resolution	0,01 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measuring range	100 ... 999,9 kΩ
Resolution	0,1 kΩ
Accuracy	±(0.5 % of Rd +3 digits)

Resistance
Measuring range	1 ... 9,999 M Ω
Resolution	0,001 M Ω
Accuracy	±(1.5 % of Rd +3 digits)

Resistance
Measuring range	10 ... 99,99 M Ω
Resolution	0,01 M Ω
Accuracy	±(3.0 % of Rd +5 digits)

Duty cycle
Measuring range	1 ... 99 %
Resolution	0,1 %
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measuring range	0 ... 99,99 Hz
Resolution	0,01 Hz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measuring range	100 ... 999,9 Hz
Resolution	0,1 Hz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measuring range	1 ... 9,999 kHz
Resolution	0,001 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measuring range	10 ... 99,99 kHz
Resolution	0,01 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measuring range	100 ... 999,9 kHz
Resolution	0,1 kHz
Accuracy	±(0.1 % of Rd +2 digits)

Frequency
Measuring range	1 ... 5 MHz
Resolution	0,001 MHz
Accuracy	±(0.1 % of Rd +2 digits)

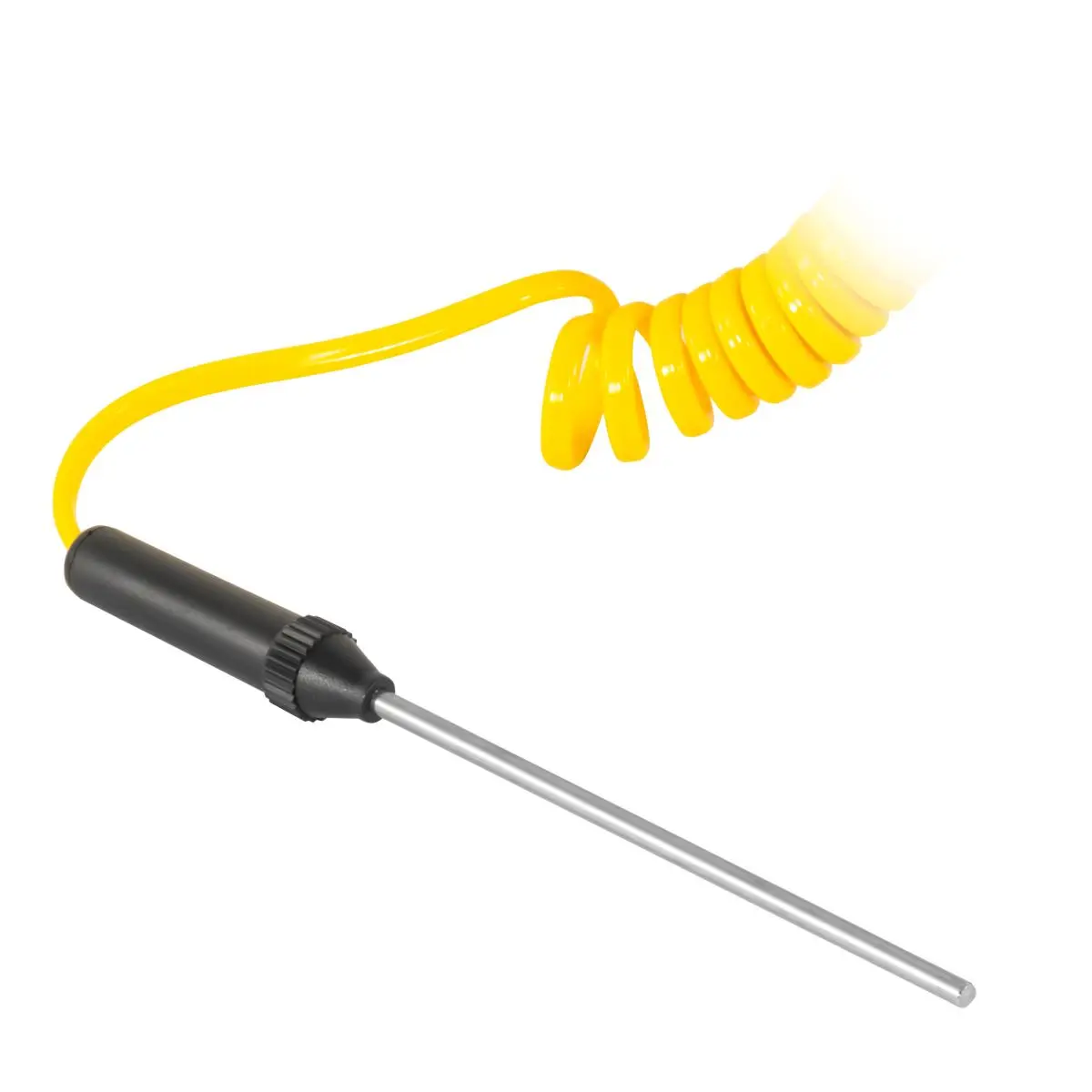

Temperature
Measuring range	-20 ... +1000 °C
Resolution	1 °C
Accuracy	±(2.5 % of Rd +5 digits)

Temperature
Measuring range	-4 ... +1832 °F
Resolution	1 °F
Accuracy	±(2.5 % of Rd +5 digits)

General technical data
Measuring functions	HOLD
Display type	LCD with backlight
Display size	2,8 Inch
Measuring rate	3 x per second
Automatic power-off	5 min
Safety standard	CAT II 1000V, CAT III 600V
Measuring range selection	Automatic, Manual
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	2 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	0 ... 40 °C , 0 ... 75 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	140 x 70 x 35 mm
Weight	175 g
