Dew Point Thermometer / Dewpoint Meter PCE-THD 50-ICA

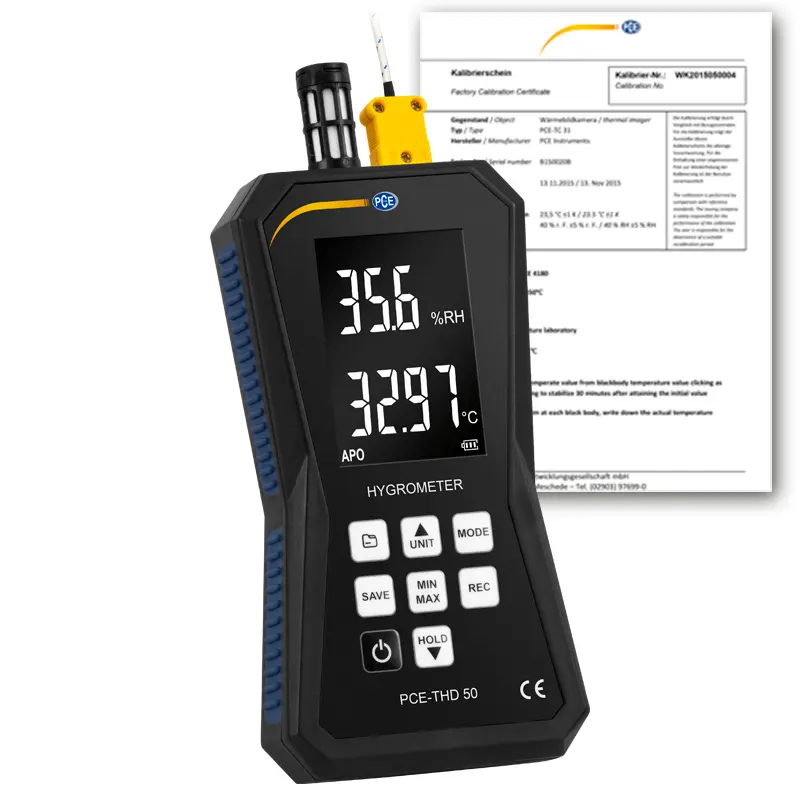

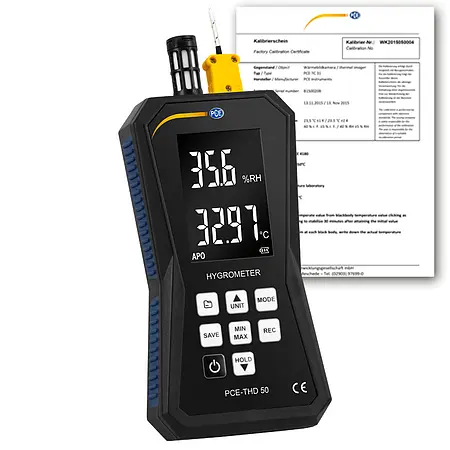

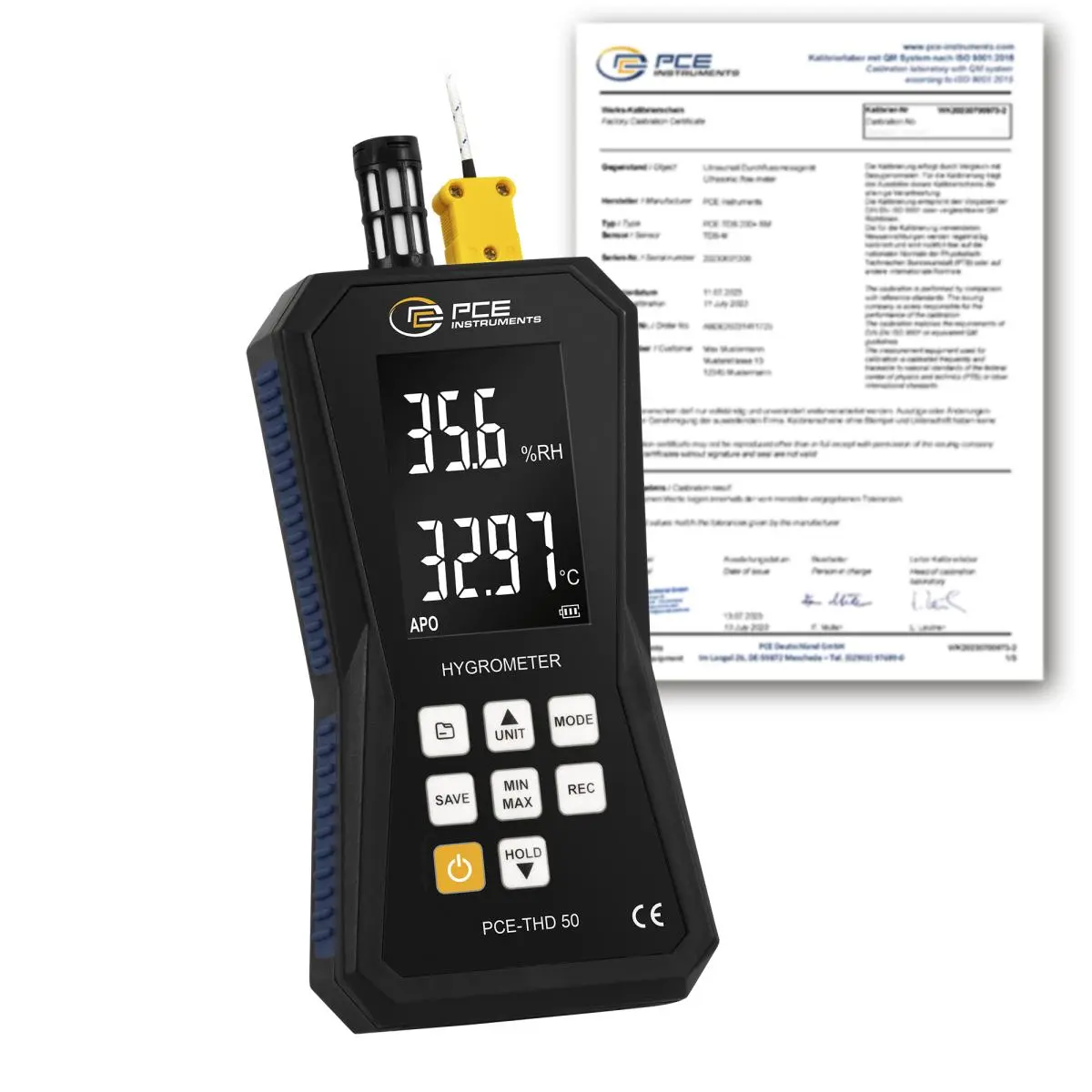

Dew Point Thermometer PCE-THD 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-THD 50-ICA
GTIN (EAN): 4250348729583
AED 1,343.00
AED 1,410.15
price ex. (customs / clearance)
:
4250348729583
PCE-THD 50-ICA
Delivery time:5-7 working days

Description

Dew point thermometer with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate


The dew point thermometer is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The dew point thermometer can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the dew point thermometer. In addition, the dew point and wet bulb temperature is calculated and displayed by the dew point thermometer. In addition, any type K thermocouple can be connected to the dew point thermometer in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the dew point thermometer to the thermocouple.

Measured values ​​can be recorded with the data logger function of the dew point thermometer. The large memory of 32,000 measuring points in the dew point thermometer allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the dew point thermometer and the free software. The data logged by the dew point thermometer can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the dew point thermometer to enable mobile use. This battery can be recharged via the micro-USB interface on the dew point thermometer.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate
- incl. ISO-Calibration Certificate

Specification

Wet bulb temperature
Measuring range  -20 ... +60 °C
Resolution  0,1 °C
Accuracy  ±0.5°C @ 0 … 45°C / ±1.0°C in other ranges

Wet bulb temperature
Measuring range  -4 ... +140 °F
Resolution  0,018 °F
Accuracy  ±1.0°F @ 32 … 113°F, ±2.0°F in other ranges

Temperature K-type
Measuring range  -100 ... +1372 °C
Resolution  0,01 °C
Accuracy  ±(1% ±1°C / ±1.8°F)

Temperature K-type
Measuring range  -148 ... +2501 °F
Resolution  0,018 °F
Accuracy  ±(1% ±1.8°F)

Dew point
Measuring range  -50 ... +60 °C
Resolution  0,1 °C
Accuracy  ±(1% ±1°C / 1.8°F)

Dew point
Measuring range  58 ... 140 °F
Resolution  0,18 °F
Accuracy  1.8°F

Relative humidity
Measuring range  0 ... 100 %
Resolution  0,1 %
Accuracy  ±2.2 per cent relative humidity (10 to 90 per cent relative humidity) / ±3.2 per cent relative humidity (<10, >90 per cent relative humidity) @ 23°C (73.4 °F)

Temperature
Measuring range  -20 ... +60 °C
Resolution  0,01 °C
Accuracy  ±0.5°C @ 0 … 45°C / ±1.0°C in other ranges

Temperature
Measuring range  -4 ... +140 °F
Resolution  0,018 °F
Accuracy  ±1.0°F @ 32 … 113°F / ±2.0°F in other ranges

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD with backlight
Measuring rate  3 Hz
Storage medium  Internal memory
Storage capacity  32000 Measurements
Memory capacity (additional information)  99 measurement points can only be read on the measuring device, 32,000 measurement points can be read on a PC
Interface  Micro-USB
Response time  10 s
Automatic power-off  10 min
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  2500 mAh
Operating conditions  0 ... 40 °C , 0 ... 80 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  162 x 88 x 32 mm
Weight  248 g

Delivery Scope

1 x Dew Point Thermometer / Dewpoint Meter PCE-THD 50-ICA
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
1 x ISO-Calibration Certificate
