Data Logger with USB Interface PCE-323-ICA

Data Logger with USB Interface PCE-323-ICA [zoom]

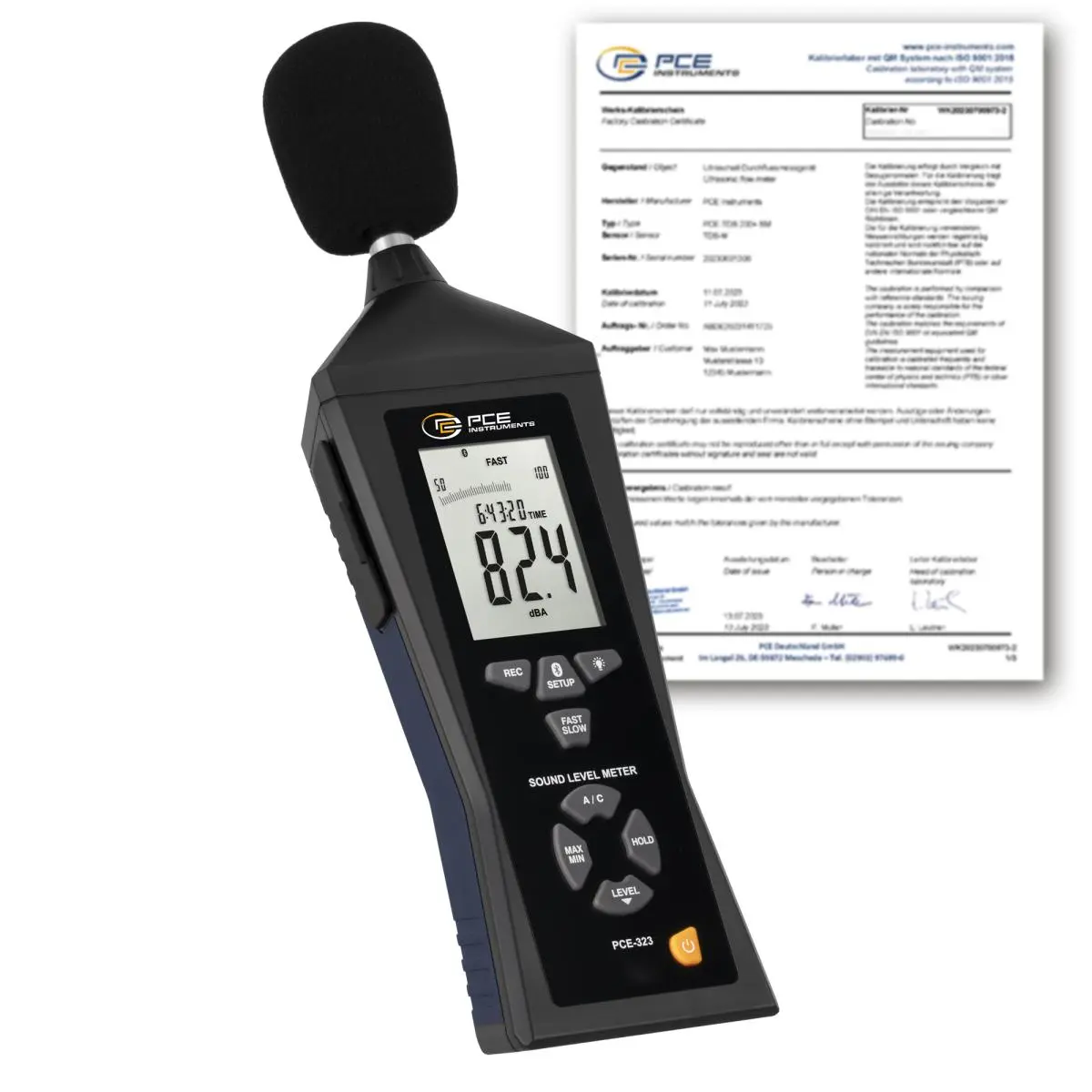

Data Logger with USB Interface PCE-323-ICA

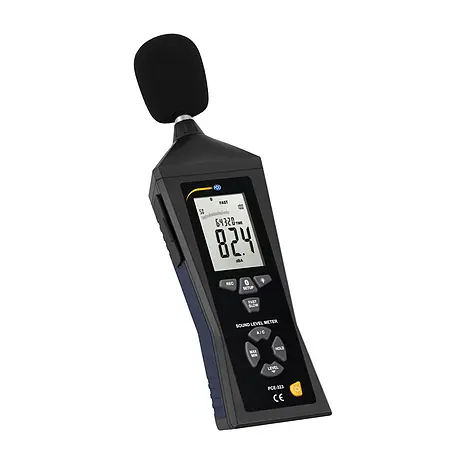

Data Logger with USB Interface Display

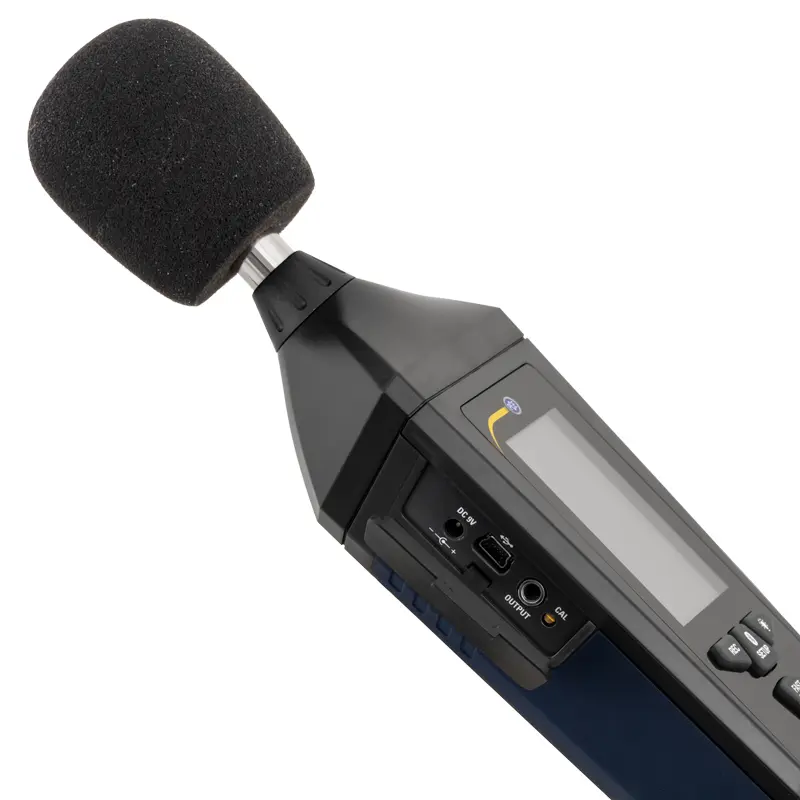

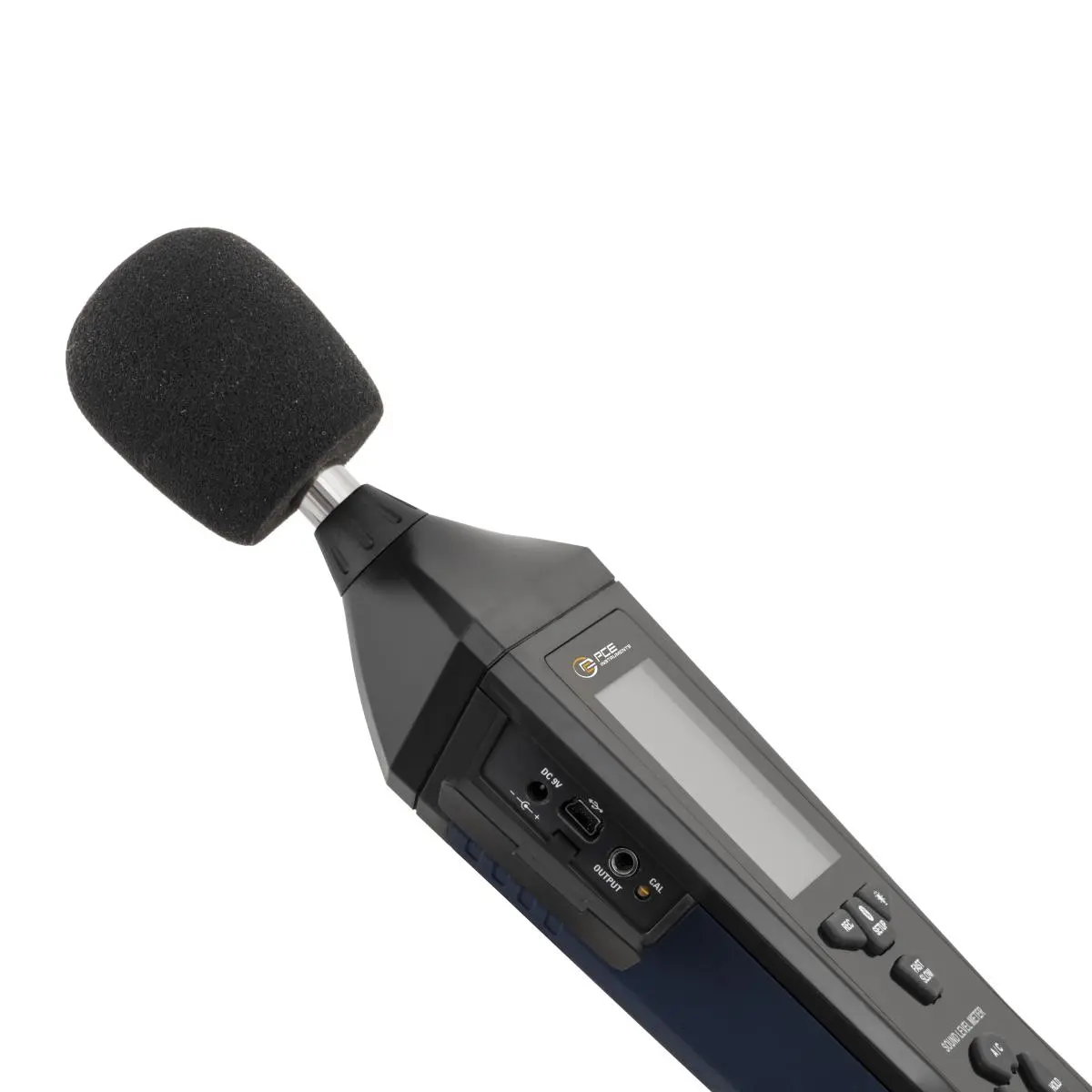

Data Logger with USB Interface Connections

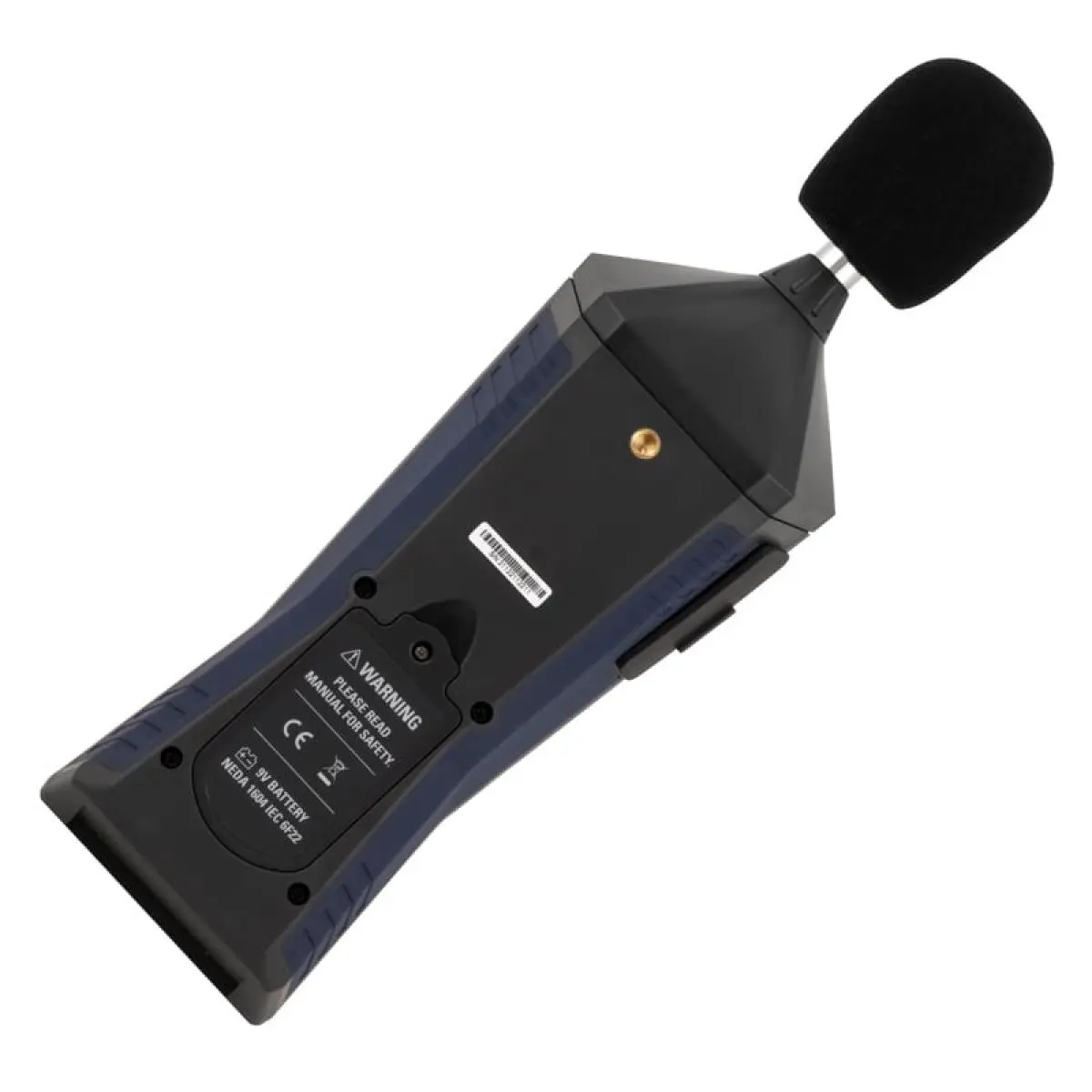

Data Logger with USB Interface Rear side

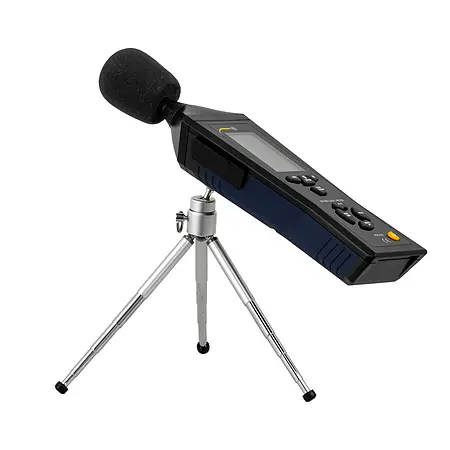

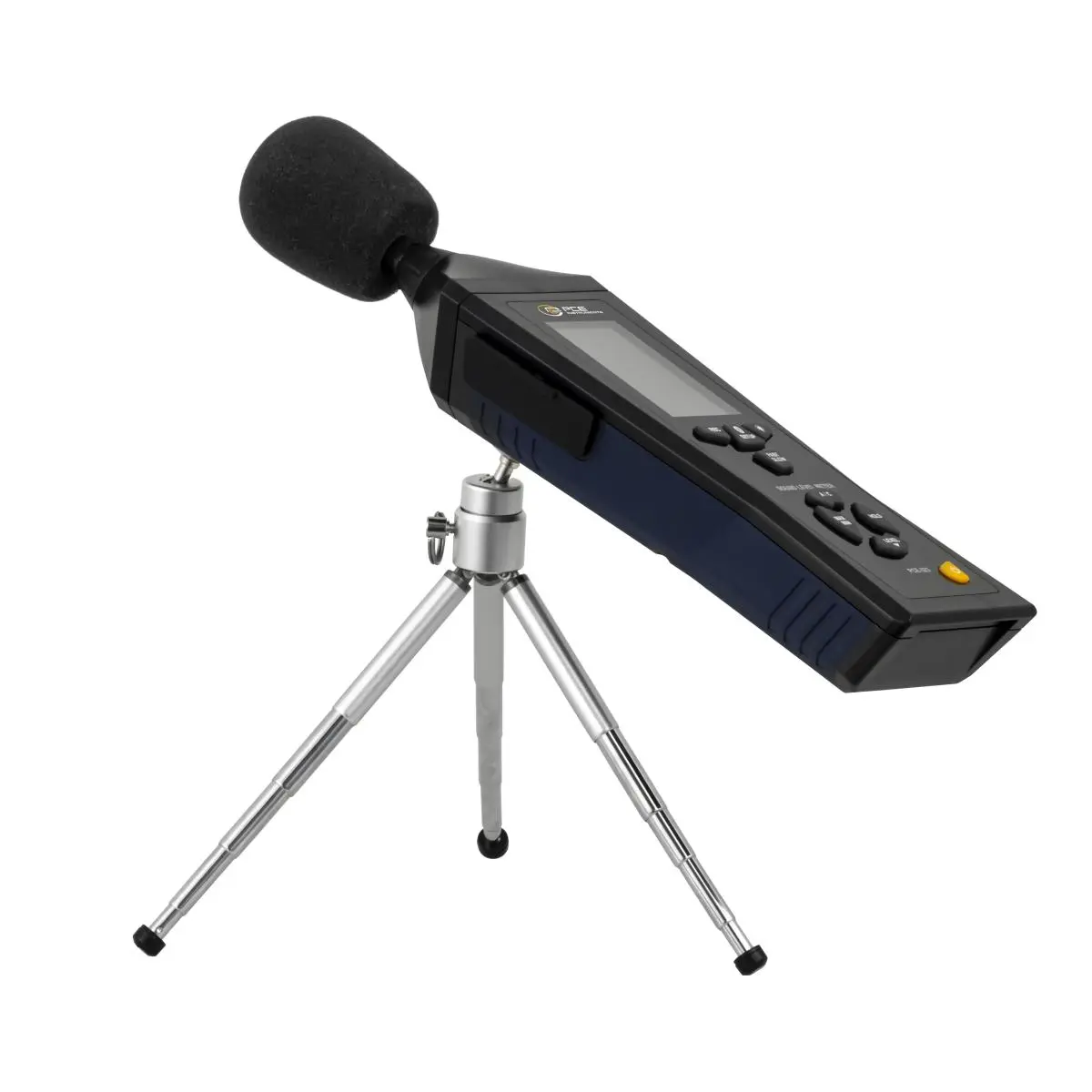

Data Logger with USB Interface Tripod

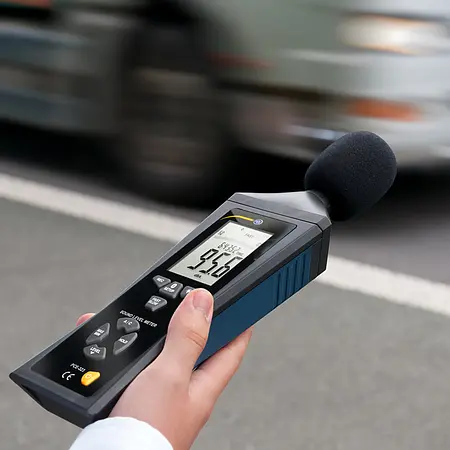

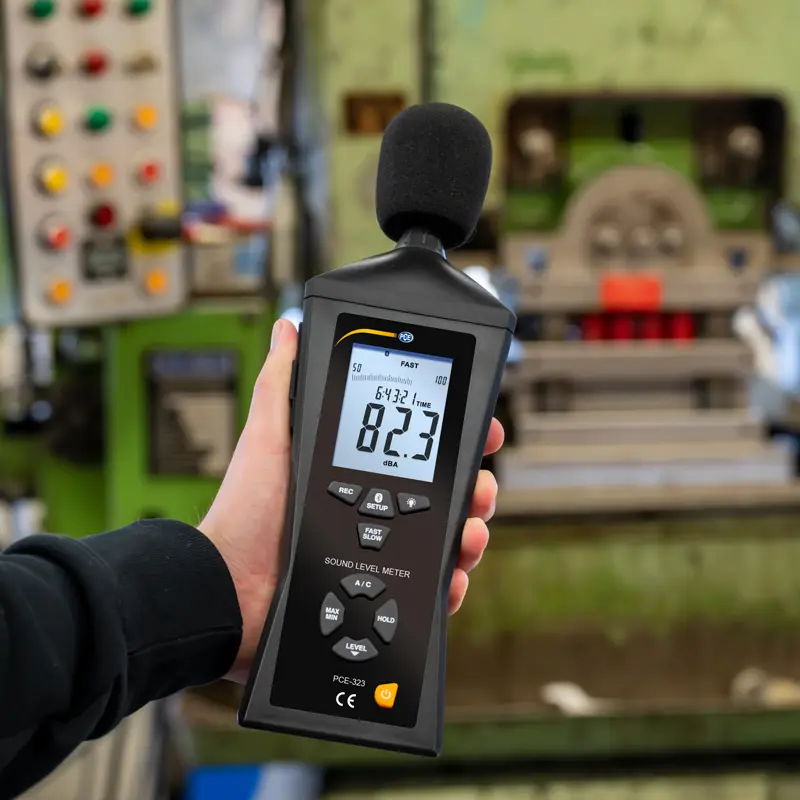

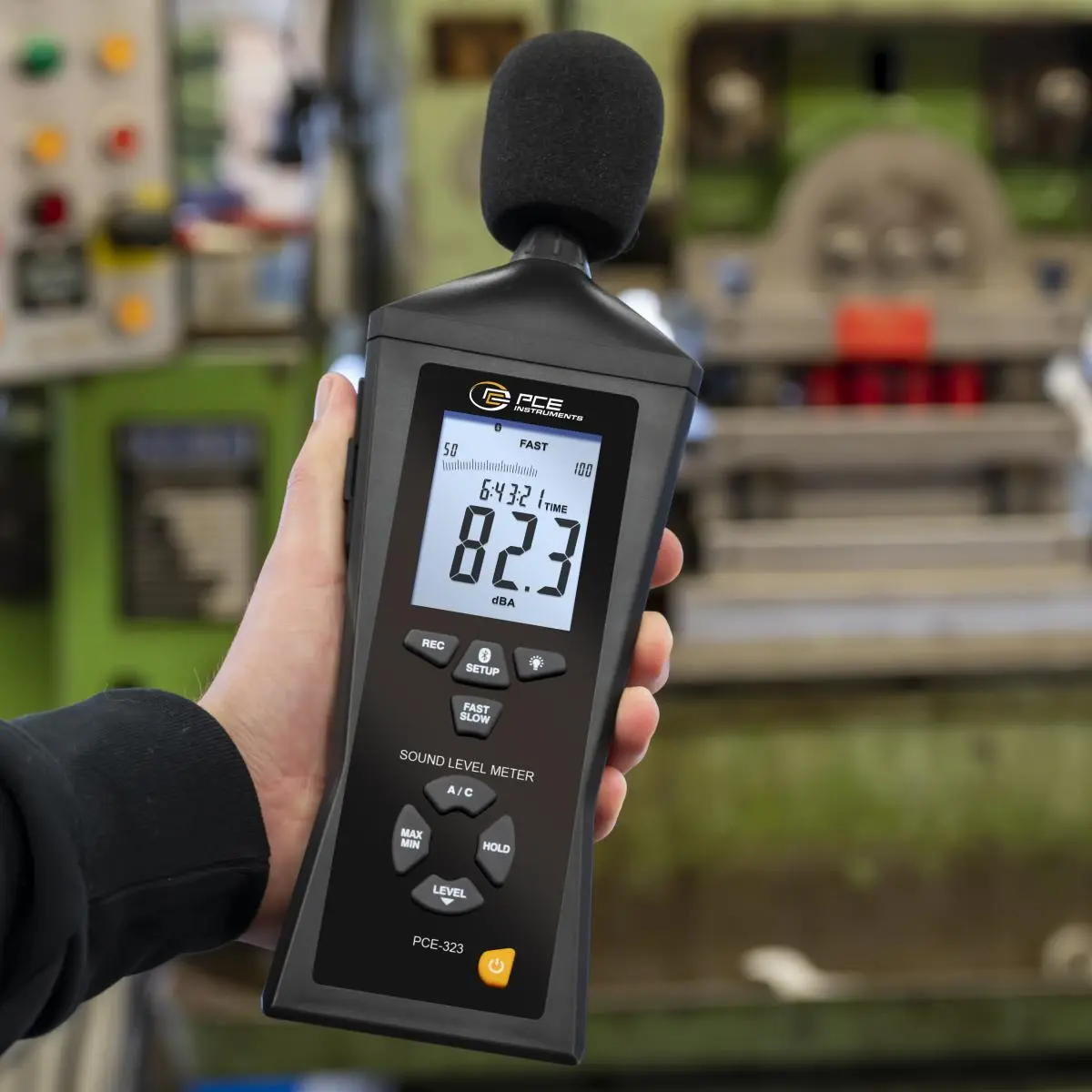

Data Logger with USB Interface Application picture

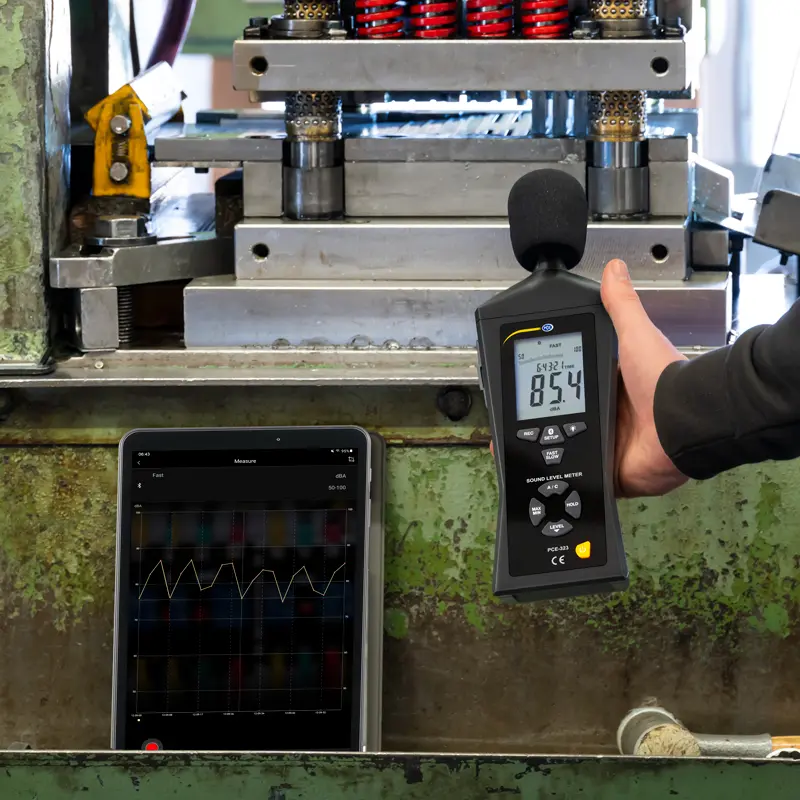

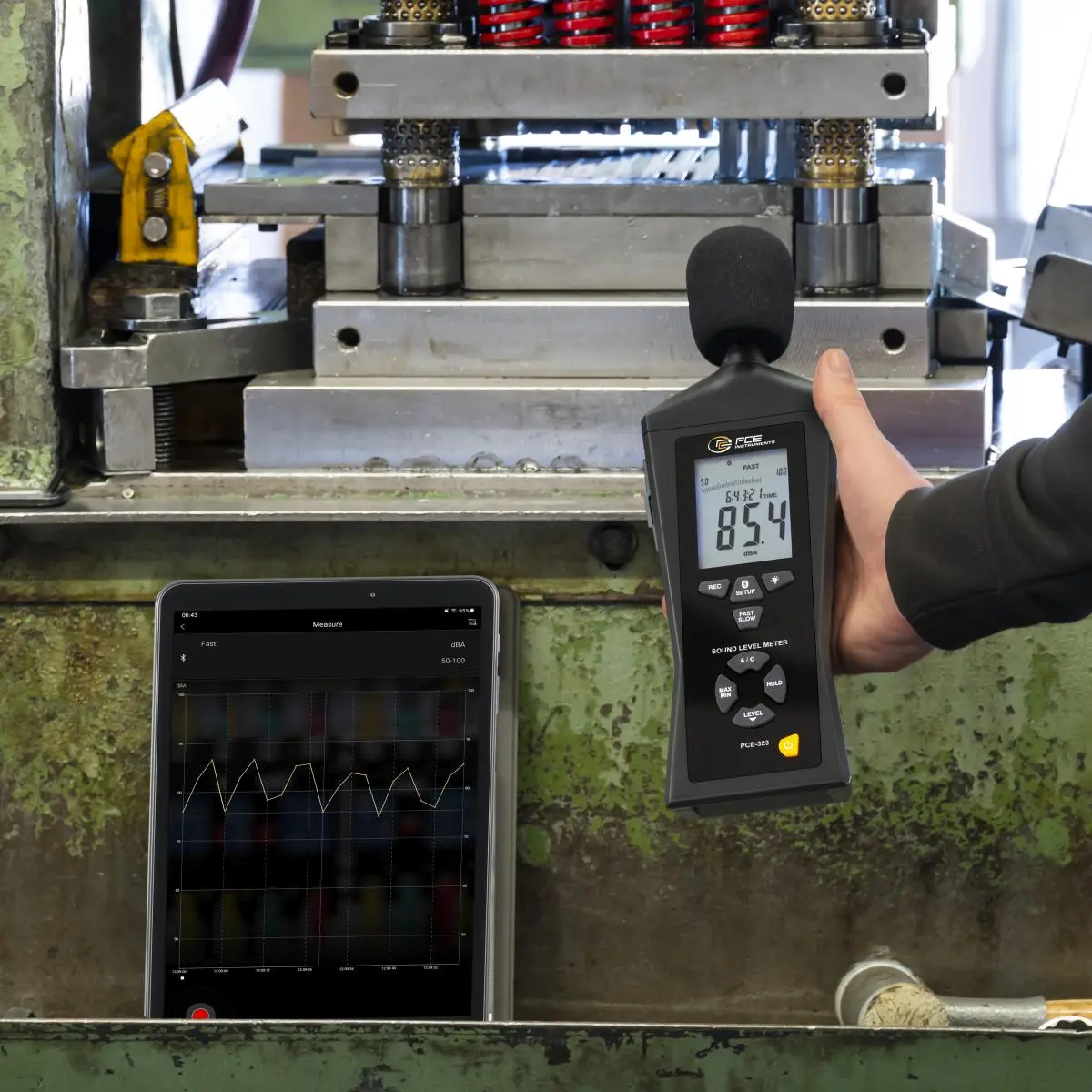

Data Logger with USB Interface Application picture

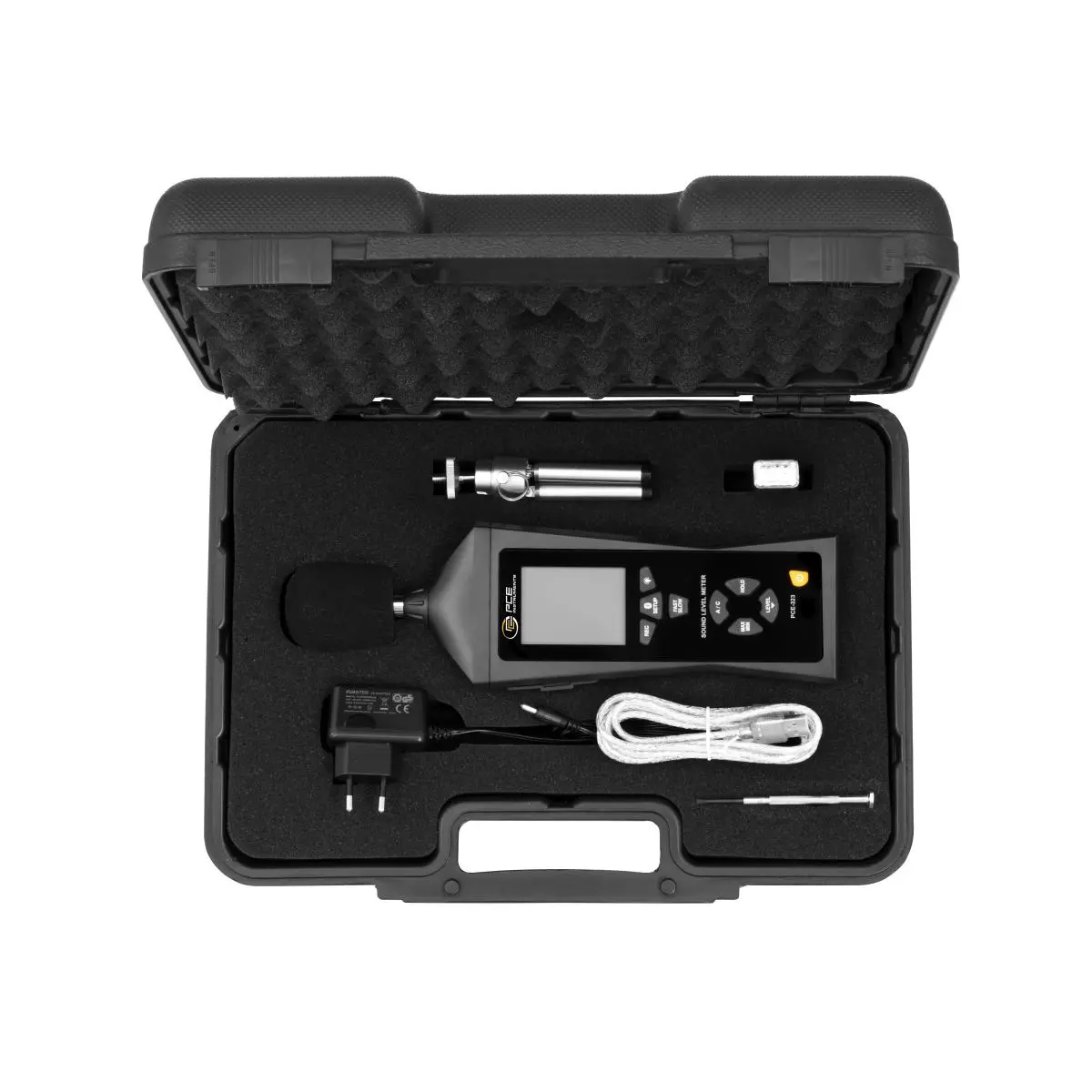

Data Logger with USB Interface Delivery scope

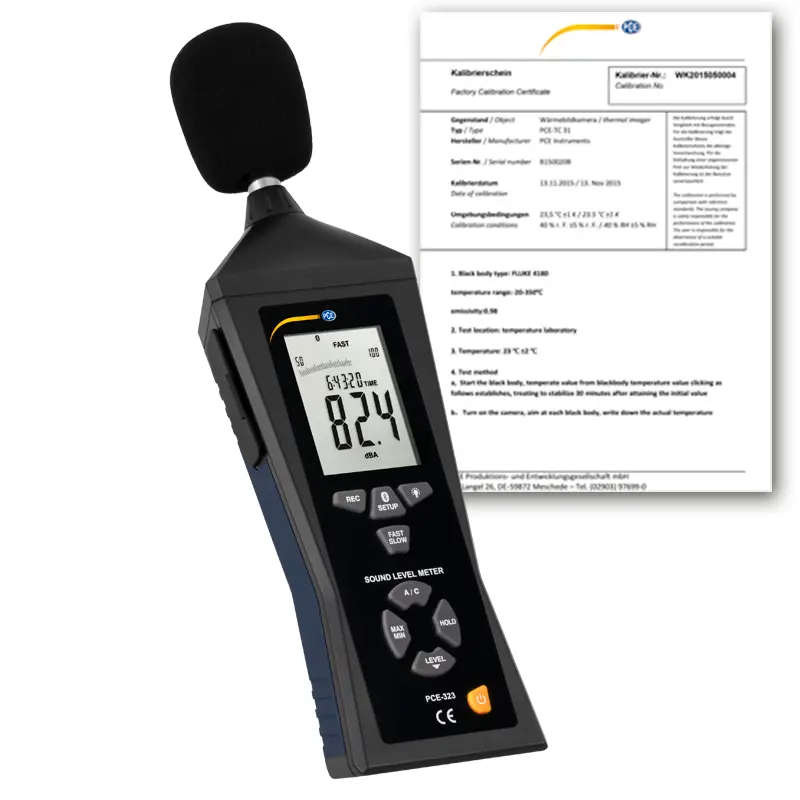

Data Logger with USB Interface PCE-323-ICA incl. ISO Calibration Certificate

Order no.: PCE-323-ICA
GTIN (EAN): 4250348729842
AED 1,688.00
AED 1,772.40
price ex. (customs / clearance)
:
4250348729842
PCE-323-ICA
Delivery time:5-7 working days
A / C
Fast / Slow
No

Accessory

Description

Bluetooth data logger with USB interface for Android and iOS / Accuracy class 2 / Live view / Battery and power adapter / PC connection with software / Frequency weighting A and C / Tripod mount / Measuring range 30 ... 130 dB / Incl. ISO calibration certificate

The data logger with USB interface has a measuring range of 30 … 130 dB and can be used where sources of noise are to be recorded. For example, the sound level meter is used to control the noise level on stamping presses, ventilation systems or on busy roads. With the push of a button, you can switch between the frequency ratings A and C on the Bluetooth sound level meter. With the data logger function of the sound level meter, up to 32700 readings can be recorded. For optimal positioning of the microphone, the sound level meter can also be mounted on a tripod.

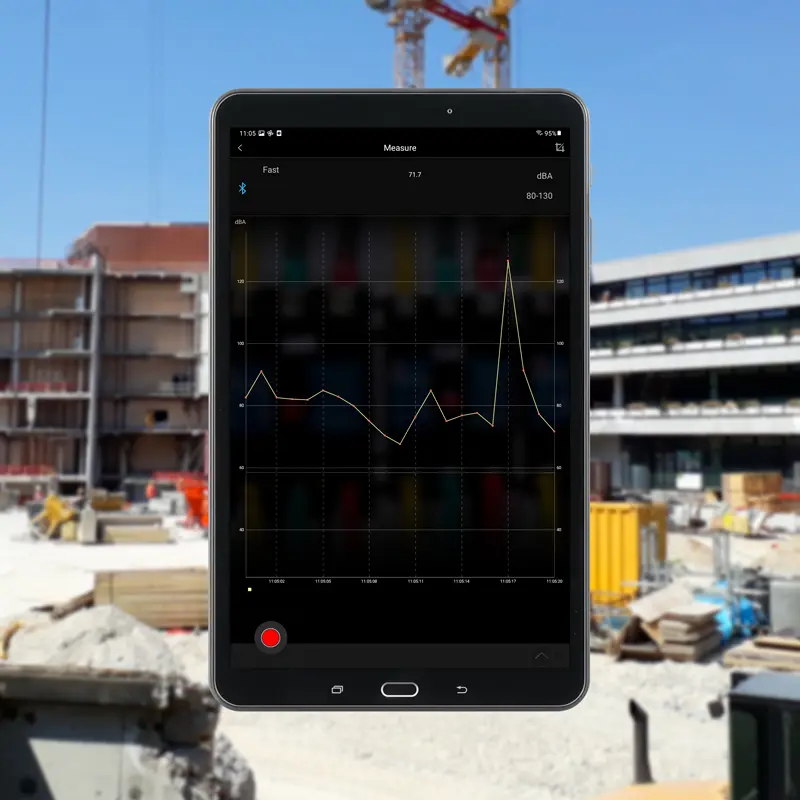

With the Bluetooth interface, the data logger with USB interface can be set up with an Android or iOS device. The measured values ​​from the Bluetooth sound level meter live can be transmitted and saved via the free app. The values ​​measured by the sound level meter can then be exported in CSV file format for further processing.

In addition to the Bluetooth interface, the data logger with USB interface also has a mini USB interface. This allows the Bluetooth sound level meter to be connected to a computer. With the software for the Bluetooth sound level meter, the measured values ​​can then be transmitted live to the PC and, if necessary, exported as a CSV for further processing.

With the included 12V DC power supply, the Bluetooth data logger with USB interface can be used stationary. For mobile use, the Bluetooth sound level meter can be operated with a 9V block battery. The transport case enables safe transport for the Bluetooth sound level meter for mobile use. The Bluetooth sound level meter is equipped with an ISO calibration certificate.

Highlights

- Accuracy class 2
- Measuring range 30 ... 130 dB
- Different noise level ranges
- Bluetooth interface with free app
- Battery and power adapter
- Frequency weighting A and C
- incl. ISO-Calibration Certificate

Specification

Sound level
Measuring range  30 ... 80 dB
Resolution  0,1 dB
Accuracy  ±1.4 dB (under reference conditions @ 94 dB, 1 kHz)

Sound level
Measuring range  50 ... 100 dB
Resolution  0,1 dB
Accuracy  ±1.4 dB (under reference conditions @ 94 dB, 1 kHz)

Sound level
Measuring range  80 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.4 dB (under reference conditions @ 94 dB, 1 kHz)

General technical data
Analogue output  AC/DC, Headphones
Measuring functions  MIN, MAX, HOLD
Connections  1/2 inch microphone
Time weighting  fast (125 ms), slow (1 s)
Frequency weighting  A, C
Frequency  31.5 ... 8000 Hz
Display type  LCD with backlight
Display refresh rate  2 x per second
Storage capacity  32700 Values
Storage interval from  1 s
Storage interval to  59 s
Microphone type  Electret capacitor
Interface  Mini-USB, Bluetooth
Standard(s)  IEC 61672-1 (Class II)
Operating time  30 h
Automatic power-off  15 min
Operating height  2000 m max. above sea level
Tripod thread  3/8 inch
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  Primary: 100 ... 240 V AC | 50/60 Hz
Secondary: 9 V DC / 0.5 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 9 V 9V block , Zinc carbon
Capacity  400 mAh
Operating conditions  0 ... 40 °C , 10 ... 90 % RH
Storage conditions  -10 ... 60 °C , 10 ... 75 % RH
Dimensions ( L x W x H )  282 x 94 x 50 mm
Weight  335 g

Delivery Scope

1 x Bluetooth noise meter PCE-323-ICA
1 x Mini Tripod
1 x Screwdriver
1 x Software CD
1 x carrying case
1 x 9V block battery
1 x Instruction Manual
N.B. the free Apps are available at:
https://play.google.com/store/apps/details?id=com.cem.supermeterbox
https://apps.apple.com/de/app/meterbox-pro/id1231364276
1 x ISO-Calibration Certificate
