Data Logger / Data Logging Instrument PCE-FWS 20N

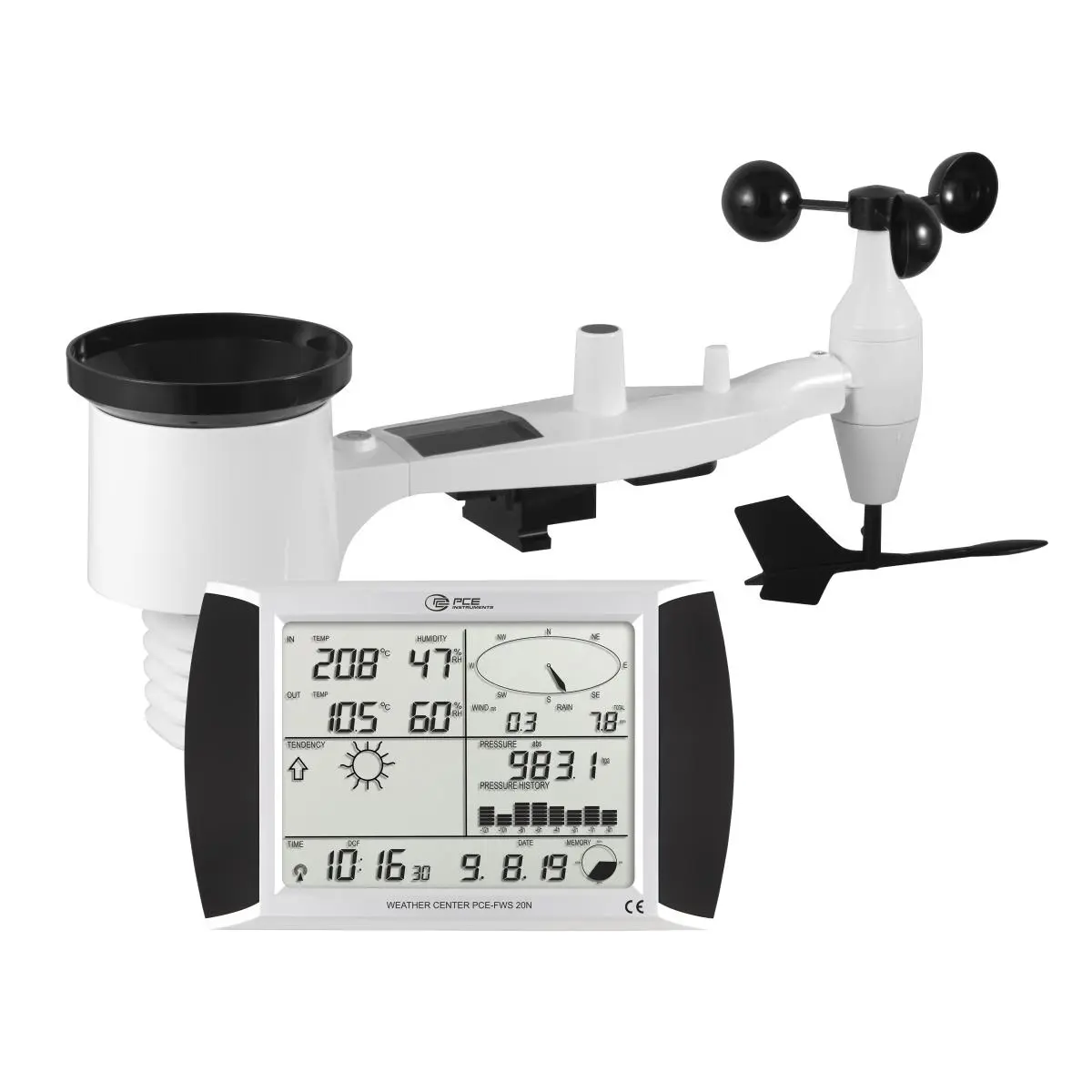

Weather Data Logger PCE-FWS 20N

Order no.: PCE-FWS 20N
GTIN (EAN): 4250348719676

AED 736.00
AED 772.80
price ex. (customs / clearance)
:
4250348719676
PCE-FWS 20N
Delivery time:1-2 working days
Universal

Description

Radio weather data logger to determine the wind direction, wind speed, temperature, relative humidity and rainfall / Adjustable alarm functions / USB interface / Analysis software / Solar module and batteries for powering the transmitter / Transmission frequency: 868 MHz

This wireless weather data logger is a true all-rounder that leaves little to be desired. Whether at home or in the office, the wireless weather station will delight the operator with its versatility. This weather station allows accurate recording of wind direction, wind force, temperature, relative humidity and rainfall. This is just a small selection of the possibilities this weather station offers. In addition, the operator has the possibility to activate various alarm functions on the wireless weather station (wind speed, air pressure, ...). With the help of the values displayed on the weather station, the user can, amongst other things, decide which clothes are appropriate, or whether the garden must be watered, and much more. The weather data is sent up to 100 meters by radio signal to the main station.

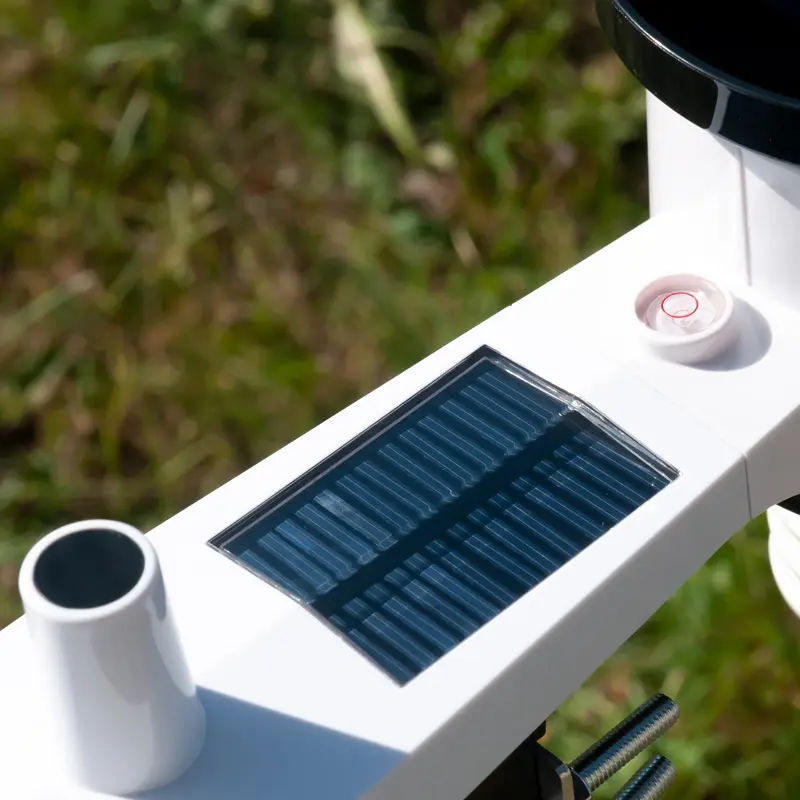

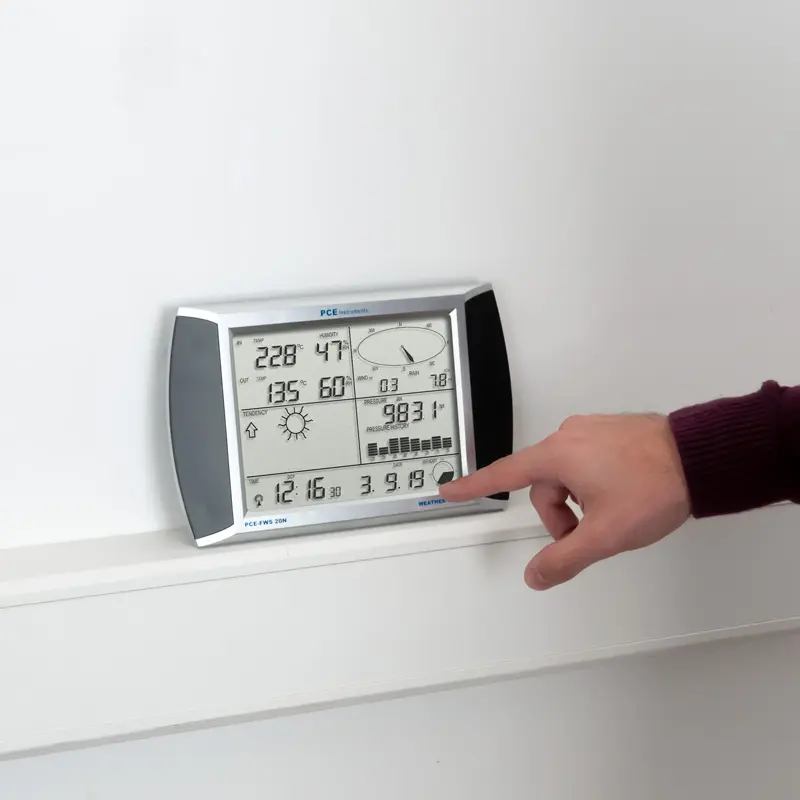

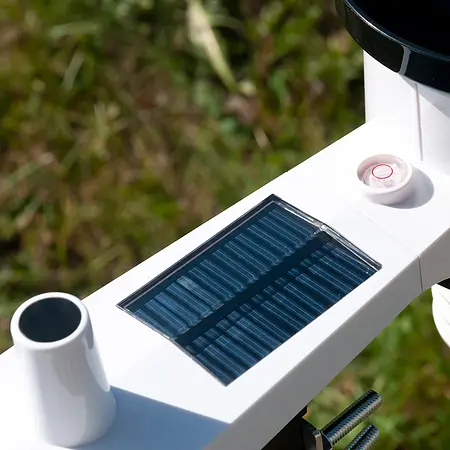

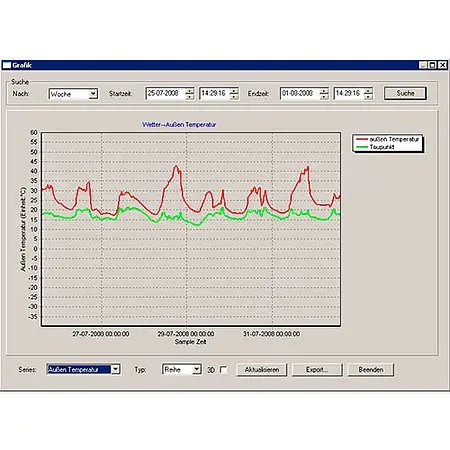

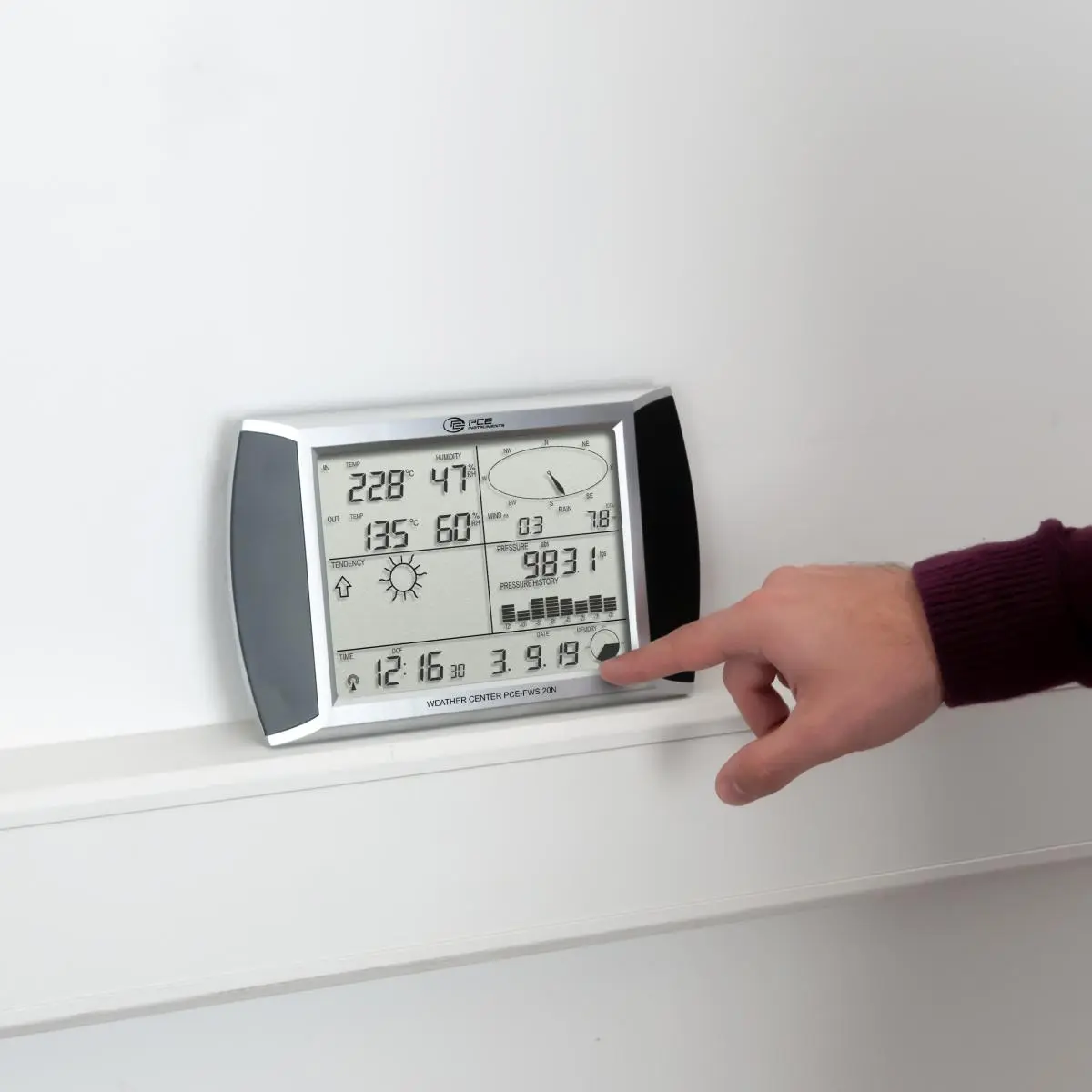

The wireless weather station is equipped with the latest technology in weather analysis. The transmitter is powered by a solar panel and the batteries. With the newly developed touch screen display, the weather data can be easily accessed directly from the wireless weather station by simply tapping on the display. With the USB interface and the included USB cable, the weather data can be transmitted directly from the wireless weather station to a PC or laptop. These data are all provided with a time / date stamp in order to be able to assign them even after a longer period of time. Here the weather data can be stored indefinitely. The supplied analysis software then allows you to observe and compare the weather over a longer period of time using graphs and graphics. Everything the user needs for commissioning and use of this wireless weather station is included in the delivery.

Highlights

- Software for analyzing the stored data

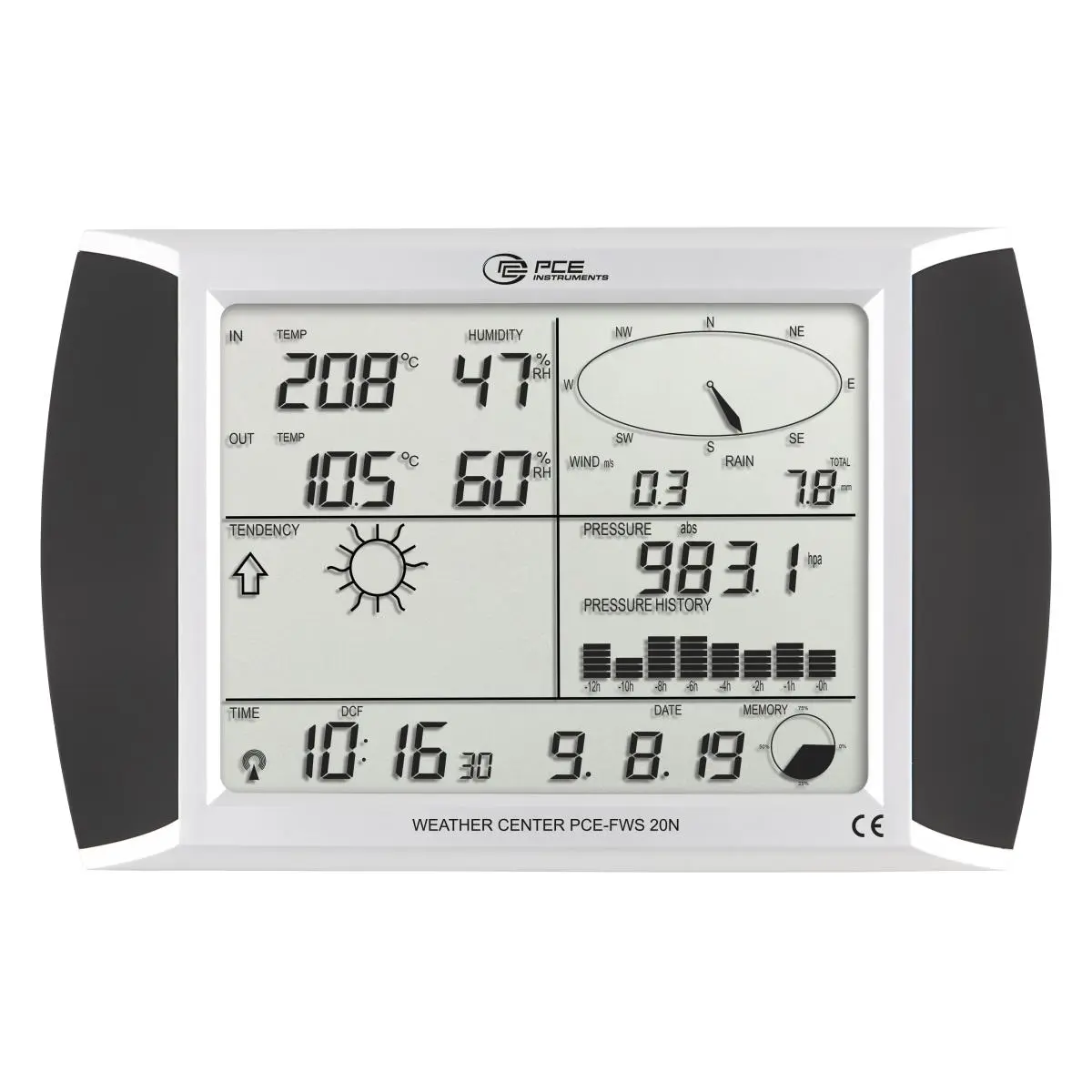

- Backlit 7 inch touch screen
- Weather forecast function
- Automatic time setting thanks to DCF
- Adjustable alarms when the measured value is exceeded
- Wind direction and wind speed
- Temperature and humidity display

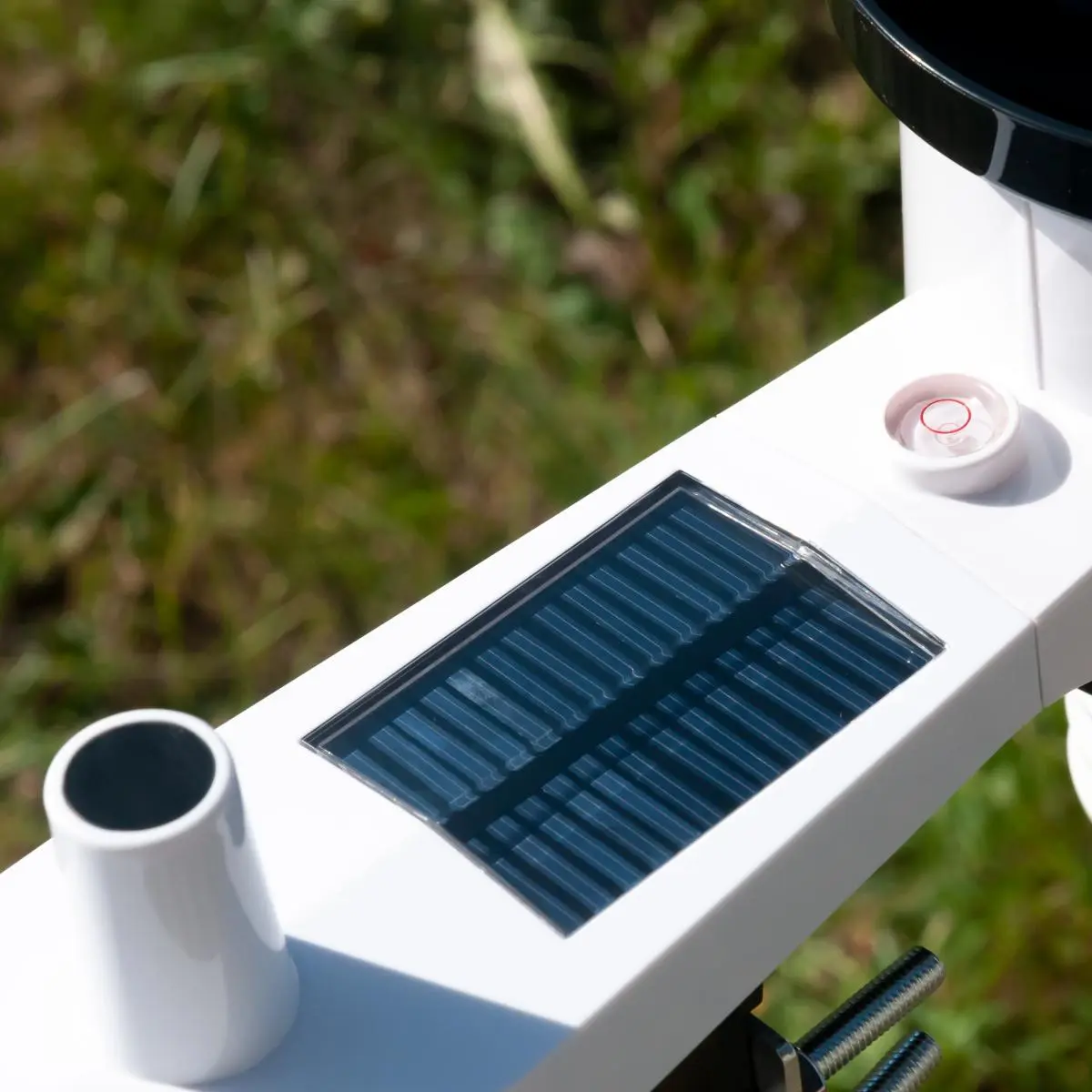

- Solar panel on the outdoor unit to the supply

Specification

Absolute pressure
Measuring range  300 ... 1100 hPa
Resolution  0,1 hPa
Accuracy  ±3 hPa

Speed
Measuring range  0 ... 5 m/s
Resolution  0.1 m/s
Accuracy  ±1 m/s

Speed
Measuring range  5,1 ... 50 m/s
Resolution  0.1 m/s
Accuracy  ±10 %

Air pressure
Measuring range  300 ... 1100 hPa
Resolution  0,1 hPa
Accuracy  ±3 hPa

Precipitation
Measuring range  0 ... 1000 mm
Resolution  0,3 mm
Accuracy  ±6%

Precipitation
Measuring range  1001 ... 9999 mm
Resolution  1 mm
Accuracy  ±6%

Relative humidity
Measuring range  1 ... 99 %
Resolution  1 %

Relative humidity sensor
Measuring range  20 ... 80
Resolution  1
Accuracy  ±4%

Relative humidity sensor
Measuring range  1 ... 99
Resolution  0,1
Accuracy  ±6 % beyond 20 ... 80%

Temperature
Measuring range  0 ... 50 °C
Resolution  0,1 °C

Temperature sensor
Measuring range  -40 ... +60 °C
Resolution  0,1 °C
Accuracy  ±1°C

General technical data
Measuring functions  ALARM
Frequency  868 ... 868 MHz
Display type  LCD
Display size  7 in
Display refresh rate  1 x per second
Measuring rate  48 s
Storage medium  Internal memory
Storage capacity  4080 Data records
Memory capacity (additional information)  Ring memory
Storage interval from  5 s
Storage interval to  240 min.

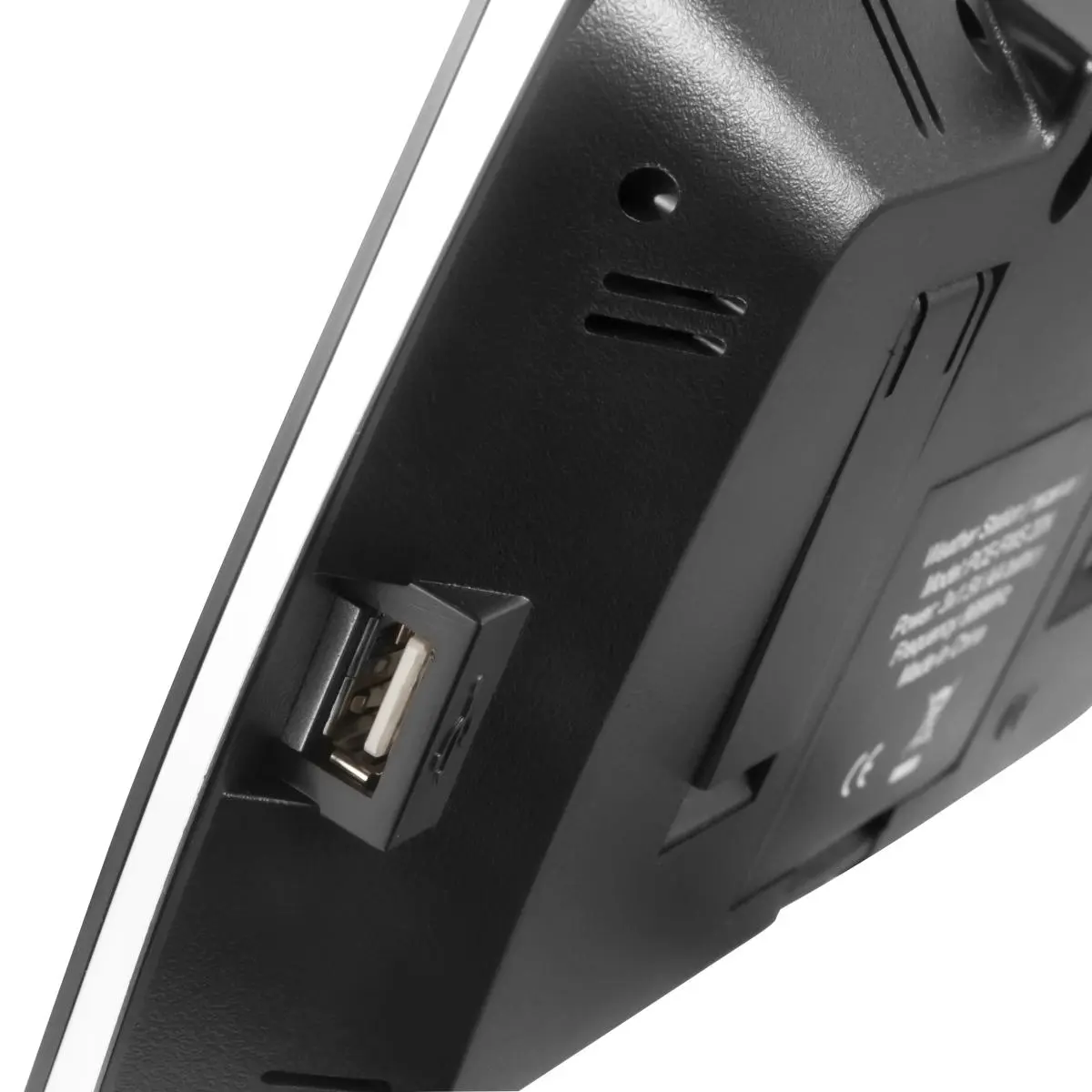

Interface  USB-A
Operating time  2 Year(s)
Operating time additional information  Display: min. 12 months
Outdoor unit: min. 24 months
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Dimensions  Display:
Length 230 mm
Width 150 mm
Height 35mm
Menu language  English, English (GB)
Protection class (device)  IP X3, IP44
(Rechargeable) battery  5 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  -40 ... 60 °C , 1 ... 99 % RH
Storage conditions  -40 ... 60 °C , 1 ... 99 % RH
Dimensions ( L x W x H )  410 x 120 x 200 mm
Weight  713 g

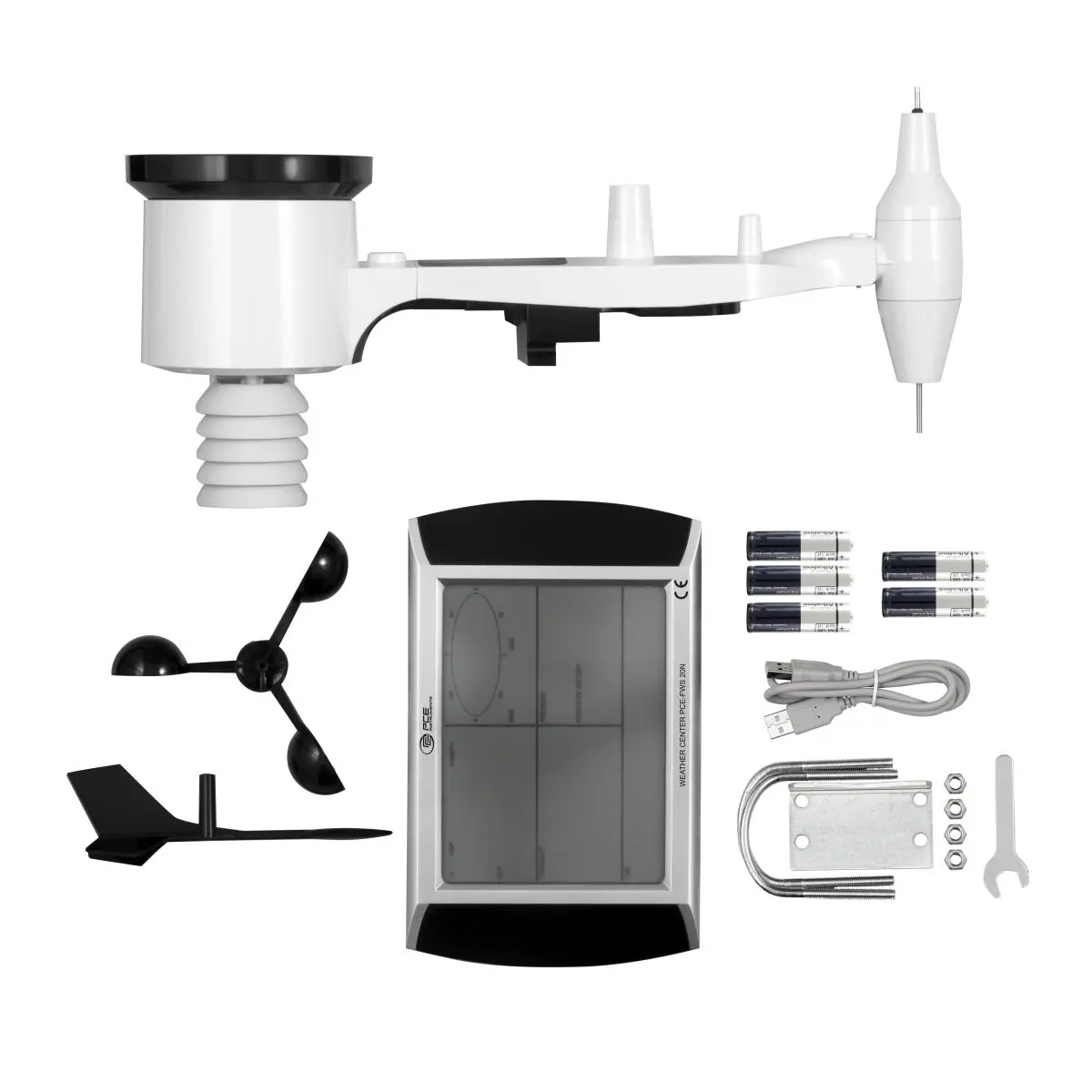

Delivery Scope

1 x Data Logger / Data Logging Instrument PCE-FWS 20N

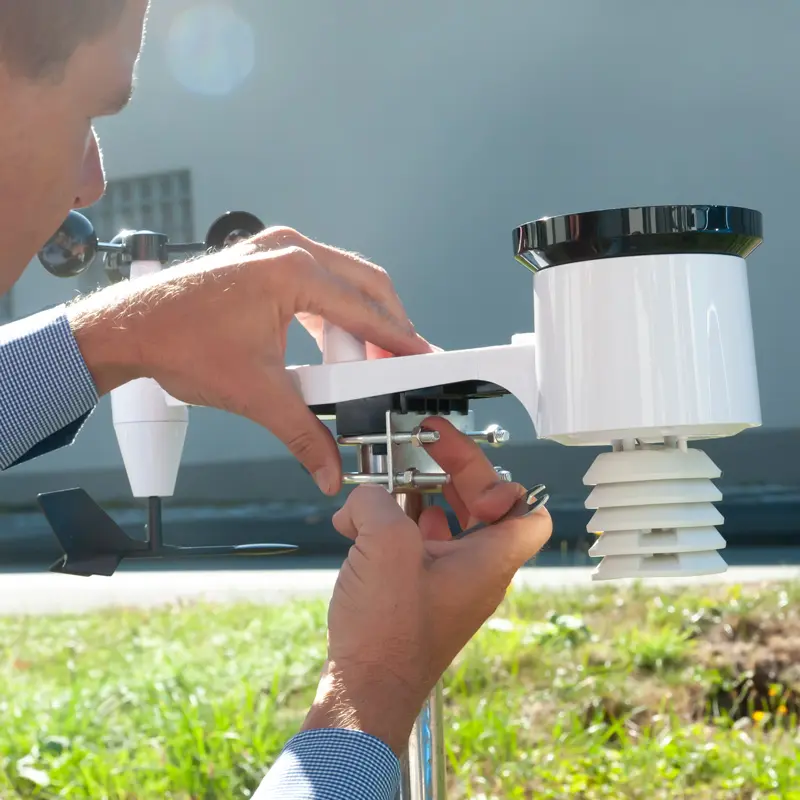

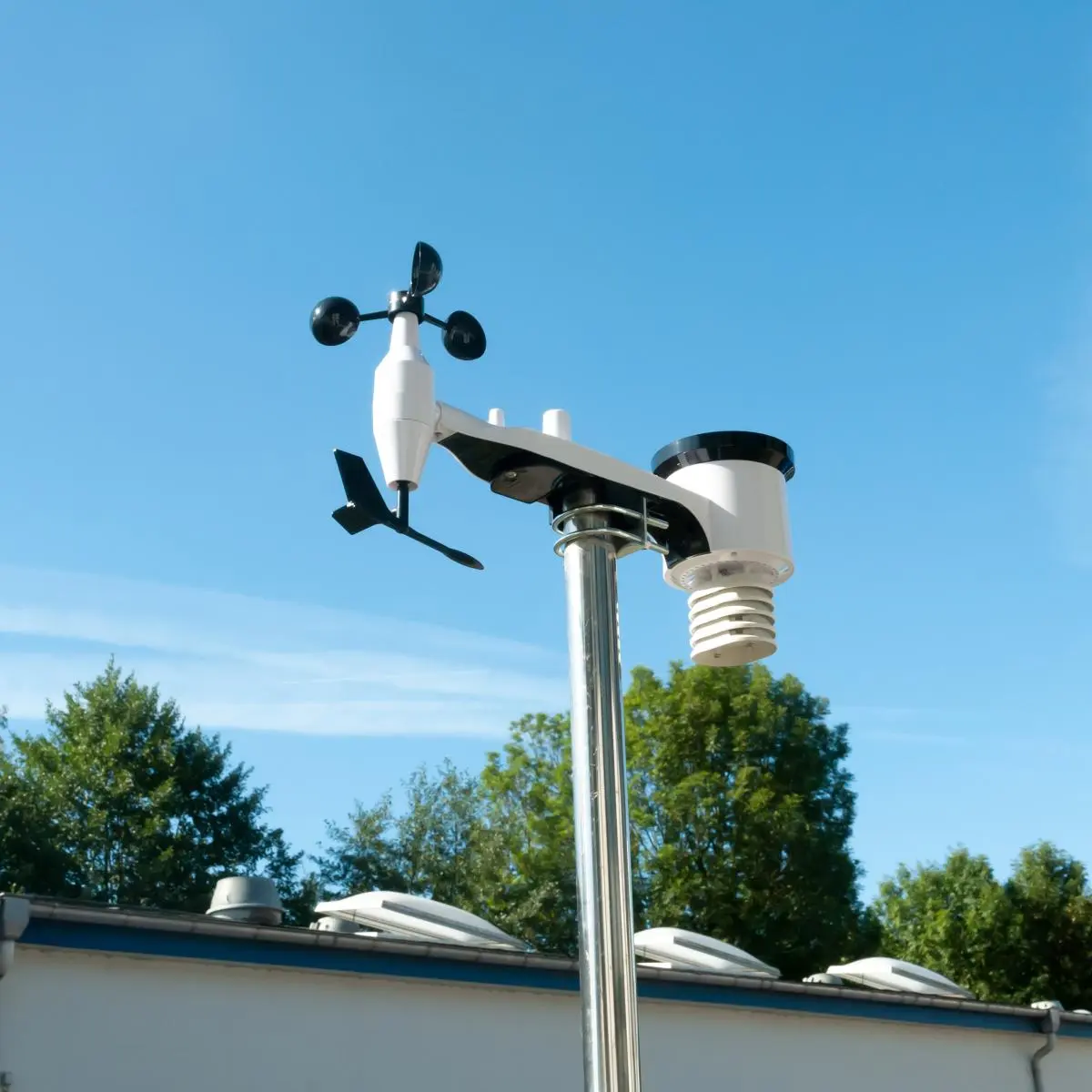

1 x Outdoor unit
1 x Mounting set
1 x Wind cup
1 x Wind vane
5 x 1.5 V AA batteries
1 x USB cable
1 x User manual
