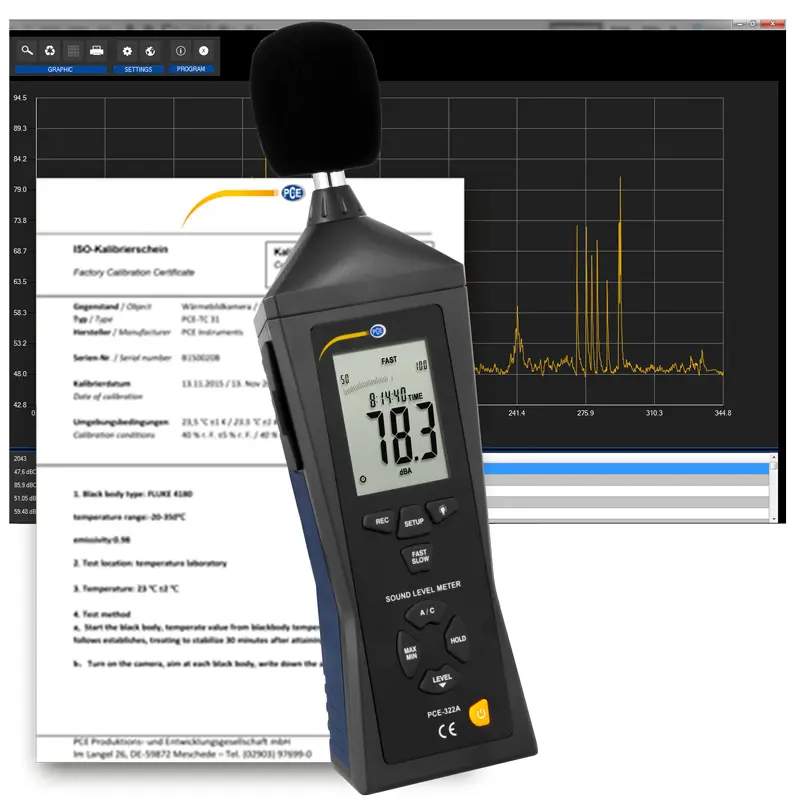

Data Logger / Data Logging Instrument PCE-322ALEQ-ICA

Data Logger / Data Logging Instrument PCE-322ALEQ-ICA [zoom]

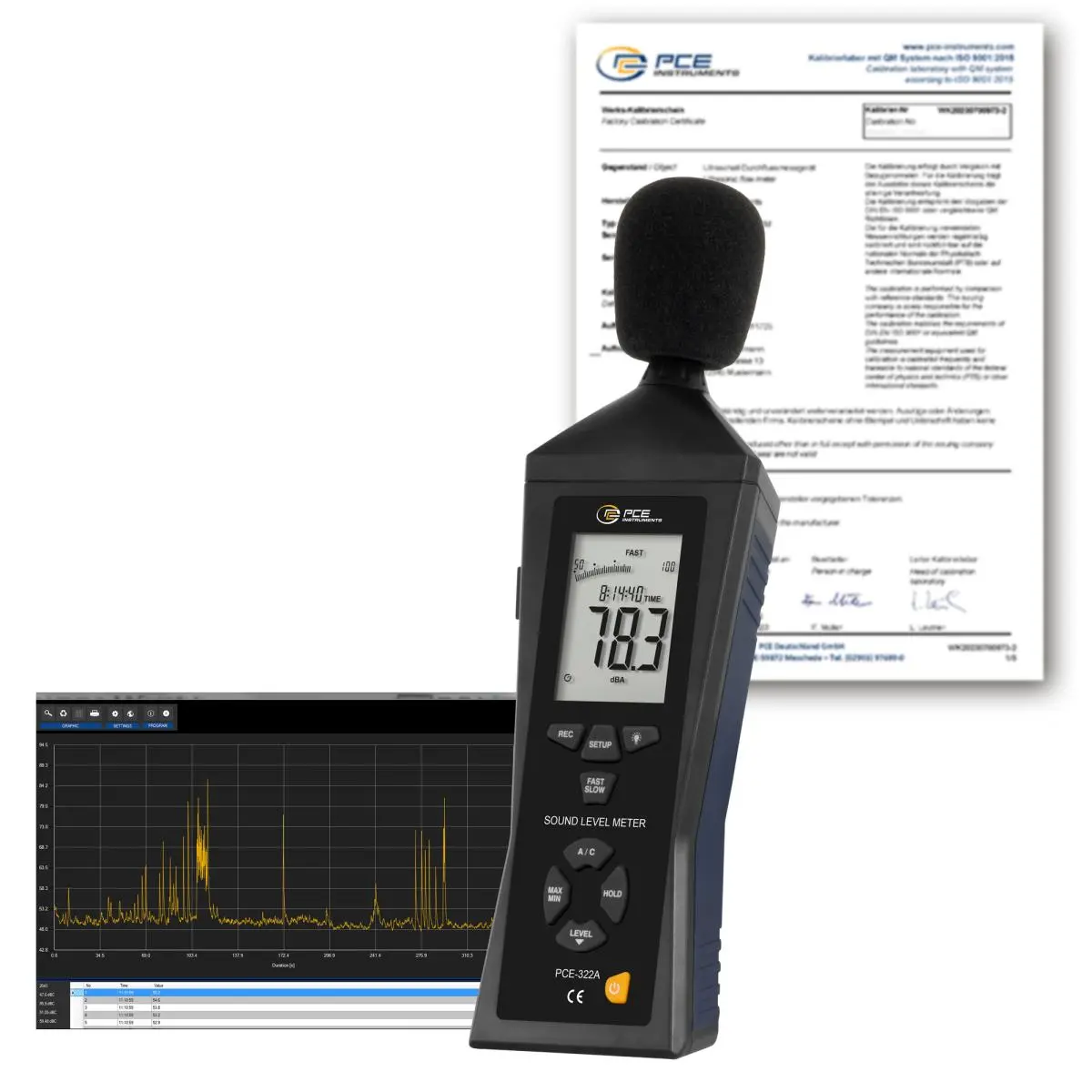

Data Logger / Data Logging Instrument PCE-322ALEQ-ICA

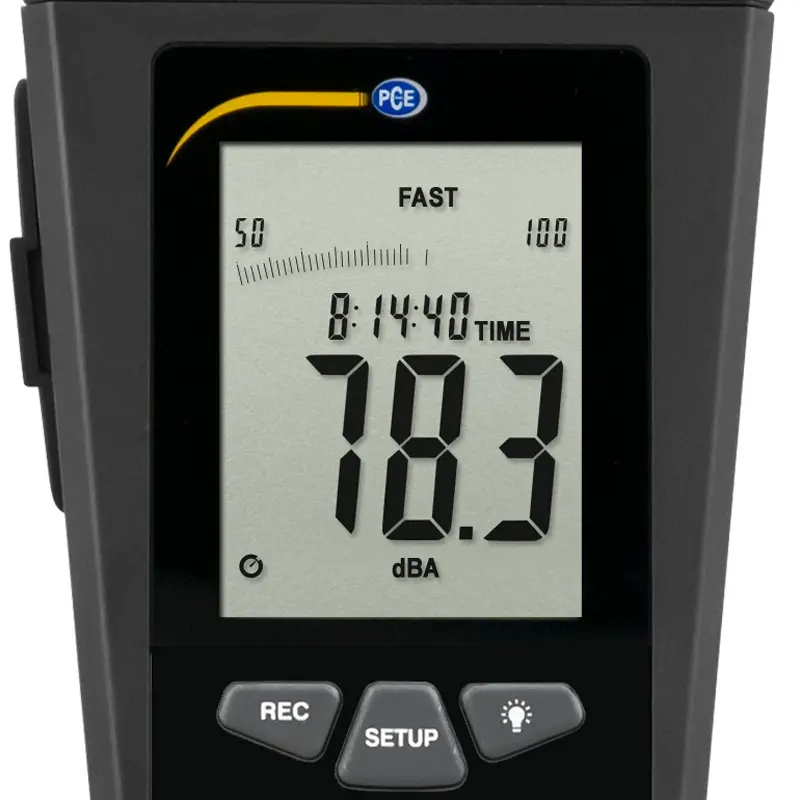

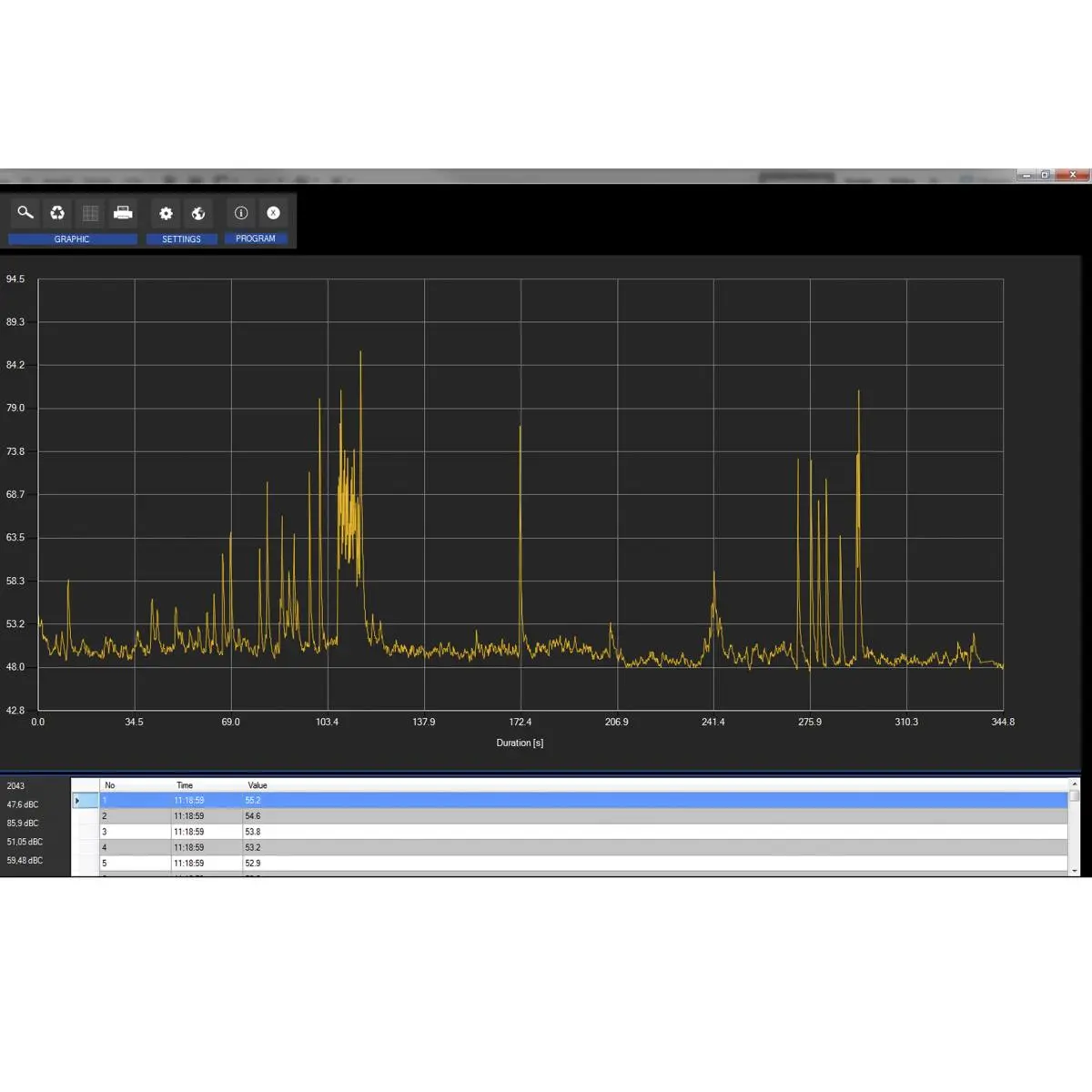

Data Logger / Data Logging Instrument Screenshot

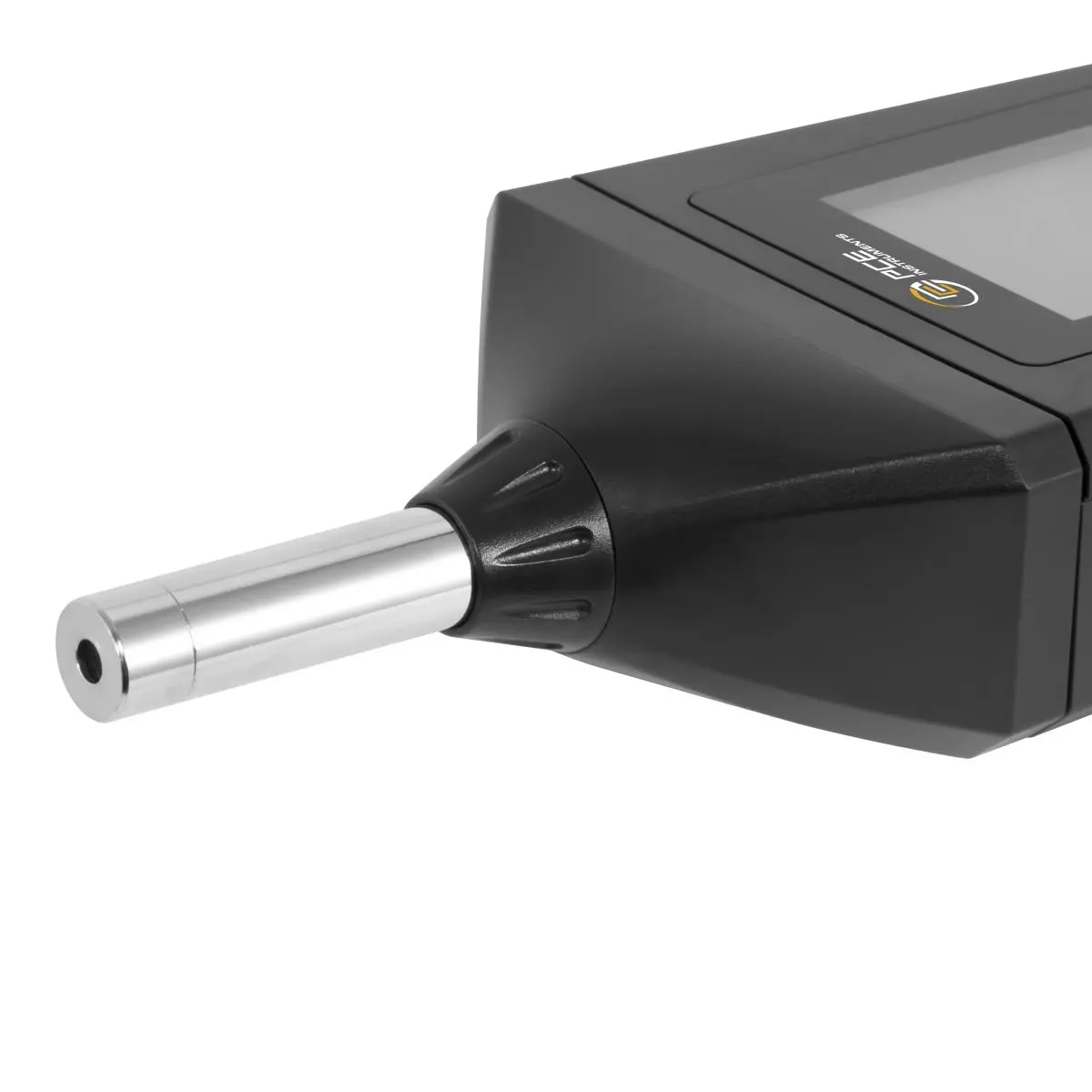

Data Logger / Data Logging Instrument Sensor

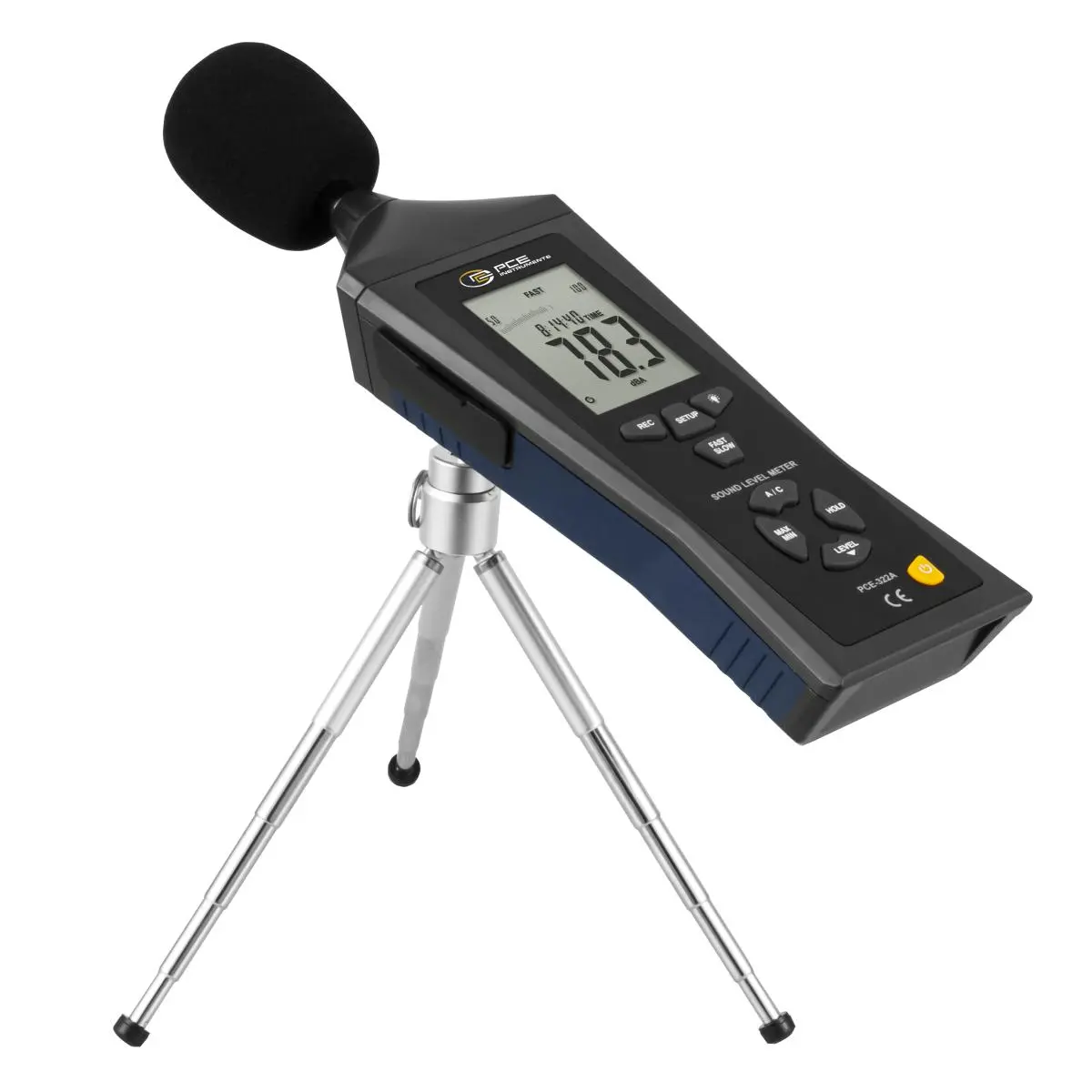

Data Logger / Data Logging Instrument Tripod

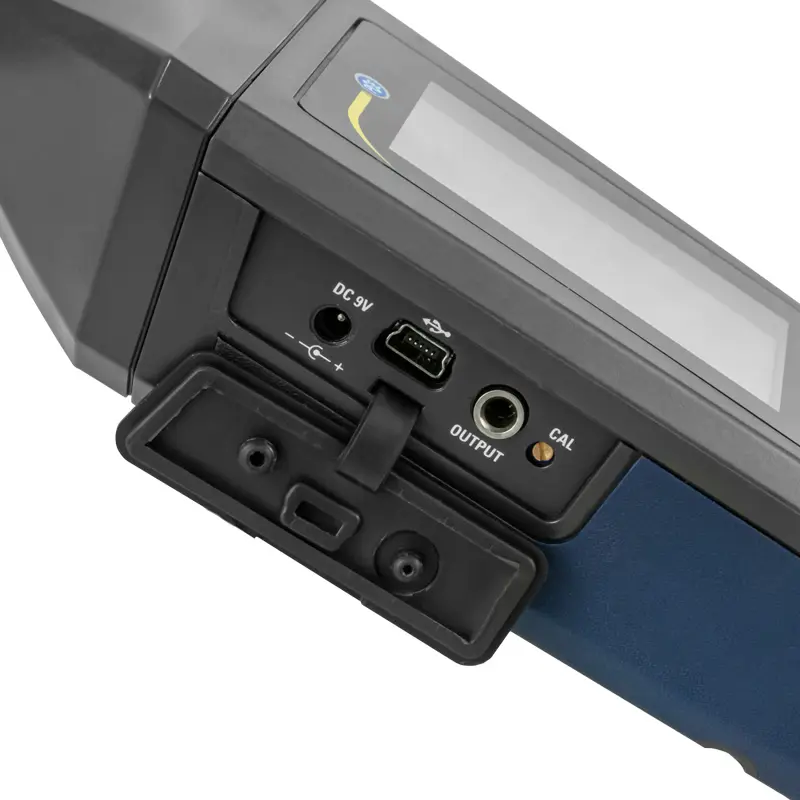

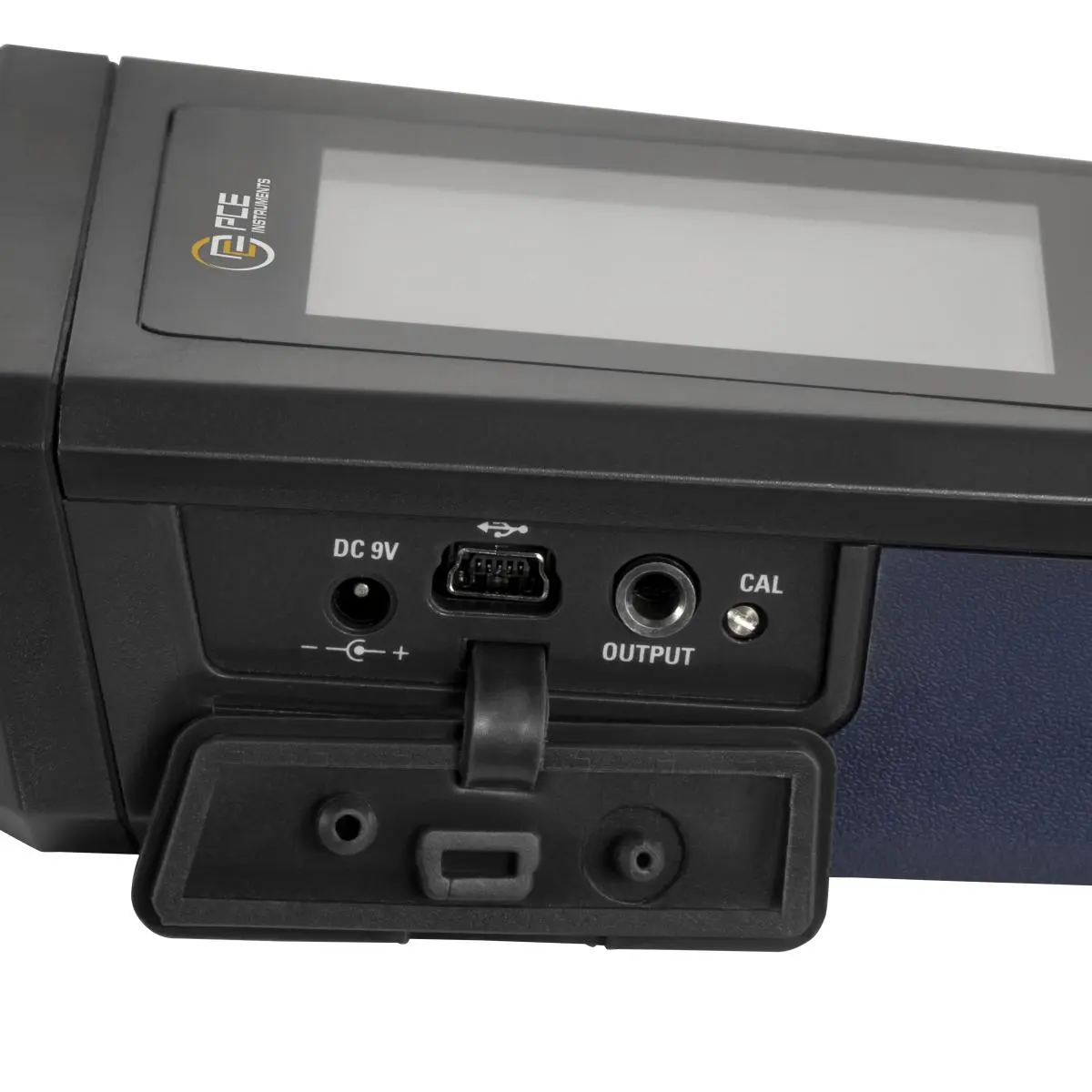

Data Logger / Data Logging Instrument Connections

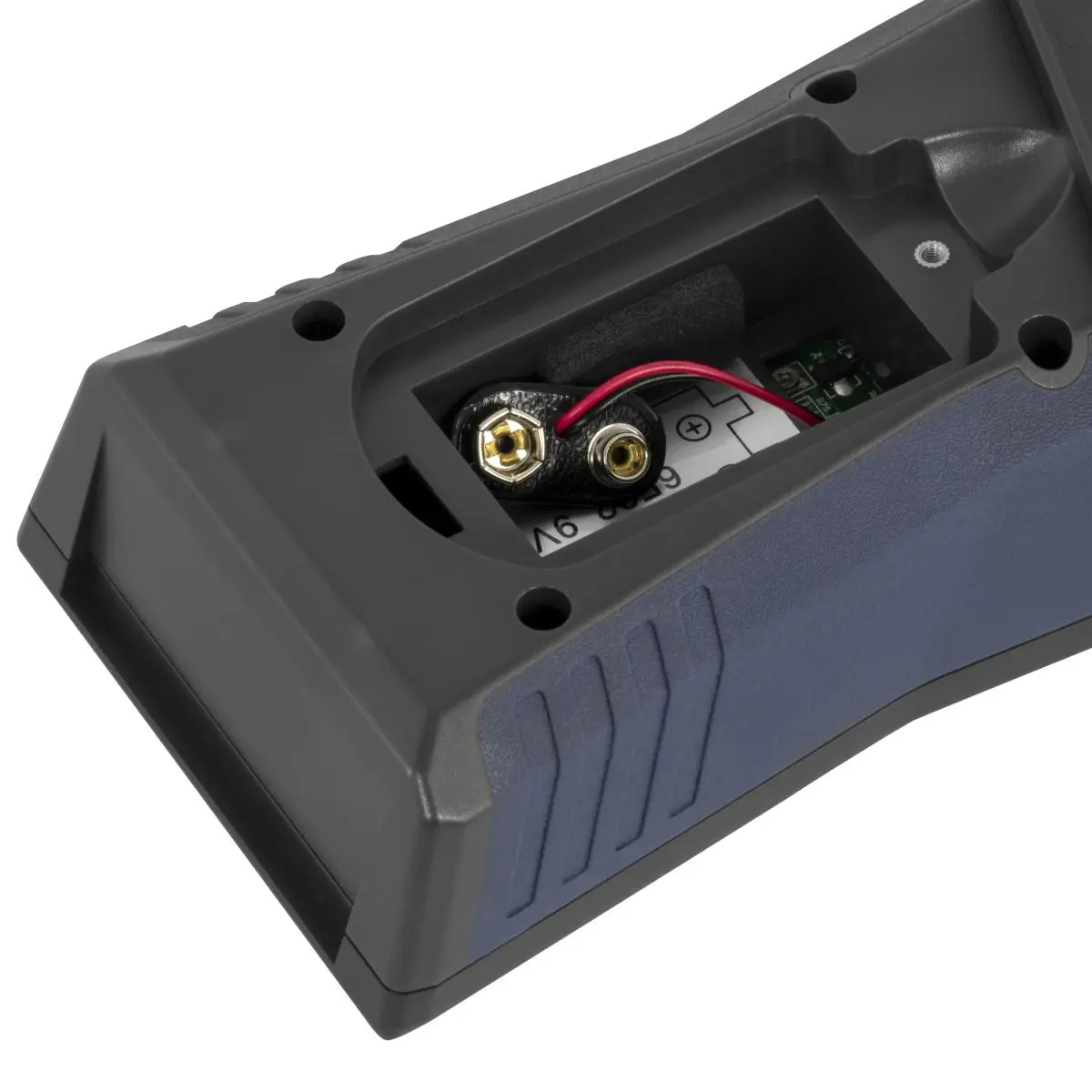

Data Logger / Data Logging Instrument Battery compartment

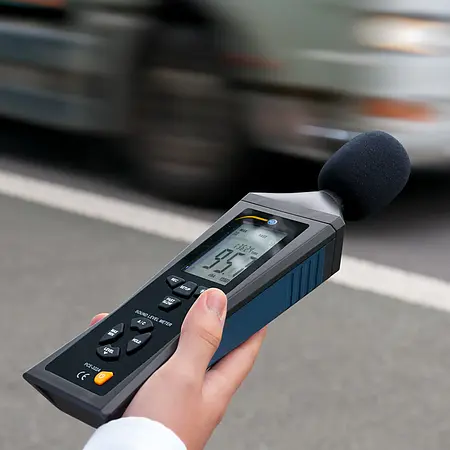

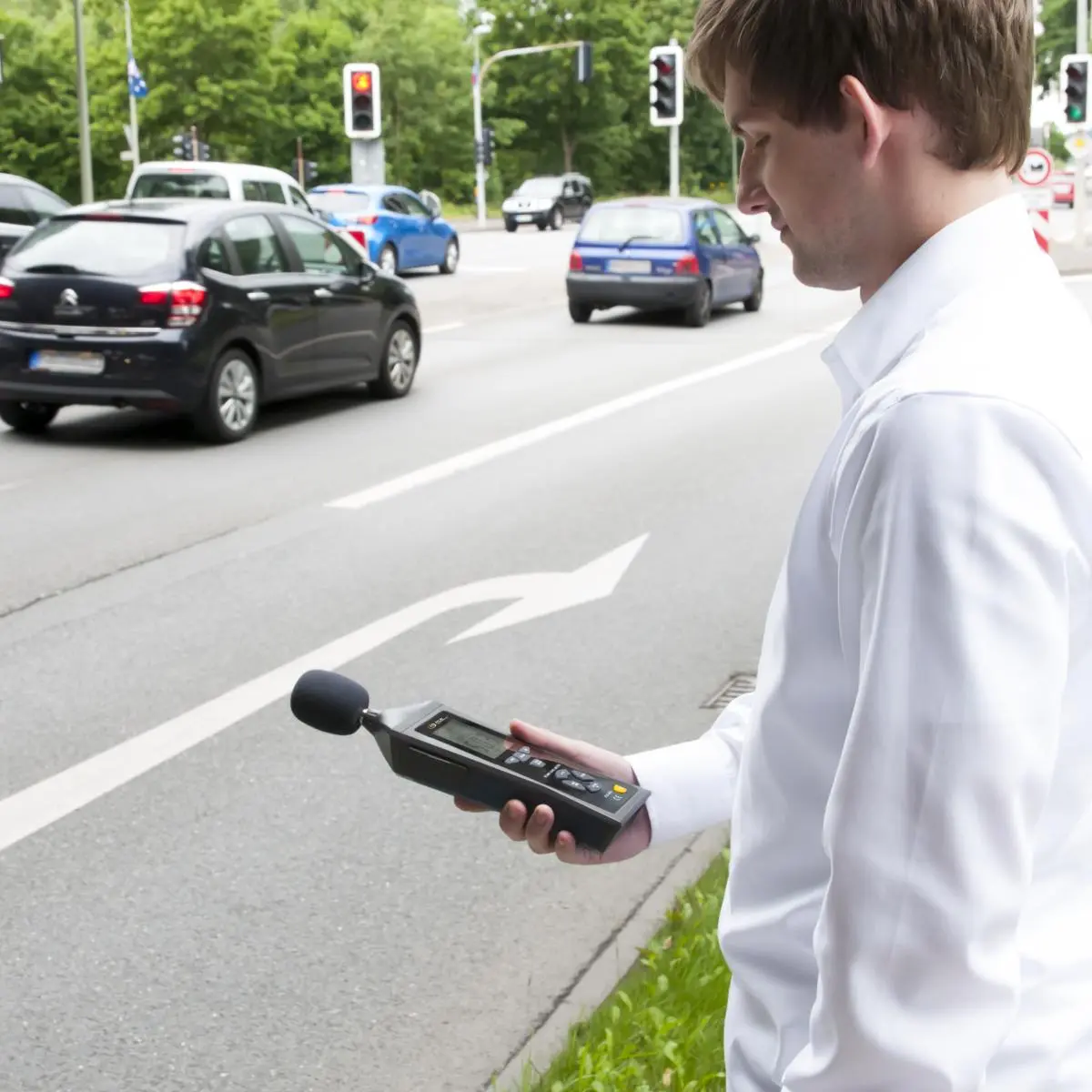

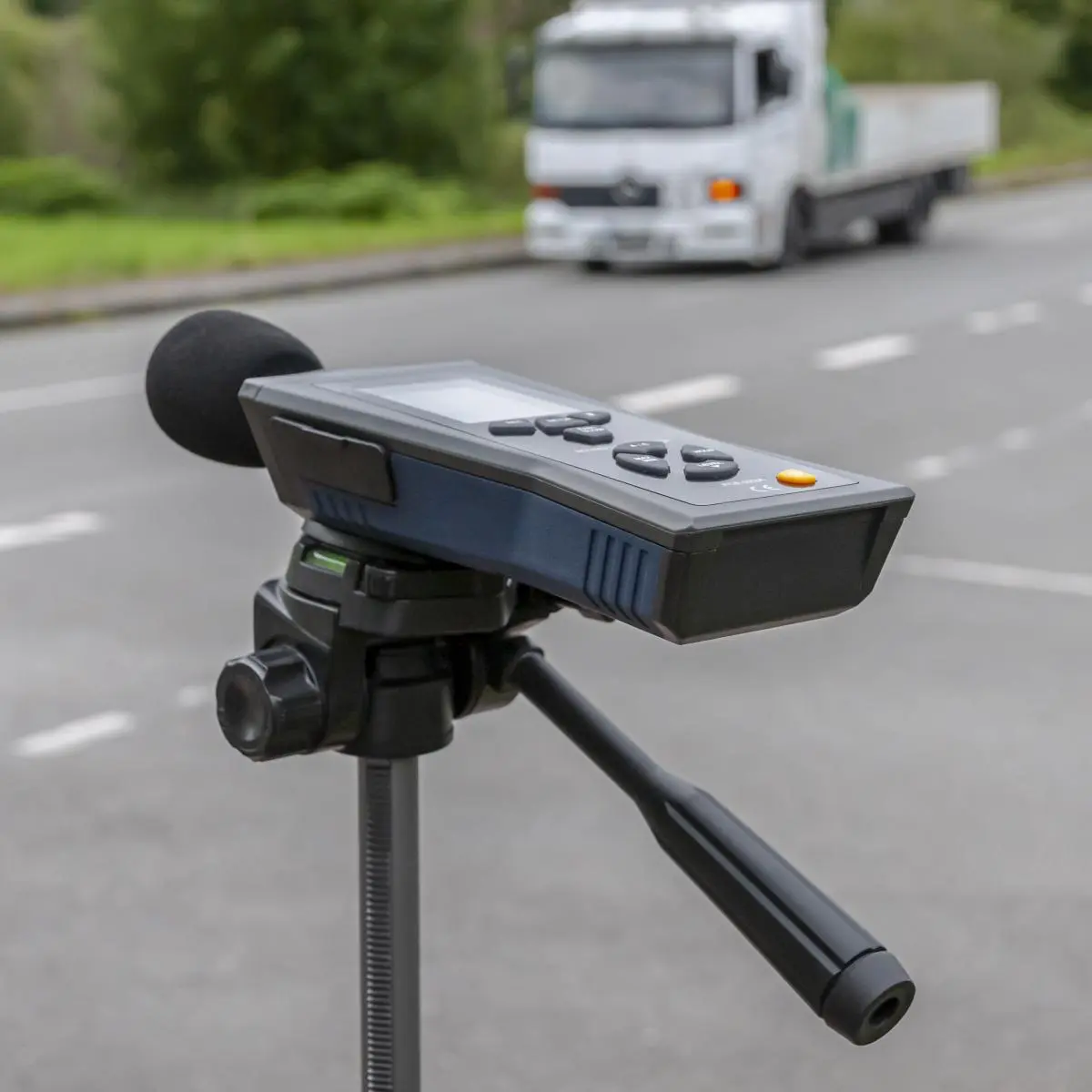

Data Logger / Data Logging Instrument Application picture

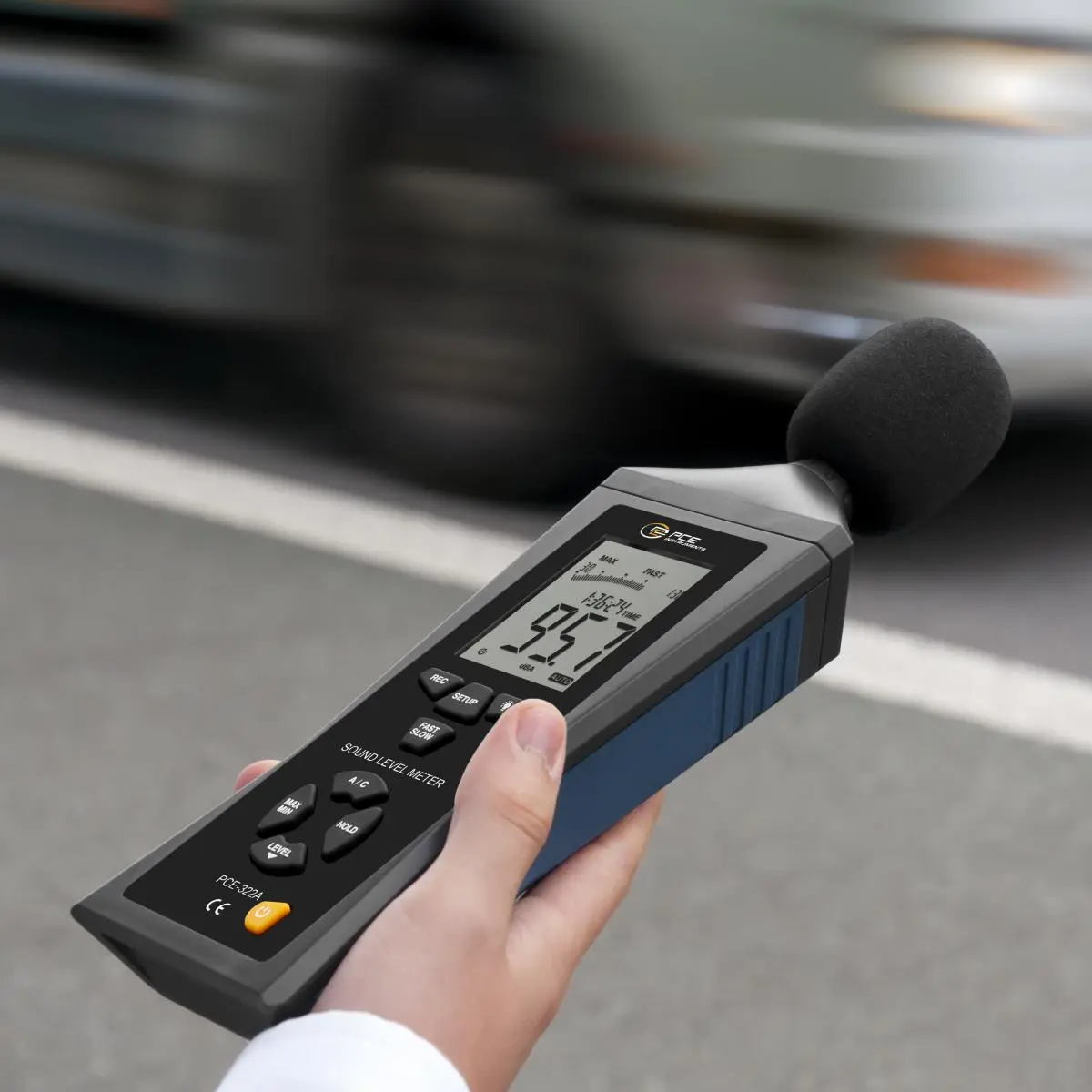

Data Logger / Data Logging Instrument Application picture
Data Logger / Data Logging Instrument Application picture

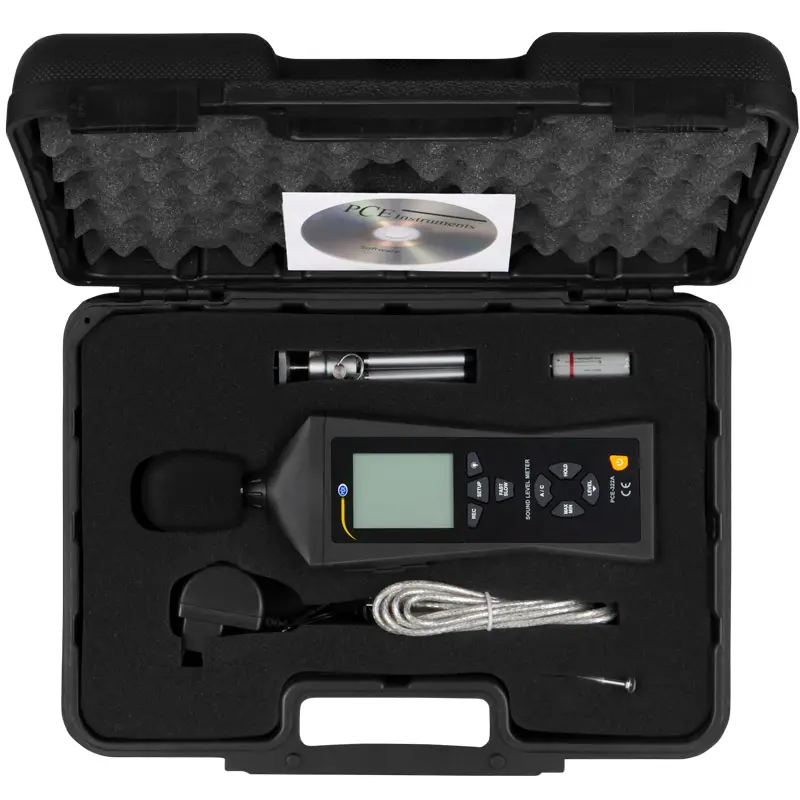

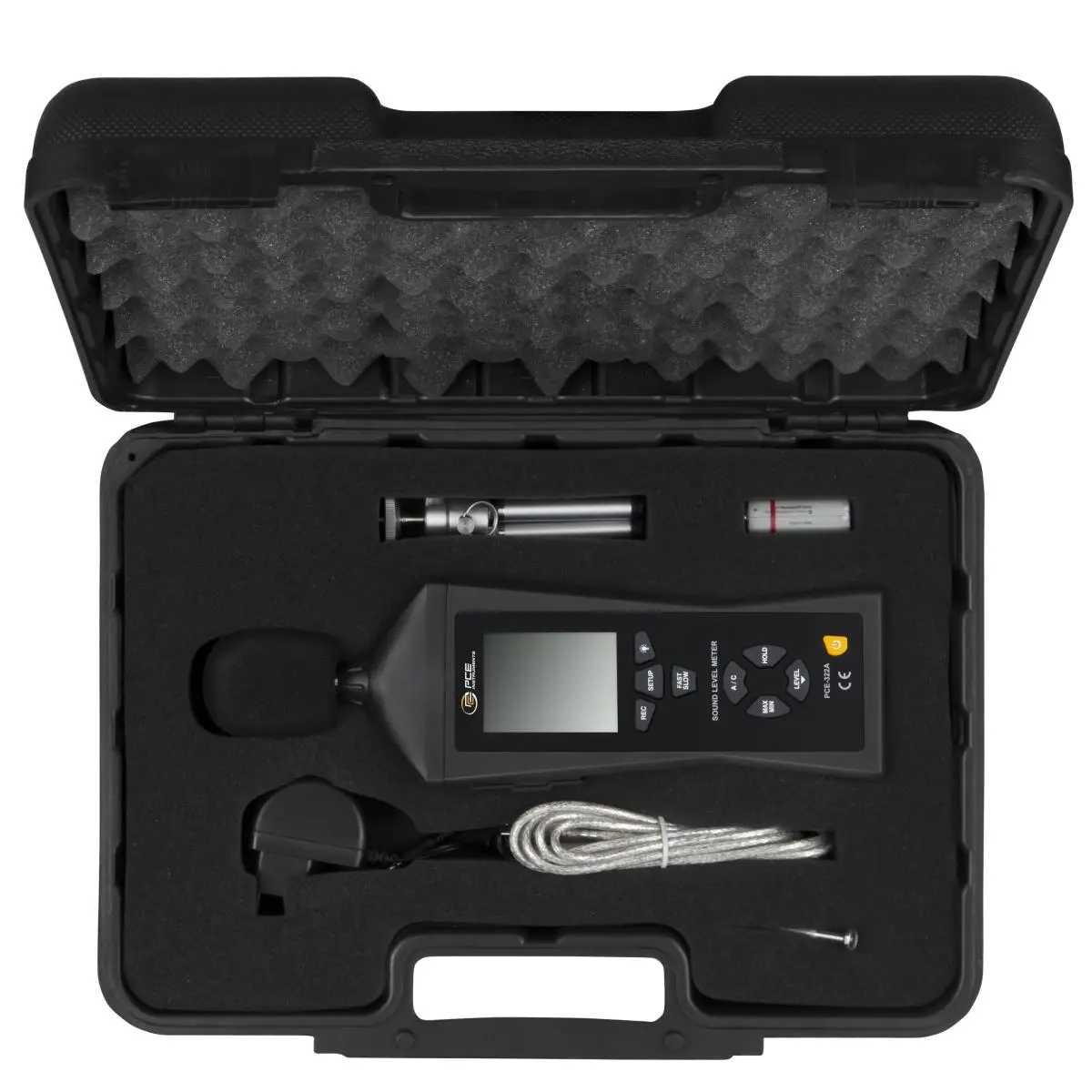

Data Logger / Data Logging Instrument Delivery scope

Sound Level Data Logger PCE-322ALEQ-ICA incl. ISO Calibration Certificate

Order no.: PCE-322ALEQ-ICA
GTIN (EAN): 4250348727985
AED 2,512.00
AED 2,637.60
price ex. (customs / clearance)
:
4250348727985
PCE-322ALEQ-ICA
Delivery time:5-7 working days
Sound

Accessory

Description

Class II Sound Level Data Logger PCE-322ALEQ-ICA with logger function / USB interface / Measuring range 30 ... 130 dB / LC display / incl. software for LEQ calculation / Memory for up to 32700 values

The sound level data logger PCE-322A is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322A noise datalogger has a logger function which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The noise datalogger PCE-322A can be connected to the PC with a USB cable.

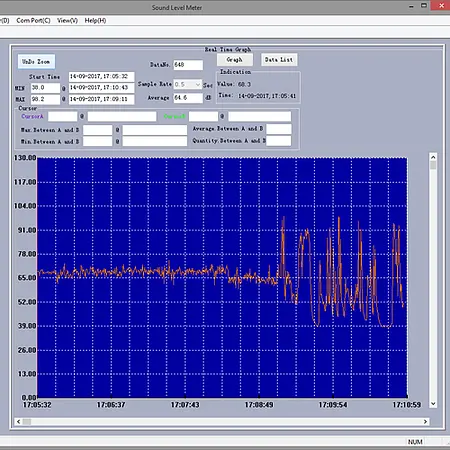

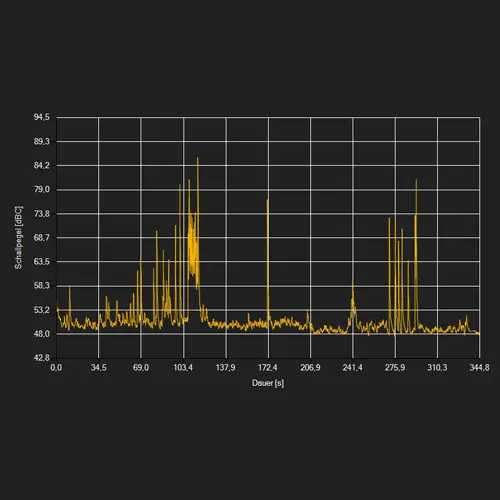

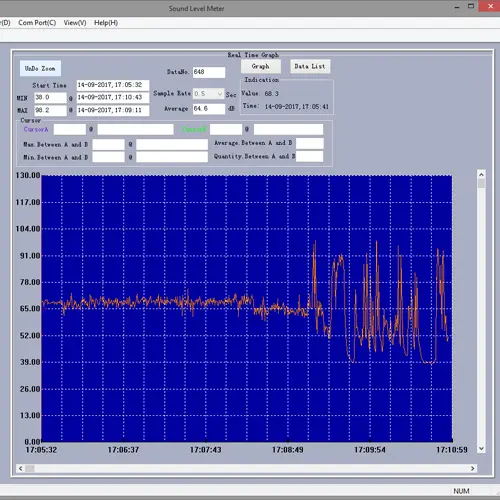

A live measurement is also possible with the sound level data logger and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The noise datalogger has an analogue output and offers further features that are unique in its class.


Highlights

- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- USB port for data transfer
- 32700 value memory
- Fast and slow time weighting
- Date- and time-stamped measurements
- Robust ABS plastic housing
- Large LCD
- LEQ calculation via software
- incl. ISO-Calibration Certificate

Specification

Sound level
Measuring range  30 ... 80 dB
Resolution  0,1 dB
Accuracy  ±1.4 dB

Sound level
Measuring range  50 ... 100 dB
Resolution  0,1 dB
Accuracy  ±1.4 dB

Sound level
Measuring range  80 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.4 dB

General technical data
Analogue output  Headphones, AC/DC
Measuring functions  HOLD, MAX, MIN
Connections  1/2 inch microphone
Time weighting  slow (1 s), fast (125 ms)
Frequency  31.5 ... 8000 Hz
Display type  LCD with backlight
Display refresh rate  2 x per second
Storage capacity  32700 Data records
Storage interval from  1 s
Storage interval to  59 s
Microphone type  Electret capacitor
Interface  Mini-USB
Standard(s)  IEC 61672-1 (Class II)
Operating time  30 h
Automatic power-off  15 min
Operating height  2000 m max. above sea level
Tripod thread  1/4 inch
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  Primary: 100 ... 240 V AC | 50/60 Hz
Secondary: 9 V DC / 0.5 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 40 °C , 0 ... 90 % RH
Storage conditions  -10 ... 60 °C , 10 ... 75 % RH
Dimensions ( L x W x H )  282 x 94 x 50 mm
Weight  335 g

Delivery Scope

1 x Data Logger / Data Logging Instrument PCE-322ALEQ-ICA
1 x PCE-SOFT-LEQ software (LEQ calculation) + manual
1 x Wind noise suppressor
1 x Interface cable
1 x Mini tripod
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
1 x Operation manual
Important! The LEQ value is only calculated by the software after the data
transfer from the device to the PC or laptop.
1 x ISO-Calibration Certificate
