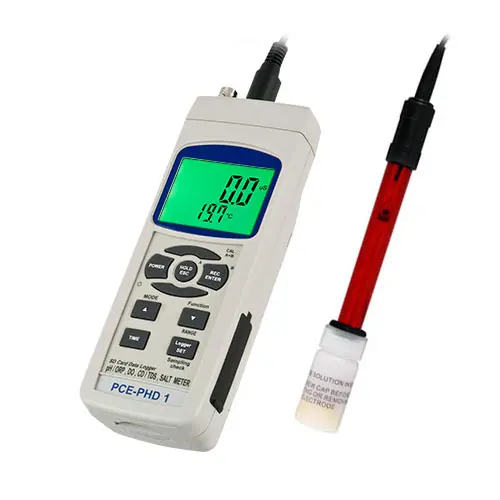

PCE-PHD 1-R Multifunction Conductivity Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.
Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-R is supplied with a redox electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.
| Redox | |
| Measuring range | -1999 ... +1999 mV |
| Resolution | 1 mV |
| Accuracy | ±0.5% +2 Digits |

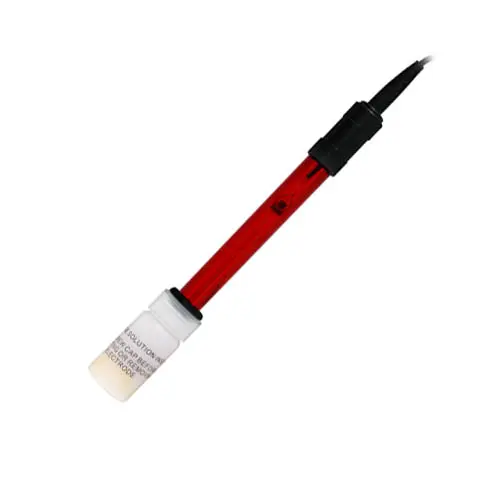

| Electrode | |
| Designation | Oral Presentation 14 |
| Measuring range | -1999 ... +1999 mV |
| Temperature range | 0 ... 65 °C |
| Application | Measurement of the redox potential |
| reference system | Ag/AgCl |
| Reference electrolyte | Potassium chloride |
| Shank material | epoxy resin |
| Shank length | 120 mm |
| Shank diameter | 12 mm |
| Cable length | 3 m |
| Connection | BNC |
| General technical data | |
| Display type | LCD |
| Display size | 2,54 in |
| Storage medium | SD card |
| Storage capacity | 16 GB |
| Storage interval from | 1 s |
| Storage interval to | 9 h |
| Interface | RS232 |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 177 x 68 x 45 mm |
| Weight | 490 g |
