PCE-PDA 1000L Data Logger
Digital pressure gauge for measuring relative pressure from -100 ... 2000 kPa / Data logger / MAX MIN HOLD functions / USB interface / Graphic LCD

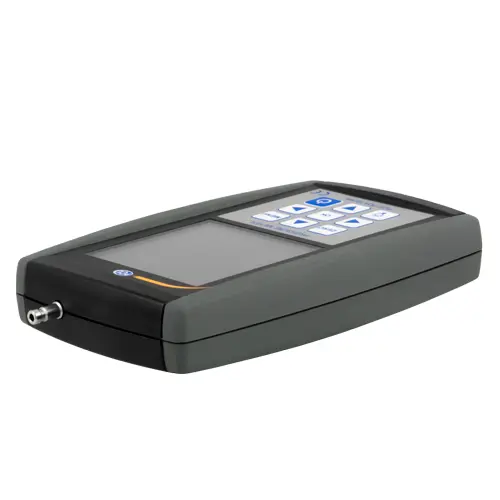

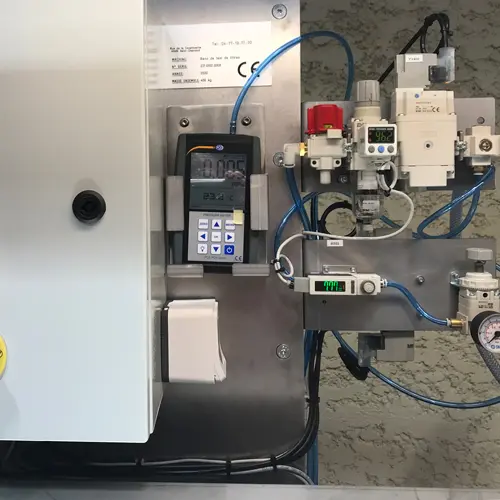

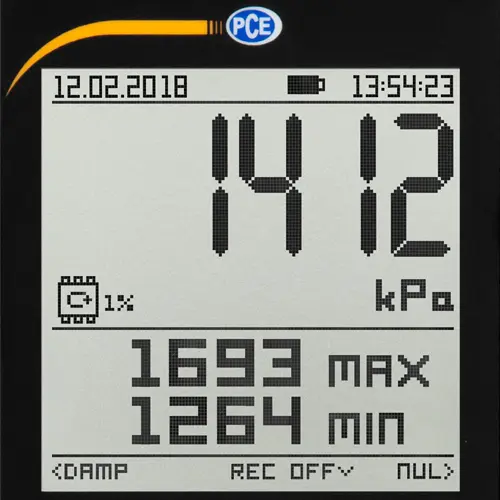

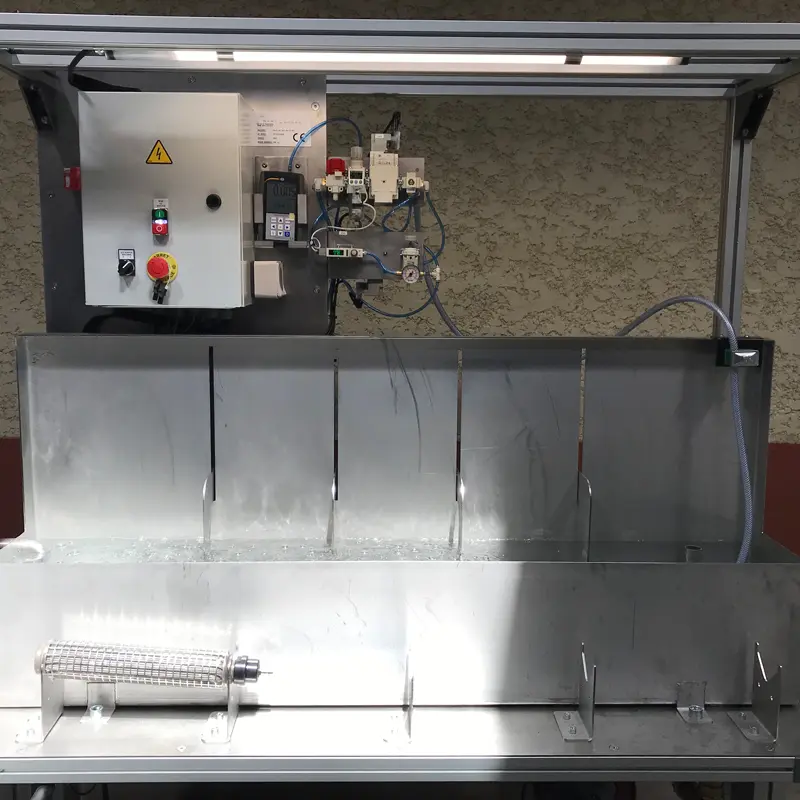

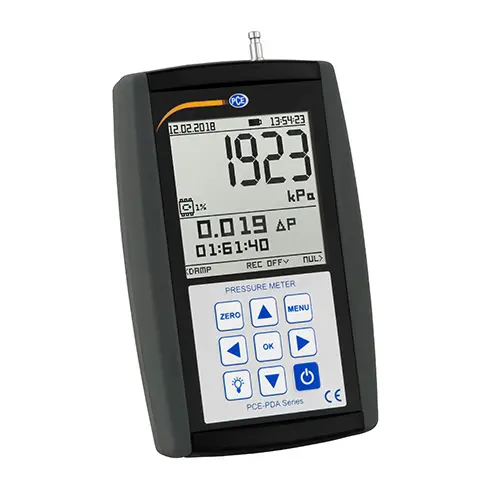

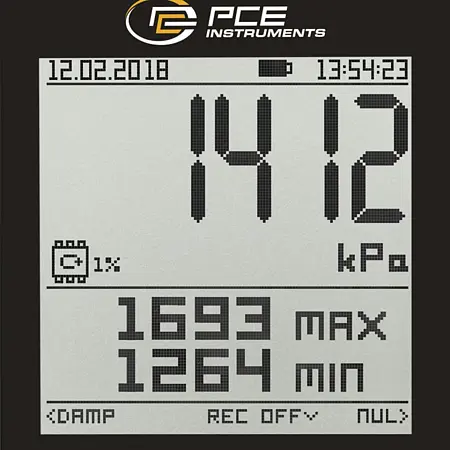

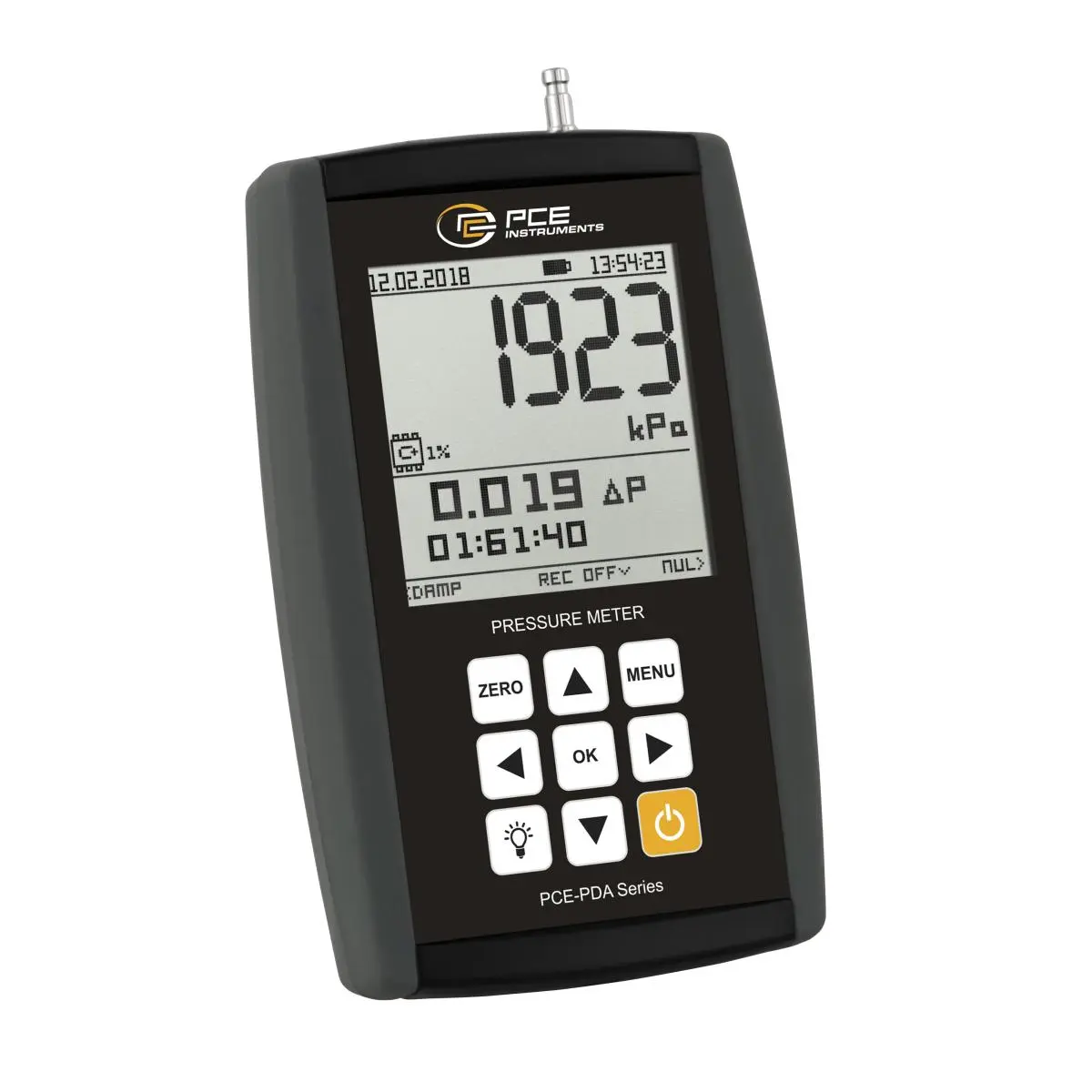

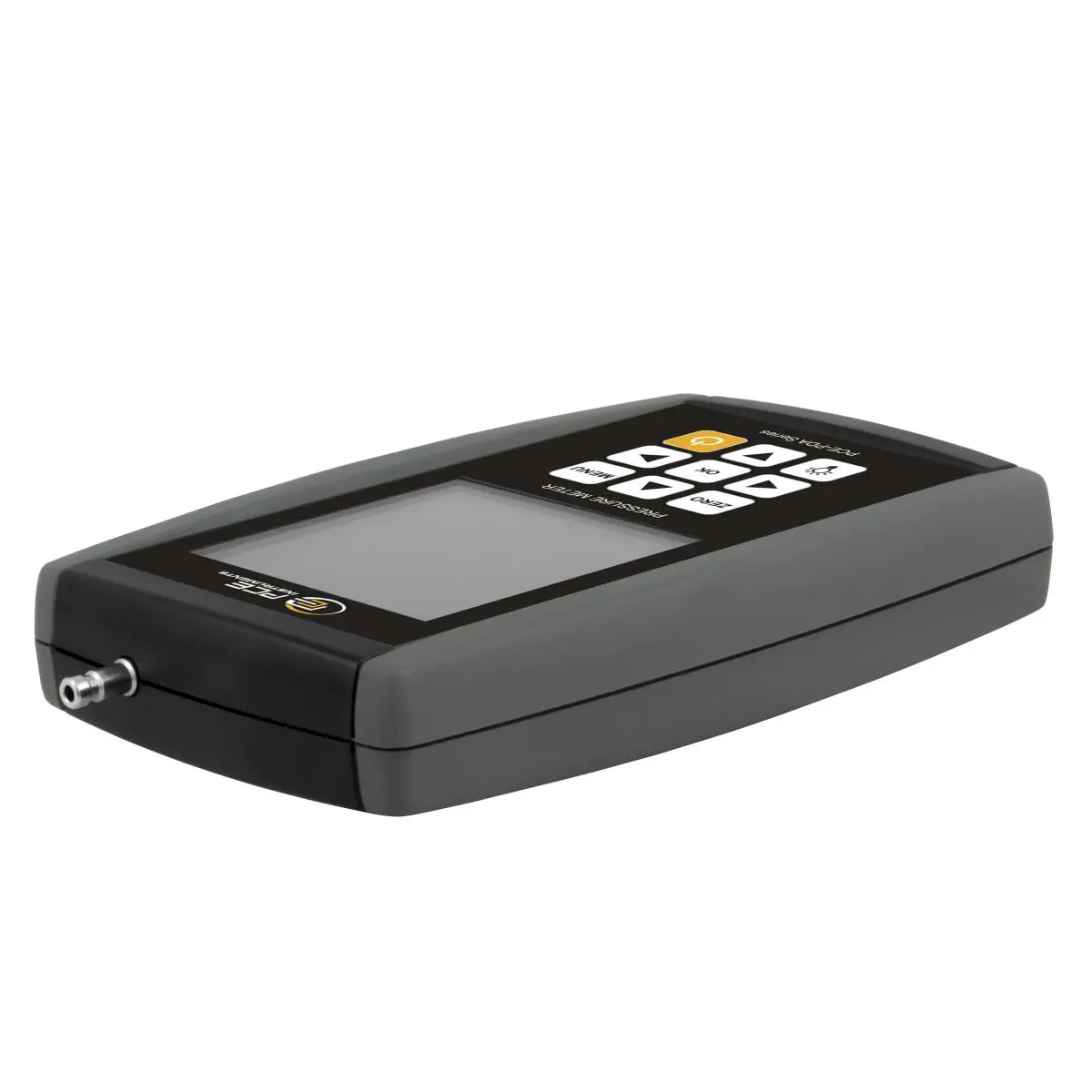

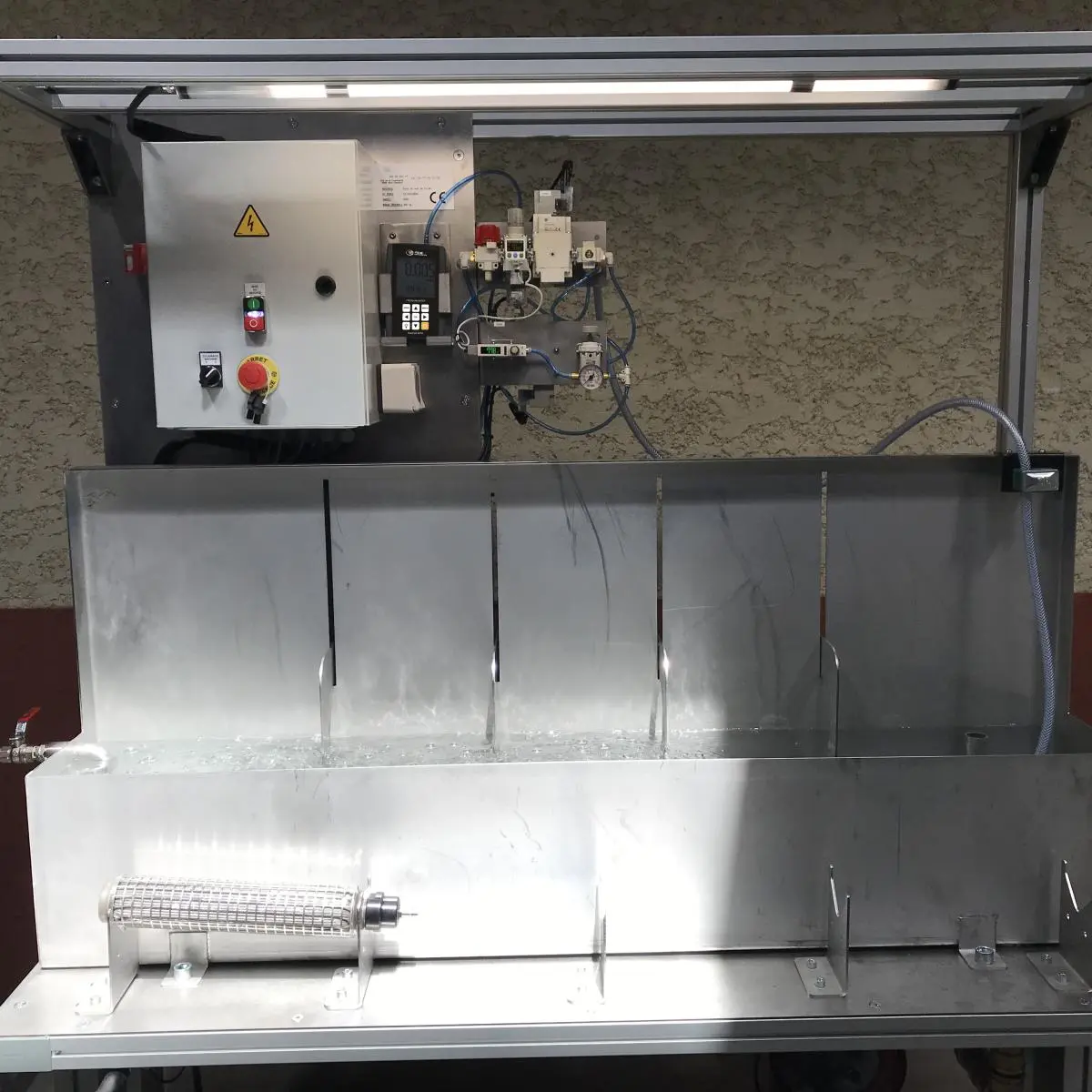

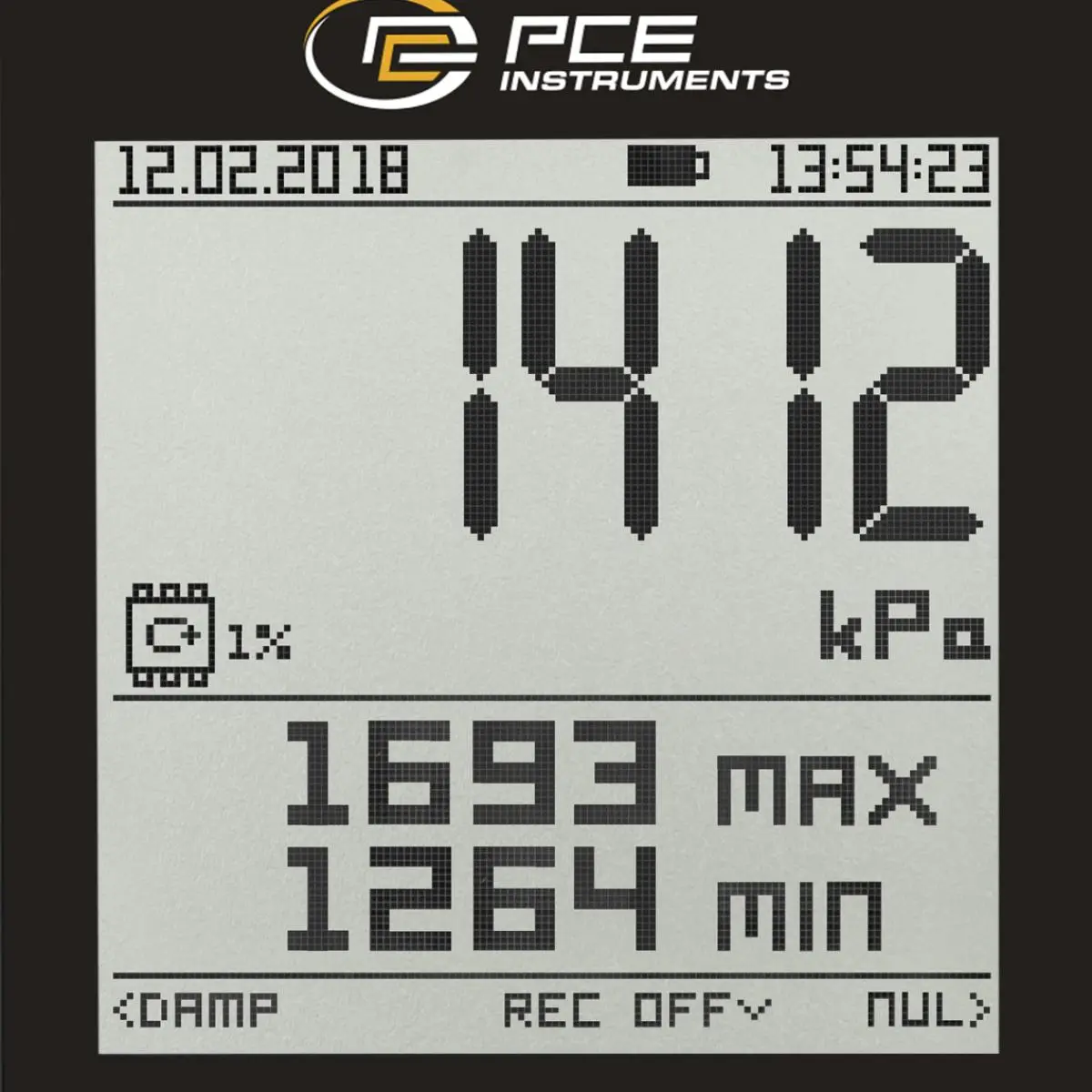

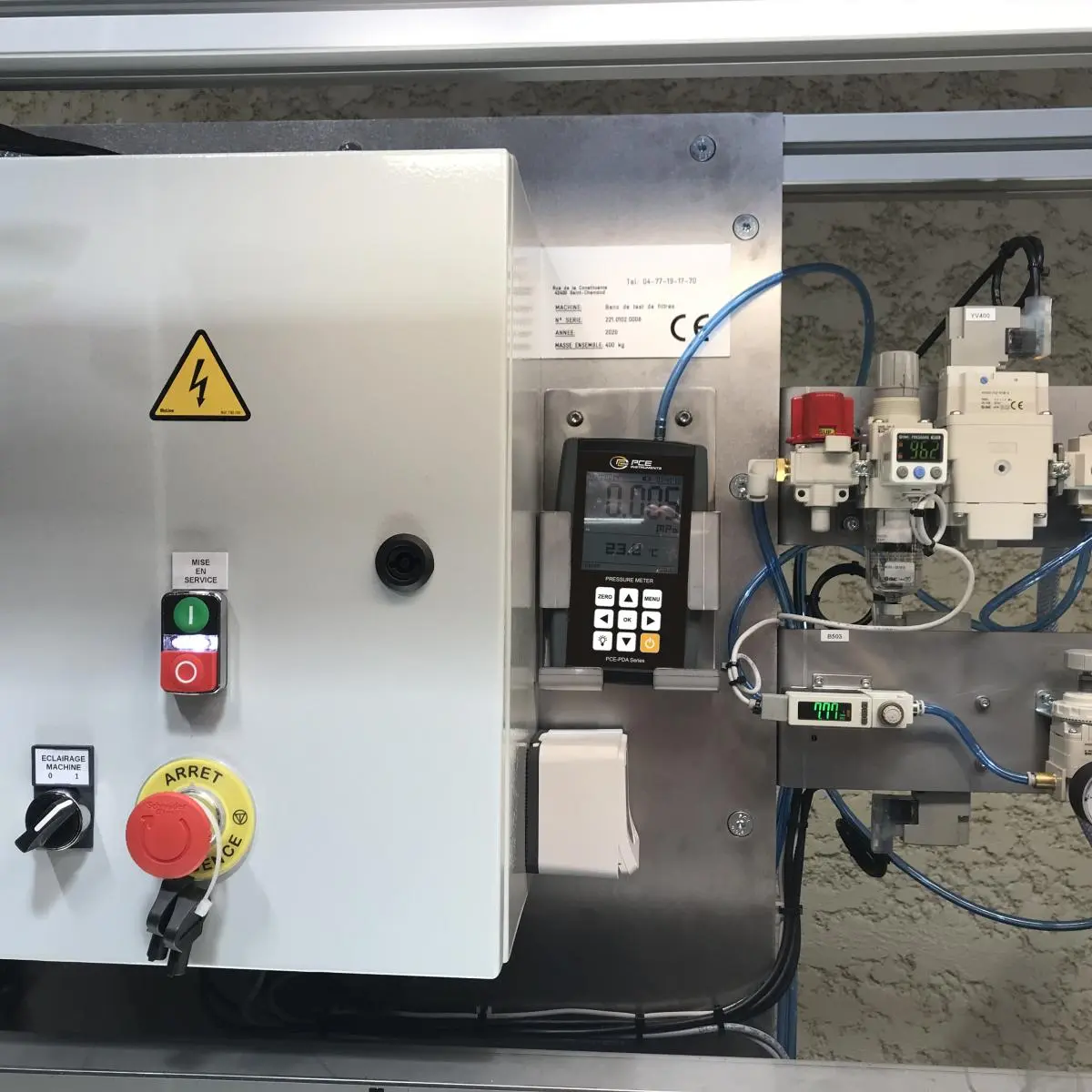

The data logger PCE-PDA 1000L measures the relative pressure on machines and systems. The relative pressure is measured by this data logger in the range between -100 ... 2000 kPa. The data logger has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device. In addition to the measurement in kPa, many other pressure units are available to the user. The large LCD on the data logger continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measured value in the display via the Max-Min-Hold function. Likewise, the data logger in the second display area optionally displays the system temperature or a pressure difference if a leak test has been carried out.

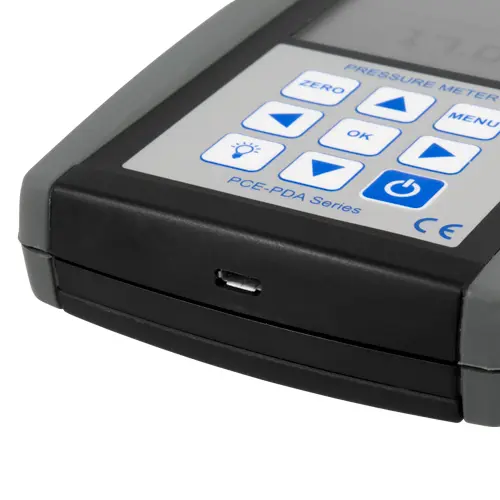

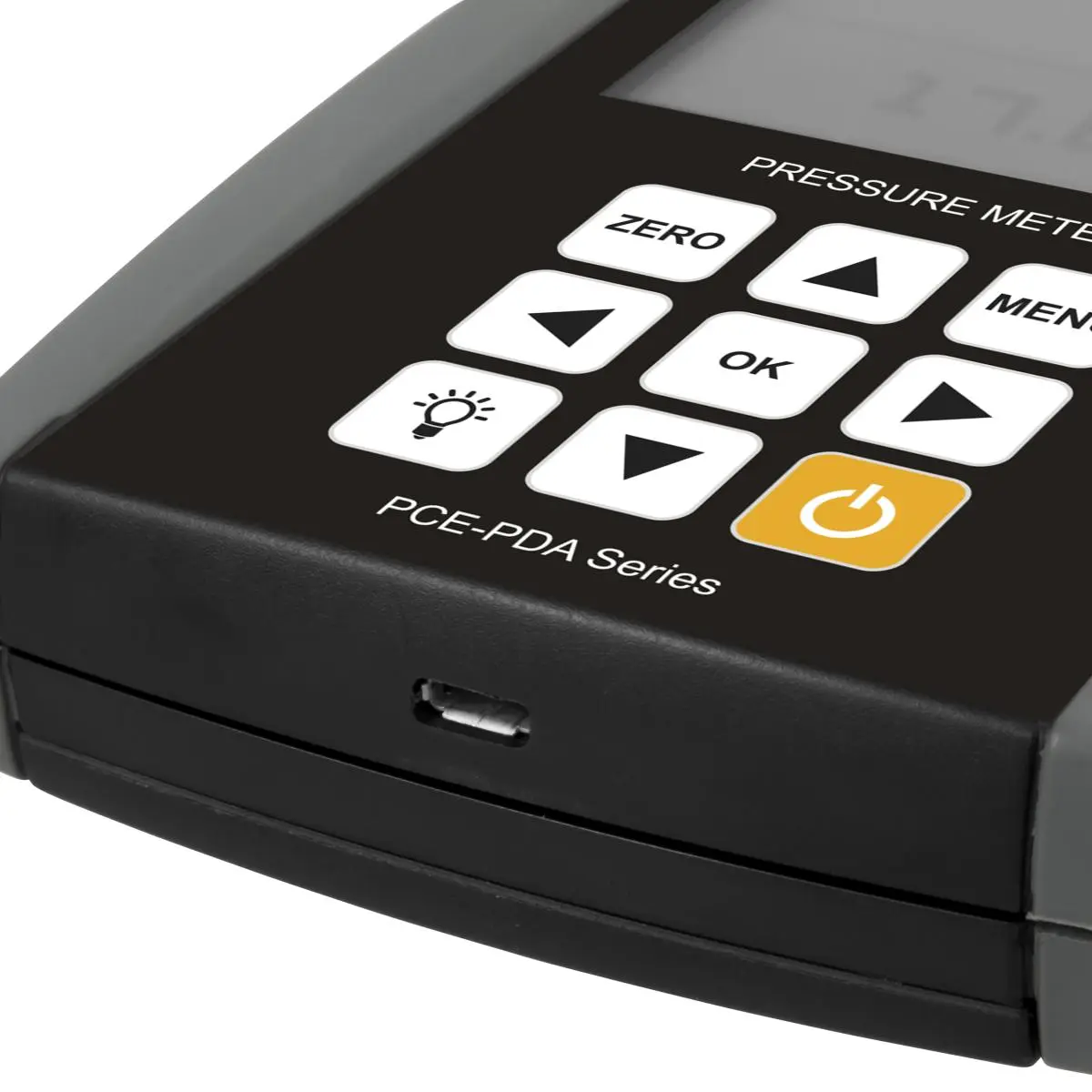

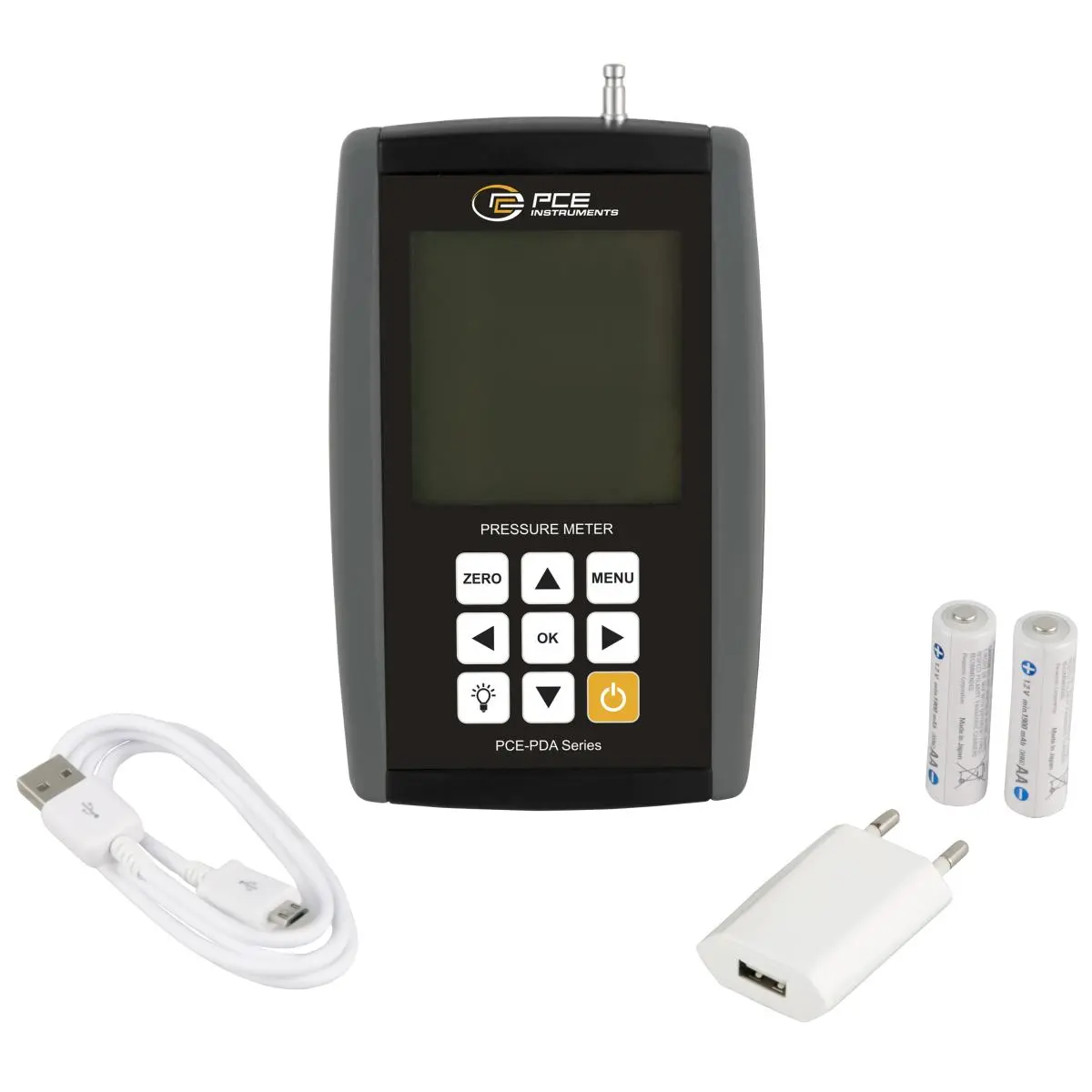

The PCE-PDA 1000L data logger has a memory with 1024 memory locations. Recordings of up to 255h can be stored in each memory location. To evaluate the stored measured values, software is available to the data logger. The power supply of the data logger is supplied by 2 AA batteries. Here the user can either use batteries or rechargeable batteries. In battery operation, the data logger PCE-PDA 1000L can be charged via a micro USB port.
