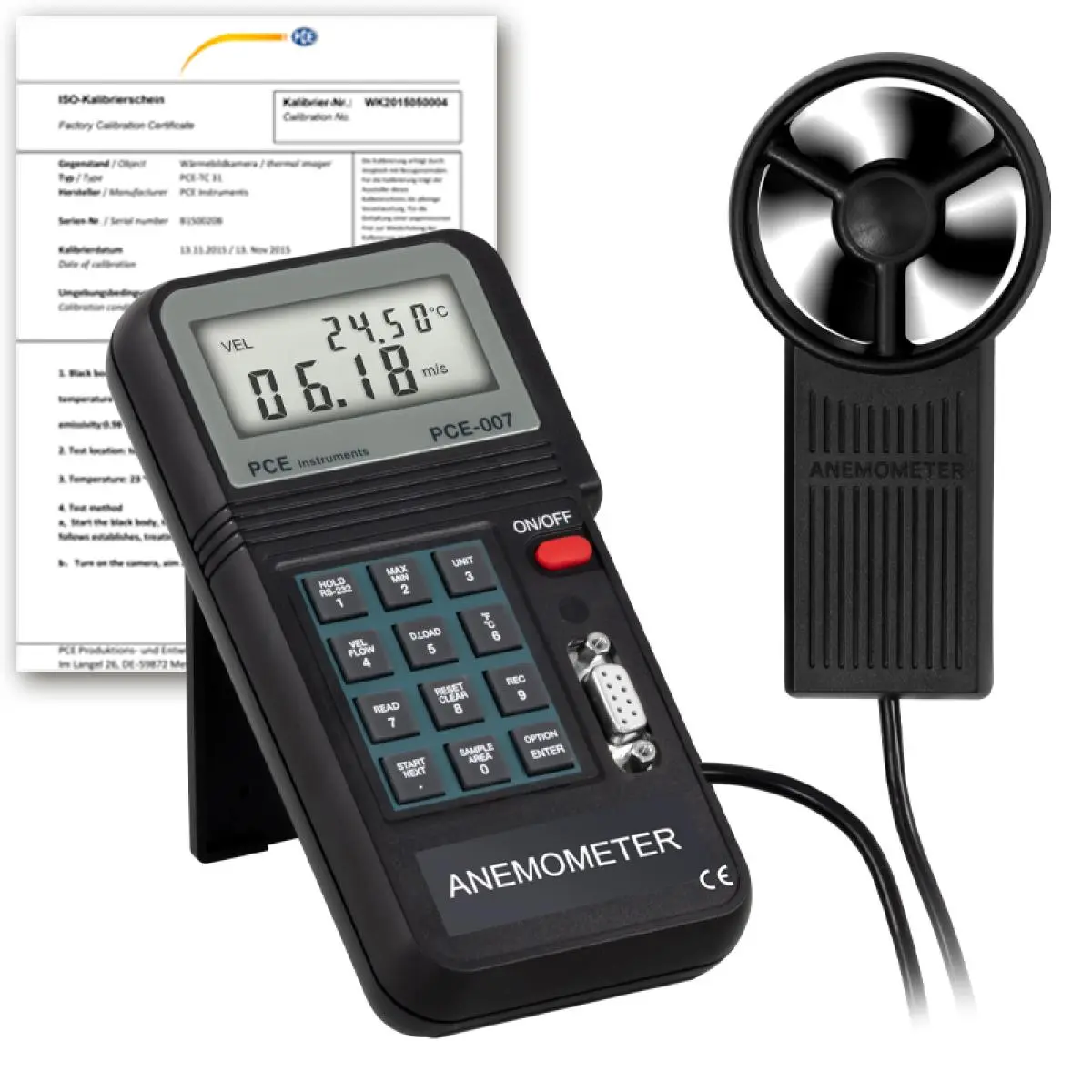

Air Velocity / Temperature Data Logger incl. ISO Cal Certificate PCE-007-ICA

Order no.: PCE-007-ICA

GTIN (EAN): 4250348727640

Description

Accurate Data- Logger meter with connection port, memory,

software for measuring wind speed, temperature and Data- Logger

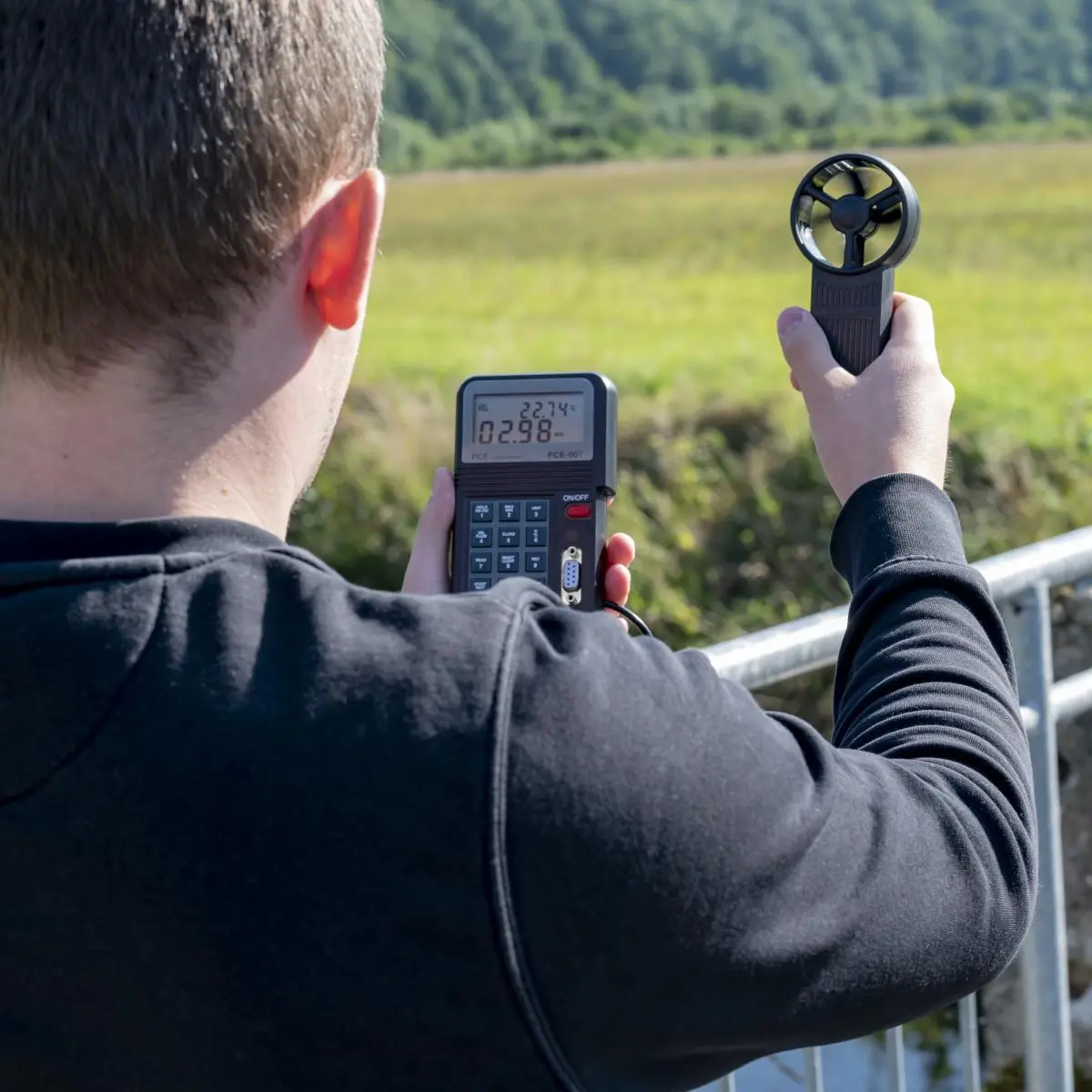

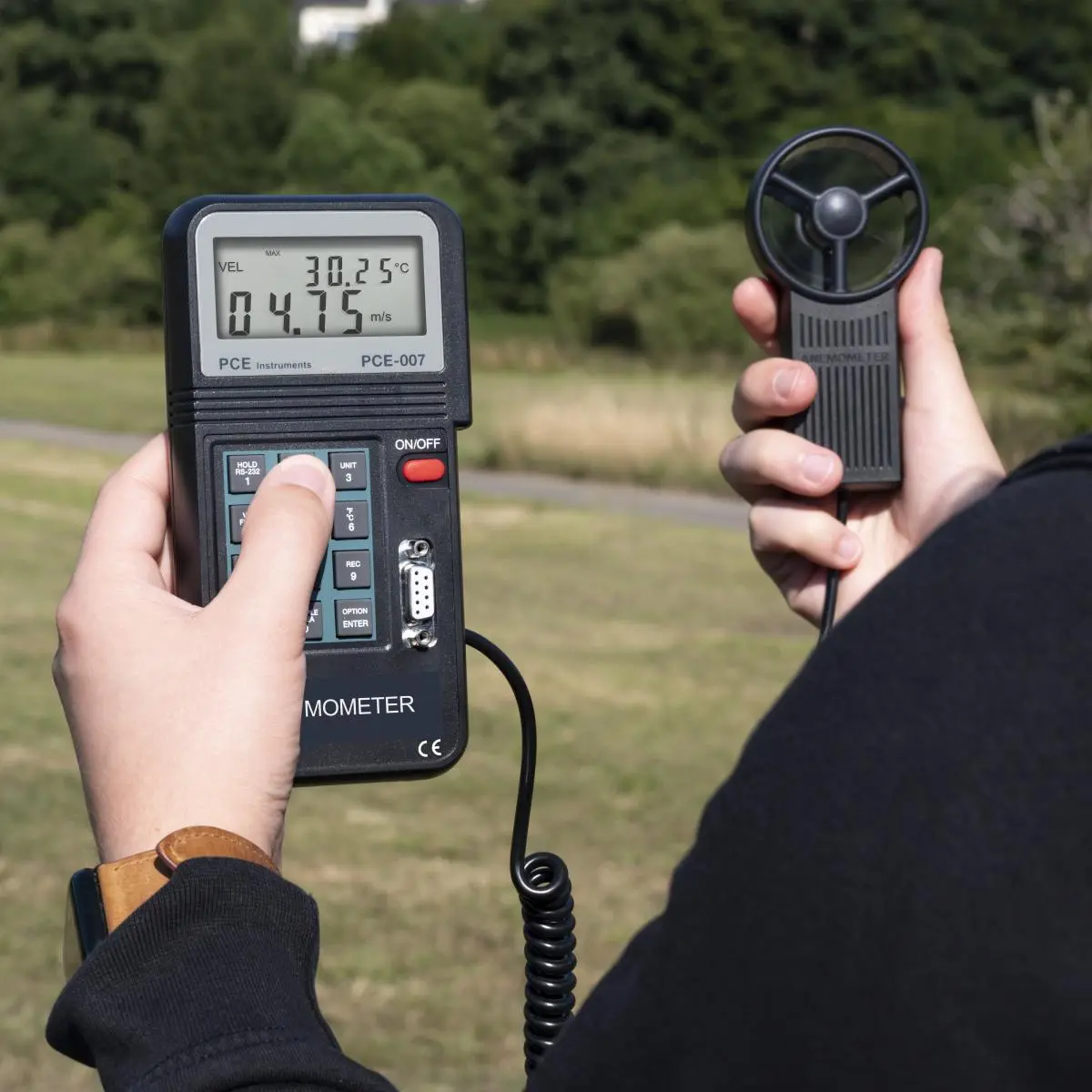

This Data- Logger meter is very economical. With this Data- Logger meter you can measure wind speed and air temperature. Once you have the right cross section, the Data- Logger meter will show the air volume flow. The readings can be stored in the device and then transferred to a computer for further analysis. As such, you can take a series of measurements with the Data- Logger meter off-site, then look closely at the data once back at the office. In this way, you save time and maintain a high level of accuracy in readings.

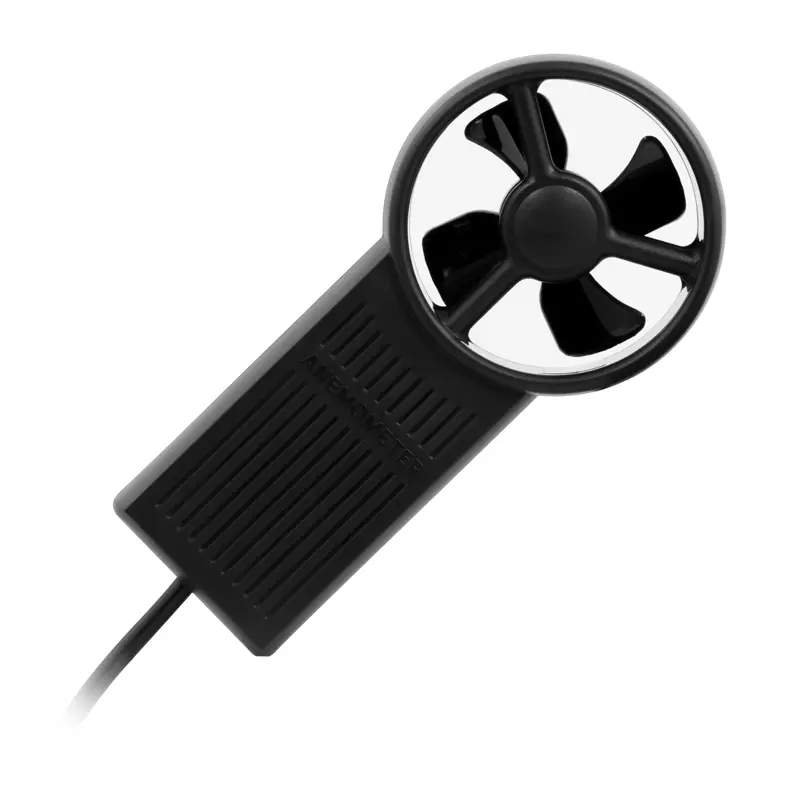

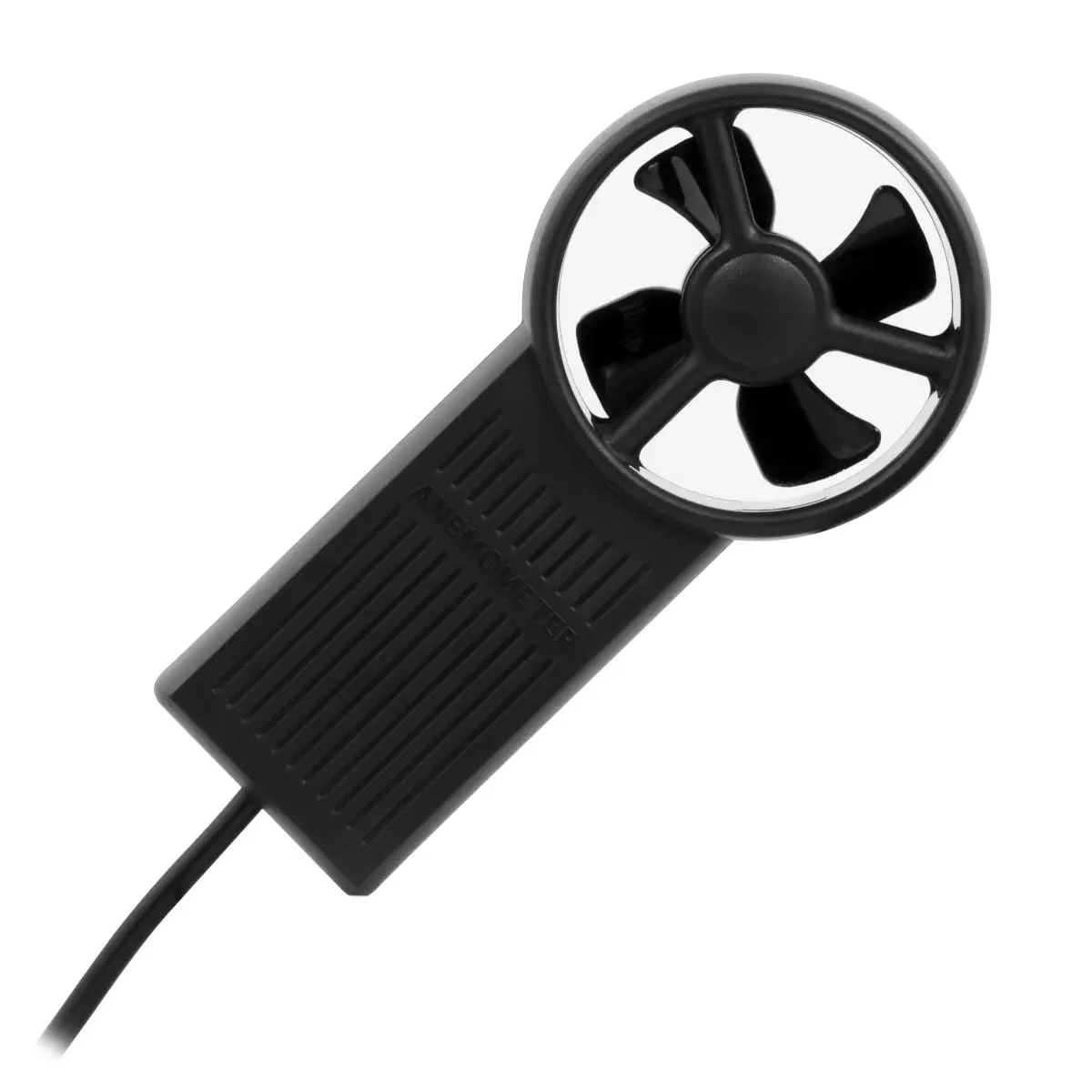

The external impeller, connected by a 1.5 m / 4.9 ft long cable, increases the mobility and flexibility of measurements of wind speed. These Flow meters form a part of the basic equipment of an installation technician for ventilation systems. The useful life of the battery is approx. 50 hours with a current of 300-mA/h. If you wish to take timed measurements over a period of time longer than 2 days, you will need to use a battery pack, or a power adapter.

Highlights

- Measures wind speed and air temperature

- Calculate and shows Data logger

- Stores up to 2000 readings

- Comes with an RS-232 interface

- Has software to transfer data

- Shows distinct units of measurement

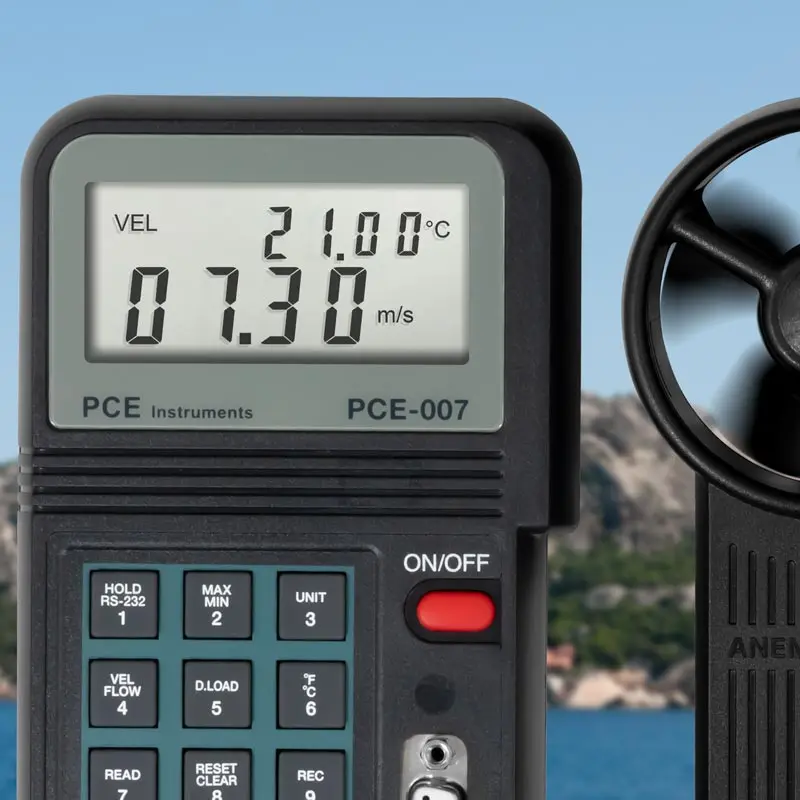

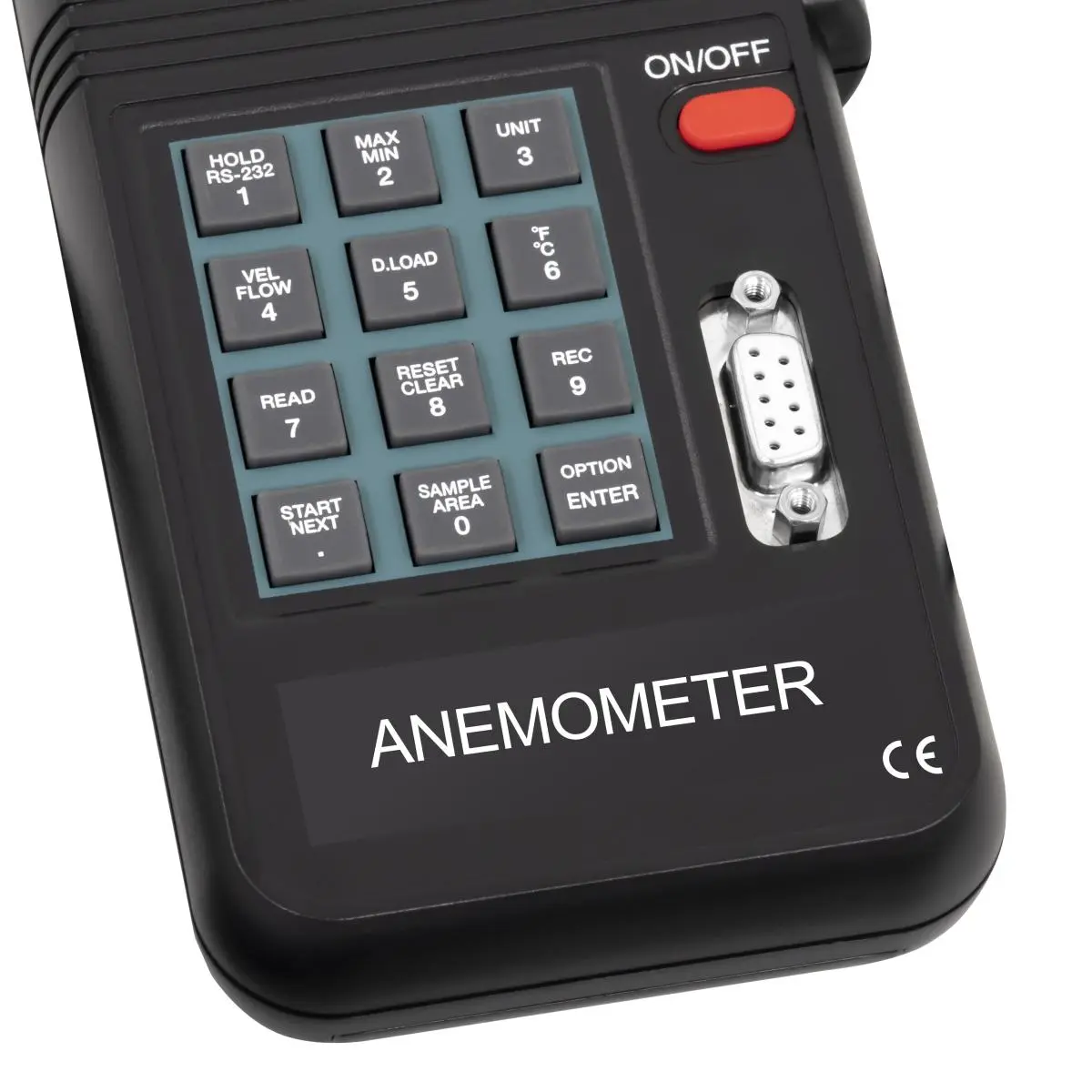

- Has a dual display

- Is easy to use

- Max/Min/Hold functions

- Auto-Power off

- incl. ISO-Calibration Certificate

Specification

Speed
Measuring range	0,3 ... 45 m/s
Resolution	0.01 m/s
Accuracy	±3 % ±0.1 (equal for all units)

Speed
Measuring range	0,3 ... 8800 ft/min
Resolution	0.01 ft/min
Accuracy	±3 % ±0.1

Speed
Measuring range	0,3 ... 88 knots
Resolution	0.01 knots
Accuracy	±3 % ±0.1

Speed
Measuring range	0,3 ... 140 km/h
Resolution	0.01 km/h
Accuracy	±3 % ±0.1

Speed
Measuring range	0,3 ... 100 mph
Resolution	0.01 mph
Accuracy	±3 % ±0.1

Volume flow
Measuring range	0 ... 99,95 m³/min
Resolution	0,05 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	100 ... 999,9 m³/min
Resolution	0,1 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	1000 ... 9999 m³/min
Resolution	1 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	10000 ... 99990 m³/min
Resolution	10 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	100000 ... 999900 m³/min
Resolution	100 m³/min
Accuracy	calculated from wind speed and area

Temperature
Measuring range	0 ... 45 °C
Resolution	0,01 °C
Accuracy	±1 °C

General technical data
Measuring functions	HOLD, MAX, MIN
Display type	LCD
Display size	2,5 in
Display refresh rate	2 x per second
Storage capacity	2000 Data records
Storage interval from	1 s
Storage interval to	4 min.
Interface	RS232
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)
Menu language	English
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	170 x 90 x 34 mm
Other dimensions	Sensor 132 x 64 x 32 mm
Weight	337 g
