Current Clamp PCE-DC3-ICA

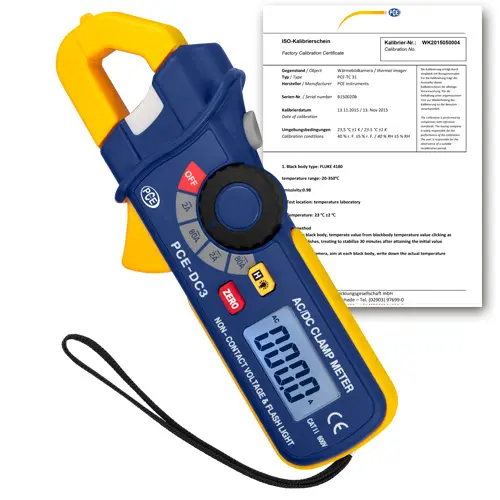

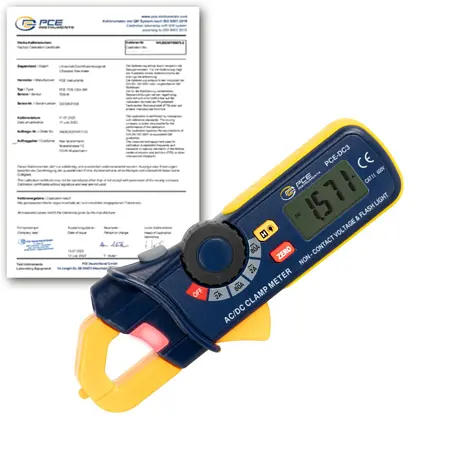

Current Clamp PCE-DC3-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC3-ICA
GTIN (EAN): 4250348725455
AED 1,182.00
AED 1,241.10
price ex. (customs / clearance)
:
4250348725455
PCE-DC3-ICA
Delivery time:5-7 working days

Description

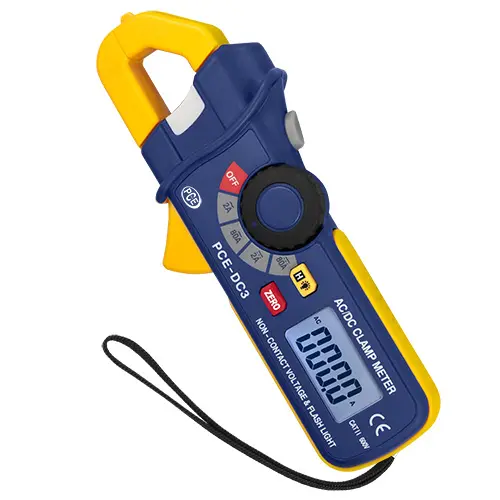

Current Clamp
DCA zero point function / AC/DC current measurement up to 80 A /
Automatic range selection / Clamp opening: 18 mm / 0.7" / incl. ISO Calibration Certificate

This current clamp was developed for the indirect measurement of AC/DC currents with high resolution. A non-contact voltage tester function and a torch/flashlight for illuminating the measuring point have also been integrated into this clamp meter. The small dimensions of this amperage clamp enable it to be used in places that are difficult to access.

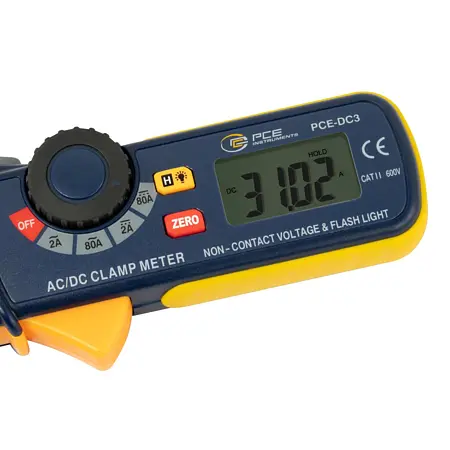

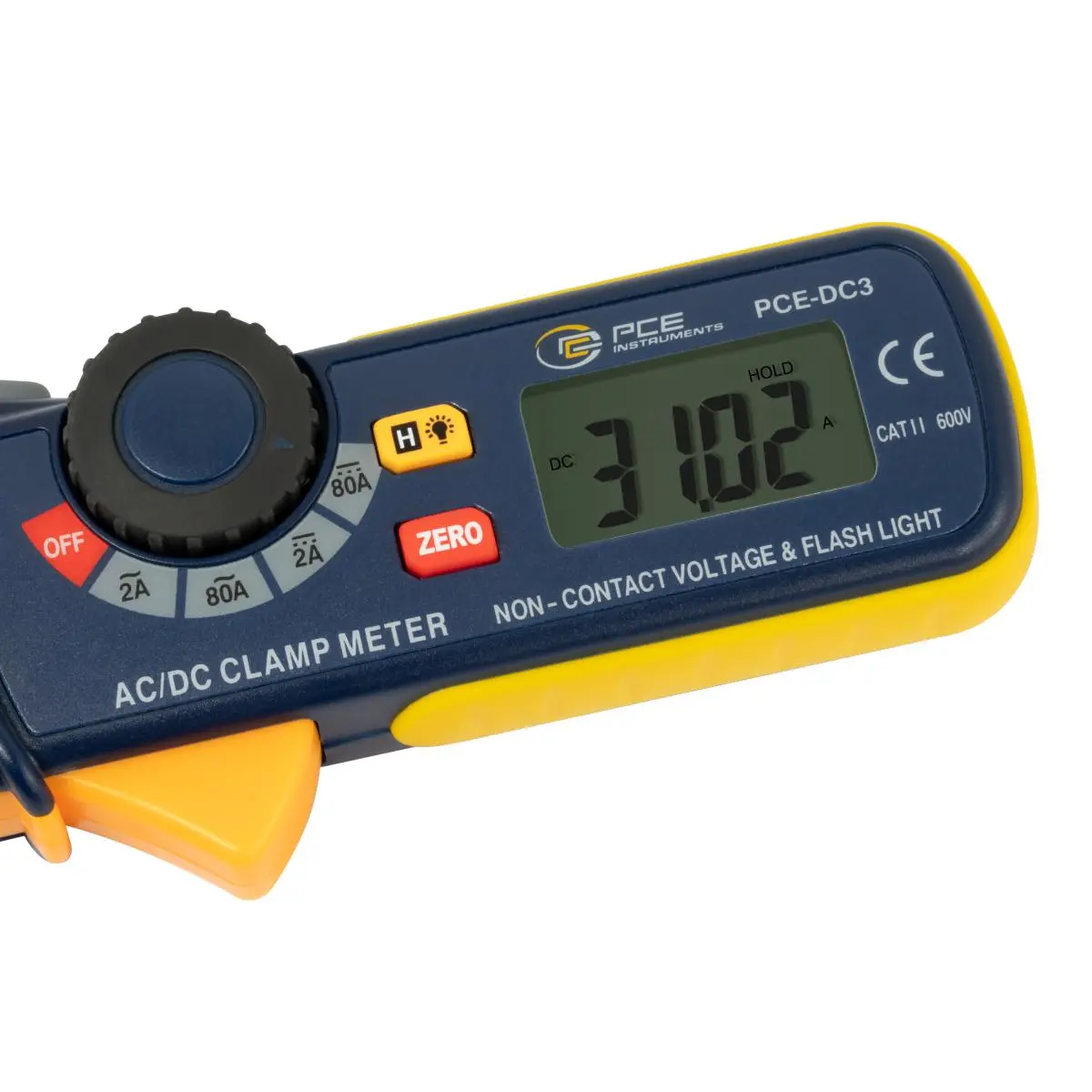

The large, illuminated display of these measuring clamps ensures very good readability even in dark locations, such as in switch cabinets and cable ducts. The non-contact voltage tester function not only supports you in the detection of dangerous voltage potentials, but also gives you a precise tool for determining cable break positions in cable reels, extension cables and appliance connection cables.

Highlights

- 4-digit LCD display with backlight
- AC/DC current measurement up to 80 amps
- Save function
- DCA zero adjustment
- Current tester

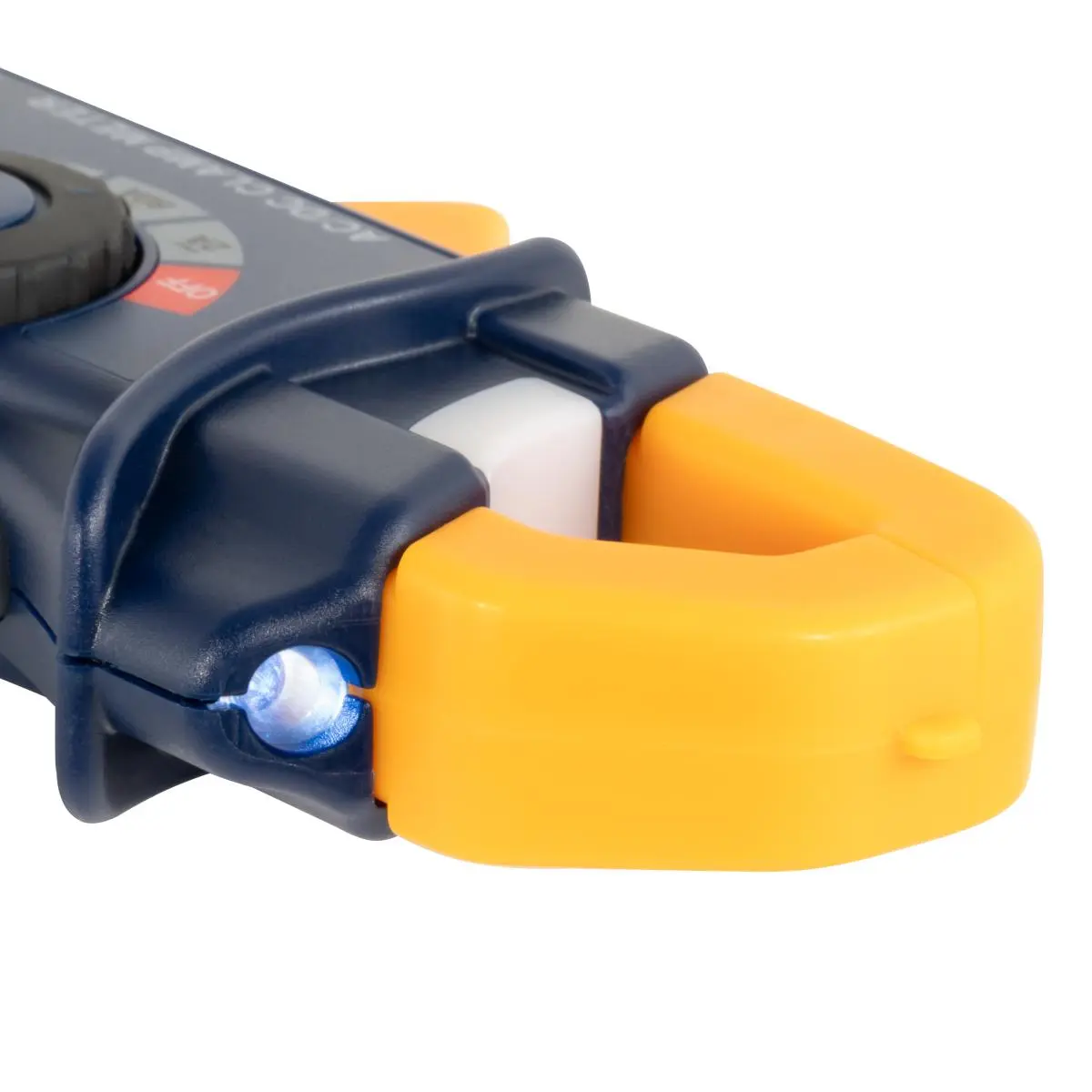

- Integrated flashlight
- Automatic range selection

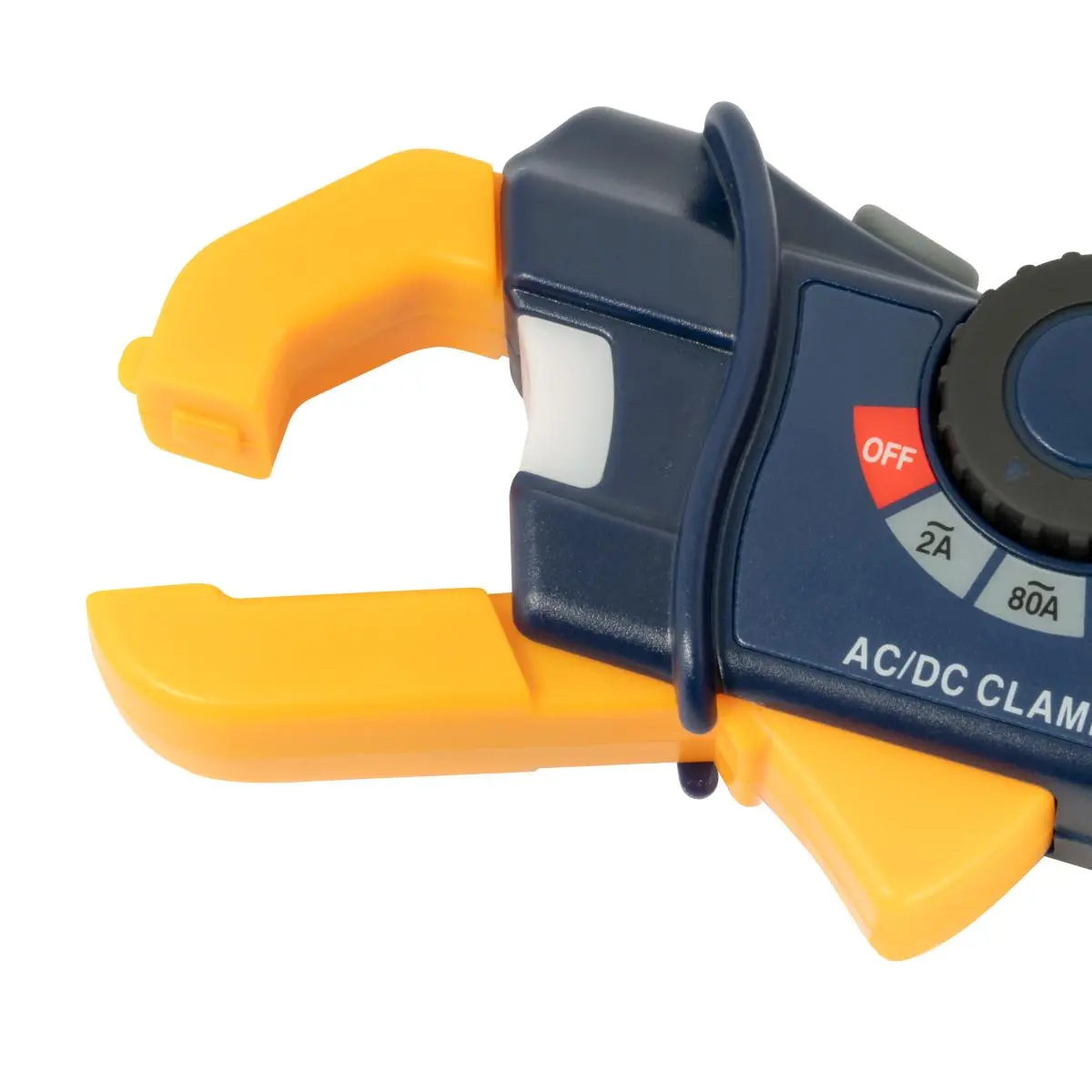

- Jaw opening of 18 mm / 0.7 in

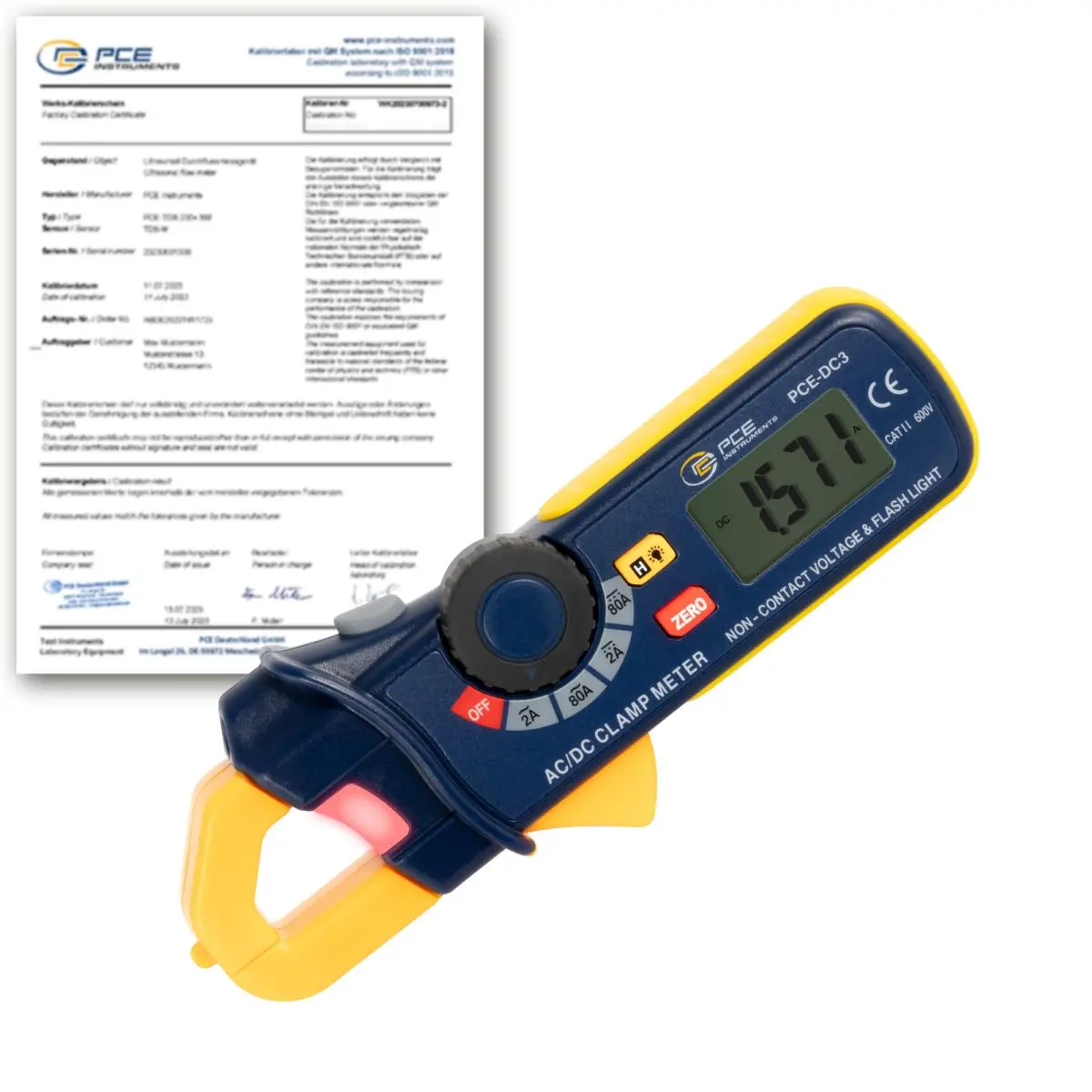

- incl. ISO-Calibration Certificate

Specification

Direct current DC
Measuring range  0 ... 2 A
Resolution  0,001 A
Accuracy  ±(3.0% +10 digits)

Direct current DC
Measuring range  0 ... 80 A
Resolution  0,1 A
Accuracy  ±(3.0% +8 Digits)

Alternating current AC
Measuring range  0 ... 2 A
Resolution  0,001 A
Accuracy  ±(2.8% +10 digits)

Alternating current AC
Measuring range  0 ... 80 A
Resolution  0,1 A
Accuracy  ±(3.0% +8 Digits)

General technical data
Display type  LCD with backlight
Display size  1,4 Inch
Measuring rate  2 x per second
Standard(s)  EN 61010-1, EN 61010-2-032
Maximum cable diameter  18 mm
Automatic power-off  7 min
Safety standard  CAT II / 600V
Menu language  English, English (GB)
Protection class (device)  IP20

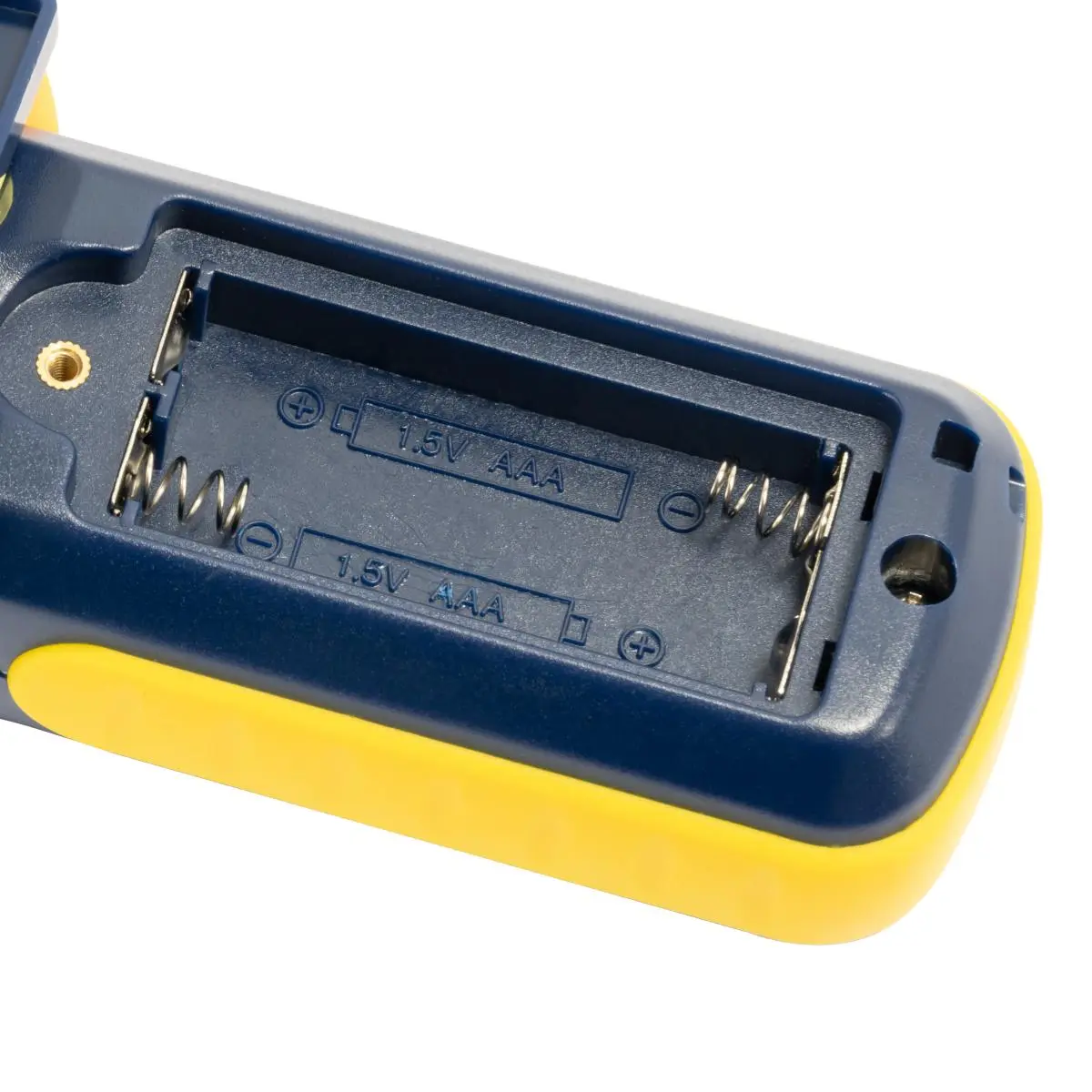

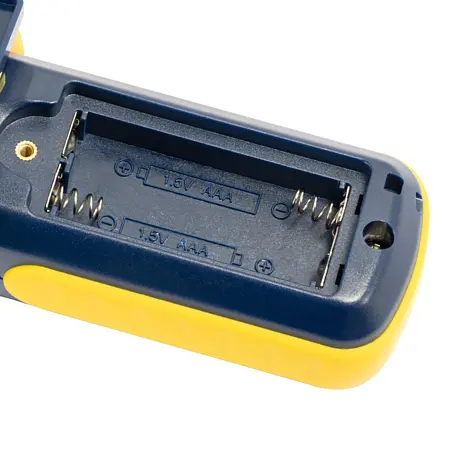

(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  -30 ... 60 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  164 x 65 x 32 mm
Weight  175 g

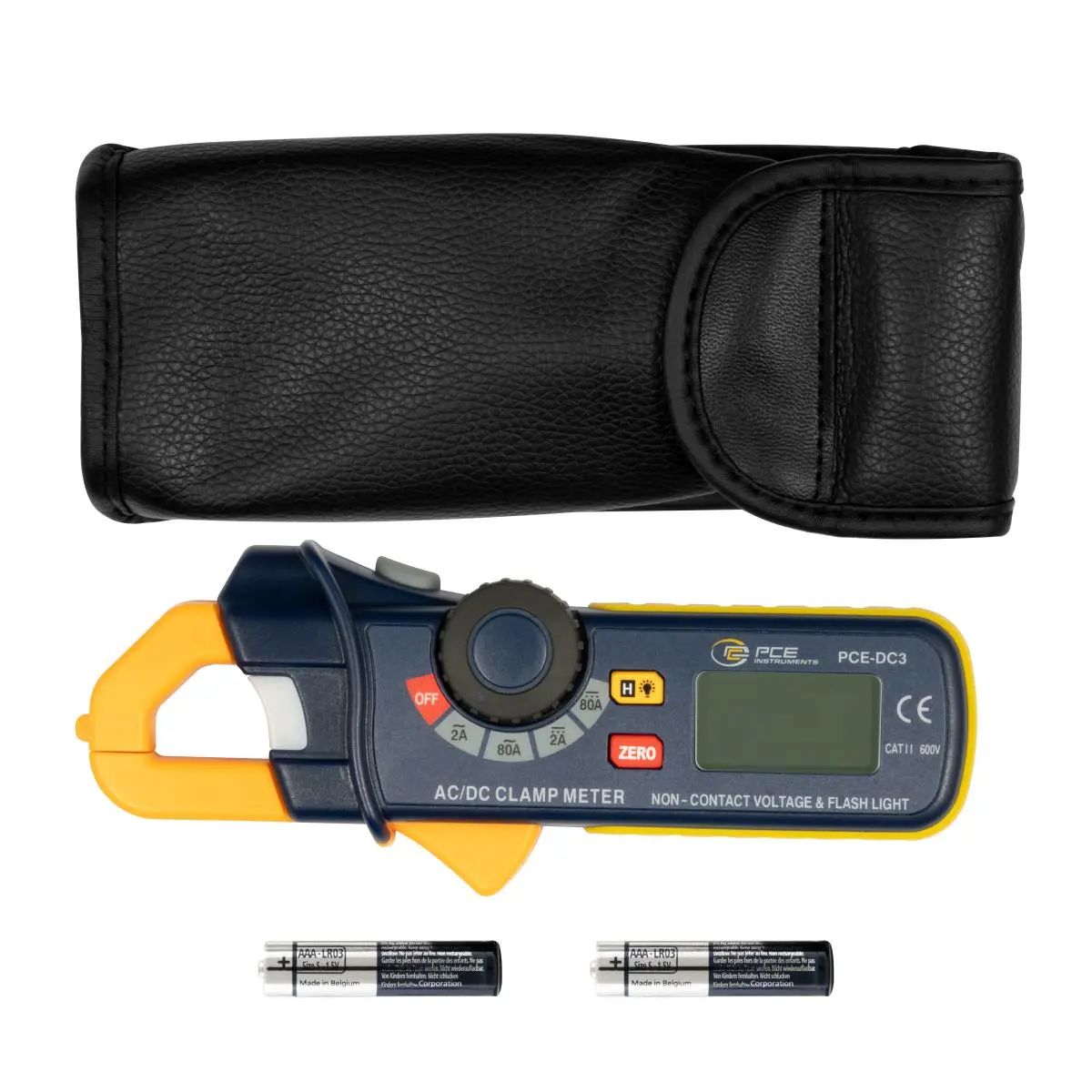

Delivery Scope

1 x PCE-DC3-ICA Current Clamp
1 x Case
2 x Batteries
1 x User manual
1 x ISO-Calibration Certificate
