Condition Monitoring Vibration Meter / Measuring device for measuring human vibration at the workplace / Measurement of speed, acceleration and displacement / TEDS support / Memory for 10,000 measured values / USB interface / simple operation

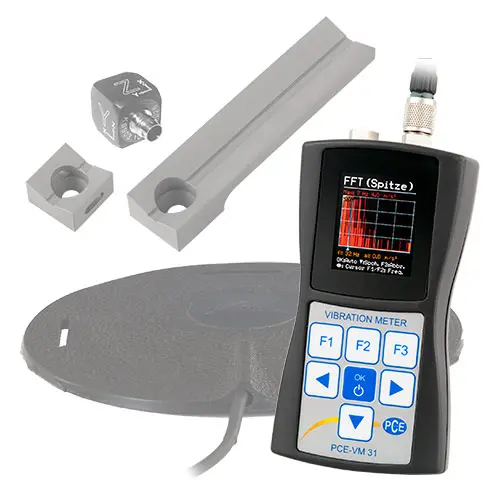

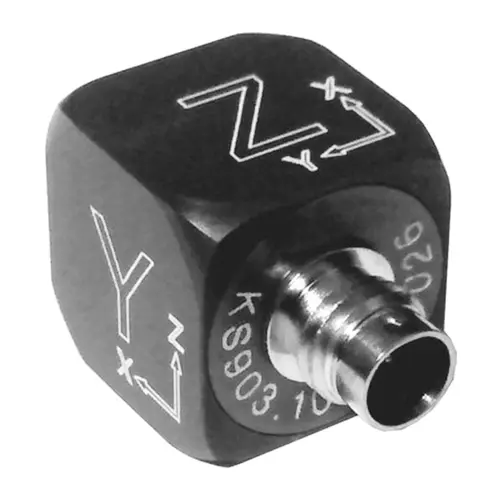

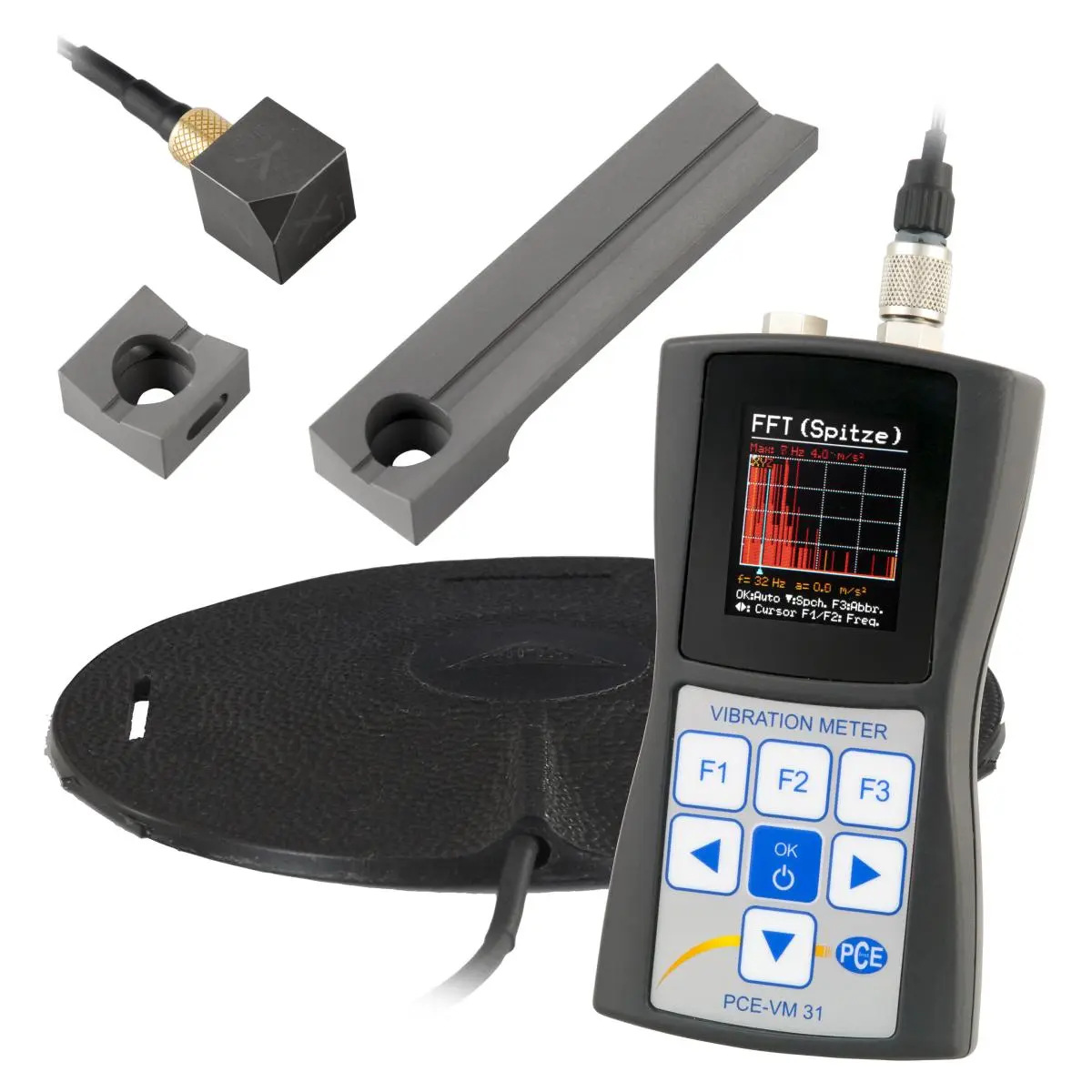

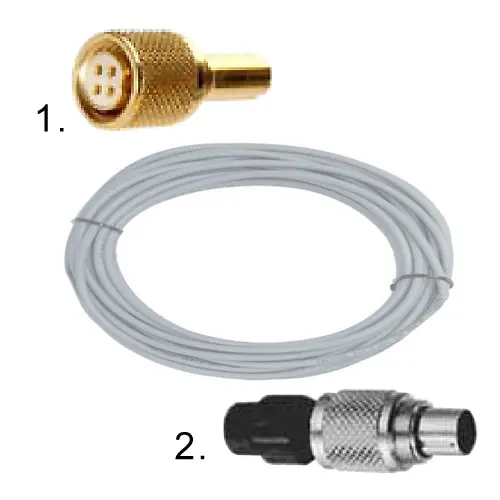

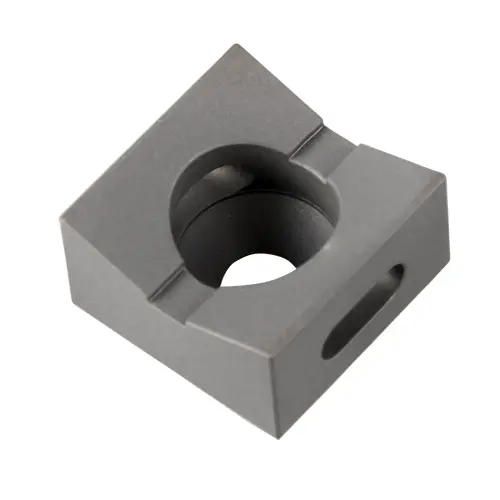

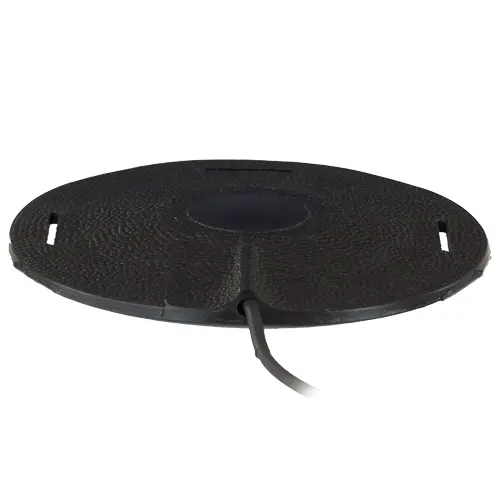

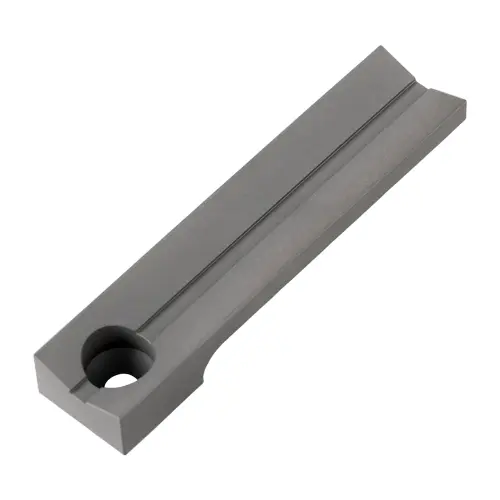

The Condition Monitoring Vibration Meter is designed for measuring human vibration at the workplace. The Condition Monitoring Vibration Meter can calculate hand-arm vibration measurements according to ISO 5349 and whole-body vibration measurements according to ISO 2631. Each sensor consists of a triaxial Vibration Meter that captures acceleration, velocity, and displacement measurements. In addition to human vibration measurements, the Condition Monitoring Vibration Meter or Vibration Analyzer can measure the vibrations of machines. The Condition Monitoring Vibration Meter also supports TEDS, which means that it can detect and identify TEDS-capable sensors automatically. Overall, the device comes with 4 independent measuring channels. The measured data can be displayed as interval, running or maximum RMS (MTVV), as well as estimated vibration dose value (eVDV), vector sum, peak, and maximum peak. The acceleration can also be displayed as FTT with up to 125 lines. The internal flash memory of the Condition Monitoring Vibration Meter can store up to 10,000 measurements or up to 1,000 FTTs, each with date, time, and a comment. The measured data can also be transferred to a PC via the USB 2.0 interface.
| Acceleration | |
| Measuring range | 0,1 ... 1100 m/s² |
| Resolution | 0,01 m/s² |
| Acceleration | |
| Measuring range | 0,1 ... 110 m/s² |
| Resolution | 0,01 m/s² |
| Speed | |
| Measuring range | 100 ... 10000 mm/s |
| Resolution | 0.1 mm/s |
| Frequency range | 1 kHz / 1 Hz |
| Speed | |
| Measuring range | 10 ... 1000 mm/s |
| Resolution | 0.1 mm/s |
| Frequency range | 1 kHz / 1 Hz |
| Path | |
| Measuring range | 250 ... 15000 µm |
| Resolution | 1 µm |
| Frequency range | 5 Hz / 250 Hz |
| Path | |
| Measuring range | 25 ... 1500 µm |
| Resolution | 1 µm |
| Frequency range | 5 Hz / 250 Hz |
| General technical data | |
| Inputs | IEPE |
| Input (additional information) | 4 channels, low power (0.7 mA / 17 V), TEDS (IEEE 1451.4) |
| Measuring functions | Human vibration measurement, RMS, peak, FFT frequency analysis, Peak-peak |
| FFT | X/Y/Z, peak value spectrum of acceleration, frequency ranges 3 - 240 / 6 - 480 / 12 - 960 / 24 - 1920 Hz |
| Frequency weighting | Wb, Wc, Wd, Wh, Wj, Wk, Wm |
| Display type | OLED |
| Display resolution | 128 x 160 pixels |
| Storage medium | Internal memory |
| Storage capacity | 10000 Data records |
| Memory capacity (additional information) | FFT memory: up to 1,000 FFT spectra |
| Interface | USB 2.0 |
| FFT spectrum (resolution) | 125 lines |
| Sensitivity | 0.8 ... 120 mV / (m/s²) |
| Linearity | > 75 dB for ±6 % error |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | -20 ... 60 °C , 0 ... 95 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 125 x 65 x 27 mm |
| Weight | 110 g |
