Condition Monitoring PCE-MIR 10-ICA

Condition Monitoring PCE-MIR 10-ICA incl. ISO-Calibration Certificate

Order no.: PCE-MIR 10-ICA
GTIN (EAN): 4250348748195
AED 680.00
price ex. (customs / clearance)
:
4250348748195
PCE-MIR 10-ICA
Delivery time:5-7 working days

Description

Condition Monitoring with a measuring range of -50 ... +500 °C / emission value 0.95 / display of largest and smallest measured values / backlit display /  measuring spot 12:1 / quickly ready for use / optionally with ISO calibration certificate

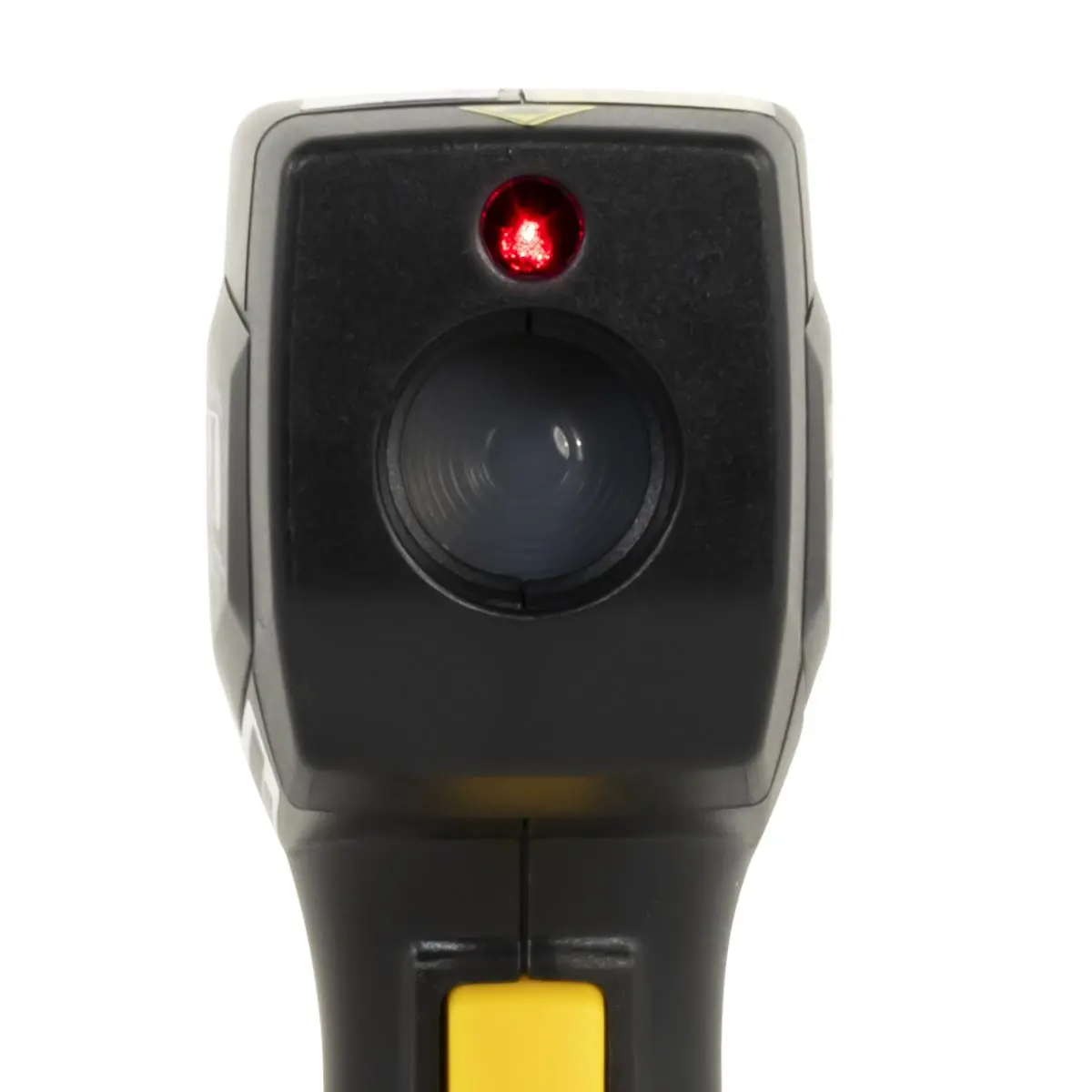

The Condition Monitoring has a measuring range of -50 ... +500 °C and covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 500 °C, the Condition Monitoring is a very precise measuring device. For better orientation of the measuring spot, a laser pointer is built into the Condition Monitoring. This laser has an output power of <1 mW. The emission value of the Condition Monitoring is fixed at 0.95.

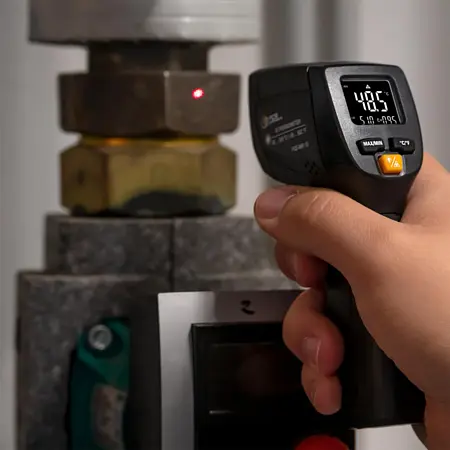

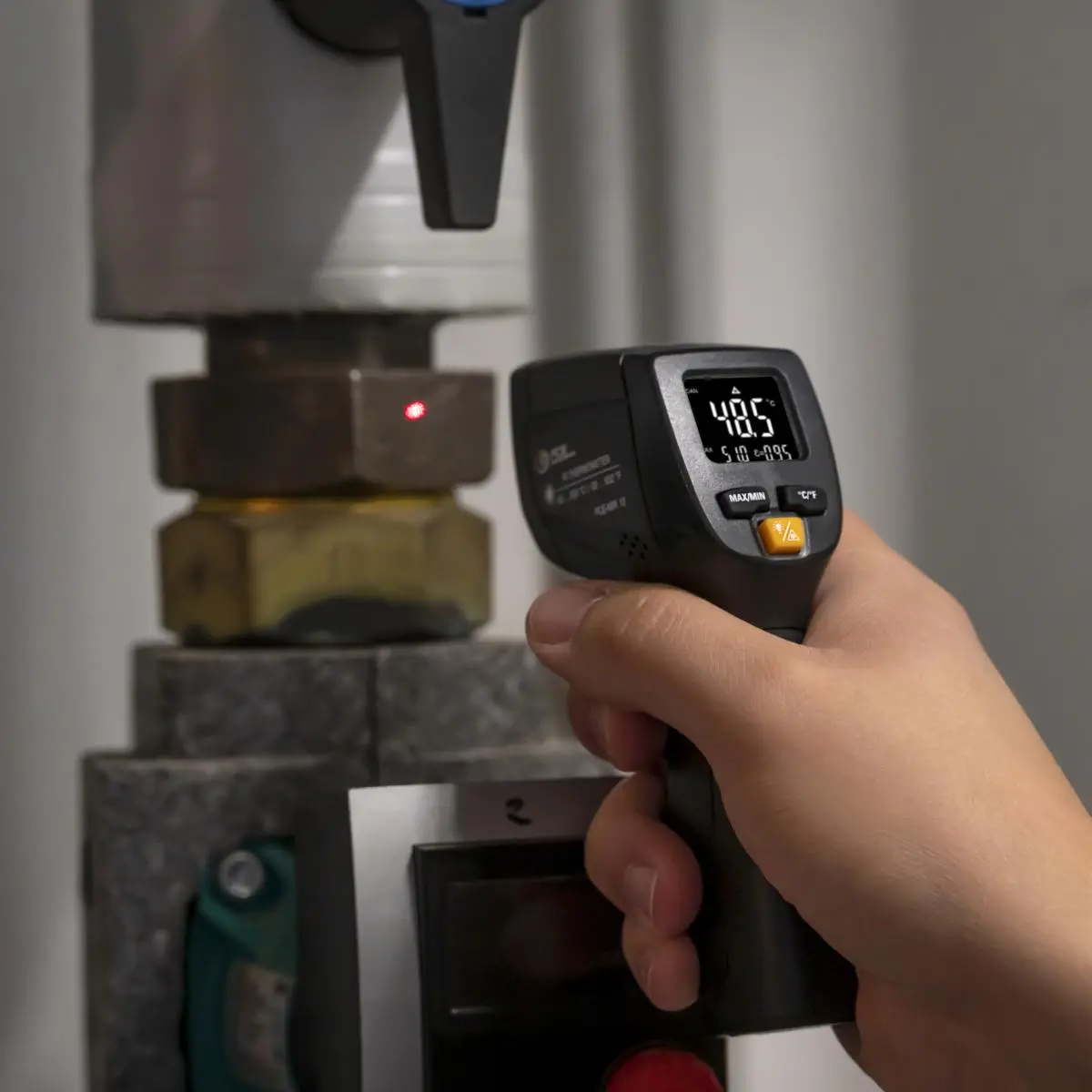

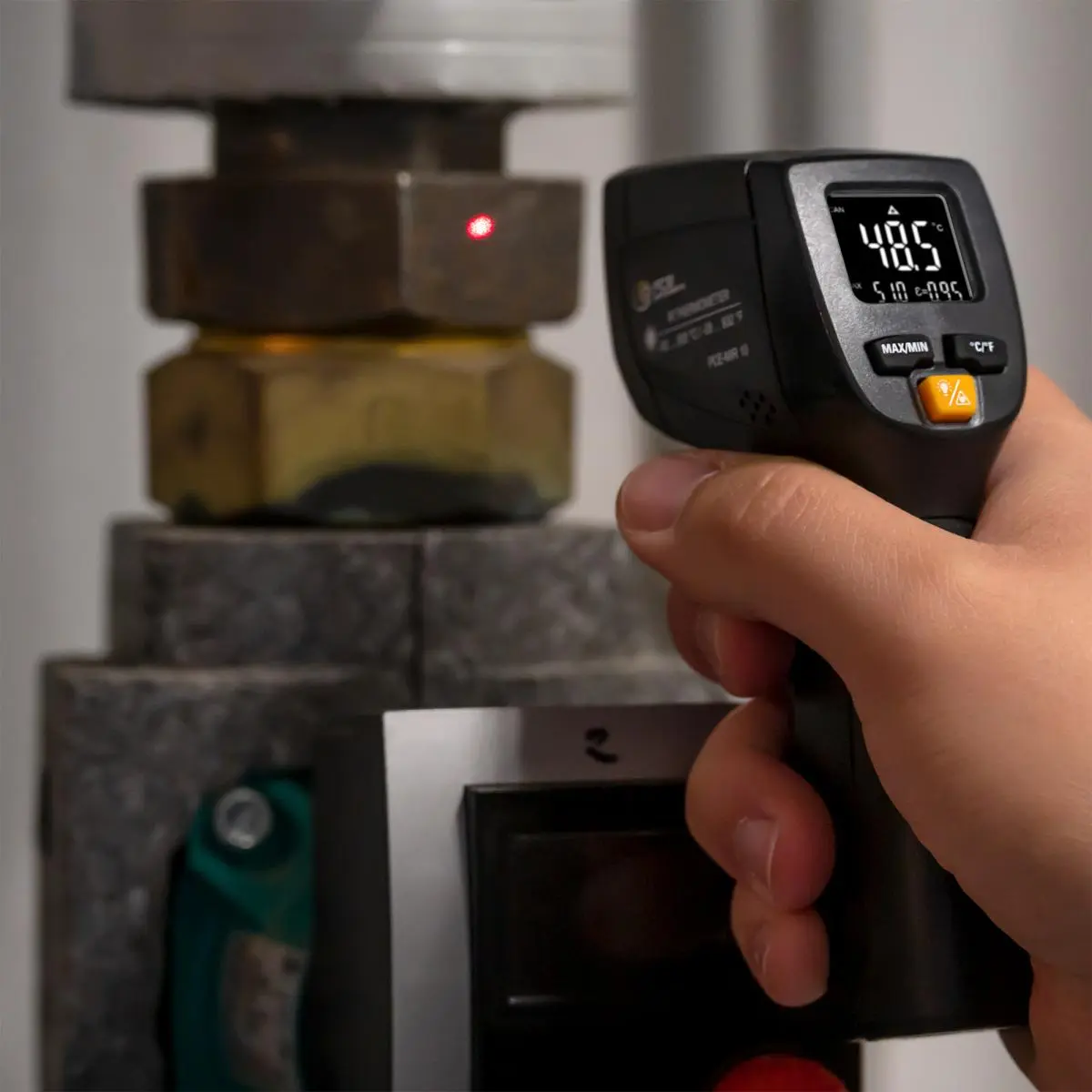

The Condition Monitoring is used, for example, for surface temperature testing of electric motors, combustion engines or heat sinks. Thanks to its compact design, the Condition Monitoring is handy and can be easily stowed away.
To switch on the Condition Monitoring, press the measuring button. The measurement is then immediately taken by the Condition Monitoring. When the button is released, the last value remains on the Condition Monitoring display until a new measurement is taken. Optionally, the Condition Monitoring can be equipped with an ISO calibration certificate.


Highlights

- Measuring range -50 ... 500 °C
- automatic switch-off
- immediate operating range
- Measuring ratio 12:1
- Max / Min function
- optionally with ISO calibration certificate
- incl. ISO-Calibration Certificate

Specification

Infrared temperature
Measuring range  -50 ... +20 °C
Resolution  0,1 °C
Accuracy  ±3°C

Infrared temperature
Measuring range  20 ... 500 °C
Resolution  0,1 °C
Accuracy  ±(2% of reading +2°C)

Infrared temperature
Measuring range  -58 ... +68 °F
Resolution  0,1 °F
Accuracy  ±5.4 °F

Infrared temperature
Measuring range  68 ... 932 °F
Resolution  0,1 °F
Accuracy  ±(2% of reading +3.6°F)

General technical data
Repeat accuracy  ±1°C / ±1.8°F
Measuring rate  2 Hz

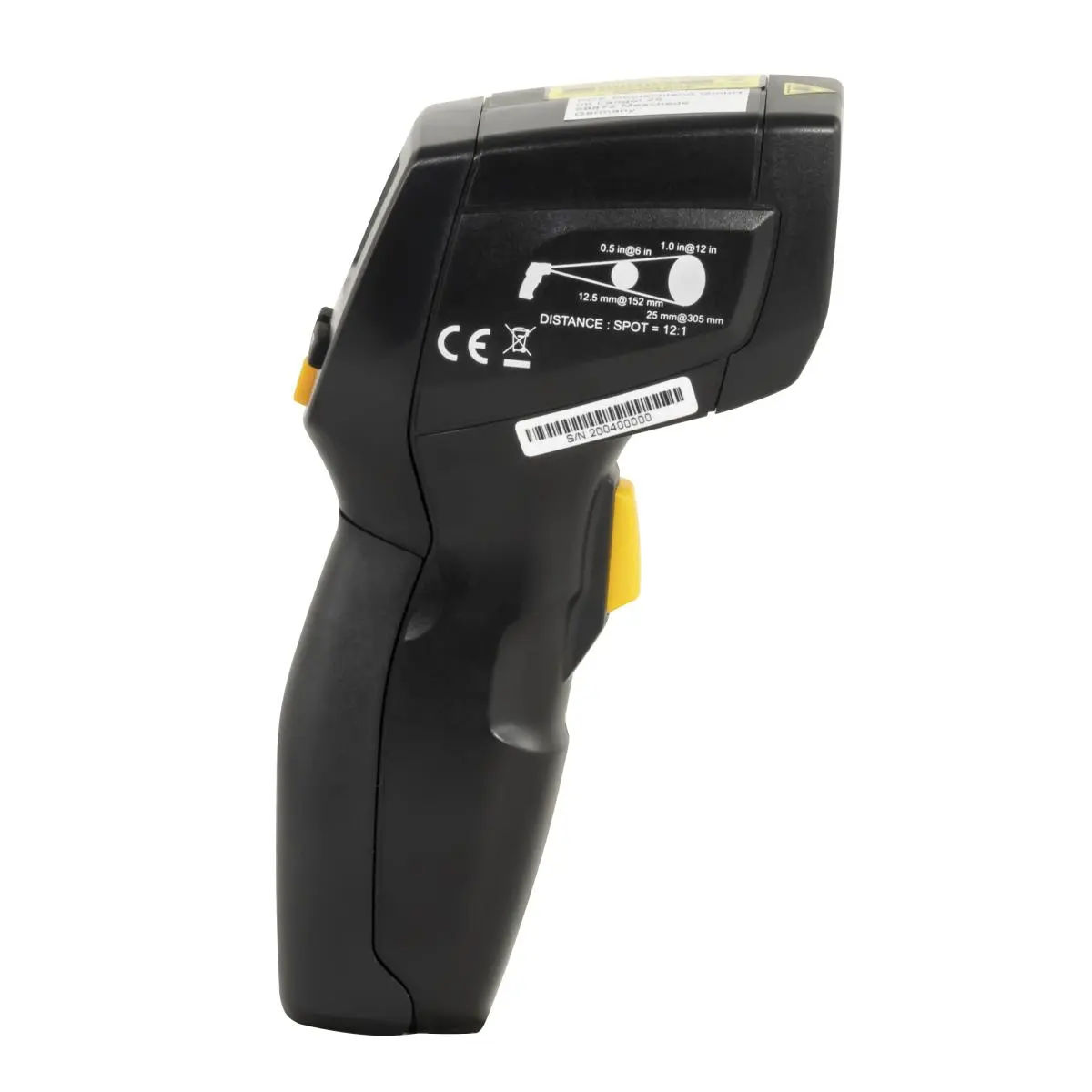

Measurement spot  12:1
Laser  Class 2 <1mW
Emissivity  0,95
Spectral range  8 ... 14 µm
Wavelength range  630 ... 670 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  batteries
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  175 x 75 x 35 mm
Weight  132 g

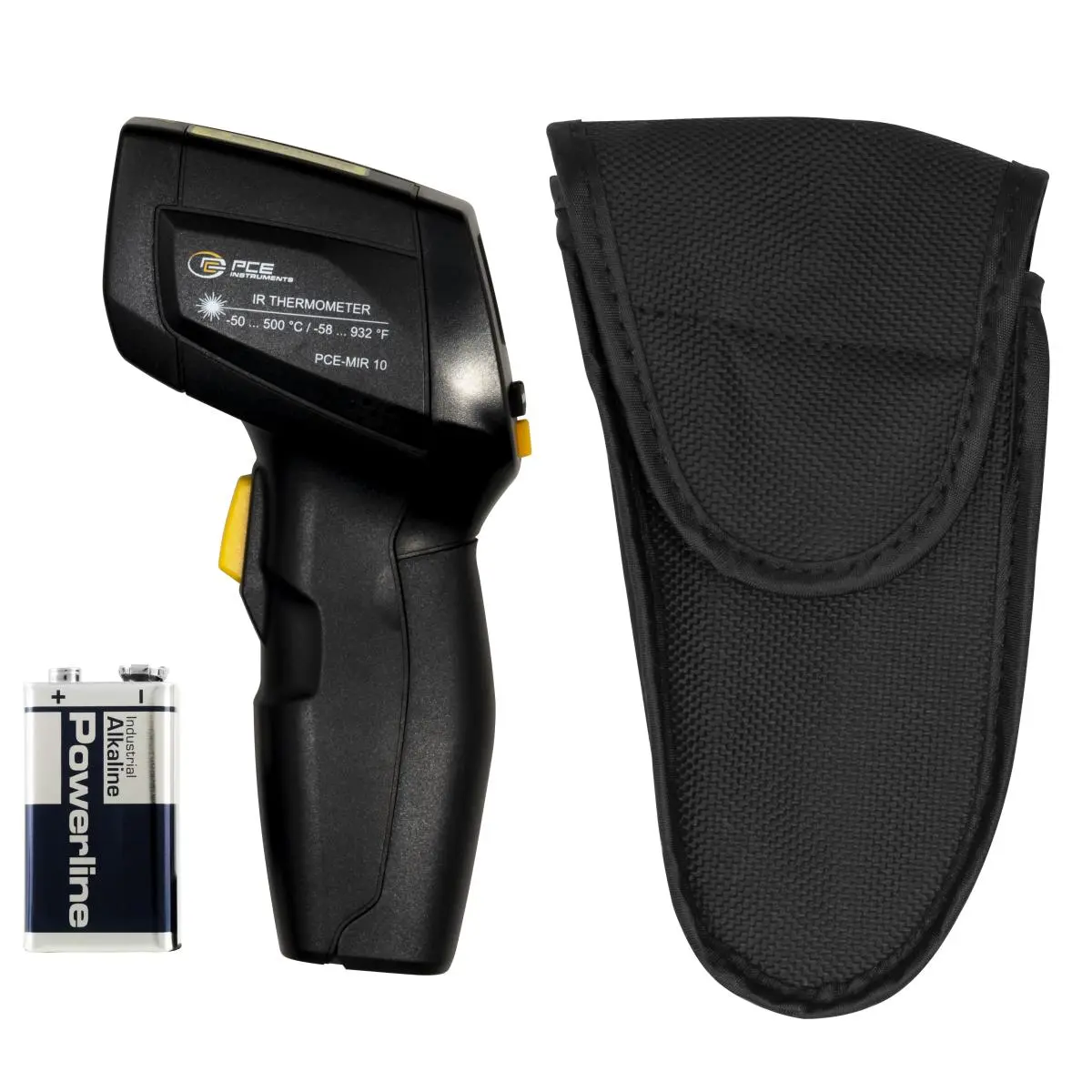

Delivery Scope

1 x Condition Monitoring PCE-MIR 10-ICA
1 x Carrying bag
1 x instruction manual

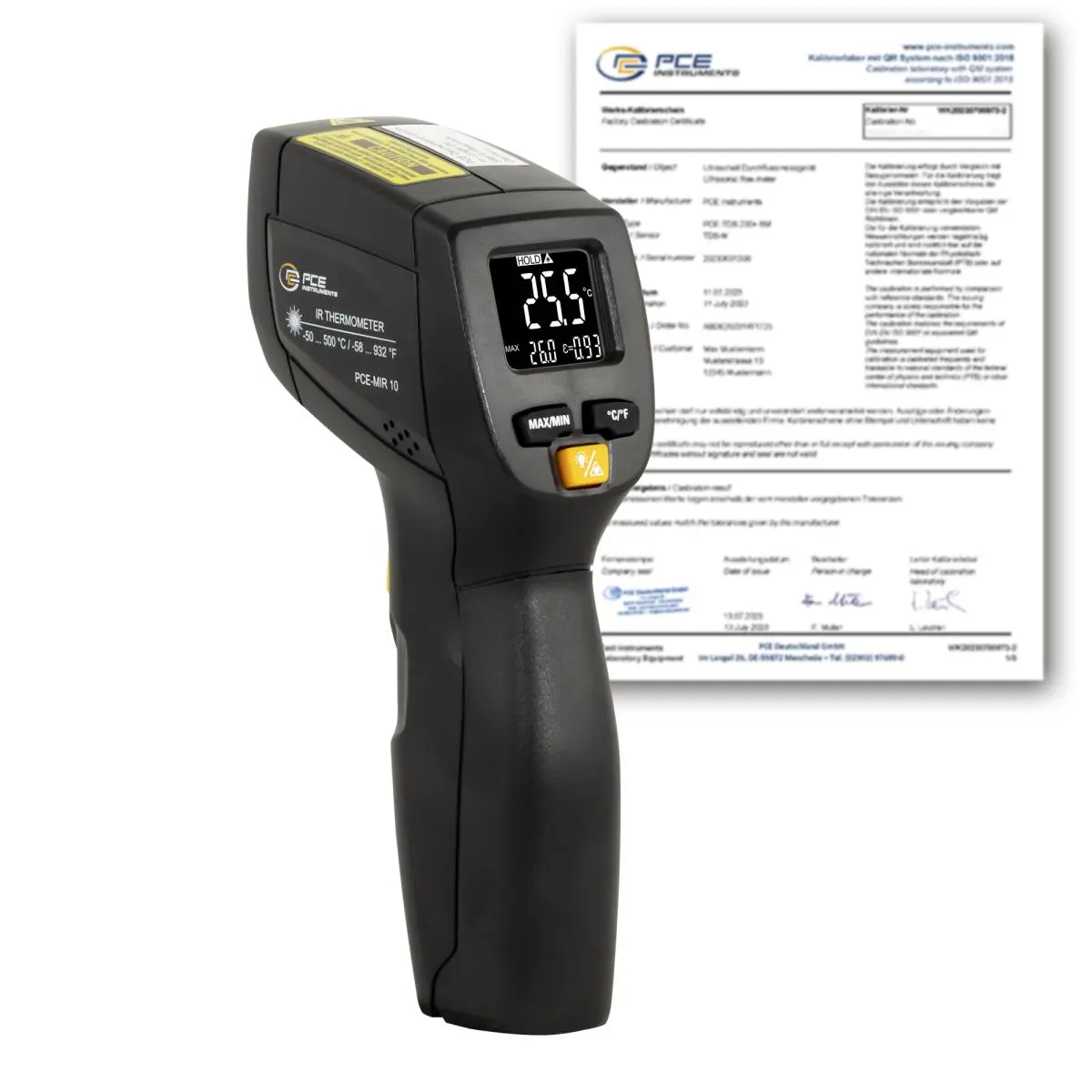

1 x ISO-Calibration Certificate
