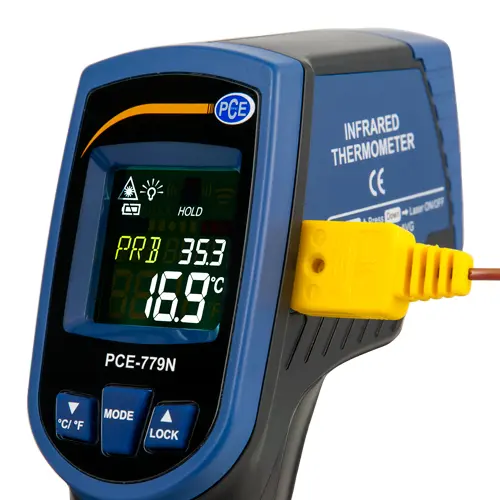

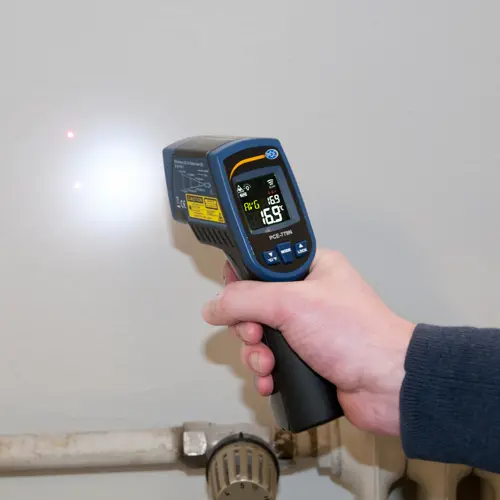

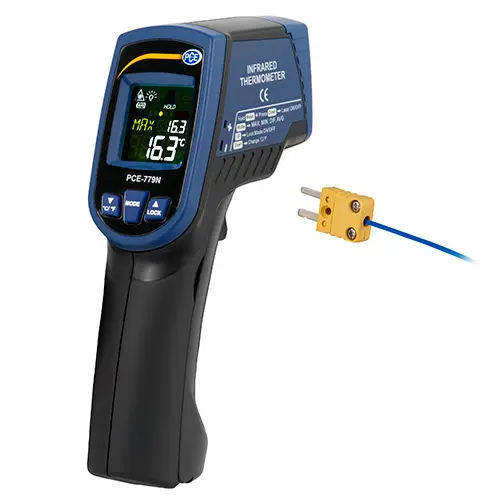

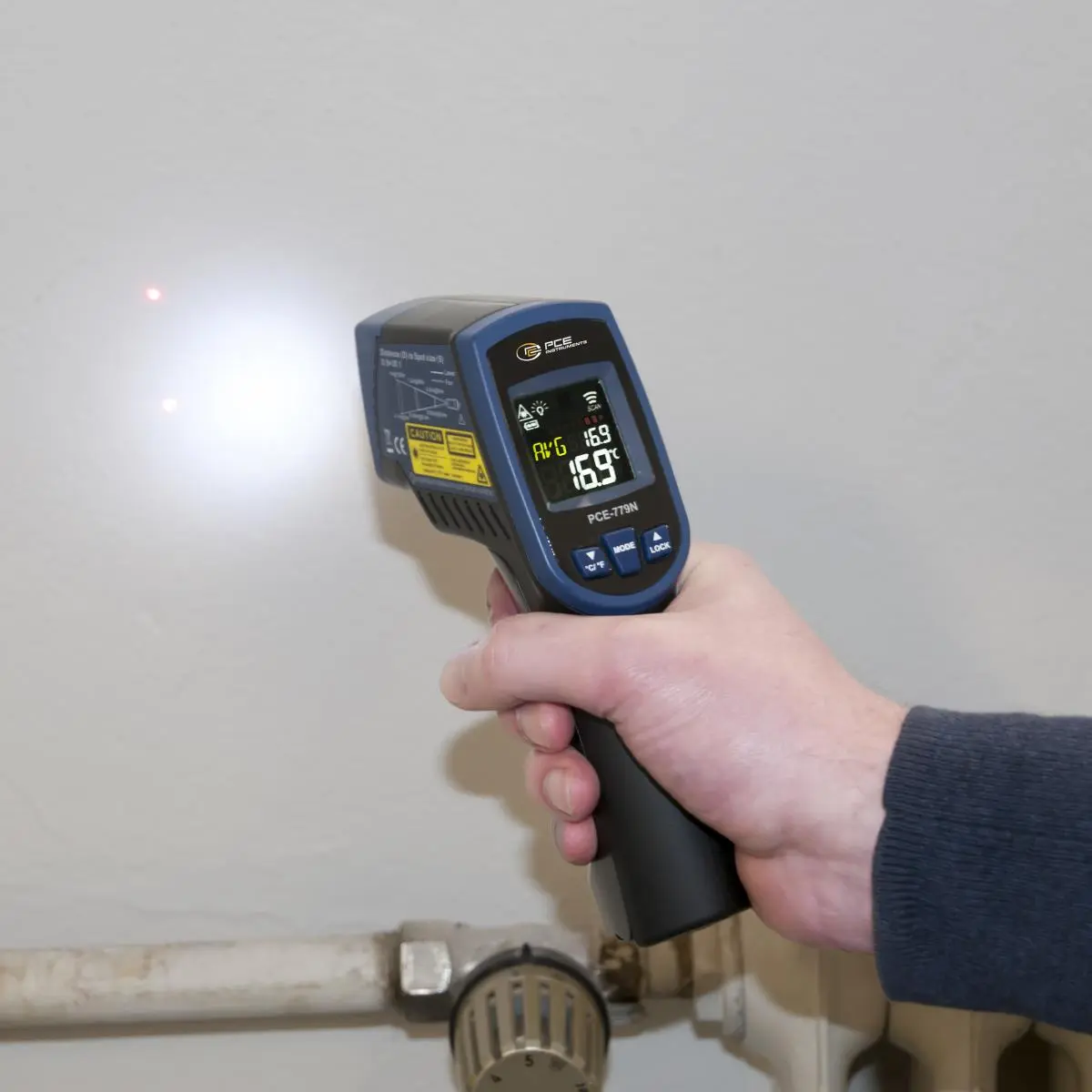

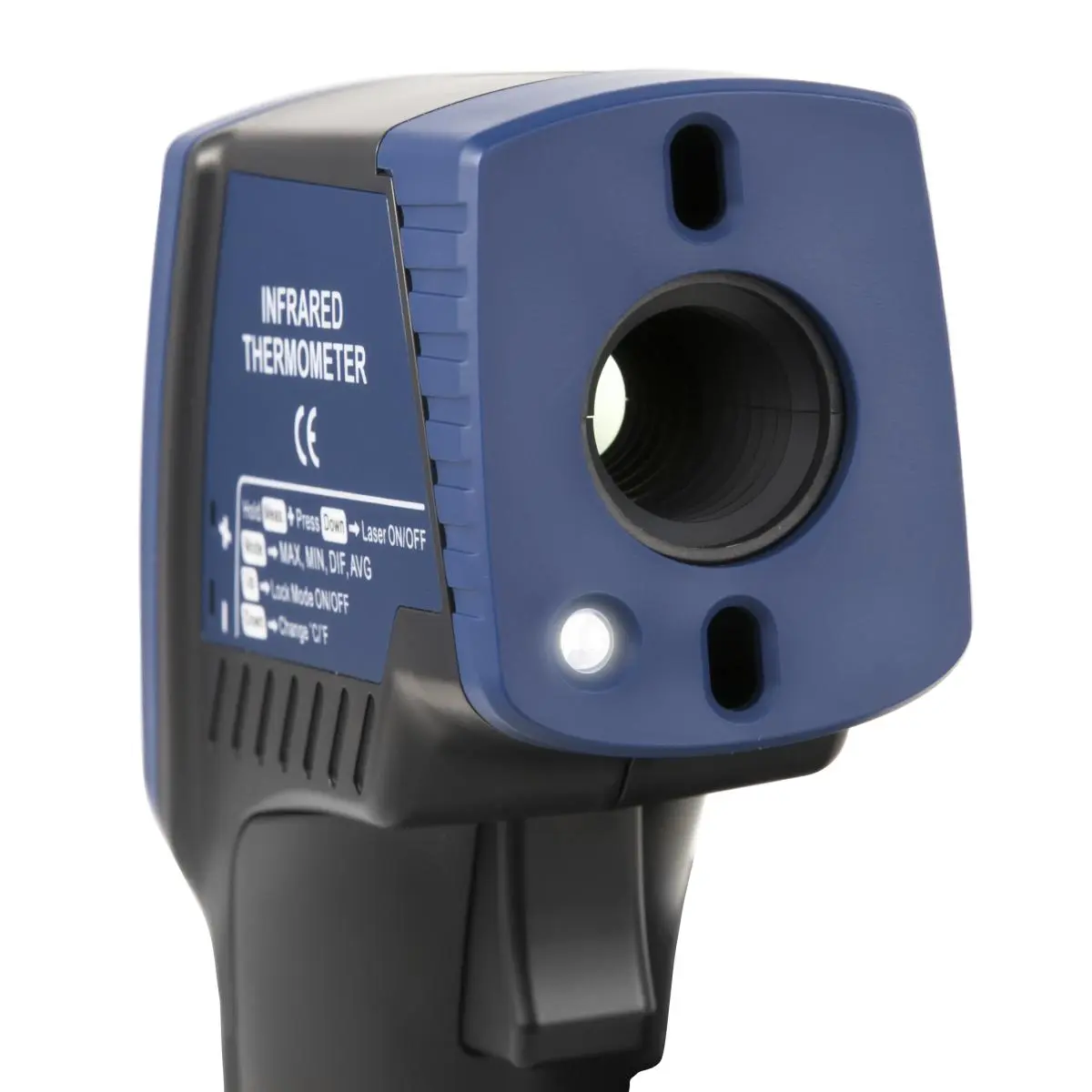

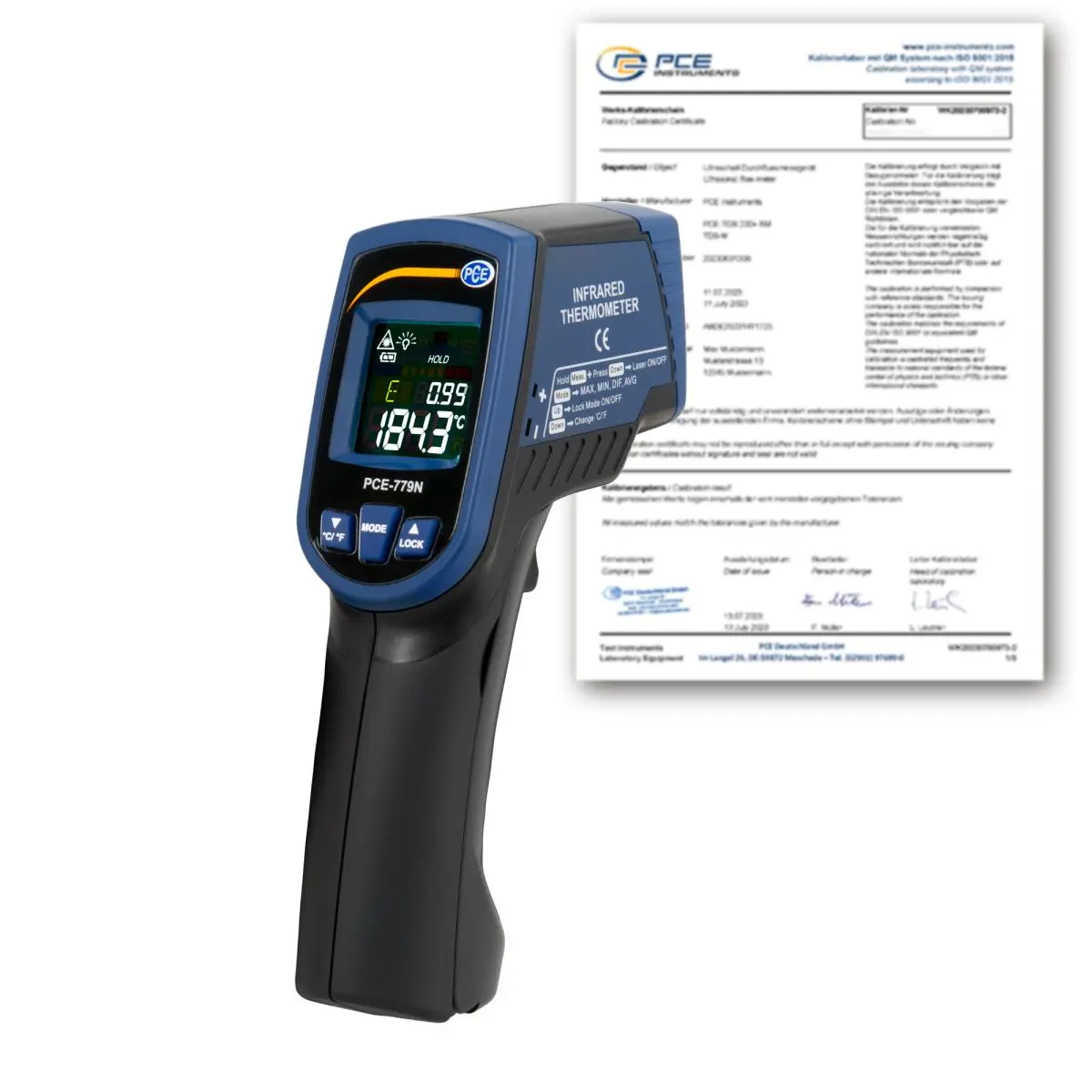

The Condition Monitoring Infrared Thermometer can be used for quick temperature measurements. This can be done in two different ways: either without contact or by means of a thermocouple. The Condition Monitoring Infrared Thermometer is suitable for nearly all surfaces. Since the Condition Monitoring Infrared Thermometer allows non-contacting measurement, even high temperatures can be measured from a safe distance. By means of the integrated dual laser of the Condition Monitoring Infrared Thermometer, the user can target the measuring spot very precisely.
The Condition Monitoring Infrared Thermometer has a variety of functions, including the MAX and MIN functions as well as the average and the difference function, which makes the Condition Monitoring Infrared Thermometer useful for many applications, including contacting, but also non-contacting measurements. The Condition Monitoring Infrared Thermometer is typically used for e. g. food monitoring, different hygiene-related controls, road construction, switch cabinet and production monitoring as well as for measuring motor temperatures.

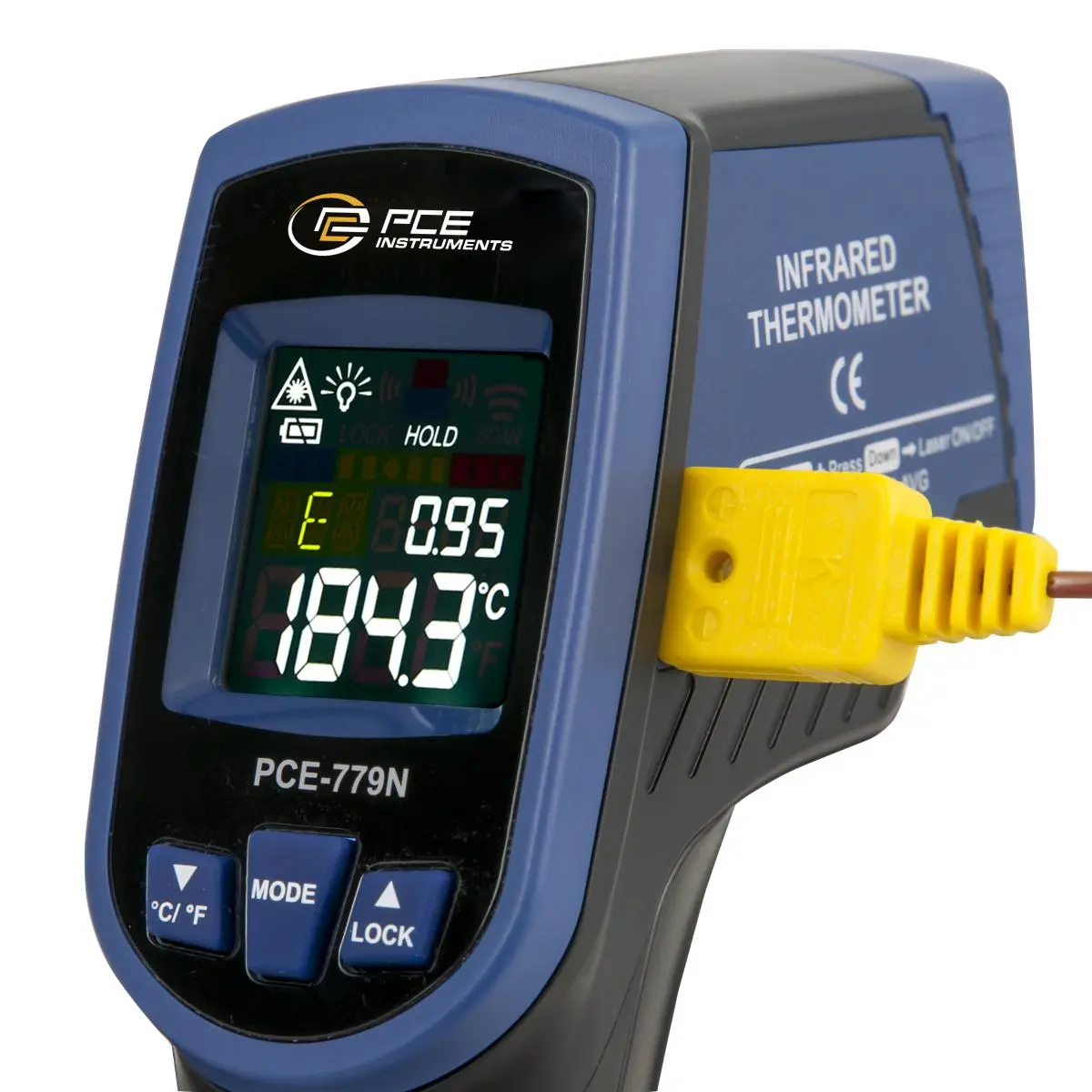

| Temperature K-type | |
| Measuring range | -64 ... +1400 °C |
| Resolution | 1 °C |
| Accuracy | ±1% v.Mw. or ±1°C (larger unit counts) (measurement under TUmg = 23 ±6°C) |
| Infrared temperature | |
| Measuring range | -60 ... +760 °C |
| Resolution | 1 °C |
| Accuracy | TObj = -60 ... 0 ±(2+0.05/degC) degC, TObj = 0 ... 760: ±2% v.Mw. or ±2°C (larger unit counts) |
| General technical data | |
| Outputs | Interface for K-type sensor |
| Measuring functions | MAX, MIN, Difference, Average value |
| Units | °C, °F |

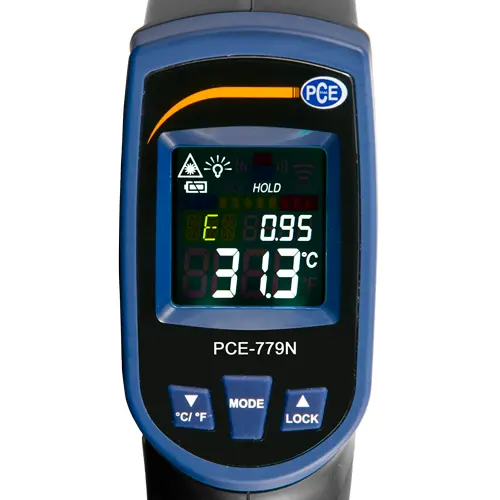

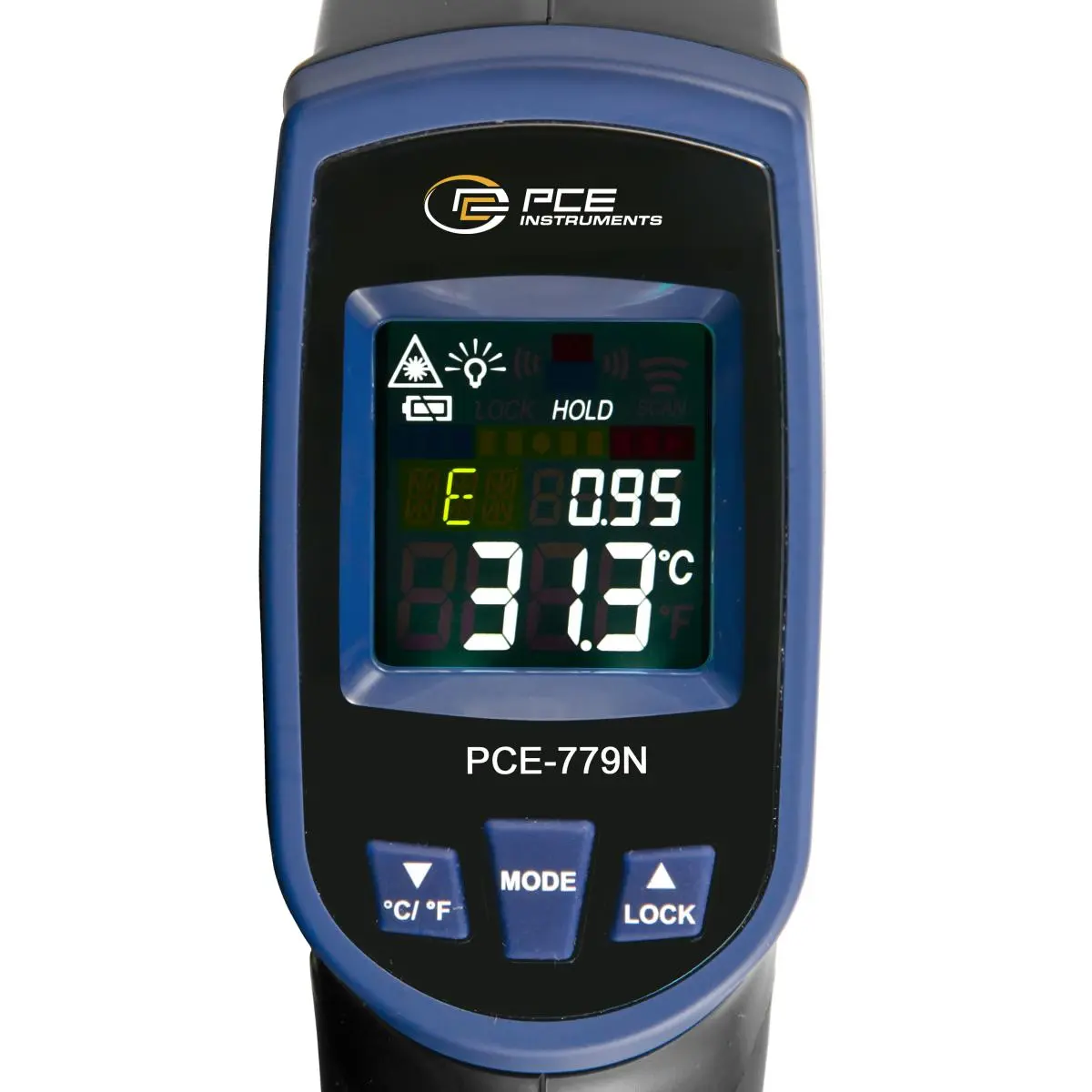

| Display type | LCD with backlight |
| Display size | 1,6 in |
| Response time | 1 s |
| Operating time | 30 h |
| Operating time additional information | without laser: min. 30 h with laser and LED switched on: min. 3 h |
| Automatic power-off from...to | 1 ... 12 min. |

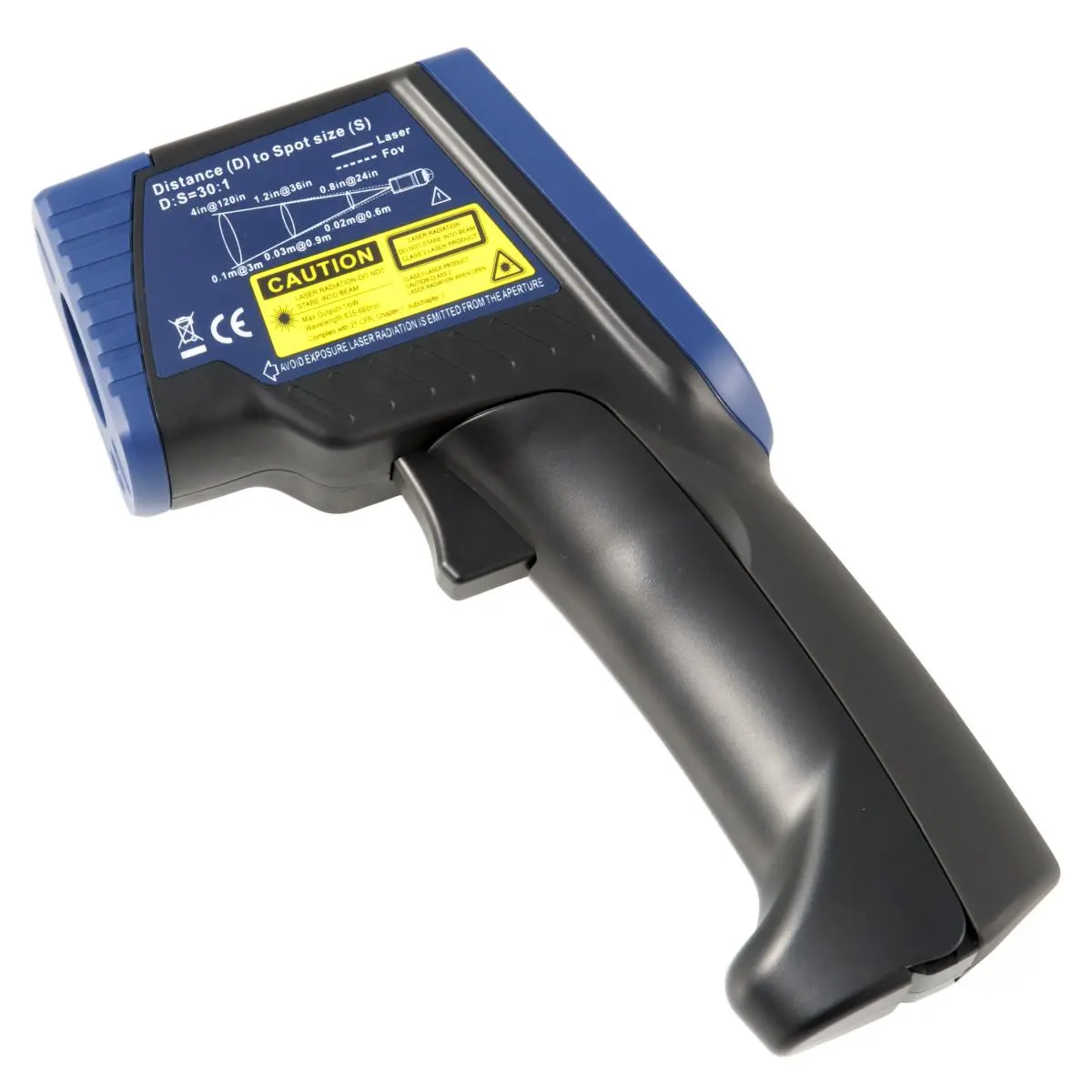

| Laser | Class 2 <1mW |
| Emissivity from/to | 0.1 ... 1 |
| Emissivity | 0,95 |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 172 x 119 x 48 mm |
| Weight | 256 g |
