Concrete Test Hammer PCE-HT 224E with Digital Display

Order no.: PCE-HT 224E

GTIN (EAN): 4250348721402

Accessory

ISO Calibration Certificate

AED 938.00

Description

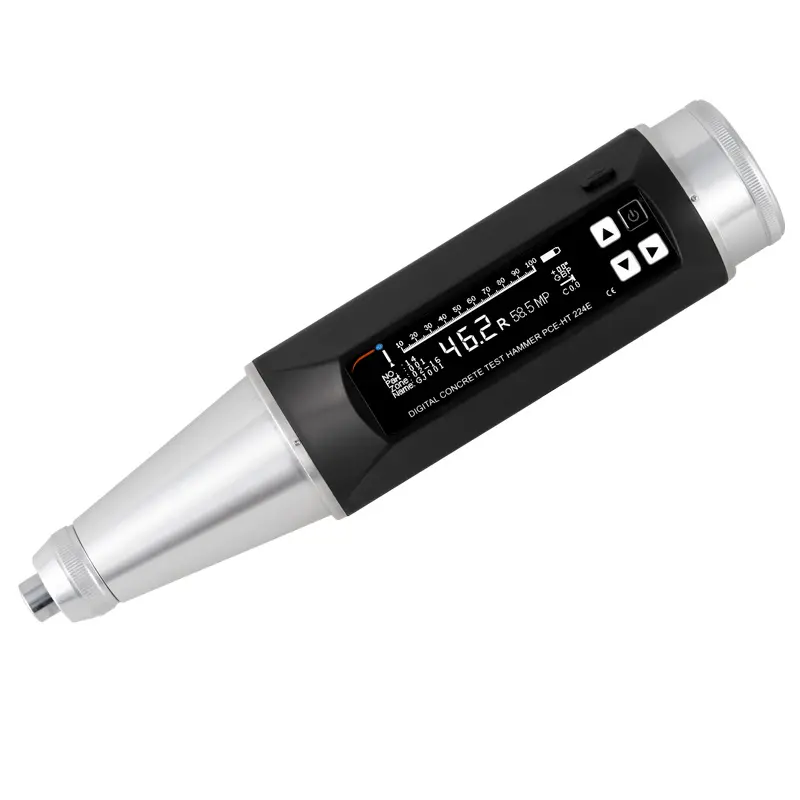

Concrete Test Hammer PCE-HT 224E with Digital Display

Mechanical concrete hardness tester with OLED / Measuring range 10 ... 100 N /mm² (1500 ... 8500 PSI or lbs/in²) / Built-in battery for mobile use / Test load 2.207 J / For measuring the quality of concrete surfaces

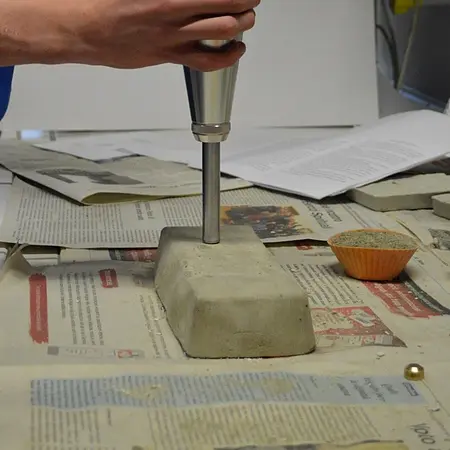

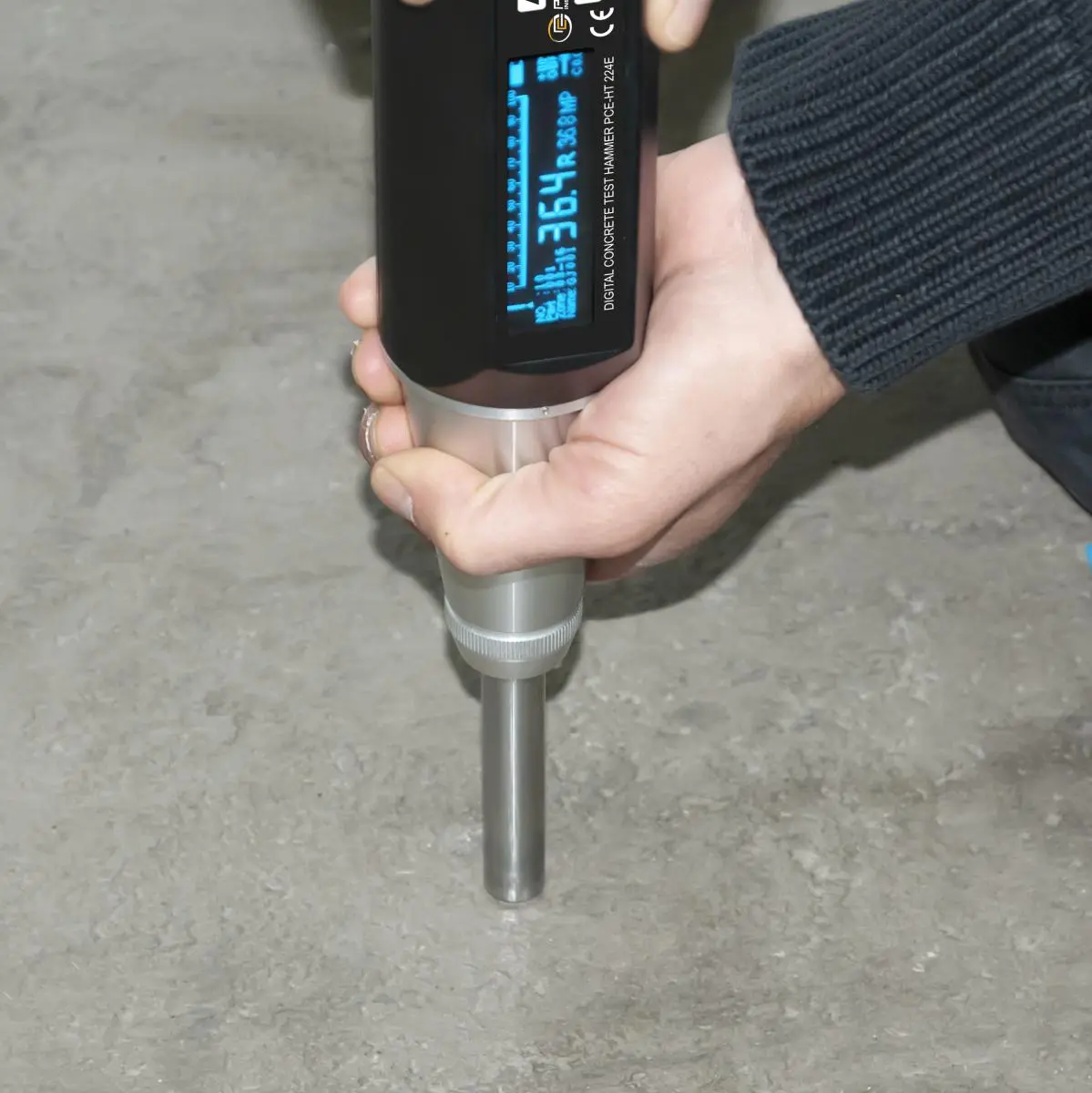

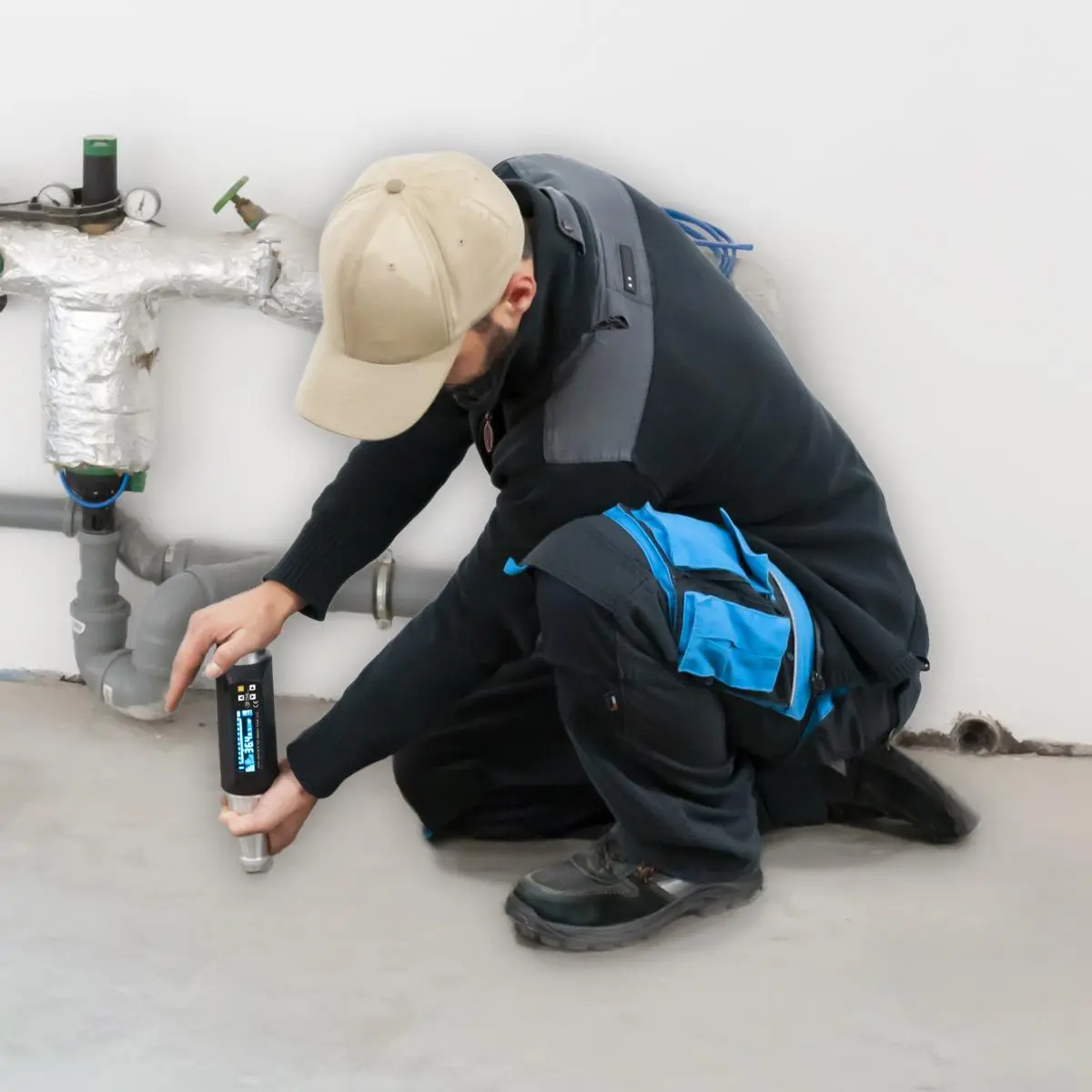

The Concrete Test Hammer is a measuring tool for testing the strength of concrete. The Concrete Test Hammer measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the Concrete Test Hammer. Thus, the Concrete Test Hammer finds its essential application in the construction and in the construction sector. The Concrete Test Hammer is also suitable for testing hardness of rolled paper. The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

The Concrete Test Hammer displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The Concrete Test Hammer can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).

Highlights

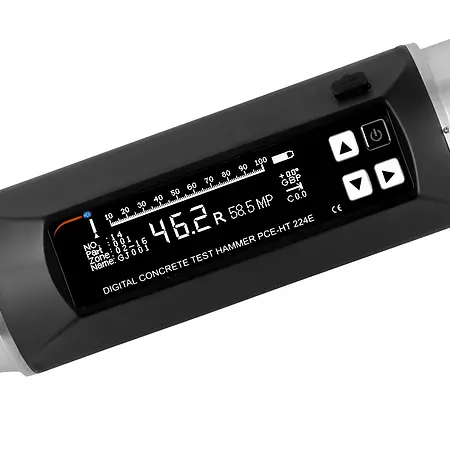

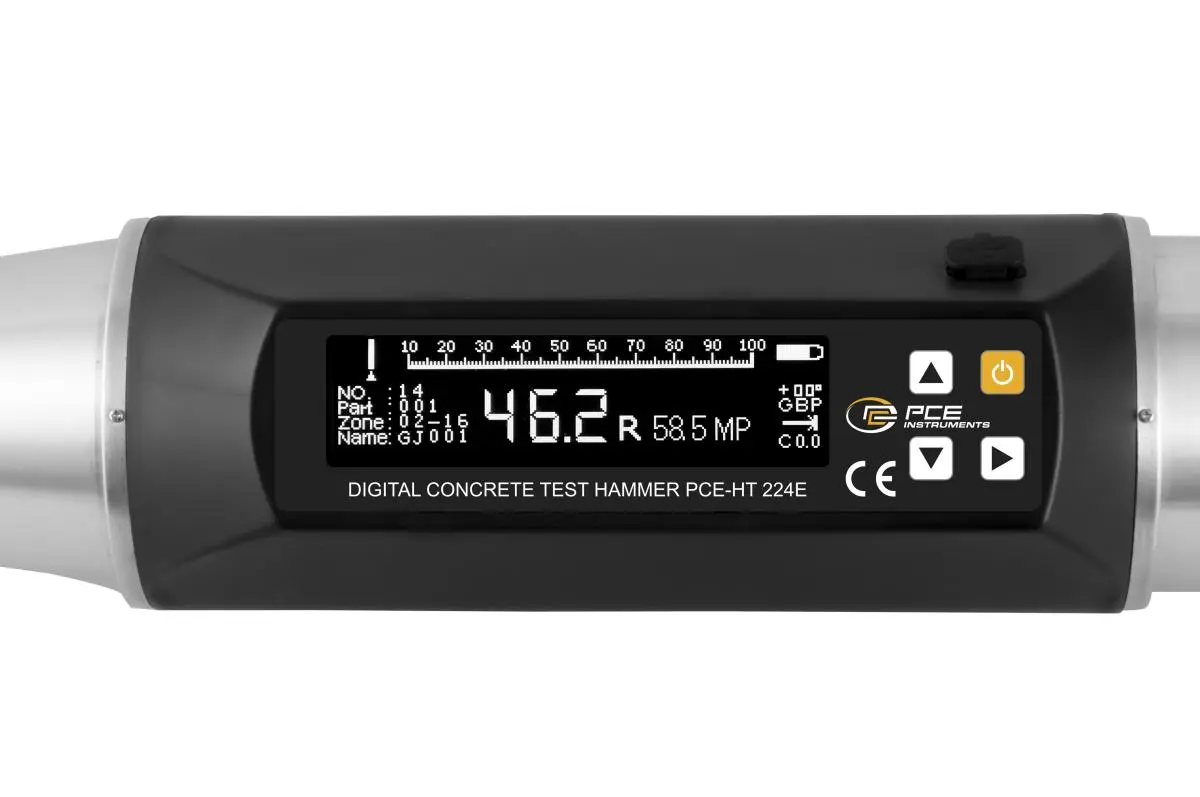

- OLED for reading the measured values

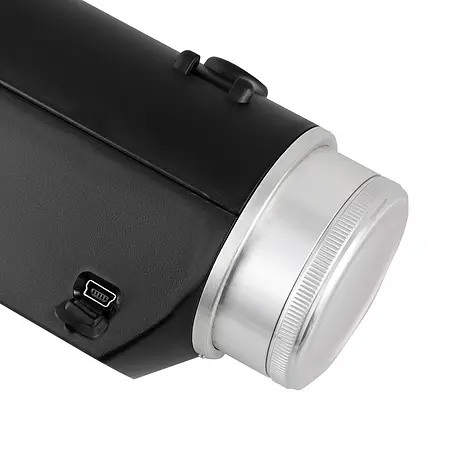

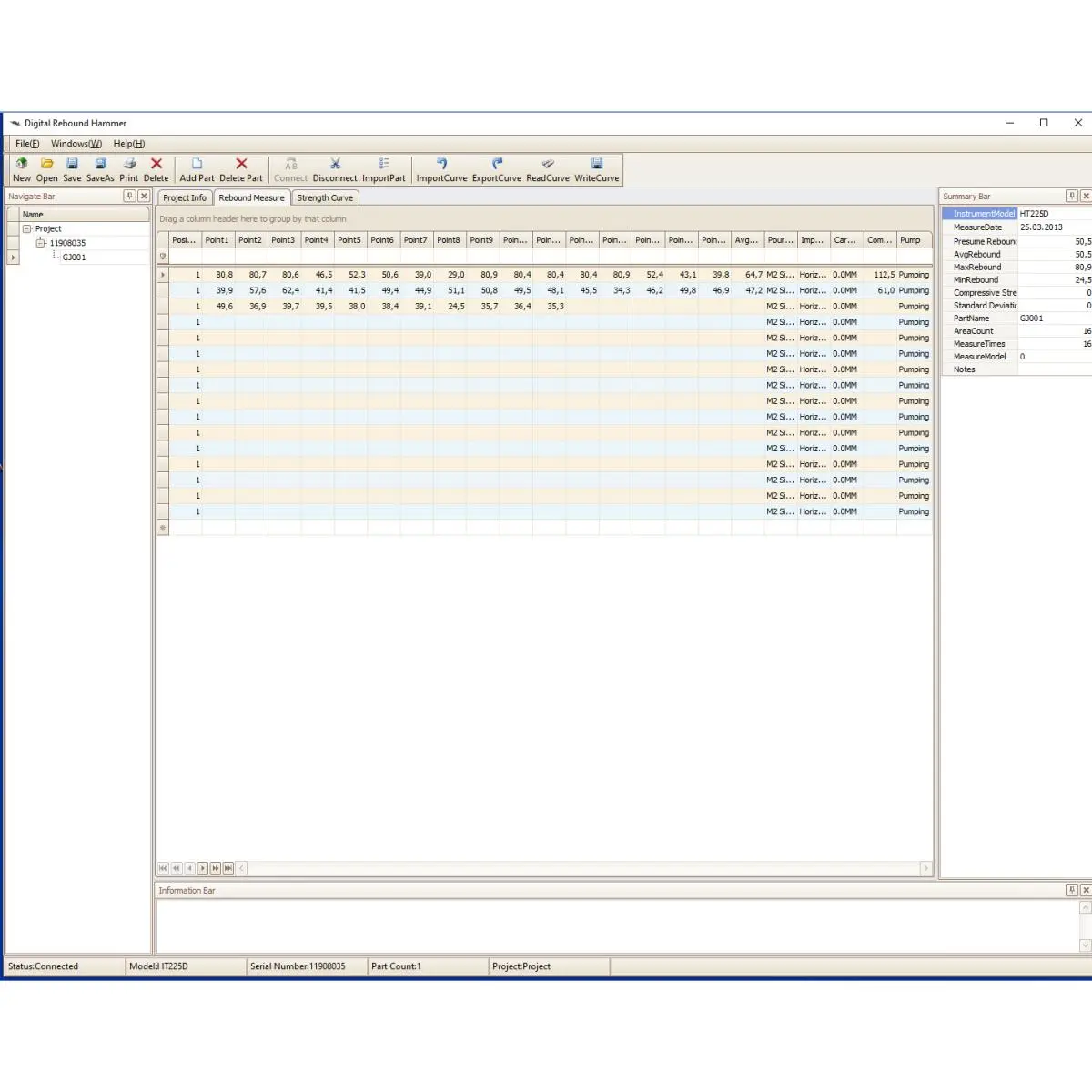

- USB interface for connection to a PC

- Measuring range 10 ... 100 N/mm², 1500 ... 8500 PSI or lbs/in²

- Measurement of the hardness of concrete

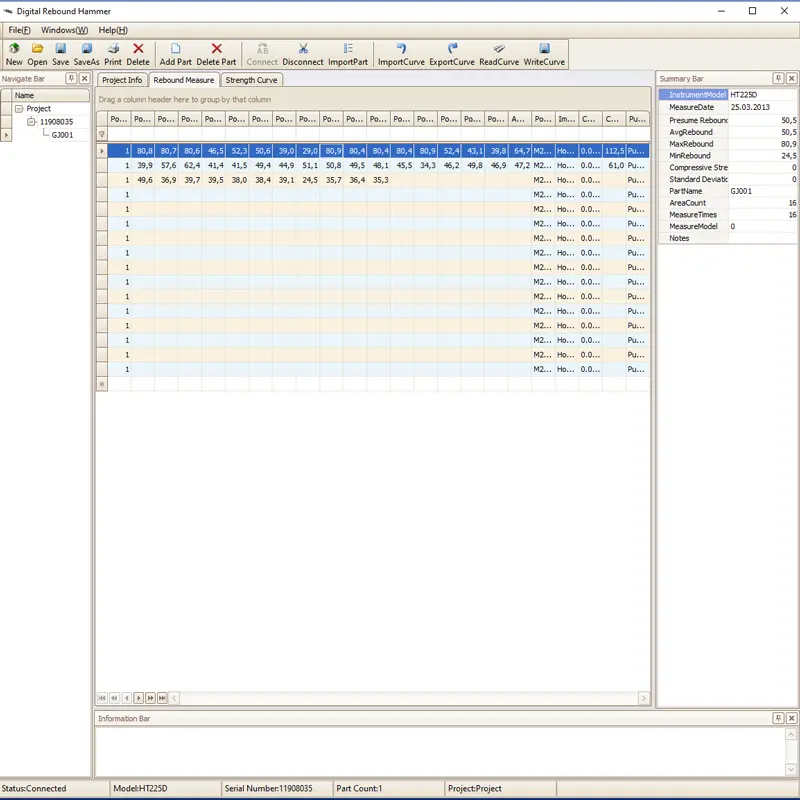

- Data storage for later analysis

- Rechargeable battery for mobile use

Specification

Hardness
Measuring range	10 ... 100 N/mm²
Resolution	0,1 R
Accuracy	±0.1 R

General technical data
Units	MPa, N/mm², kgf/mm², psi
Display type	OLED
Display resolution	256 x 64 pixels
Storage medium	Internal memory
Storage capacity	1000 Data records
Memory capacity (additional information)	with 256 measurements each
Interface	Bluetooth, Micro-USB
Nominal kinetic energy	2,207 Nm
Menu language	English, English (GB)
Protection class (device)	IP42
Power supply	5V DC, 1A
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion polymer battery
Capacity	1100 mAh
Operating conditions	-4 ... 40 °C , 0 ... 80 % RH
Storage conditions	-4 ... 40 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	280 x 75 x 60 mm
Weight	1800 g
