AED 2,180.00

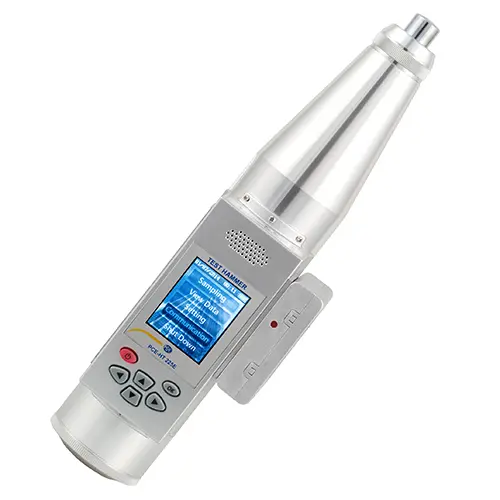

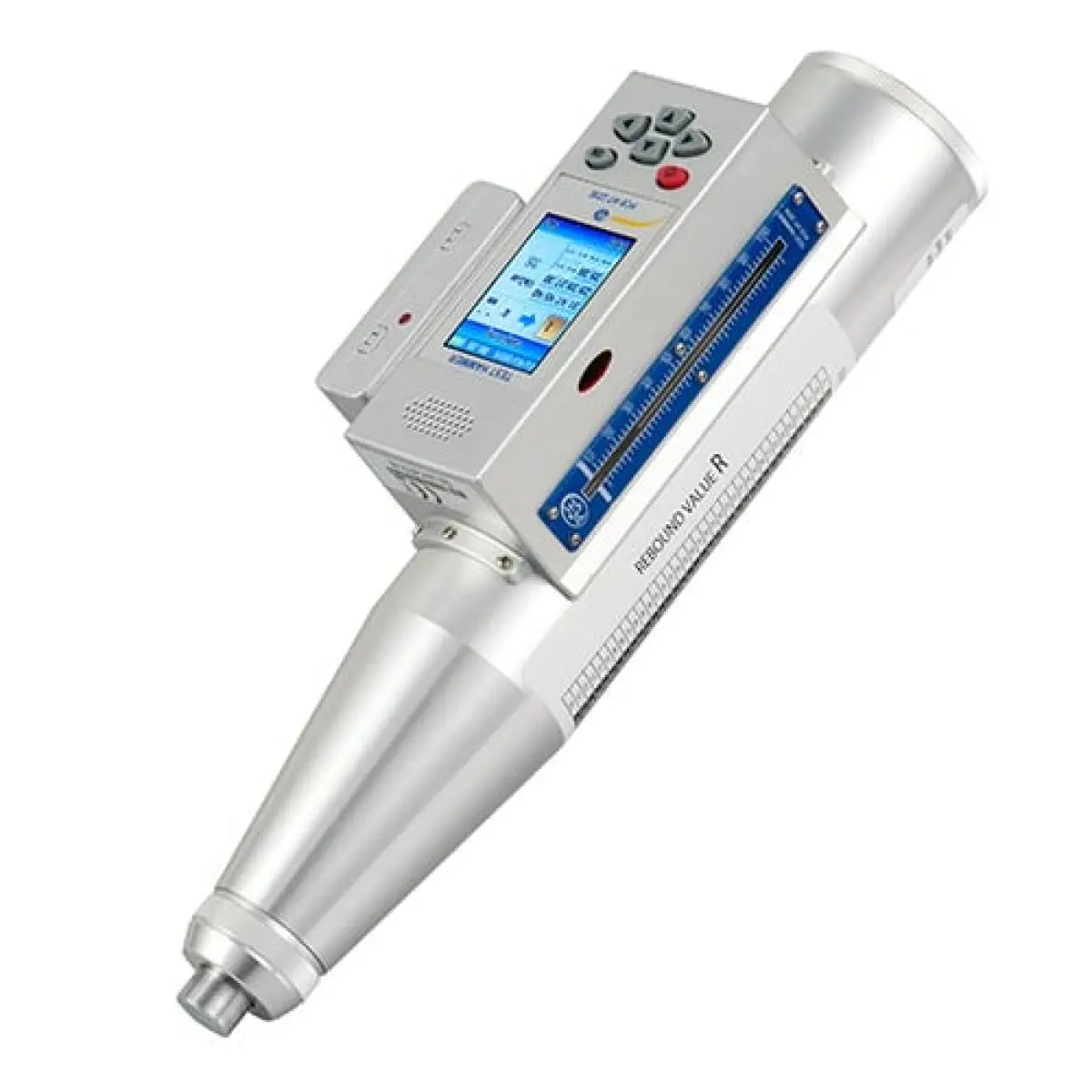

PCE-HT 225E Concrete Rebound Test Hammer
Features a direct digital display, voice functionality and internal memory

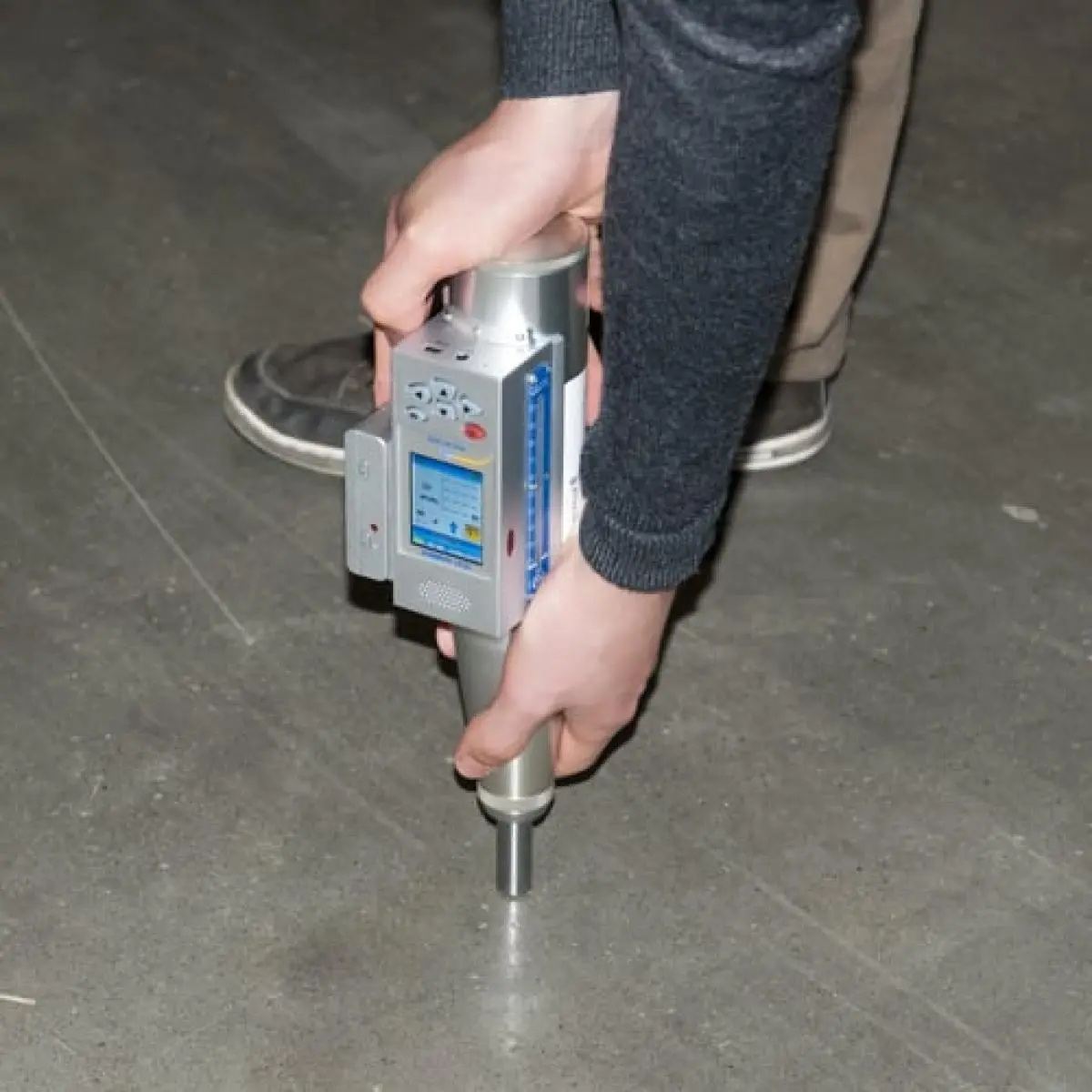

PCE-HT 225E is a concrete test hammer, also called a concrete rebound hammer or Swiss hammer, used for non-destructive measurements of surface hardness and compression strength. Suitable for use with concrete, rock and building materials, this rebound hammer features a direct digital display, voice functionality, USB port data interface and memory for storing up 200 measurement values.

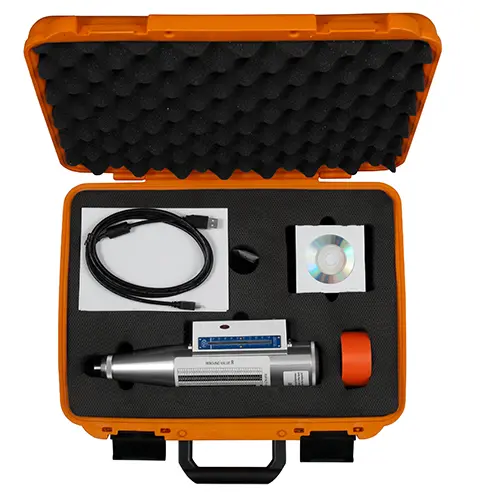

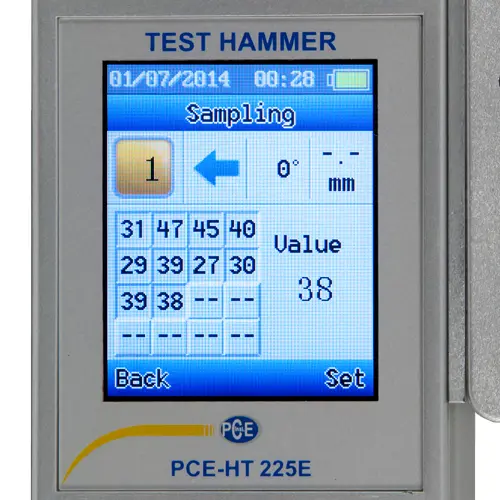

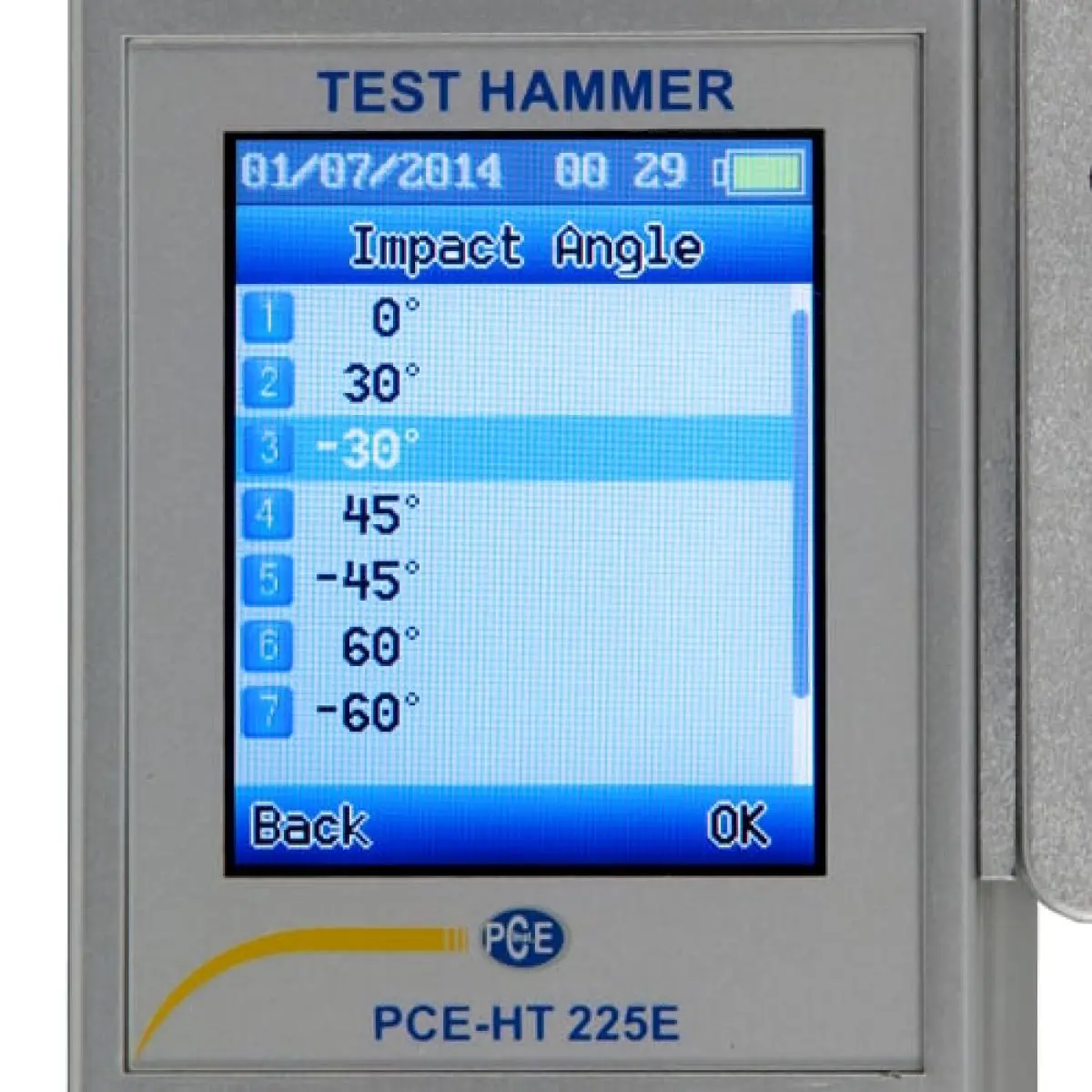

The manufacturer-calibrated concrete test hammer clearly shows the measured values directly on the attached LCD screen, making the results easy to read. The USB port allows for data transfer to a PC or printer. PC software for data processing is included in the delivery contents.
| General technical data | |
| Display type | LCD |
| Display size | 2 Inch |
| Storage capacity | 200 Values |

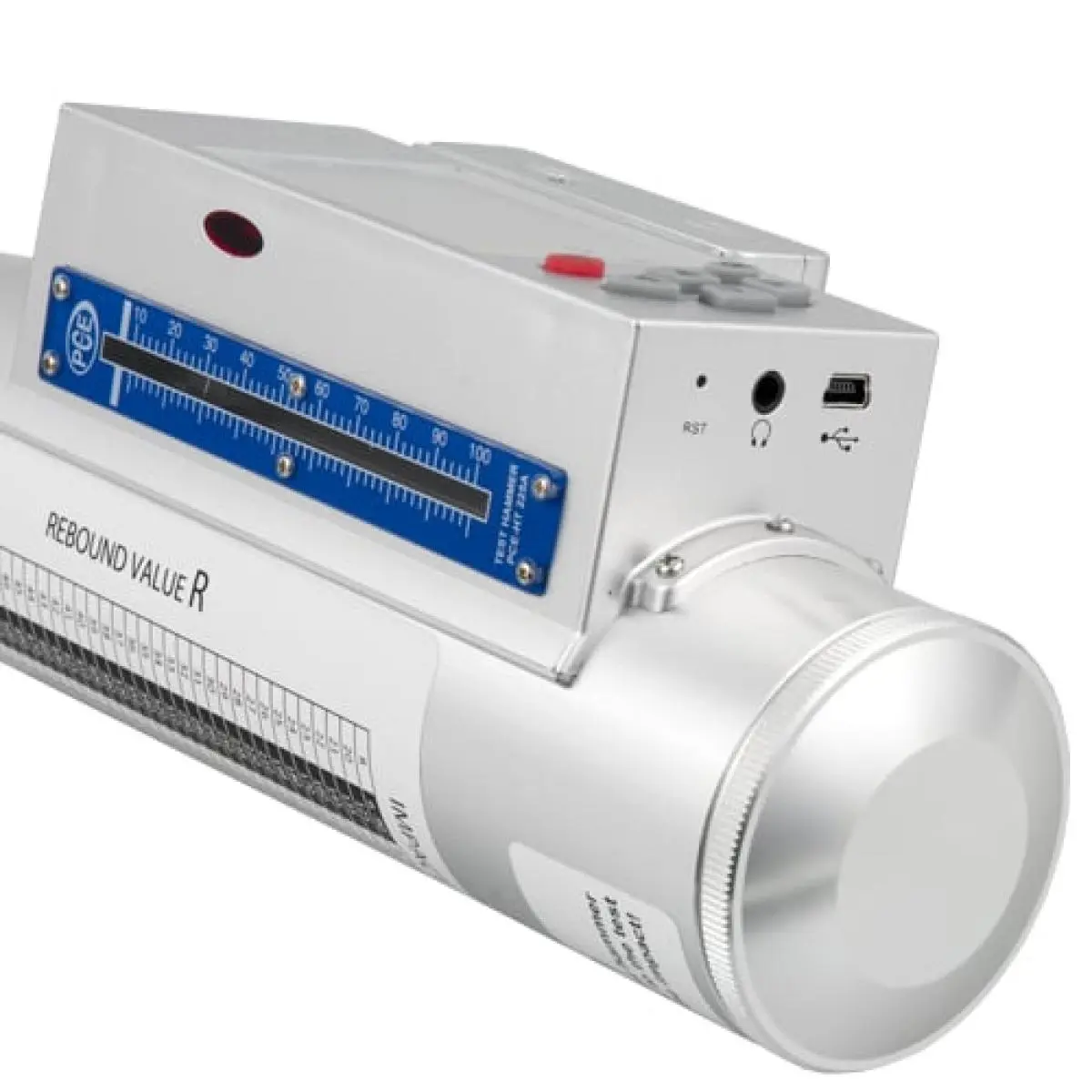

| Interface | USB |
| Nominal kinetic energy | 2,207 Nm |
| Spring constant | 785 Nm |
| Elongation of the spring | 75 mm ± 0.3 mm |
| Average rebound value | 80 ± 2 |
| Radius of the spherical tip | 25 mm ± 1 mm |
| Adhesion of the measuring tip | 0.65 N ± 0.15 N |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 4 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H x ø ) | 280 x 75 x 78 x 54 mm |
| Weight | 1230 g |
