Colorimeter PCE-CSM 3

Order no.: PCE-CSM 3

GTIN (EAN): 4250348716477

Accessory

Calibration certificate CAL-CSM

AED 2,047.00

Replacement battery PCE-CSM-BAT

AED 616.00

White Test Block PCE-WTB-CSM 1-7

AED 616.00

Universal Test Set PCE-CSM-UTC

AED 5,272.00

Powder Test Box PTB-PCE

AED 2,116.00

Description

Colorimeter PCE-CSM 3 for quality control

PC software included / Li-ion battery / different colour spaces /
determination of reference values and samples / white calibration

The colorimeter PCE-CSM 3 was developed for quality control and offers a high accuracy. When using the colorimeter, you can choose between different colour spaces (CIE L*a*b*C*h, CIE L*a*b*). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, CIE L*a*b*

- white calibration

- determination of reference values and samples

- measuring aperture is 8 mm

- rechargeable lithium-ion battery

- high accuracy

- easy to use

- incl. PC software

Specification

General technical data
Display type	TFT colour display
Display size	2,8 Inch
Storage medium	Internal memory
Storage capacity	20000 Values
Memory capacity (additional information)	100 standards, 20000 samples
Interface	USB-B, RS232
Sensor	Silicon photodiode
Light source	D65
Colour spaces	CIELabCh, CIEL a* b*
Colour difference	ΔEab ΔLab ΔEC*h

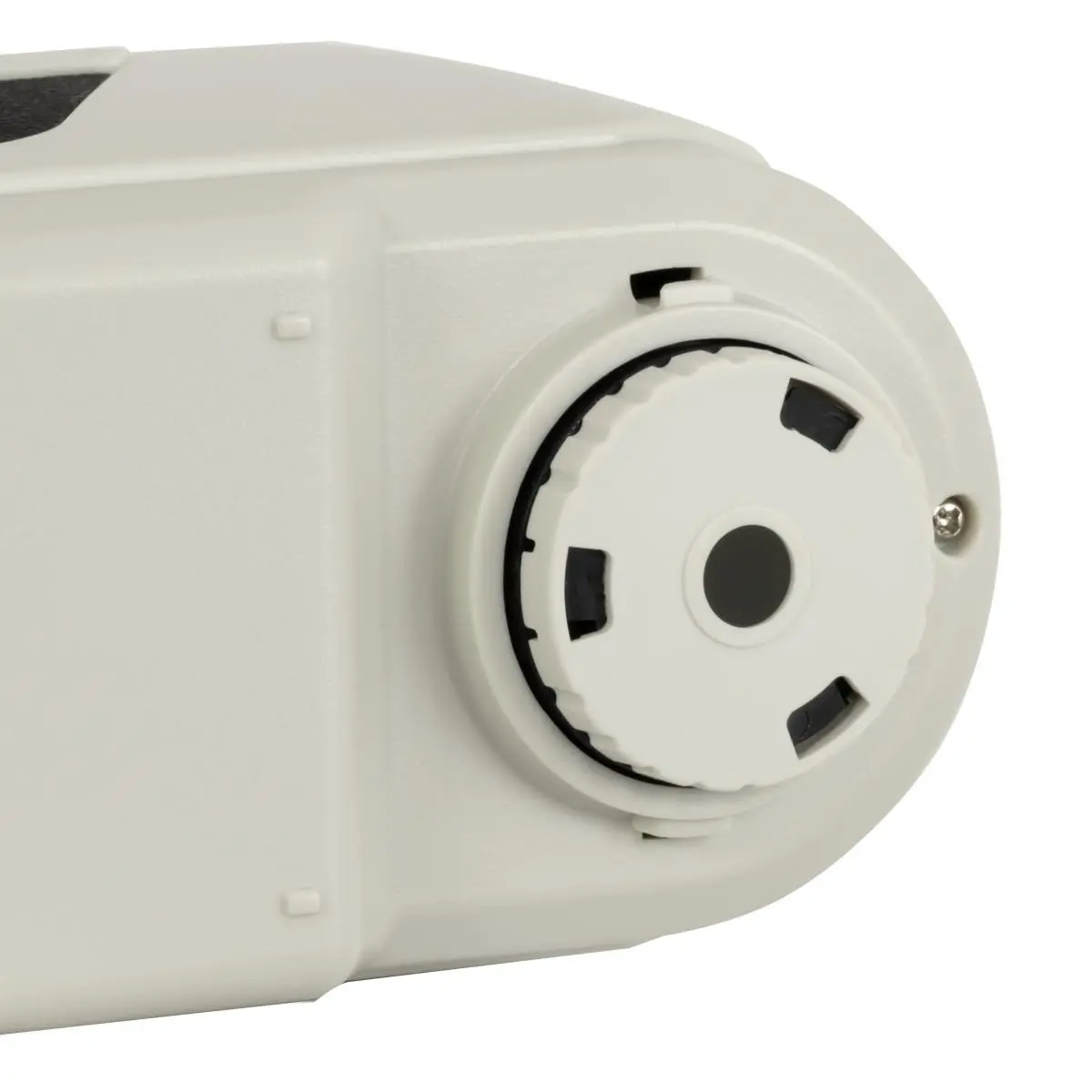

Measuring aperature	Ø 8 mm
Measuring geometry	8°/d
Calibration	White or black calibration selectable
Menu language	English, Chinese, English (GB)
Protection class (device)	IP20
Power supply	5 V DC, 2 A
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion battery
Capacity	3200 mAh
Operating conditions	0 ... 40 °C , 0 ... 85 % RH
Storage conditions	0 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	200 x 70 x 100 mm
Weight	500 g
