Colorimeter PCE-CSM 10

Colorimeter PCE-CSM 10 [zoom]

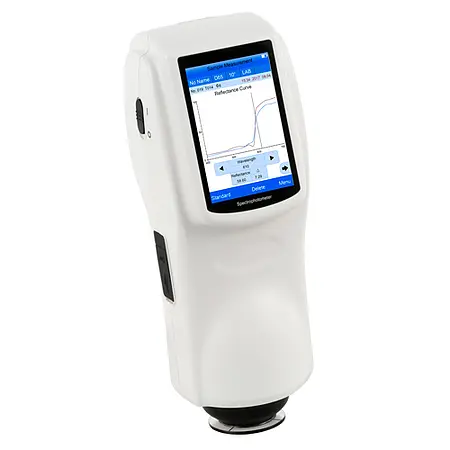

Colorimeter PCE-CSM 10

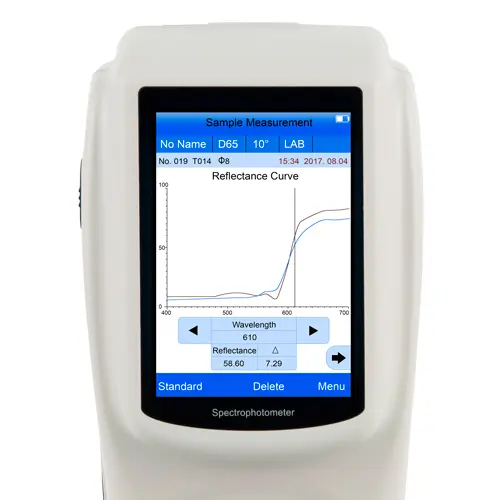

Colorimeter Display

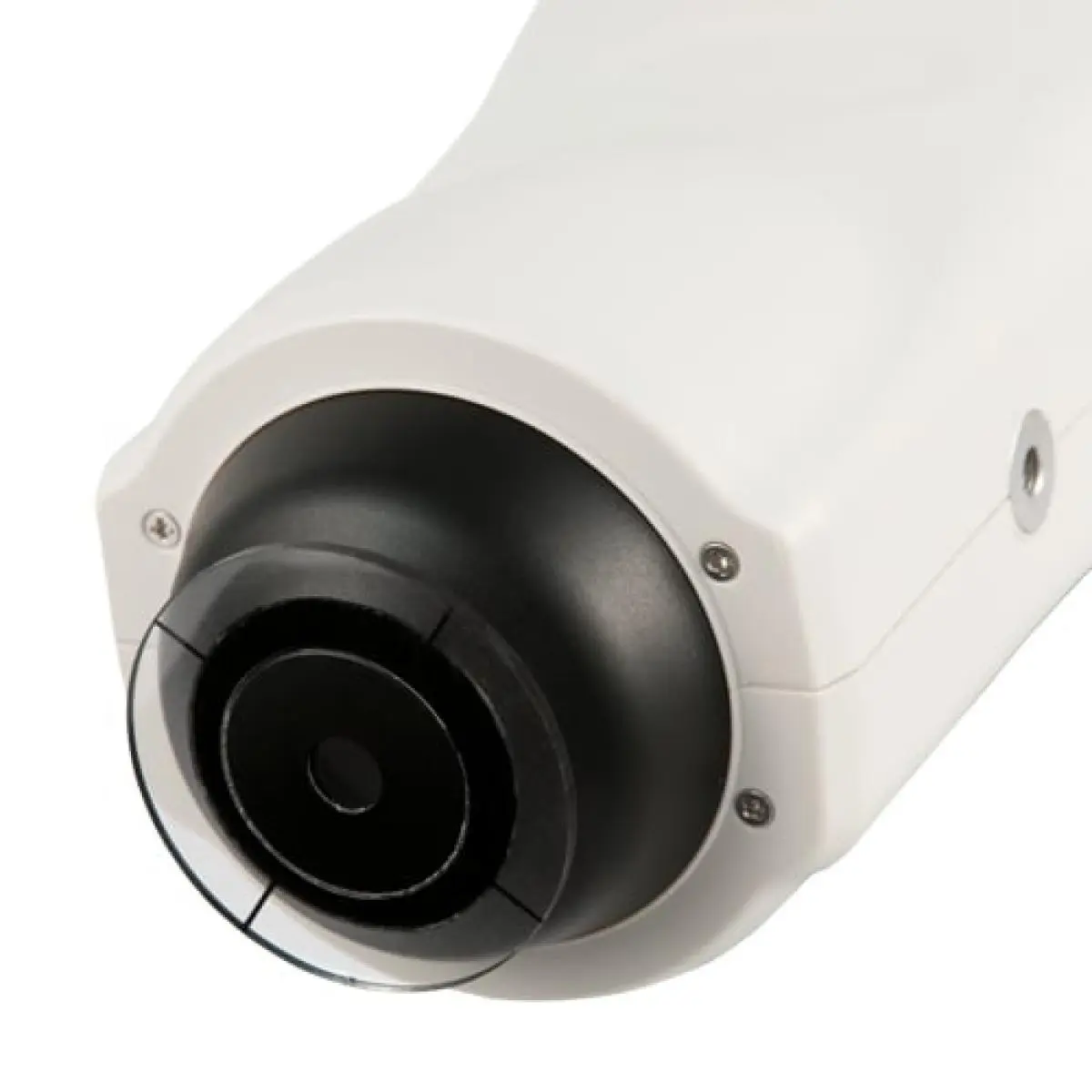

Colorimeter Sensor

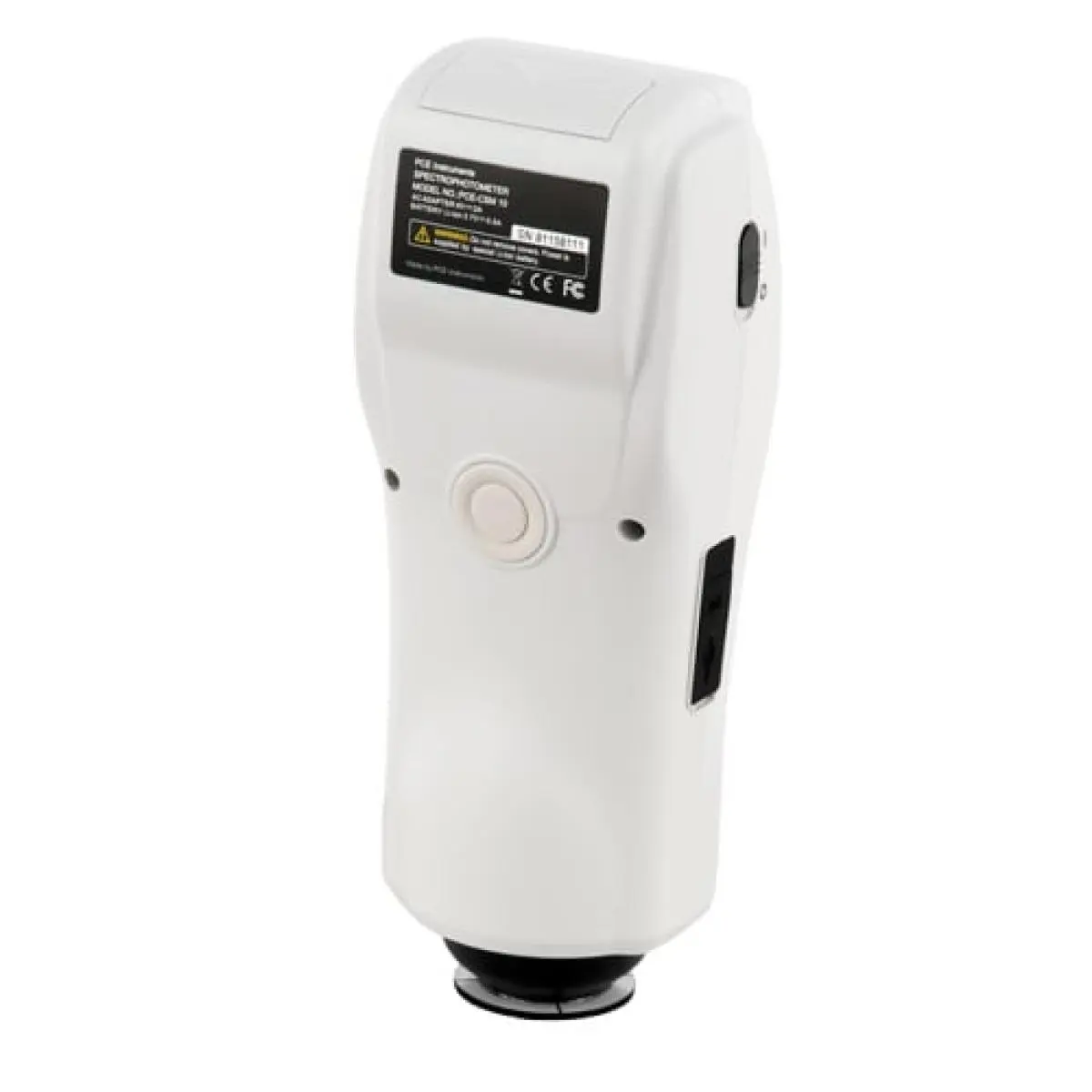

Colorimeter Rear side
Colorimeter Display

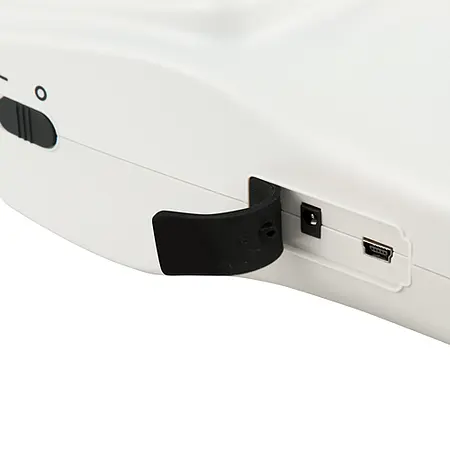

Colorimeter Connections

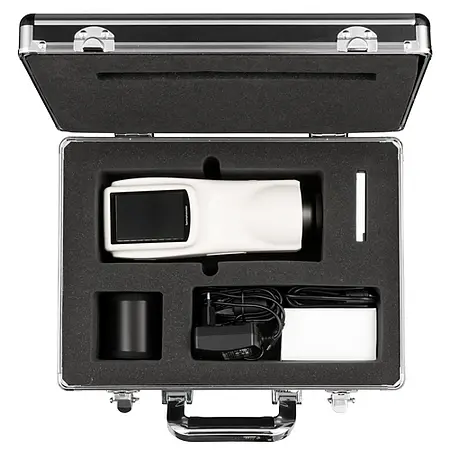

Colorimeter Delivery scope

Colorimeter PCE-CSM 10

Order no.: PCE-CSM 10
GTIN (EAN): 4250348716453
AED 29,013.00
AED 30,463.65
price ex. (customs / clearance)
:
4250348716453
PCE-CSM 10
Delivery time:1-2 working days
Handheld
Internal
Yes
Solids
Yes

Accessory

Description

Colorimeter PCE-CSM 10 for quality control / PC software included / Li-ion battery / different color spaces / black and white calibration / determination of reference values and samples / white calibration / 3.5" touch screen

The colorimeter PCE-CSM 10 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the colorimeter, you can choose between different color spaces (CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.


In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 1000 reference values and up to 15000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB
- black and white calibration
- determination of reference values and samples
- 3.5" touch screen display
- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software
- 8 mm aperture

Specification

General technical data
Display type  TFT touchscreen
Display size  3,5 Inch
Storage medium  Internal memory
Storage capacity  25000 Values
Memory capacity (additional information)  1000 standard values, 25000 samples
Interface  Mini-USB, RS232
Sensor  Silicon photodiode
Light source  combined LED sources
Illuminant: D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10(TPL5), F11(TL84) F12(TL83/U30)
Measurement time  1,2 s
Colour spaces  XYZ, Yxy, LCh, CIEL u* v*, HunterLAB, WI (whiteness), YI (yellowness)
Colour difference  ΔE*ab
ΔE*uv
ΔE*94
ΔE*cmc (2:1)
ΔE*cmc (1:1)
ΔE*cmc (l:c)
CIE2000 ΔE*00
ΔE (h)
Measuring aperature  Ø 8 mm
Measuring geometry  8°/d
Wavelength range  400 ... 700 Nm
Observer  2°, 10°
Calibration  White or black calibration selectable
Menu language  Chinese, English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC, 2 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  3200 mAh
Dimensions ( L x W x H )  230 x 90 x 77 mm
Weight  600 g

Delivery Scope

1 x Colorimeter PCE-CSM 10,
1 x Aluminium carrying case
1 x AC Mains adapter
1 x Lithium-ion battery
1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable
1 x Wrist band
1 x PC software
1 x Instruction manual
