Closing Force Measuring Device / Closing Force Transducer

Closing Force Transducer FM100 for Doors and Gates

Order no.: FM100-SY-500-2000
GTIN (EAN): 4260650210013
AED 7,302.00
AED 7,667.10
price ex. (customs / clearance)
:
4260650210013
FM100-SY-500-2000
Delivery time:1-2 working days

Description

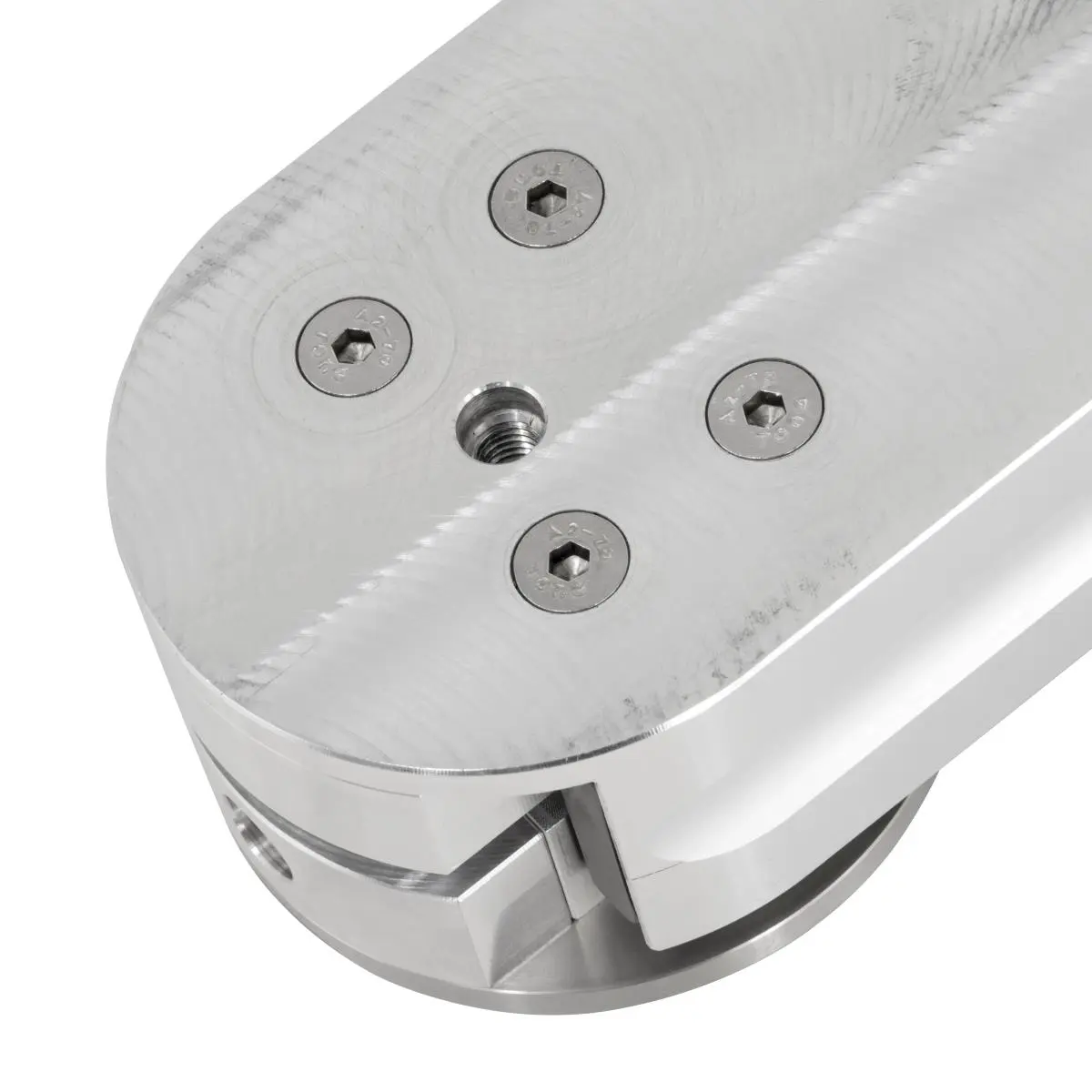

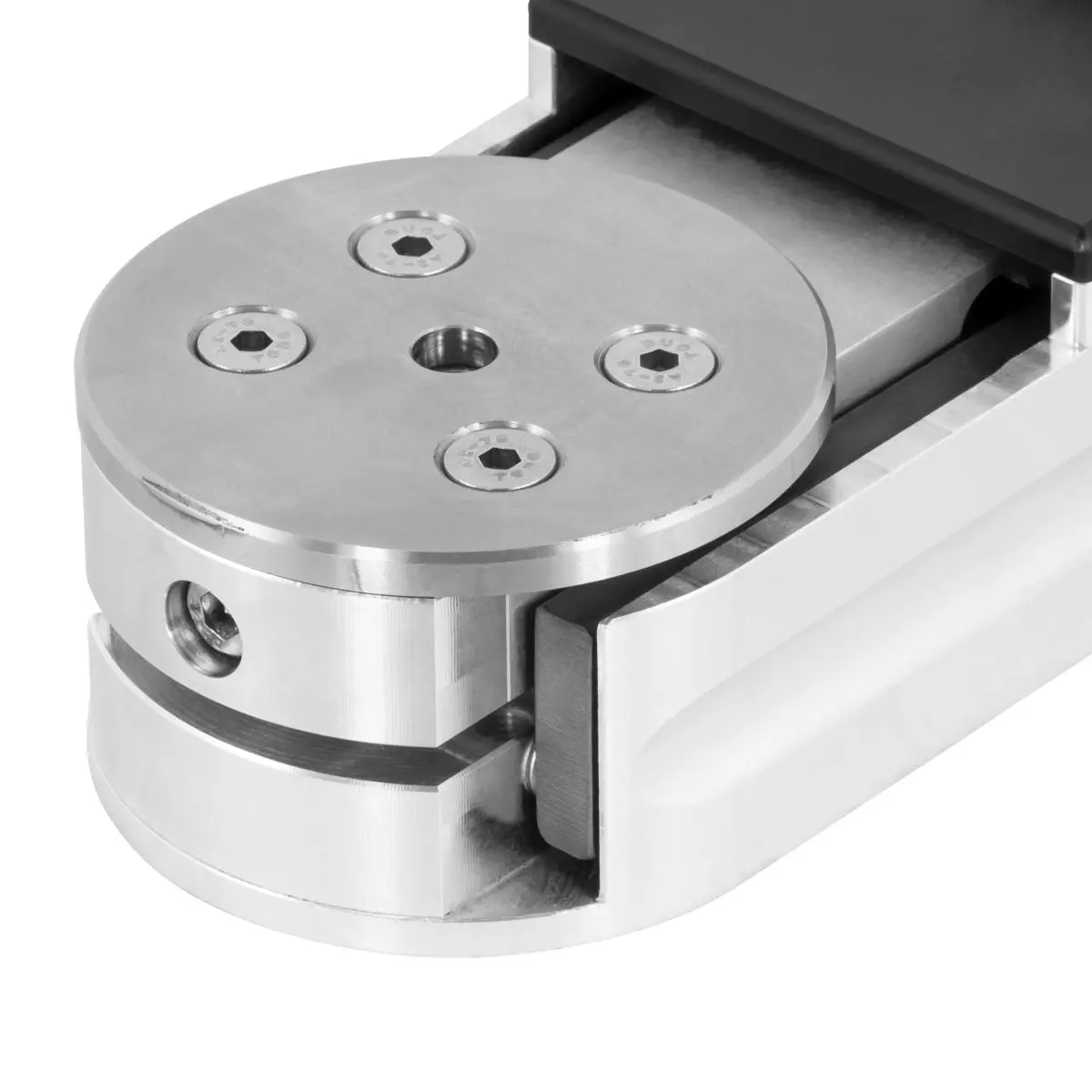

Closing Force Transducer
Closing force measuring device for doors and gates


The closing force transducer is an electronic measuring device for externally powered doors and gates. Typical use is the final inspection of new systems as well as regular inspections. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

In the case of cyclical measurements on systems with several doors and gates, a quick and easy implementation is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation.

With just a few operating steps, the measurements of a complete system can be taken over, printed out in tabular form and saved in a database. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.


Highlights

- Support of relevant standards – EN 12445/12453, EN 60335-2,
DIN V 18650, ASR A1.7, etc.
- Precise measurements
- Robust design
- Ease of use - operate with a single button or remotely via
Microsoft® DLL interface or National Instruments® LabView library
- Complete scope of delivery - including high-quality transport case and
software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support - calibration service, standard change service
guaranteed
the application of the latest version of the standard
- Software support - integration into existing software structures possible
- Extensive systems can be measured in one run

Specification

Force
Measuring range  0 ... 2000 N
Resolution  1 N
Accuracy  ±3 N or 3 % of Rd

General technical data
Standard(s)  EN 14752:2015
Standard(s) additional information  - EN 81-1 2000-4-EG
- FMVSS118
- APTA PR-M-S-18-10
- ASME A17.1 2000
- DIN EN 14752:2005
- 2001-85-EG / ECE R. 107 §35 e (5) StVZO (German Road Traffic Licensing Regulations)
- EN14120 DIN 18650-1
- DIN EN 12453
- DIN EN 16005
- DIN EN 60335-2-103
- ASR A1.7
- ECE R-21
- prEN 12650-1
Stiffness  500 N/mm
Gap width  50 mm
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP43
Power supply  9V / 640 mAh
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Performance  5,76 Wh
Operating conditions  -10 ... 40 °C , 0 ... 90 % RH
Storage conditions  -40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H x ø )  210 x 80 x 50 x 80 mm
Weight  2100 g

Delivery Scope

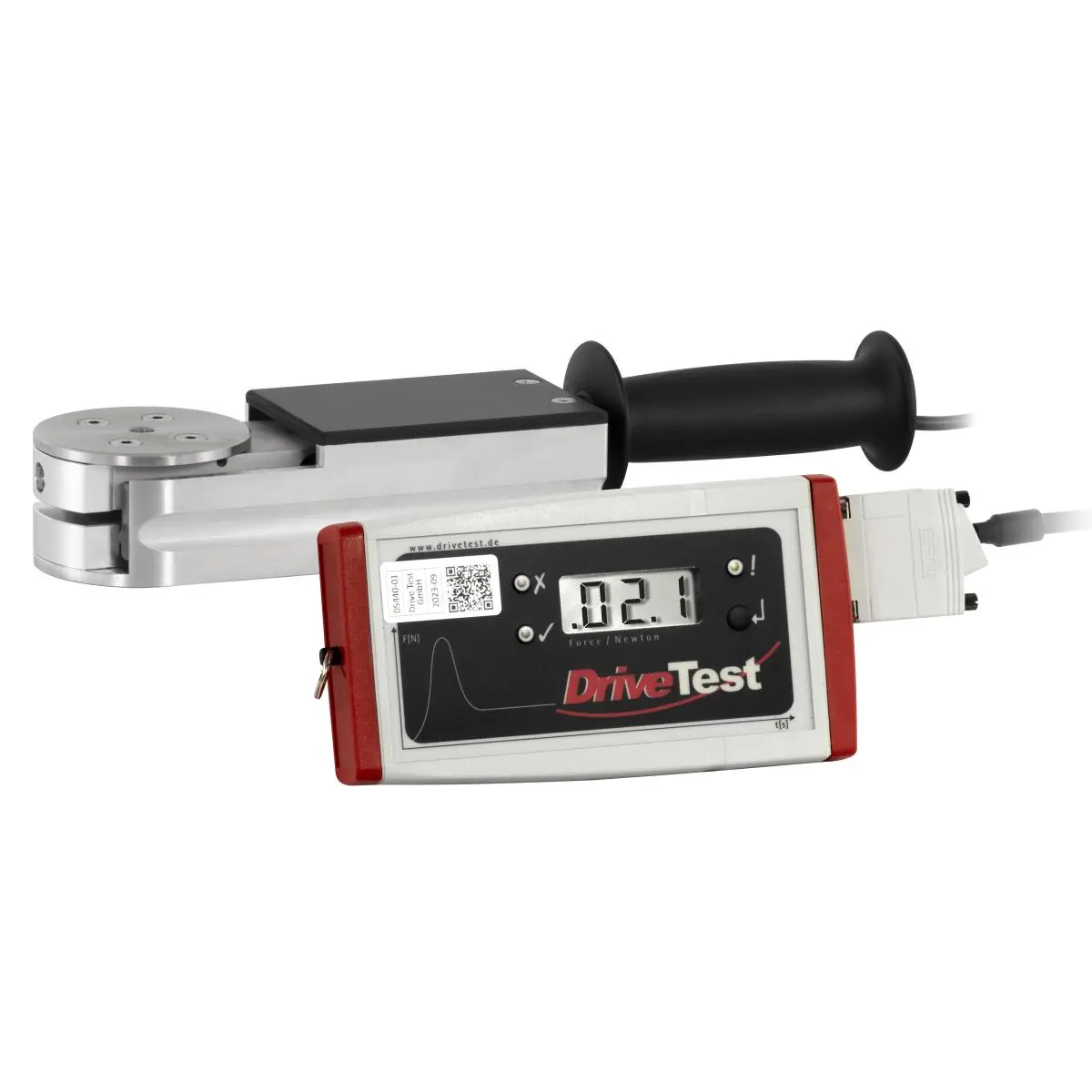

1 x Closing force transducer FM100 with 2.5 m / 8.2 ft connection cable
1 x Separate measured value acquisition module (SEB2 display device) with LCD
display, LED display,
Membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
